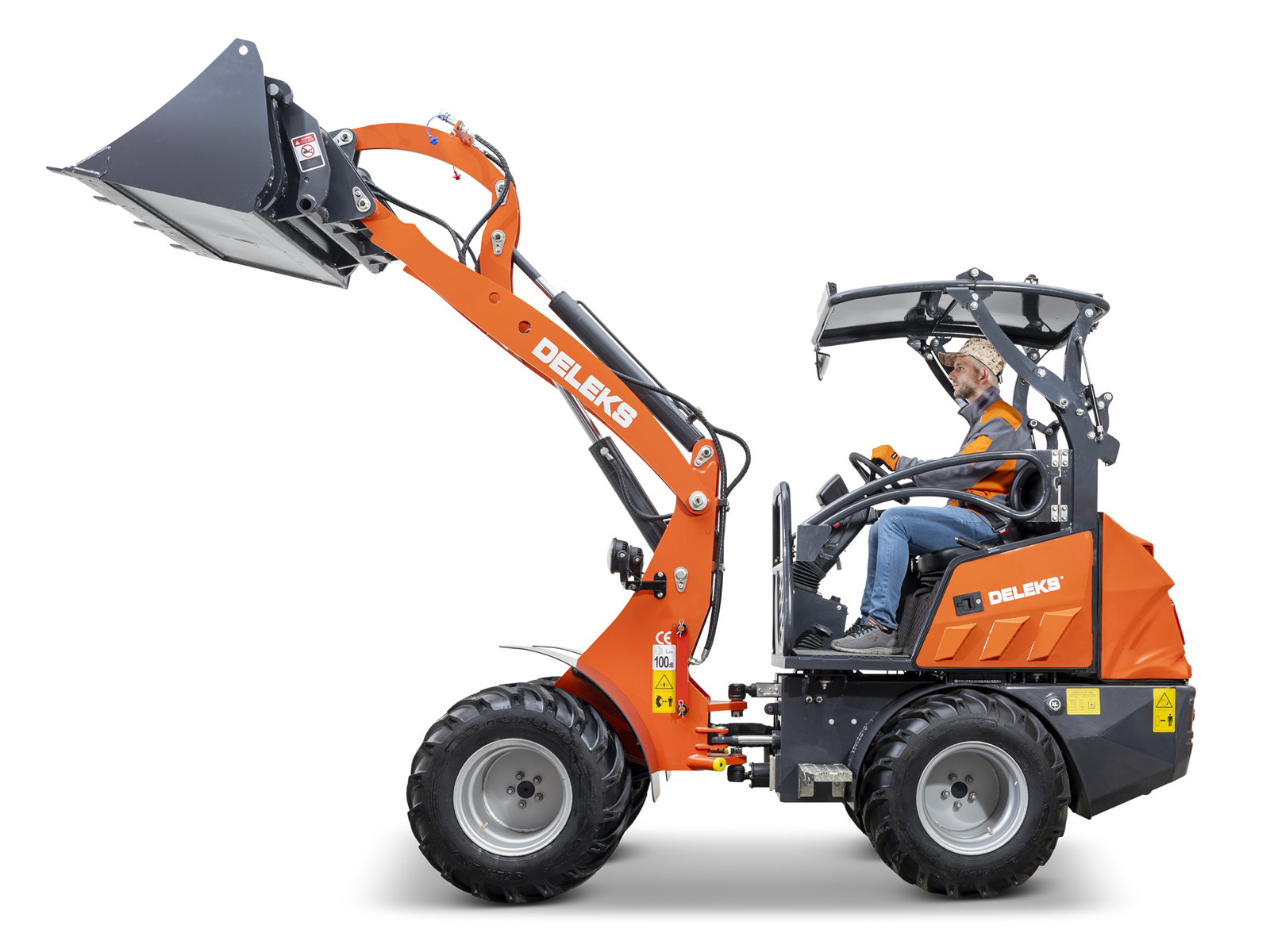

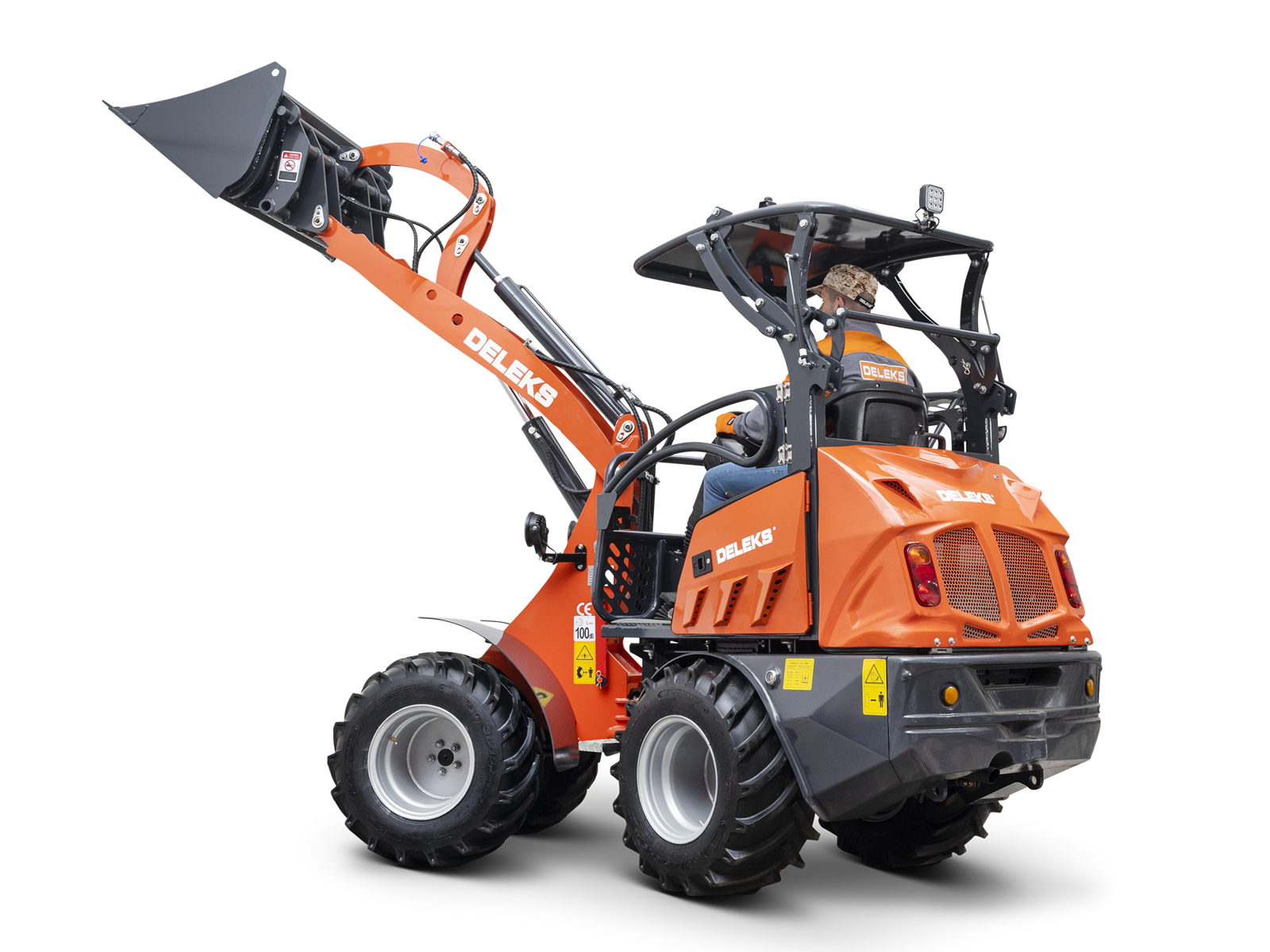

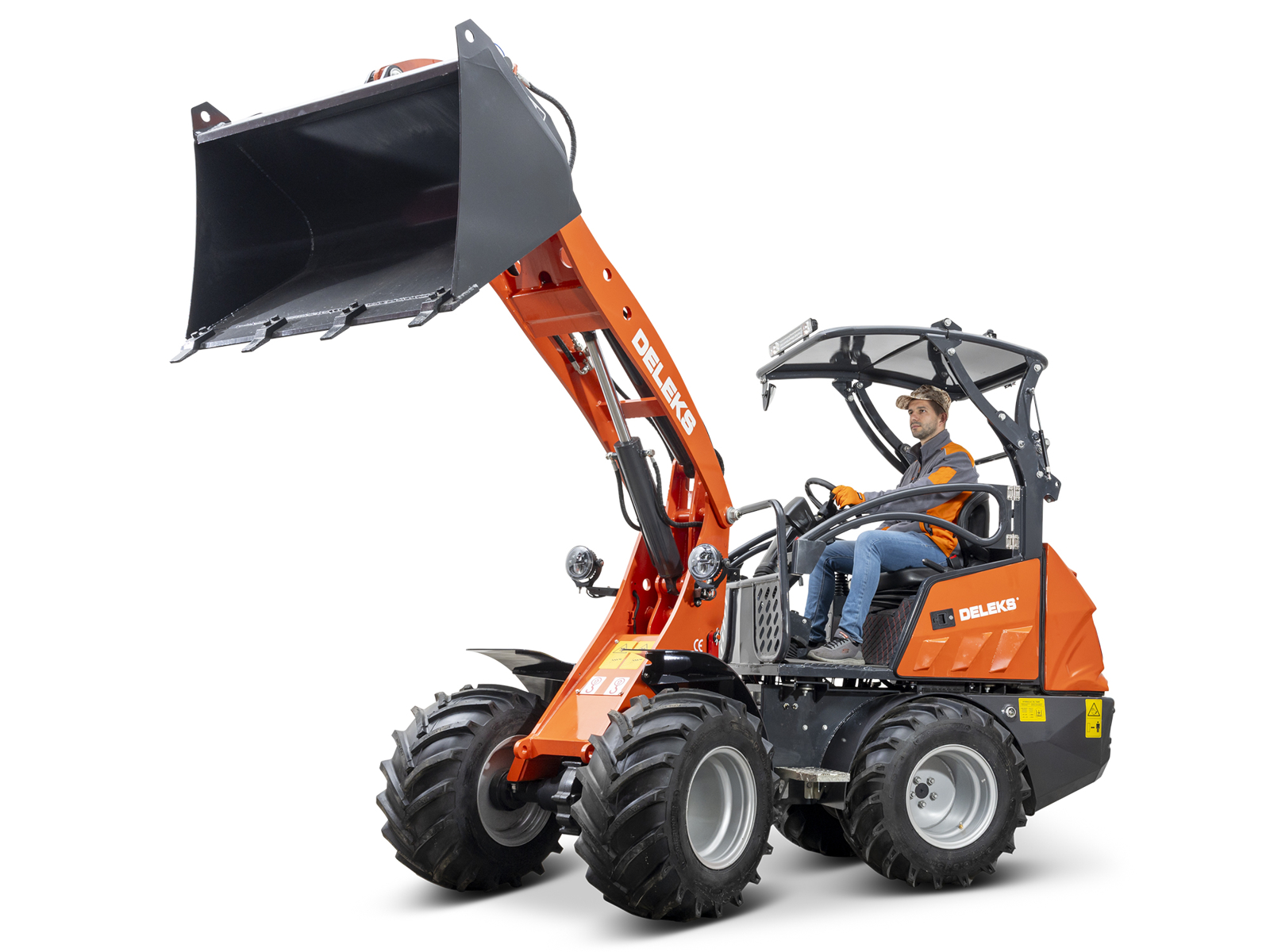

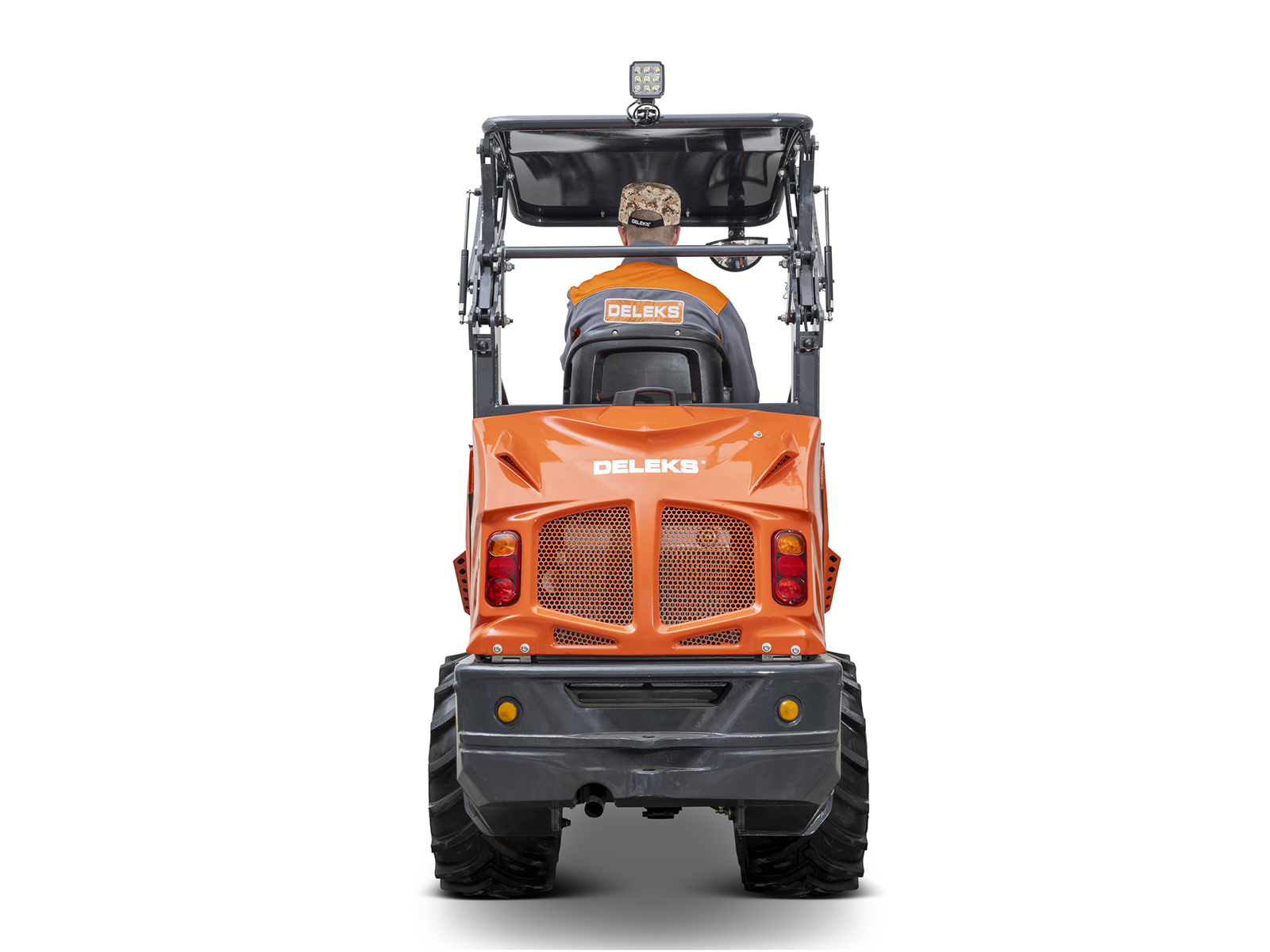

Compact wheeled loader with Kubota engine, 4x4, EURO hitch

Compact 4x4 wheeled loader DELEKS® with 1000 kg lifting capacity, equipped with KUBOTA D1105 Euro 5 engine and BONDIOLI & PAVESI Made in Italy hydraulic pump, designed mainly for livestock farms, stables and intensive material handling.

Professional machine developed to provide high lifting force, stability and reliability even in demanding working conditions. Thanks to its robust structure, professional hydraulic system and hydrostatic transmission, it is a versatile solution for livestock farms, equestrian centers, agricultural businesses and property maintenance.

Main applications: pallet and heavy material handling, hay and feed loading, stable cleaning, bedding management, farm maintenance, light construction work and bulk material handling.

Performance and working capacity: with a 1000 kg lifting capacity and an operating weight of 2070 kg, this wheeled loader ensures high stability and safety during lifting and handling operations. The 0,26 m³ bucket and maximum lifting height of 3145 mm allow efficient work even in intensive applications.

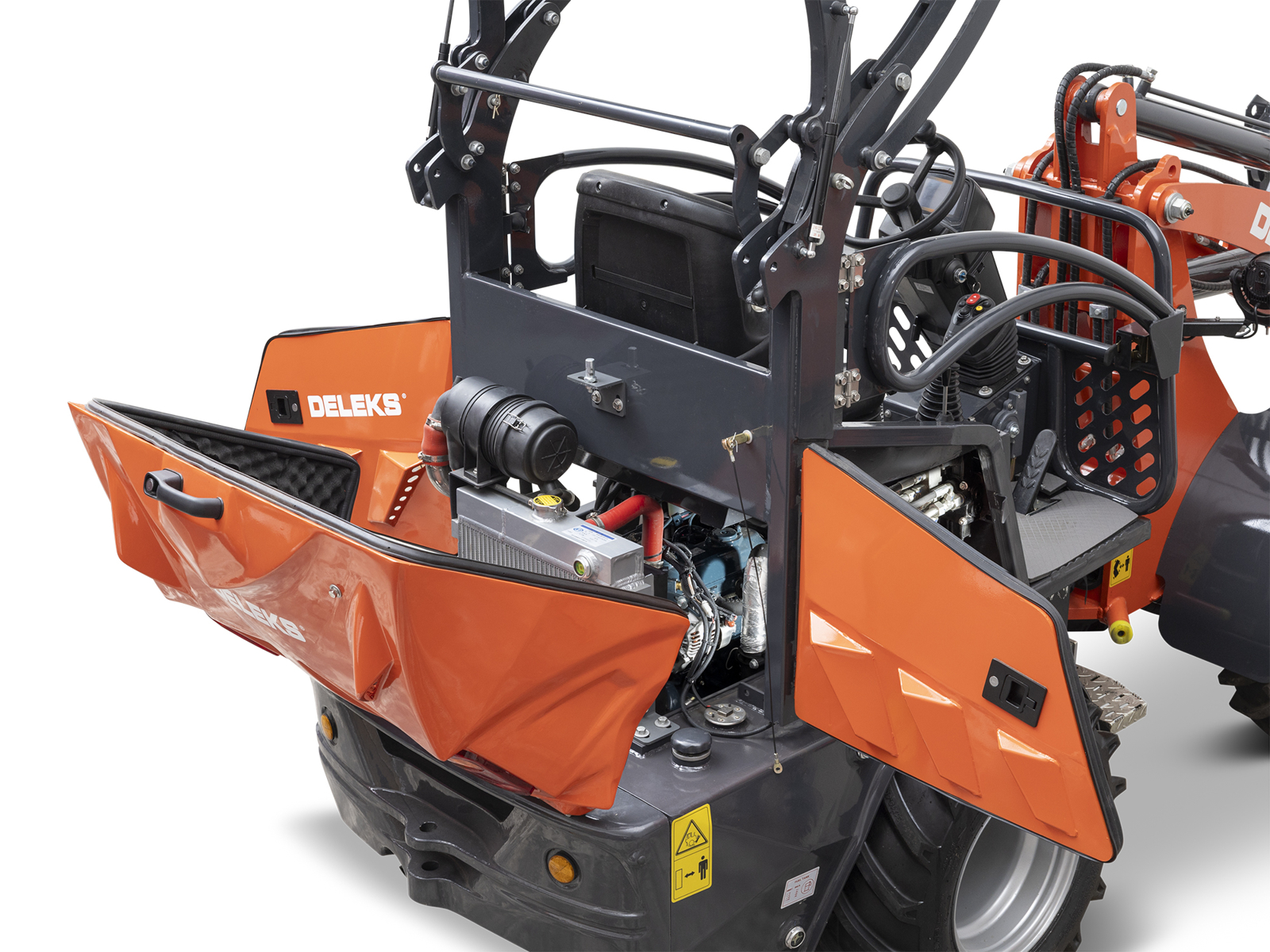

KUBOTA D1105 Euro 5 engine: 3-cylinder water-cooled 4-stroke diesel engine, 1.123 L displacement and 18.4 kW power output, compliant with Euro 5 / EPA4 regulations. The KUBOTA D1105 is widely recognized for reliability, low fuel consumption and long service life.

Professional hydraulic system: equipped with BONDIOLI & PAVESI M4PV28-28/A23 Made in Italy hydraulic pump, ensuring precision, smooth operation and long-term reliability.
• working pressure: 18 MPa
• hydraulic flow: up to 60 L/min
• boom lifting time: 3.2 s

Automatic bucket self-leveling: the automatic self-leveling system keeps the bucket correctly positioned during lifting operations, improving safety, precision and operator comfort during pallet, feed and bulk material handling.

Versatility and EURO hitch: standard EURO quick hitch compatible with a wide range of professional attachments:
• pallet forks
• bale forks
• standard and toothed buckets
• sweepers
• snow blades and other professional attachments

A multifunctional machine designed for year-round operation.

Transmission, traction and stability:
• hydrostatic continuously variable transmission
• 4-wheel drive (4x4)
• excellent traction even on difficult terrain
• climbing capacity up to 20%
• minimum turning radius: 786 mm

The compact structure and balanced center of gravity ensure excellent maneuverability and stability even under full load.

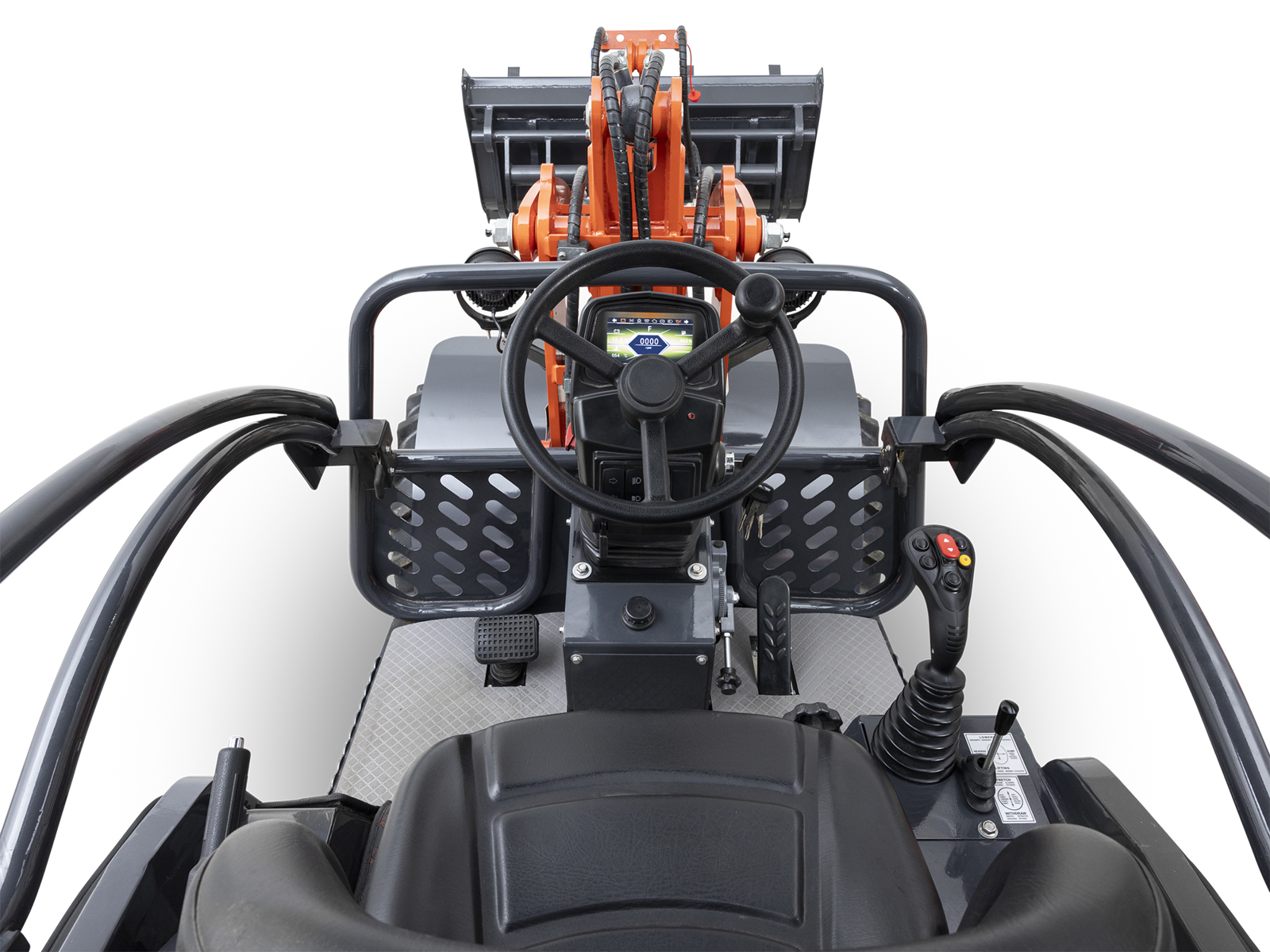

Operator comfort and safety:
• electric joystick for precise control
• protective canopy
• adjustable steering wheel
• LED lighting system
• hydrostatic braking system
• manual parking brake
• 3-way hydraulic valve

Main dimensions:
• overall dimensions: 3960 × 1180 × 2330 mm
• wheelbase: 1378 mm
• track width: 850 mm
• ground clearance: 330 mm
• tires: 26×12.00-12

Complete technical specifications and dimensions: see PDF.

Operational advantages: high lifting capacity, professional-grade components, excellent versatility thanks to the EURO hitch, easy operation and reduced maintenance. A machine designed to increase daily productivity and reduce working time.

Reliability and maintenance: robust construction, professional hydraulic components and the KUBOTA engine ensure long-term durability and reliability even under intensive use.

Service and spare parts:

• Original DELEKS® spare parts ensure full compatibility and long-term reliability.
• The DELEKS service network coordinates technical support and spare parts availability.

Transport notes:

• Delivery location must be accessible to a semi-trailer truck.
• Preparation and delivery times may exceed those indicated on the “Shipping” page – please contact our sales office before confirming your order.
