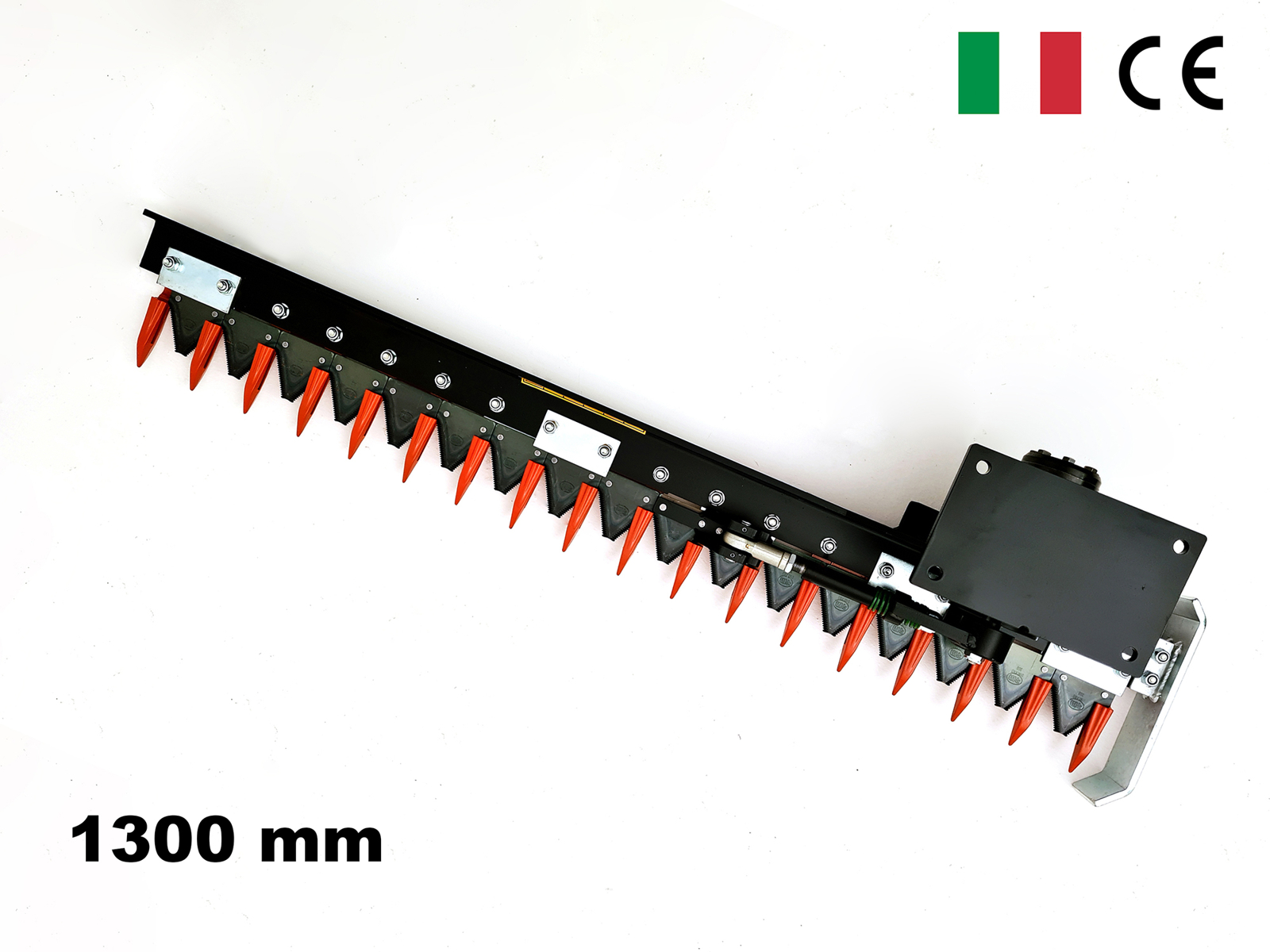

Hydraulic cutter bar for grass and hedges, hedge trimmer - DELEKS® HR-130-S - Made in Italy
Hydraulic cutter bar DELEKS® HR is ideal for greenery: grass and hedges with a maximum diameter of 1-2 cm.

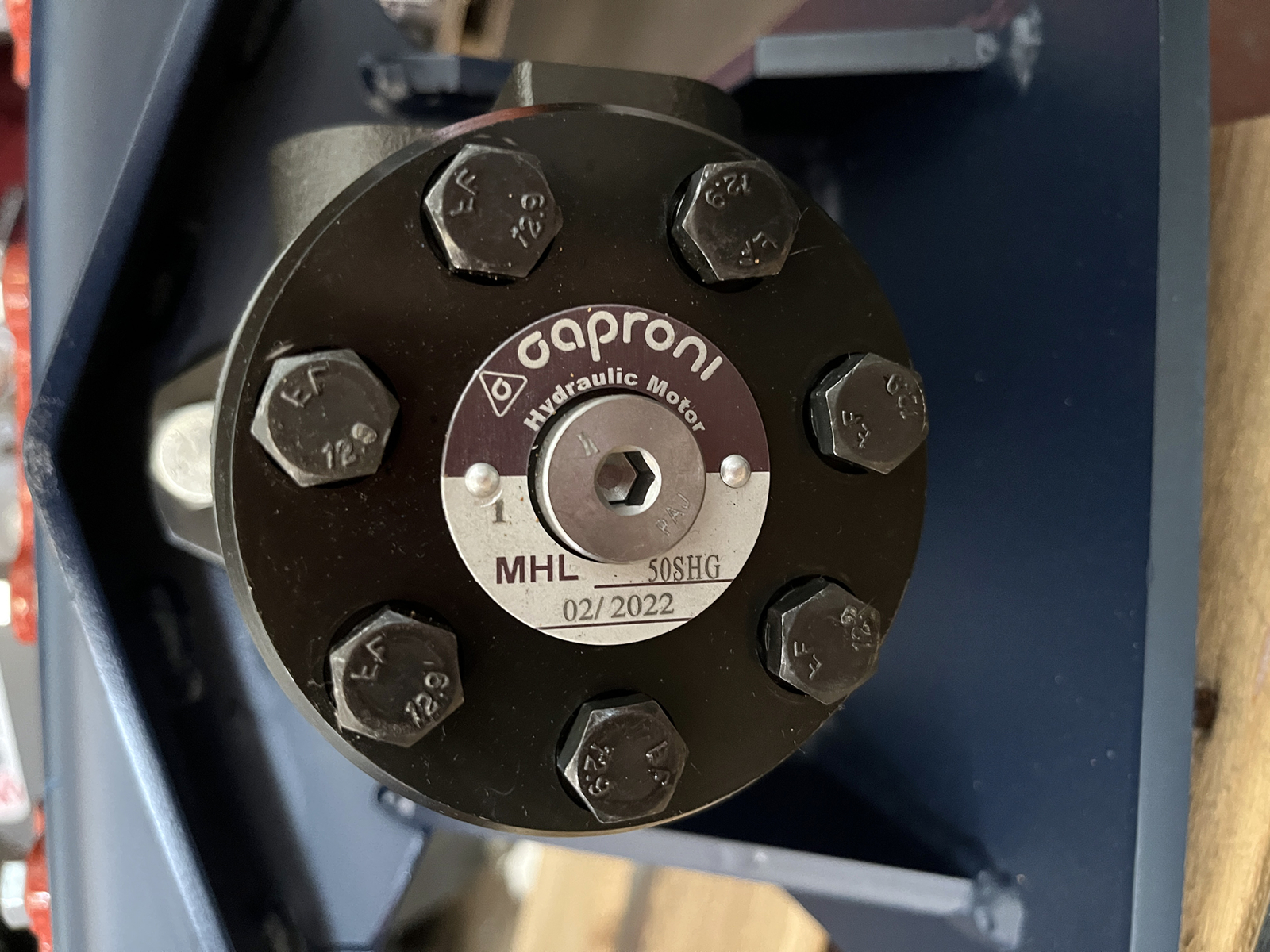

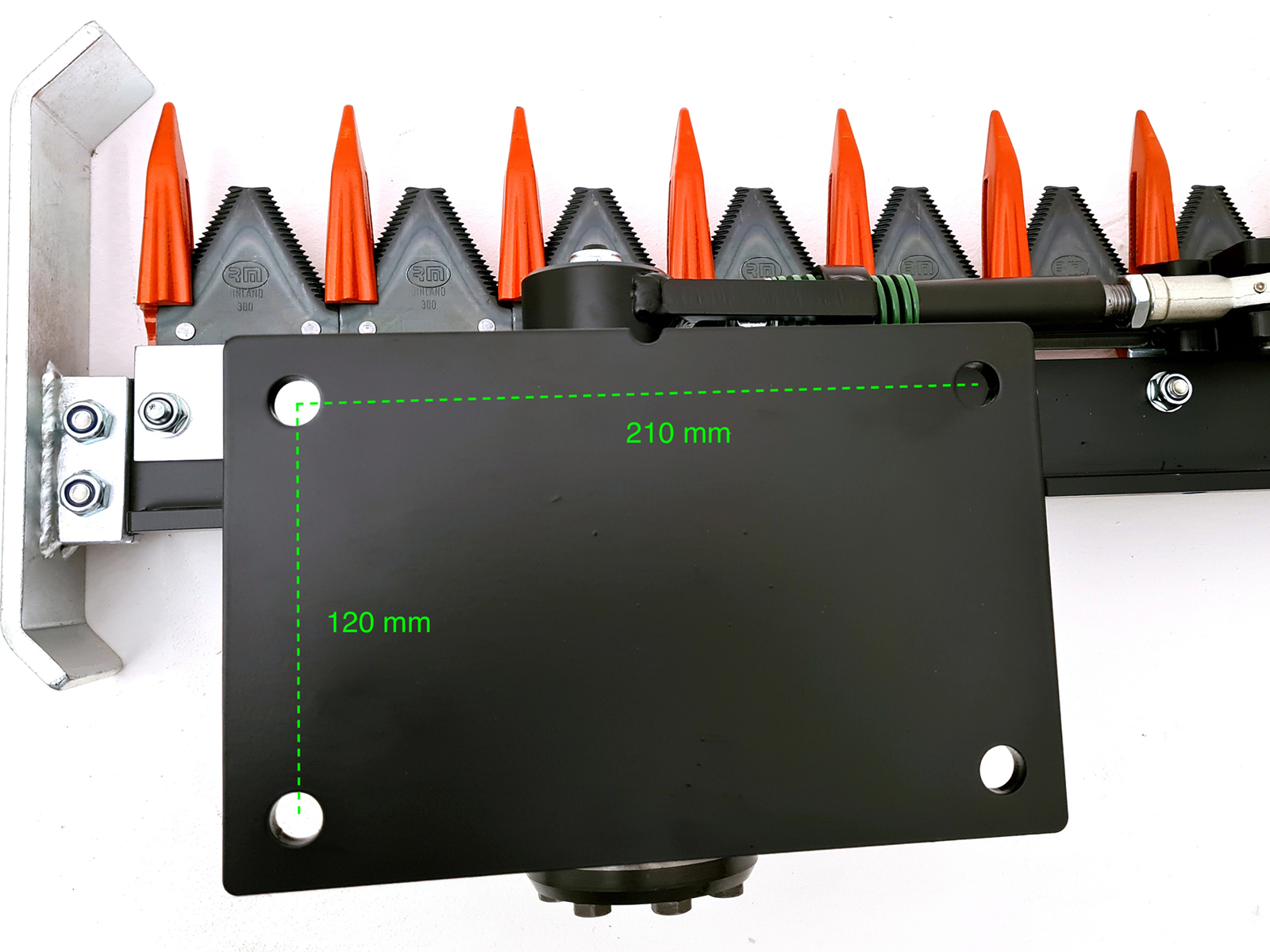

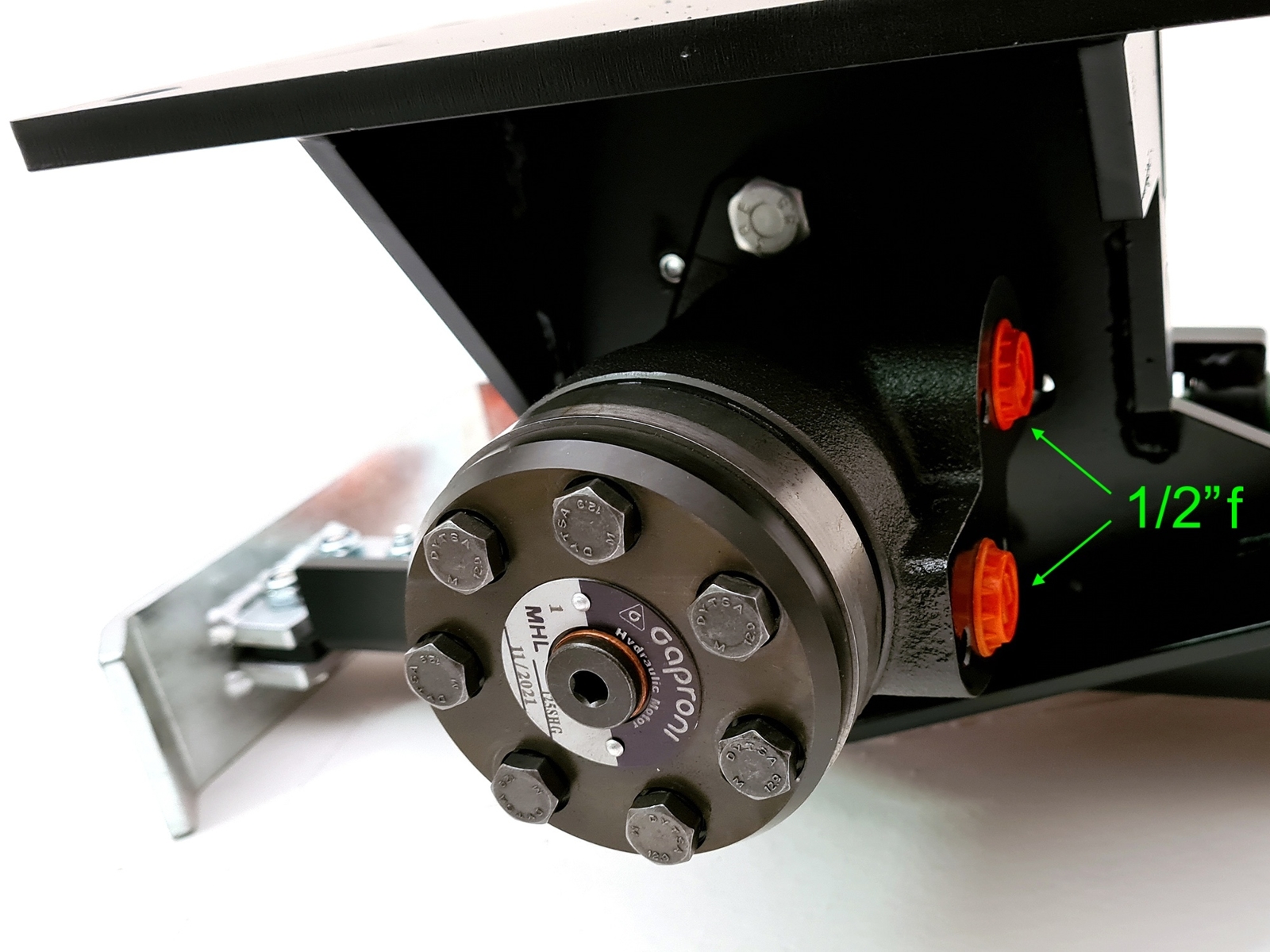

The set-up includes the hydraulic motor and the mounting plate with 4 mounting holes (measures shown in the images).

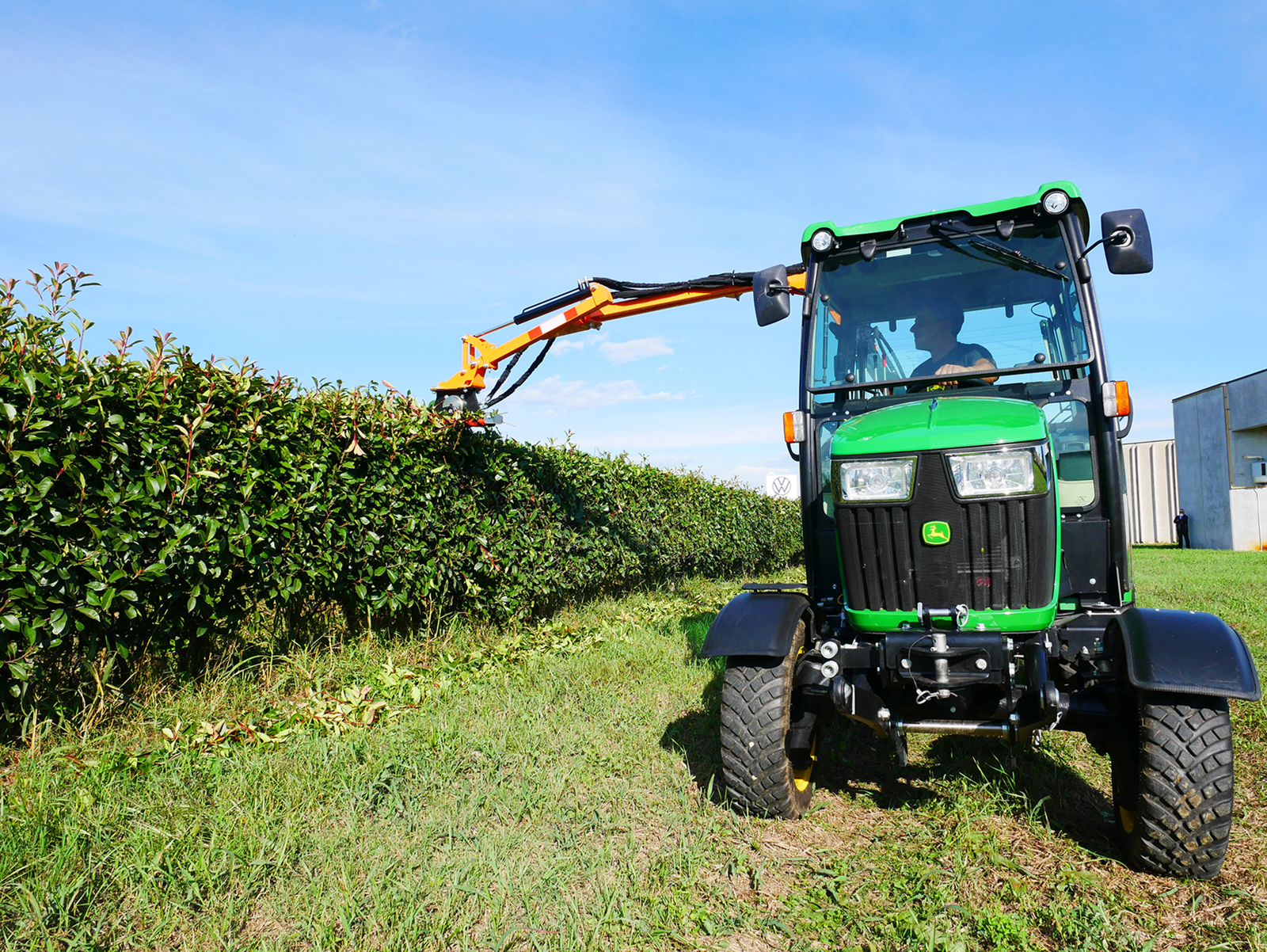

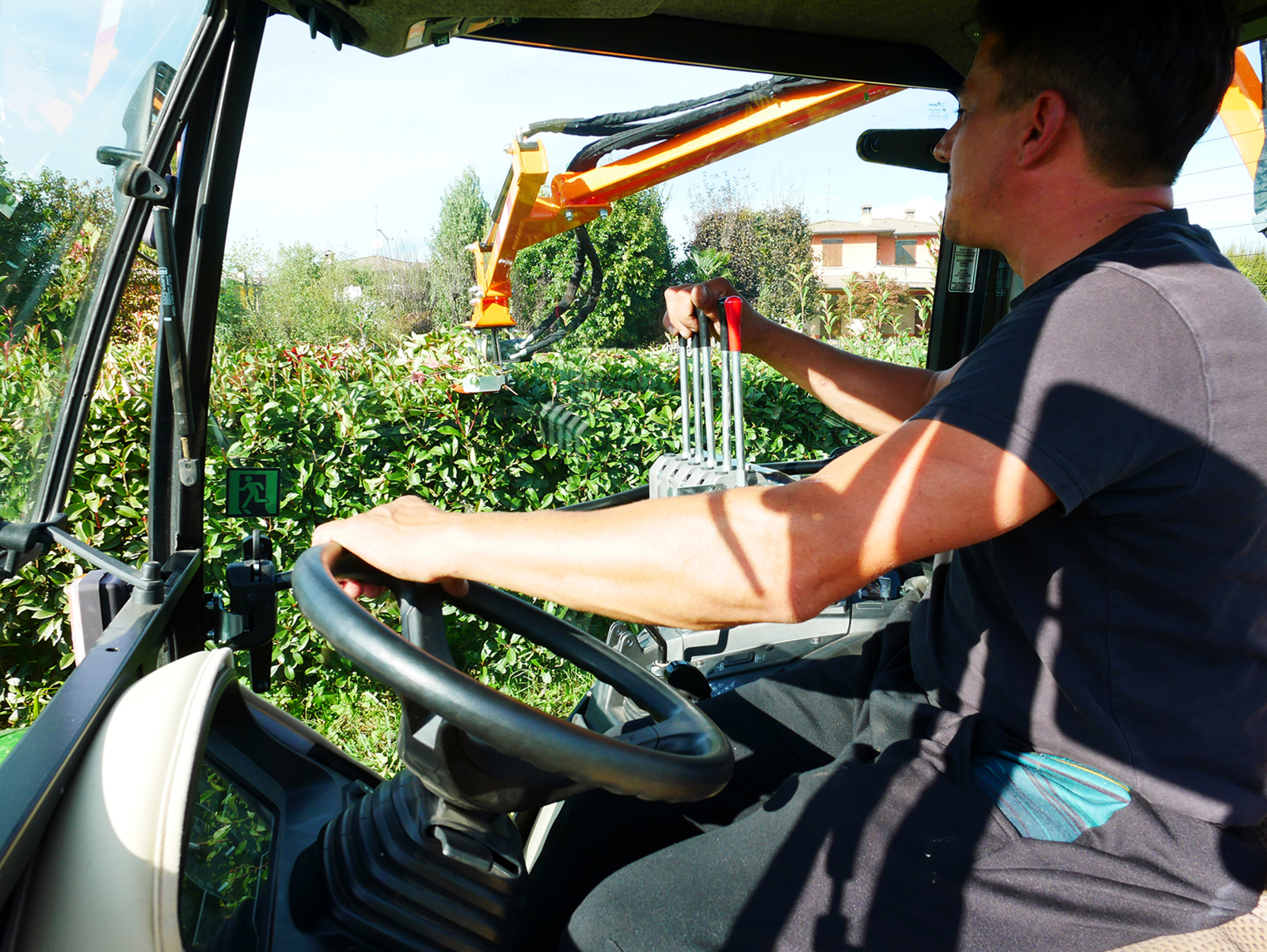

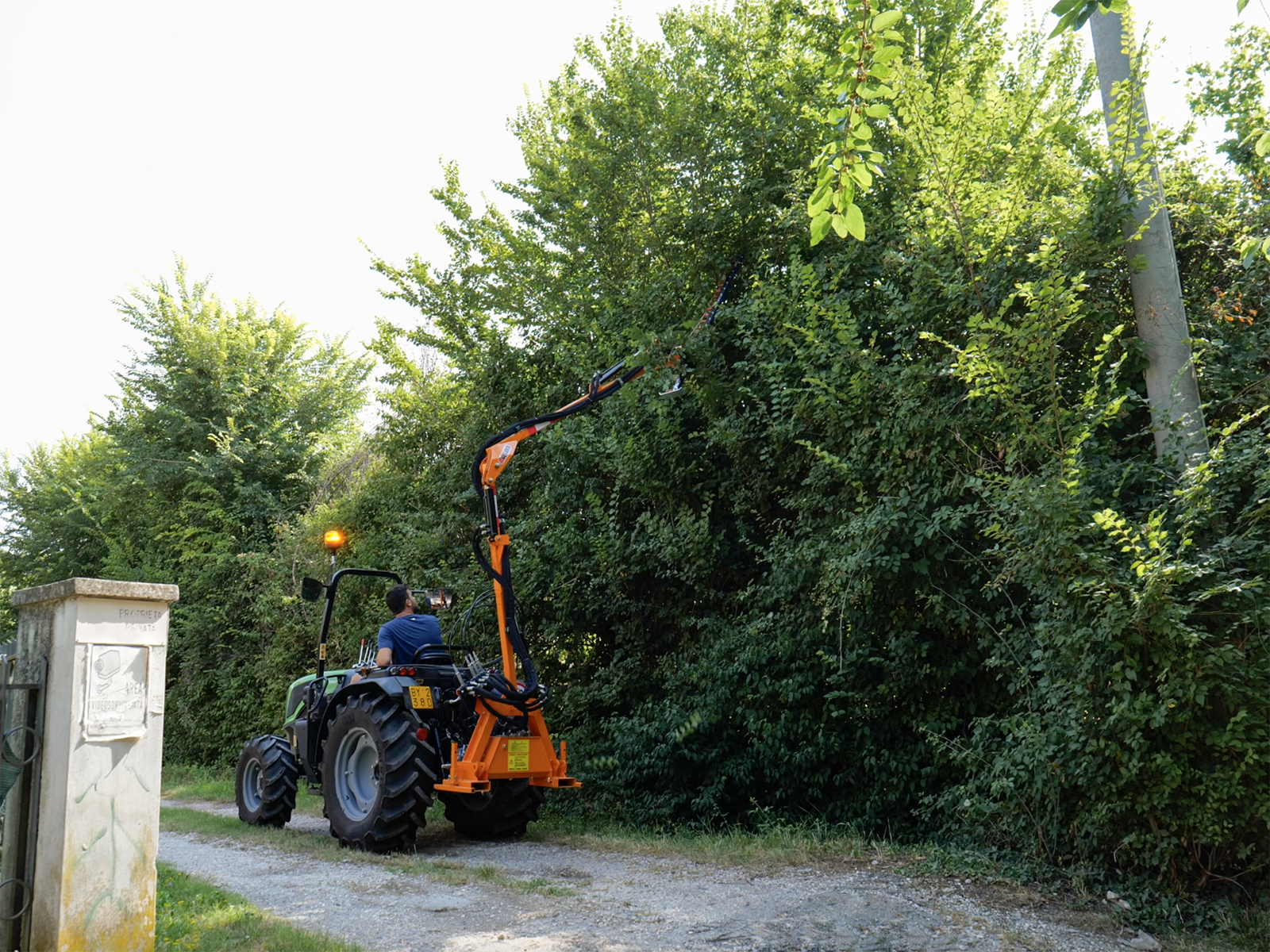

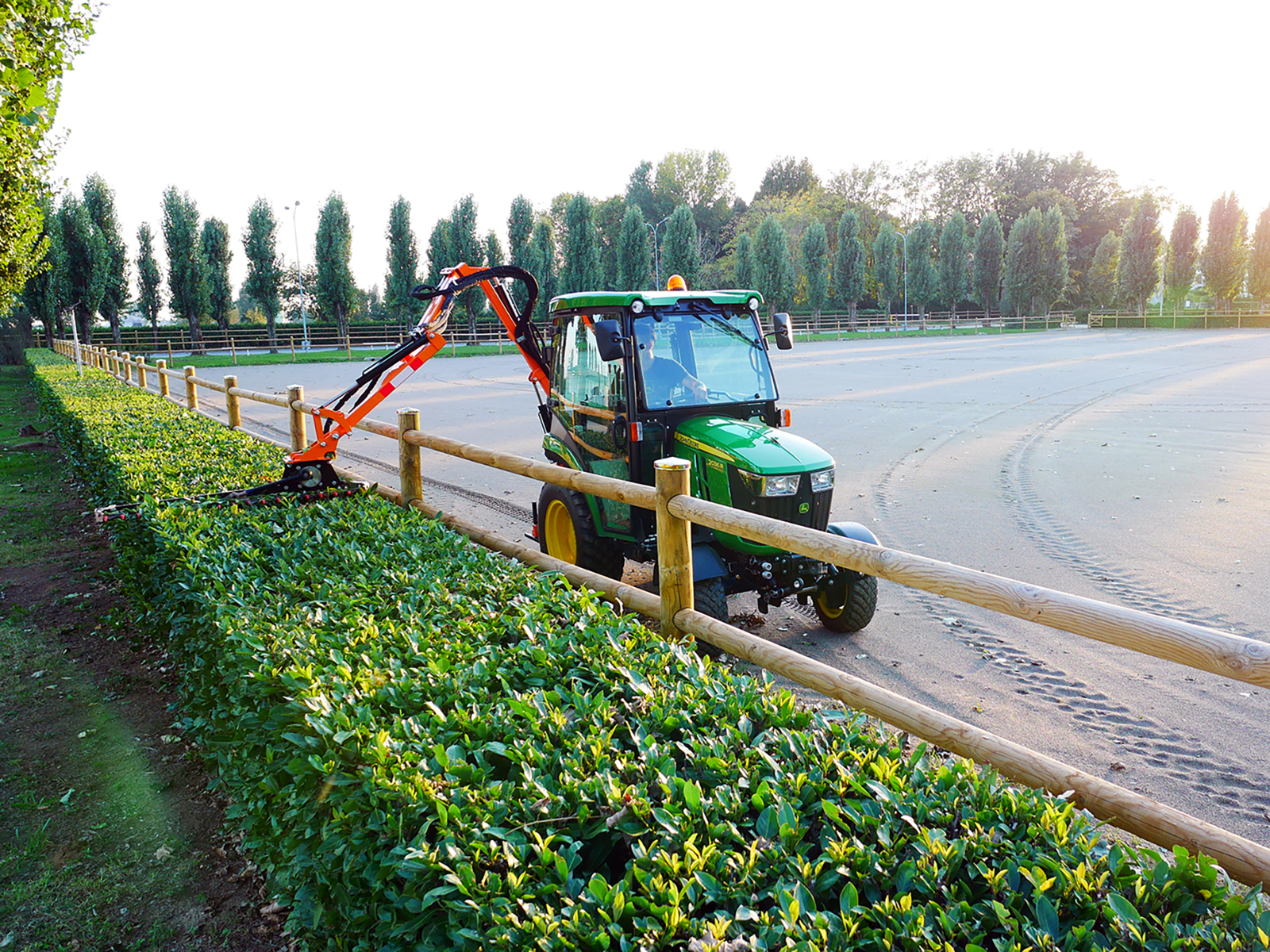

The cutter bar is controlled by the hydraulic system of the tractor / operating machine.

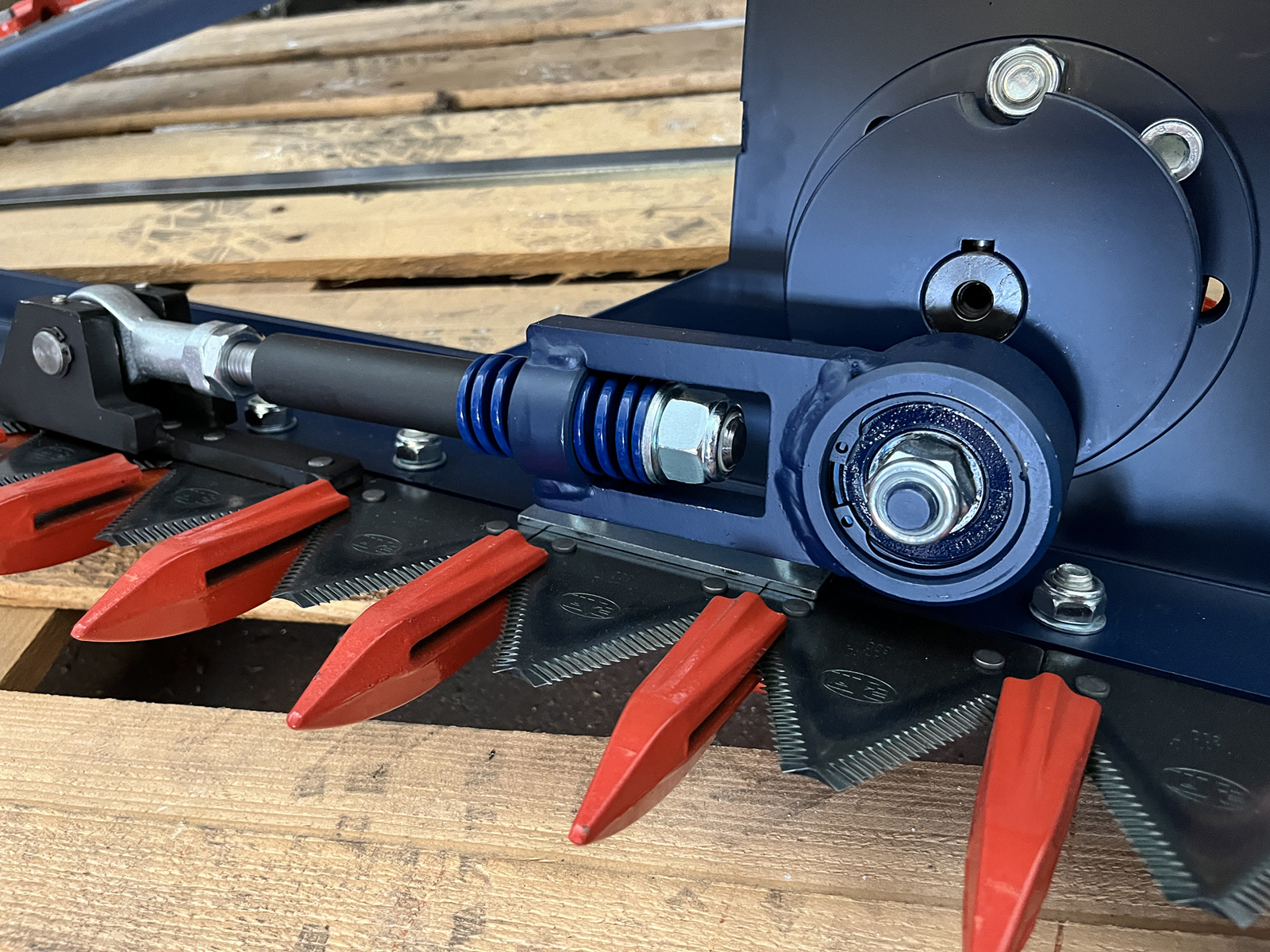

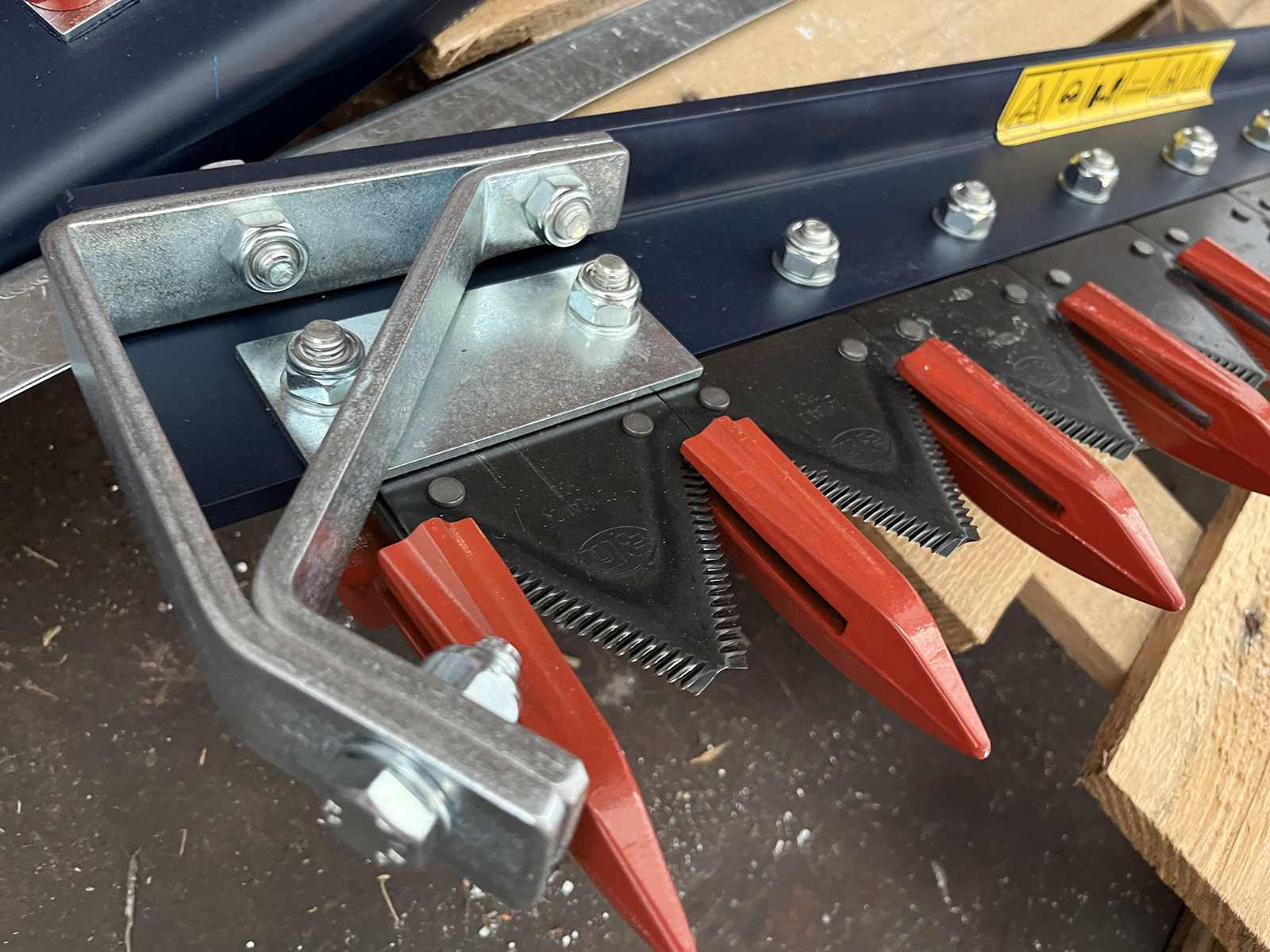

The blades move quickly and allow a precise cut of the hedge.
2 years warranty
Requirements:
The hydraulic oil flow: min. 20-60 l/min.
The operating machine must be equipped with a circuit with a return oil duct (if a certain flow is exceeded, the oil is returned directly to the oil discharge line).
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Working width | 1300.0 mm |
| Overall width | 1380.0 mm |
| Weight | 58.0 kg |
| Maximum cutting diameter | 10.0-20.0 mm |
| Number of Blades | 17 |
| Min./Max. Relief Pressure | 140 - 180 bar |
| Min./Max. Flow | min. 20 l/min |
| Packing sizes | 1380.0*600.0*300.0 mm |
DETAILS
CLOSEHydraulic cutter bar for grass and hedges, hedge trimmer - DELEKS® HR-130-S - Made in Italy
Hydraulic cutter bar DELEKS® HR is ideal for greenery: grass and hedges with a maximum diameter of 1-2 cm.
The set-up includes the hydraulic motor and the mounting plate with 4 mounting holes (measures shown in the images).
The cutter bar is controlled by the hydraulic system of the tractor / operating machine.
The blades move quickly and allow a precise cut of the hedge.
2 years warranty
Requirements:
The hydraulic oil flow: min. 20-60 l/min.
The operating machine must be equipped with a circuit with a return oil duct (if a certain flow is exceeded, the oil is returned directly to the oil discharge line).
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
CHARACTERISTICS
CLOSE| Characteristic | Units metric |
|---|---|
| Working width | 1300.0 mm |
| Overall width | 1380.0 mm |
| Weight | 58.0 kg |
| Maximum cutting diameter | 10.0-20.0 mm |
| Number of Blades | 17 |
| Min./Max. Relief Pressure | 140 - 180 bar |
| Min./Max. Flow | min. 20 l/min |
| Packing sizes | 1380.0*600.0*300.0 mm |
