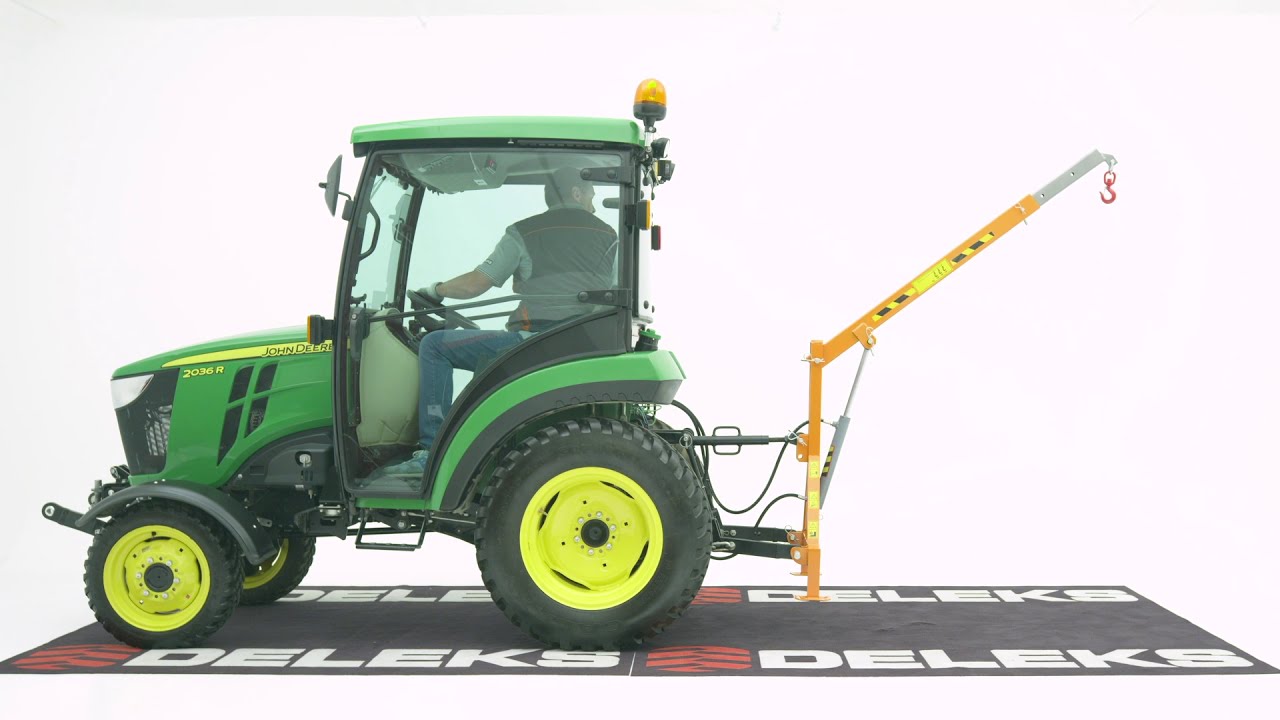

DELEKS® EL-200: Unpacking by Alberto

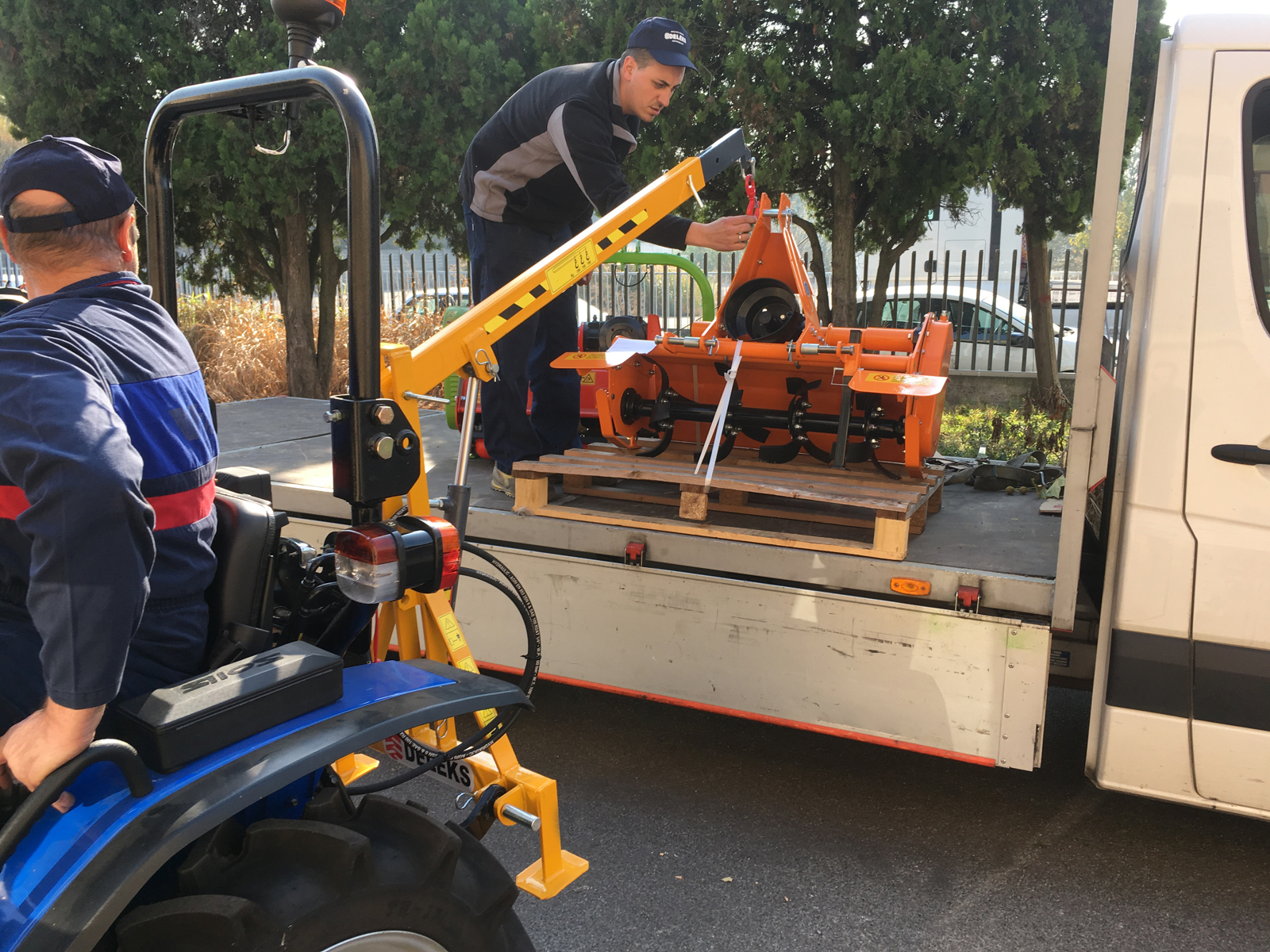

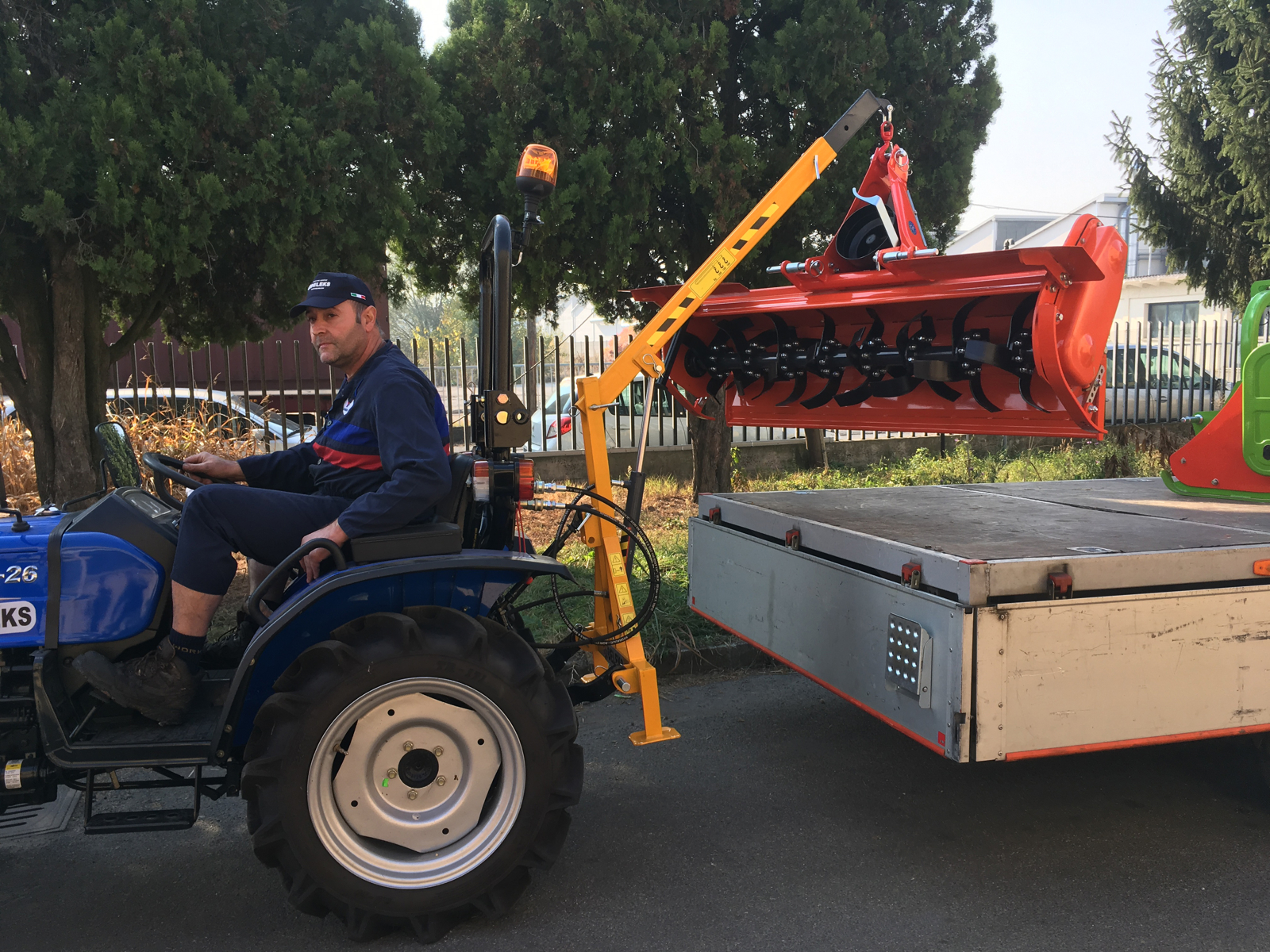

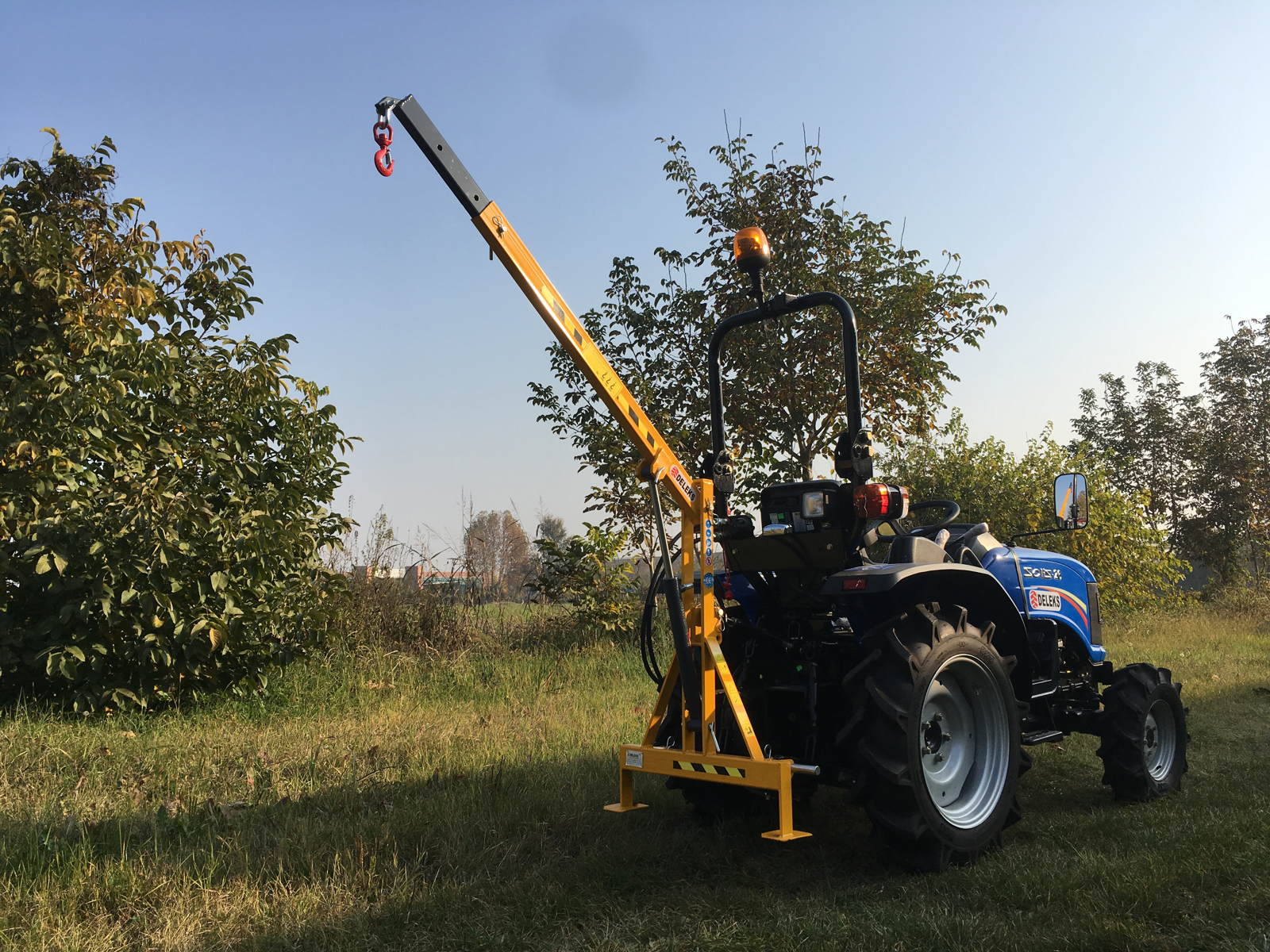

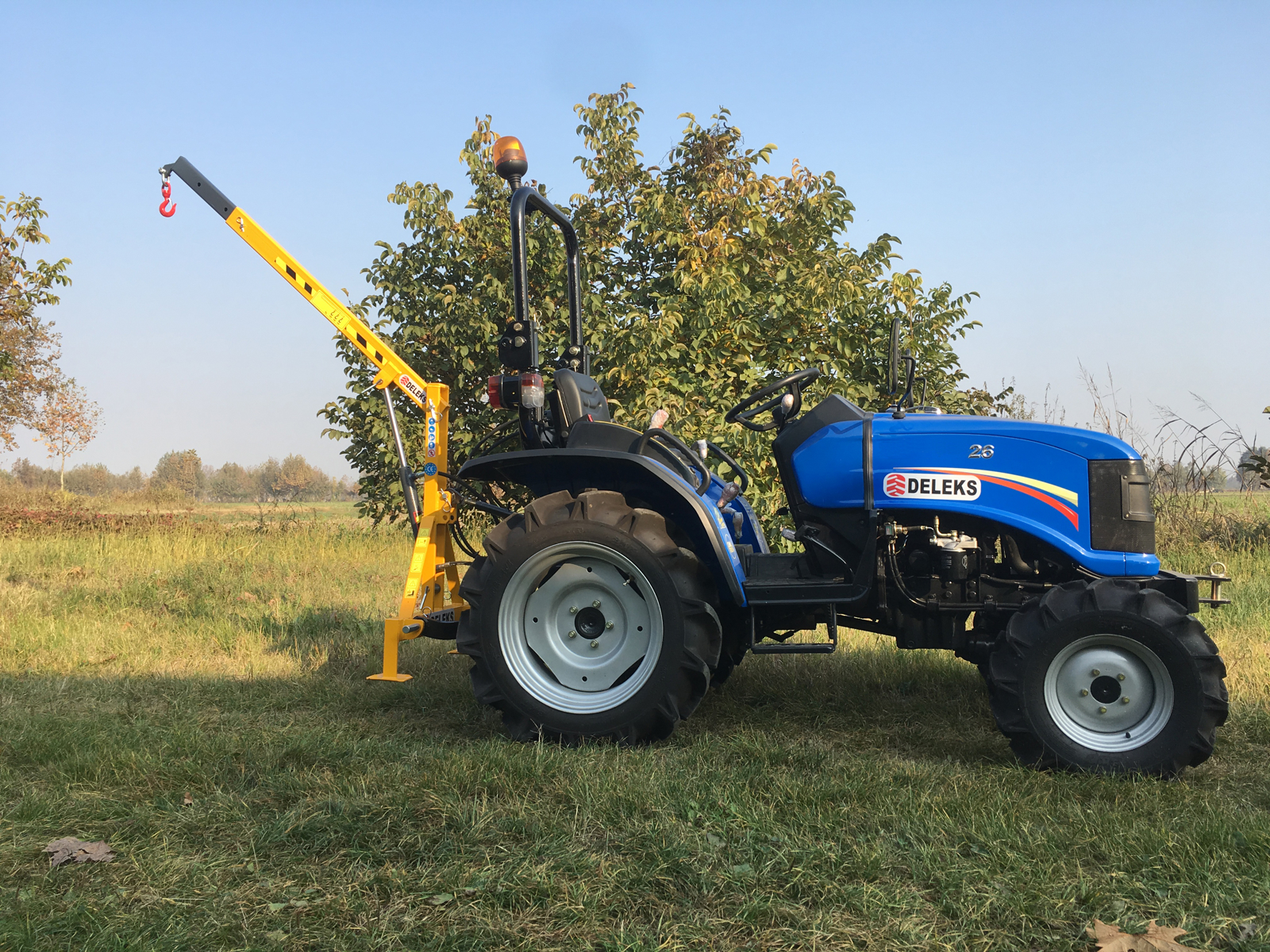

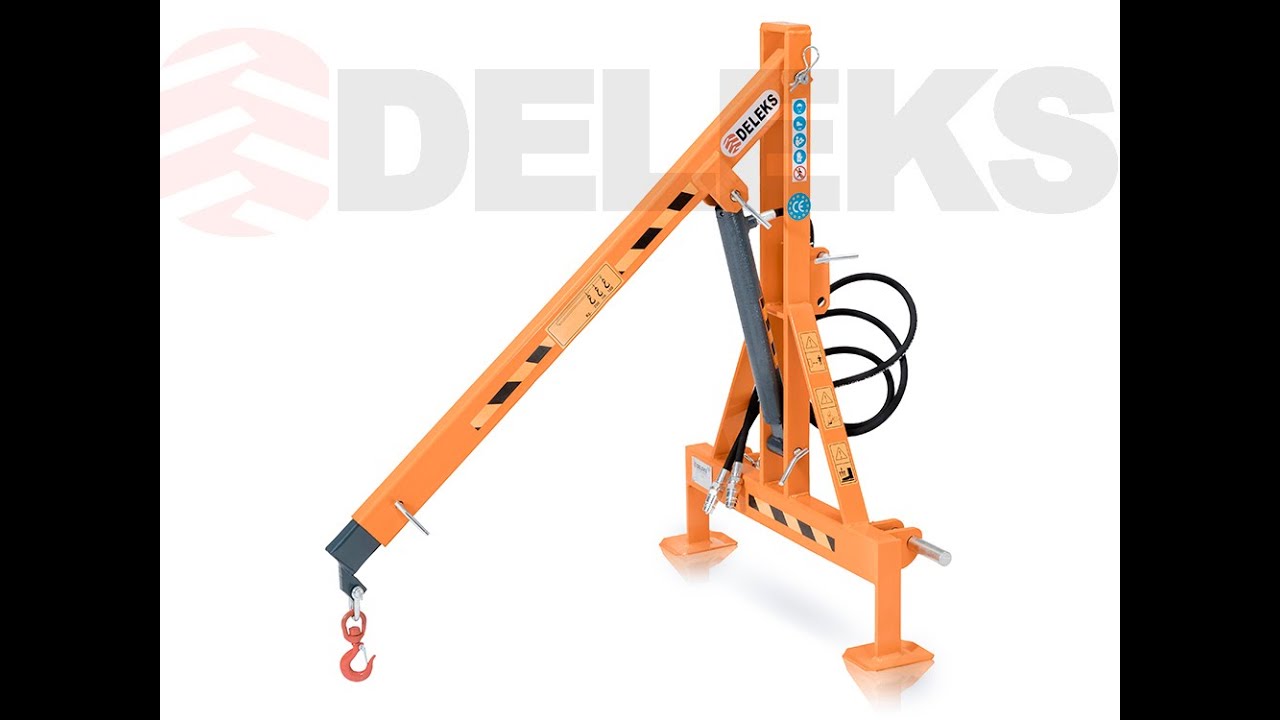

DELEKS® EL-200: Field test
DETAILS
Hydraulic Crane For Compact Tractors KUBOTA, JOHN DEERE… DELEKS®- Arm can be extended in three steps.
OVERVIEW

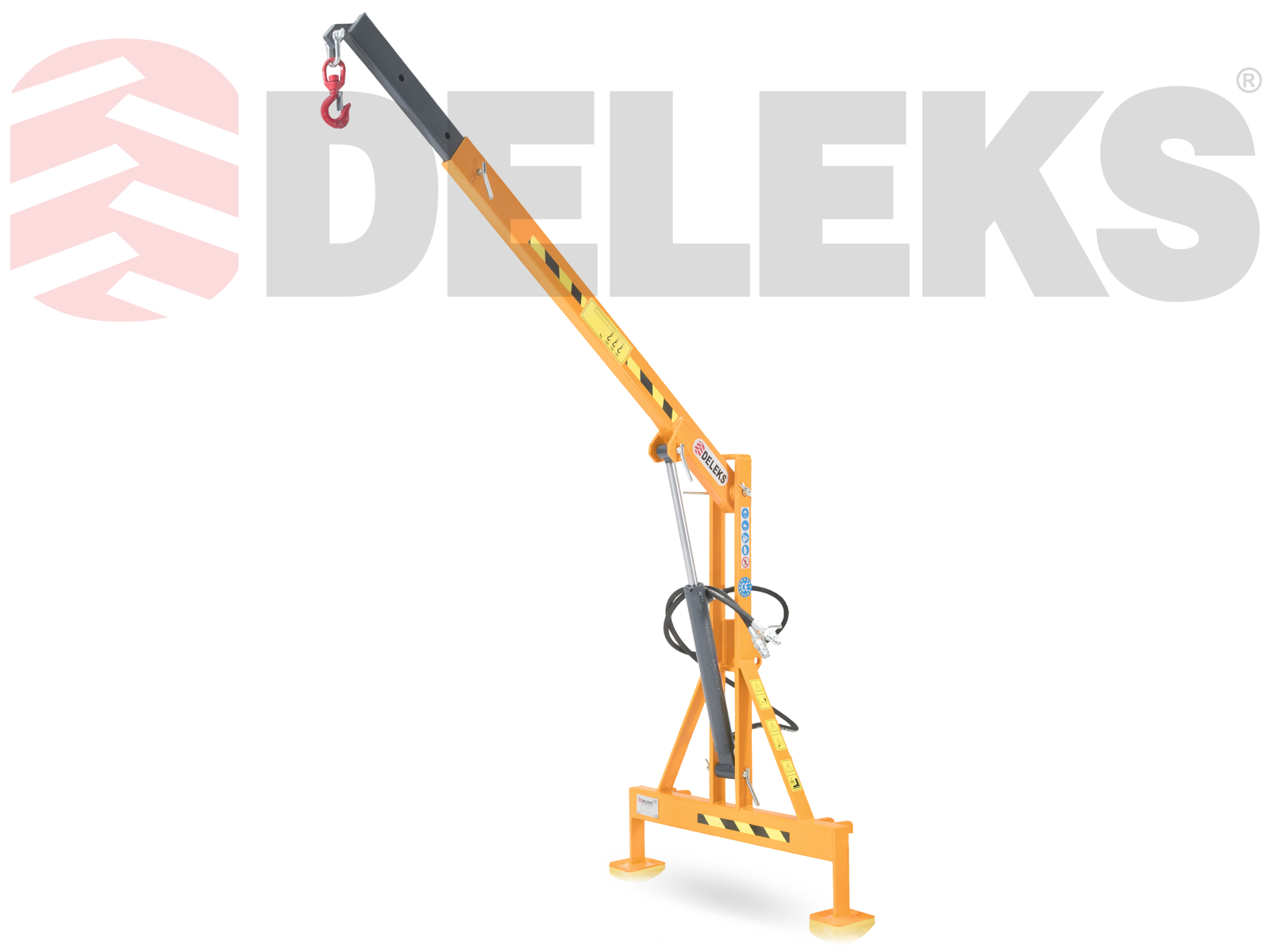

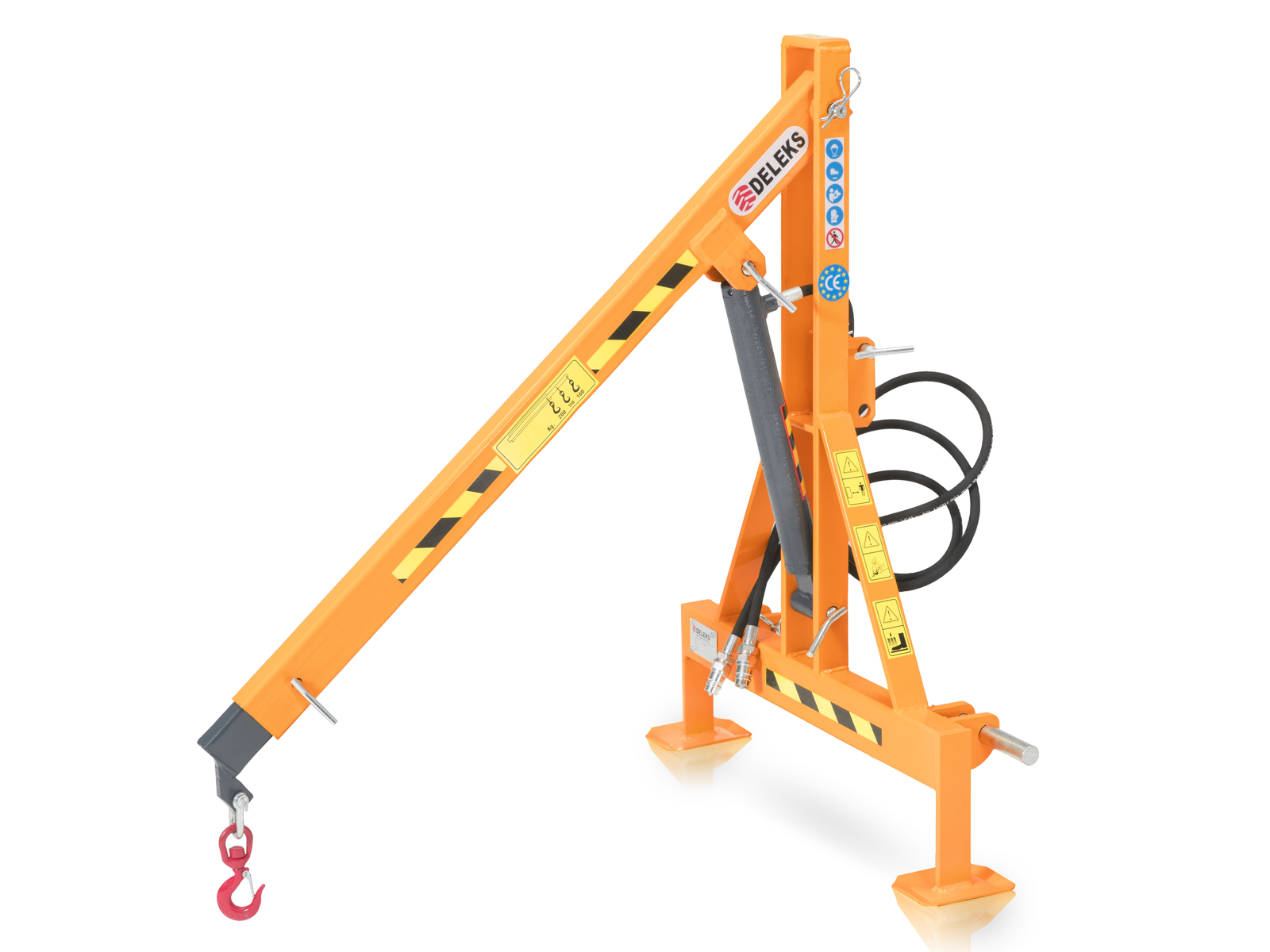

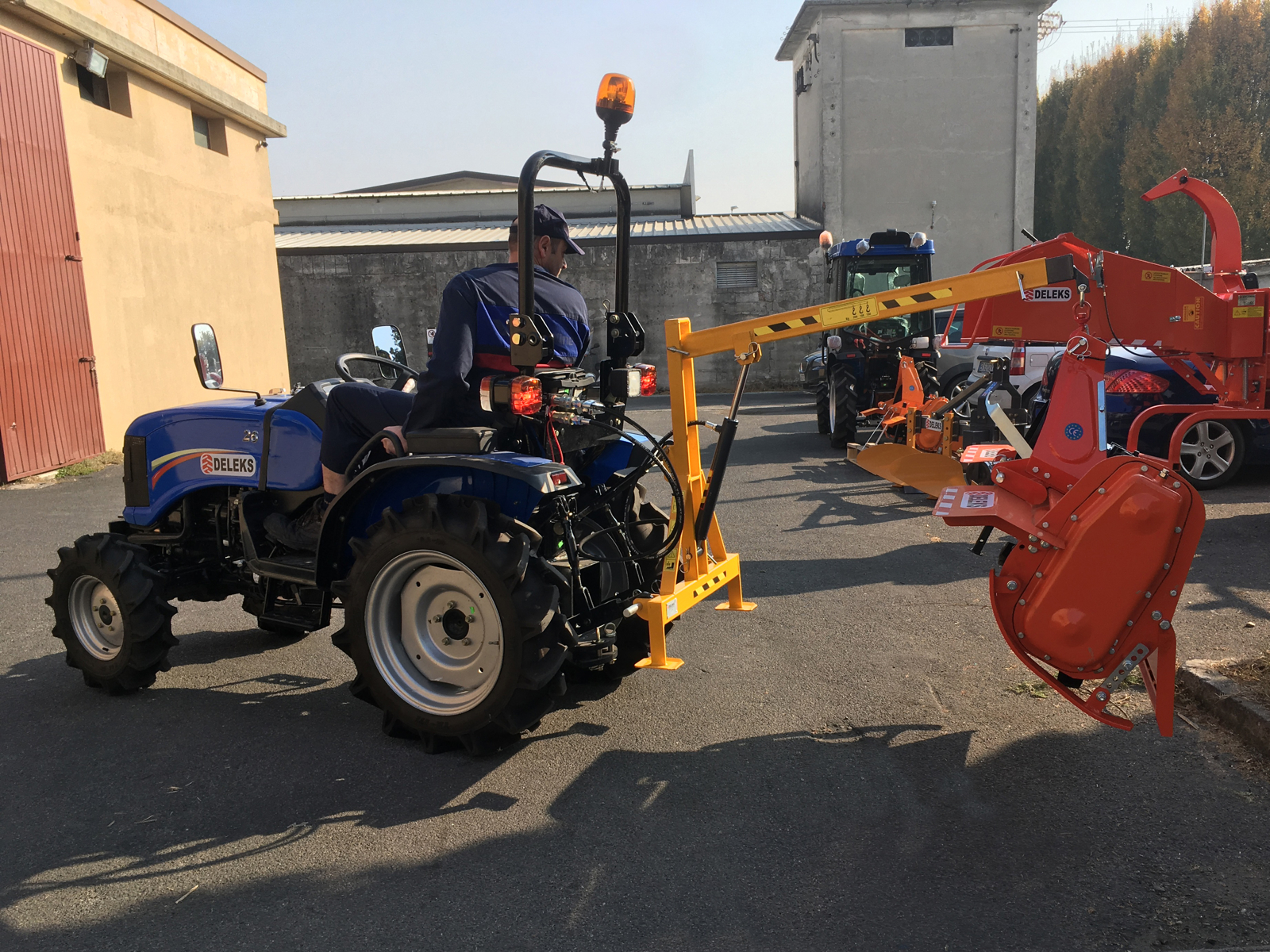

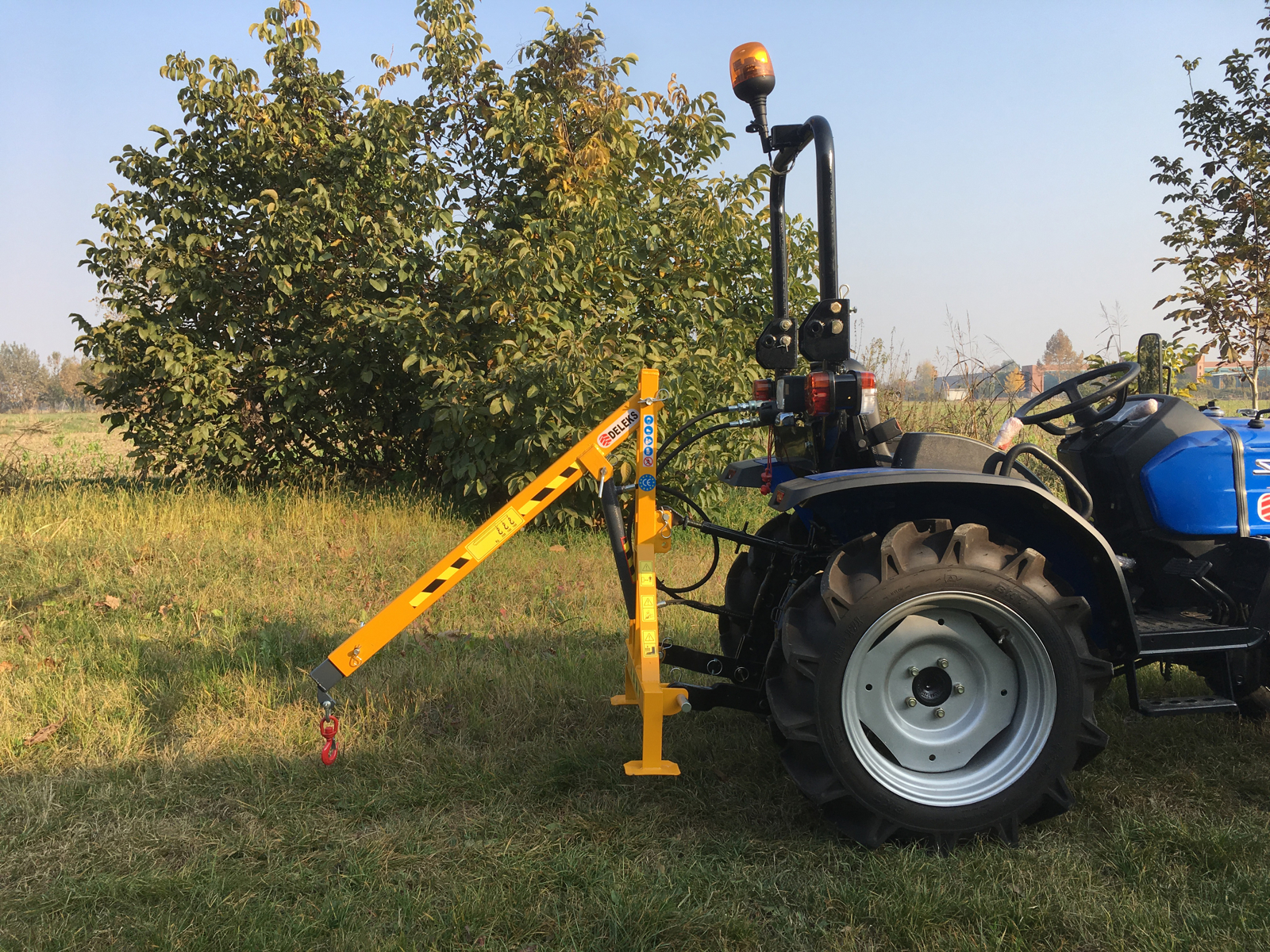

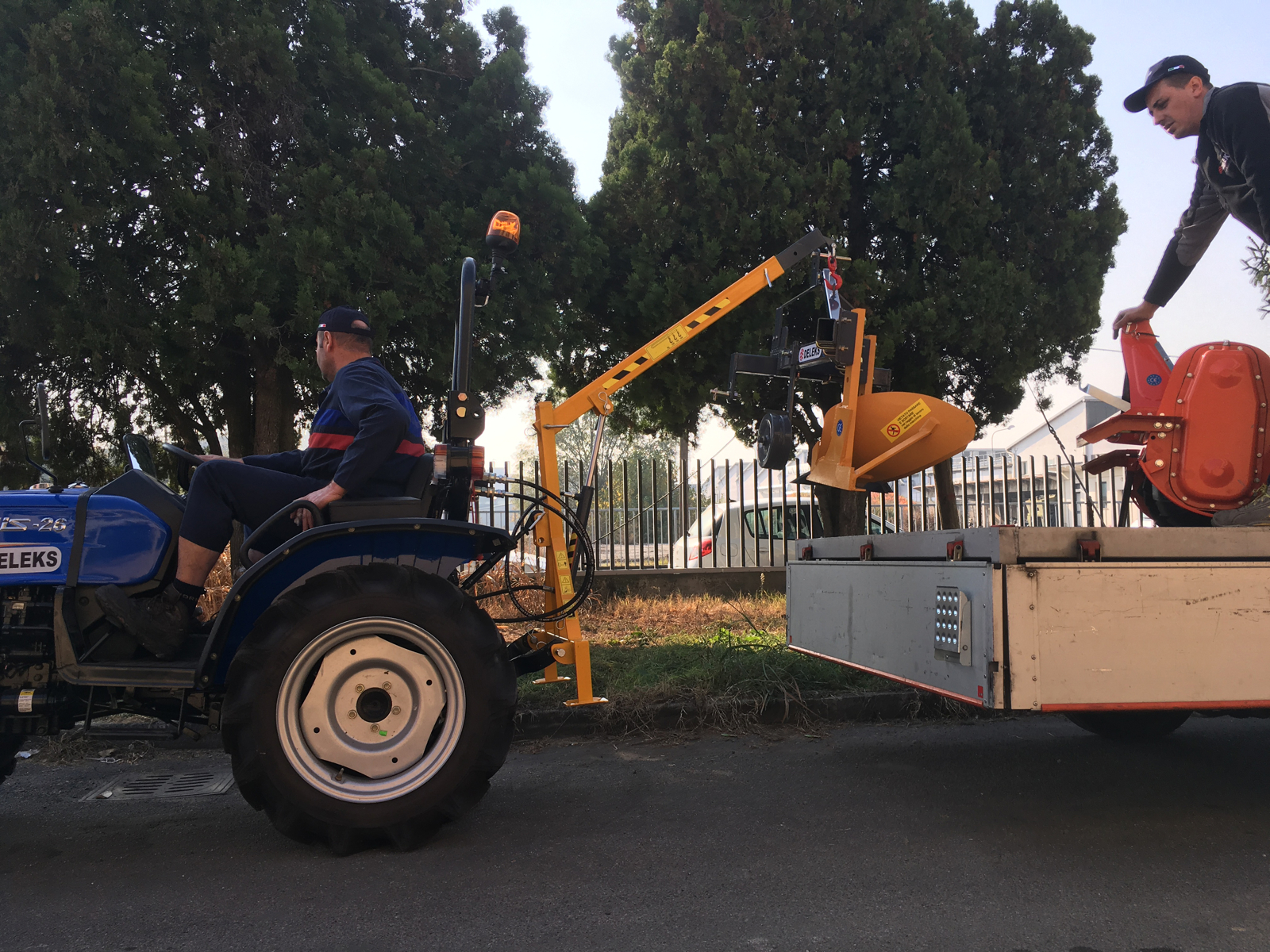

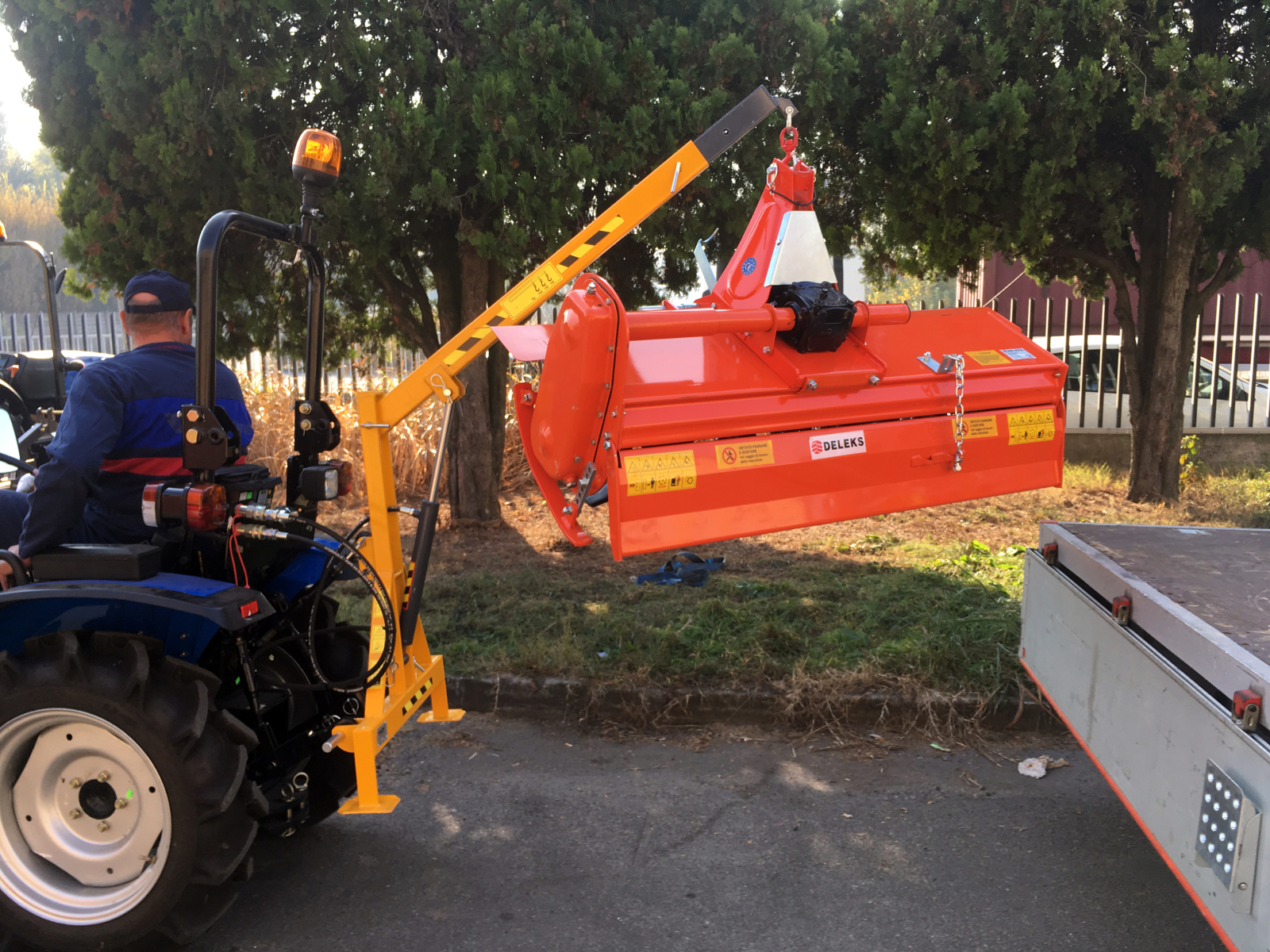

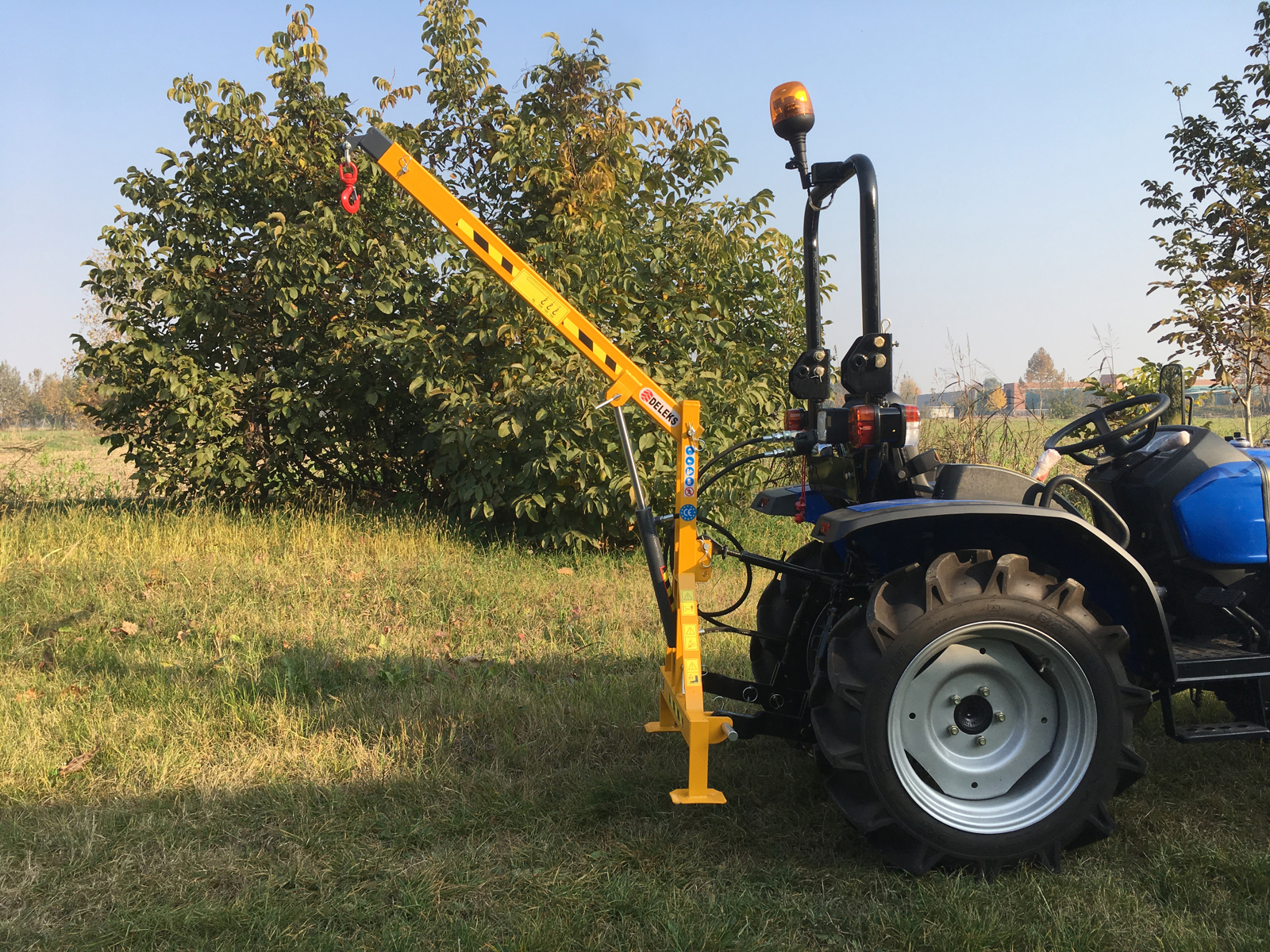

The EL-200 hydraulic Crane has a robust and durable steel construction. Ideal for hydraulically operated lifting at the rear of the tractor. It has a maximum loading capacity of more than 200kg.
Designed to fit most Cat 1-2 tractors e.g New Holland Boomer 25-30 or TI13, John Deere 1-2 Series, or Japanese tractors e.g. Kubota B and BX, Iseki TM–TH, Yanmar, etc. EC Conformity, 2 Year warranty.
BENEFITS & FEATURES

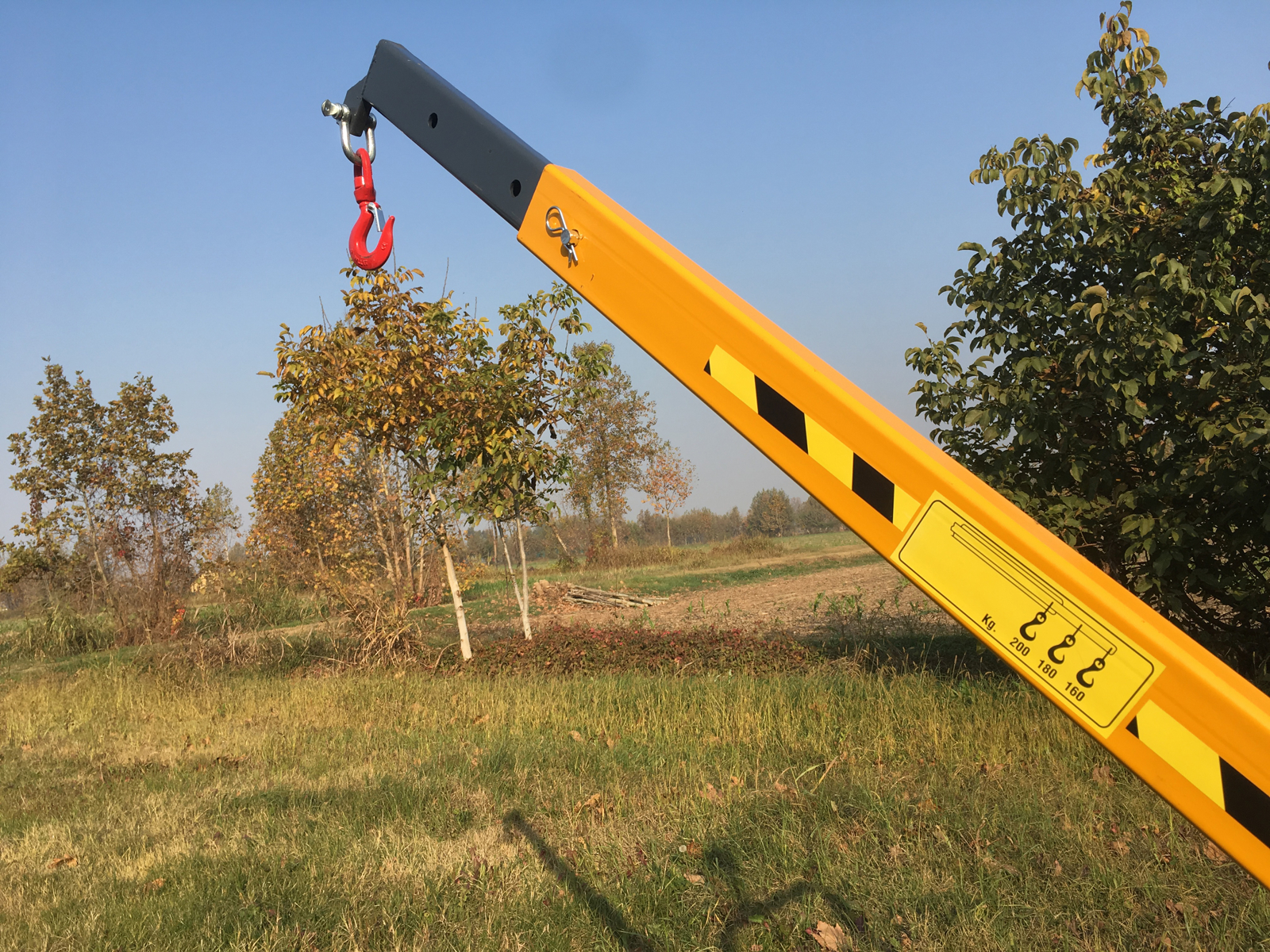

Arm can be extended in three steps.
Simple to use and can be easily stored when not in use.
Reinforced at all stress points.
Lateral reinforcement to withstand heavy loading.

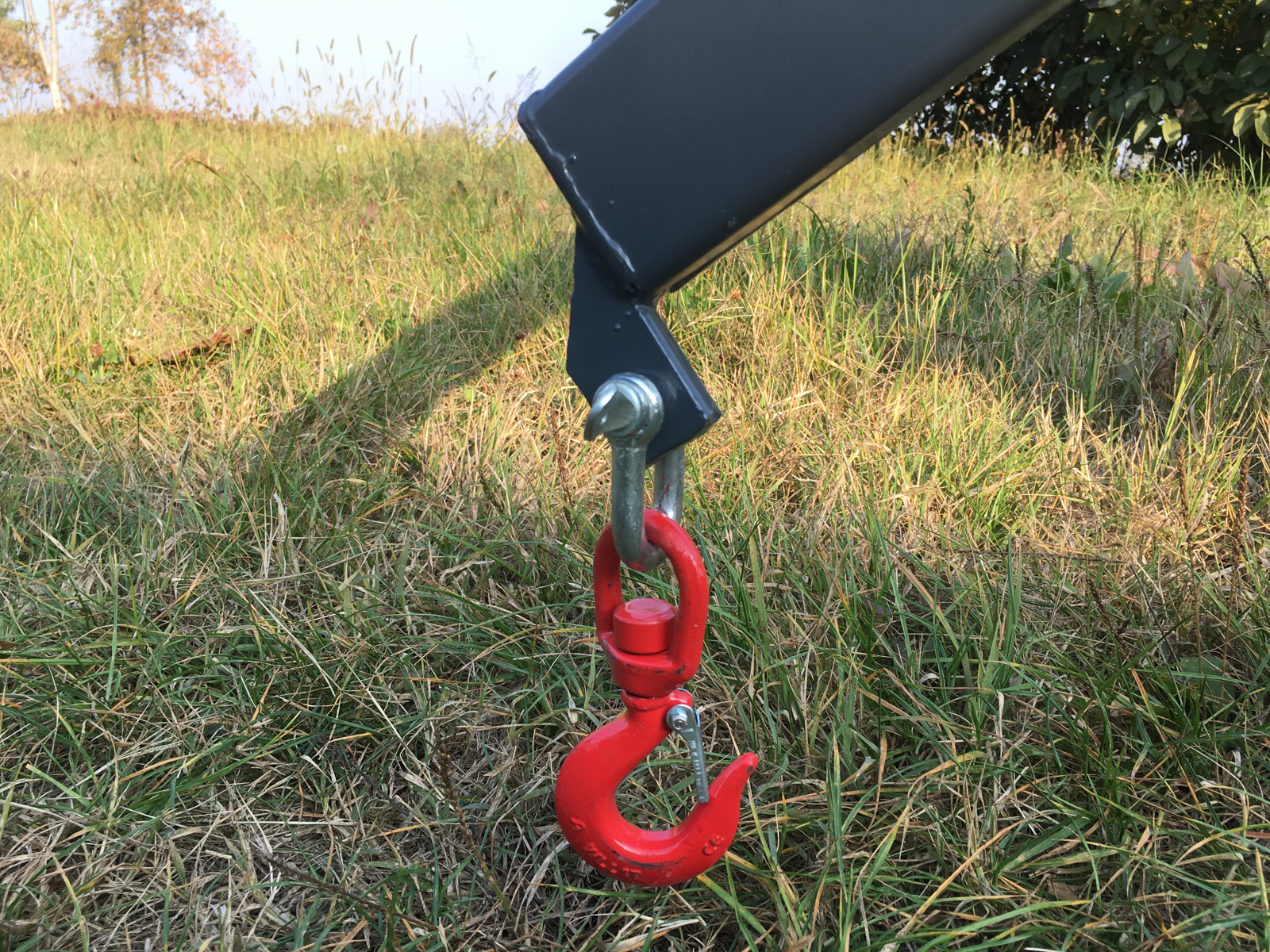

The clamp hook tip provides extra security.

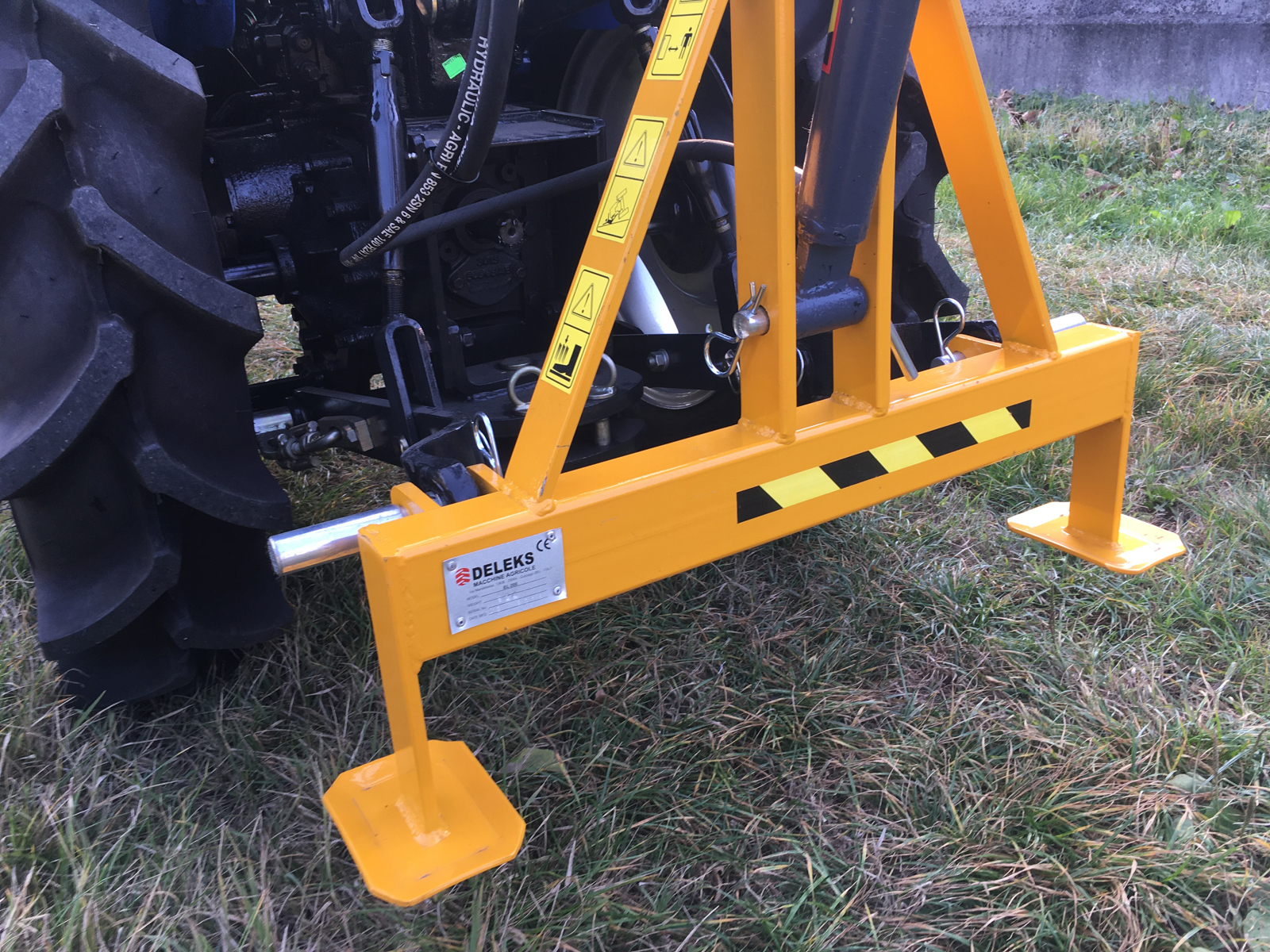

The support feet offer more stability.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Overall width | 780.0 mm |
| Weight | 48.0 Kg |
| Tractor Power Range | 14 - 35 Hp |
| 3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |

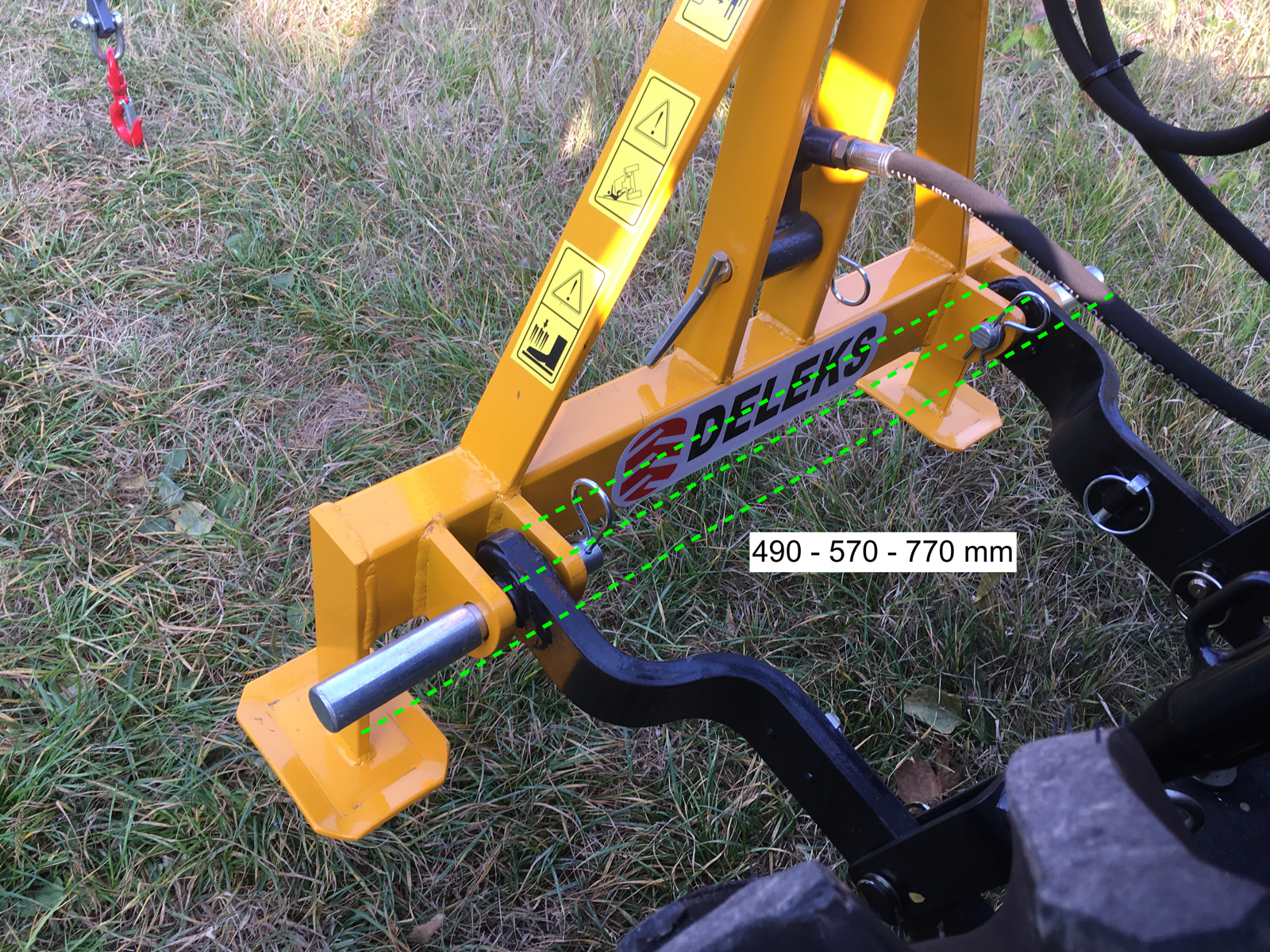

| Spacing between the 2 lower points | 490.0 - 570.0 mm |

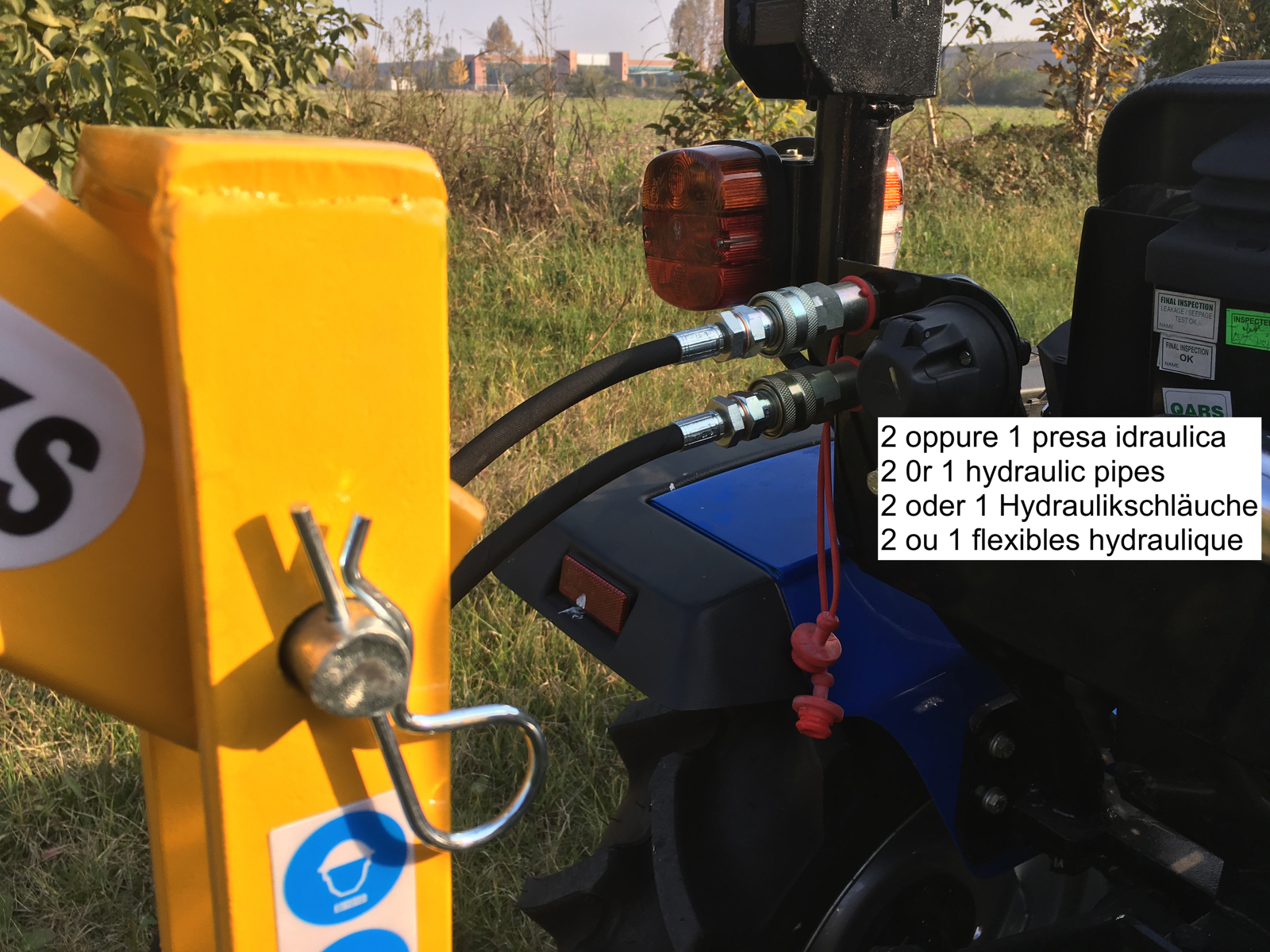

| Hydraulic Pipes (2) | 1500.0 mm / connections 1.2" AGRI, WP-400 bar |
| Hydraulic cylinder ø | 50.0 - 25.0 mm |
| 3 point Linckage Thickness | 11.0 mm |
| Max Load Rating | 200.0 kg |

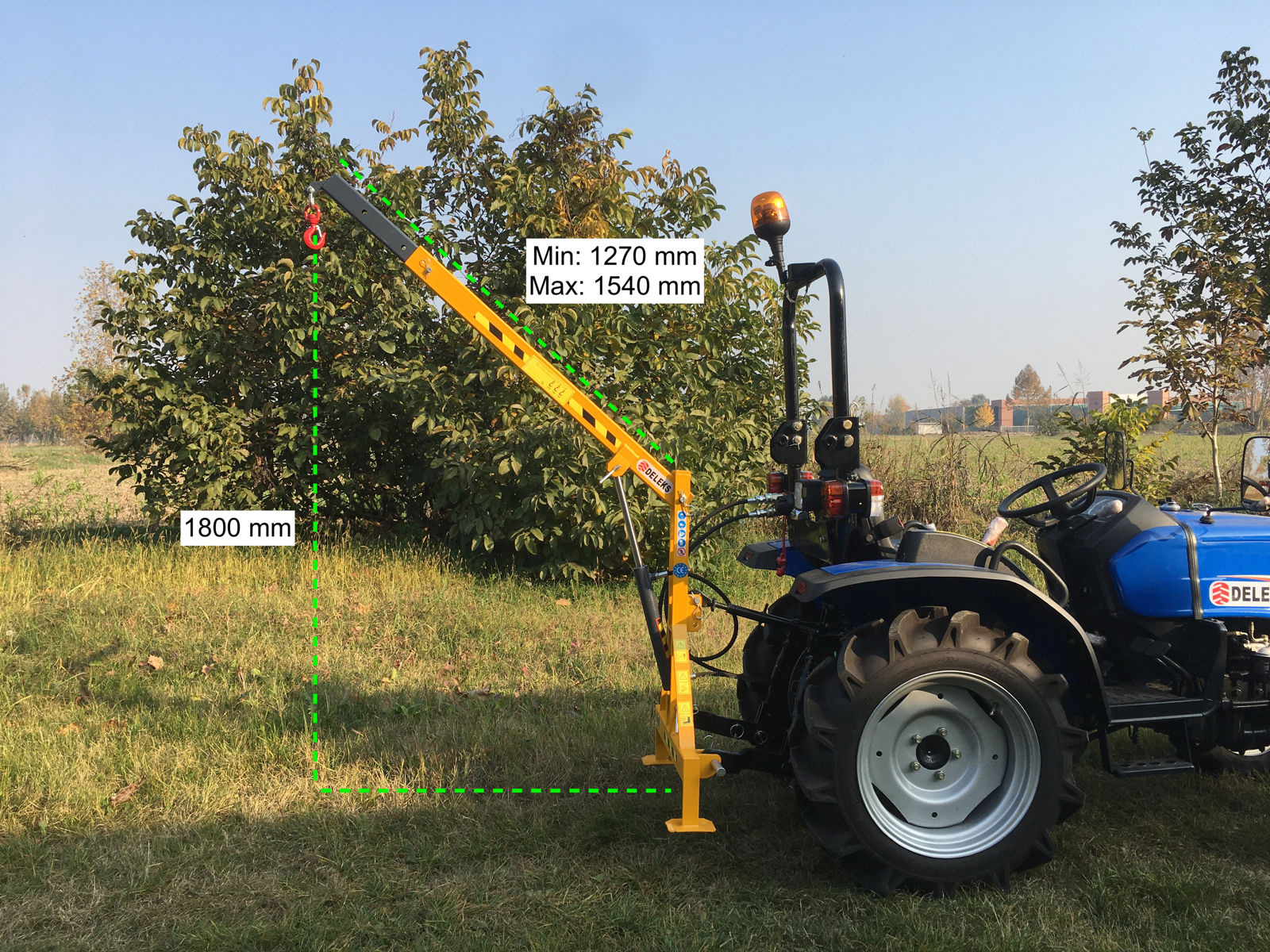

| Max height lift | 1800.0 mm + tractor lift |
| Extended Length | 1540.0 mm |
| Retracted Length | 1270.0 mm |
| Number of Arm-Adjustments | 3 |
| Distance Between Arm-Adjustments | 105.0 - 165.0 mm |
| Overall Height (Arm down) | 1100.0 mm |
| External arm sizes | 80.0*40.0 mm |
| External arm thickness | 4.0 mm |
| Internal arm thickness | 5.0 mm |
| Min./Max. Relief Pressure | 60 - 80 bar |
| Min./Max. Flow | 18 - 22 l/min |
| Packing sizes | 1100*780*400.0 mm |
