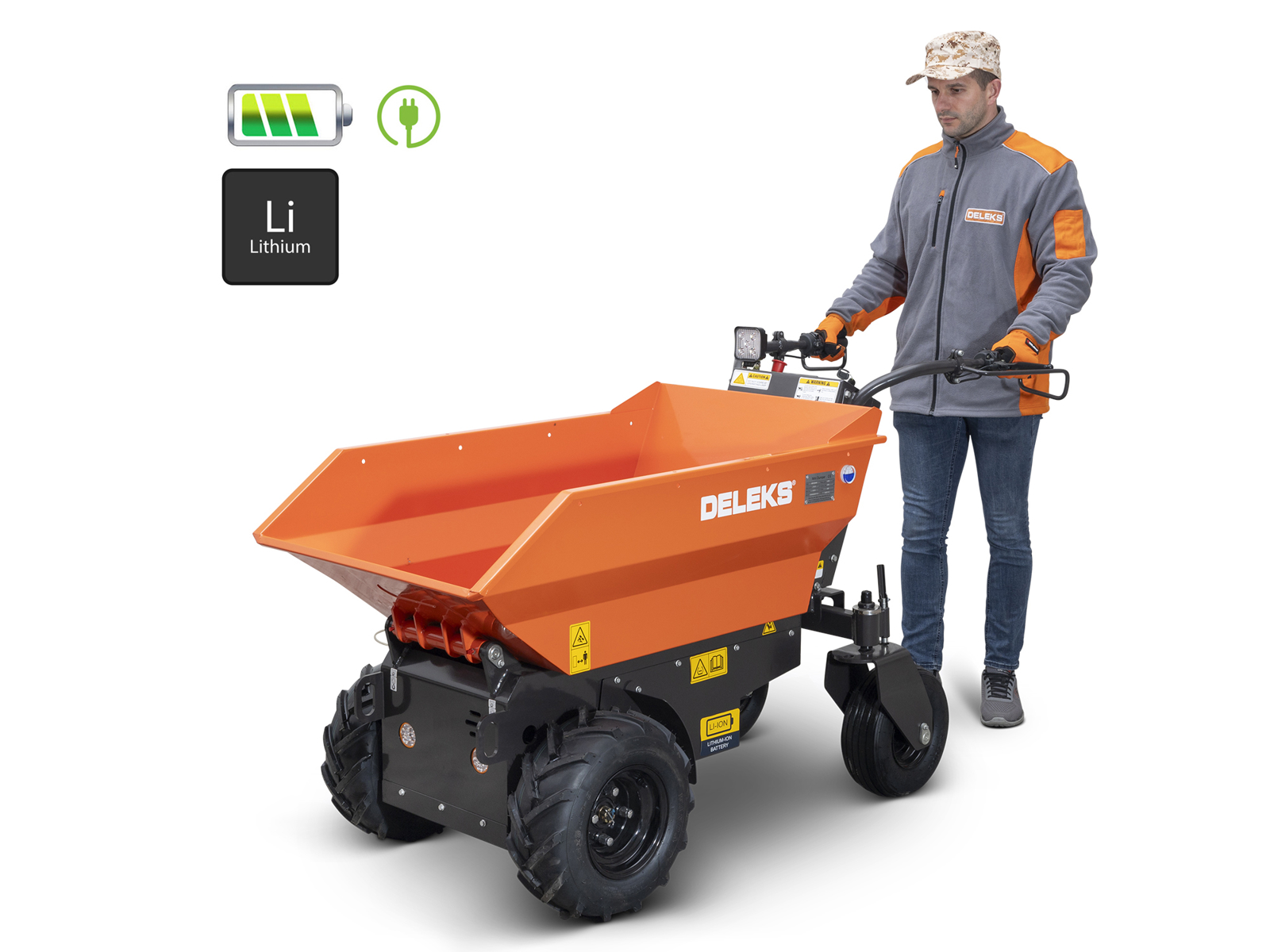

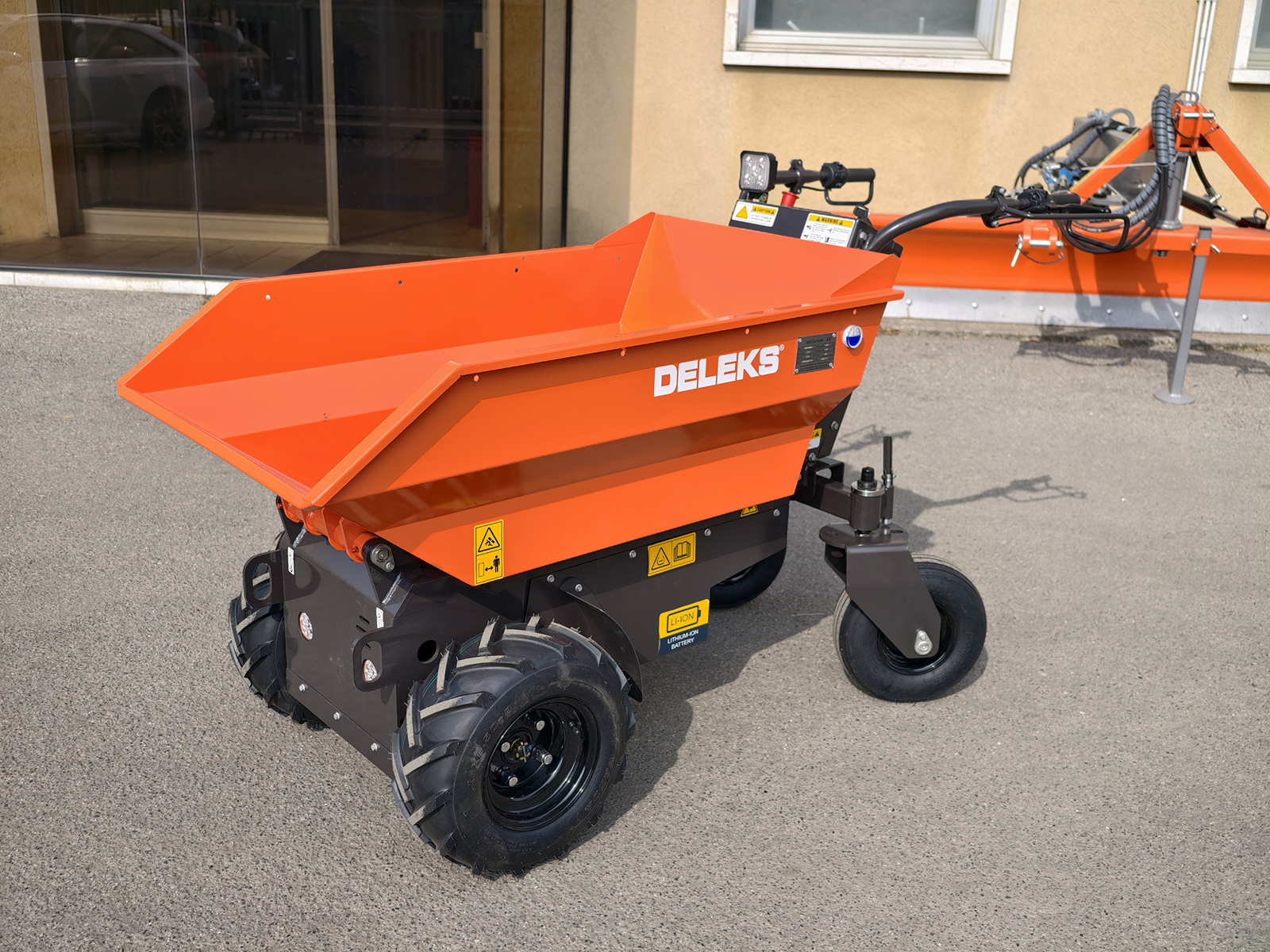

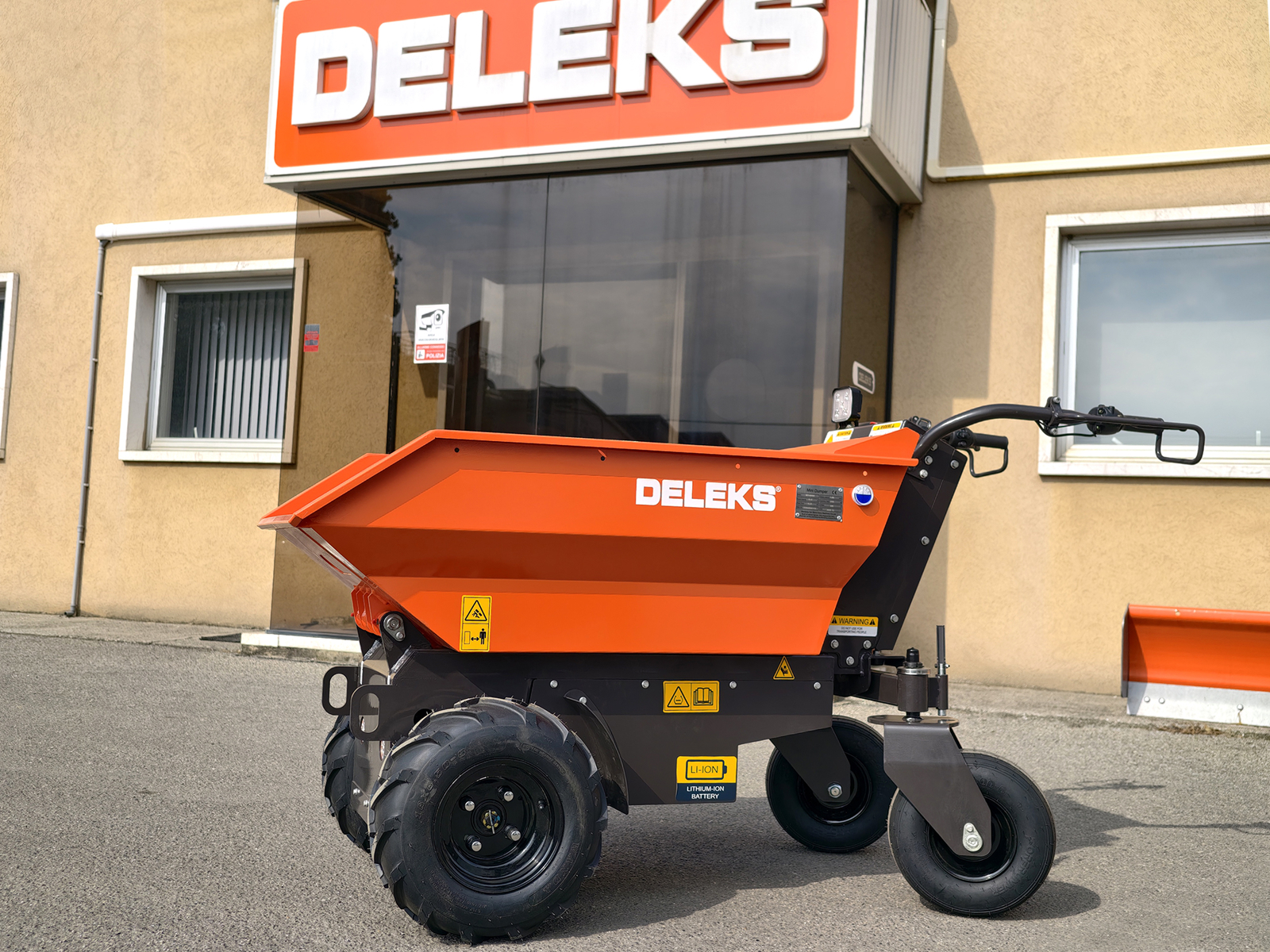

100% electric wheelbarrow, lithium battery, with dumper body with electric tipping

DELEKS® ME500EL electric mini dumper: 400 kg rated load (max 500 kg), removable 51.2V 30Ah lithium battery, up to 12 hours of autonomy. Dumper bed with electric tipping, data display, electric drive and electromagnetic brake.
A professional, 100% electric solution for transporting soil, sand, gravel, rubble, wood and building materials on construction sites, farms, greenhouses, stables and in landscaping work.
400 kg rated load (500 kg maximum load) – Up to 12 hours of autonomy – Removable lithium battery – Electromagnetic brake

Applications
The DELEKS® ME500EL electric mini dumper is designed for the professional transport of materials in several sectors:

• Construction and renovation
• Gardening and landscaping
• Riding stables, stables and greenhouses
• Farms

It is suitable for transporting soil, sand, gravel, rubble, wood, brushwood and building materials.
It can be used together with DELEKS® mini excavators to make material handling easier and increase productivity on site.

Slopes
Maximum uphill slope: up to 15°*
Maximum side slope: up to 10°*
*With loads up to 100 kg, on firm, dry ground (asphalt, concrete, loading ramps). The limits are lower as the load increases and on soft, wet or uneven ground. The values for each load range are given in the "Slope table by load – ME500E / ME500EL" sheet, available for download at the bottom of the page.

Advantages of the electric system

• Zero exhaust emissions
• Low noise
• Low vibration
• Instant start
• Low maintenance
• Low running costs

Main features

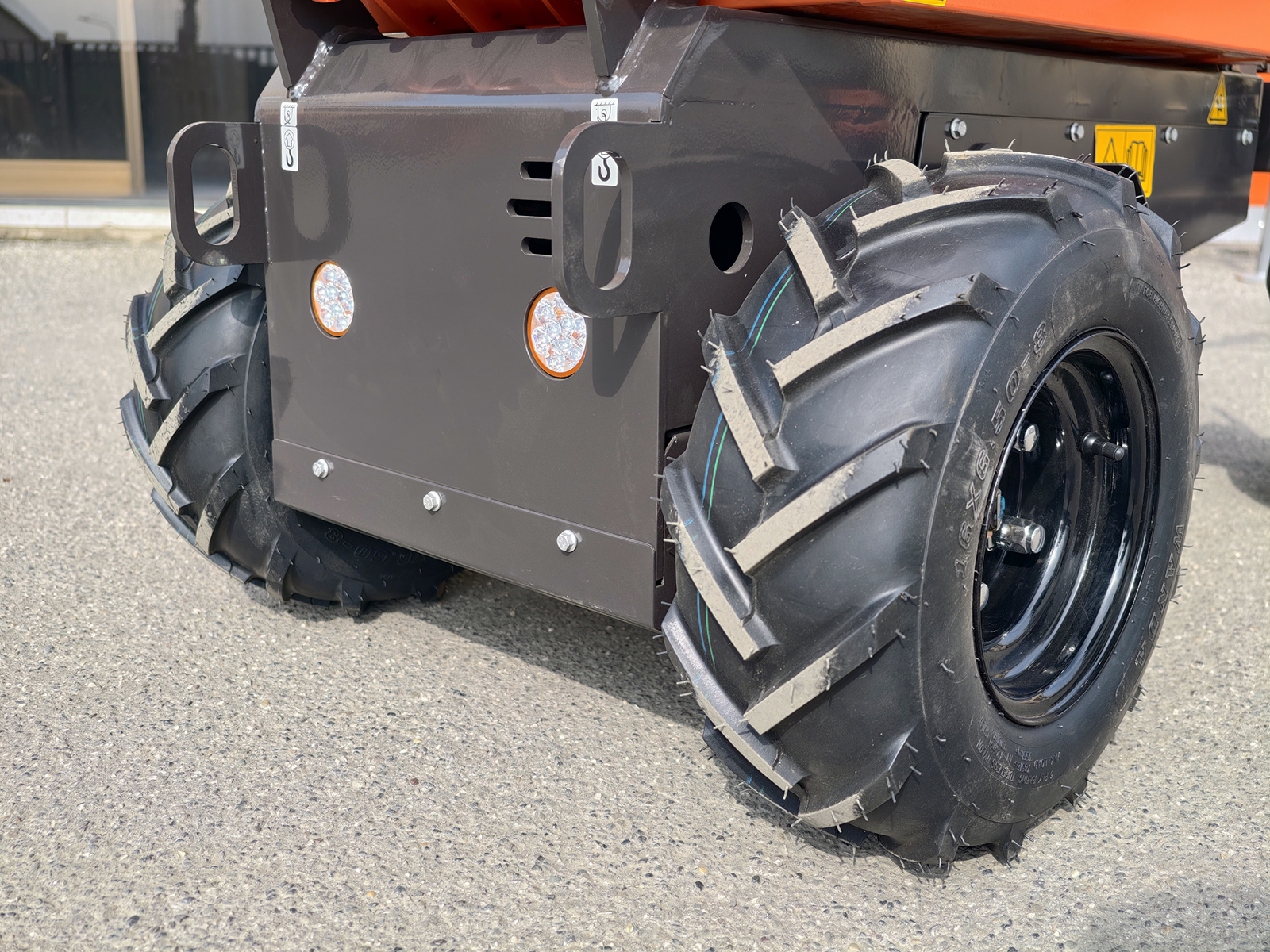

• 4 wide pneumatic wheels for greater stability
  • Front drive wheels

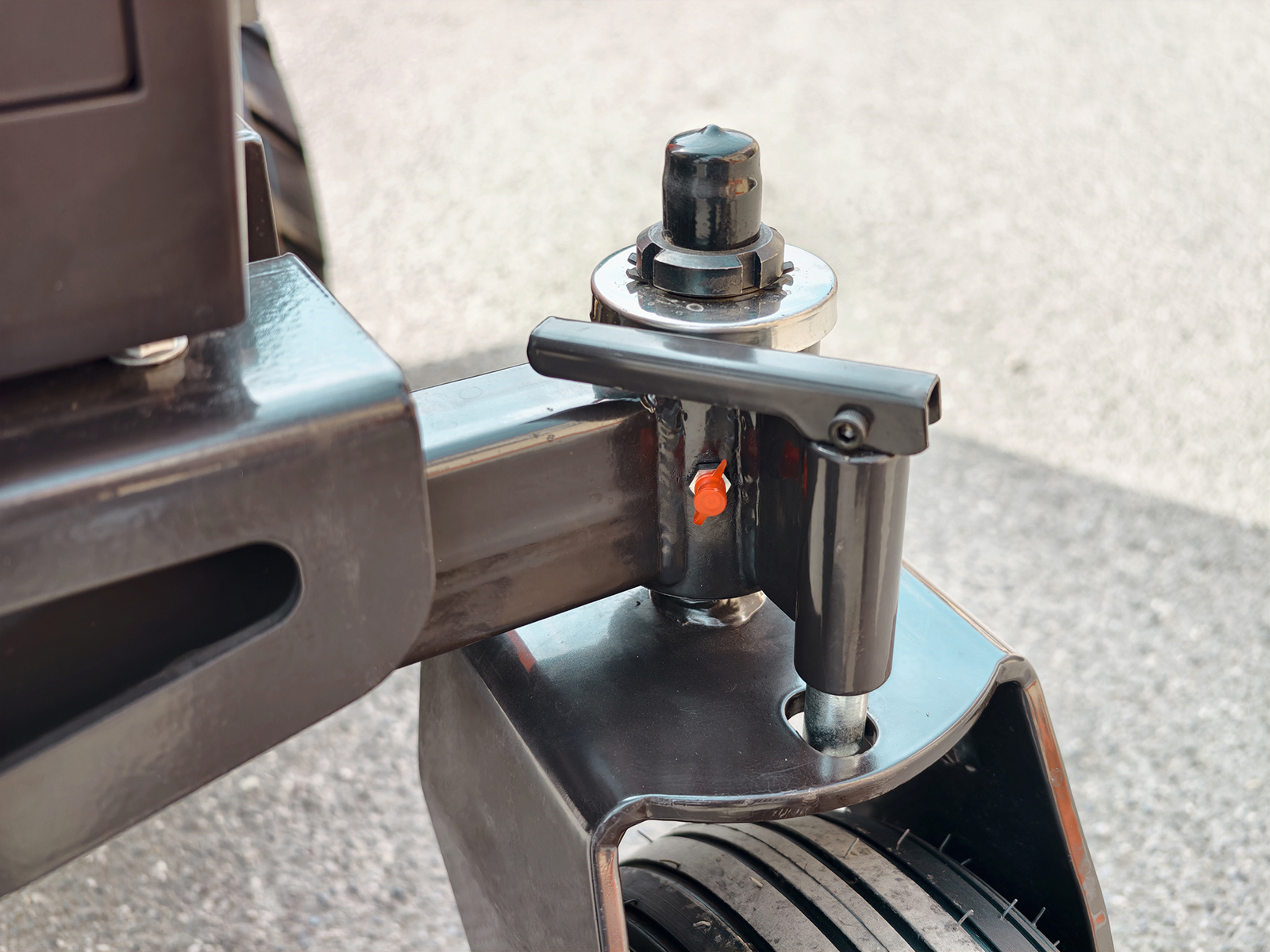

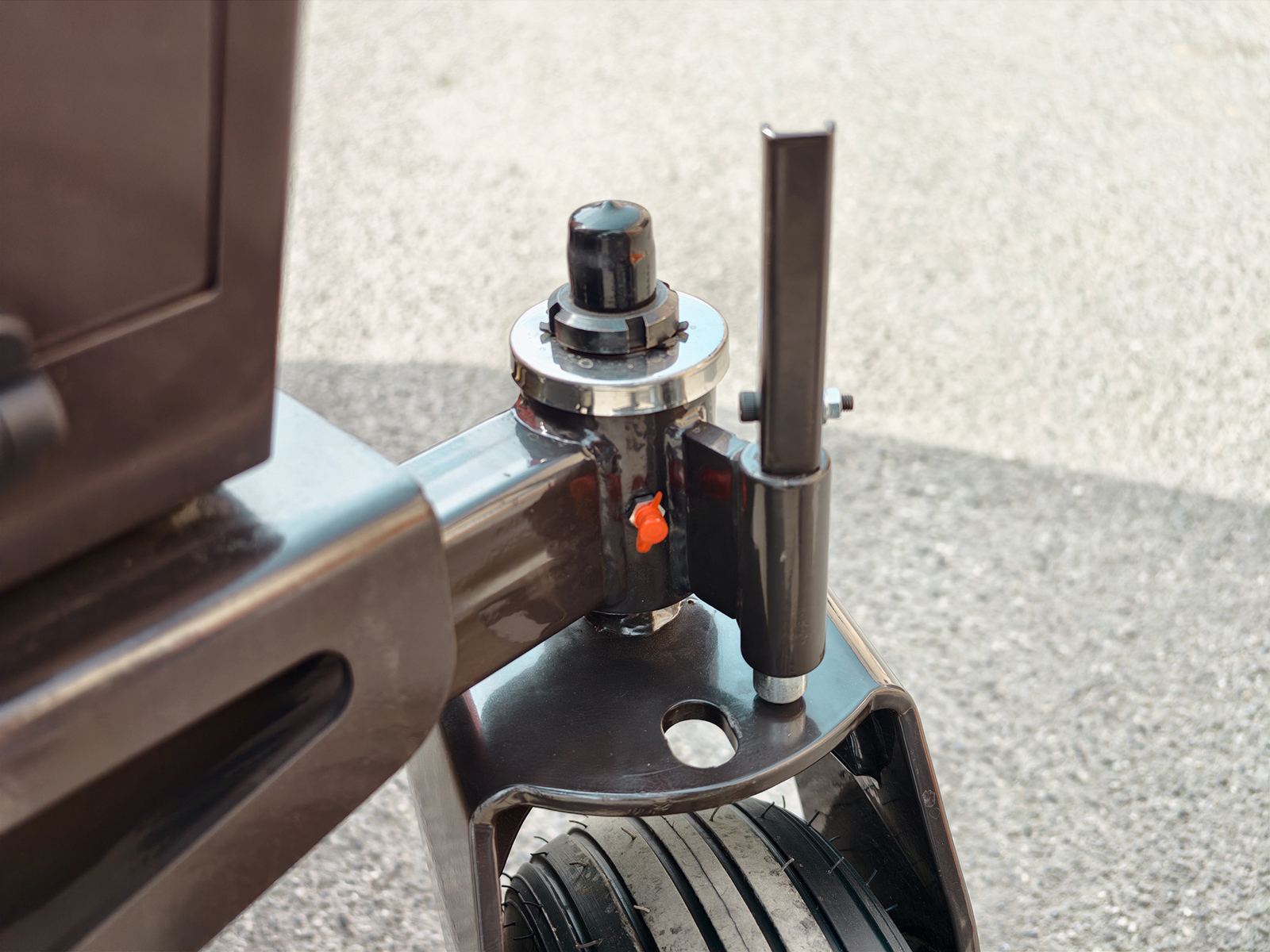

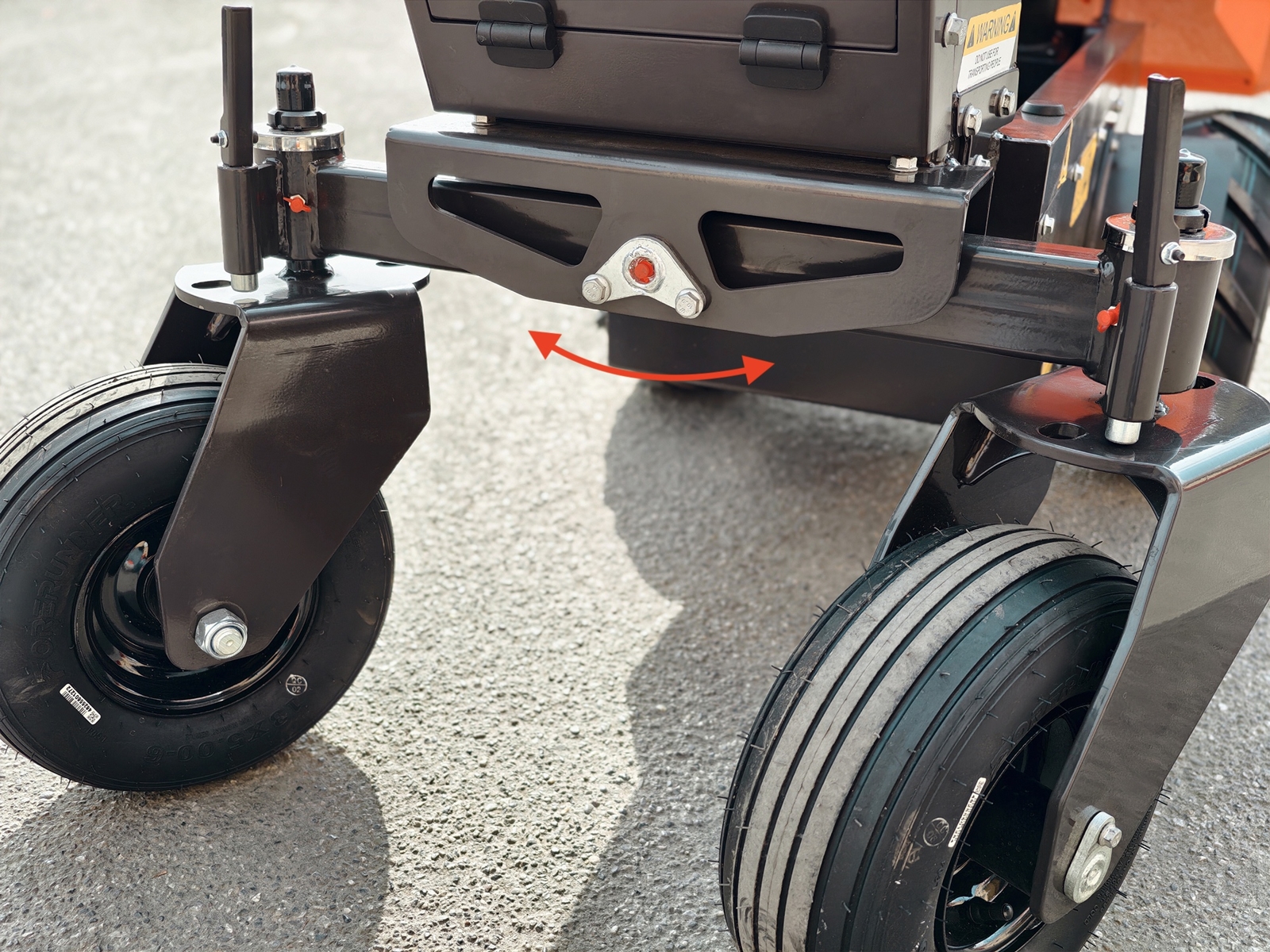

  • Rear swivel wheels with directional lock, to be locked in the straight position with loads over 100 kg
  • High manoeuvrability even in confined spaces
  • Low ground impact

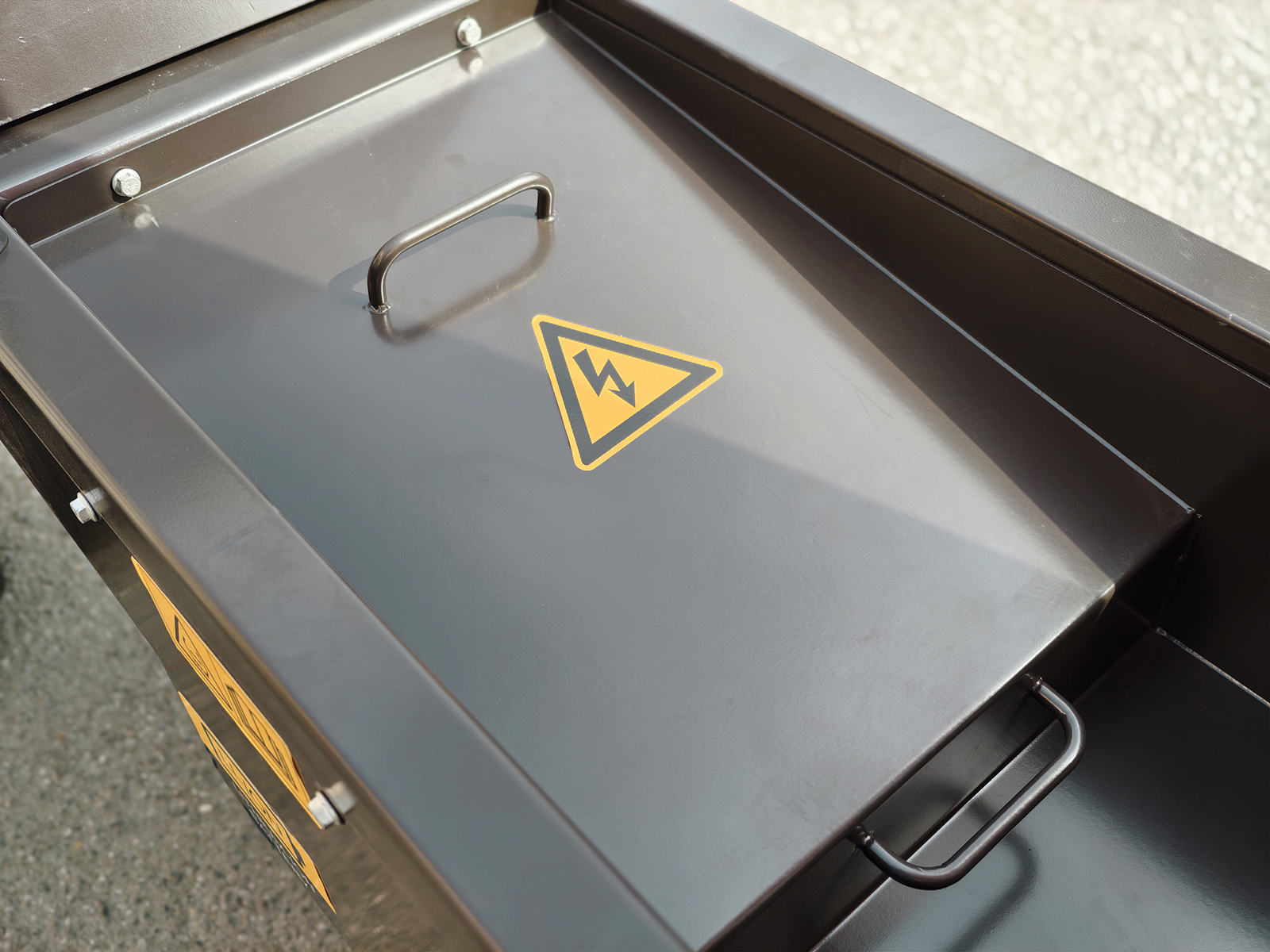

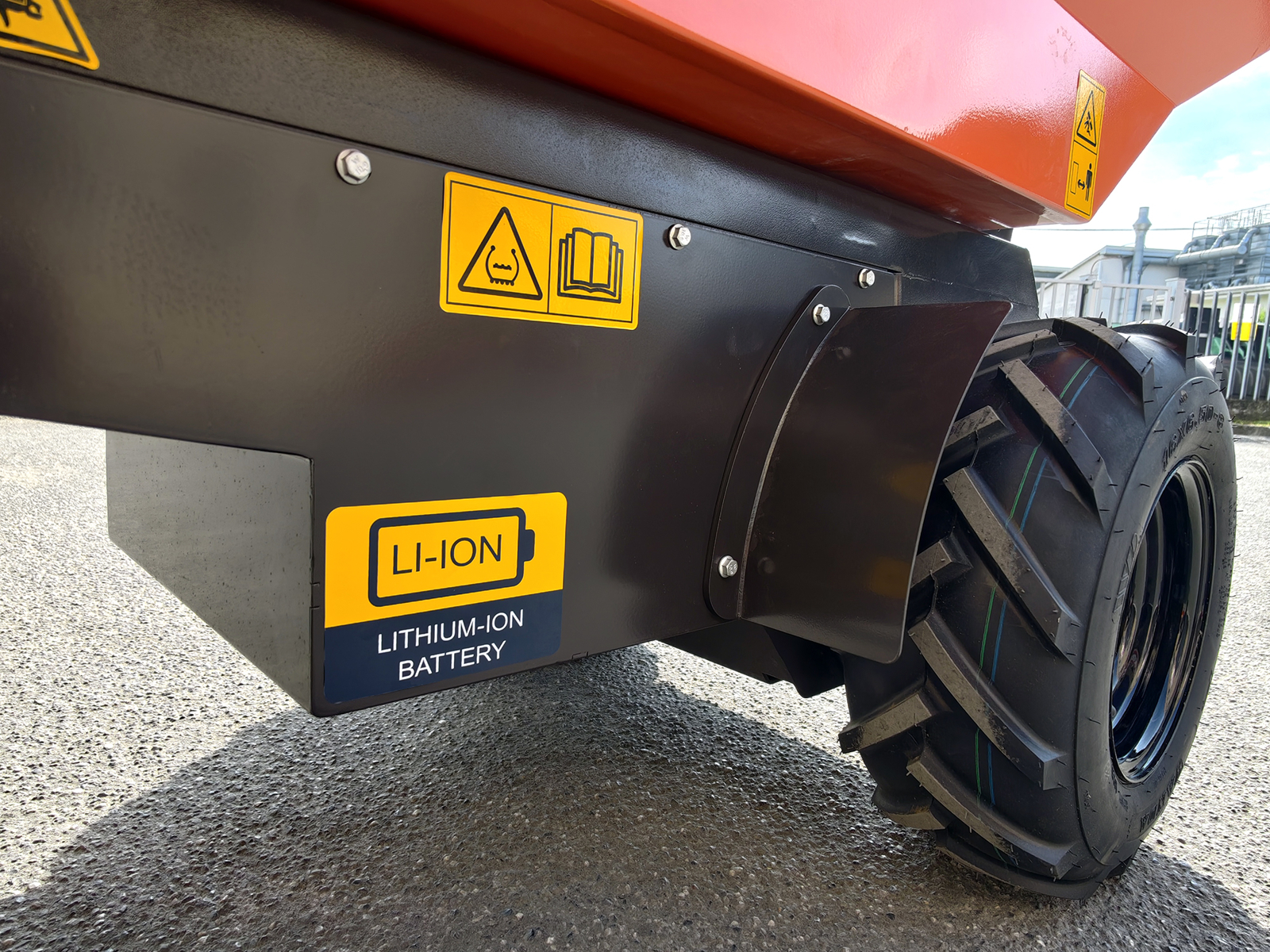

• Removable 51.2V 30Ah lithium battery

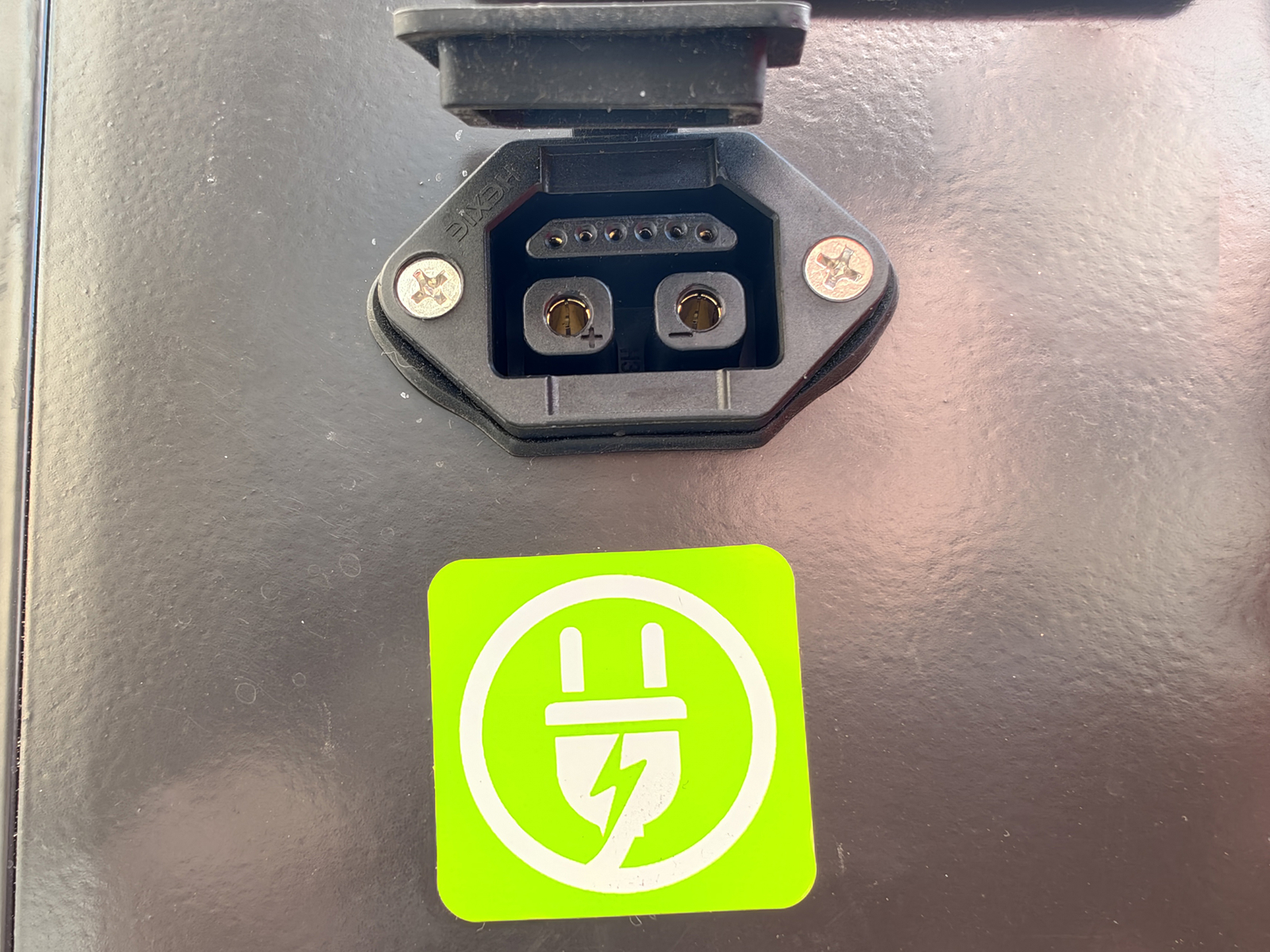

  • Charging via 220V domestic socket

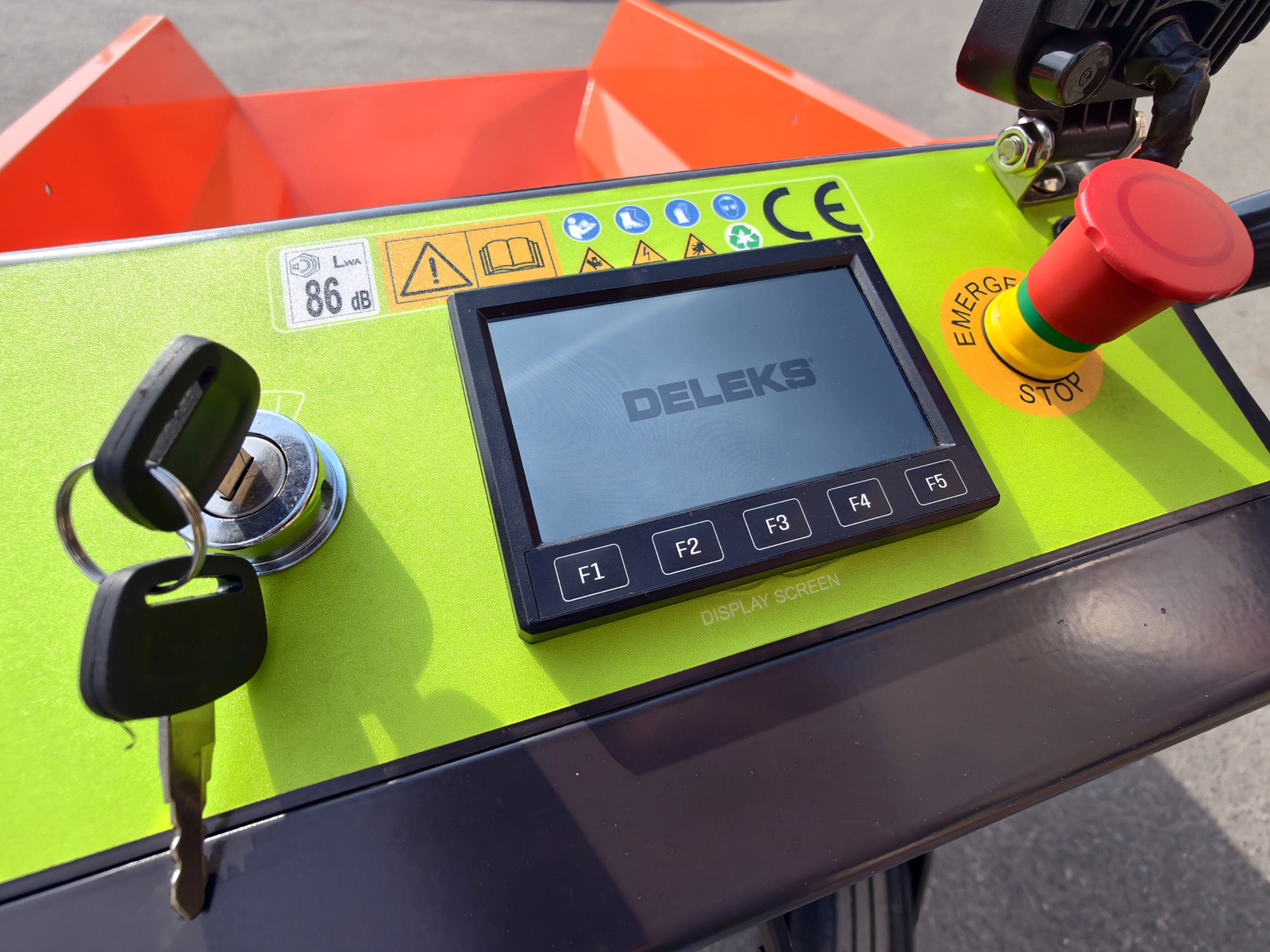

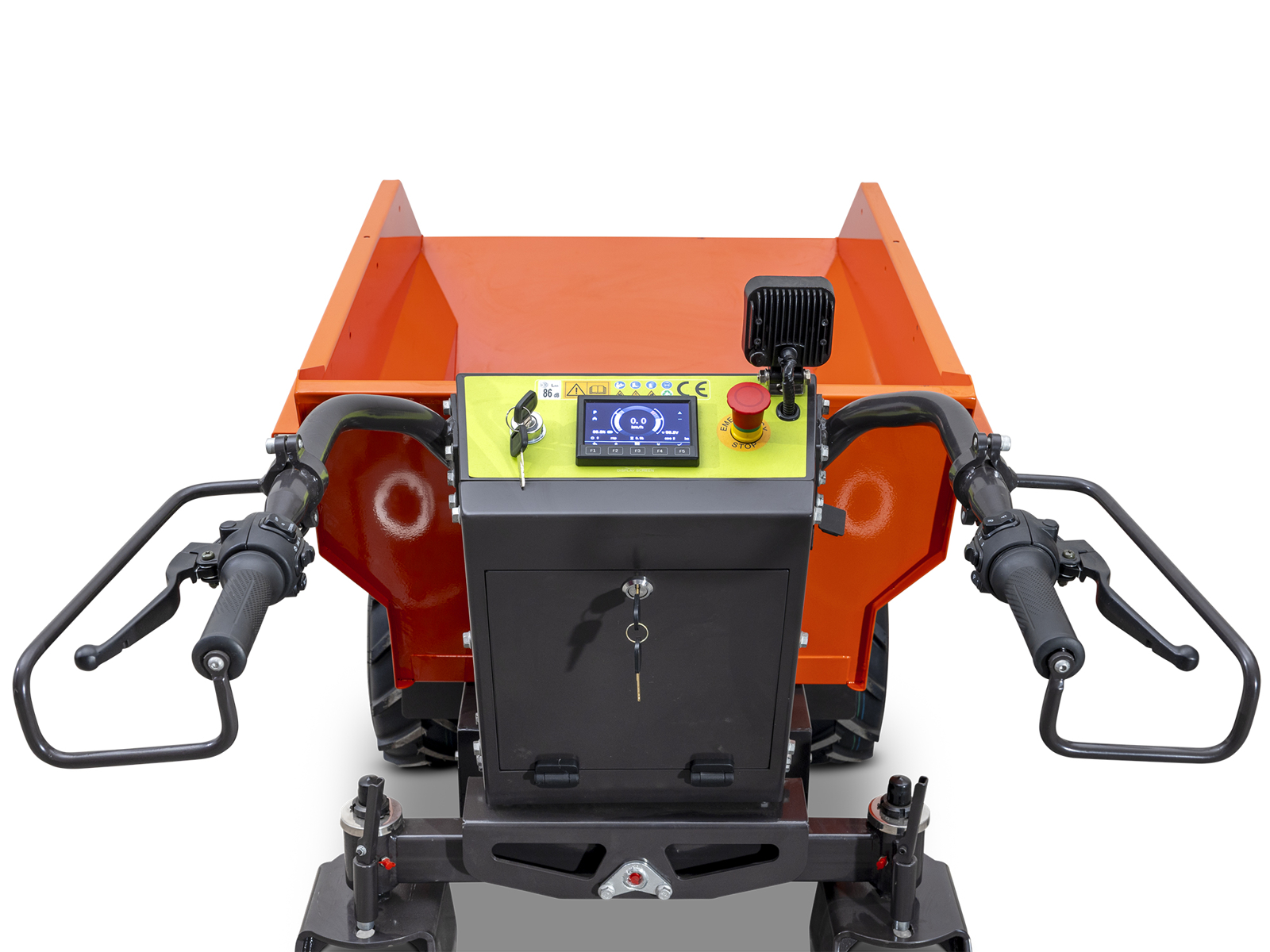

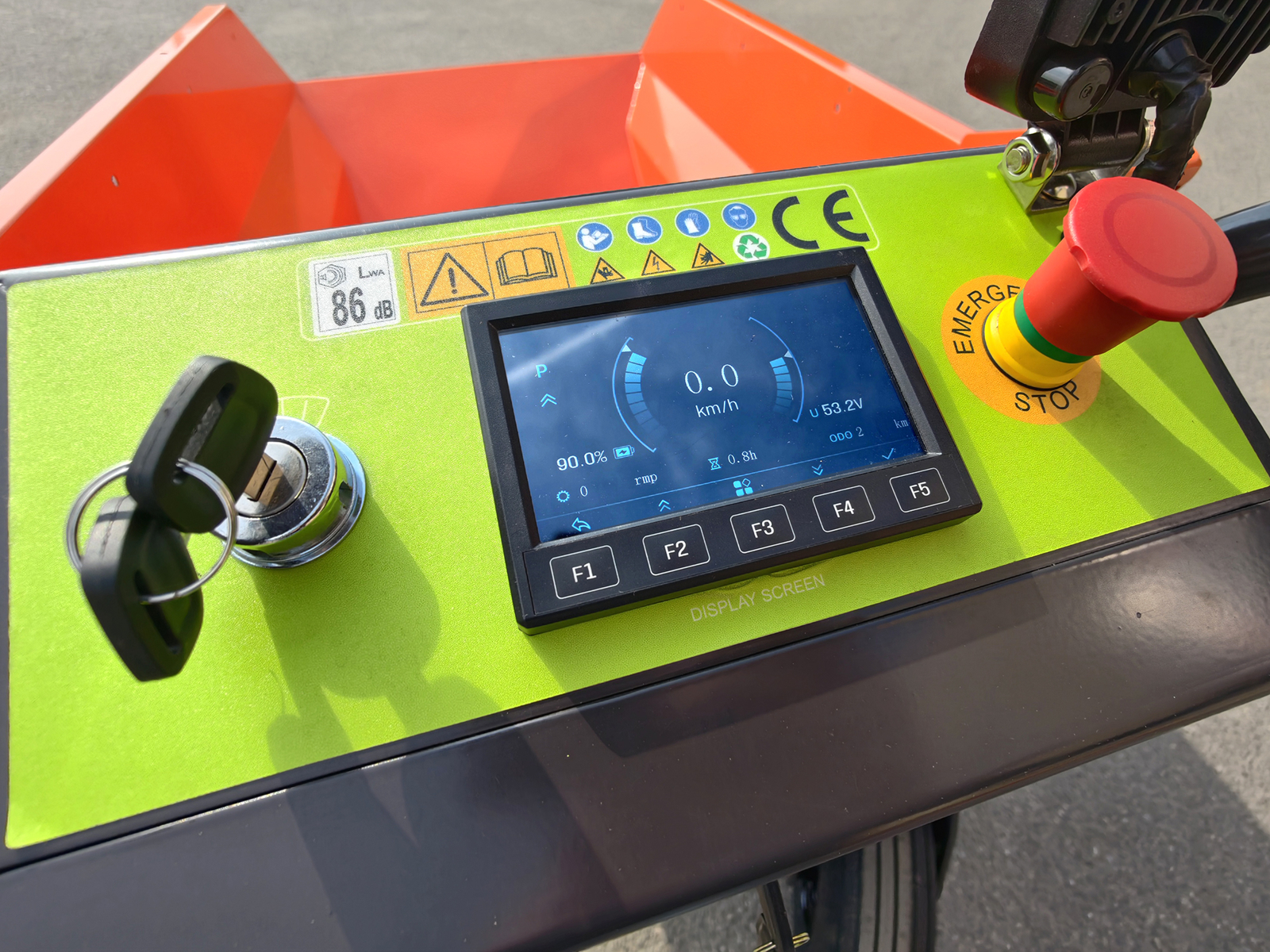

• Display showing operating data
• Key start

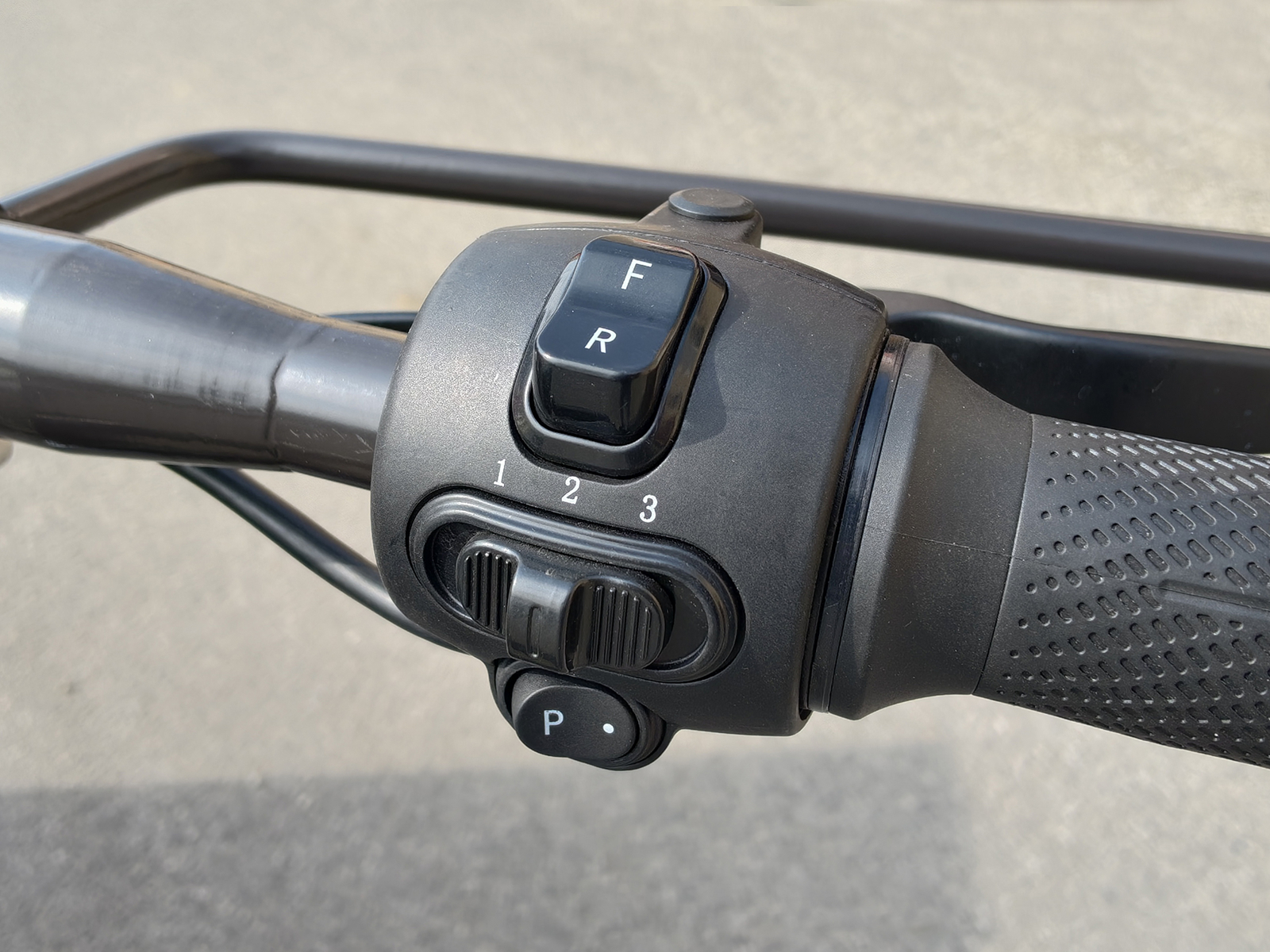

• Transmission:
  • 3 forward speeds
  • 1 reverse

Dimensions
See the PDF document at the bottom of the page.

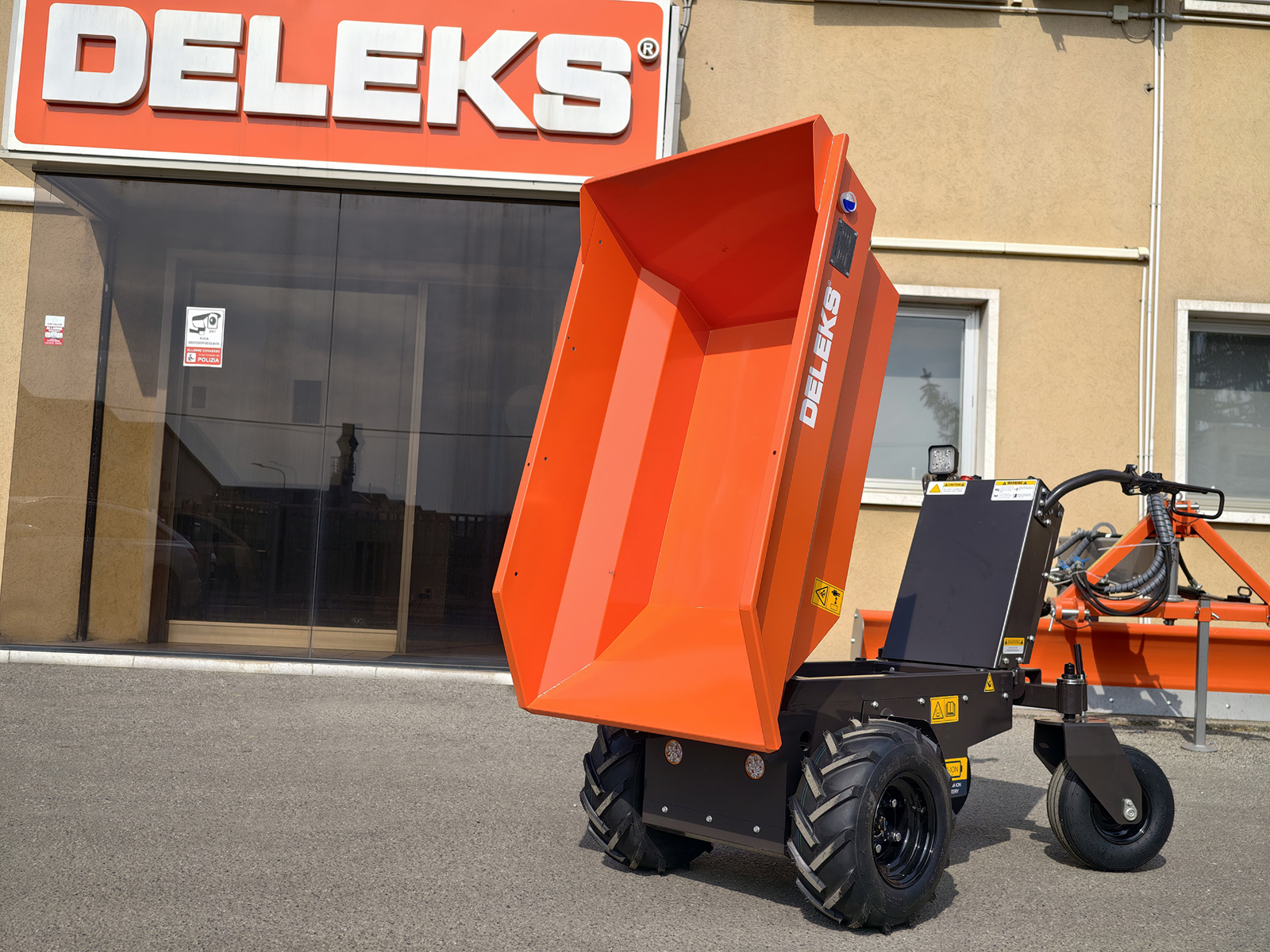

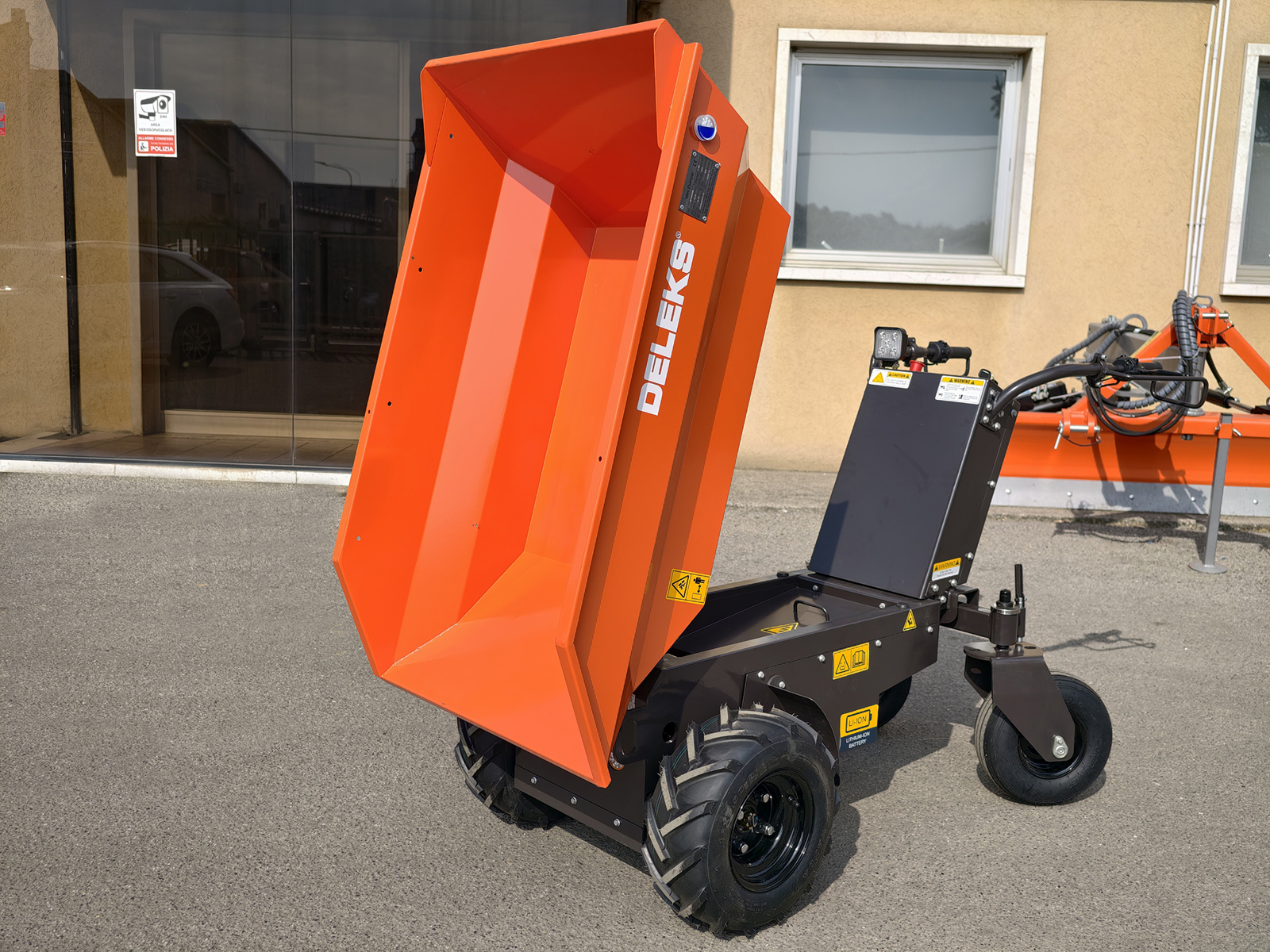

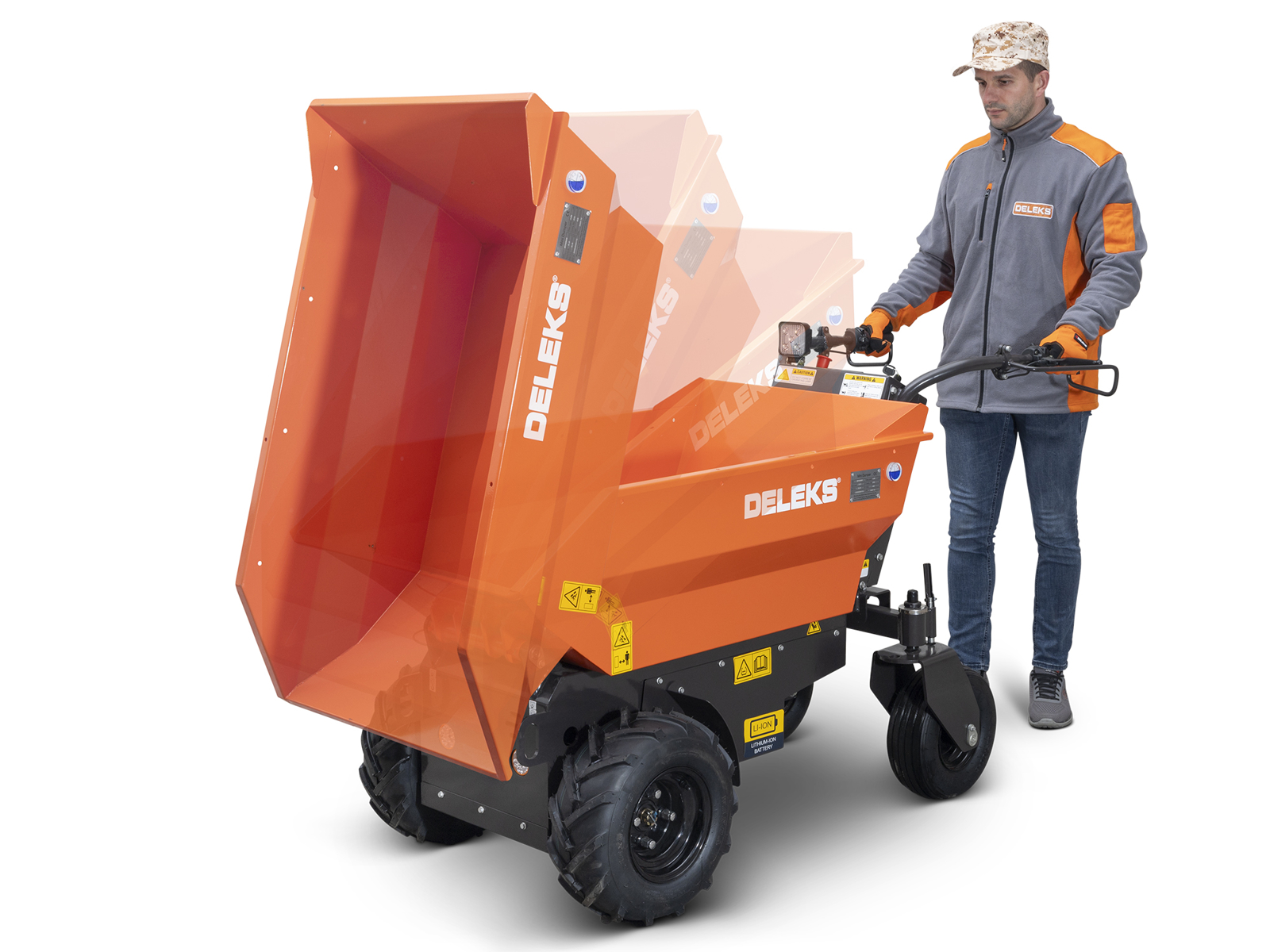

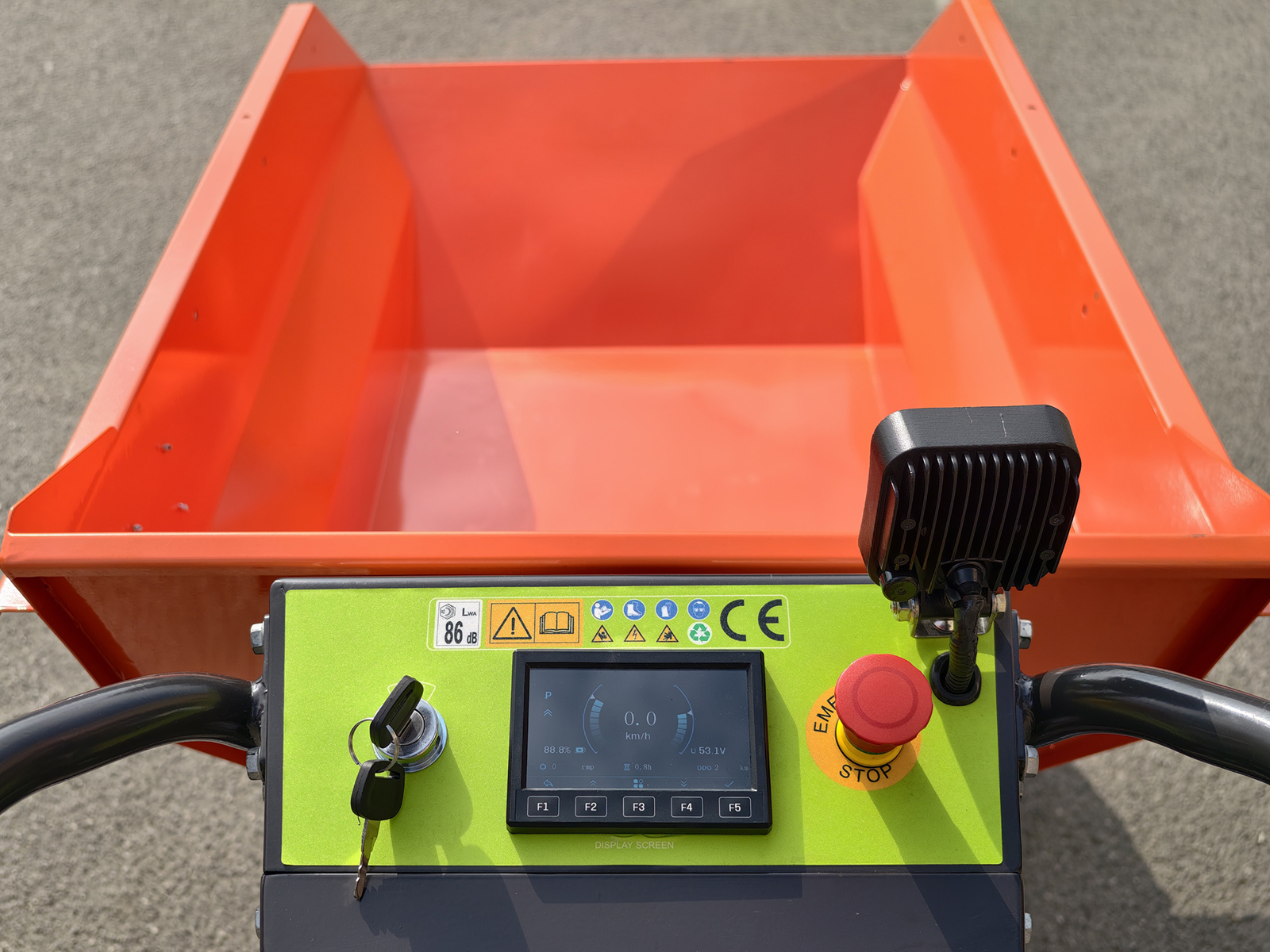

Electric tipping dumper bed

• High-strength steel structure
• Ribbed reinforced floor
• Also suitable for sandy materials

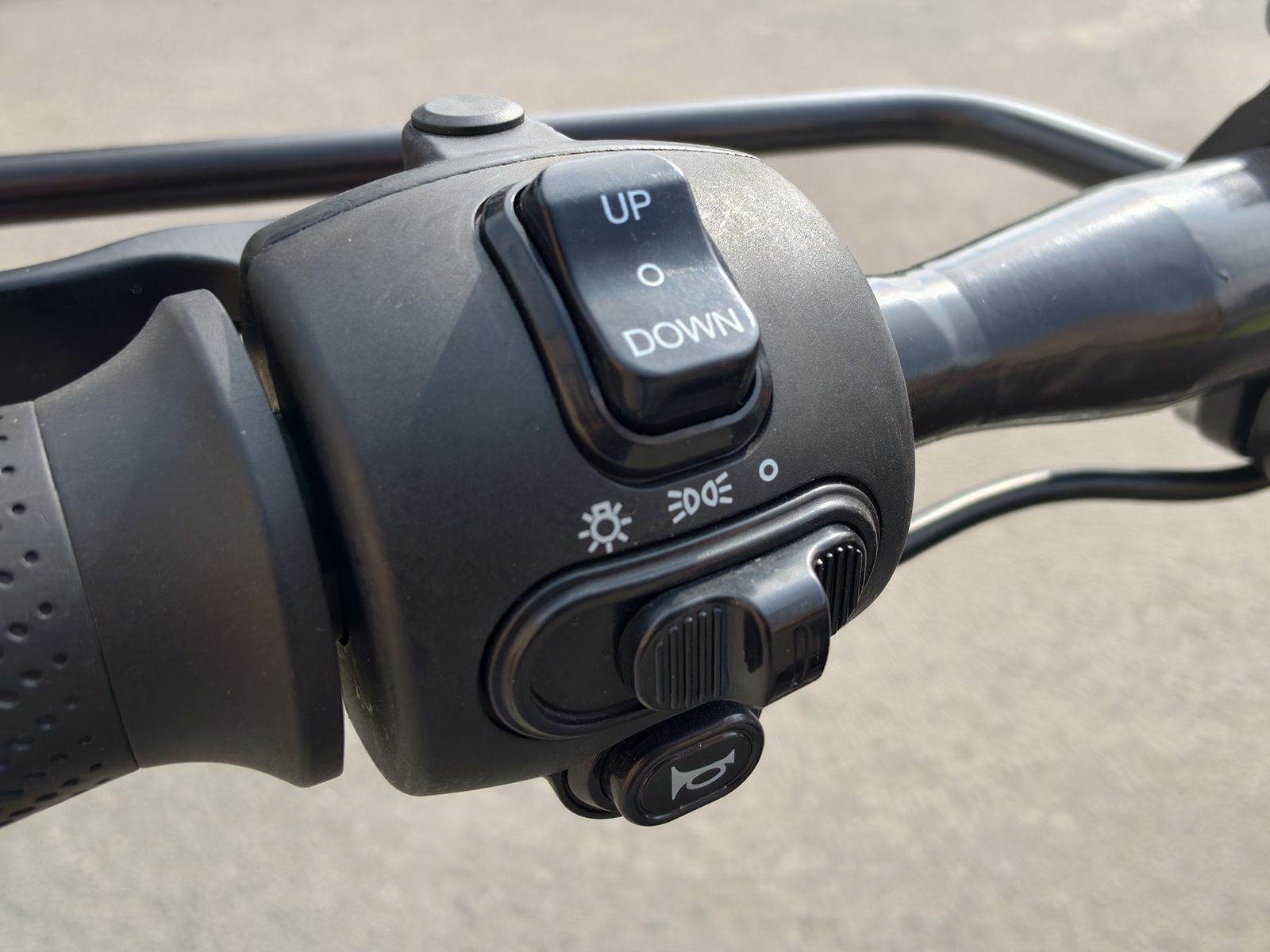

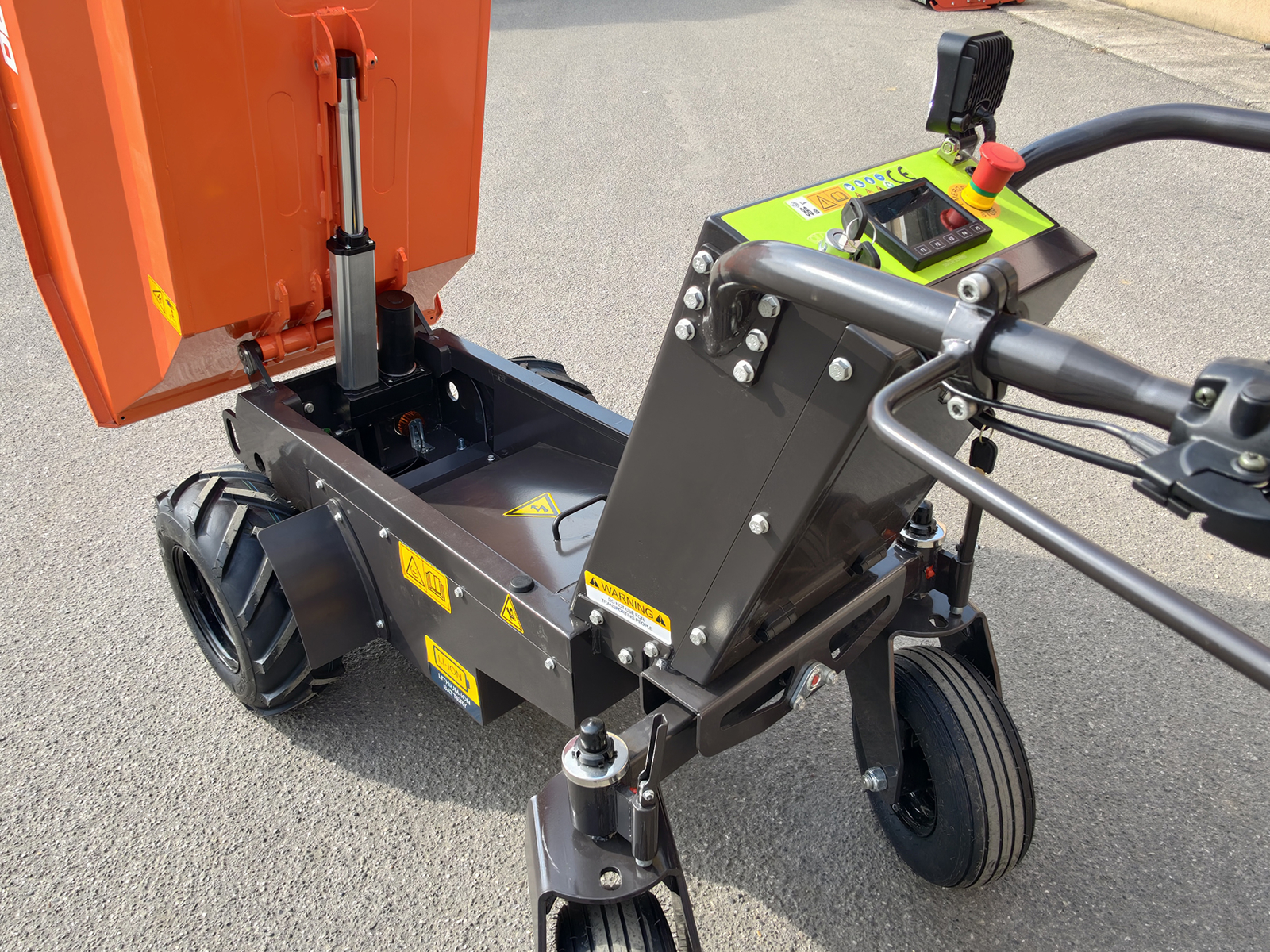

• Tipping by electrically operated actuator

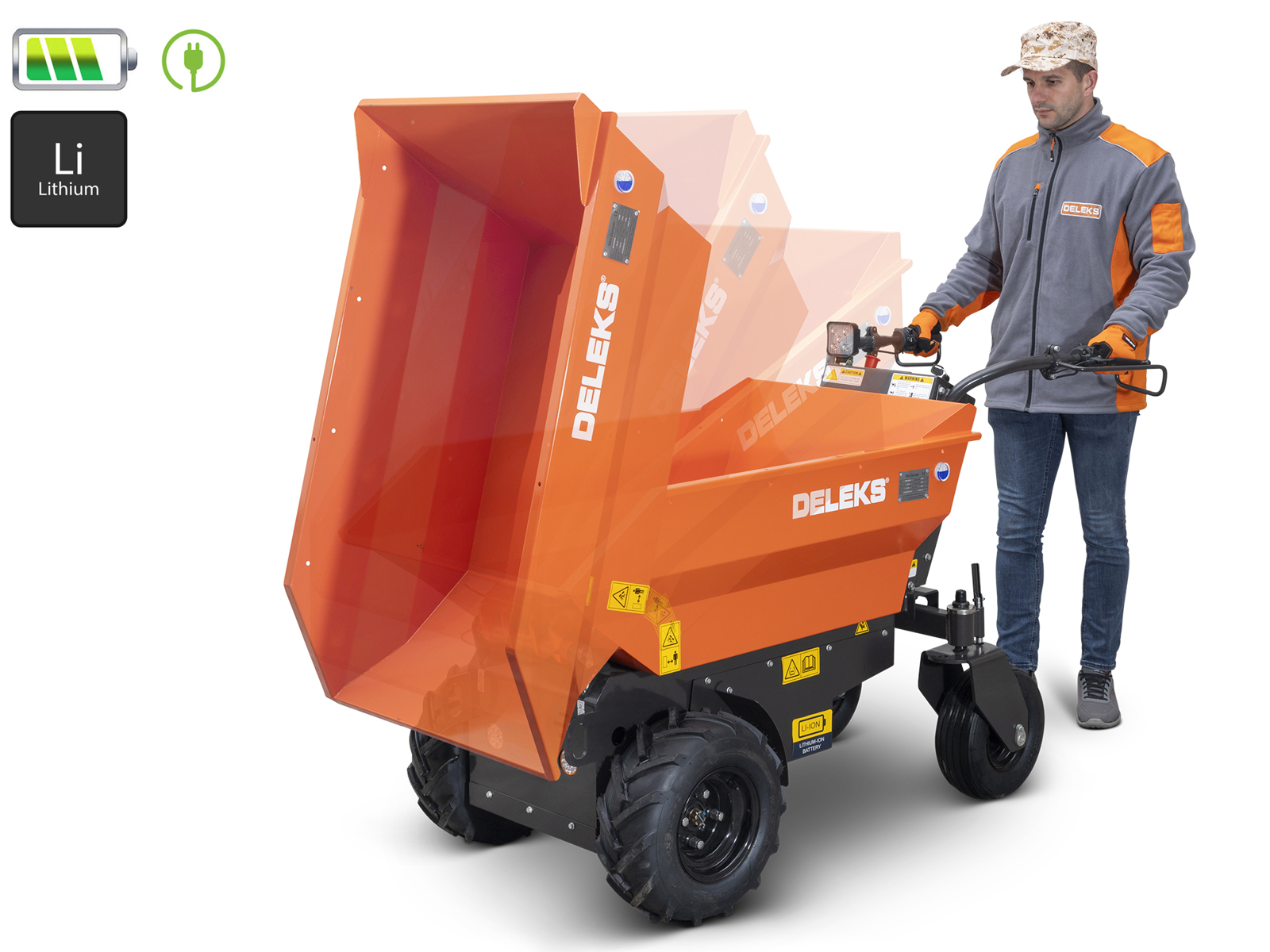

• Maximum tipping angle: 78°
• Partial or full tipping
• 30 cm side extensions available as an accessory

Performance and technical data

• Rated load: 400 kg (maximum load 500 kg)
• Battery autonomy: 10–12 hours, depending on use
• Charging time: approx. 6 hours (100%)
• Battery: lithium 51.2V – 30Ah (1.54 kWh), removable
• Electric motor: 0.8 kW
• Speed:
  • Forward: max 5 km/h
  • Reverse: max 1 km/h
• Electromagnetic brake
• Bed capacity: 0.22 m³
• Operating weight: 195 kg

Comfort and safety

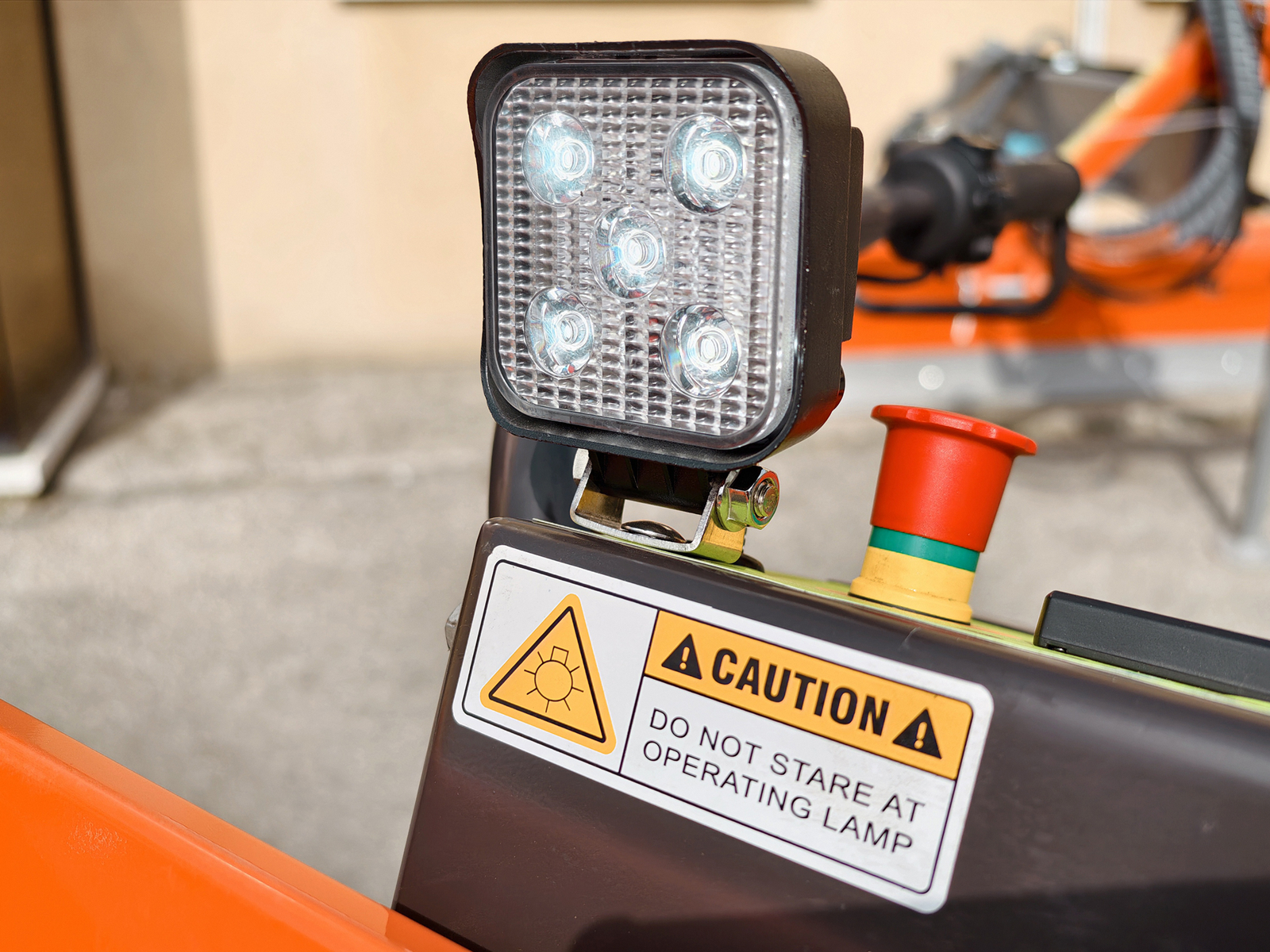

• 2 x 30W LED headlights for working in low-visibility conditions
• Handle vibration: 2 m/s²
• Sound level: 86 dB

Standard equipment

• Pair of ignition keys

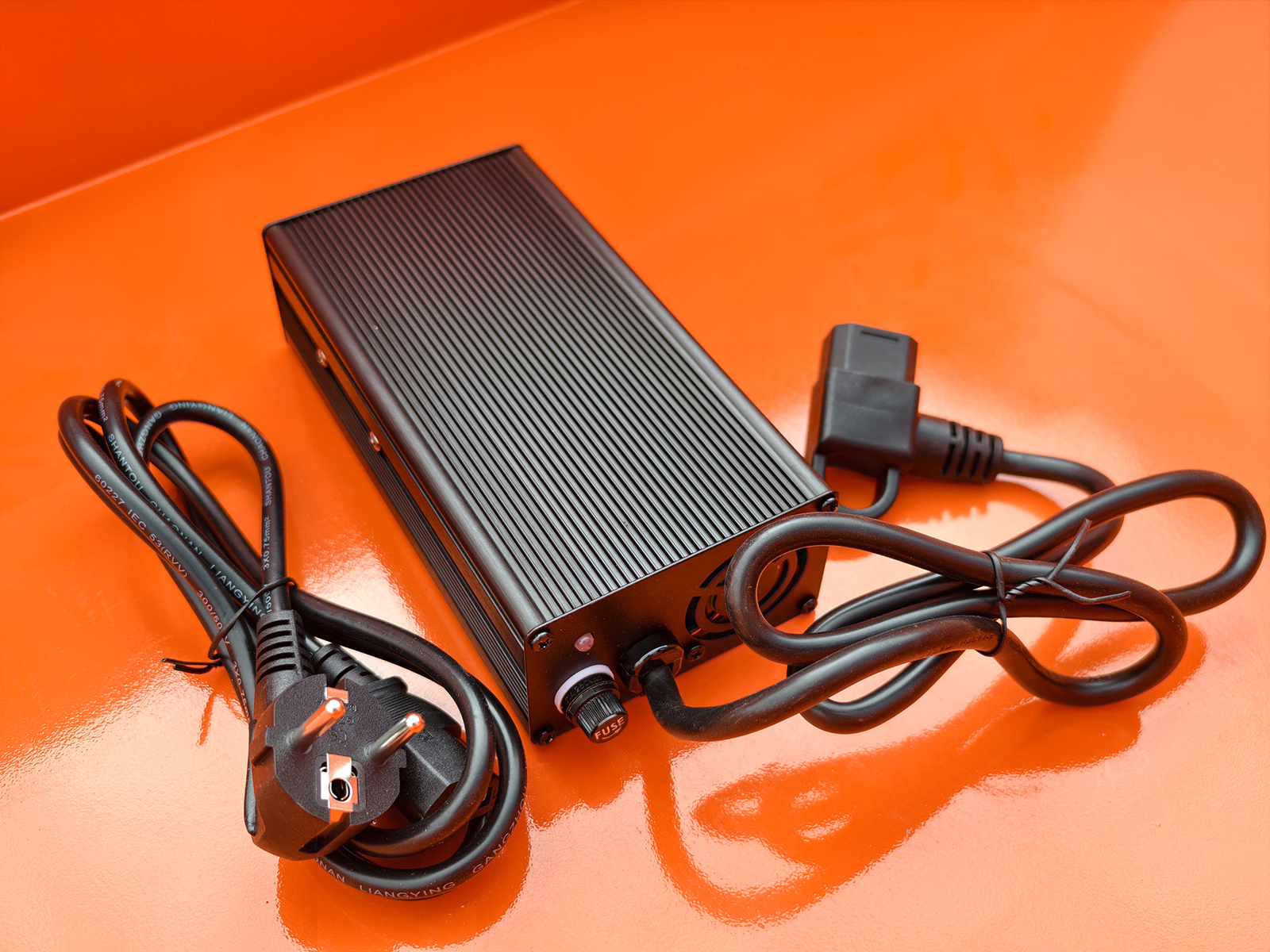

• Battery charger

Battery warranty and technical support

1. 3-year full warranty on the battery (*). The warranty applies if the battery capacity falls below 75% of its original capacity during the warranty period or before reaching 1,500 charge cycles, whichever occurs first. The warranty is valid provided that the machine and the battery are used and maintained in accordance with the operating instructions. The warranty does not cover damage resulting from:
   • Deep discharge or prolonged storage of the battery in a discharged state
   • Use of unapproved chargers or charging systems
   • Improper use, abuse or unauthorised modifications to the battery system
   • Water ingress, high-pressure washing or excessive exposure of the electronic parts to humidity
   • Use outside the intended operating conditions
2. The battery is replaceable.
3. Spare batteries will be available in the long term, for a minimum period of 10 years.
4. Full assistance and technical support through DELEKS® branches and headquarters.

(*) An optional battery warranty extension of up to 3 additional years is available, for long-term protection and greater peace of mind. For information on the options and conditions of the extended warranty, we are at your complete disposal.

Documentation included

• EC Declaration of Conformity
• Invoice / receipt
• Operation and maintenance manual
