Stone and sorting grapple for mini excavators and forest cranes
DETAILS

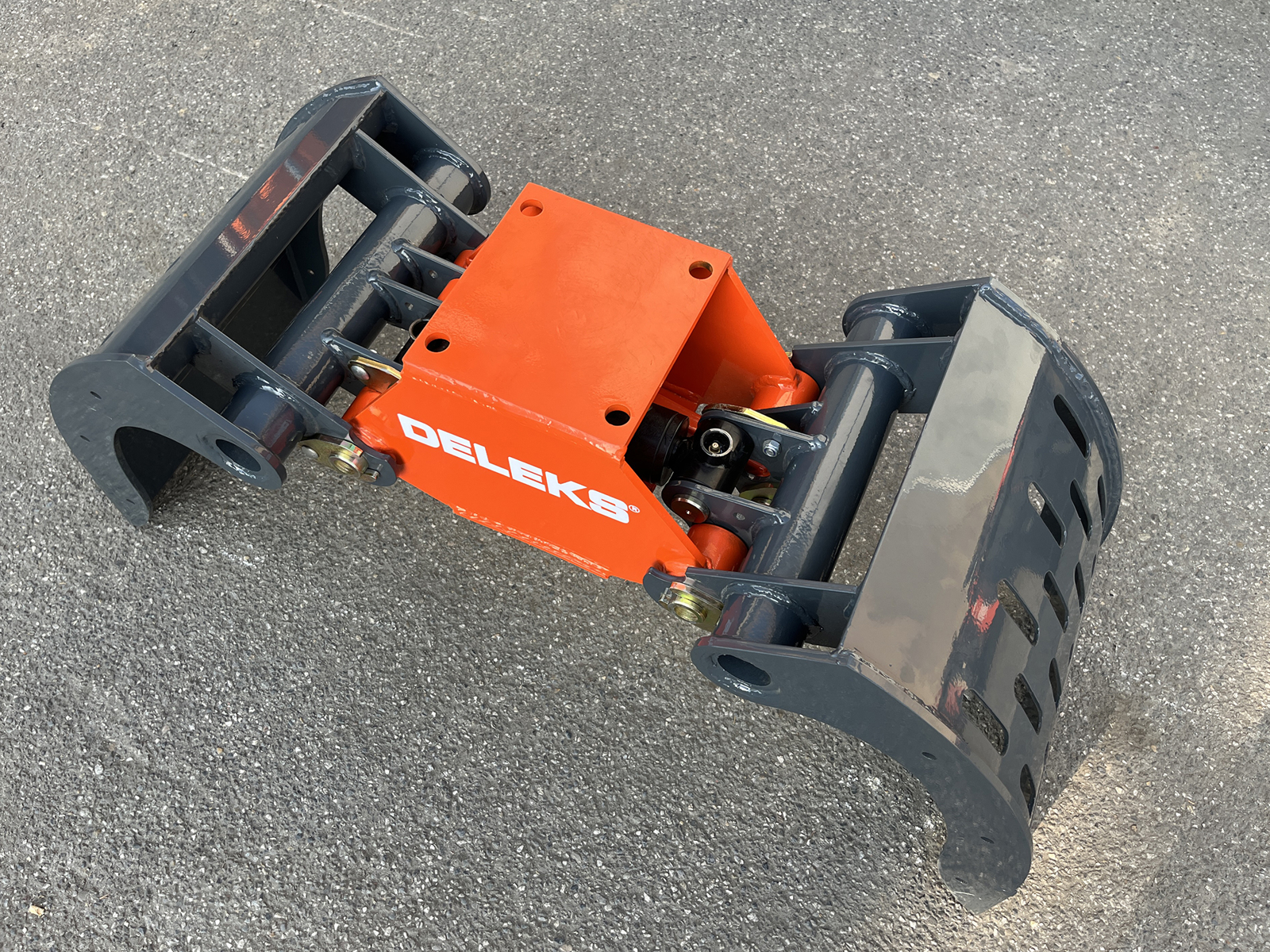

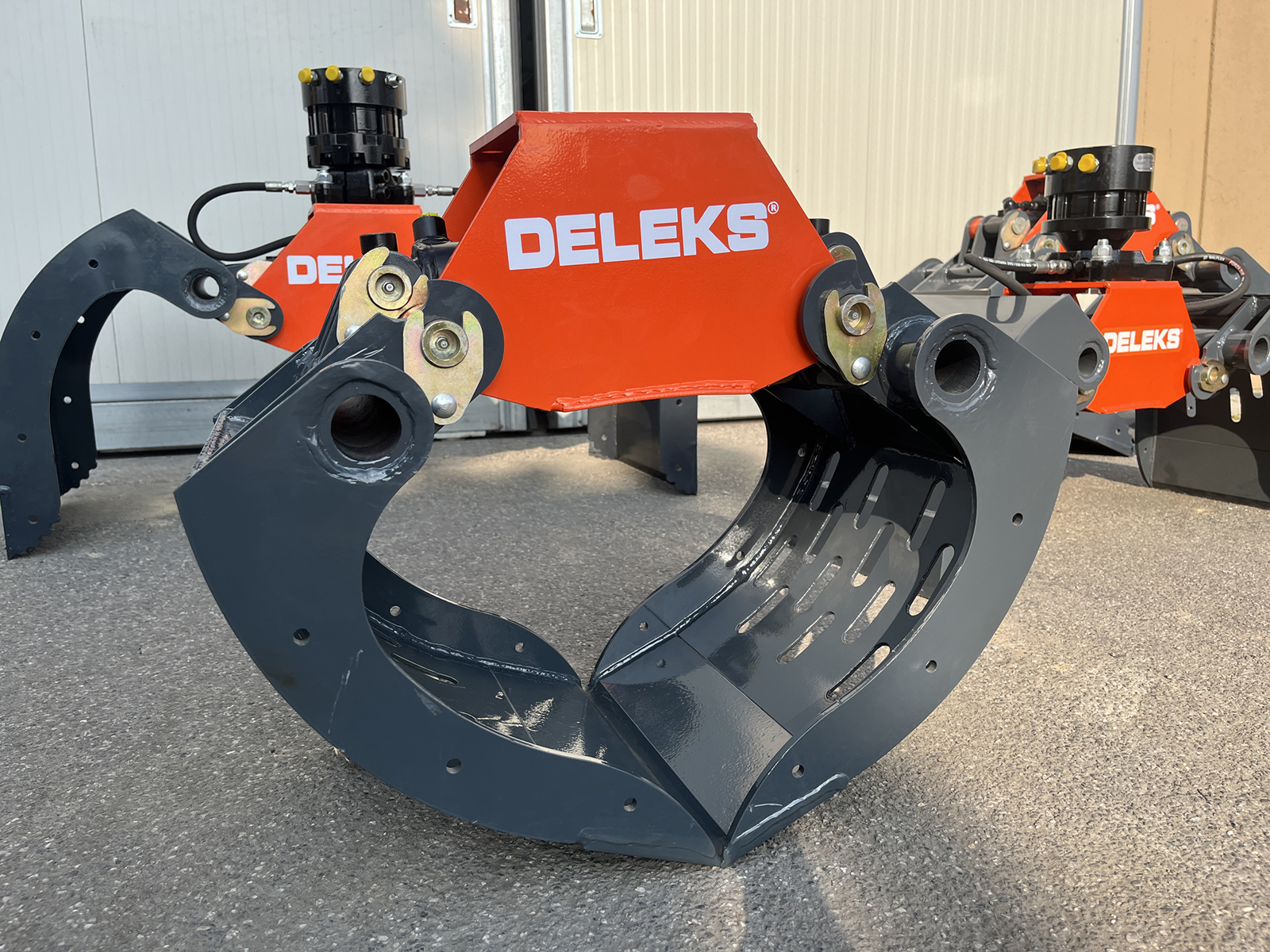

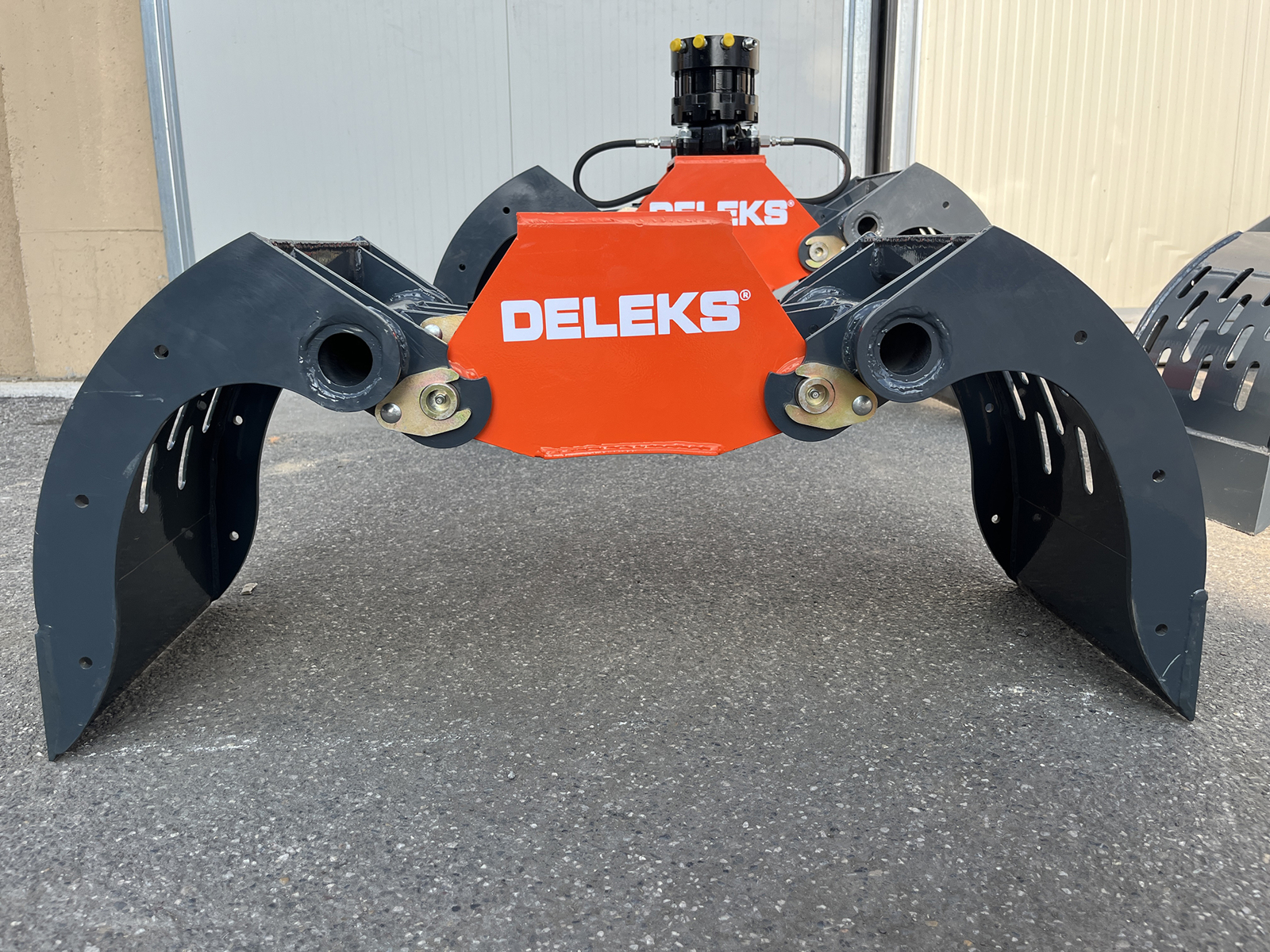

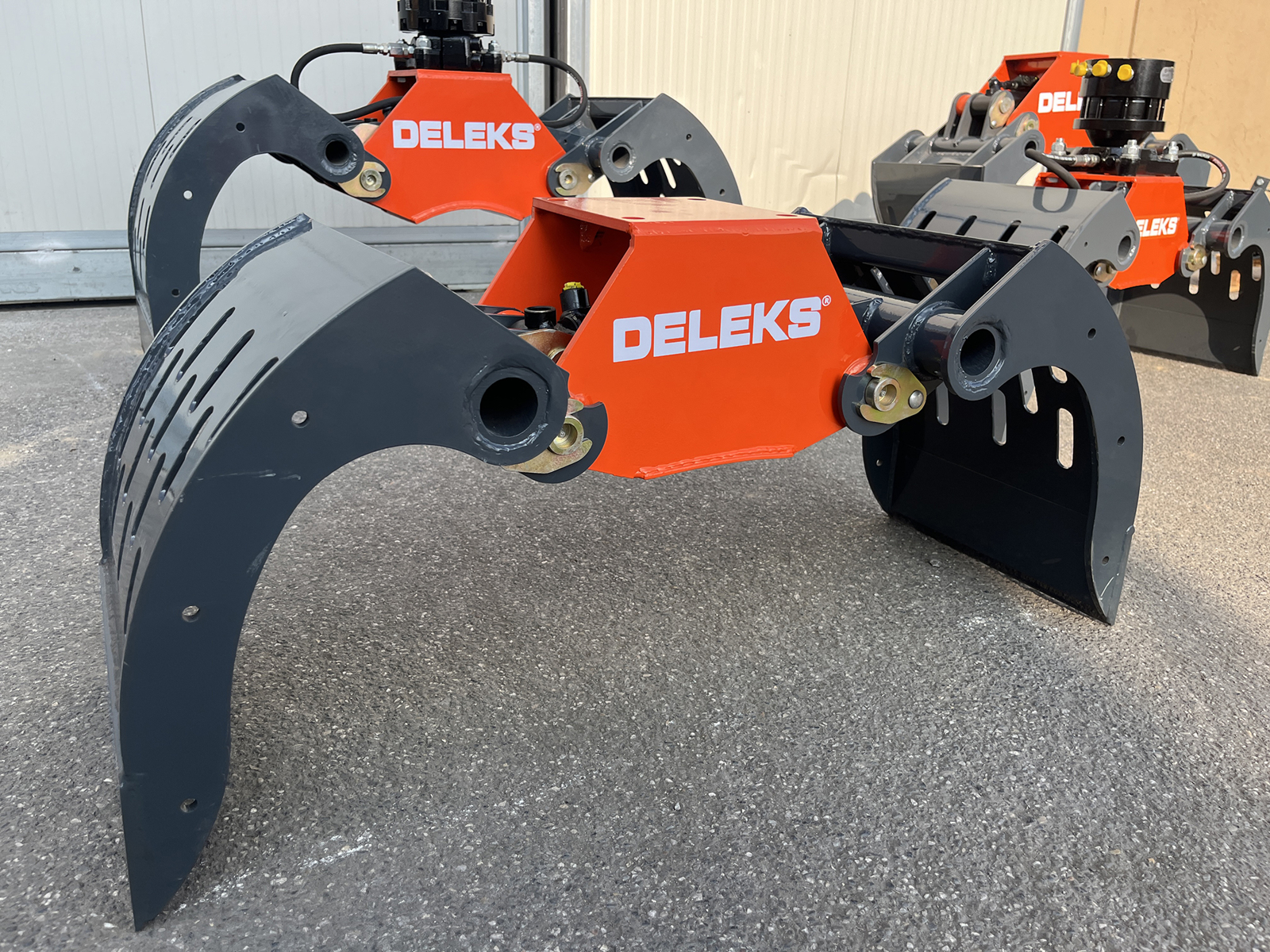

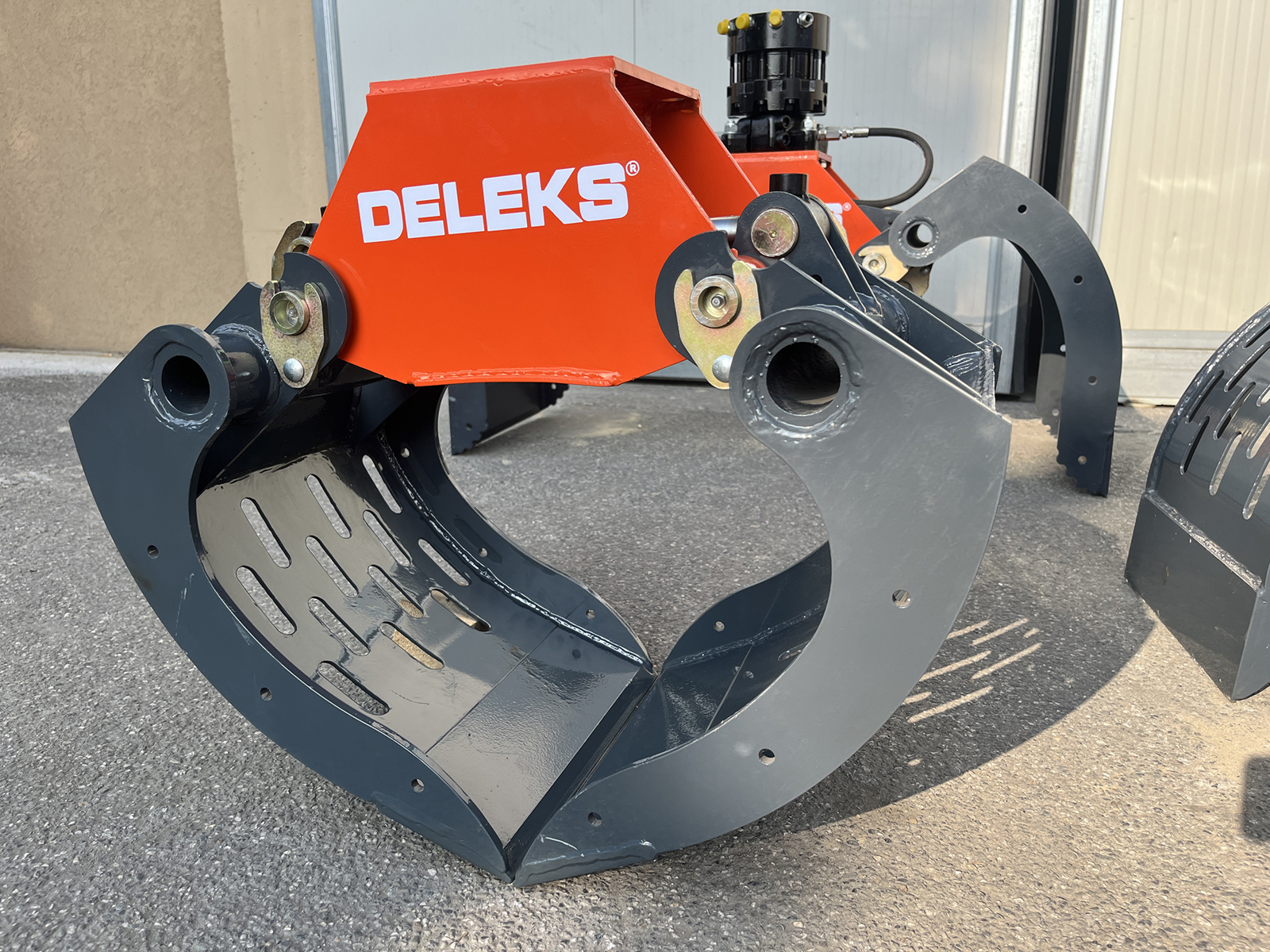

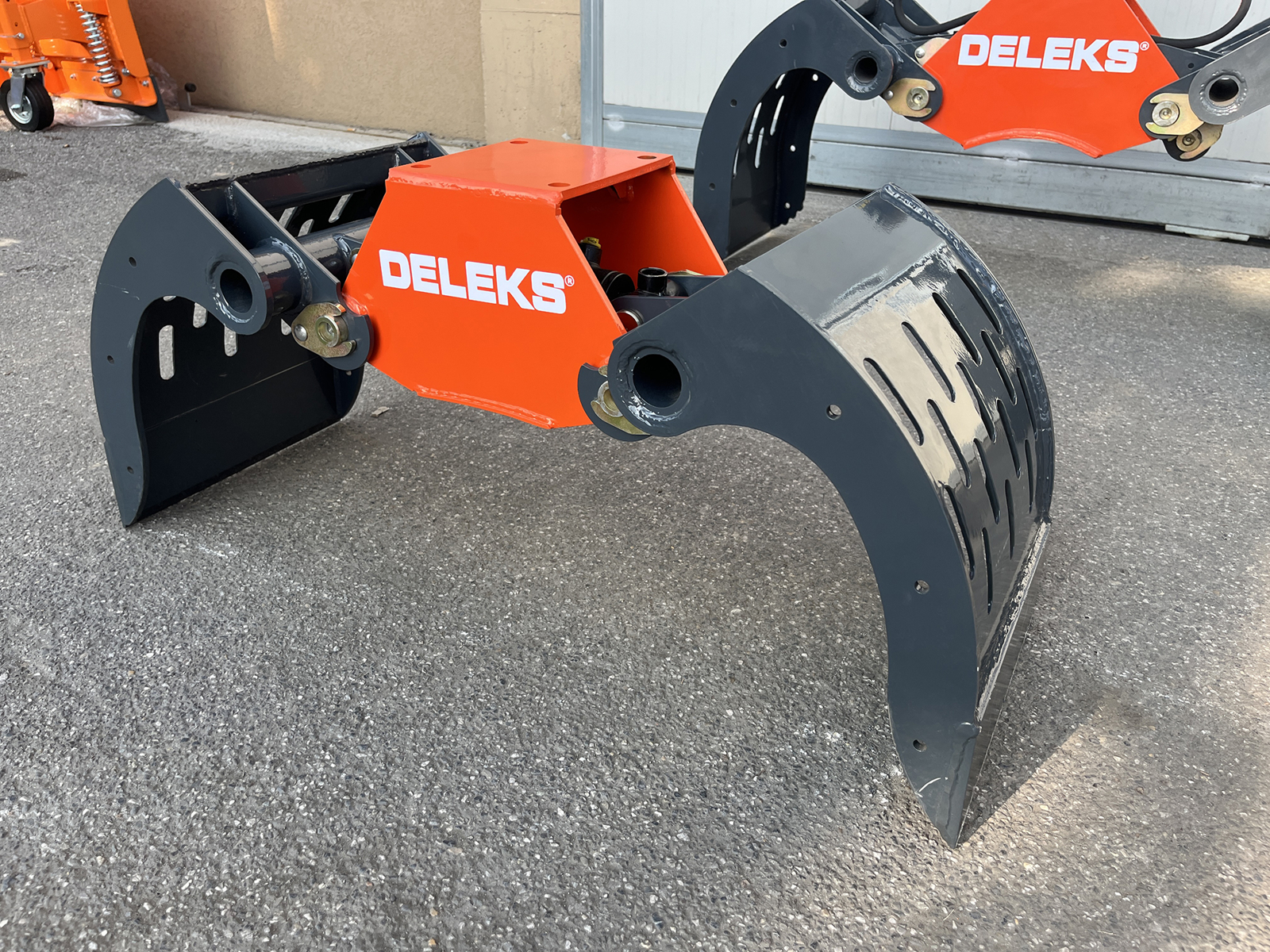

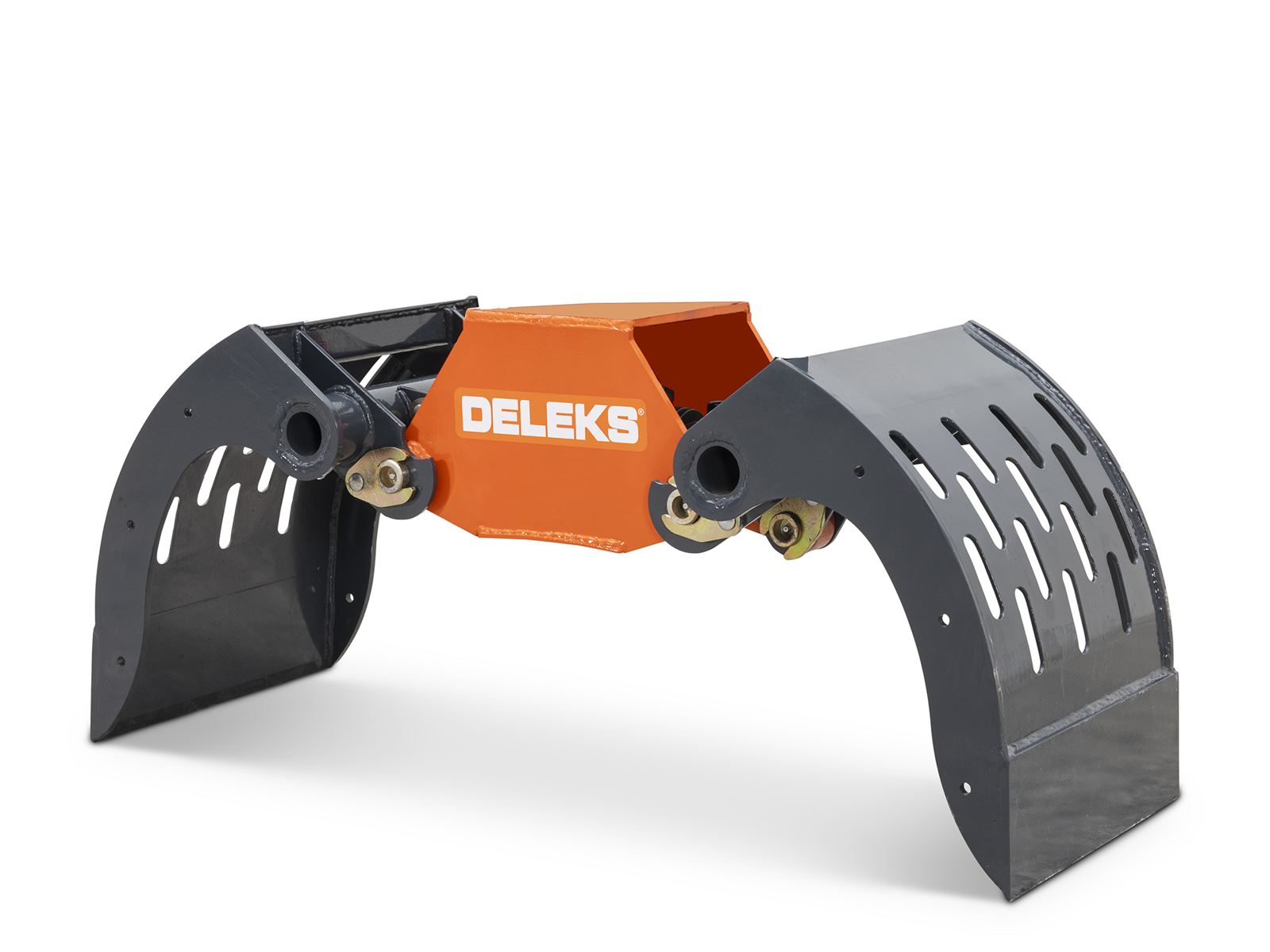

Stone grapple, Sorting grapple for Mini Diggers and Forest Cranes 0.8 – 2.5 Ton - DELEKS® DKP-10
OVERVIEW
Lightweight and durable stone grapple fits all mini diggers/excavators e.g Bobcat, Kubota, Case, Caterpillar, Ihimer, JCB, Komatzu, Yanmar, Hitachi. EC Conformity, 2 Year Warranty.
BENEFITS & FEATURES
The DKP-10 sorting grapples are intended for many tasks such as handling large stones, timber, recycling, scrap, sorting and also for light demolition work.

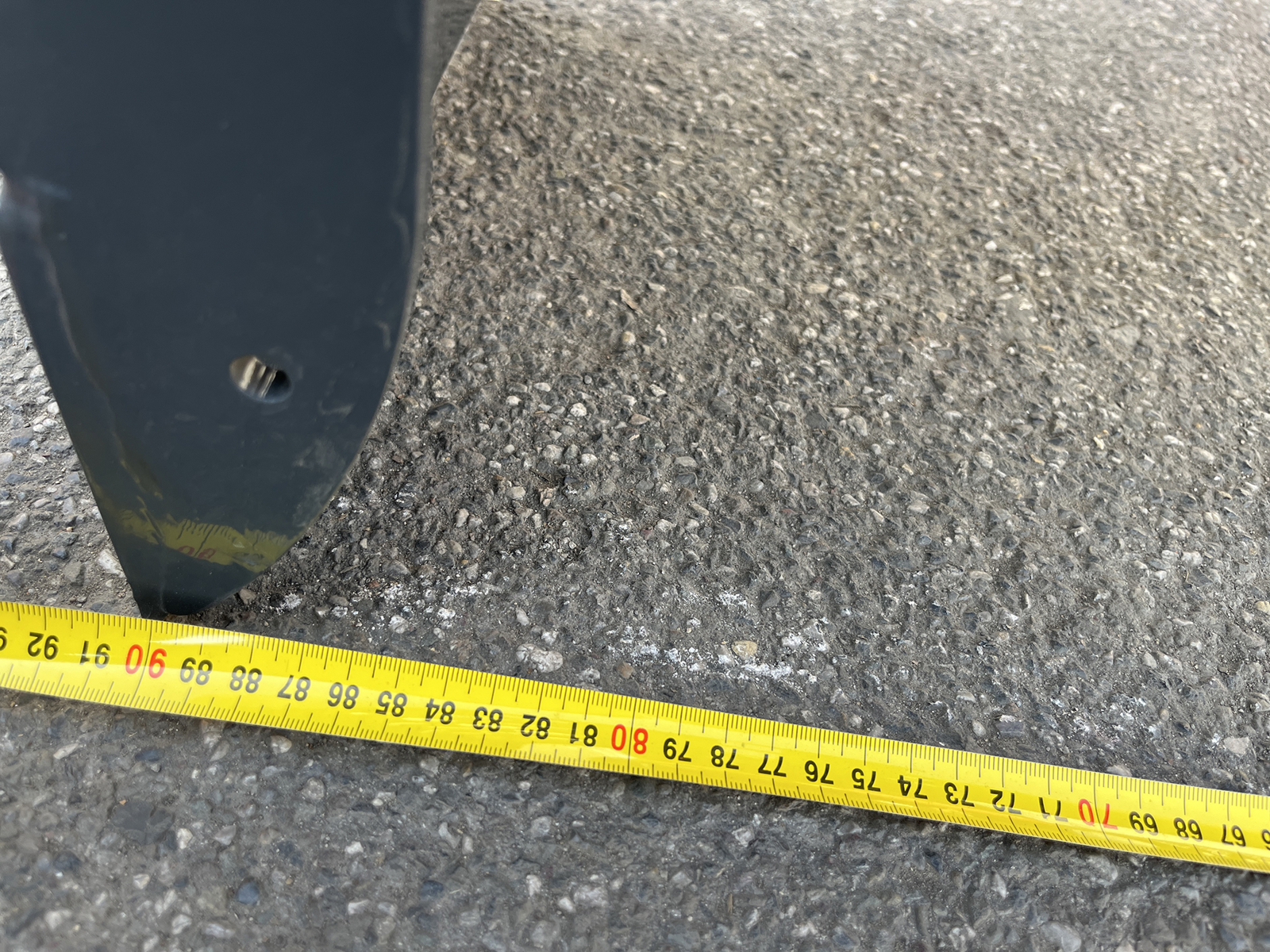

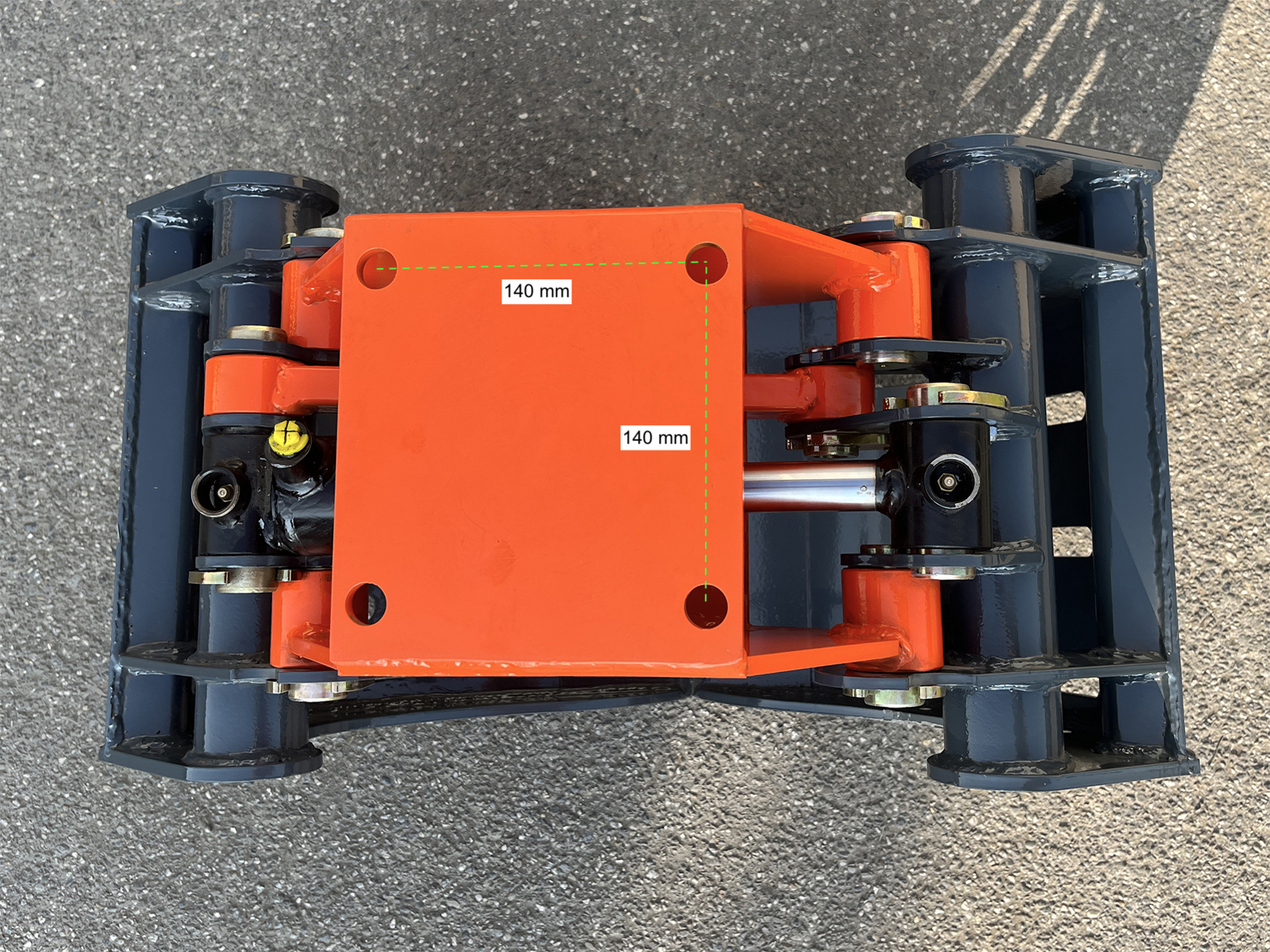

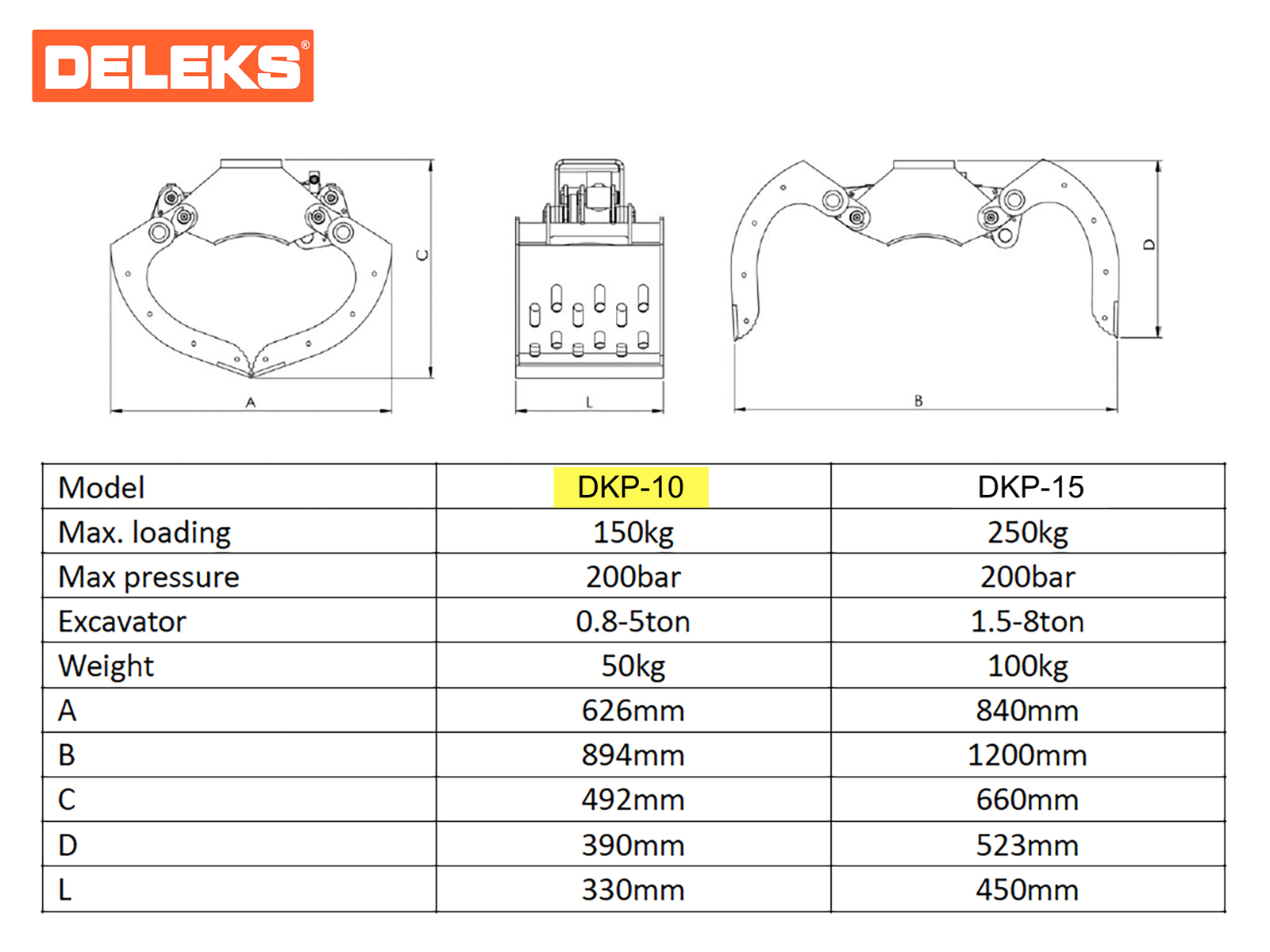

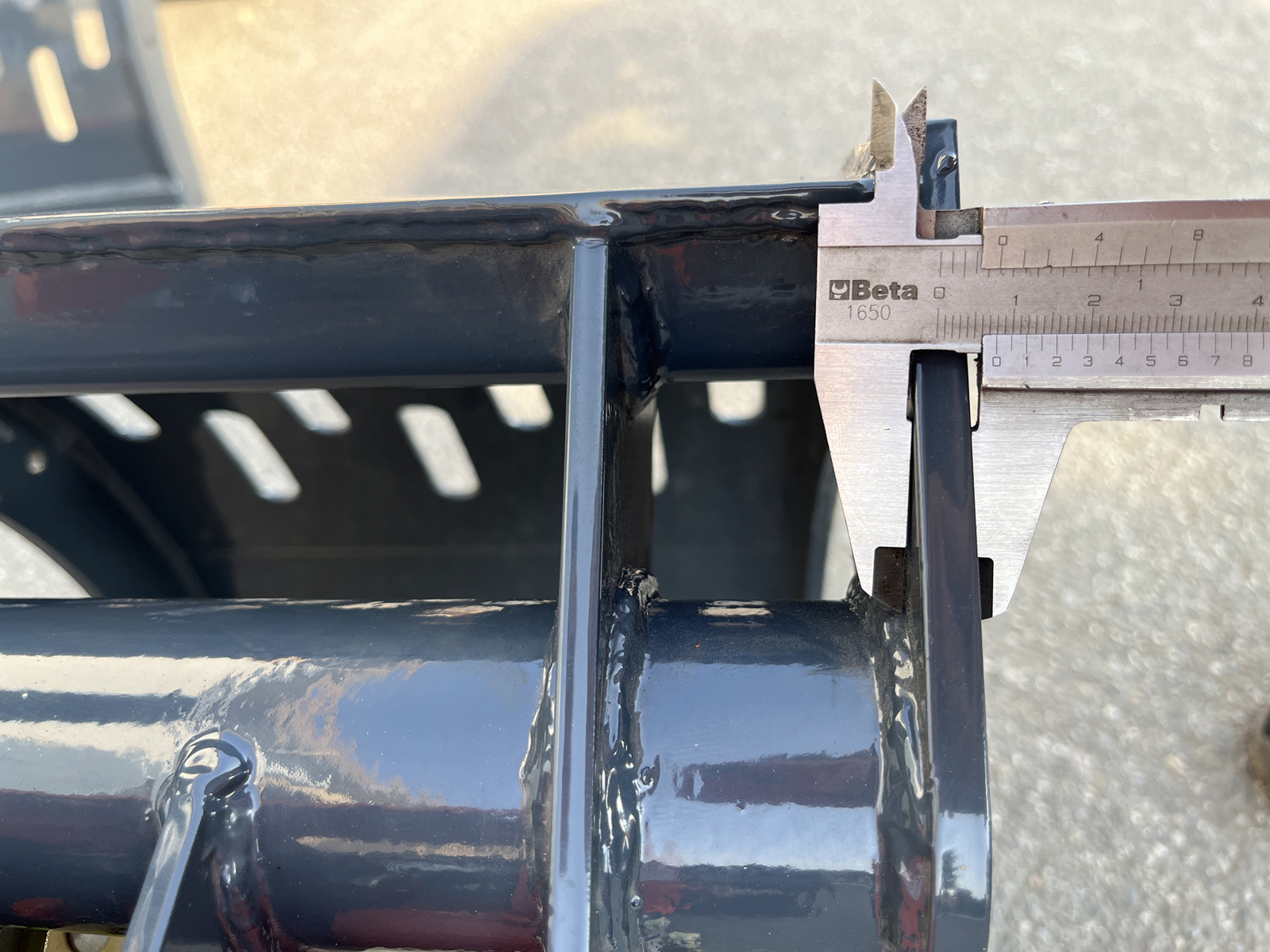

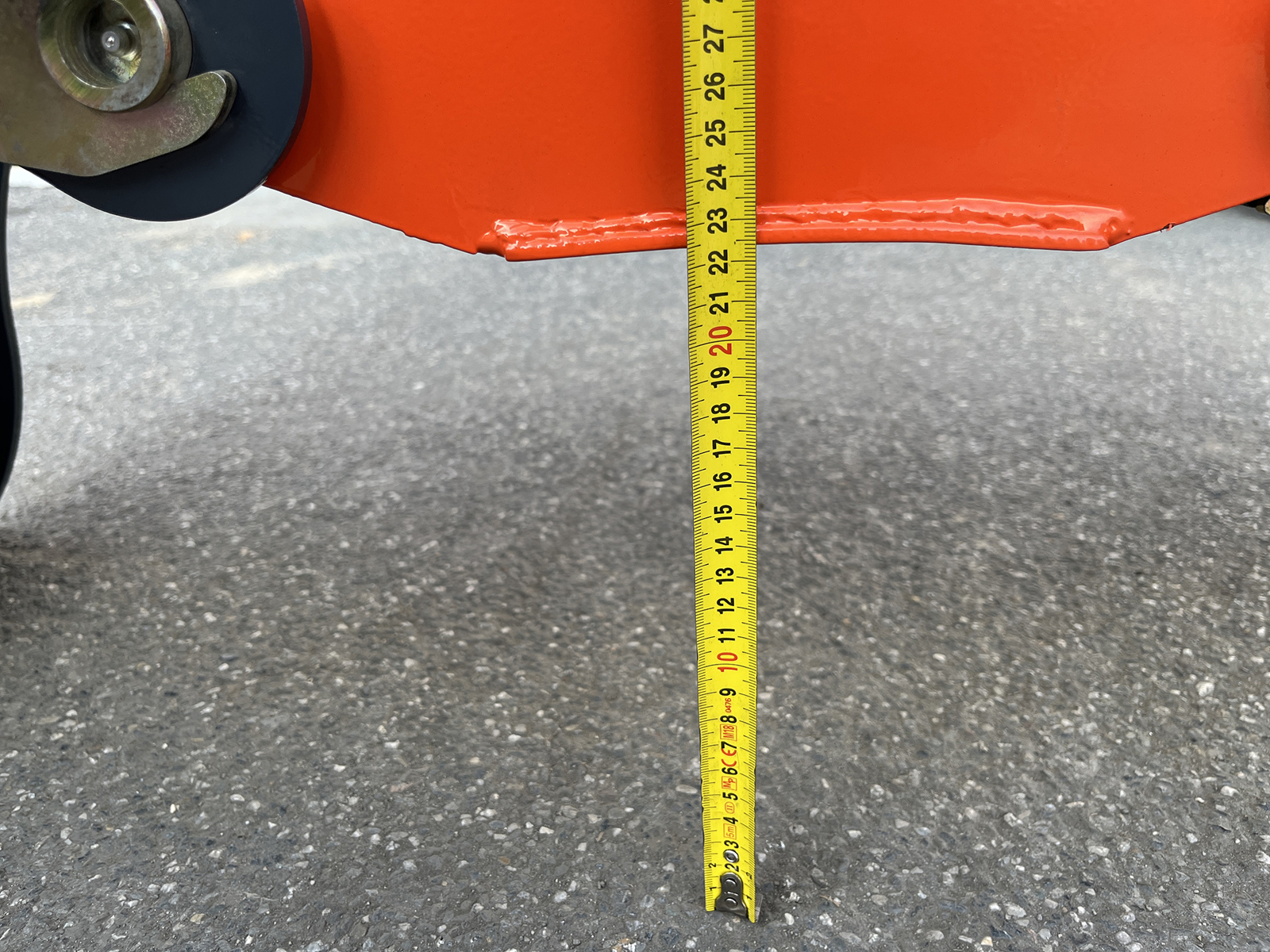

Measures: see images.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Weight | 49.0 kg |
| Load capacity | 150.0 kg |

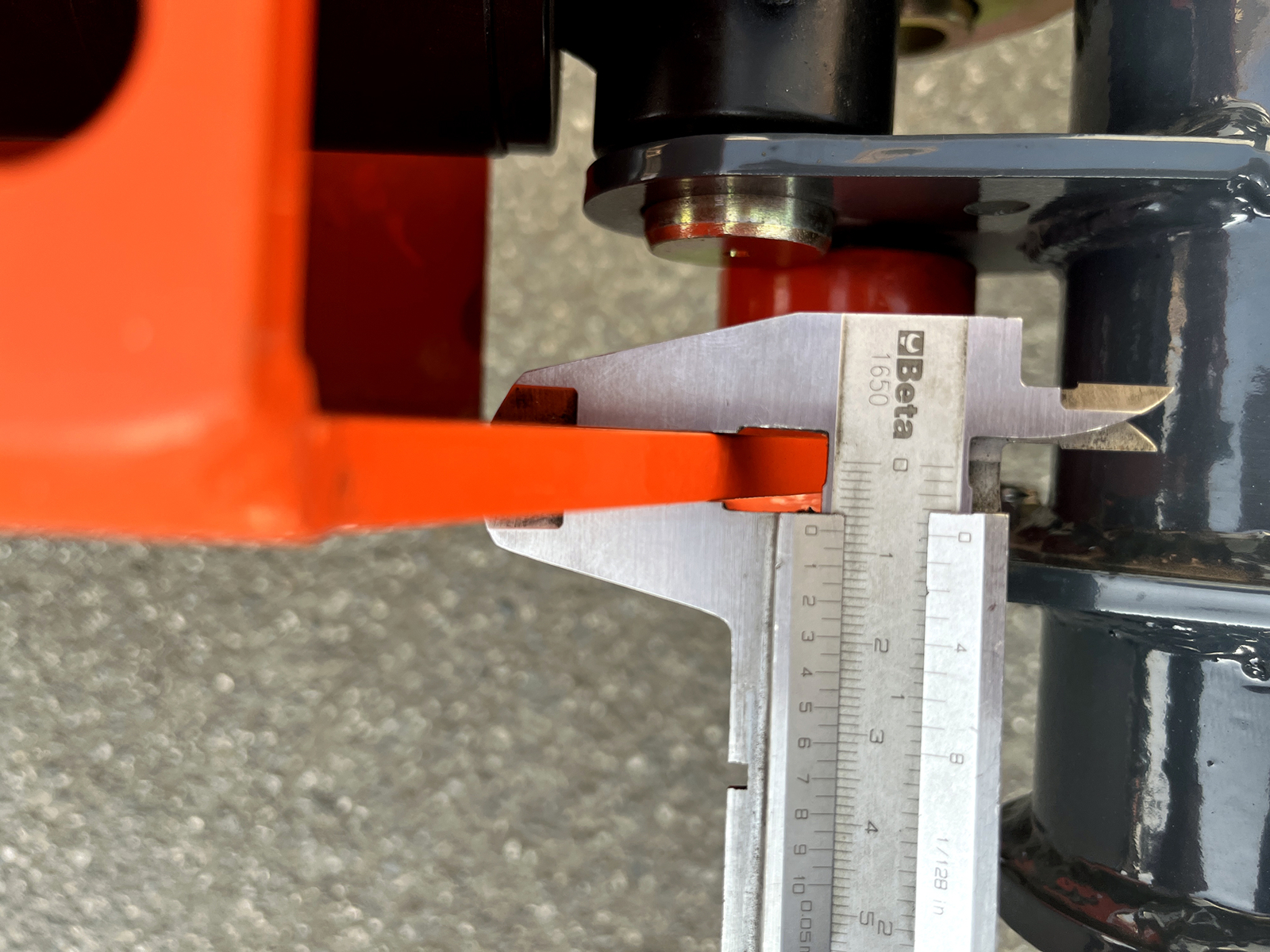

| Main hood thickness | 8.0 mm |
| Min./Max. Relief Pressure | 80 - 120 bar |
| Min./Max. Flow | 18 - 22 l/min |
| Other sizes | See pictures |
| Max Opening | 894.0 mm |
| Overall depth | 330.0 mm |

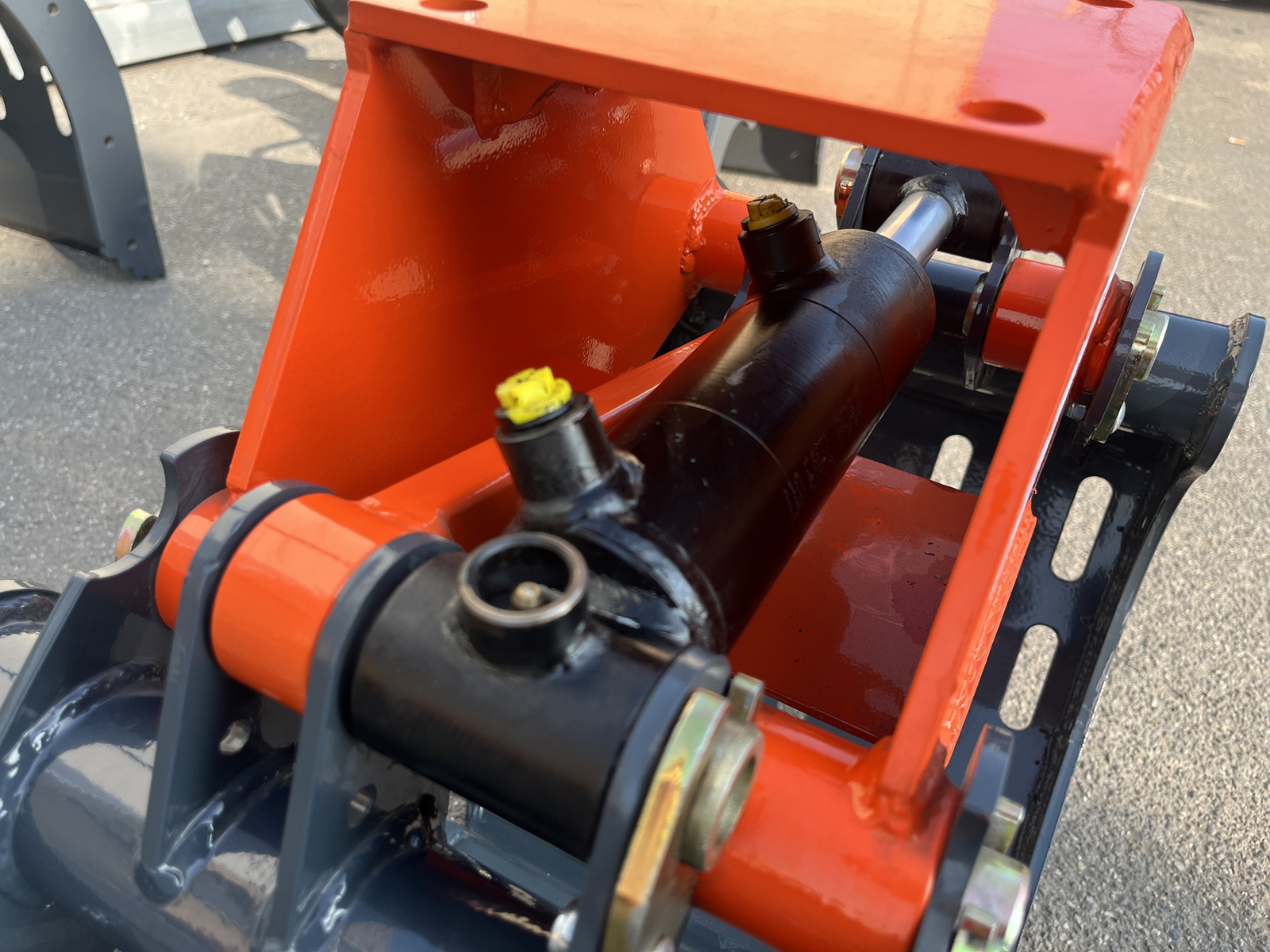

| Hydraulic cilinder diameter | 60.0 - 25.0 mm |
| Max Pressure | 200 Bar |
| Compact Excavators Range | 0.8 - 2.5 ton |
| Packing sizes | 600.0*800.0*450.0 mm |
