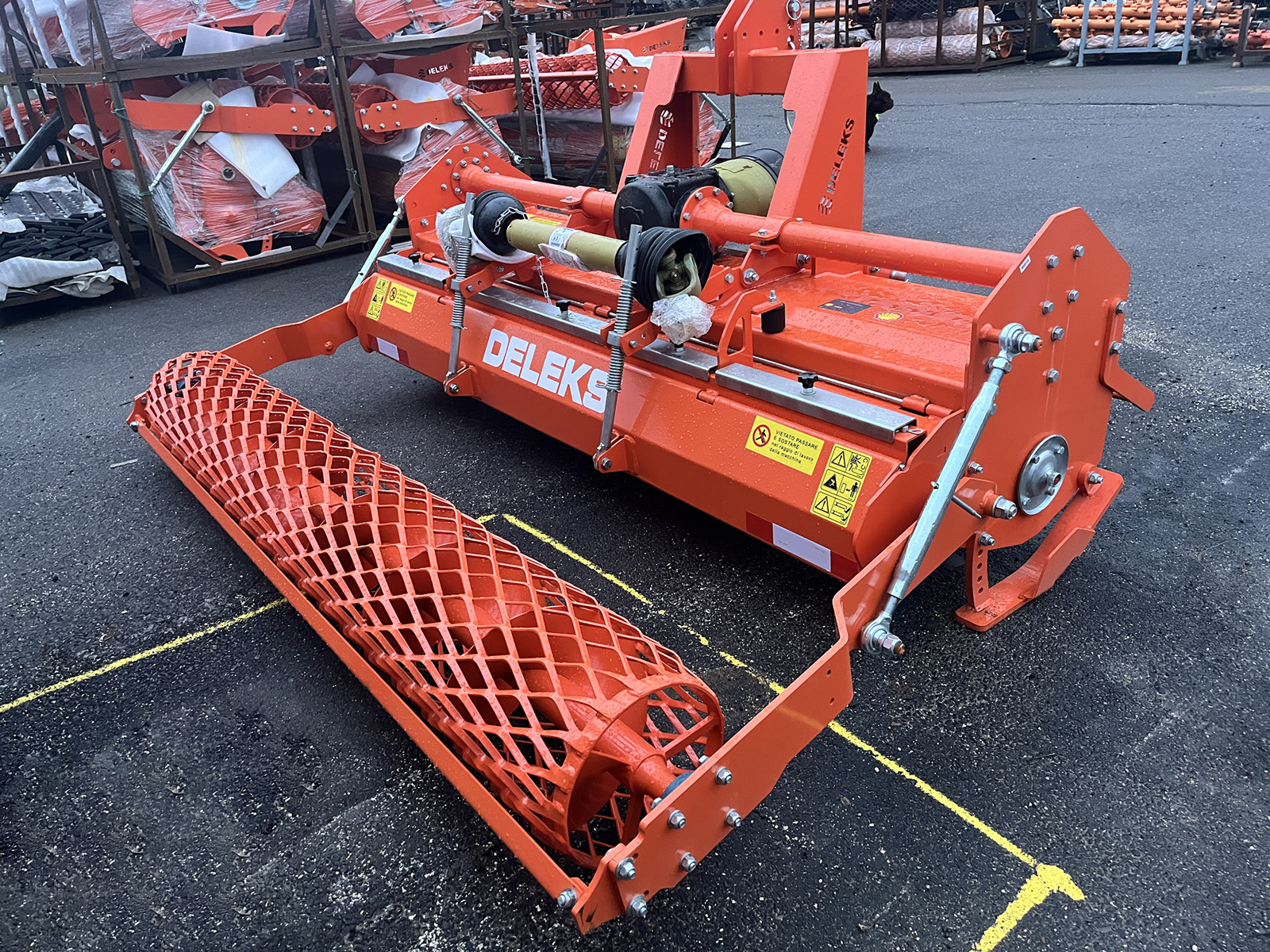

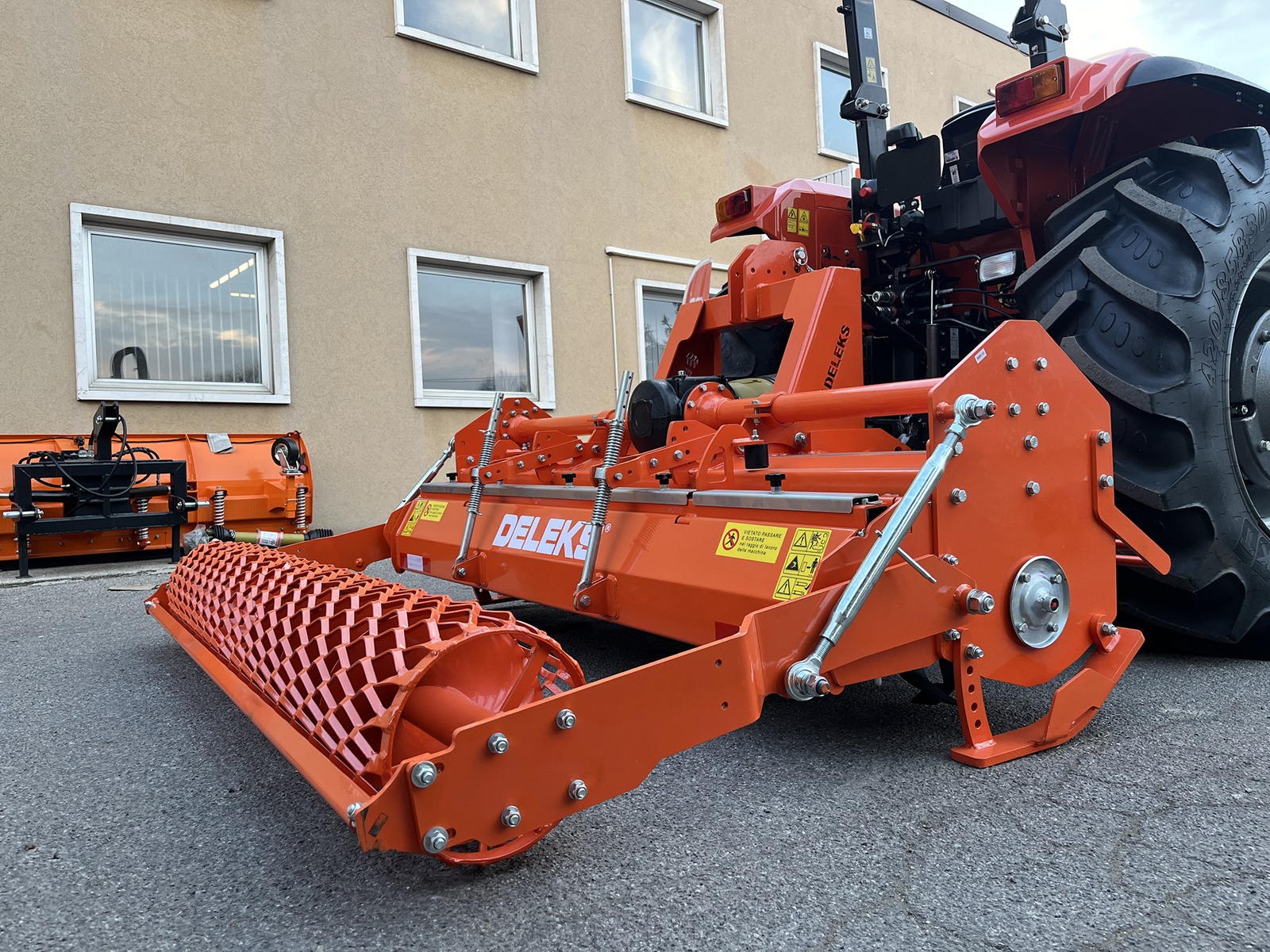

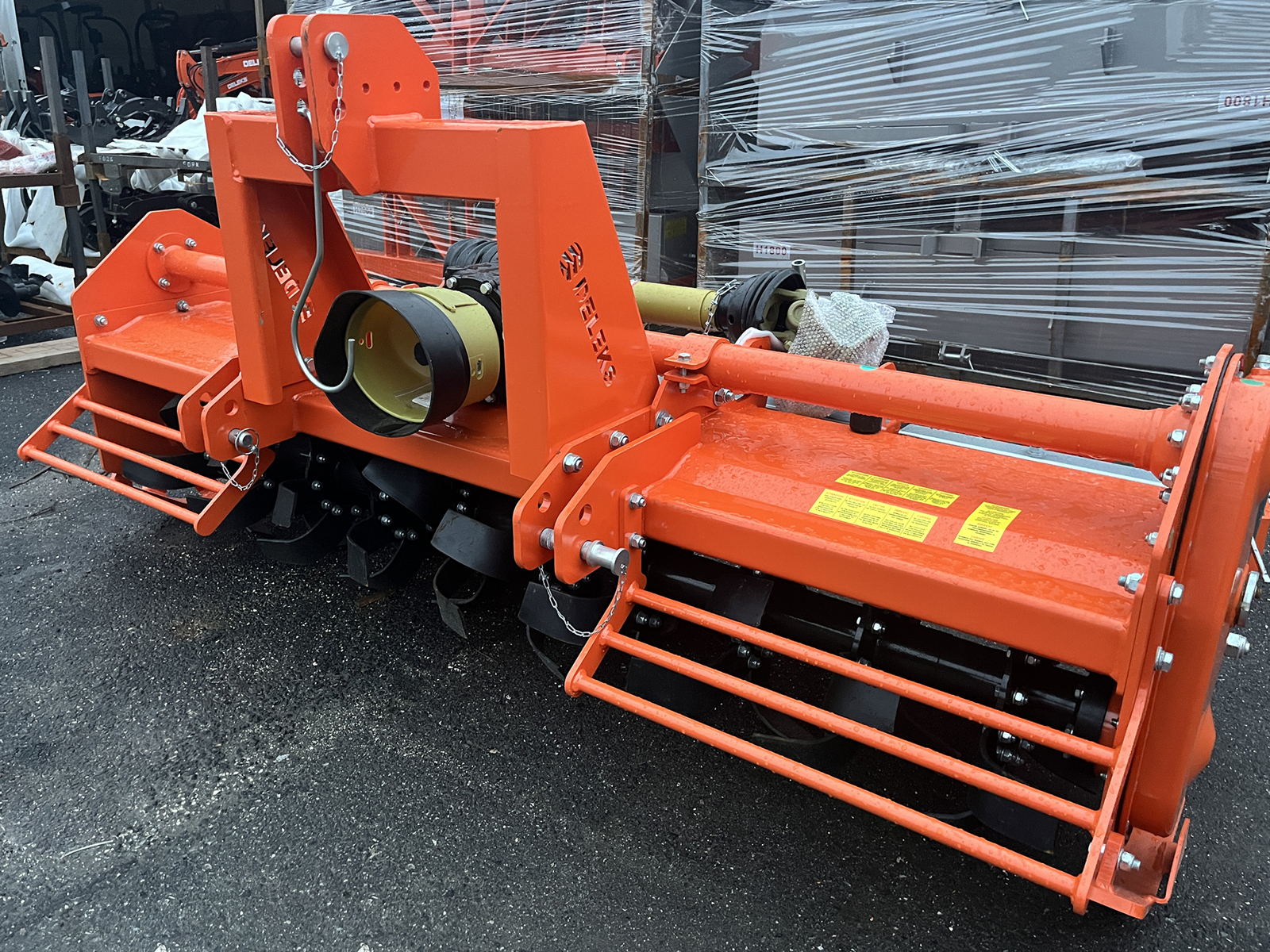

Heavy rotavator tiller for tractors - working width 220cm - for soil preparation - mod. DFTR-220
DETAILS

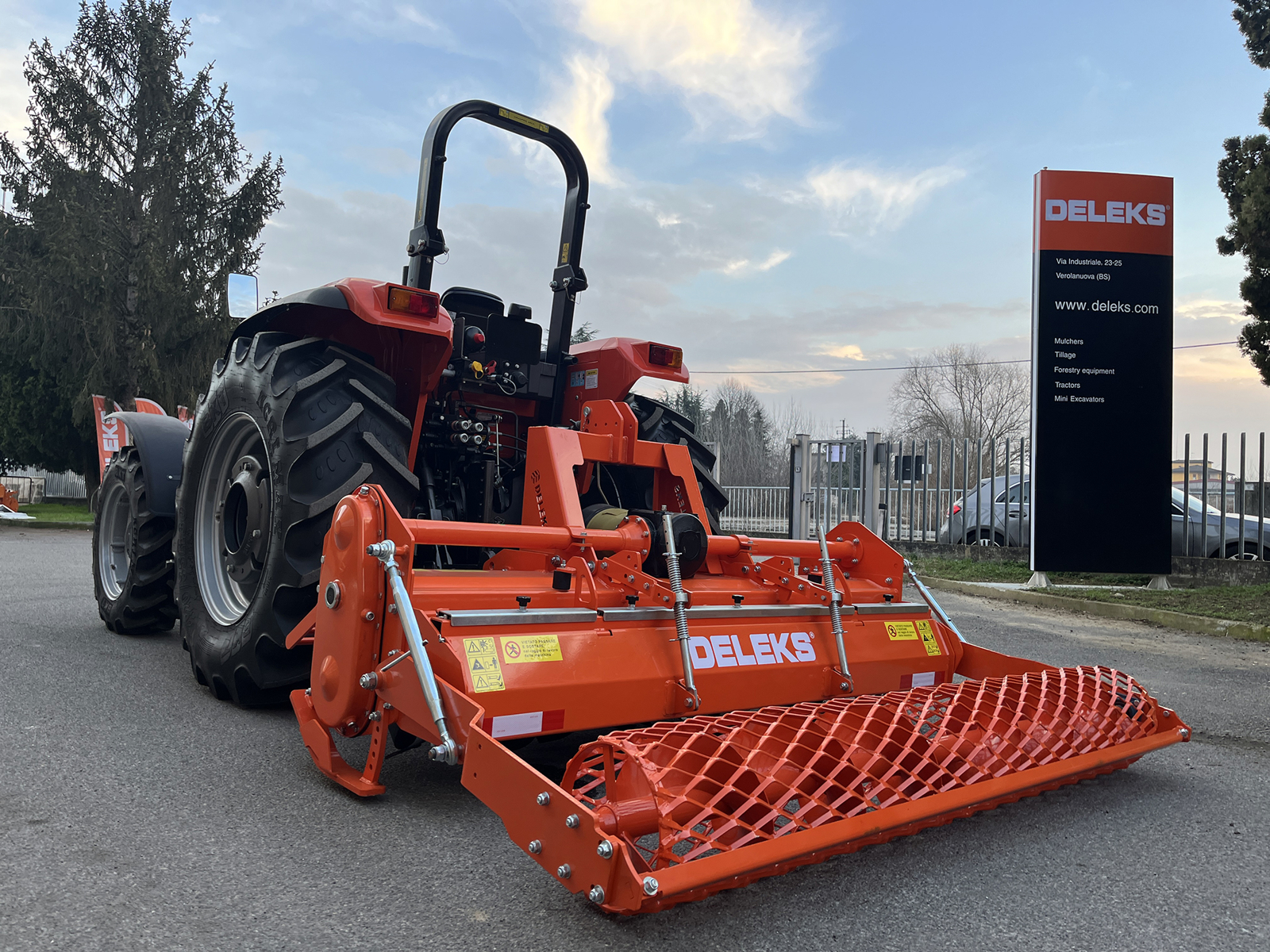

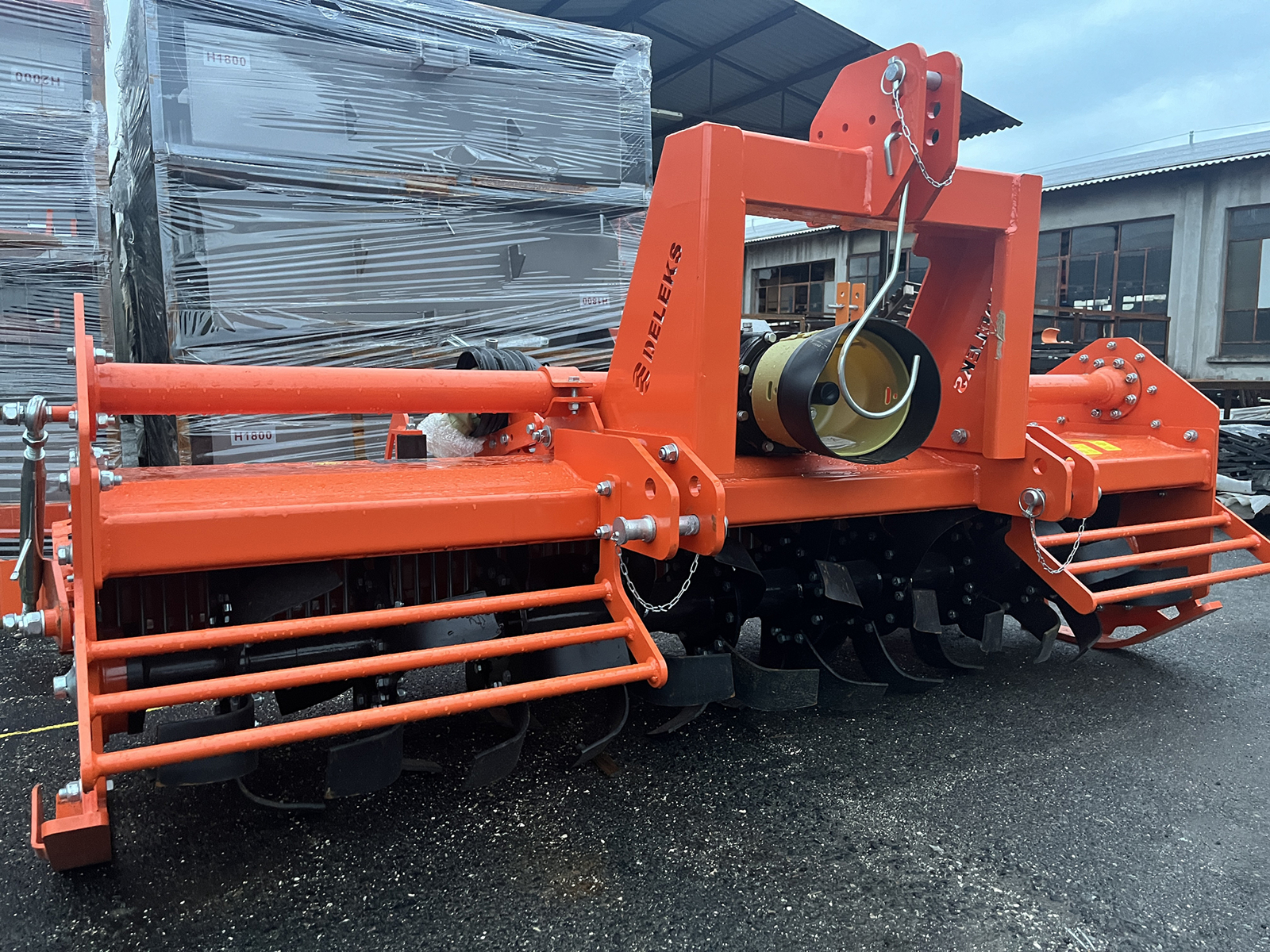

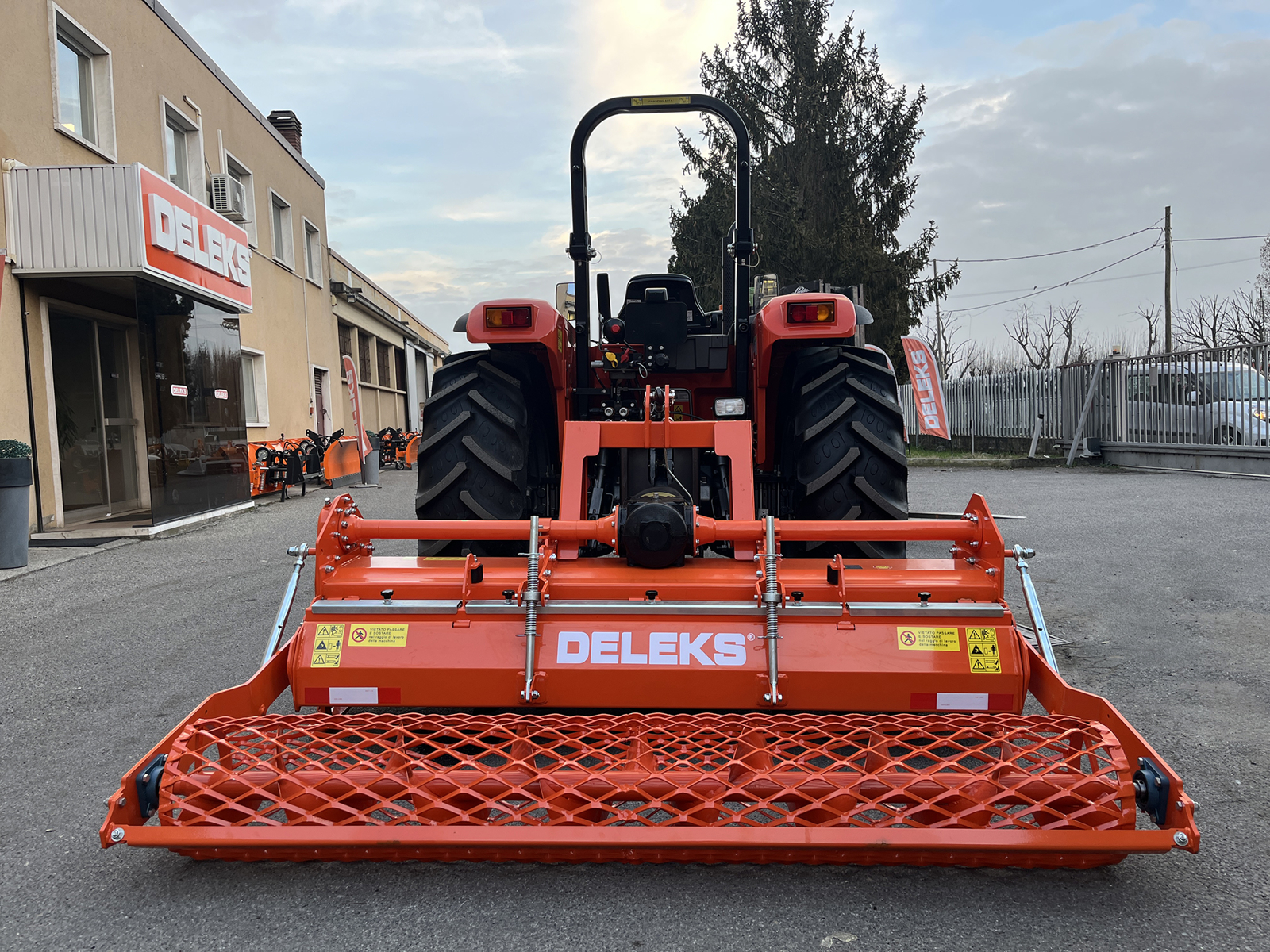

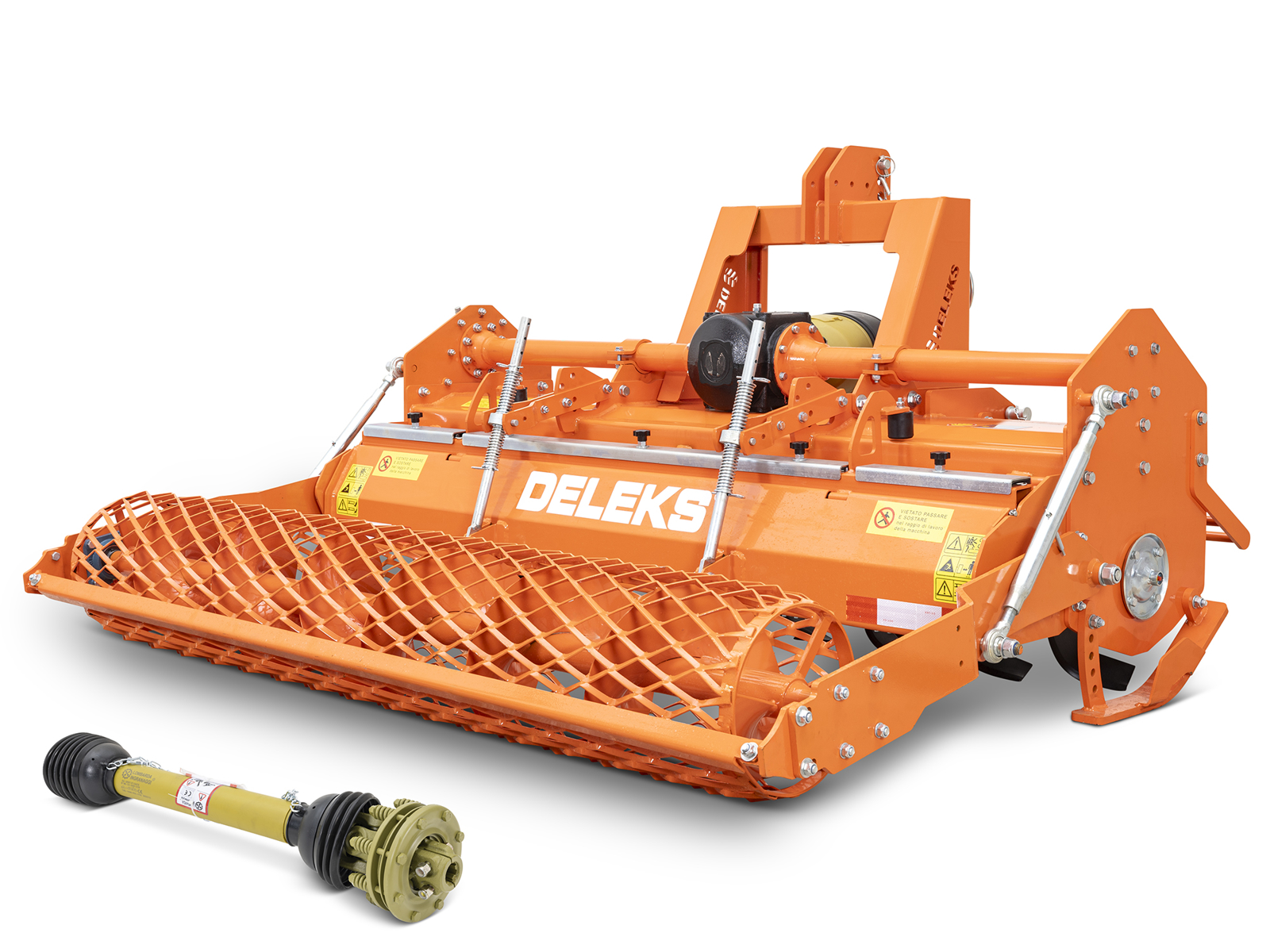

Rotary Tiller DELEKS® for 80-100 Hp Tractors, Rotovator 220cm / 680 kg - Side Gears Drive - Pto shaft CE included.
OVERVIEW
The DFTR Rotary Tiller has been designed for soil preparation, in fields, nursery, orchards, allotments, and for gardening. Rotating blades break up the soil, on rough uncultivated ground. Can be also be used for weeding or working surface material into the soil.
Designed to fit most compact 80-100HP tractors e.g Kubota L, Fiat, McCormick, Ford, New Holland, John Deere, Massey Fergusson. Cat.2 universal three-point hitch, single-speed cast-iron gearbox. Delivered assembled (except 3 point linkage) and greased, Gearbox filled with oil.
BENEFITS & FEATURES
Side Gears Drive.
Pto shaft CE with clutch included.

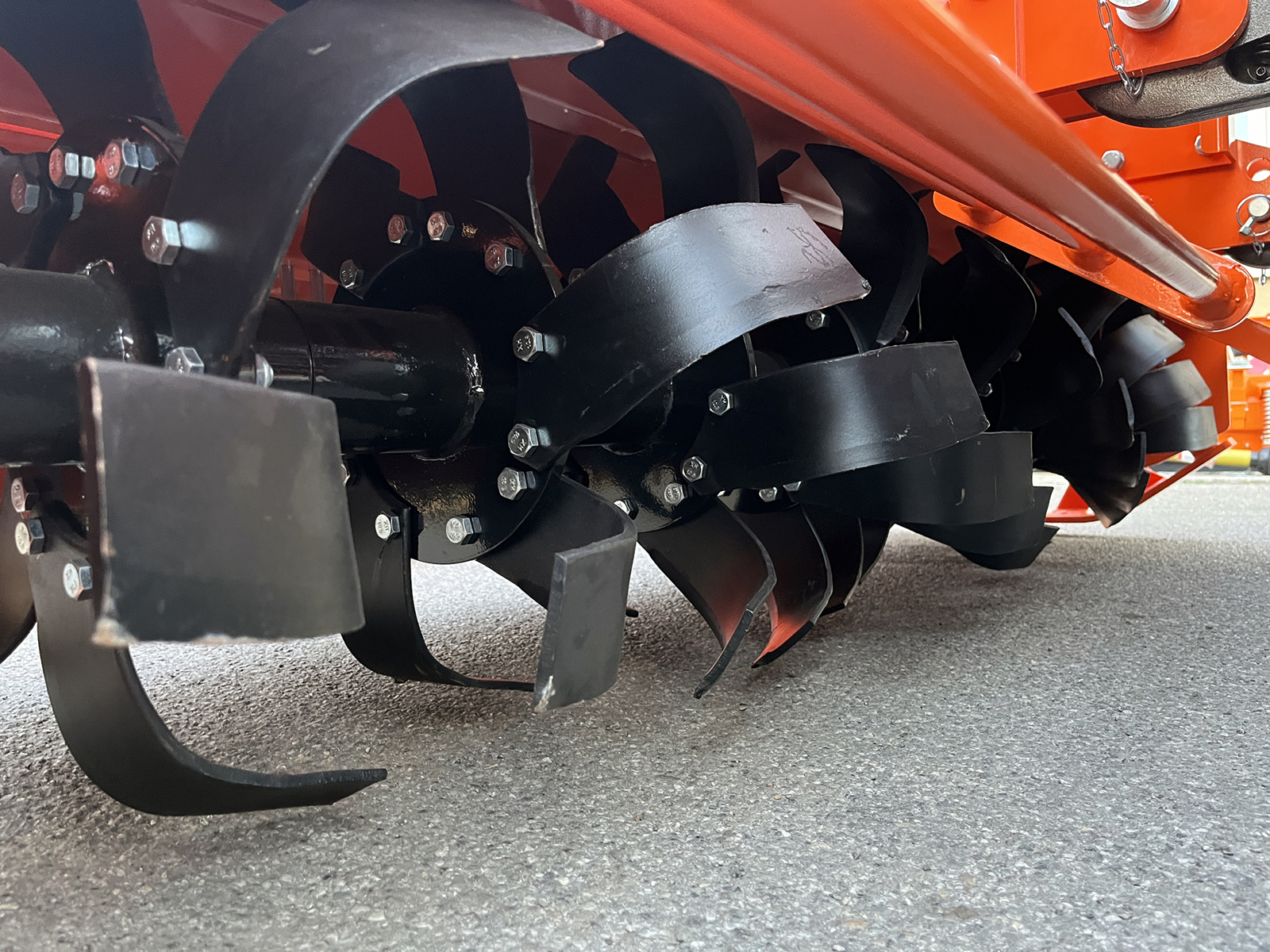

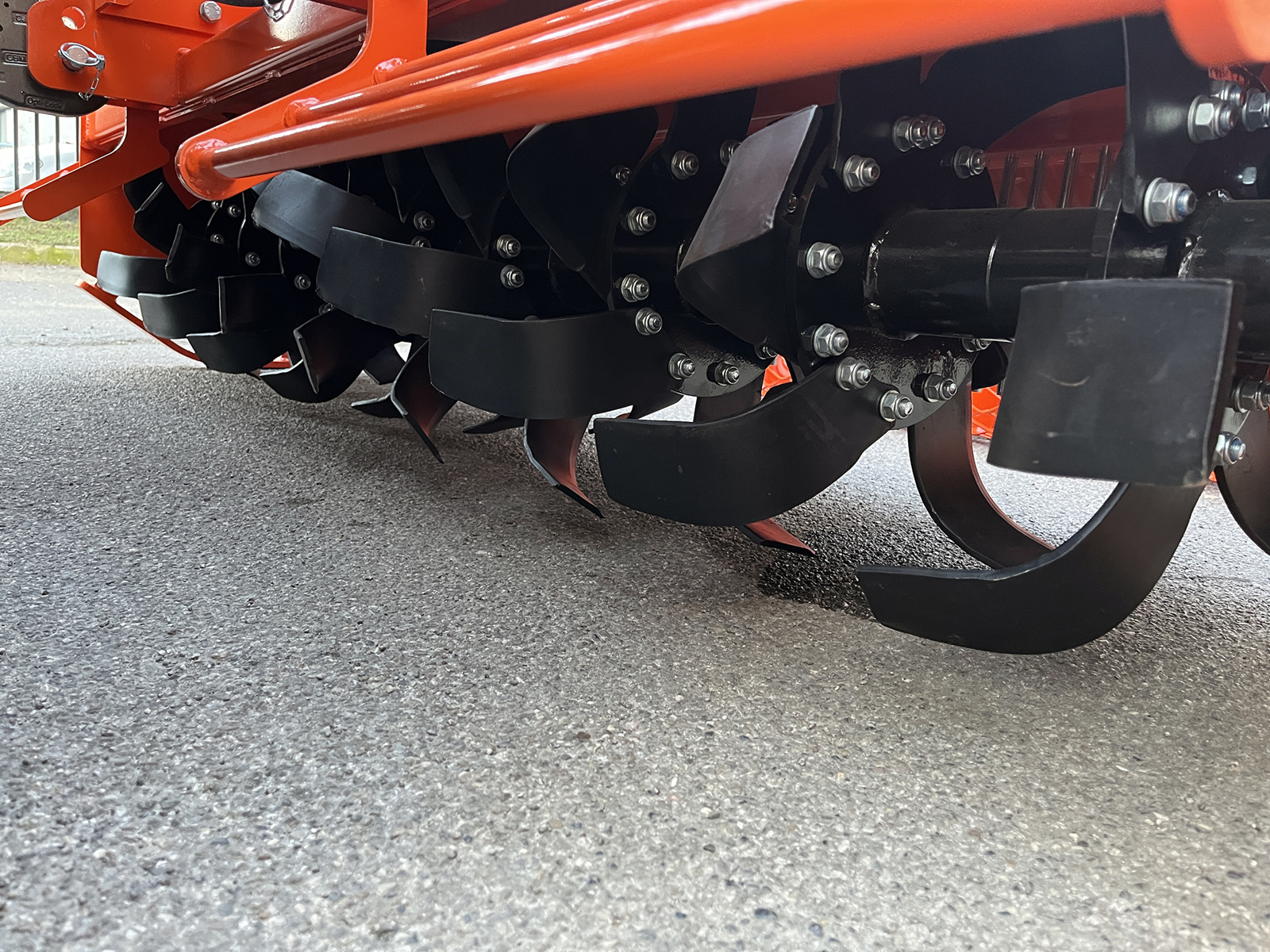

Six spiral blades per flange.

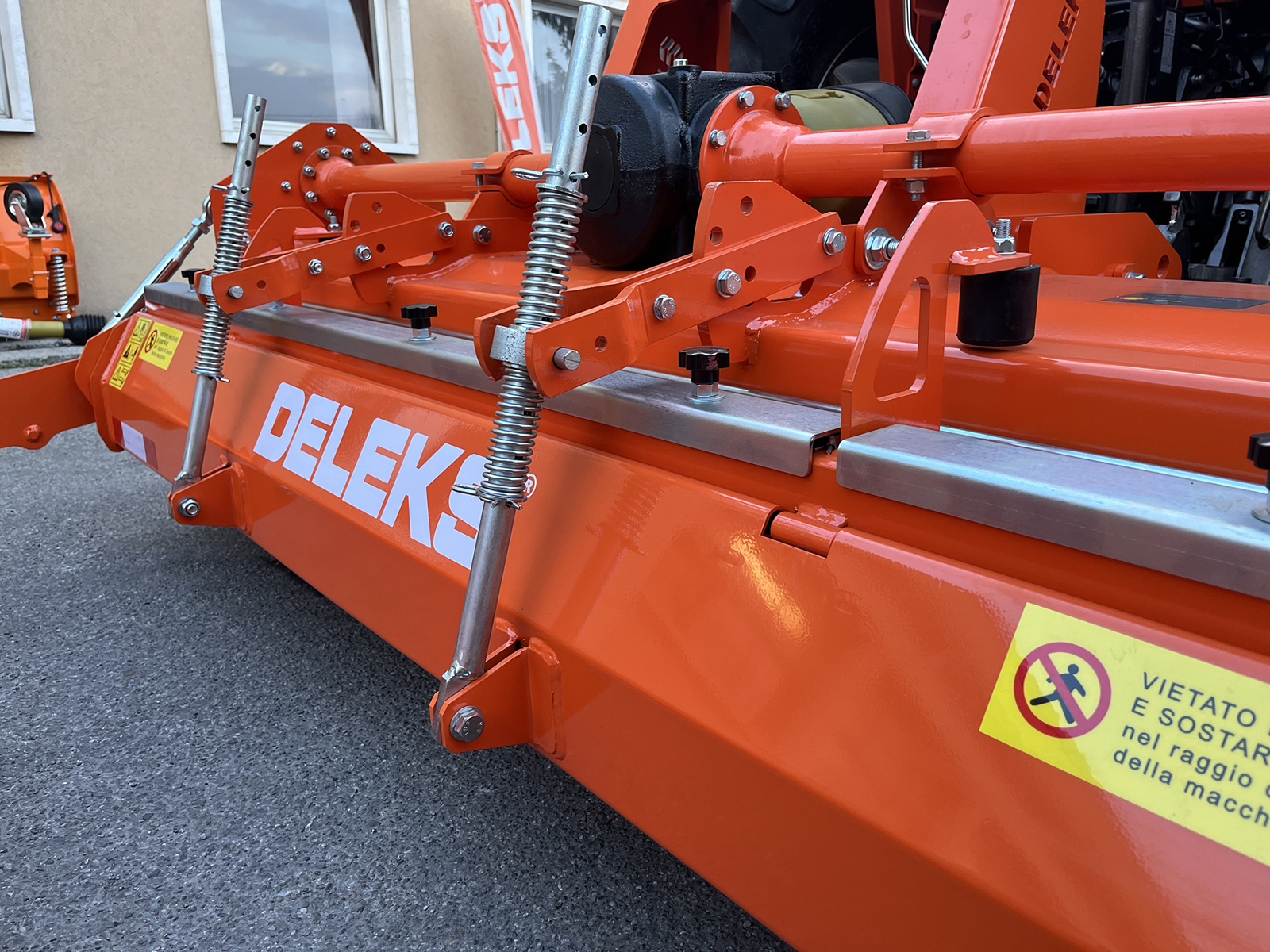

Adjustable side skids to obtain the desired working depth.
Adjustable rear shield.
CE Safety Guards.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Overall width | 2400.0 mm |
| Weight | 680.0 kg |
| Overall height | 1200.0 mm |
| Tractor Power Range | 80 - 100 Hp |
| 3 point linkage | Cat. 2 (ø 25.0-28.0mm) |
| Spacing between the 2 lower points | 745.0 - 870.0 mm |
| Overall length | 1800.00 mm |
| Rotor: diameter | 90.0 mm |
| Rotor: sheet thickness | 12.0 mm |
| Transmission | Gears |
| Effective Working width | 2195.0 mm |
| Working Depth Range | 200.0 mm |
| Distance between pto attachment and base | 650.0 mm |
| Pto shaft | 6x1000 + Clutch ø200mm |
| Rotor: diameter with blades | 500.0 mm |
| Rotor: bearings type and sizes | 6309(L) / 6310(R) |
| Rotor: flanges | 9 |
| Number of Blades per flange | 6 |
| Blades: quantity | 27 + 27 |

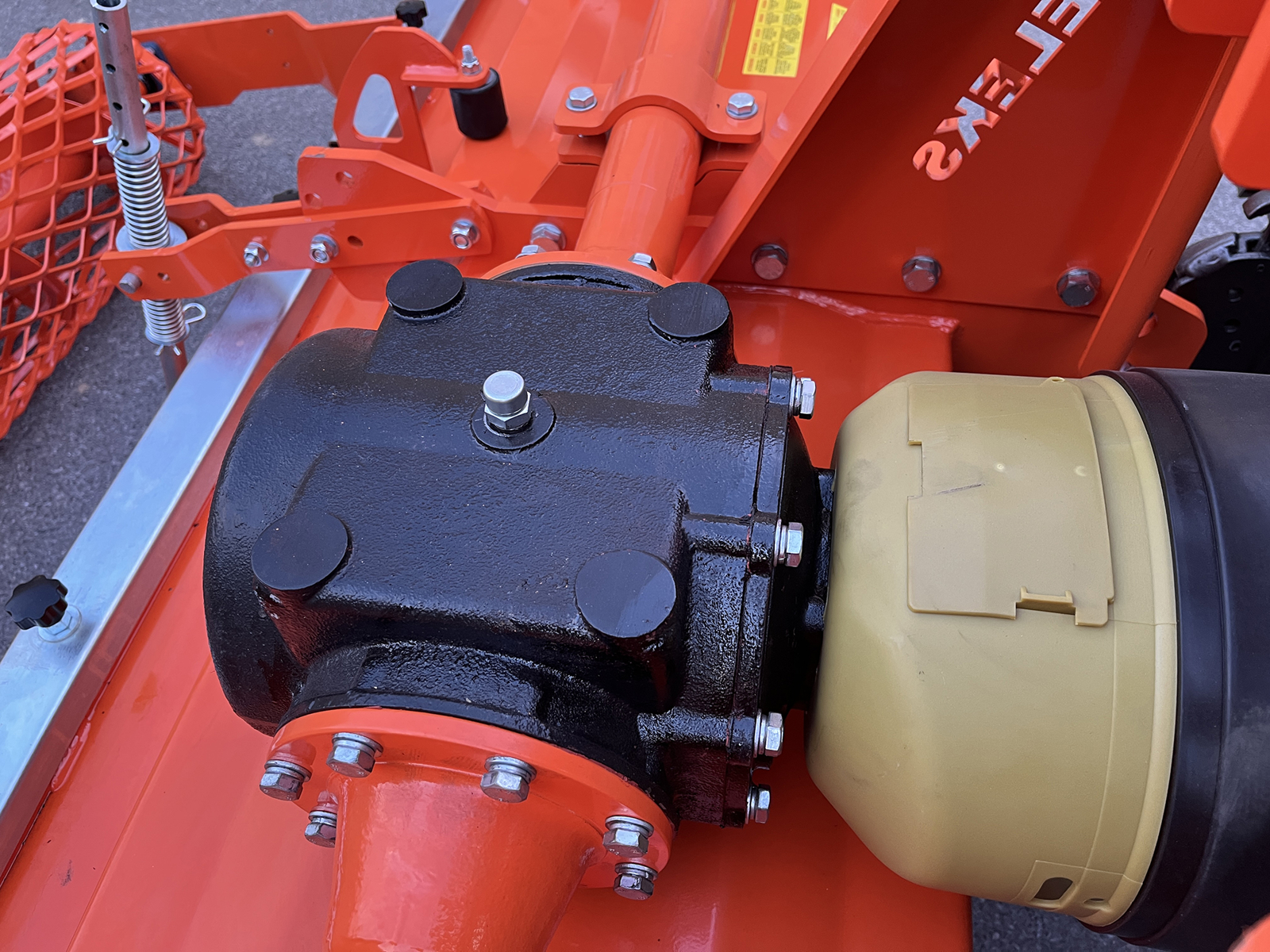

| Gearbox | Lombarda Ingranaggi 540 r/min (3 year warranty) |
| Rotation of gearbox | Right side |
| RPM Rotor speed | 210 rpm |
| Oil in the gearbox | Yes / SAE 120 - ISO 72925 |

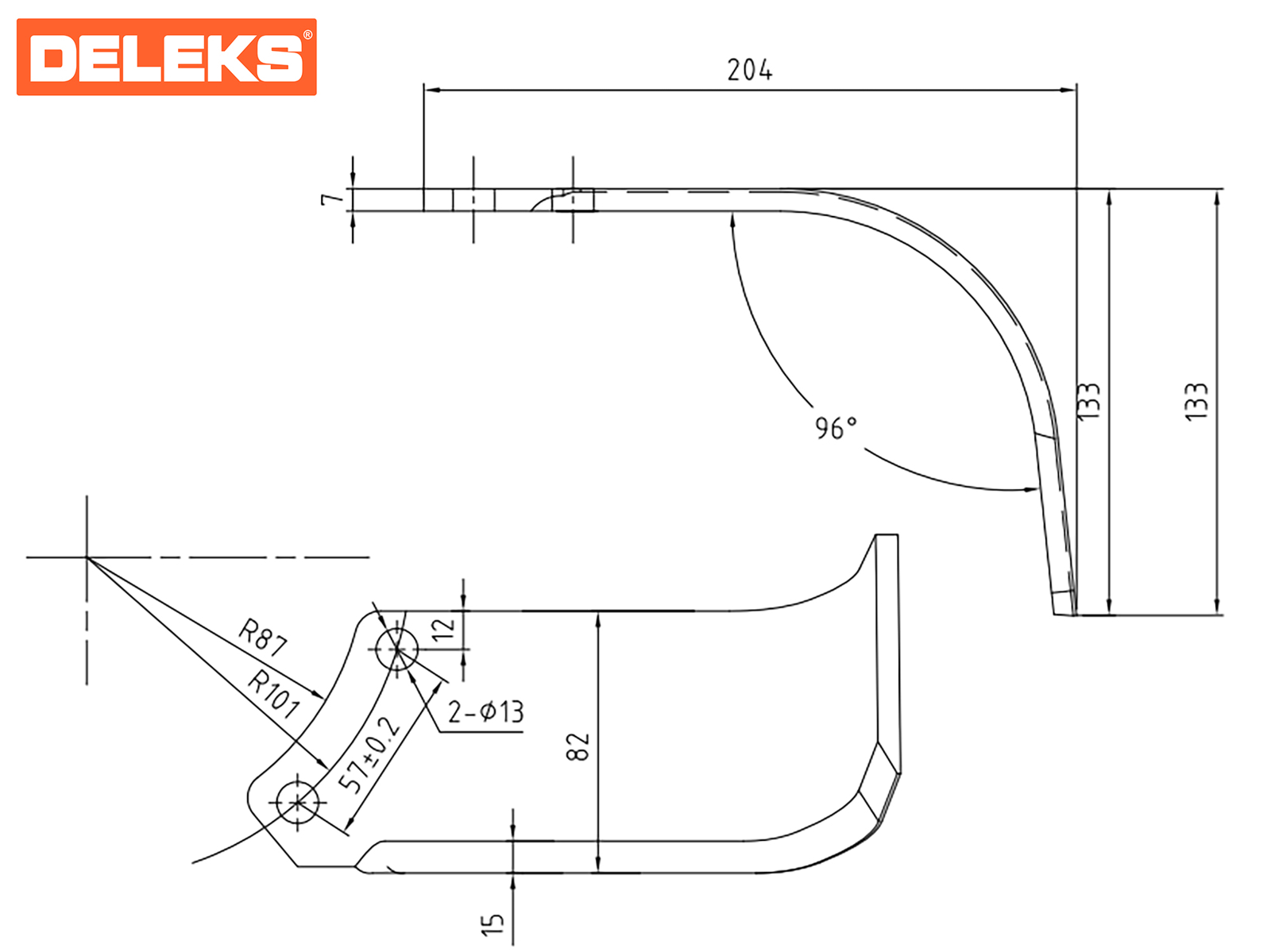

| Blades: weight | 1.0 kg |
| Packing sizes | 2500*1150*1150 mm |
