Hydrostatic Crawler Mini Dumper, Briggs&Stratton engine, E-start
DETAILS

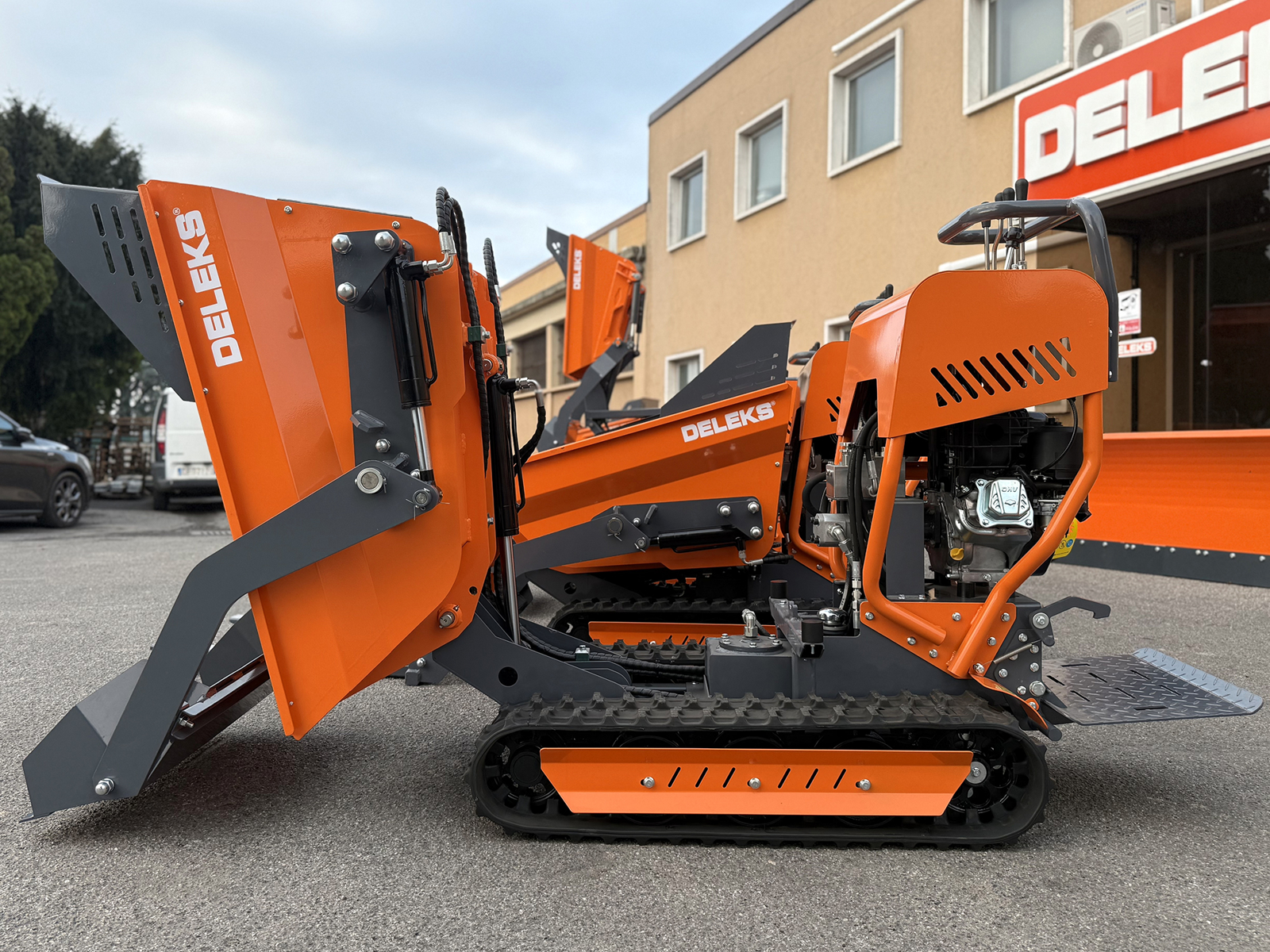

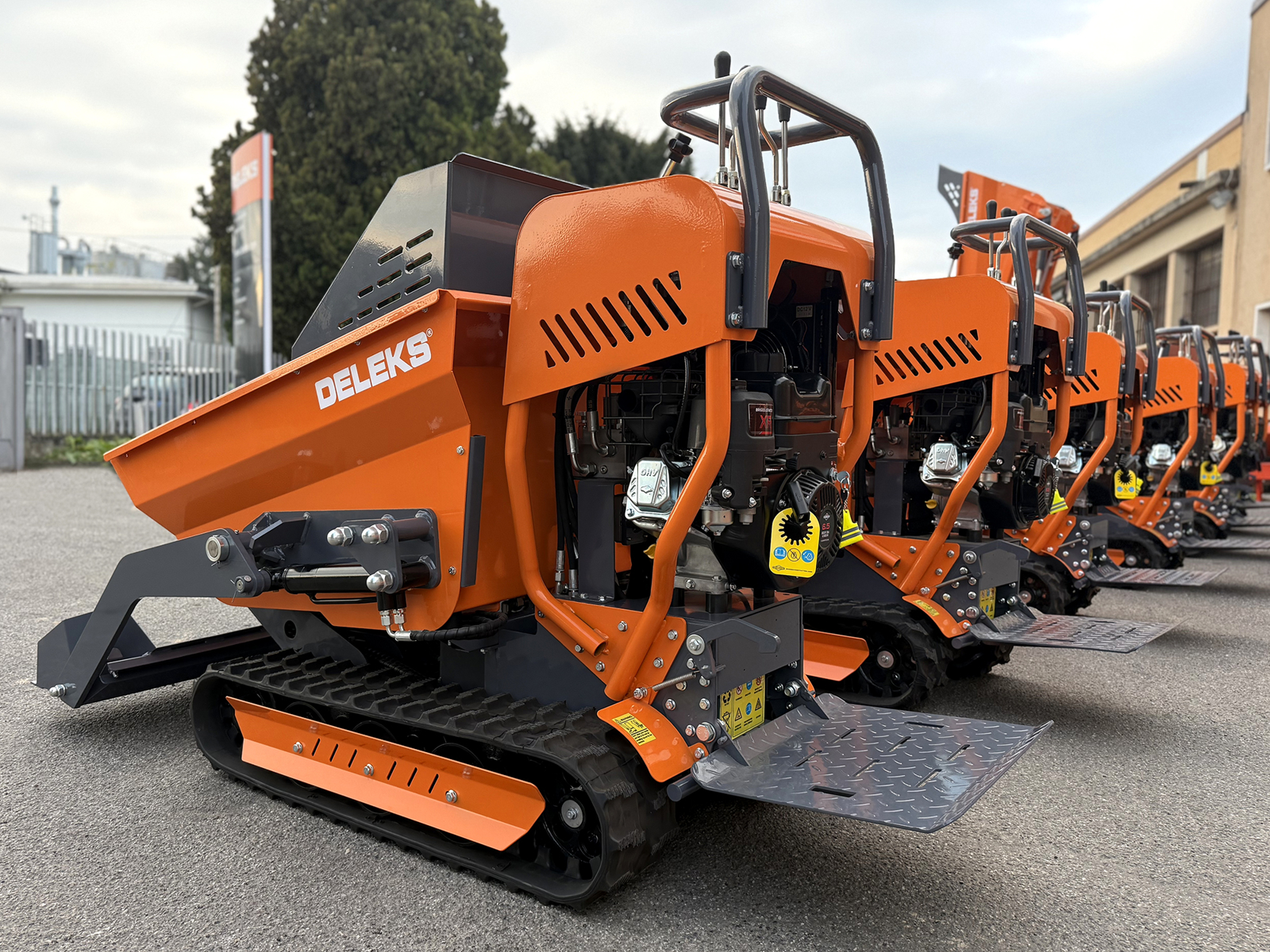

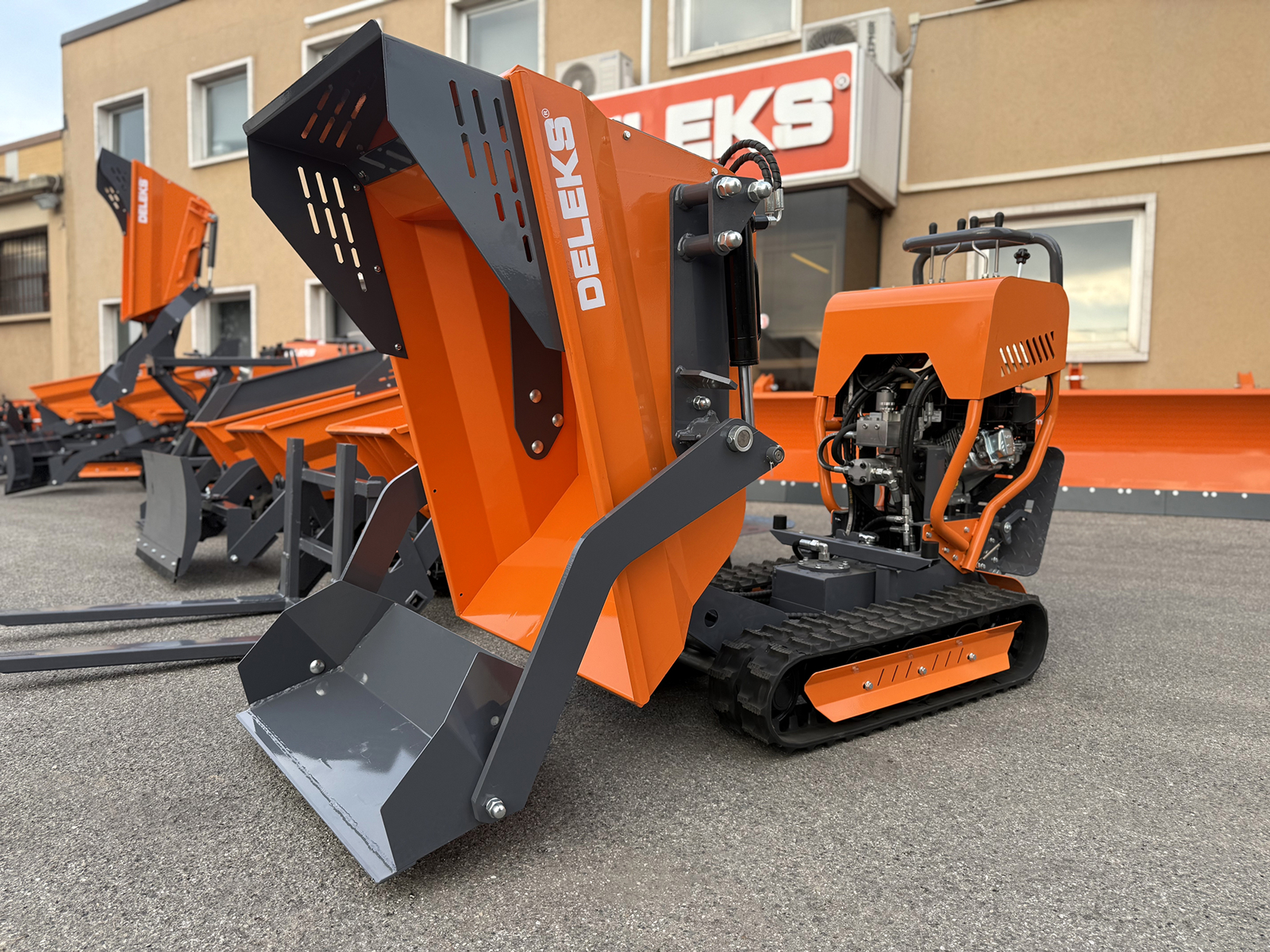

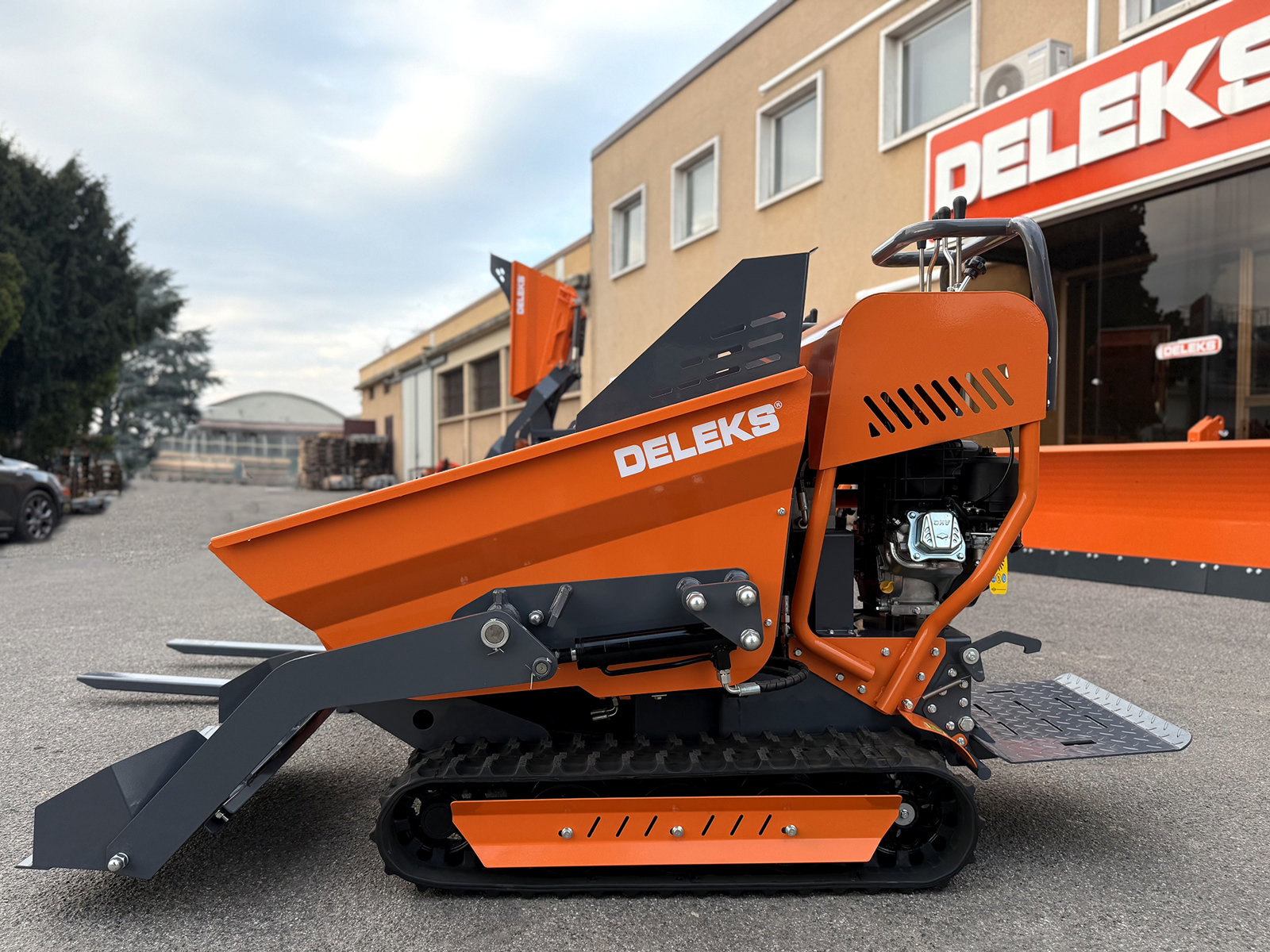

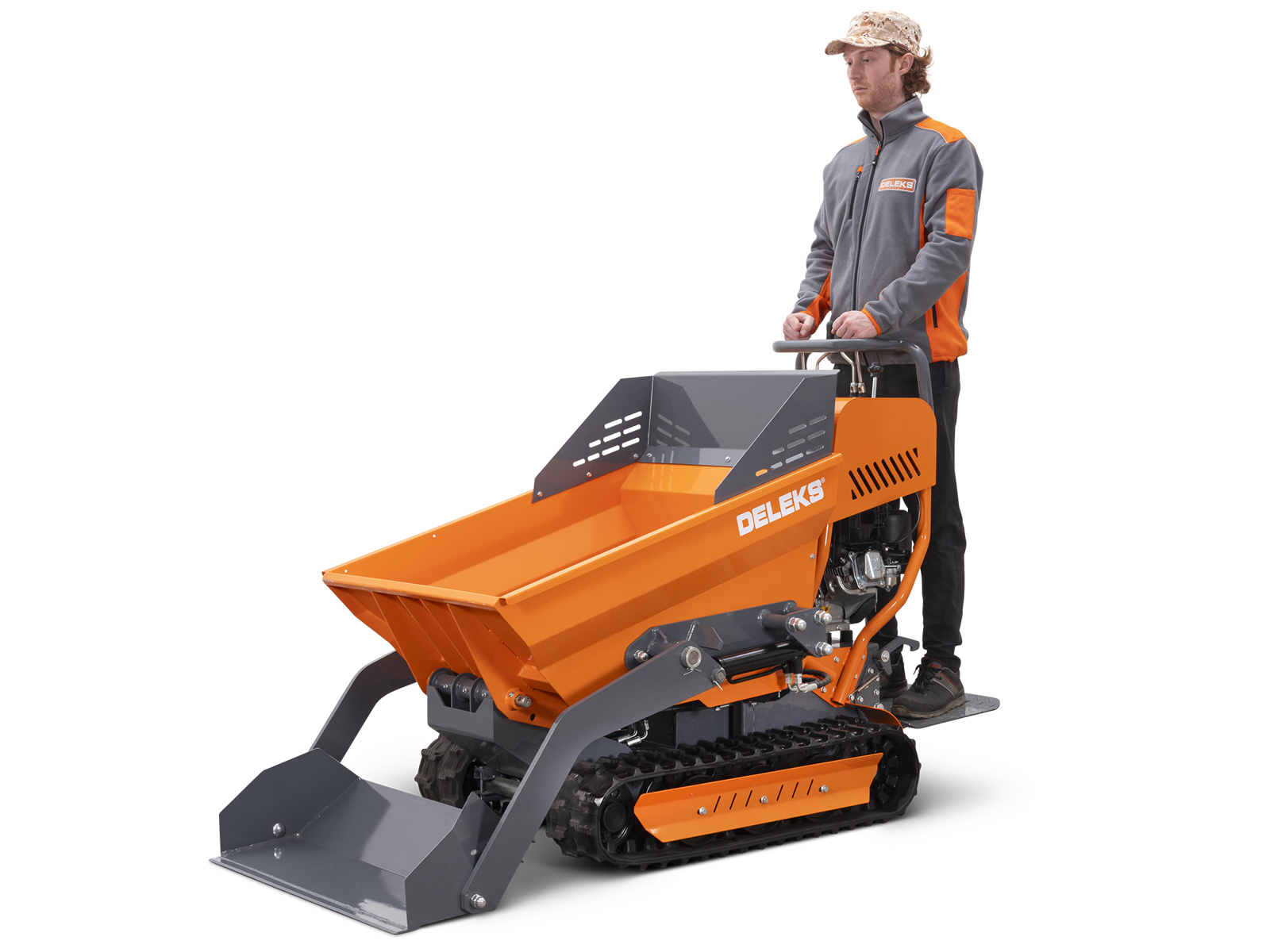

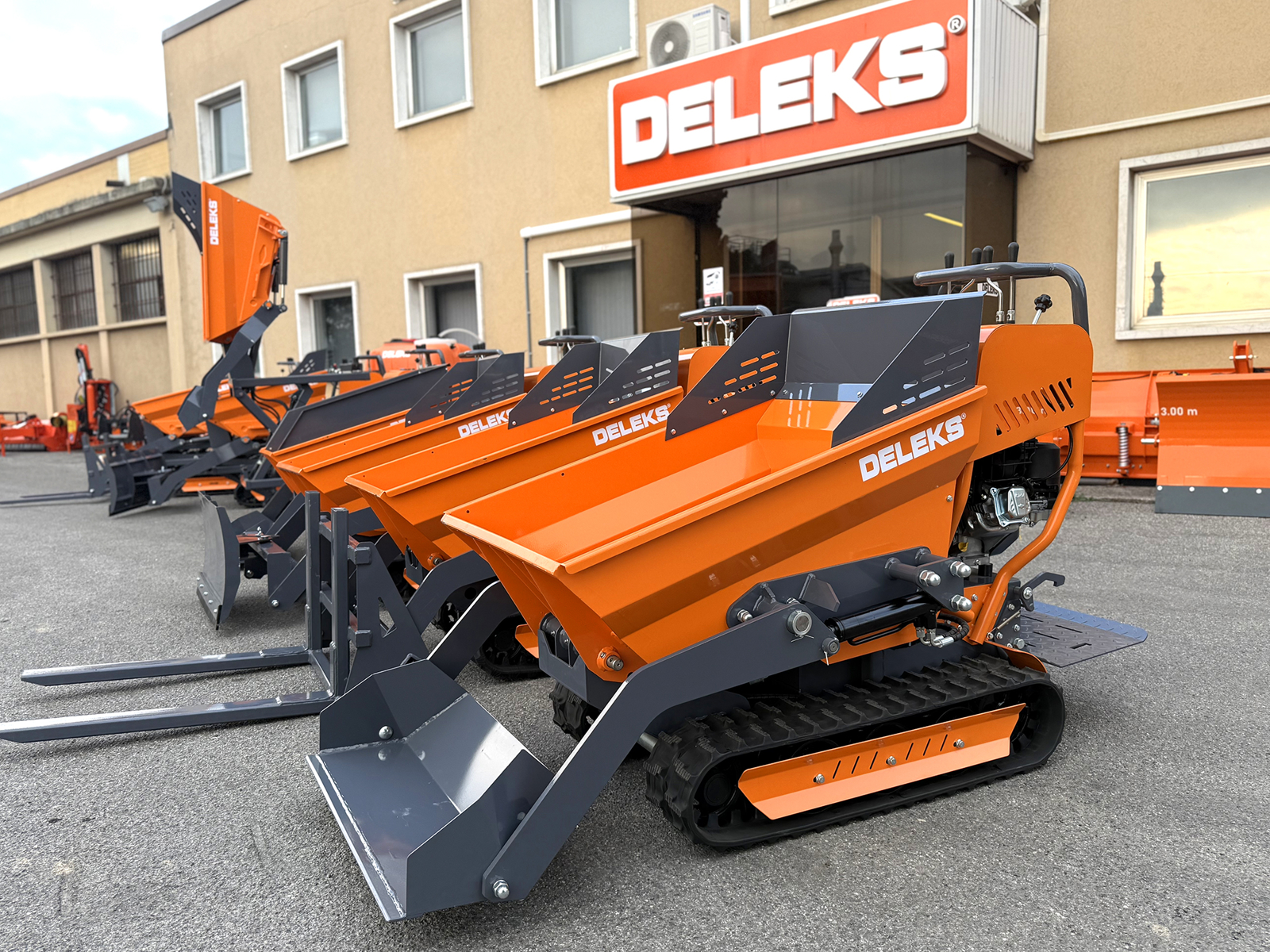

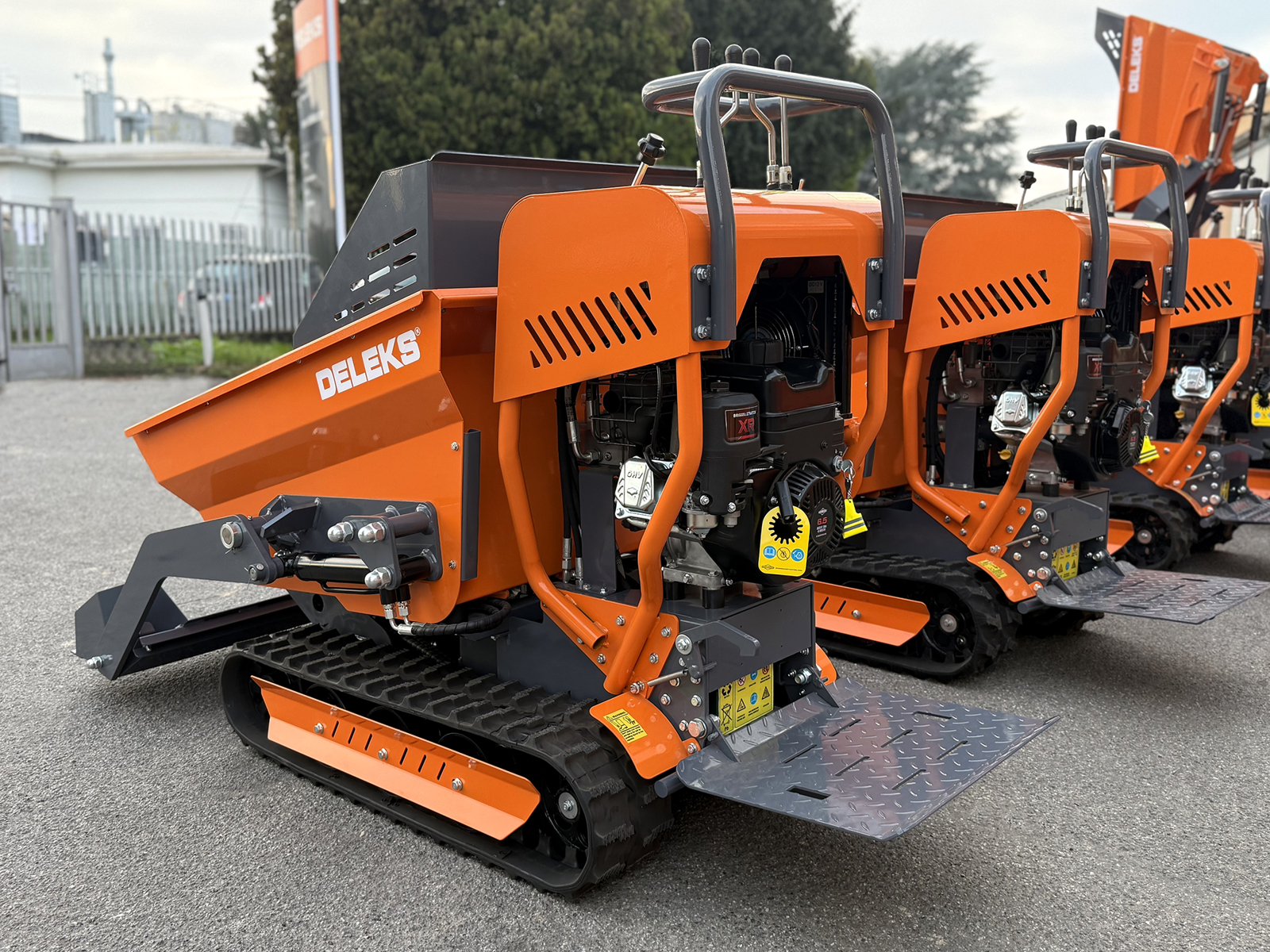

DELEKS® V3000 Self-loading tracked minidumper, hydrostatic transmission, operator platform, Briggs&Stratton engine, electric start.
APPLICATION
V3000 tracked minidumper suitable for loading and moving earth, sand, building material, waste, etc.

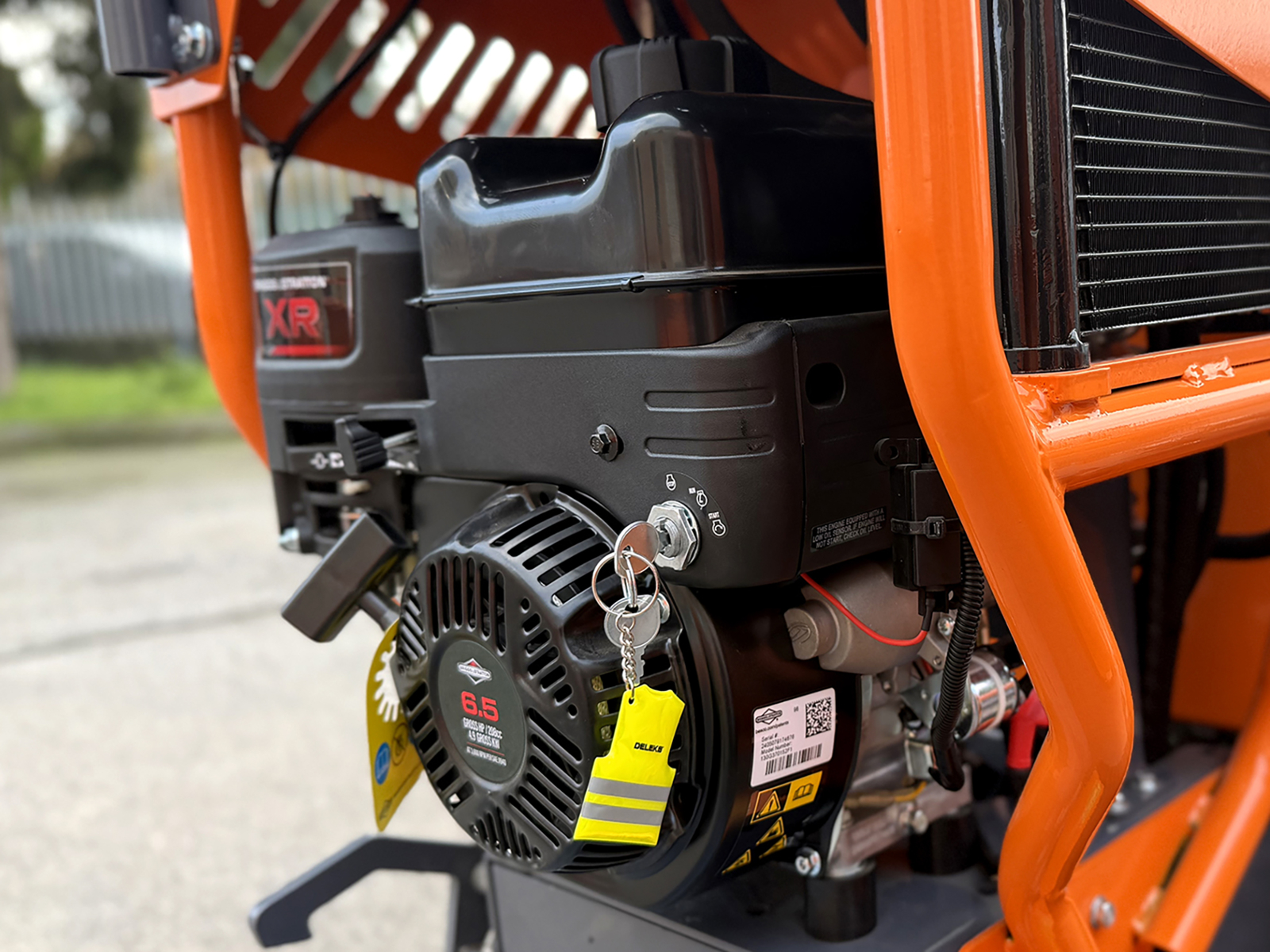

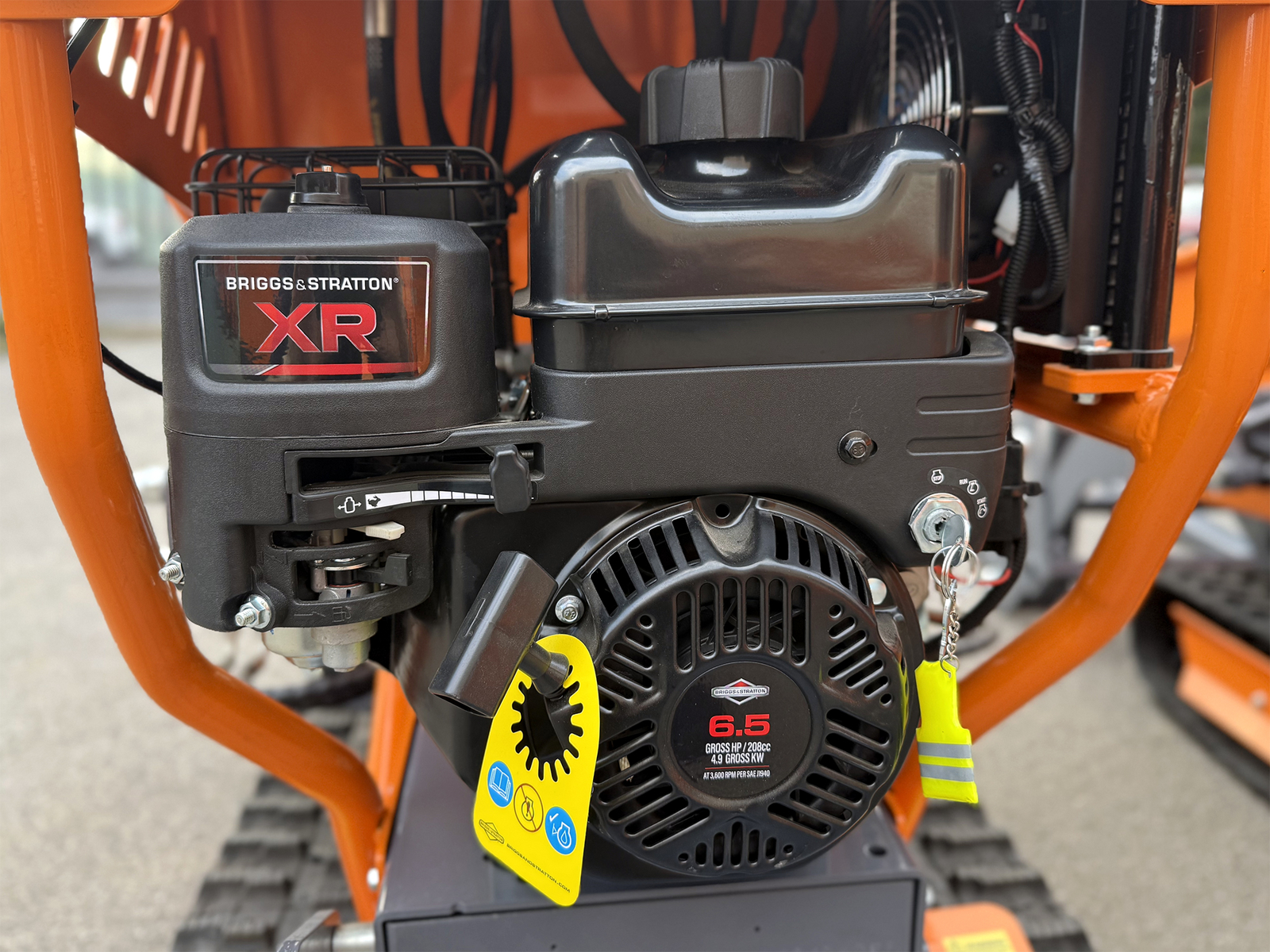

Briggs&Stratton XR6.5, 6.5HP /4.8 Kw, 208cc
Fuel: petrol
Body: dumper type
Capacity: 500 kg

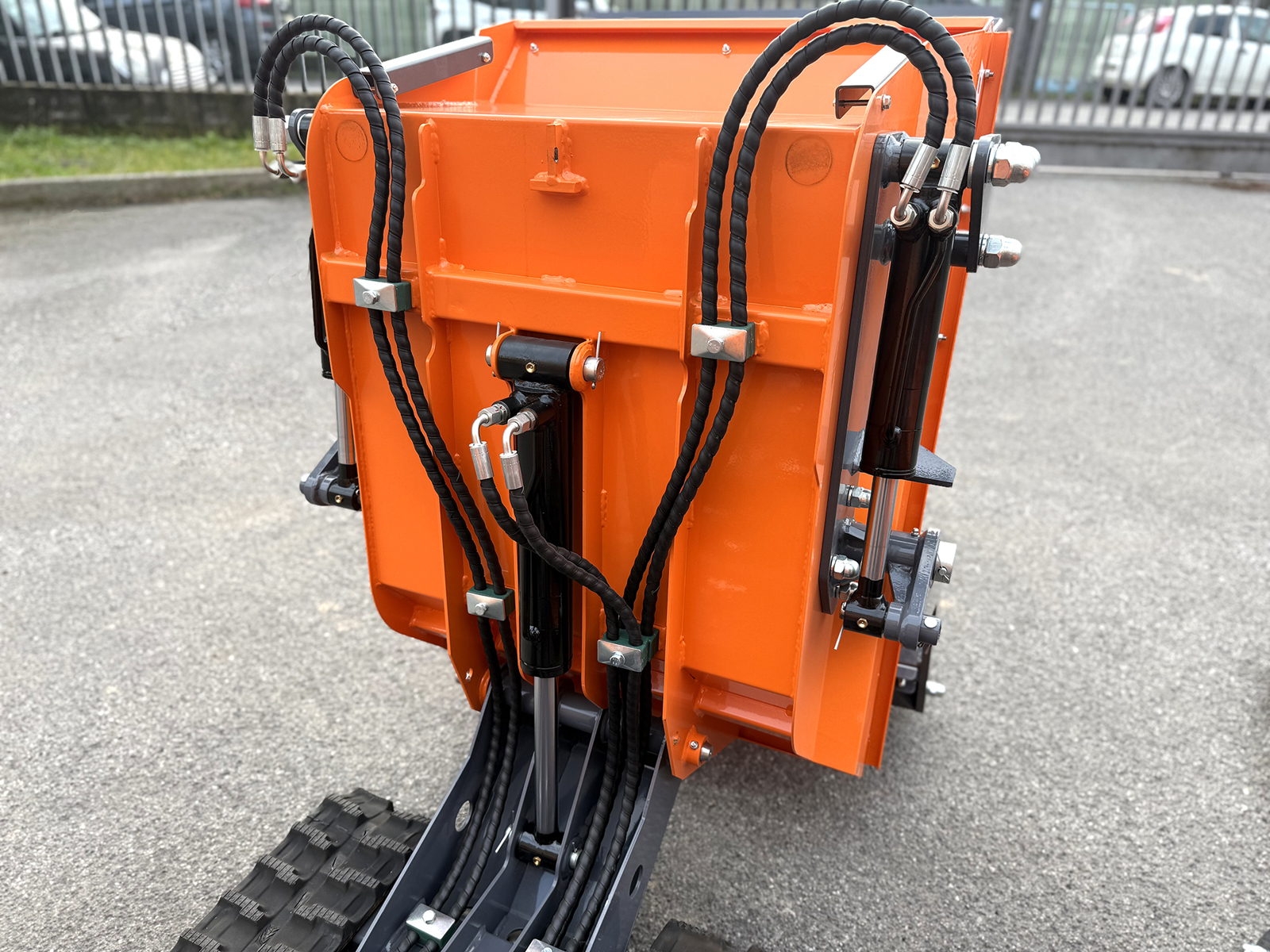

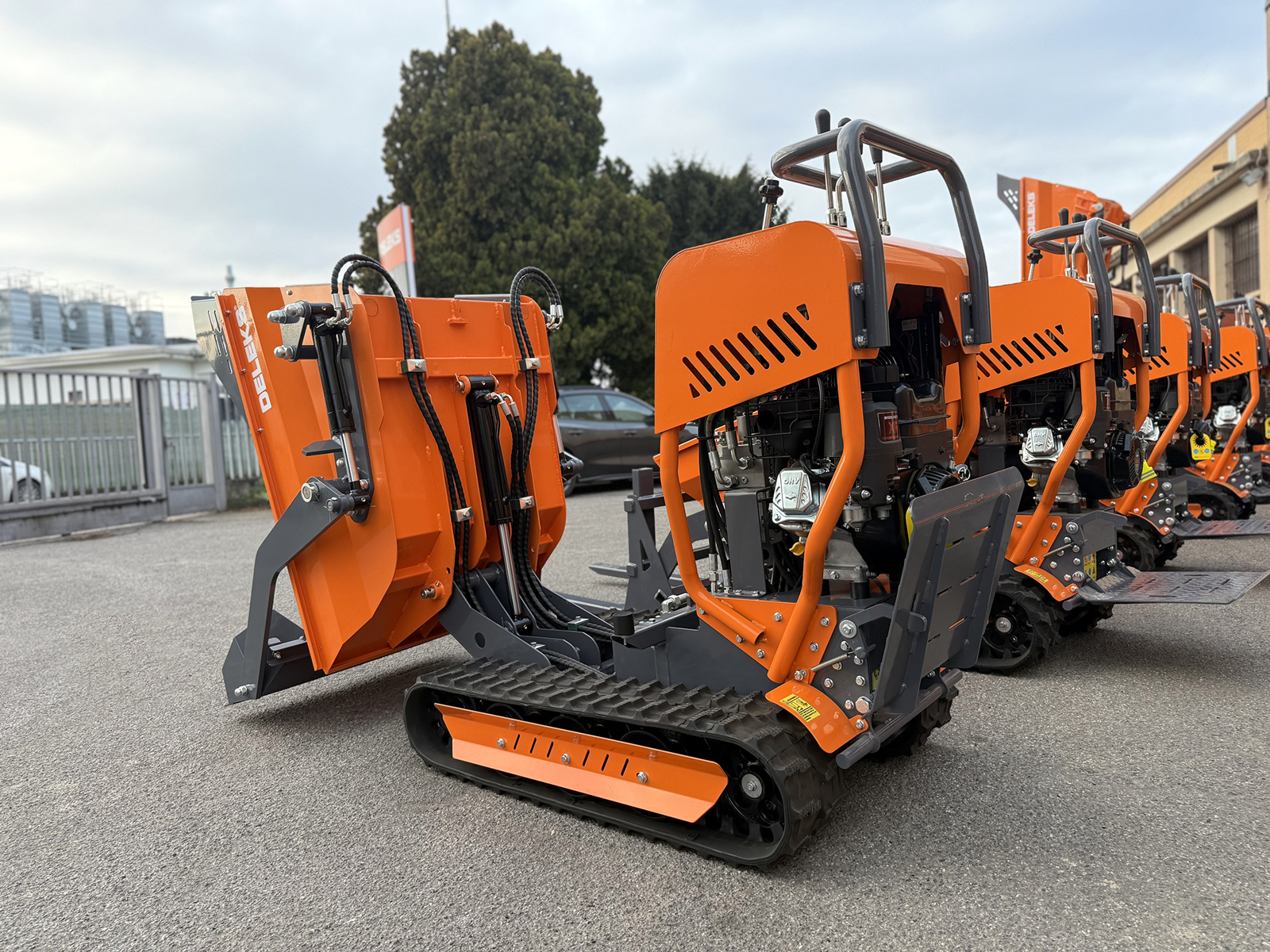

Tipping: hydraulic

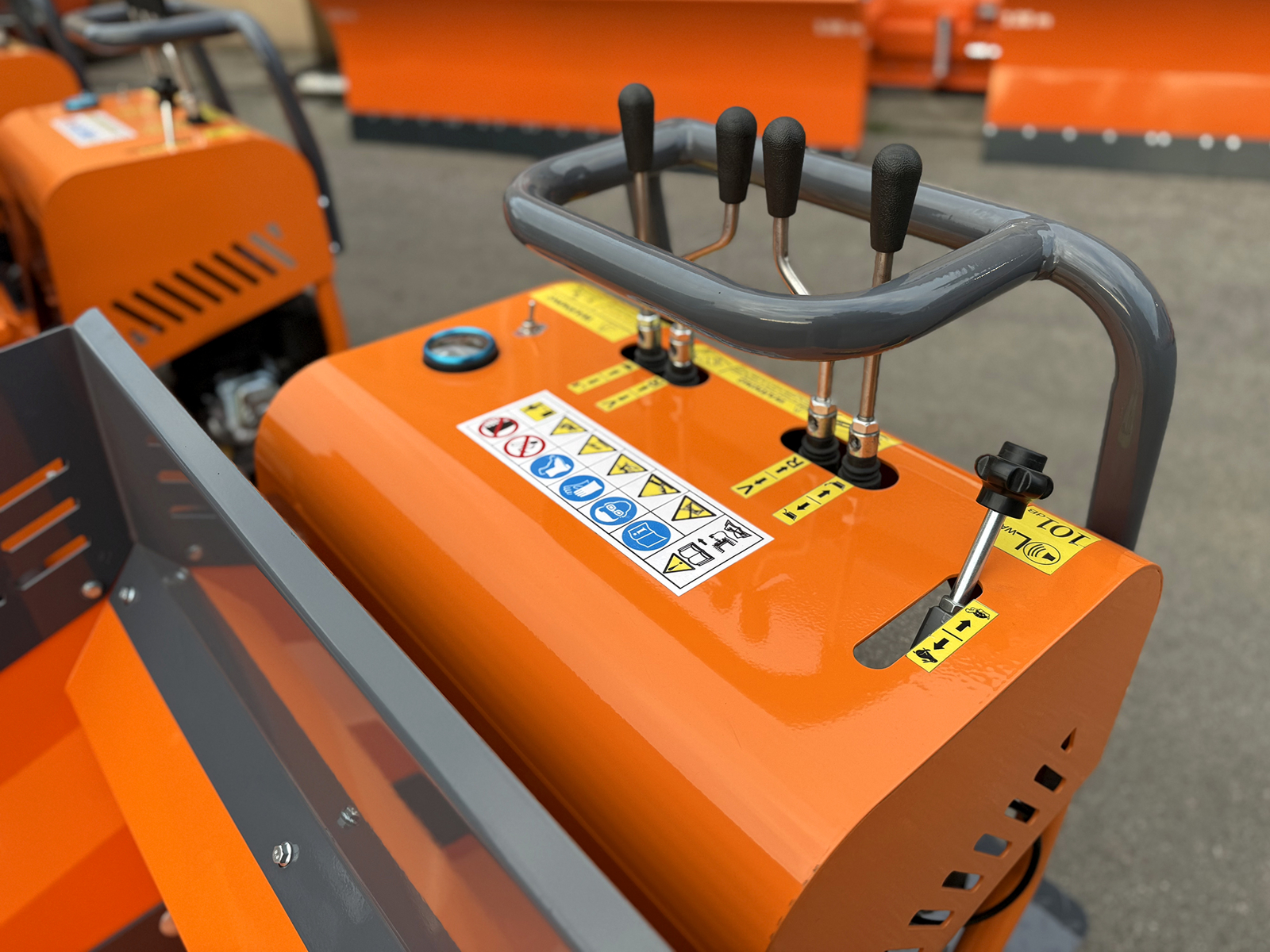

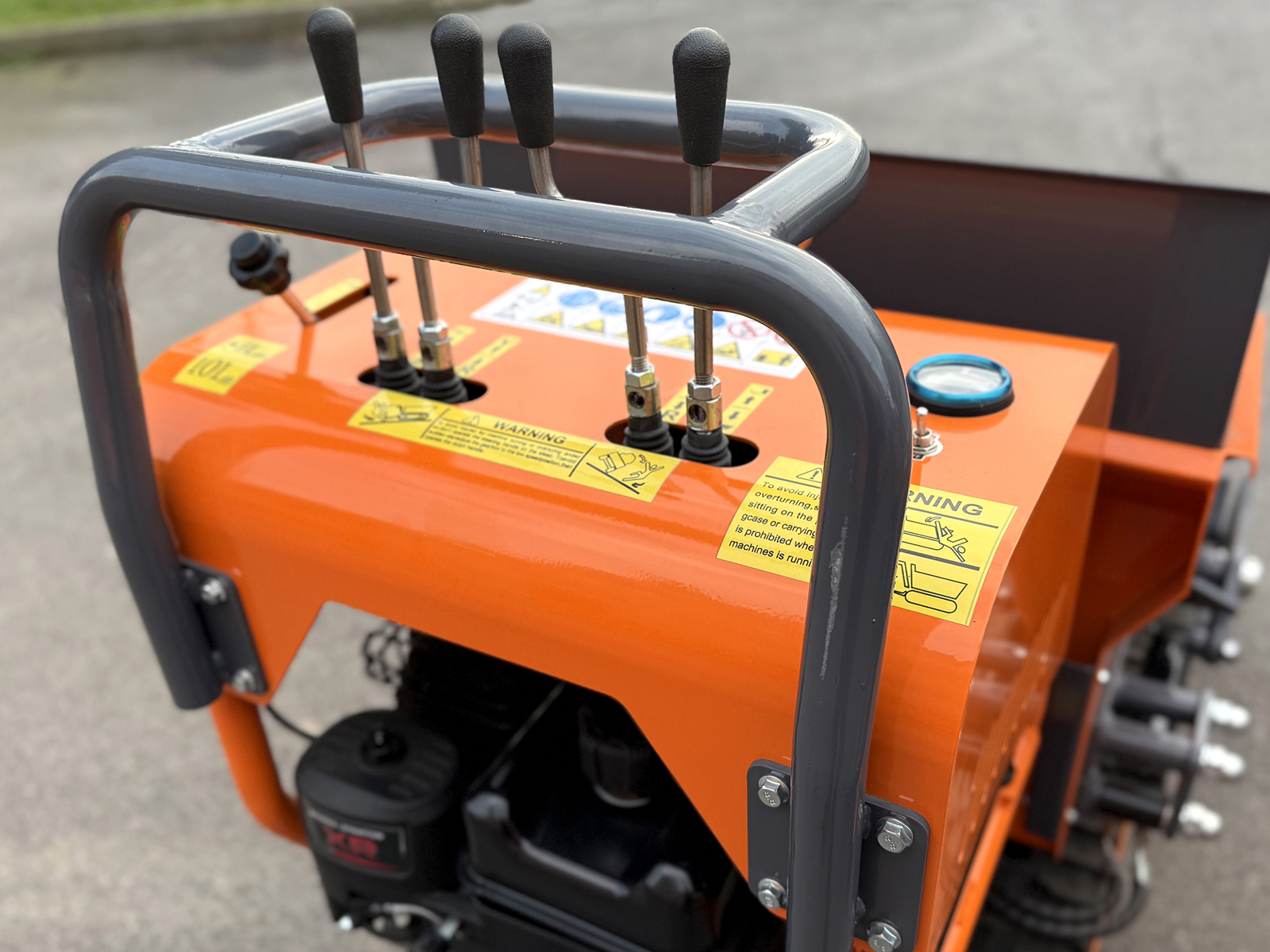

Driving system with lever controls

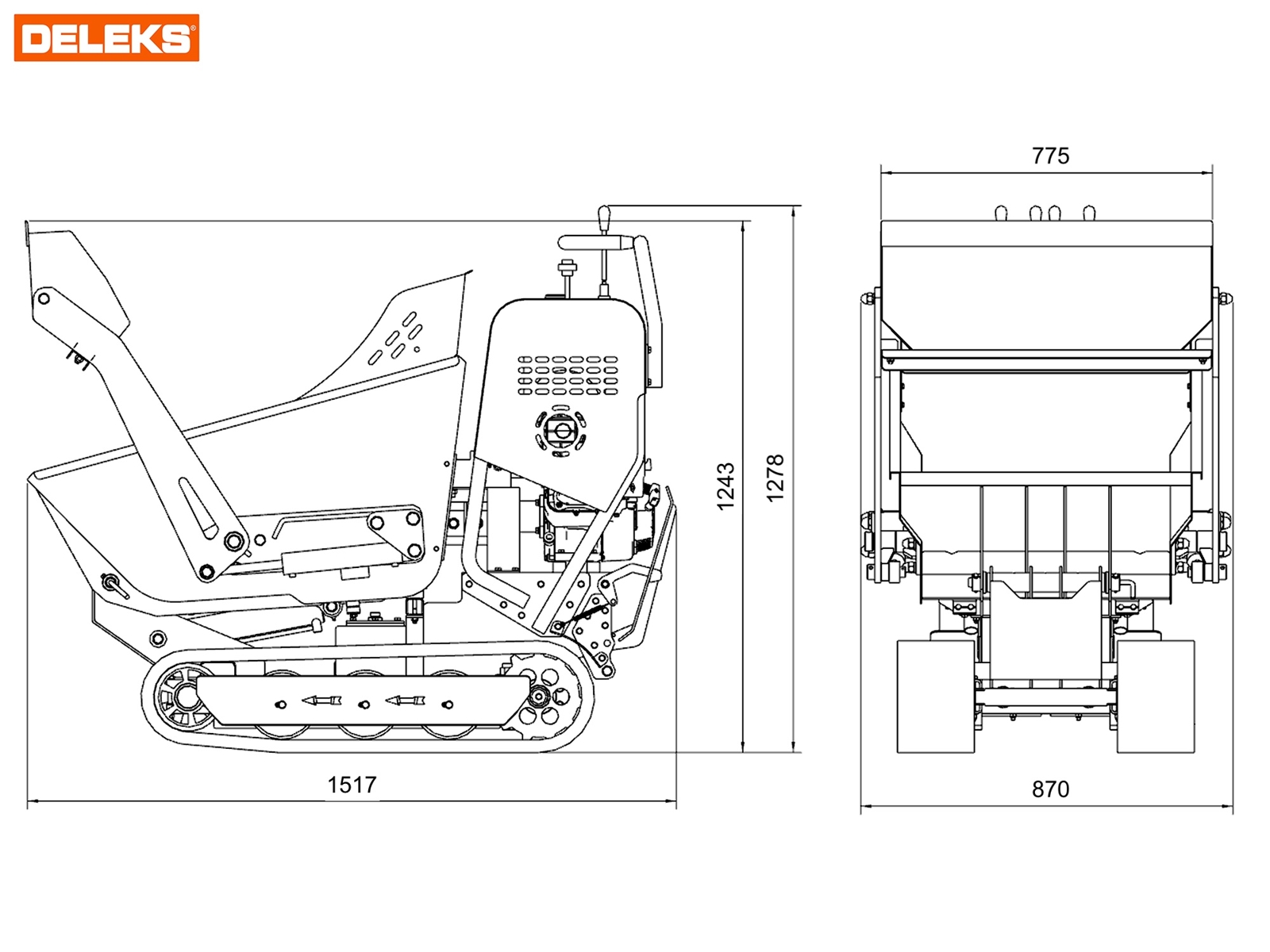

Measurements: see images

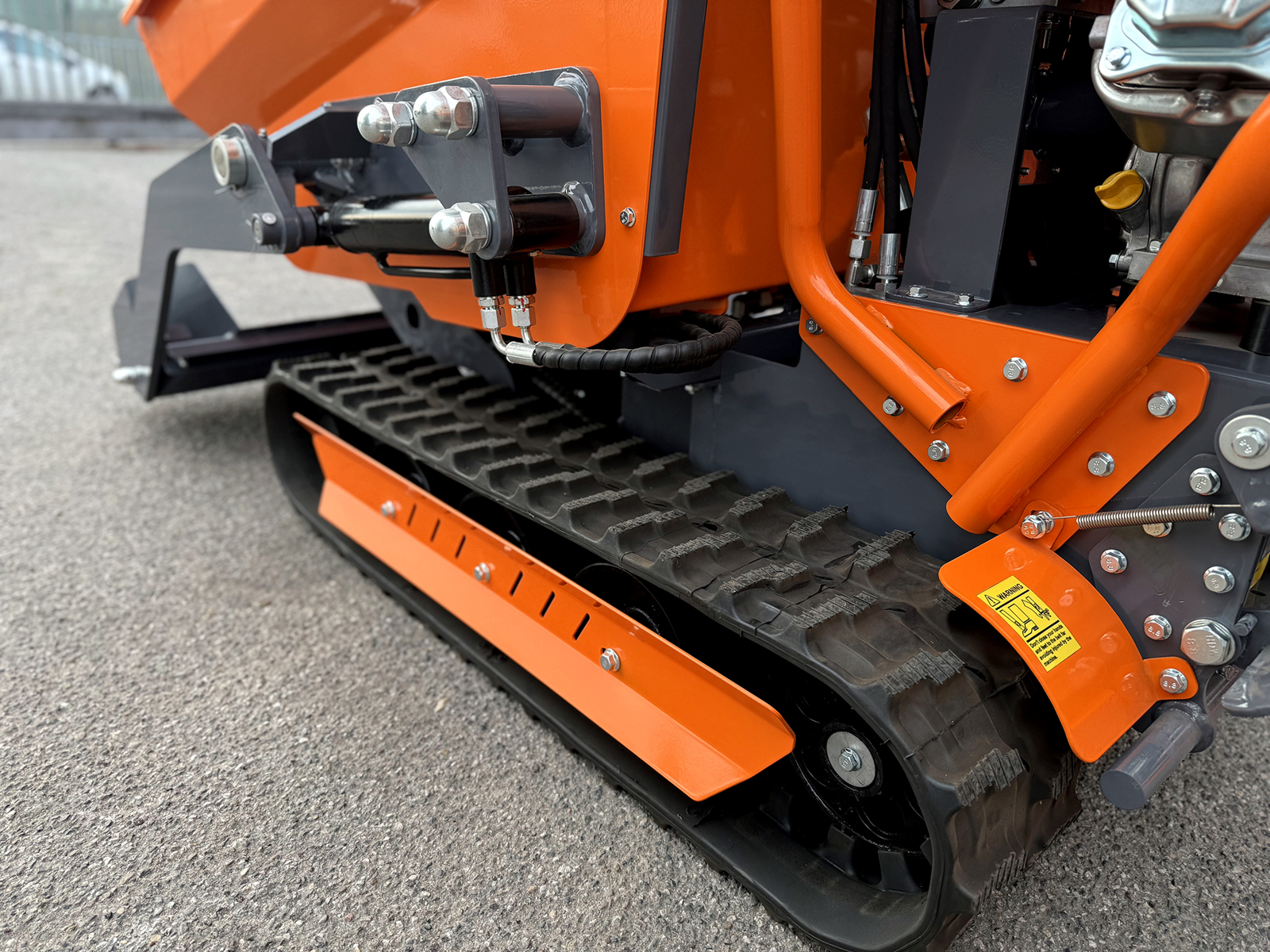

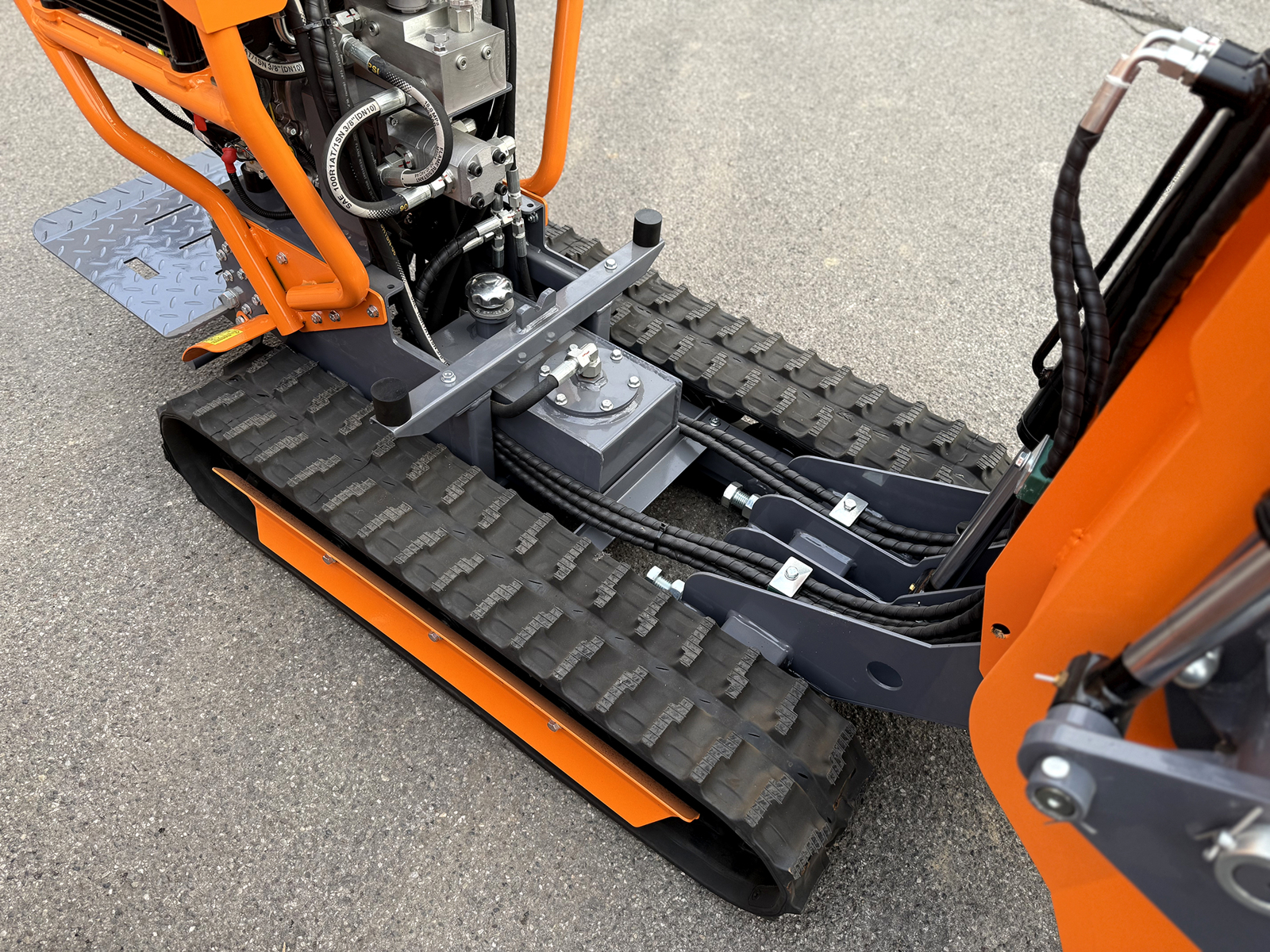

Track width/length: 170 mm x 1160 mm
ADVANTAGES

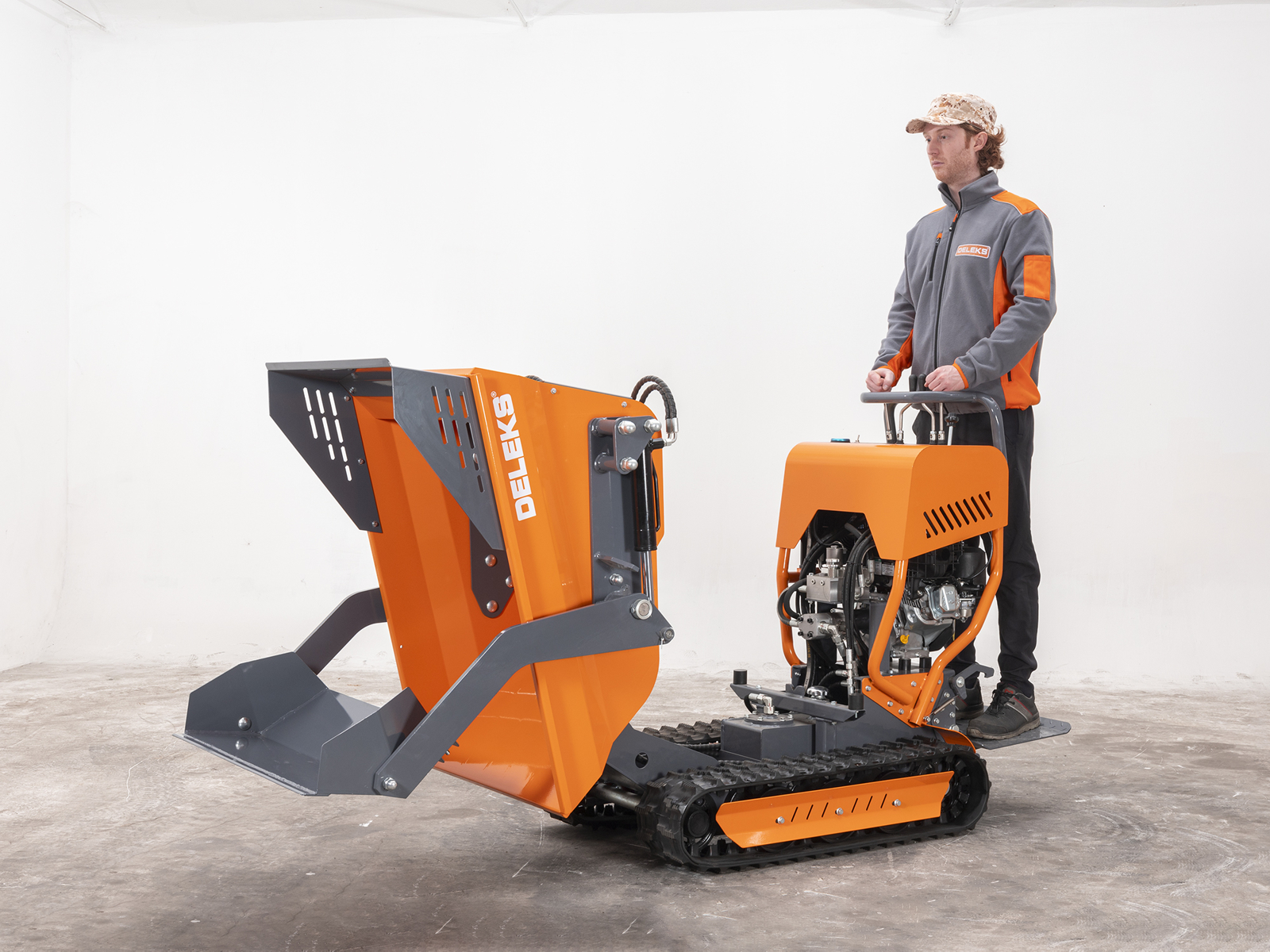

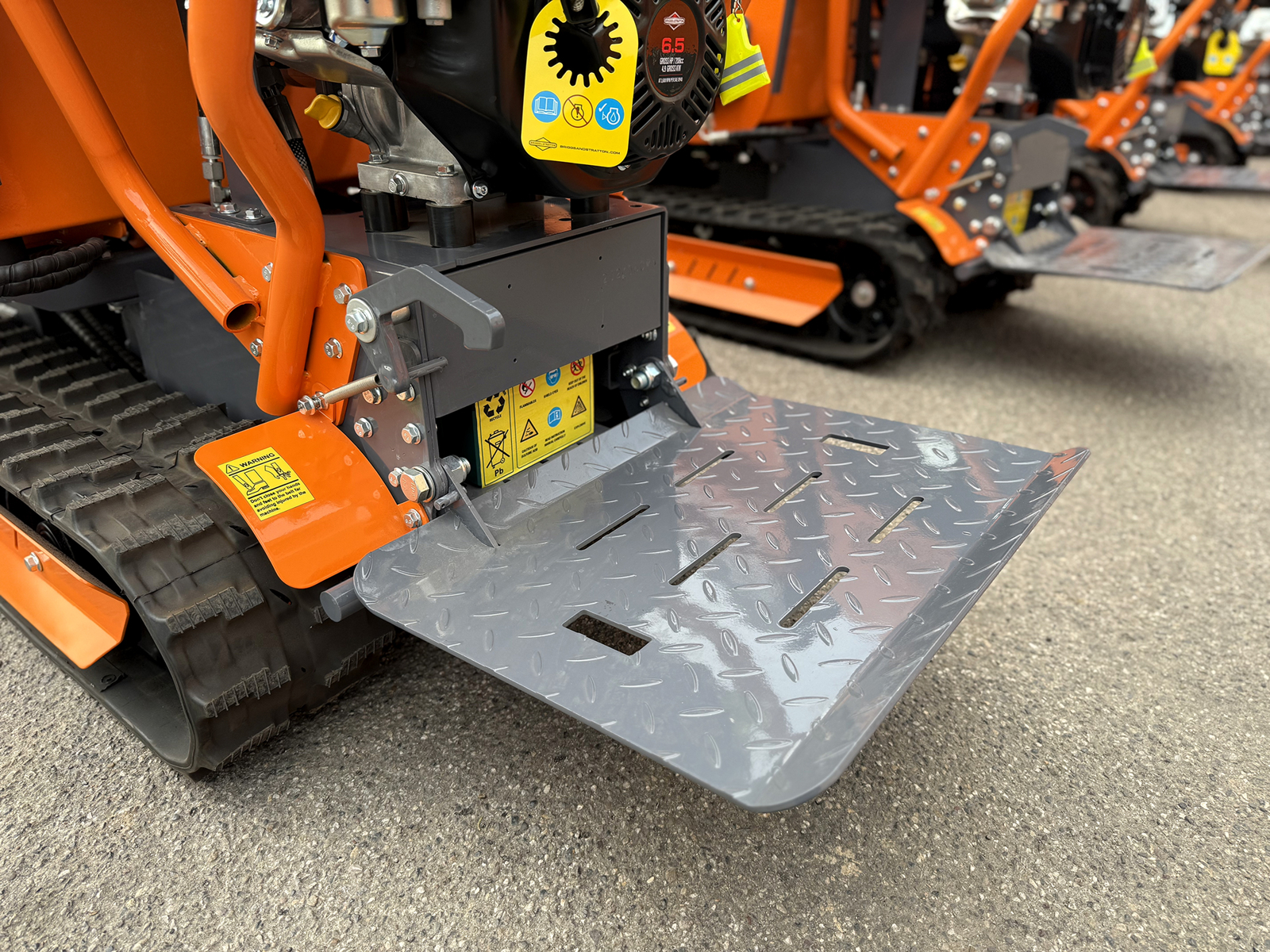

Operator platform

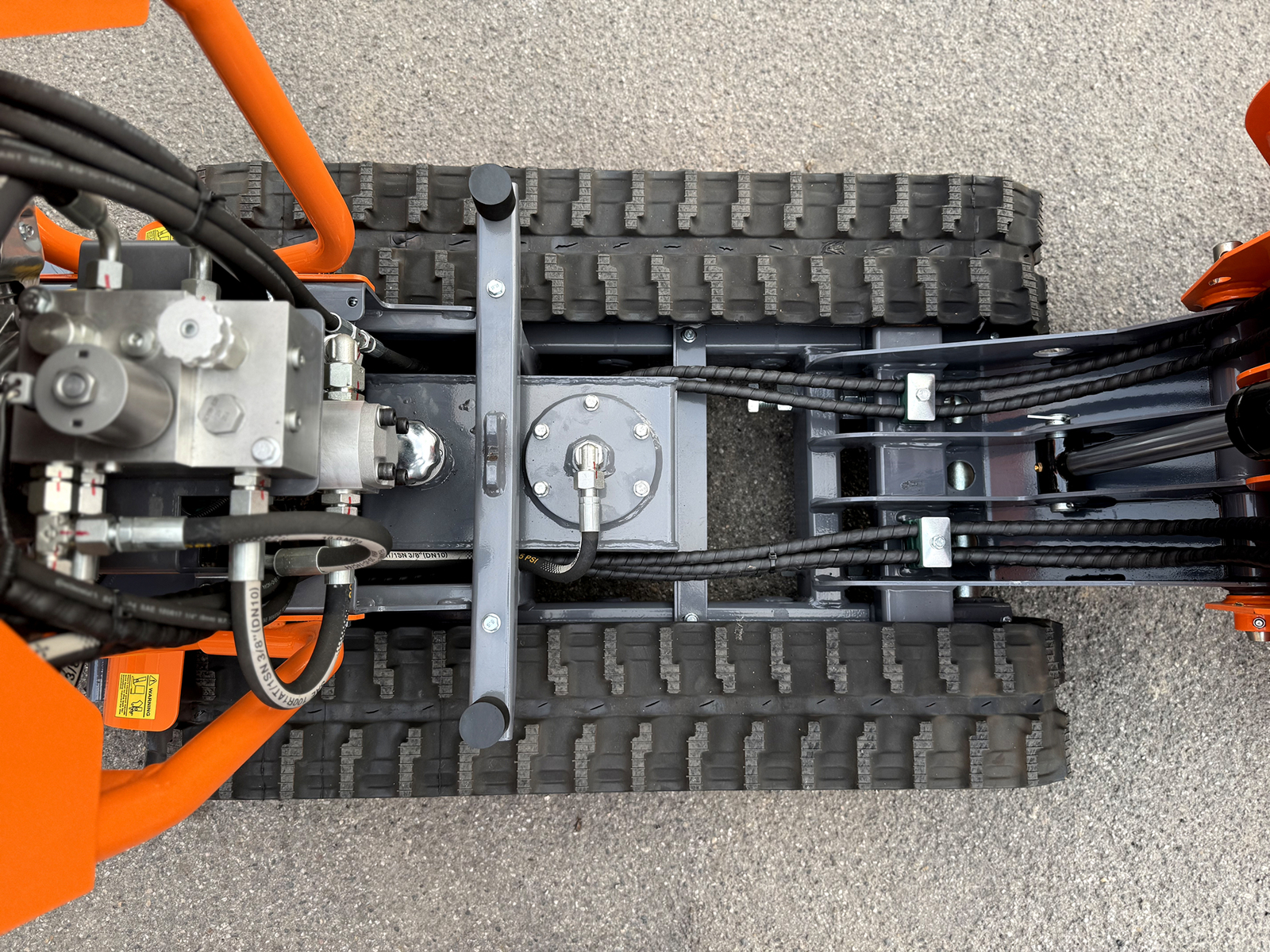

Hydrostatic transmission
Double speed (2 - 6 km/h)
Electric start with key
Reinforced body for heavy-duty work
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Overall width | 870.0 mm |
| Weight | 400.0 kg |
| Load capacity | 500.0 kg |
| Overall length | 1517.0 mm |
| Tipping Mechanism | Hydraulic |
| Engine | 6.5Hp Briggs&Stratton XR6.5 208cc |
| Starter | E-start |
| Fuel consumption | 1 l/h |
| Bucket capacity (m3) | 0.20 |
| Packing sizes | 1600.0*900.0*1500.0 mm |
DETAILS
CLOSEDELEKS® V3000 Self-loading tracked minidumper, hydrostatic transmission, operator platform, Briggs&Stratton engine, electric start.
APPLICATION
V3000 tracked minidumper suitable for loading and moving earth, sand, building material, waste, etc.
Briggs&Stratton XR6.5, 6.5HP /4.8 Kw, 208cc
Fuel: petrol
Body: dumper type
Capacity: 500 kg
Tipping: hydraulic
Driving system with lever controls
Measurements: see images
Track width/length: 170 mm x 1160 mm
ADVANTAGES
Operator platform
Hydrostatic transmission
Double speed (2 - 6 km/h)
Electric start with key
Reinforced body for heavy-duty work
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
CHARACTERISTICS
CLOSE| Characteristic | Units metric |
|---|---|
| Overall width | 870.0 mm |
| Weight | 400.0 kg |
| Load capacity | 500.0 kg |
| Overall length | 1517.0 mm |
| Tipping Mechanism | Hydraulic |
| Engine | 6.5Hp Briggs&Stratton XR6.5 208cc |
| Starter | E-start |
| Fuel consumption | 1 l/h |
| Bucket capacity (m3) | 0.20 |
| Packing sizes | 1600.0*900.0*1500.0 mm |

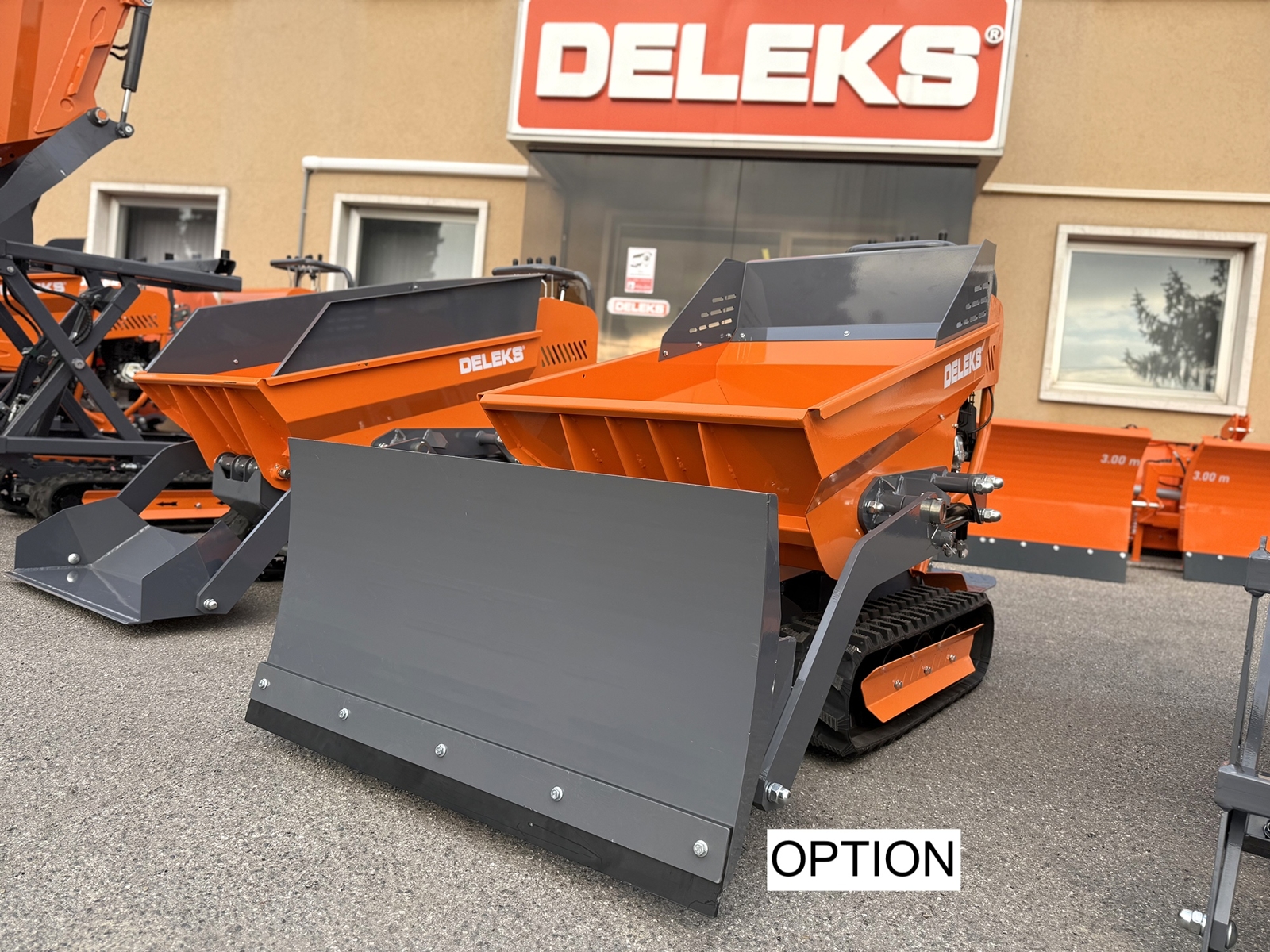

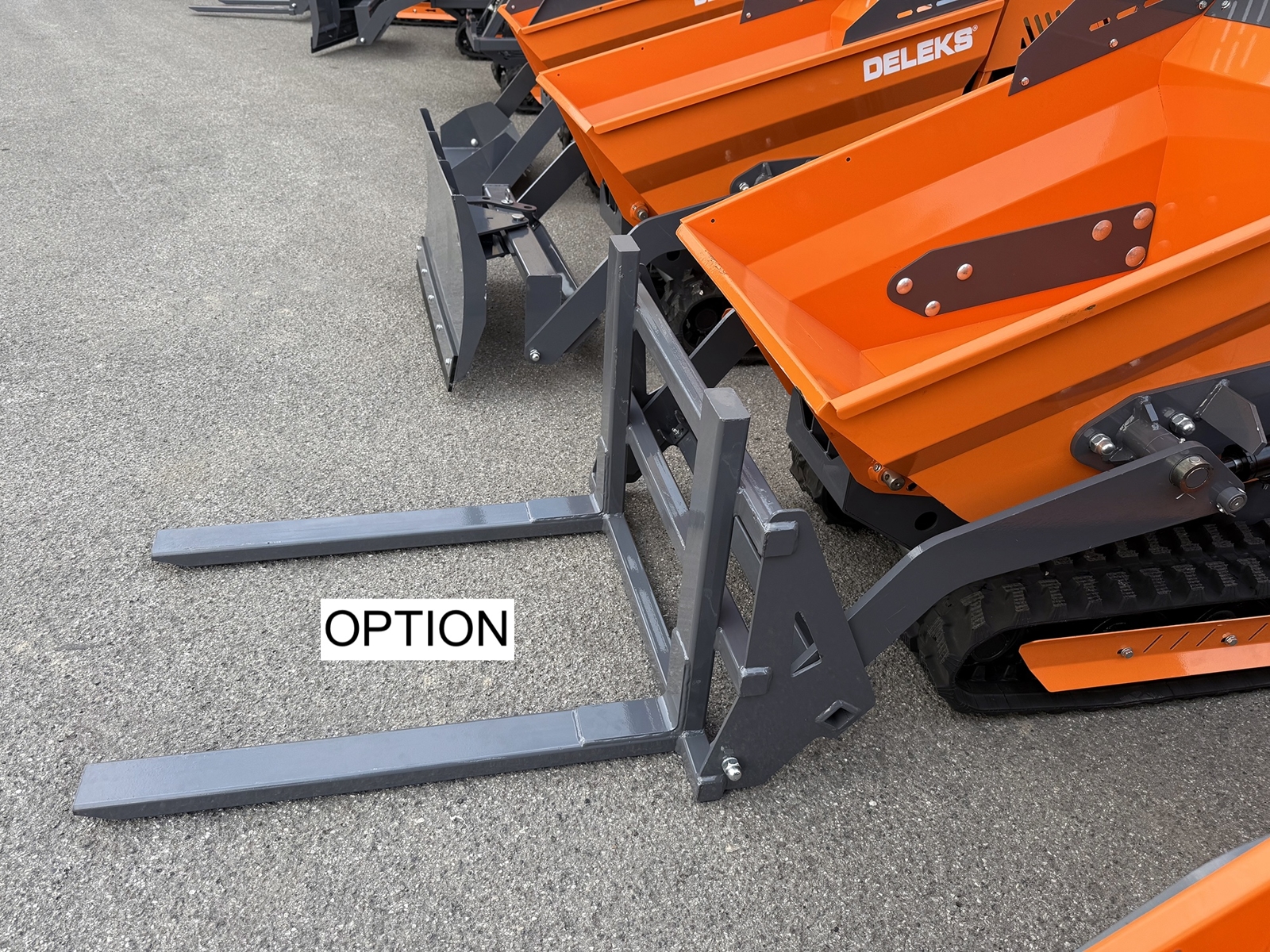

Optional
