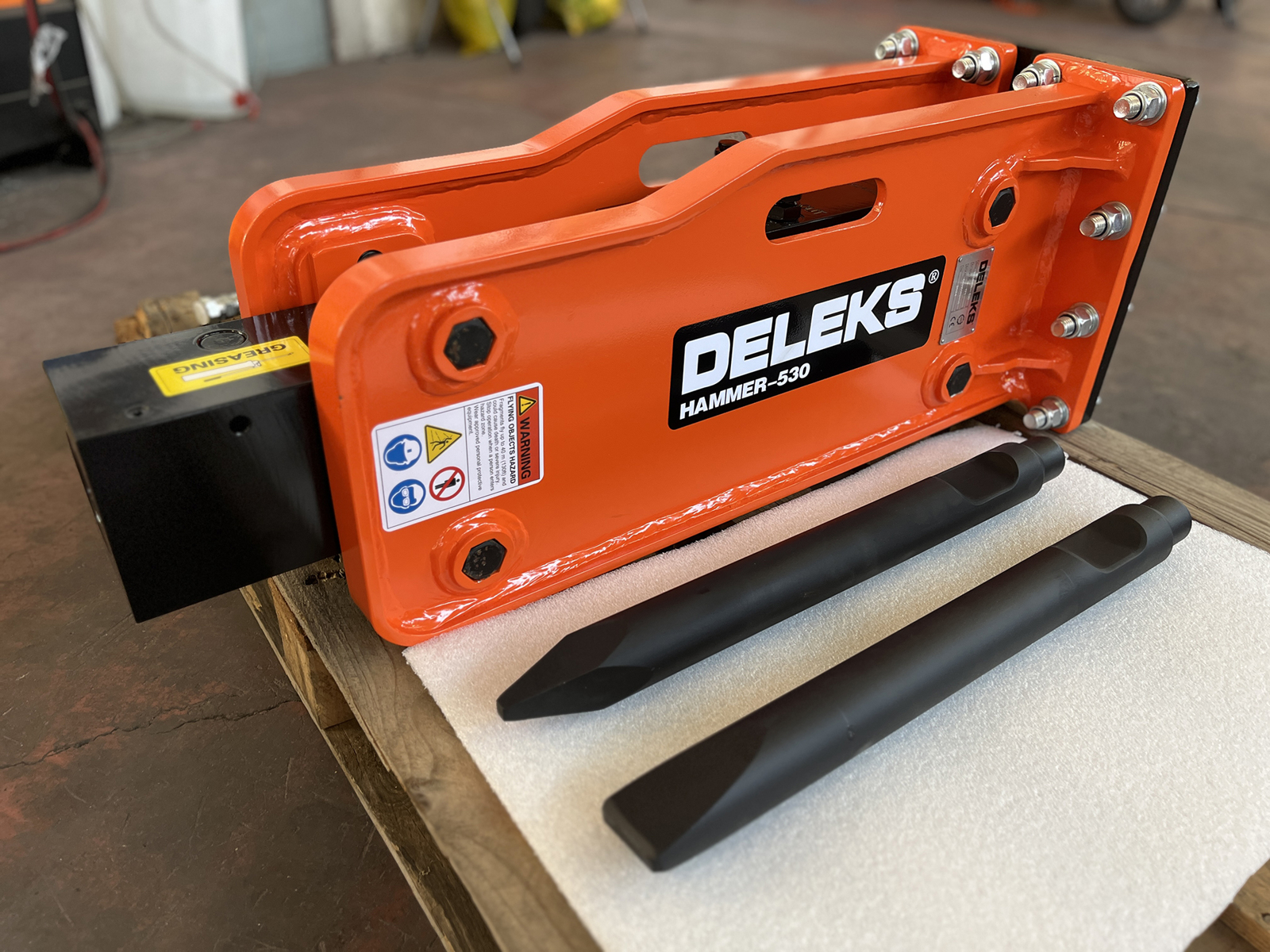

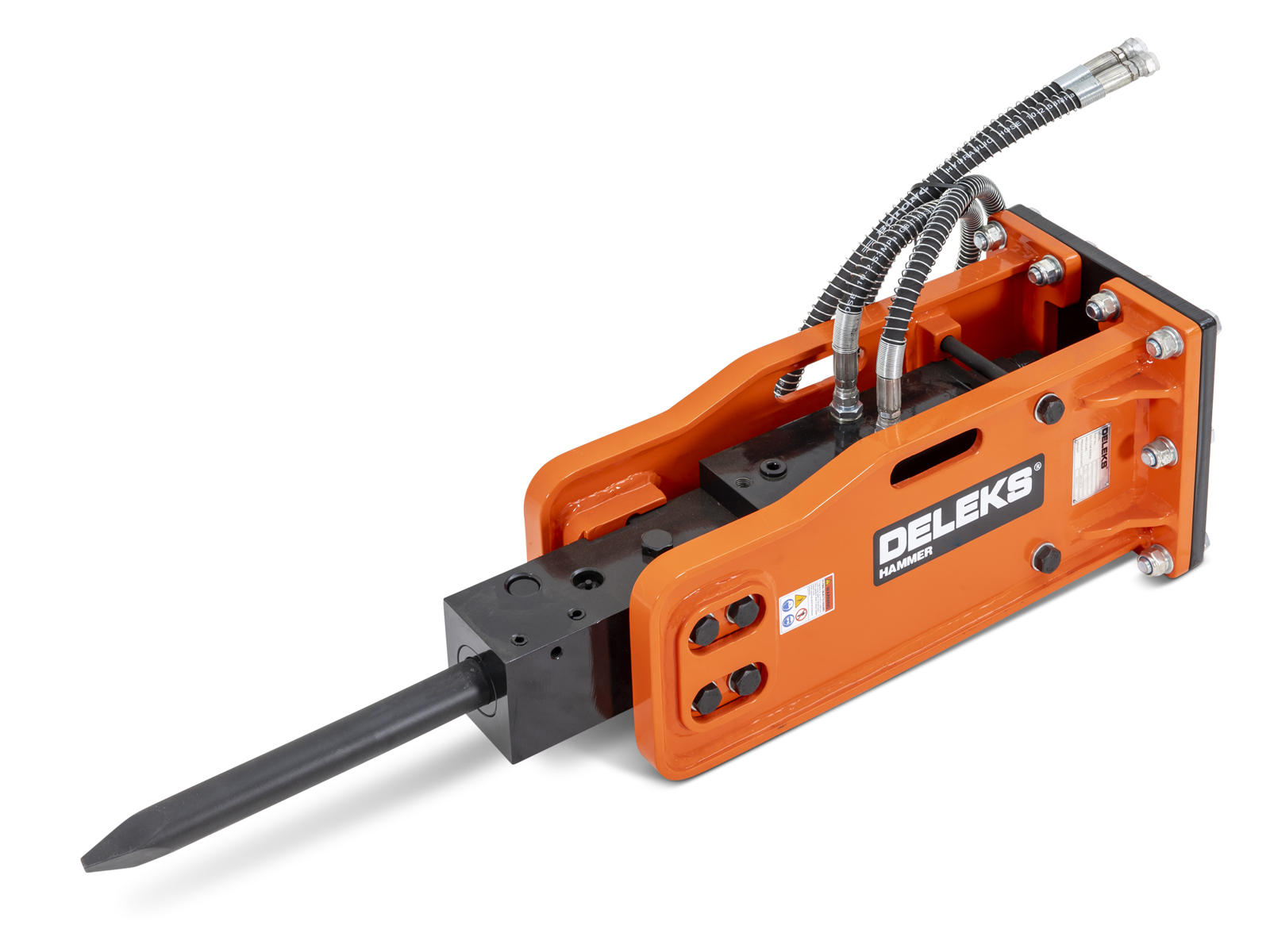

DELEKS® HAMMER-530 hydraulic hammer for miniexcavator.

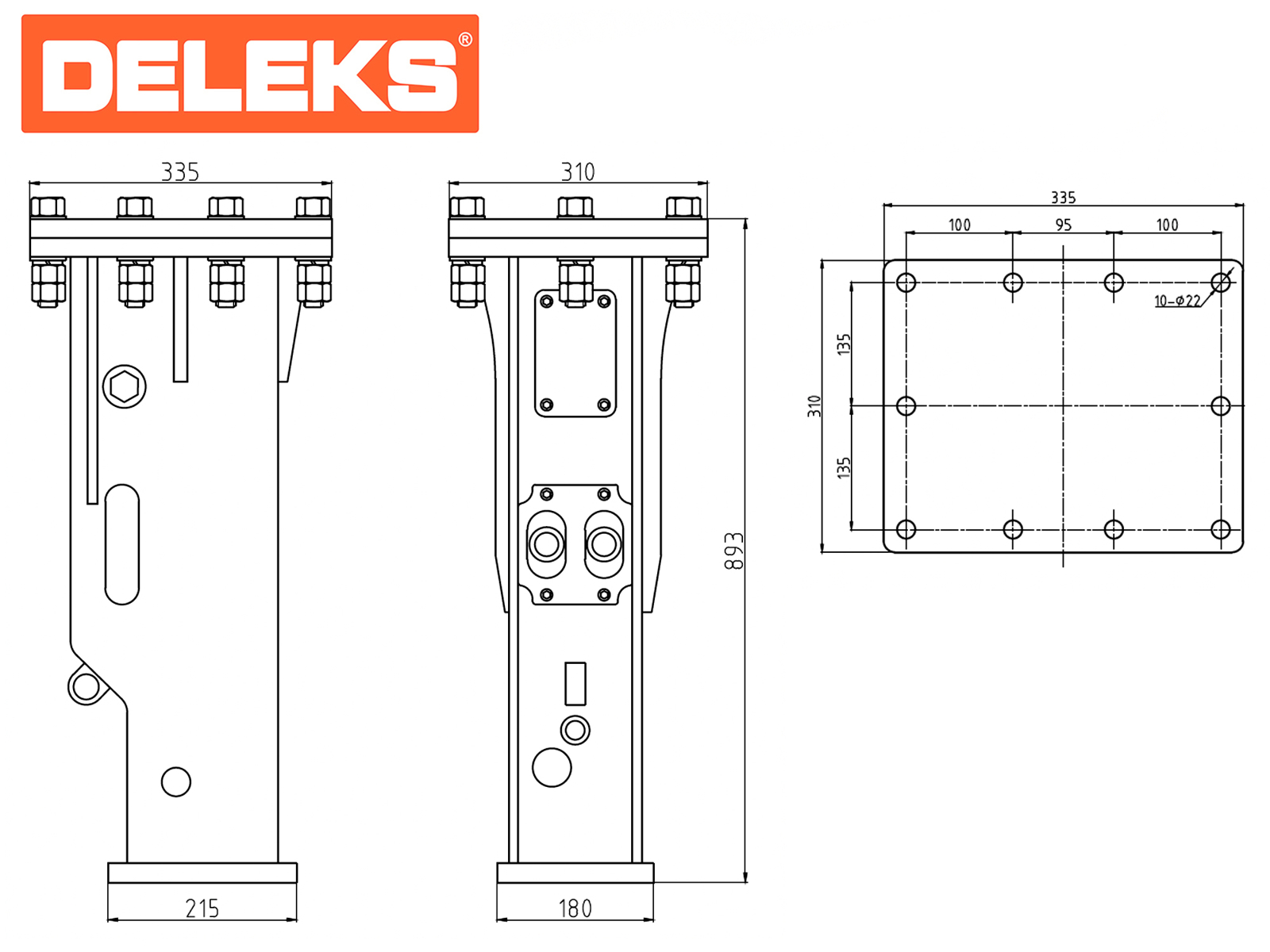

Measures: see pictures.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Weight | 180 kg |
| Min./Max. Flow | 25~45 l/min |
| Compact Excavators Range | 2.5 - 5.0 ton |
| Working pressure | 90 - 120 bar |
| Impact rate | 500 - 1000 bpm |
| Impact energy class | 320 Joule |
| Chisel diameter | 53.0 mm |
| Hoses diameter | 1/2" |
| Noise level | 117 dB |
| Packing sizes | 800*350*600 mm |
