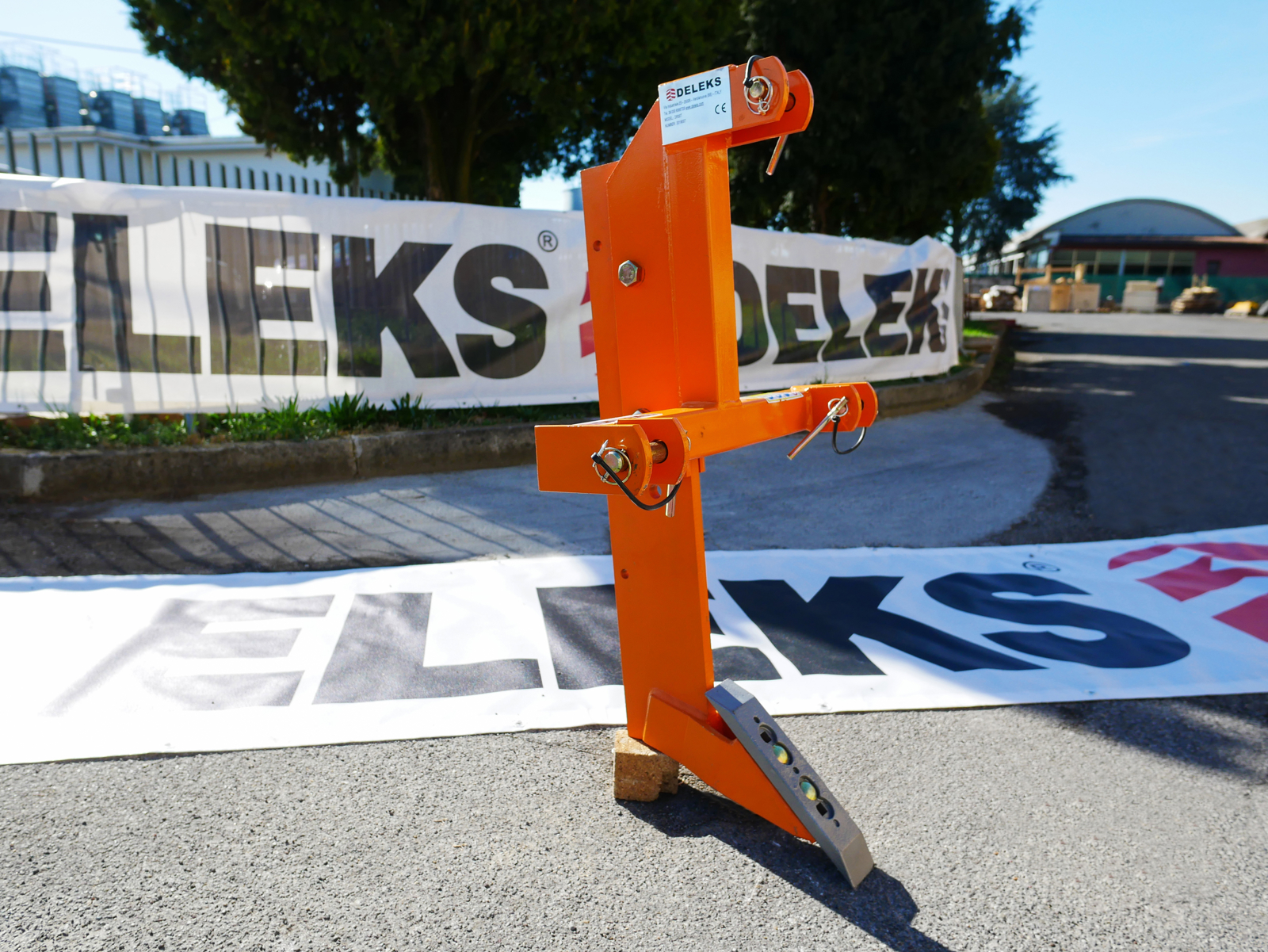

Single tyne ripper for tractors like Kubota mod. DR-30
DELEKS® DR-30: Unpacking by Alberto
DETAILS
Single tine ripper for tractor like Kubota, John Deere - DELEKS® - Reversible cutting tooth that is easily replaced.
OVERVIEW
DR-30 single tine ripper can be used for preparing soil for crops and lawns or even for removing tree stumps.
It fits most common compact wheeled tractor brands: Japanese tractors Kubota, Kioti, Iseki, Pasquali, Yanmar, Solis, Mahindra, and compact tractors like New Holland Boomer 25, John Deere, Pasquali, Ferrari etc. Universal 3 point linkage Cat.1. EC Declaration of Conformity.
Not suitable for crawler tractors.
BENEFITS & FEATURES
Reversible cutting tooth that is easily replaced.
Extremely strong and height adjustable tine.
Reinforced steel framing for longer life.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Overall width | 640.0 mm |
| Weight | 55.0 kg |
| Overall height | 900.0 - 1100.0 mm |
| Tractor Power Range | 12 - 45 Hp |
| 3 point linkage | Cat. 1 (ø 19.0-22.0mm) |
| Spacing between the 2 lower points | 500.0 - 620.0 mm |
| Other sizes | See pictures |
| Thickness of the arm | 20.0*150.0 mm |
| Shank width | 150.0 mm |
| Removable blade Thickness | 20.0 mm |
| Removable blade Width | 70.0 mm |
| Removable blade Length | 300.0 mm |
| Pipe Layer: weight | 10.5 kg |
| Pipe Layer: ø | 50.0 mm |
| Working Depth | 500.0 mm |
| Packing sizes | 950.0*700.0*500.0 mm |
