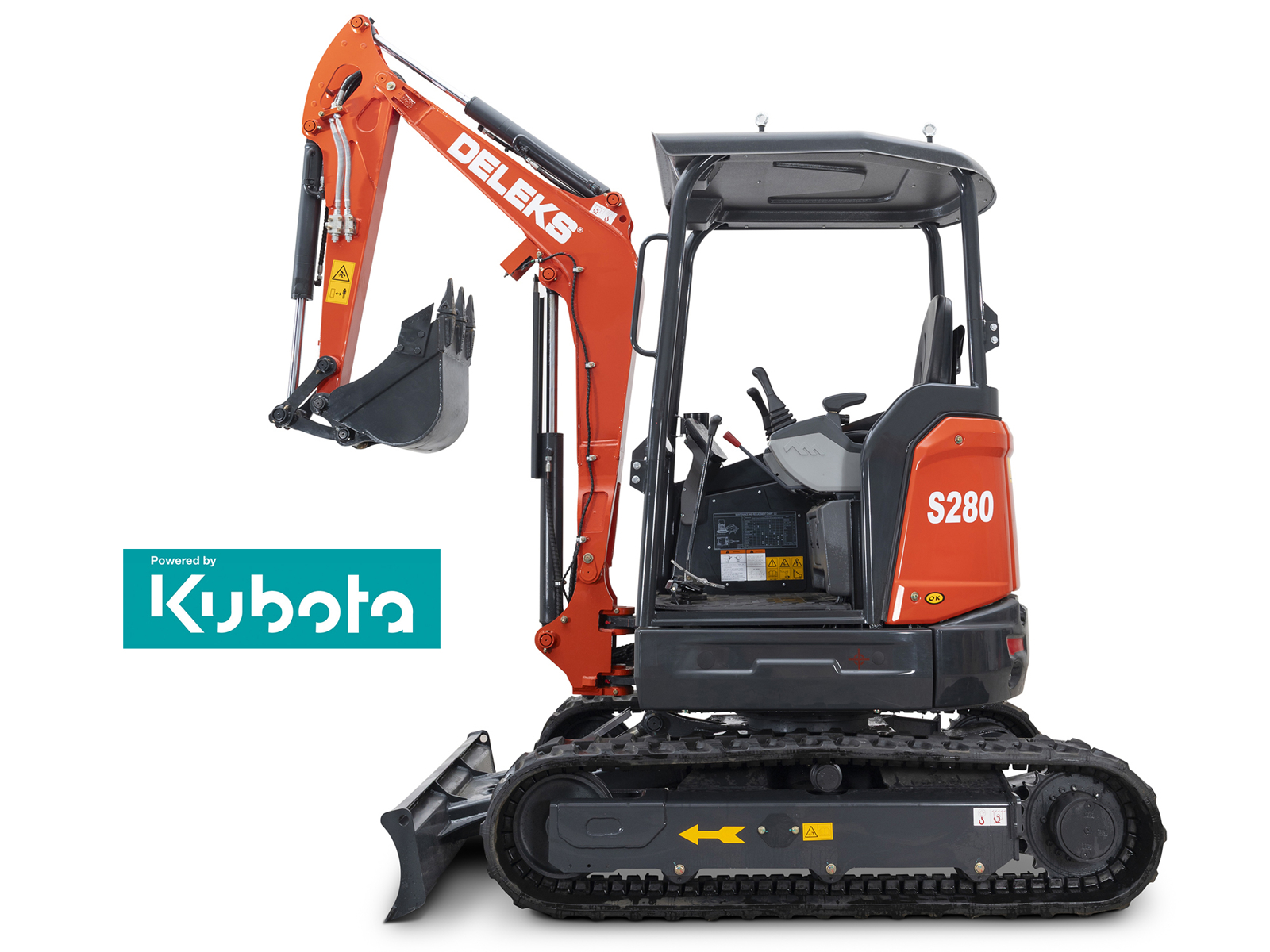

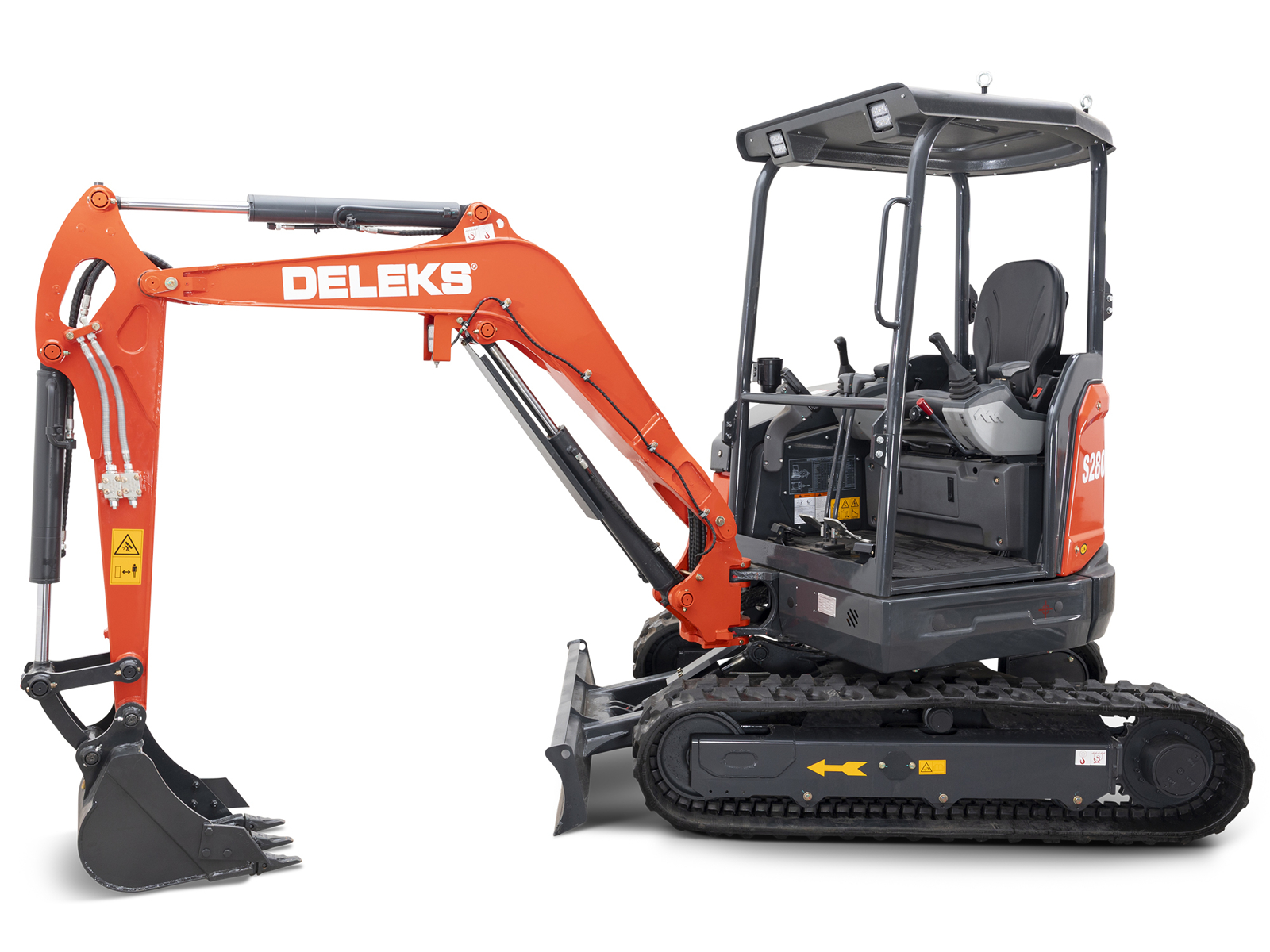

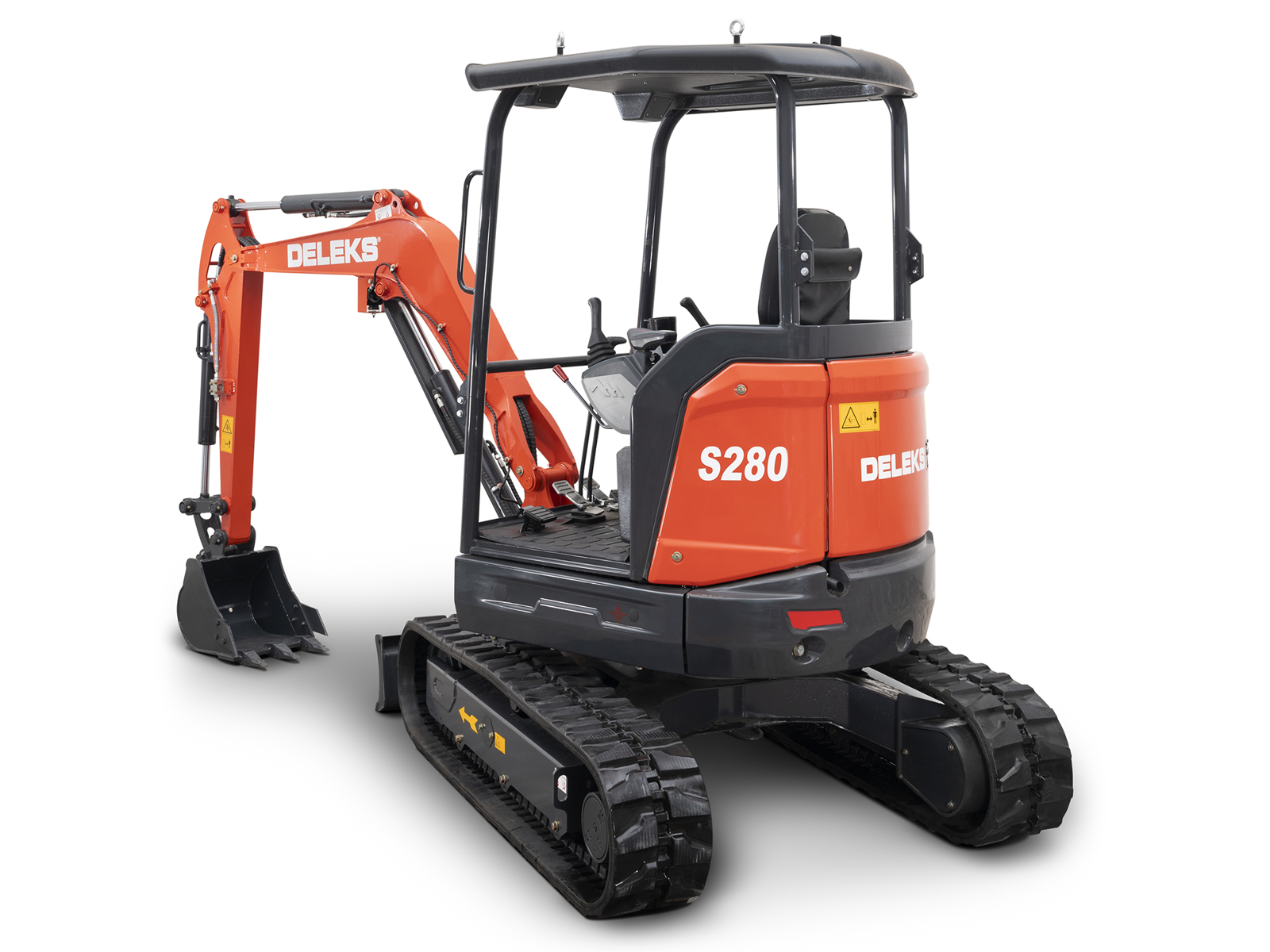

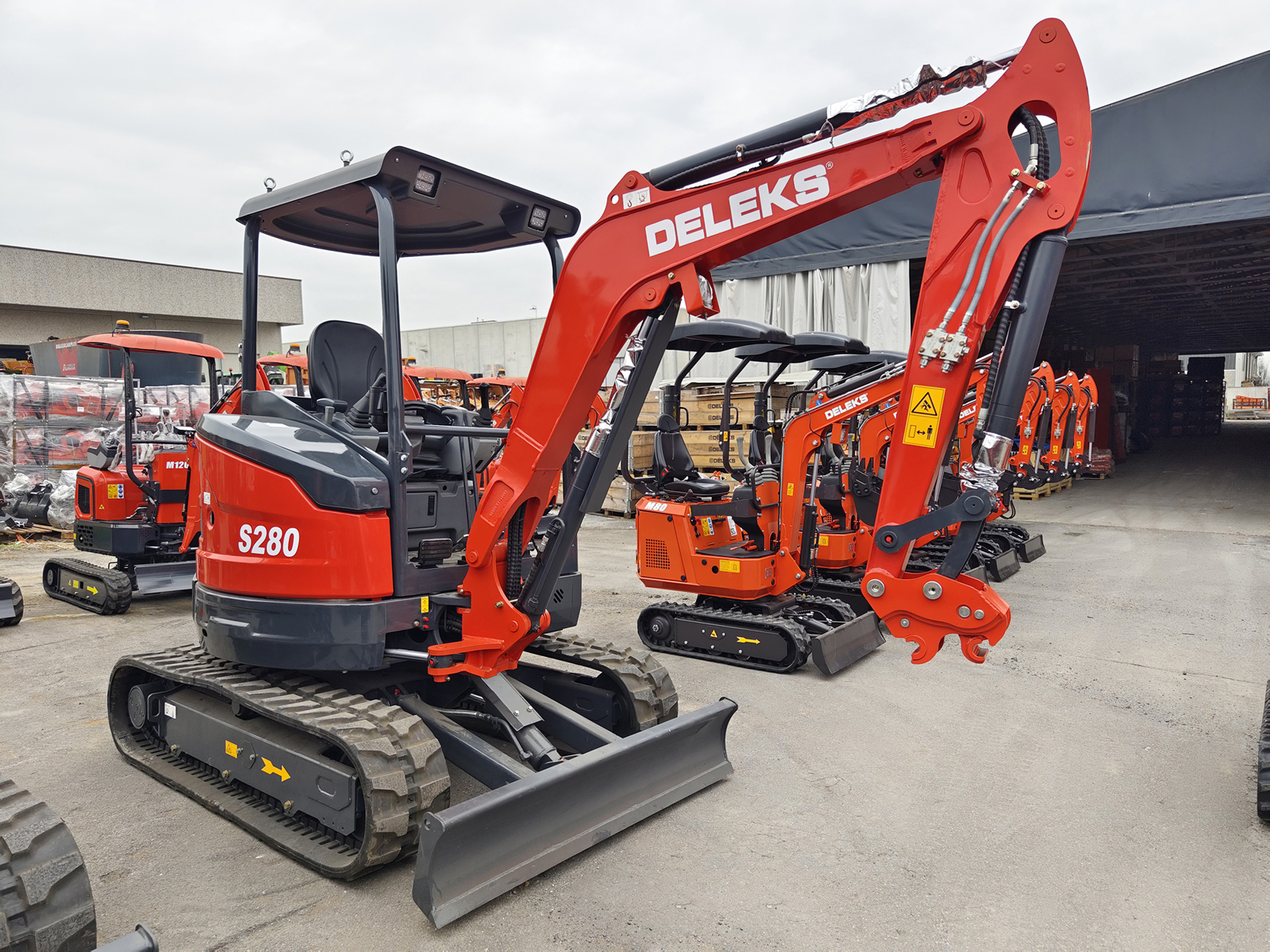

S280-KUBOTA Mini excavator 2.7 ton, Kubota D1105 engine

Compact mini excavator DELEKS® S280-KUBOTA – 2.7 t — Kubota D1105 Stage V 3-cylinder engine (1123 cc), dual travel speed up to 4 km/h, 87 L/min axial piston hydraulic pump with Load Sensing control, zero tail swing, two auxiliary circuits AUX1–AUX2, offset boom and ISO 8643 safety valve.

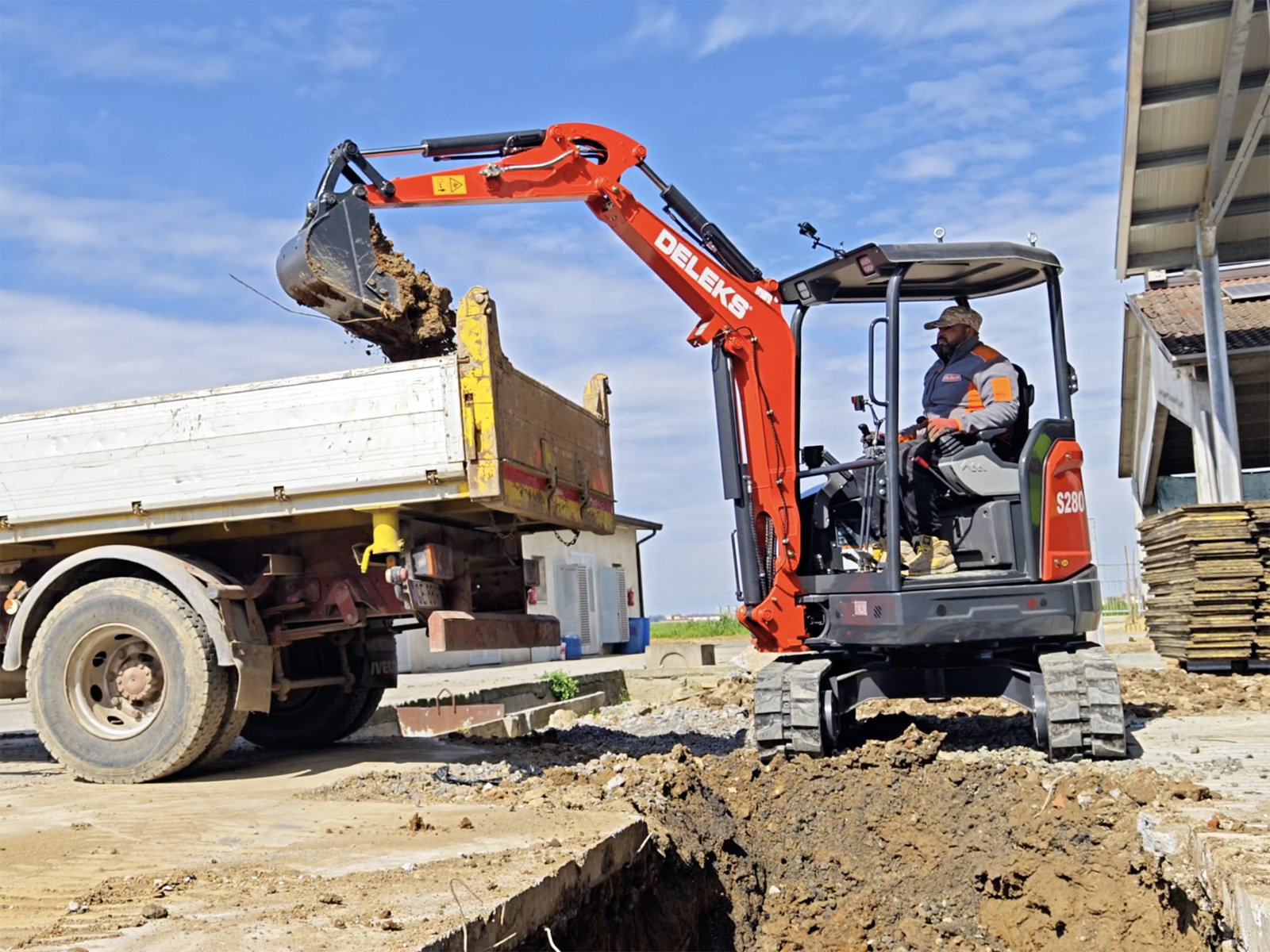

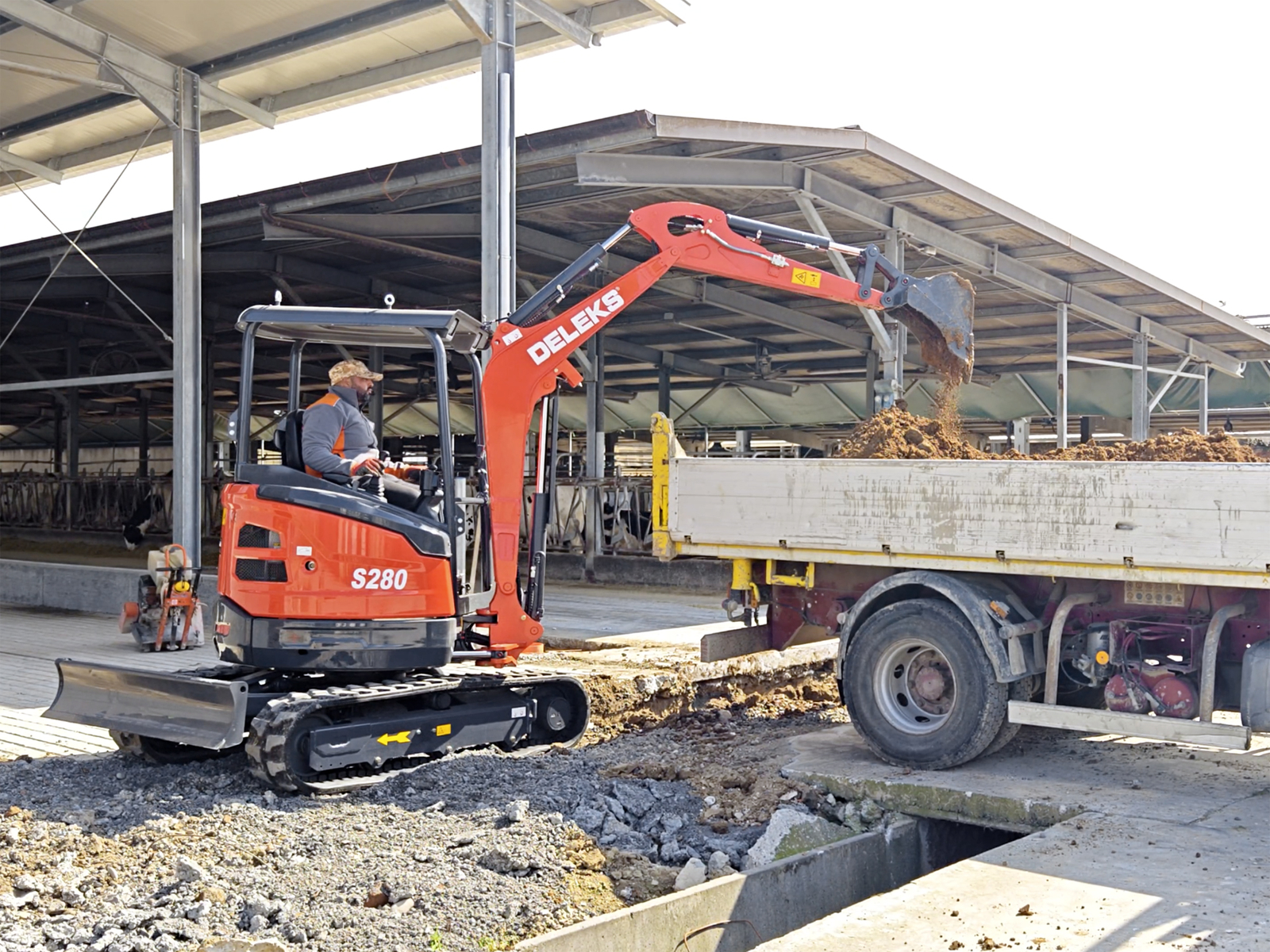

Designed to deliver power, precision and stability, the S280-KUBOTA is ideal for excavation work, construction, green maintenance and public works.

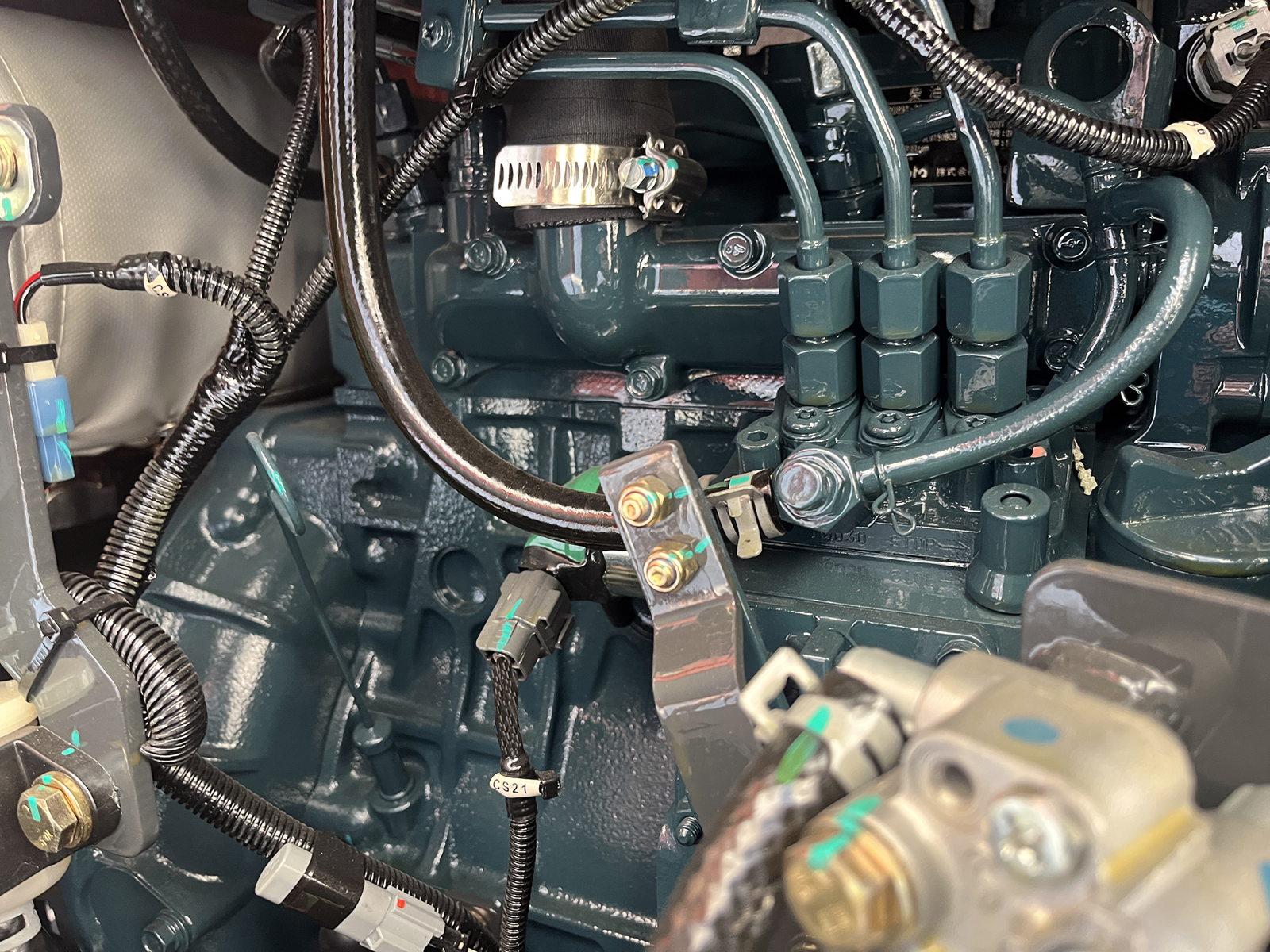

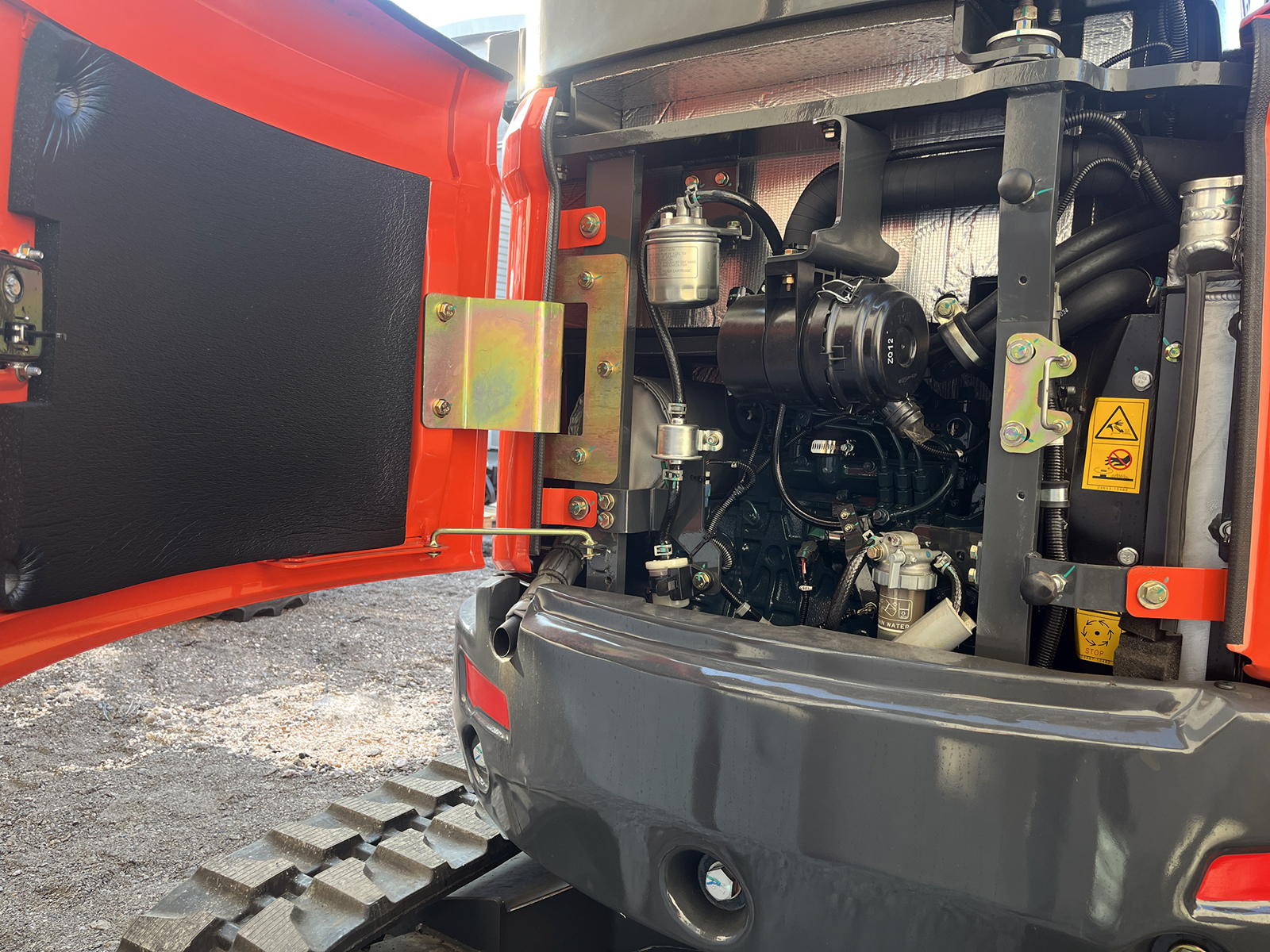

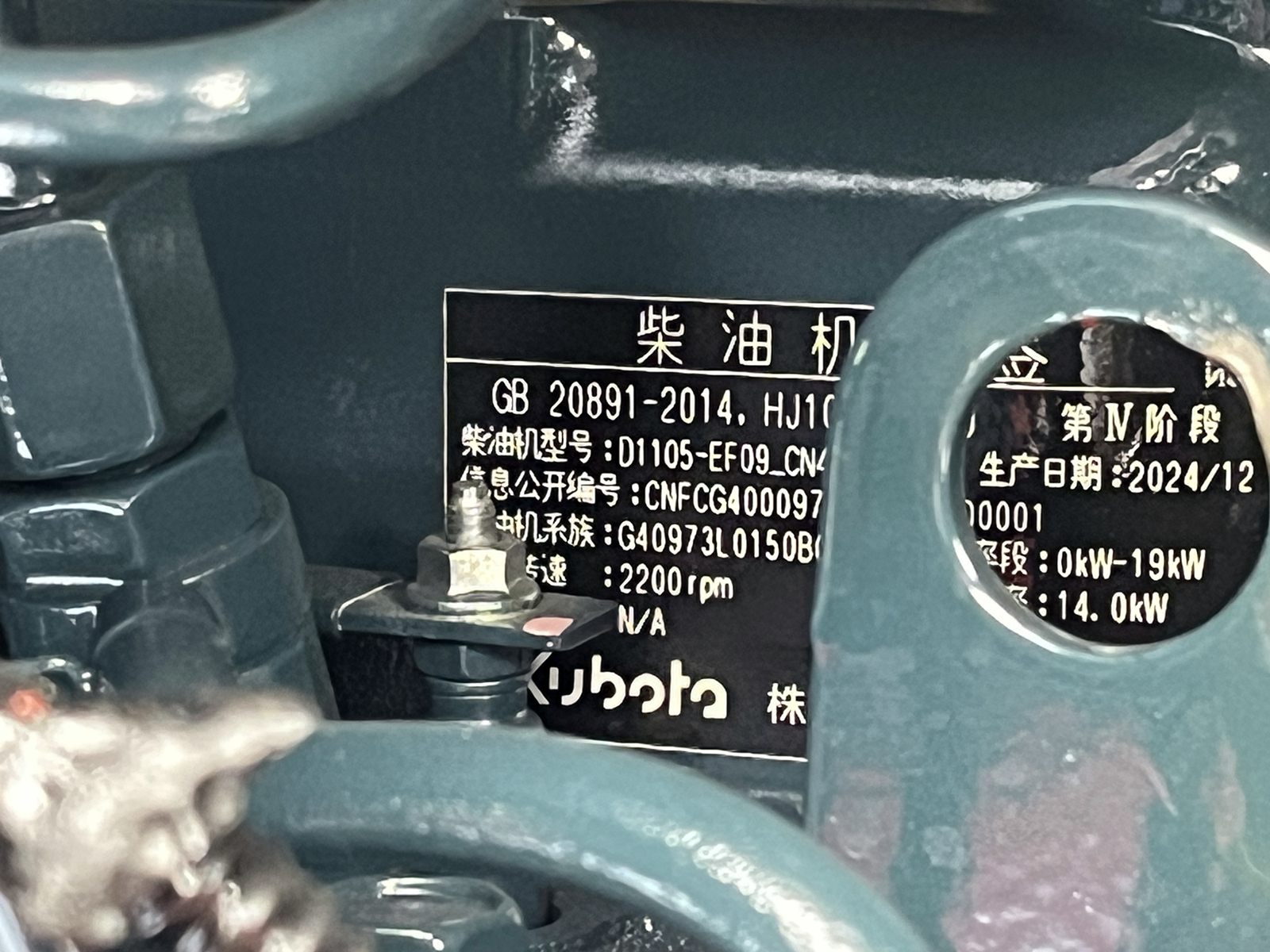

The Kubota D1105 engine delivering 21.8 HP (16 kW) at 2400 rpm ensures high performance, low fuel consumption and full compliance with Euro 5 / Stage V regulations.

PERFORMANCE AND CONTROL

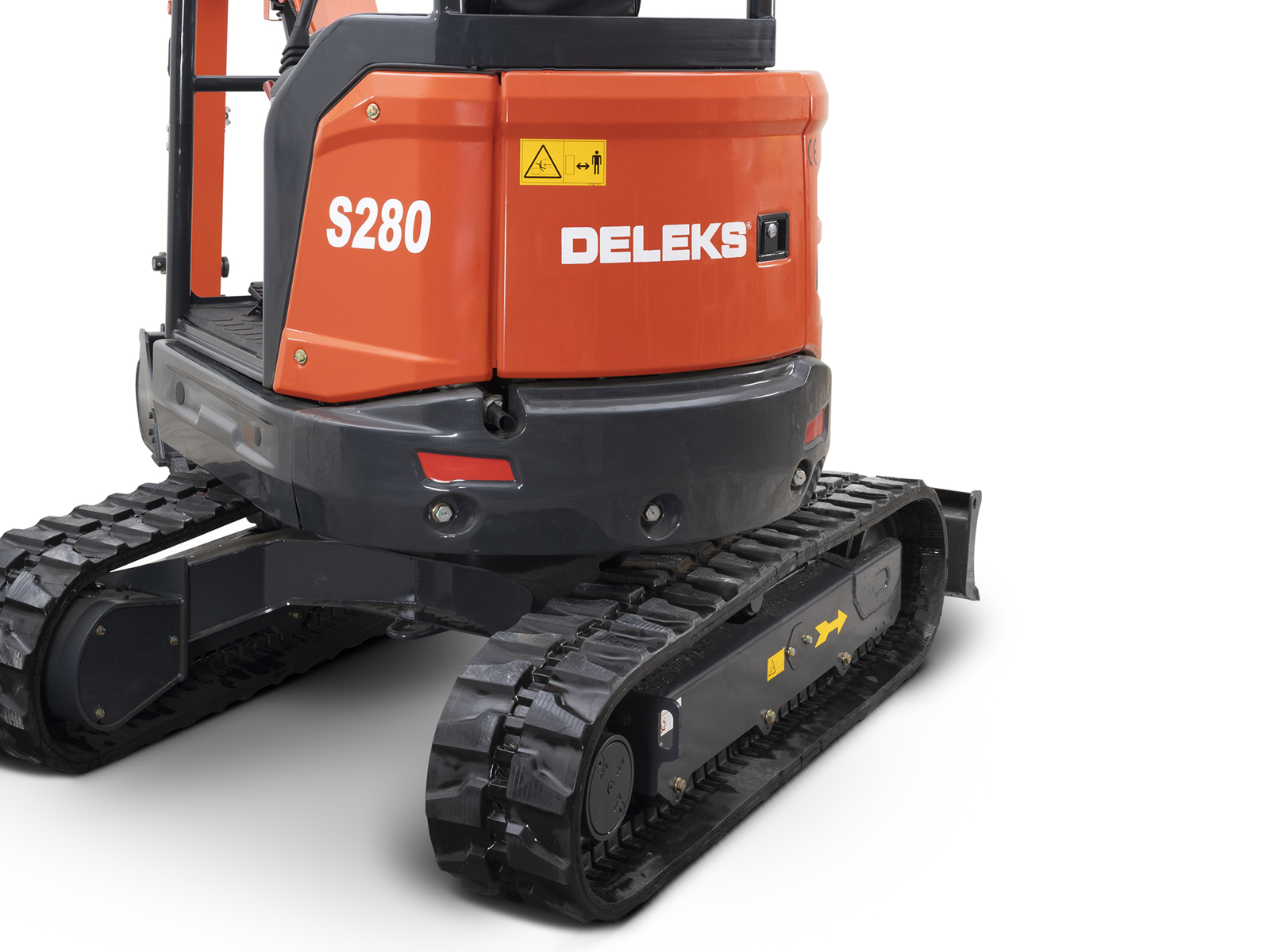

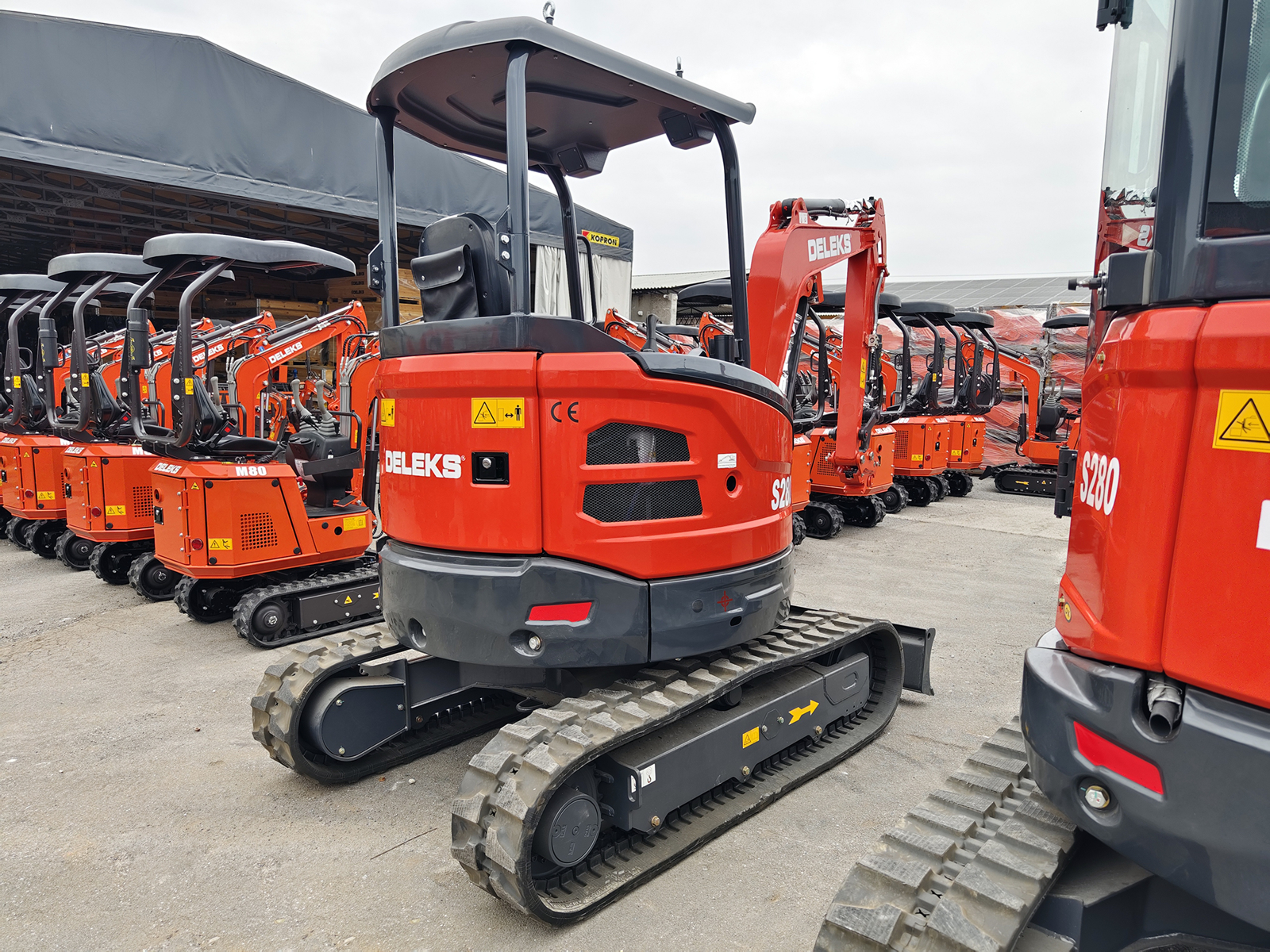

The zero tail swing design allows operation in confined spaces, with optimal weight distribution ensuring stability on any terrain.
The variable-displacement axial piston hydraulic system provides a maximum flow rate of 87 L/min for smooth, synchronized and precise movements.
Two axial piston hydraulic drive motors with 2×3 track rollers provide travel speeds of 2 / 3.1 km/h and a maximum tractive force of 29 kN.
The machine can overcome slopes of up to 30%, ensuring excellent maneuverability even on demanding ground.
The left pedal allows quick switching between the two operating speeds.

SAFETY AND PRECISION

The S280-KUBOTA is equipped with:

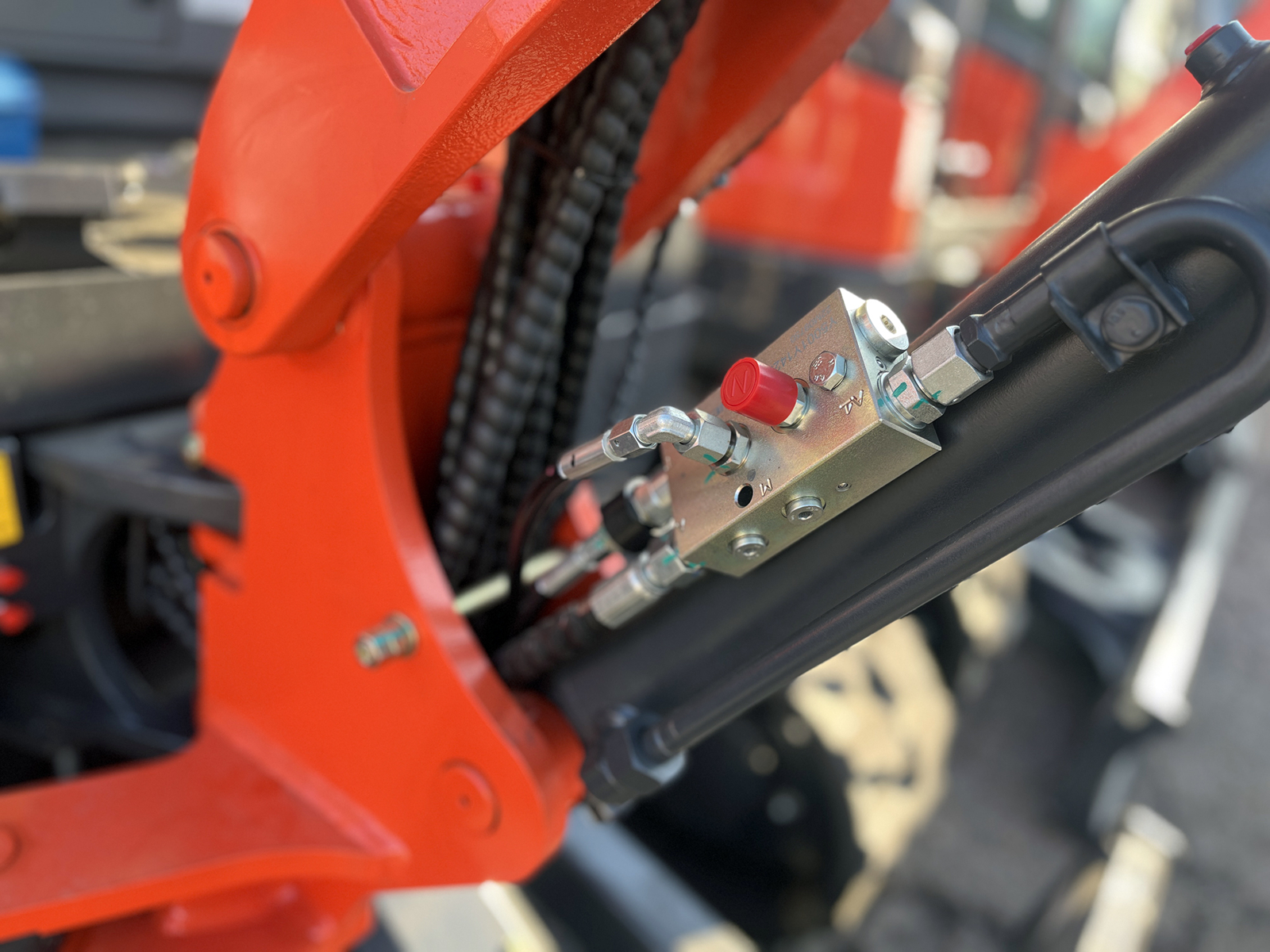

Boom cylinder safety valve (ISO 8643)

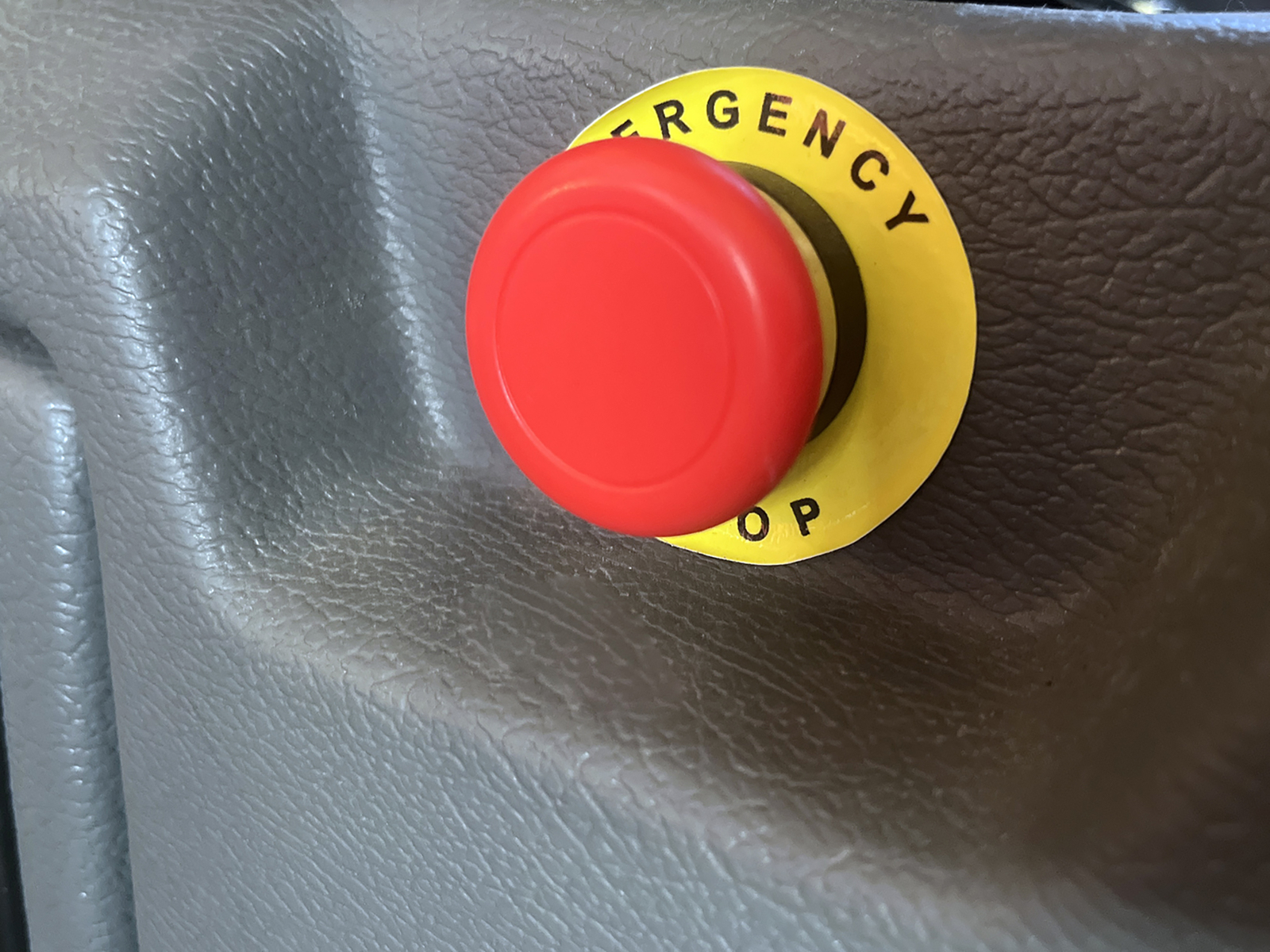

Emergency stop button near the seat

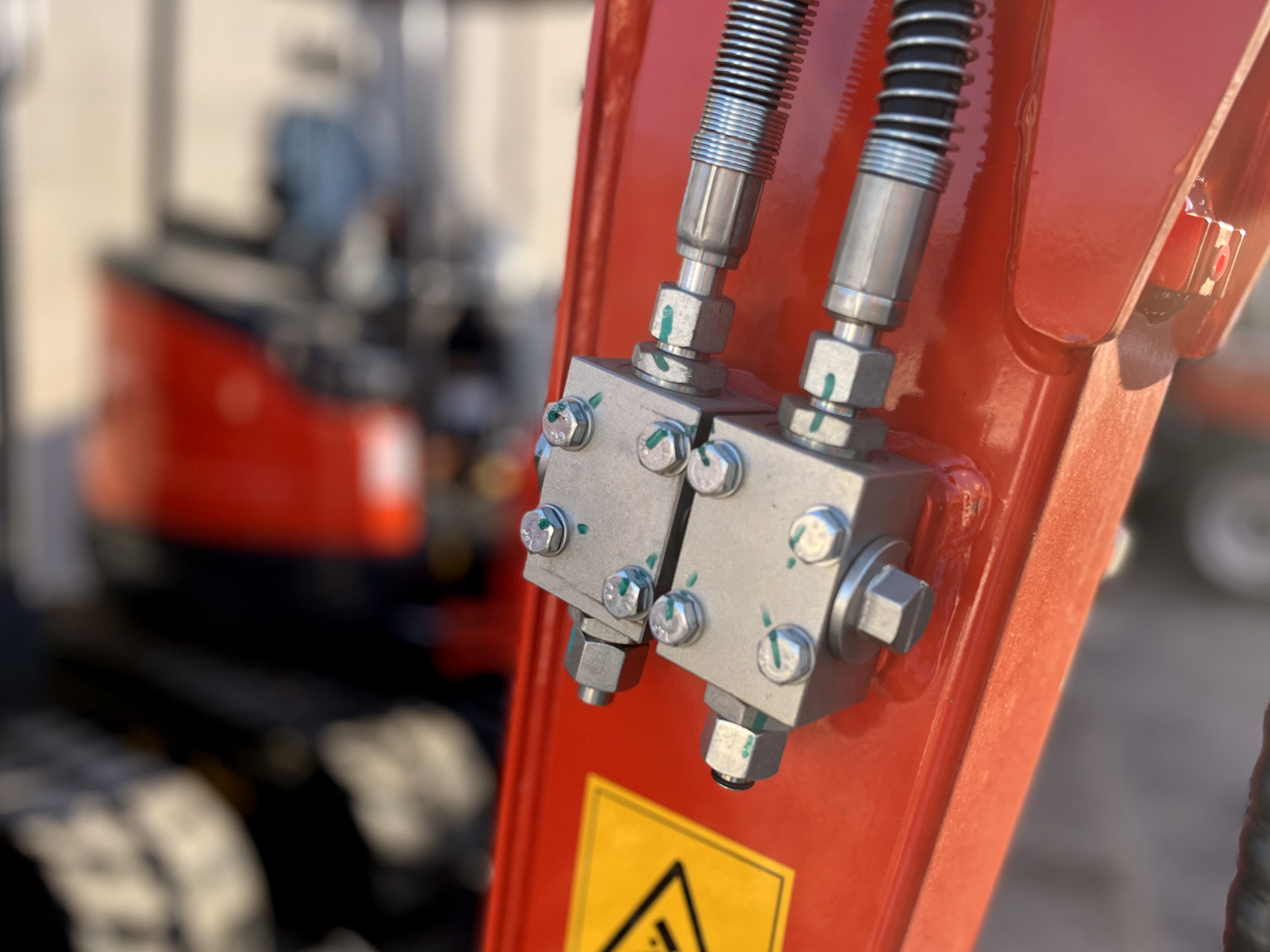

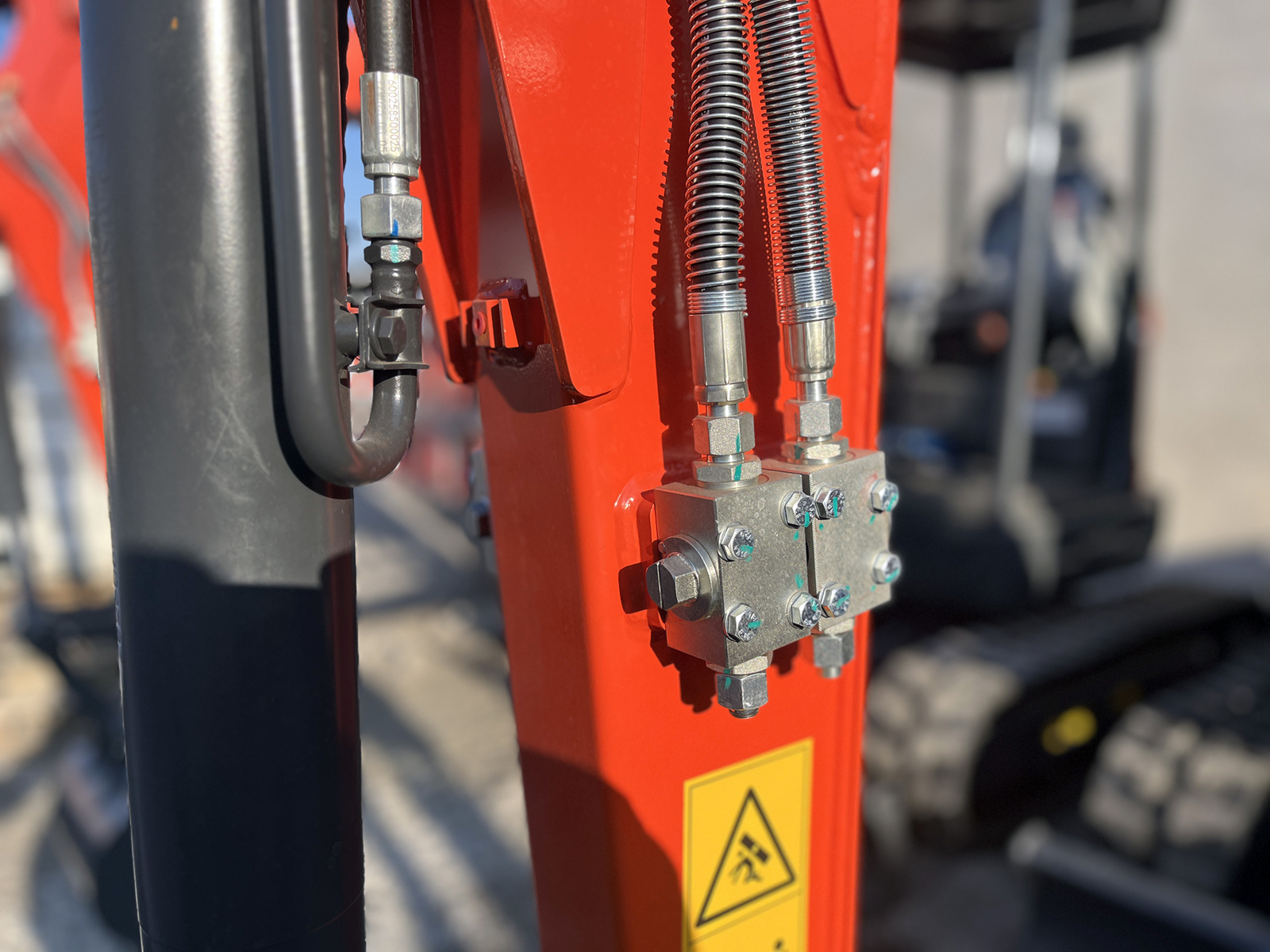

Two auxiliary circuits (AUX1 and AUX2)
These systems ensure safety, control and versatility with attachments such as grapples, breakers and augers.

HYDRAULIC SYSTEM AND MOVEMENT

Fully hydraulic pilot controls provide maneuverability and smooth operation.

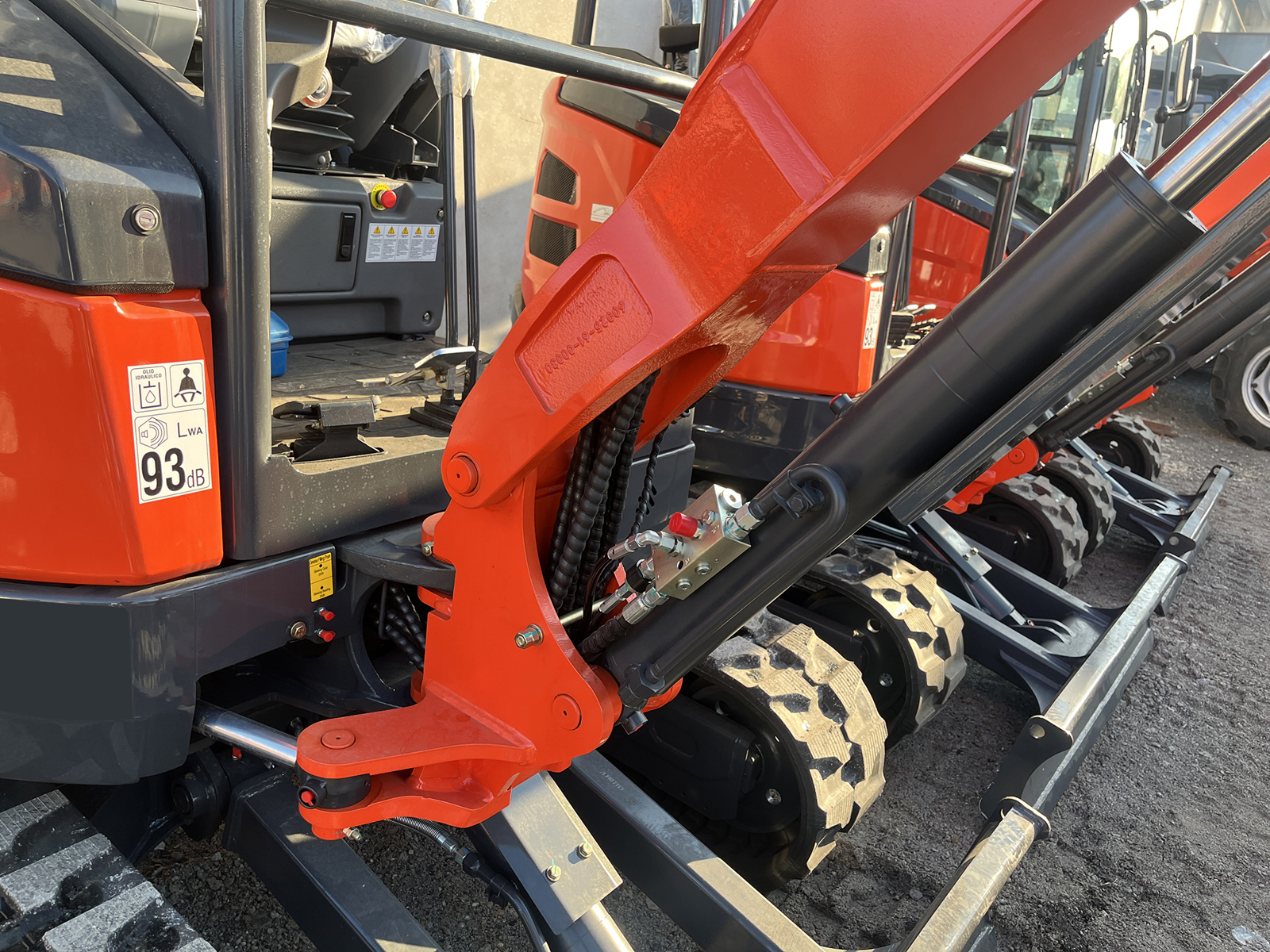

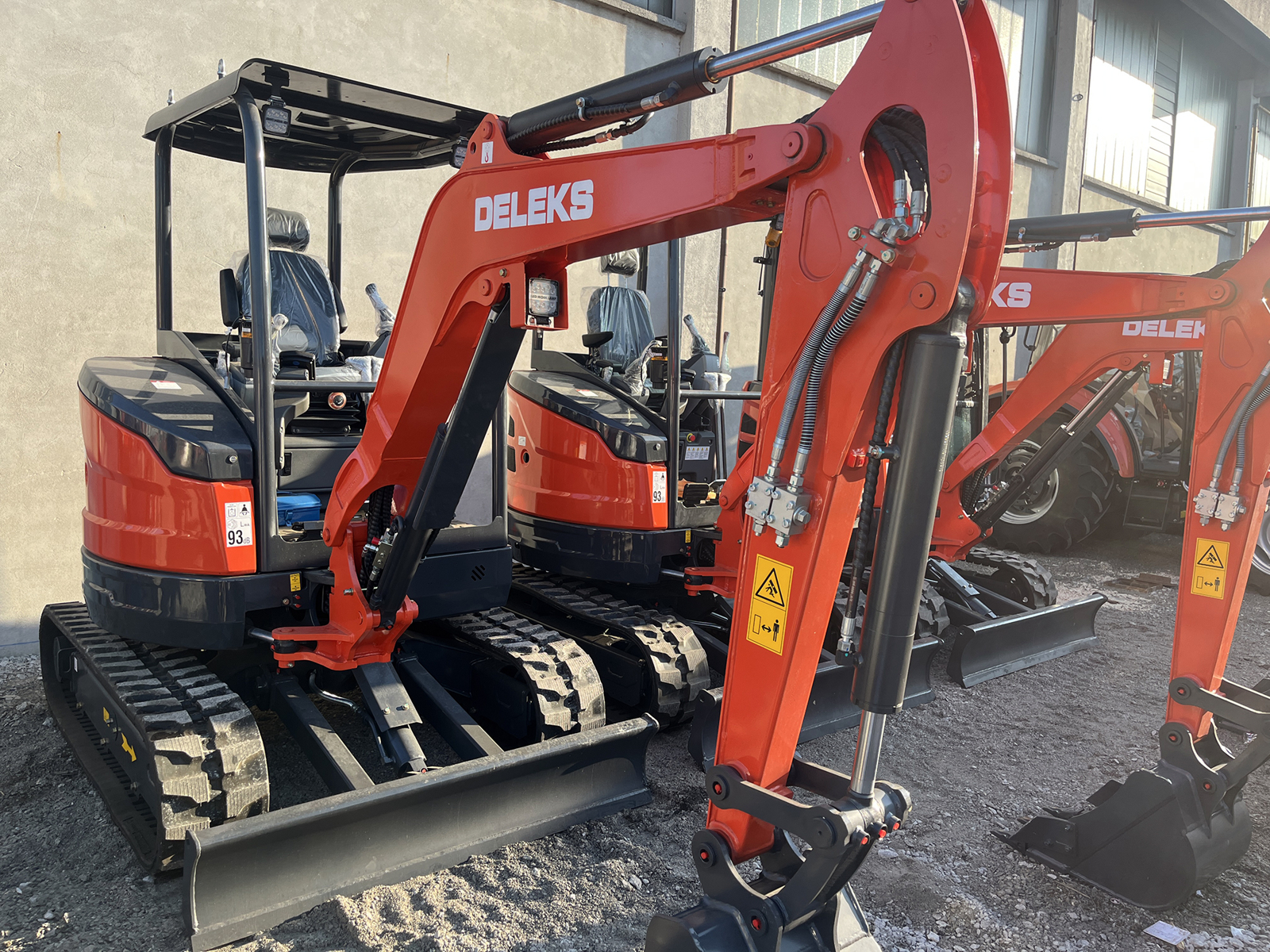

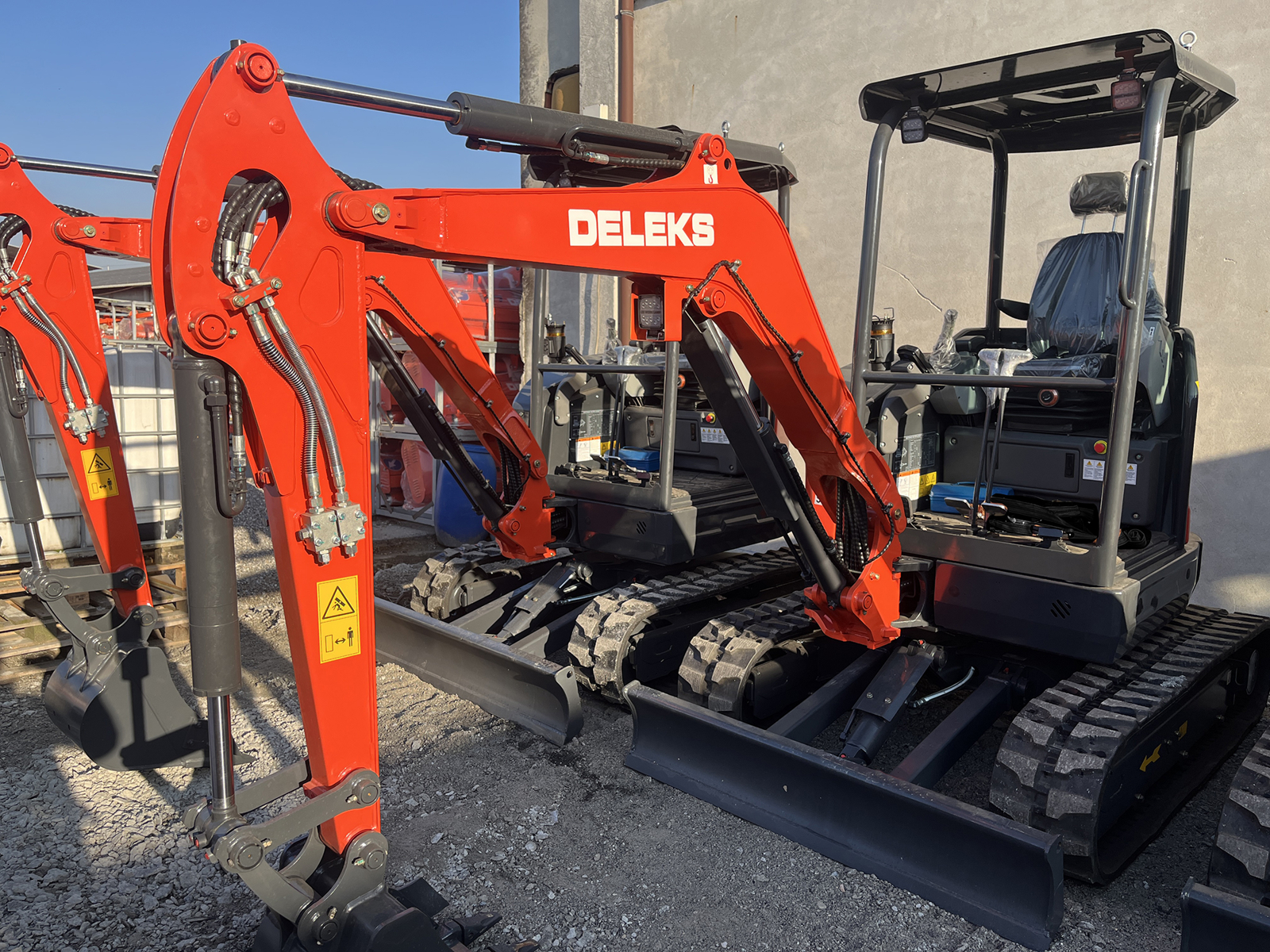

The offset boom enables precise digging close to walls or obstacles.
Turret rotation of 0–10 rpm allows constant and progressive control in all working conditions.

STABILITY AND GROUND PRESSURE

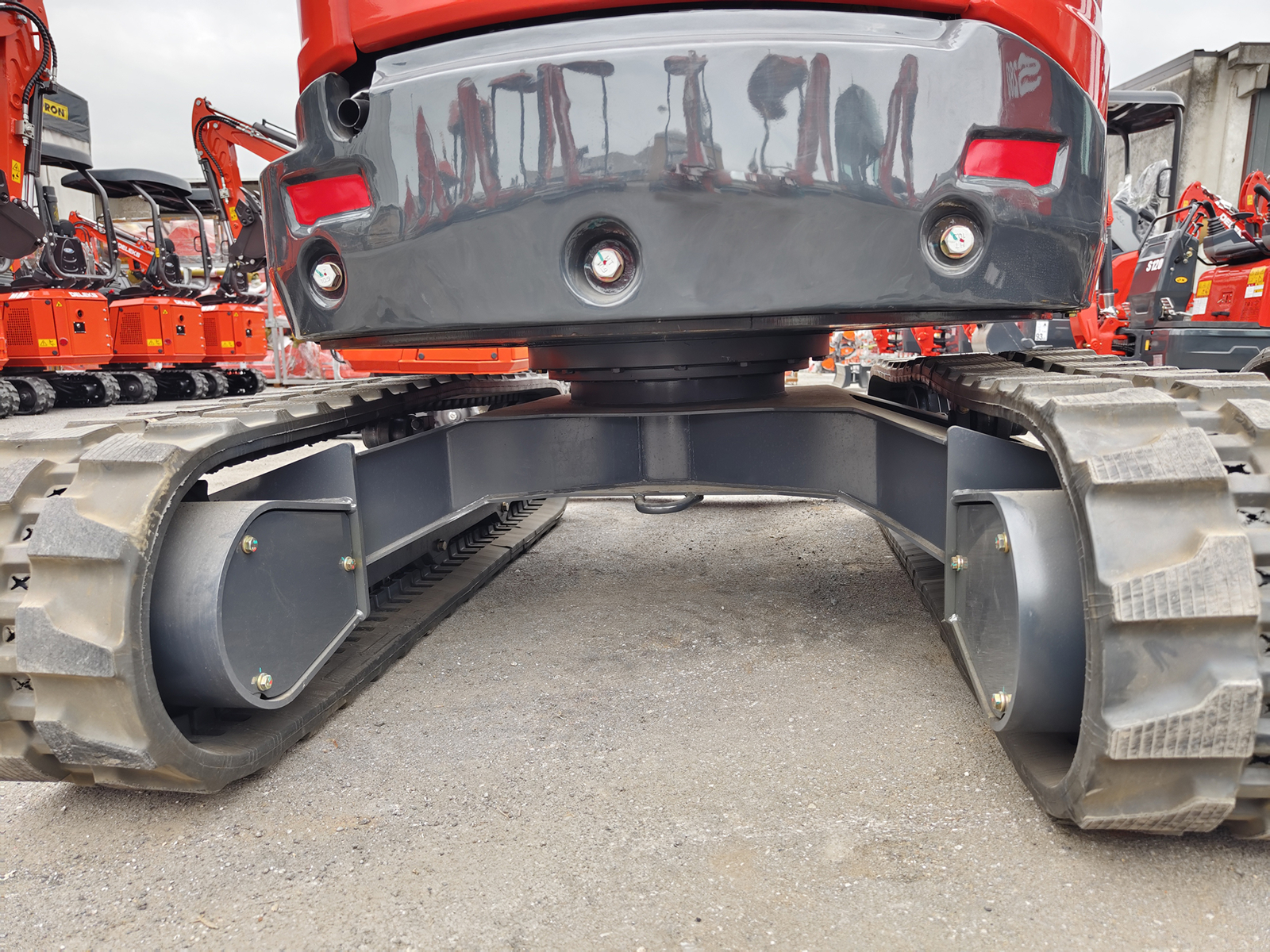

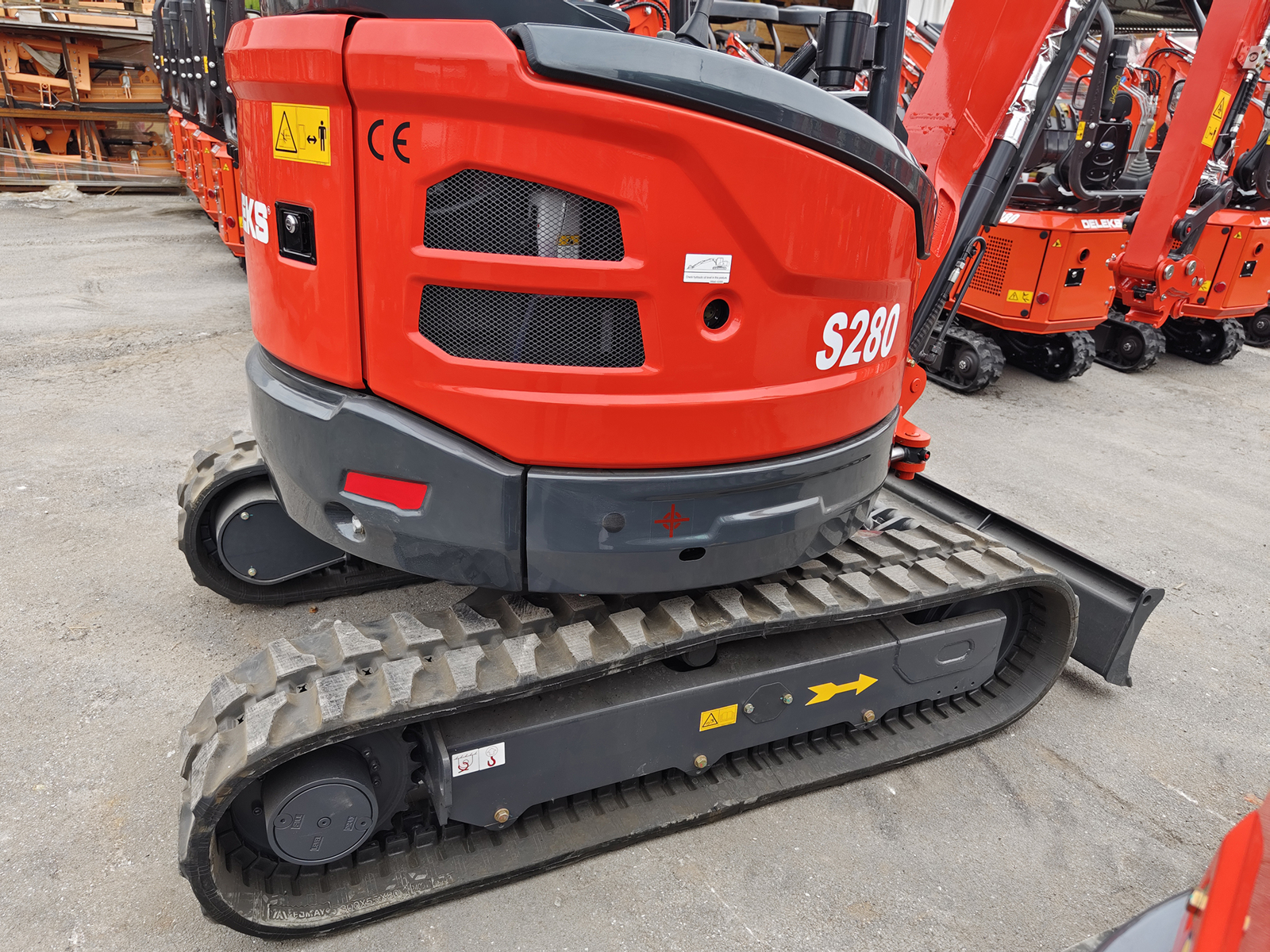

With 300 mm tracks, ground pressure is only 26.3 kPa, ideal for lawns, courtyards and delicate surfaces.

The machine can be equipped with a wide range of attachments for digging, lifting, loading and mulching.

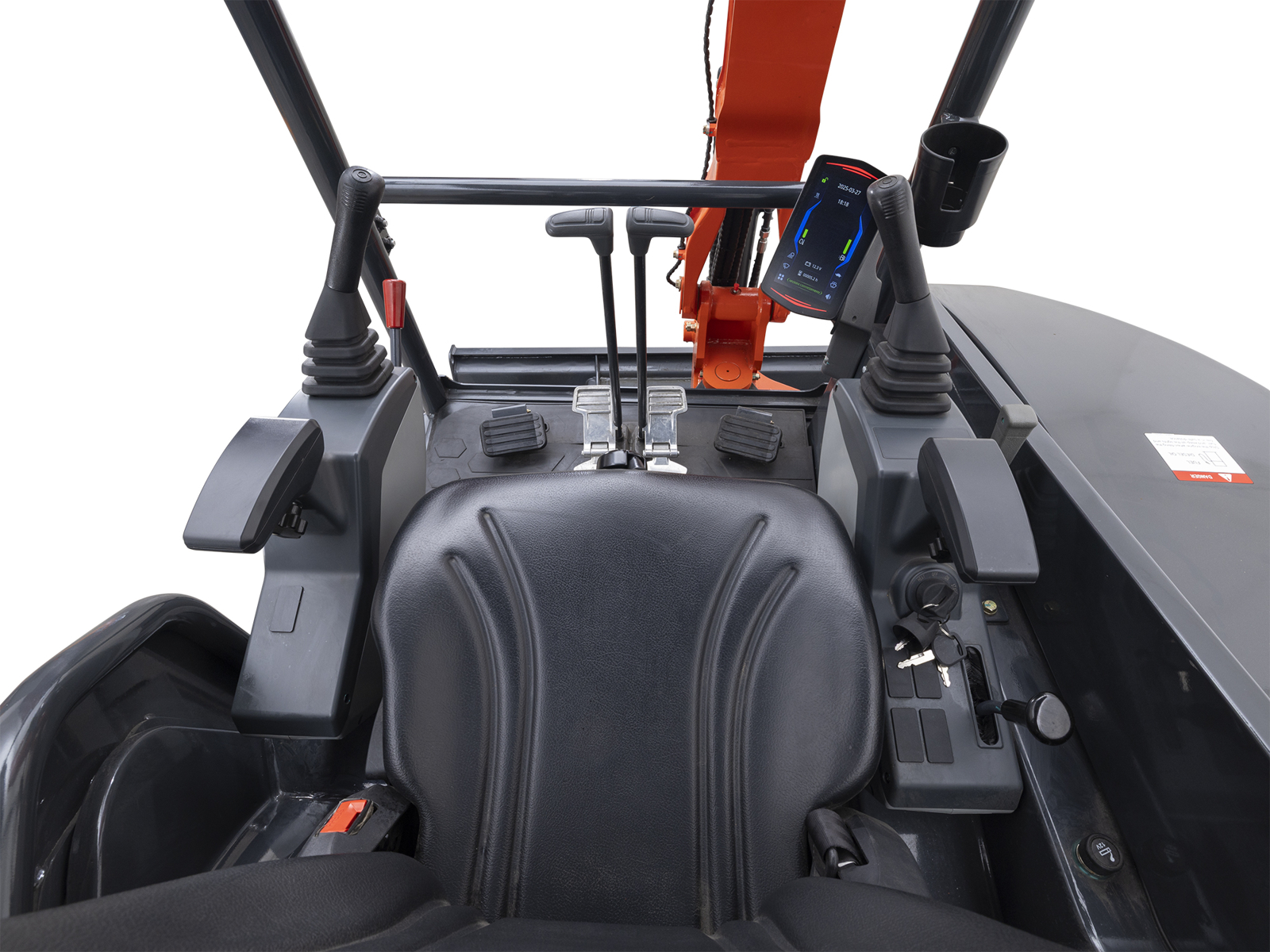

OPERATOR COMFORT

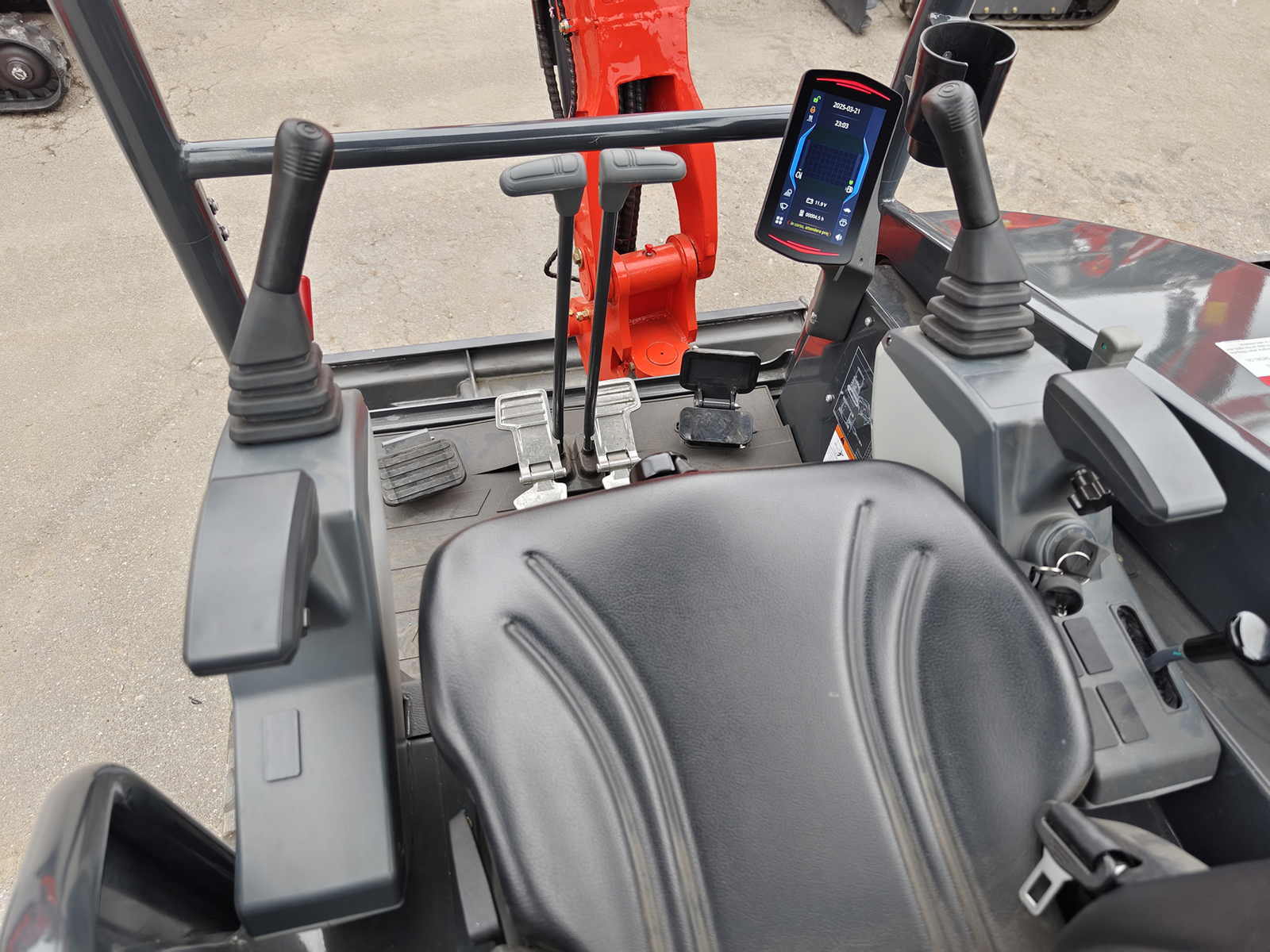

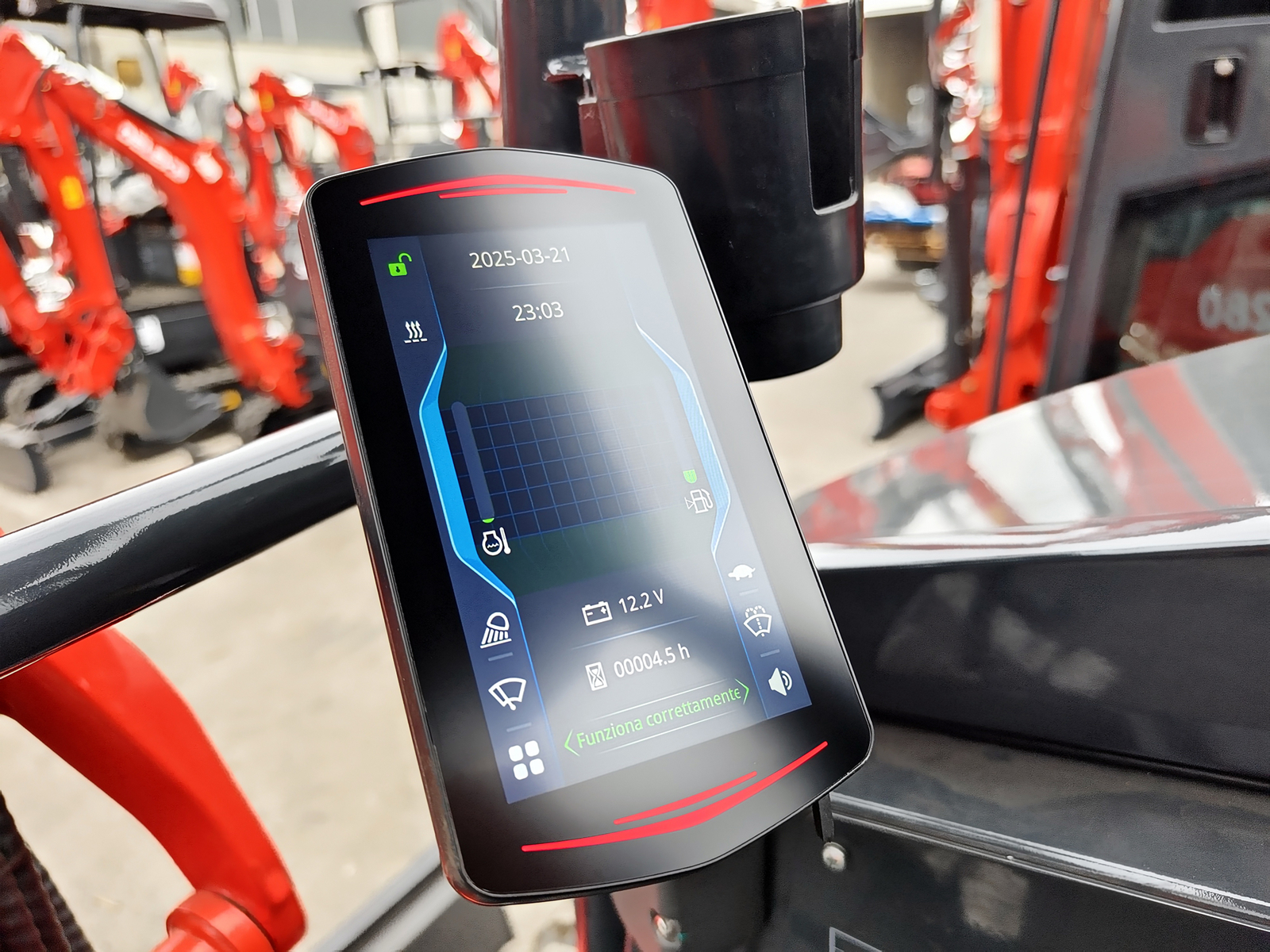

The Italian-language LCD display is clear and intuitive, allowing real-time management of operating parameters.

The suspended seat ensures a comfortable posture and natural control.

SERVICE AND SPARE PARTS

Original DELEKS® spare parts ensure maximum efficiency and long-term durability.

The DELEKS service network coordinates all interventions directly, with workshop service or on-site assistance available for more complex maintenance.

DOCUMENTATION SUPPLIED

EC Declaration of Conformity
Operation and maintenance manual
Invoice

For detailed specifications, please refer to the PDF catalogue at the bottom of the page.

SHIPPING NOTES

• Delivery location must be accessible by a 24-ton truck

• The customer must have a forklift for pallet unloading
  Delivery time may exceed the standard schedule. Please contact our sales office before confirming your order.
