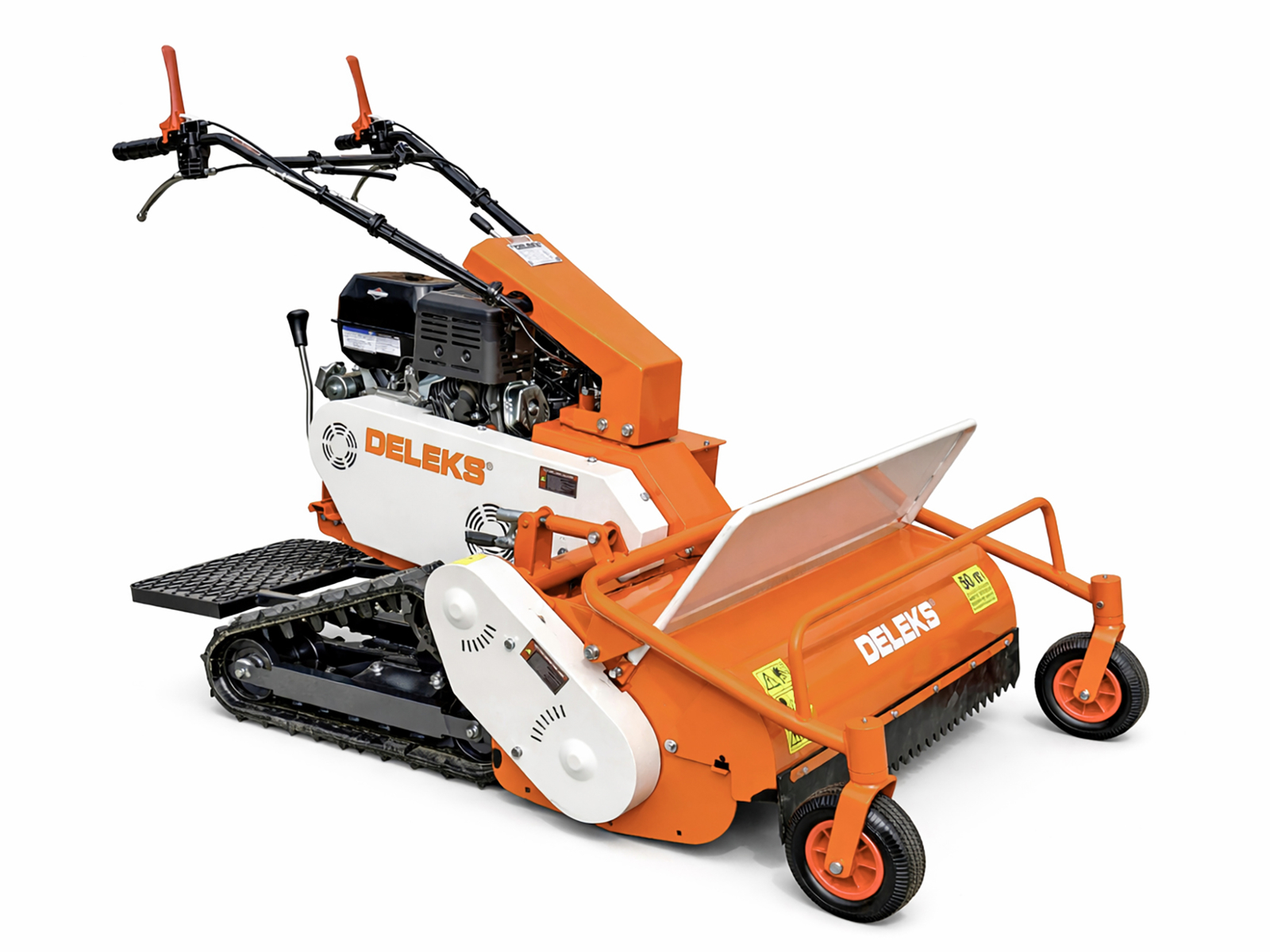

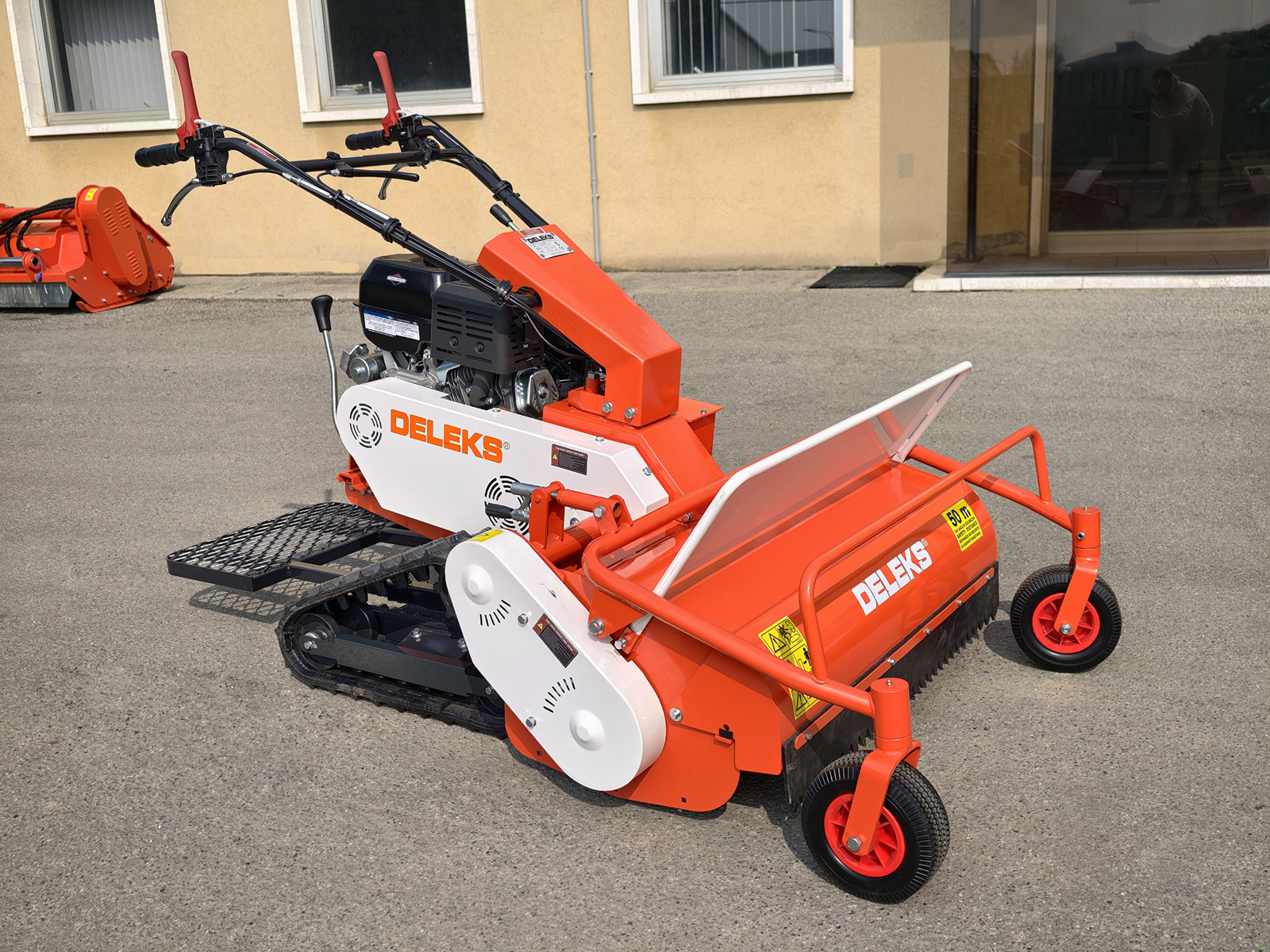

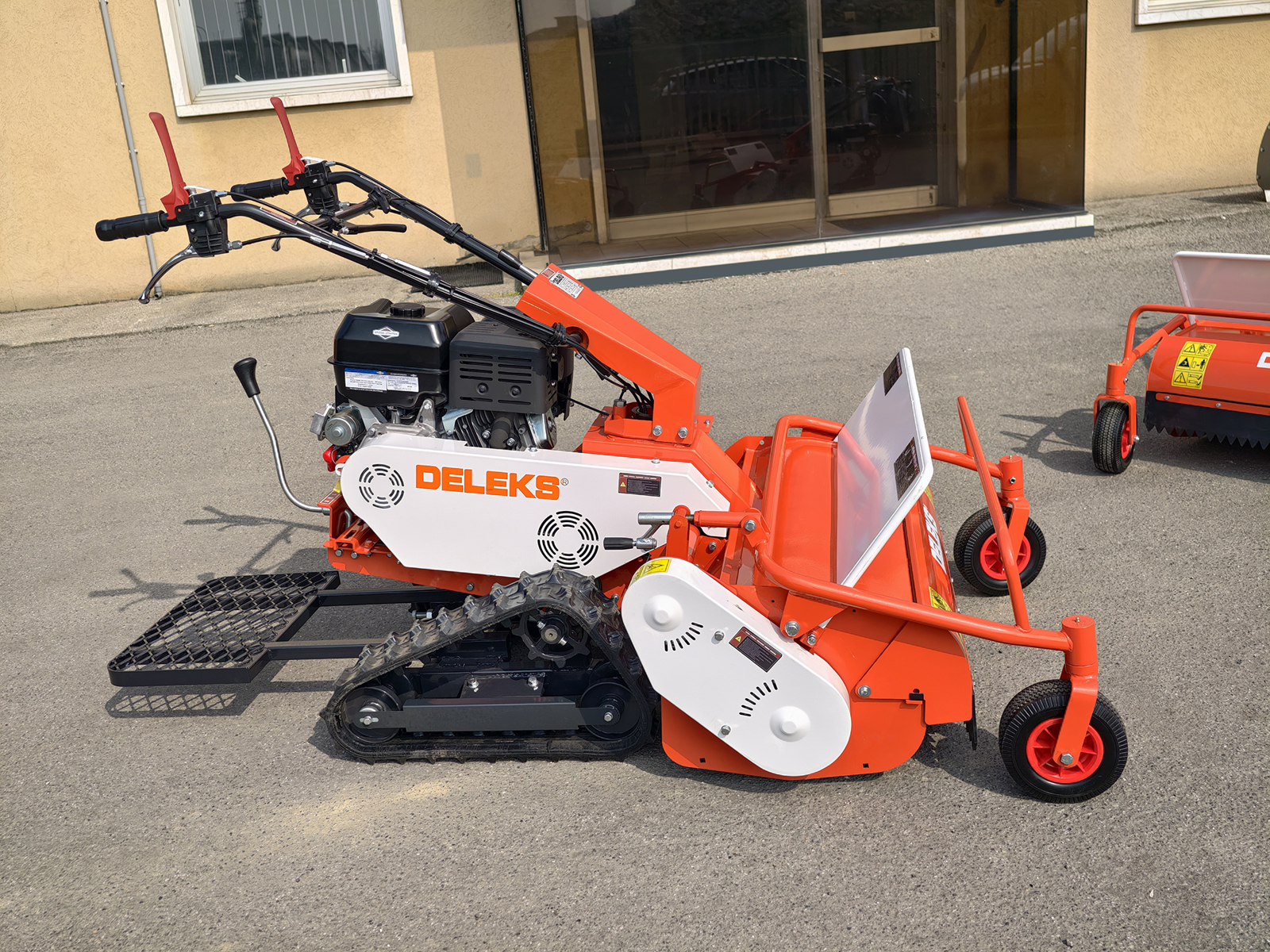

Tracked flail mower 88 cm (34.6 in) SMART-1000-TR, professional self-propelled flail mulcher for slopes up to 30°
DETAILS

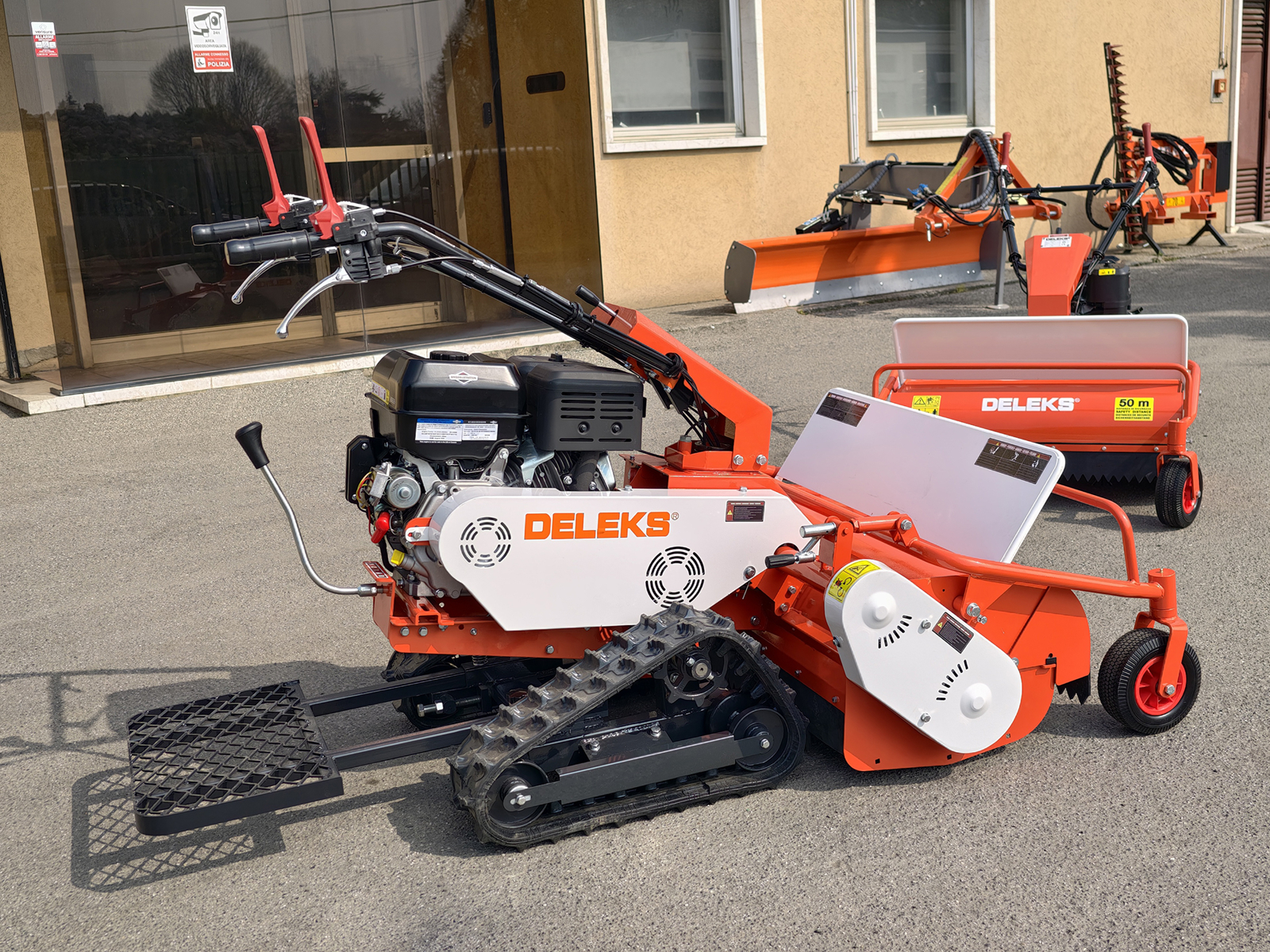

Tracked petrol flail mower with an 88 cm (34.6 in) cut and a 13.5 hp, 420 cc Briggs & Stratton XR2100 petrol engine with electric key start: the DELEKS® SMART-1000-TR is the biggest, most powerful tracked flail mulcher in the SMART range, built for slopes, terraces, banks, hillside vineyards and olive groves and rough ground, up to 30° head-on and 20° across, with long grass, brambles, reeds, vine prunings and branches up to 3 cm (1.2 in) thick. Tracks give grip, stability and a better spread of its 245 kg (540 lb) than wheels; the removable platform lets the operator ride on board when moving between jobs. High-inertia rotor with 66 swinging blades in 22 sets of 3, twin-belt drive, mechanical gearbox with 3 forward gears and reverse, cutting height from 20 to 80 mm (0.8 to 3.1 in) set with a crank handle, battery isolator switch, adjustable handlebars and two swivelling front wheels with locks. TÜV-certified, it arrives assembled and tested in a wooden crate, with a 2-year warranty and free delivery within the EU.
Professional tracked flail mower for slopes up to 30°

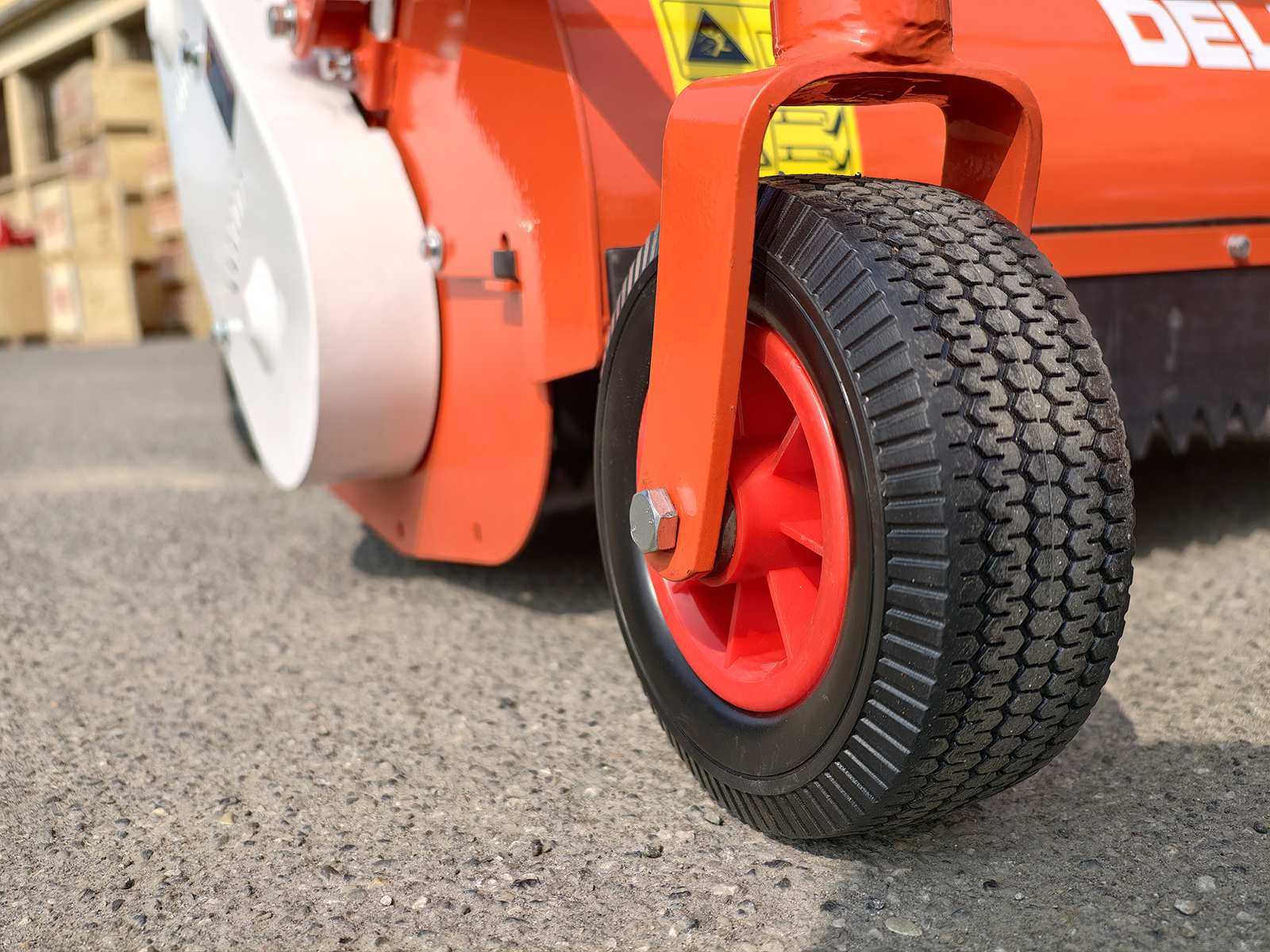

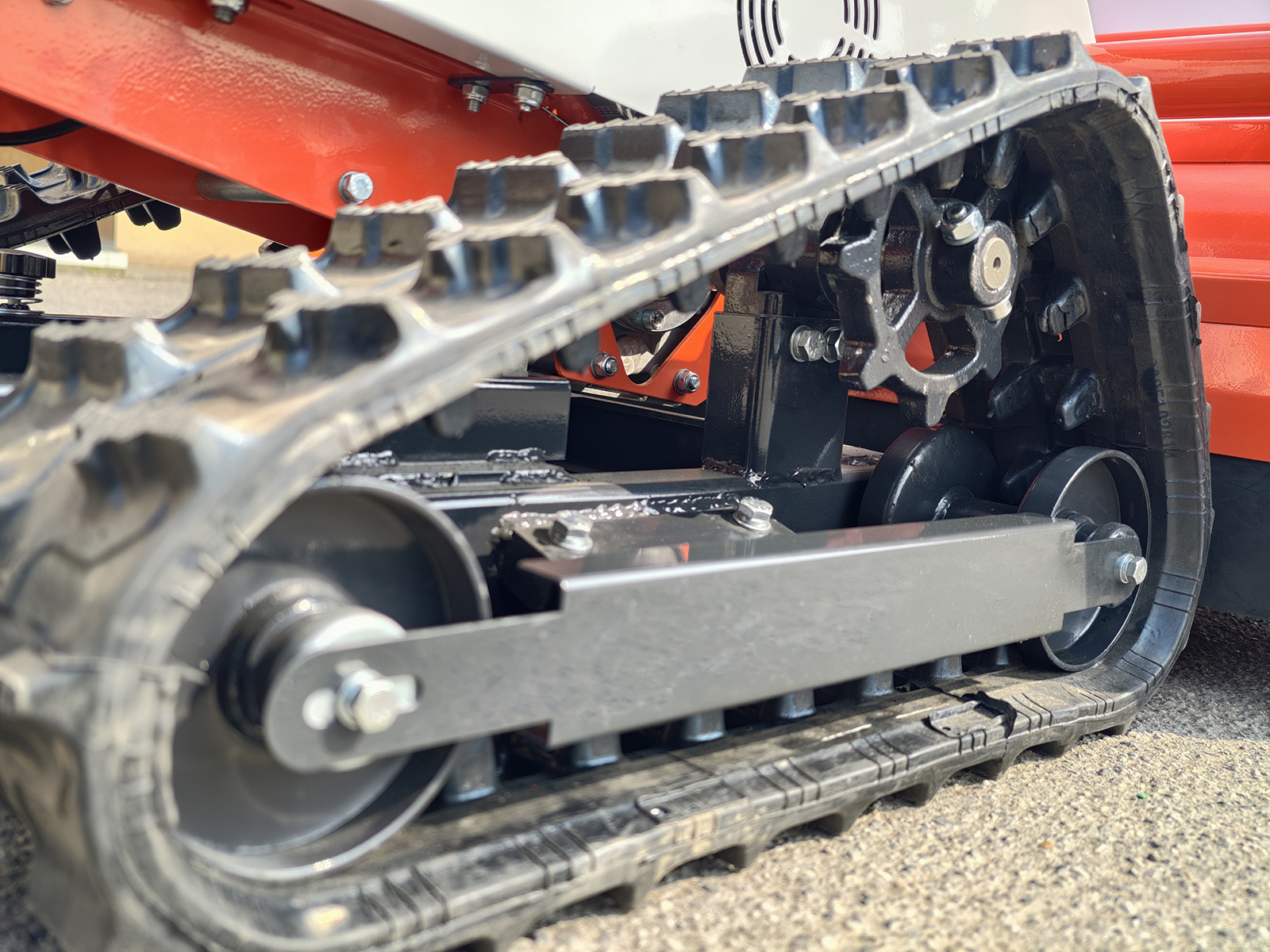

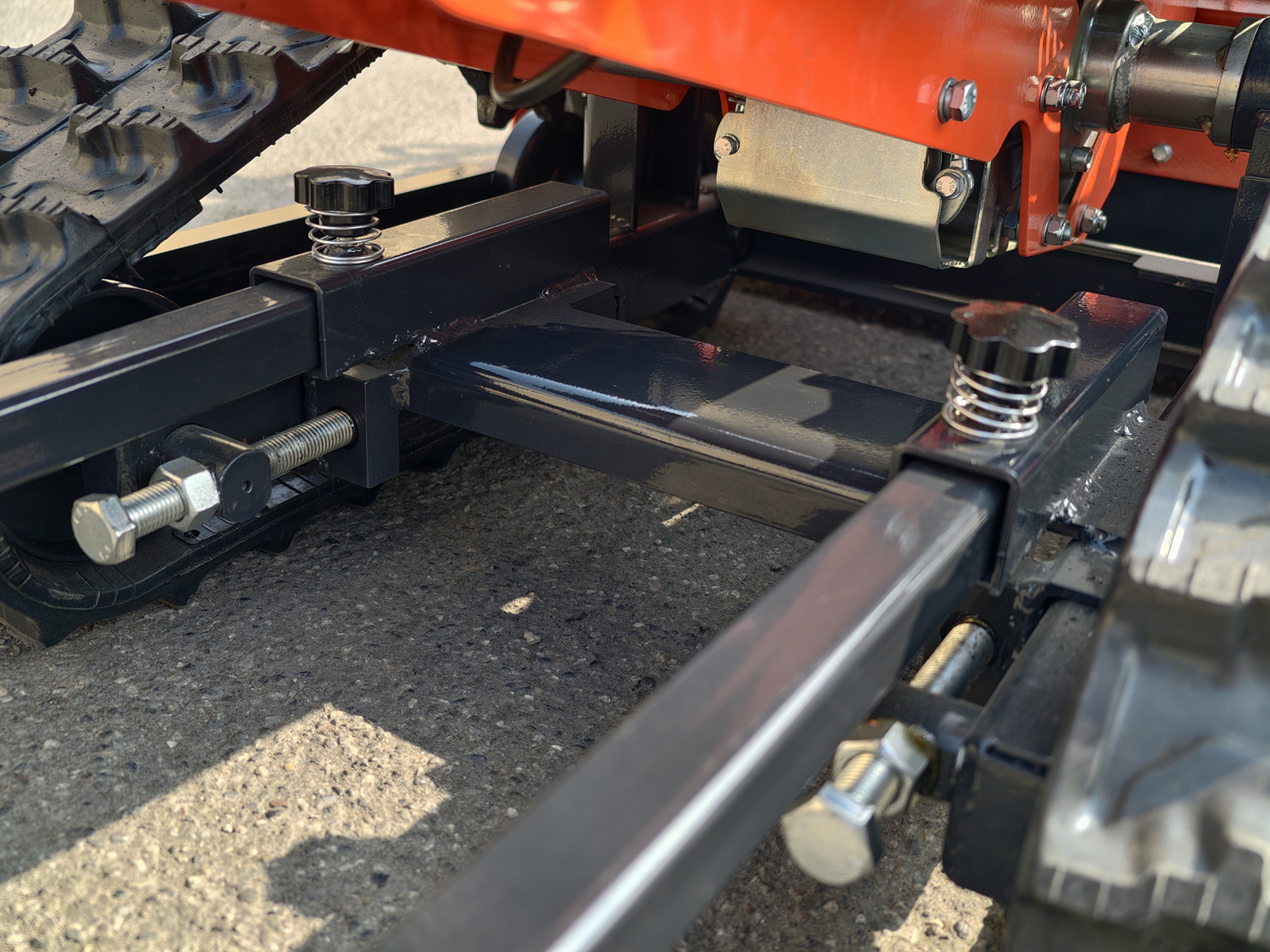

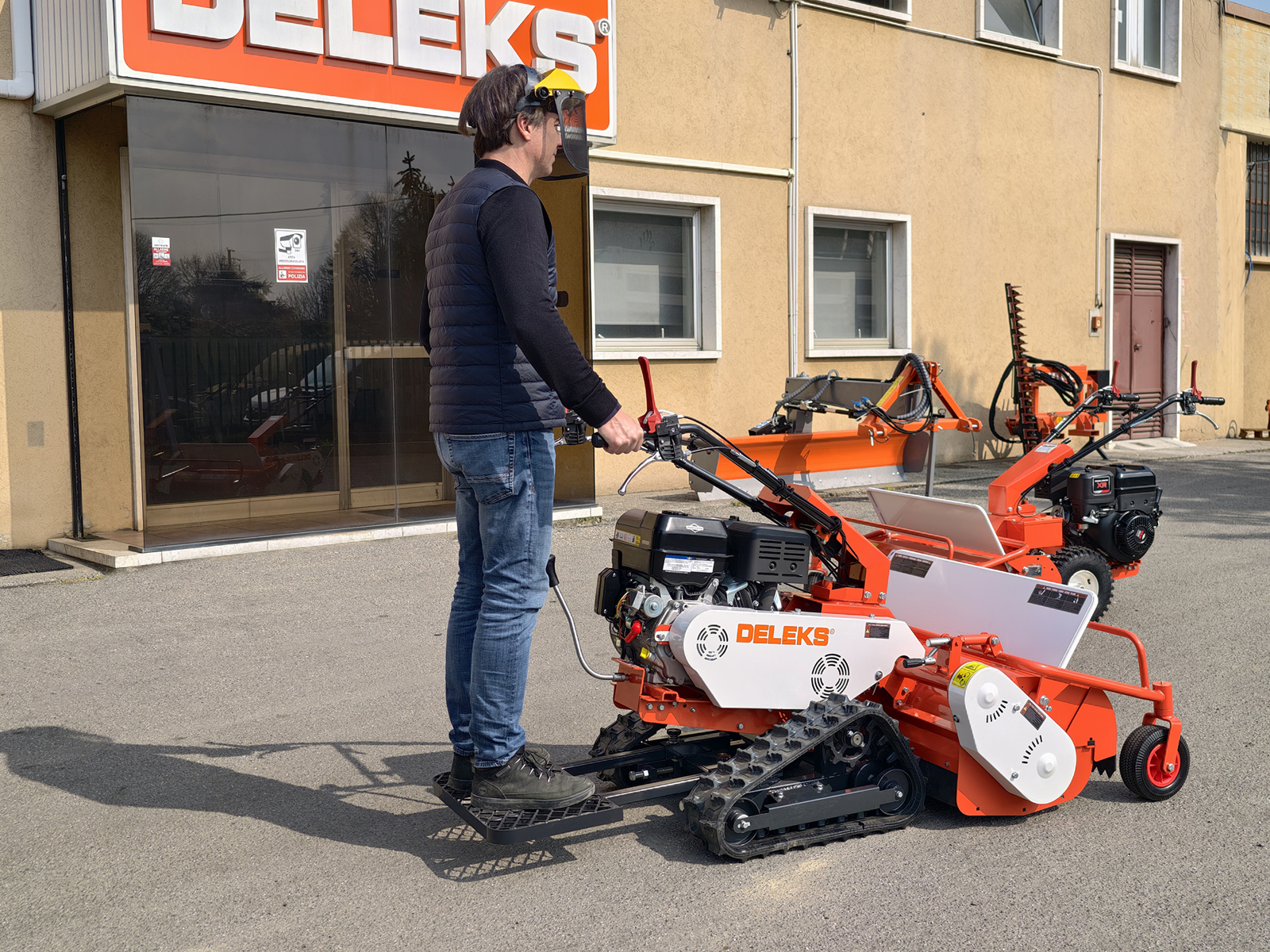

On tracks the SMART-1000-TR works where a wheeled flail mower spins or slews sideways: gradients up to 30° head-on and 20° across, wet ground, uneven going, terraces and the banks of dykes and ditches. Its 245 kg (540 lb) is spread over the footprint of the tracks and the low centre of gravity keeps the machine steady even across a slope. The two swivelling front wheels with locks help with manoeuvring and turning round. You drive it from the handlebars, on foot or riding on the operator platform, which is for moving from one area to the next and comes off when you don't need it or for transport.

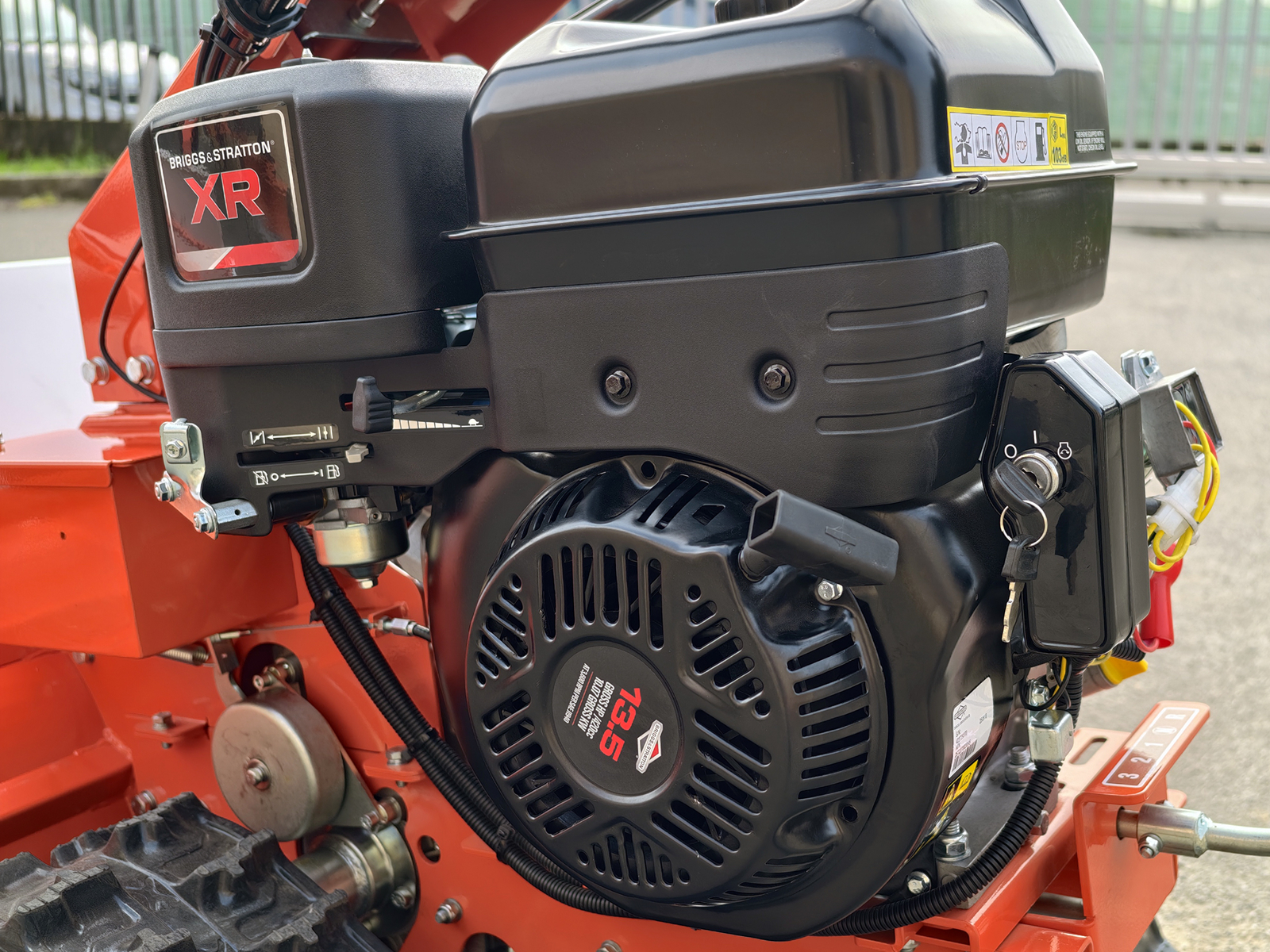

13.5 hp Briggs & Stratton engine and twin-belt drive

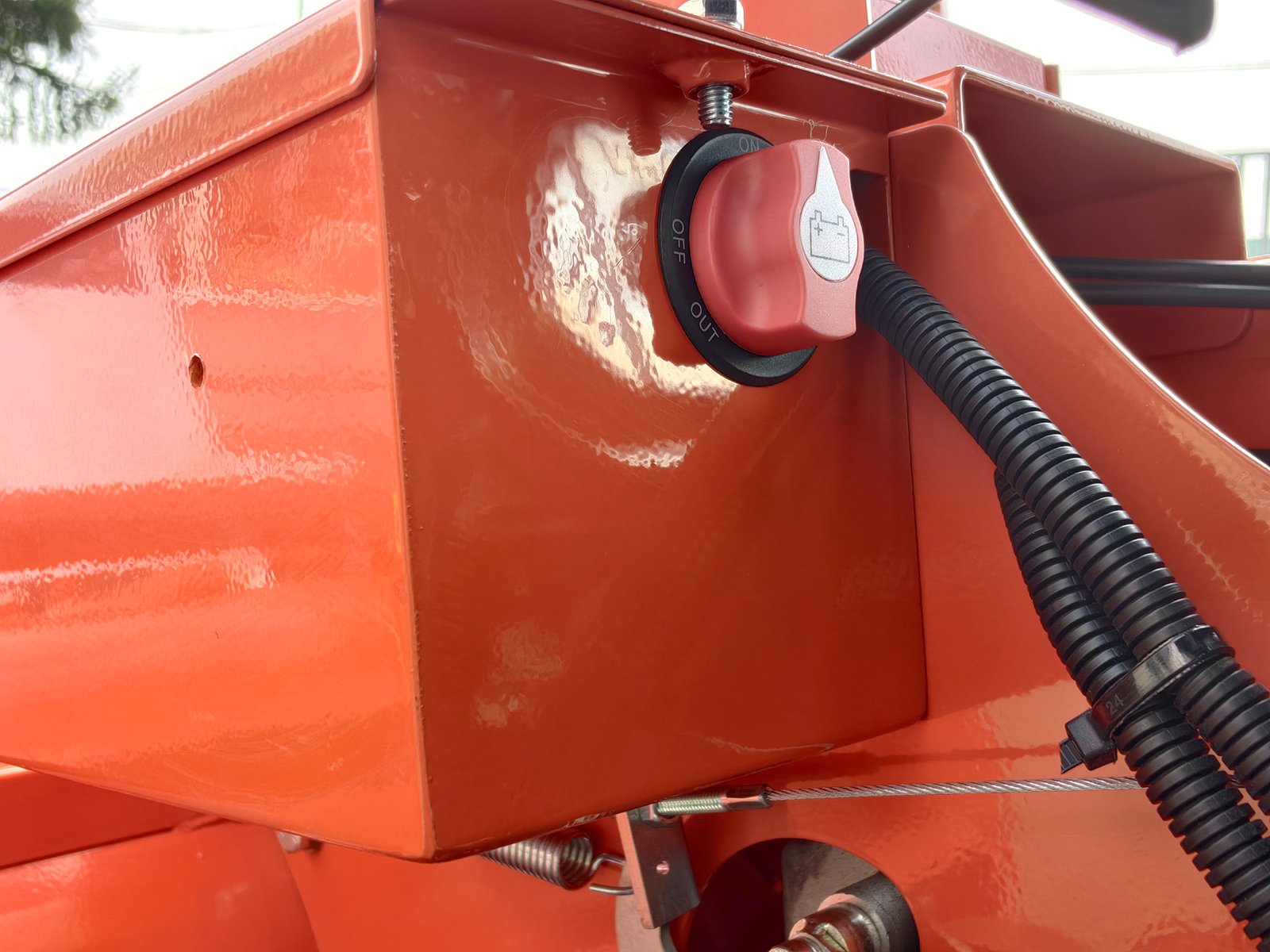

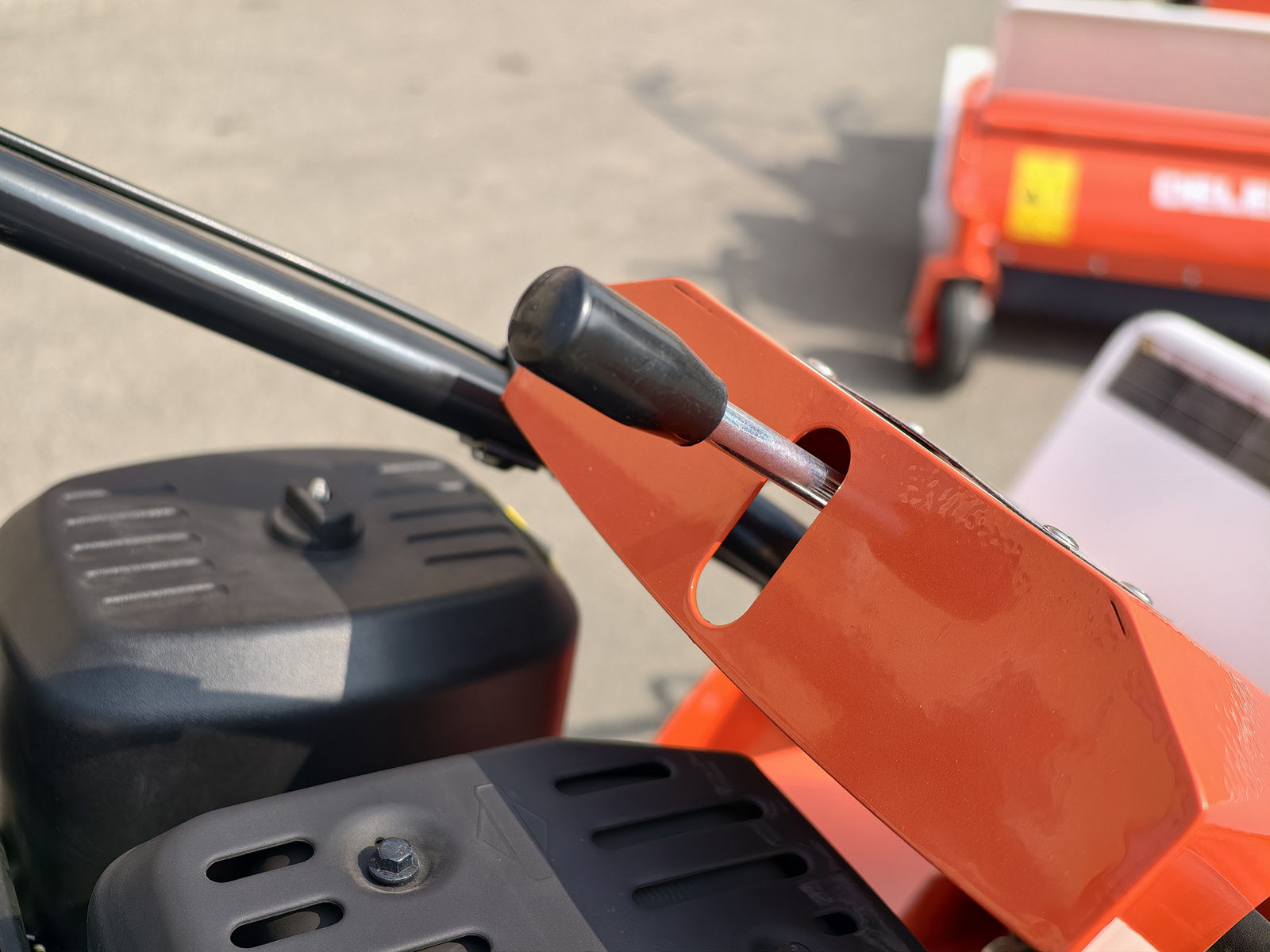

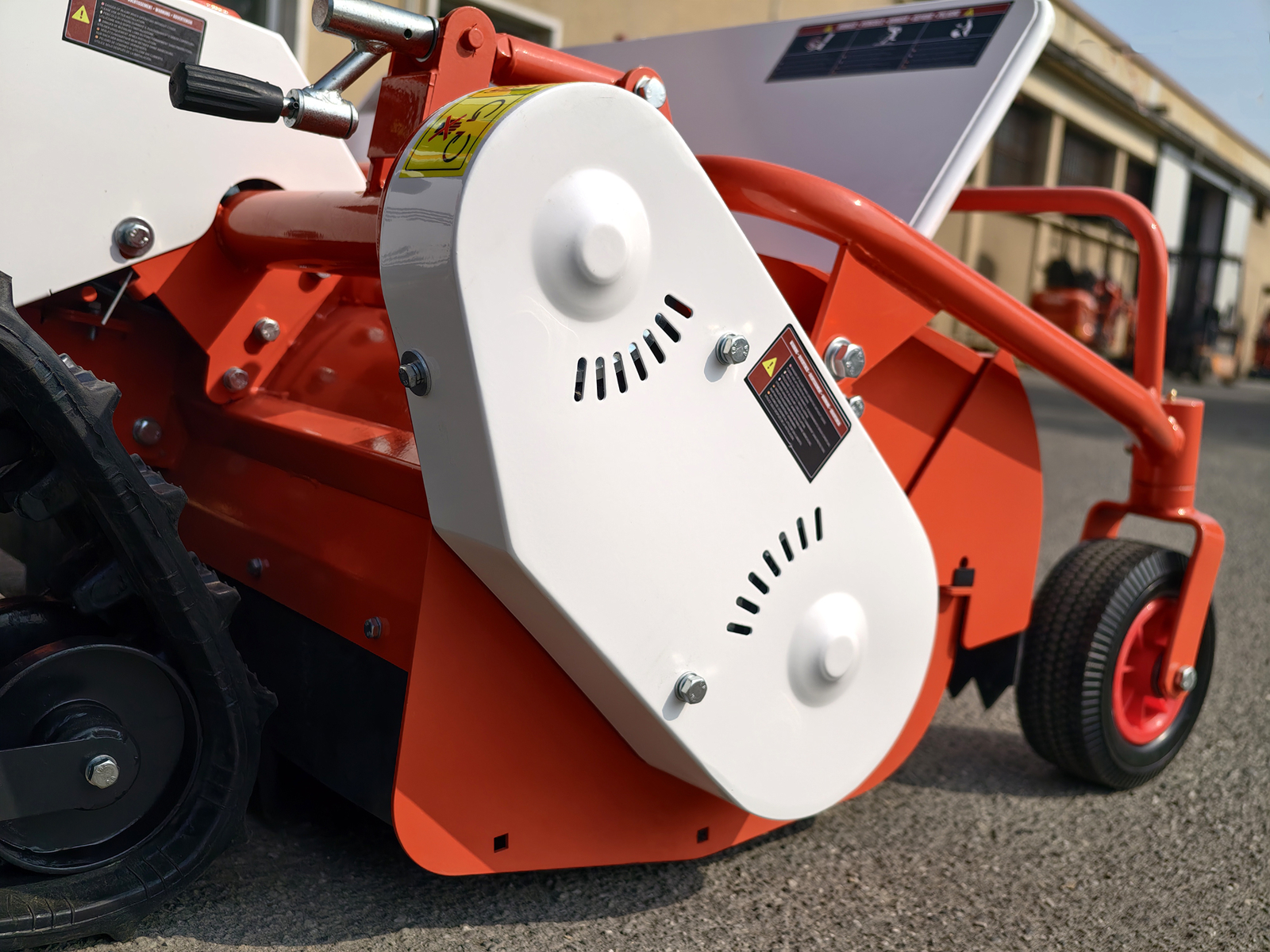

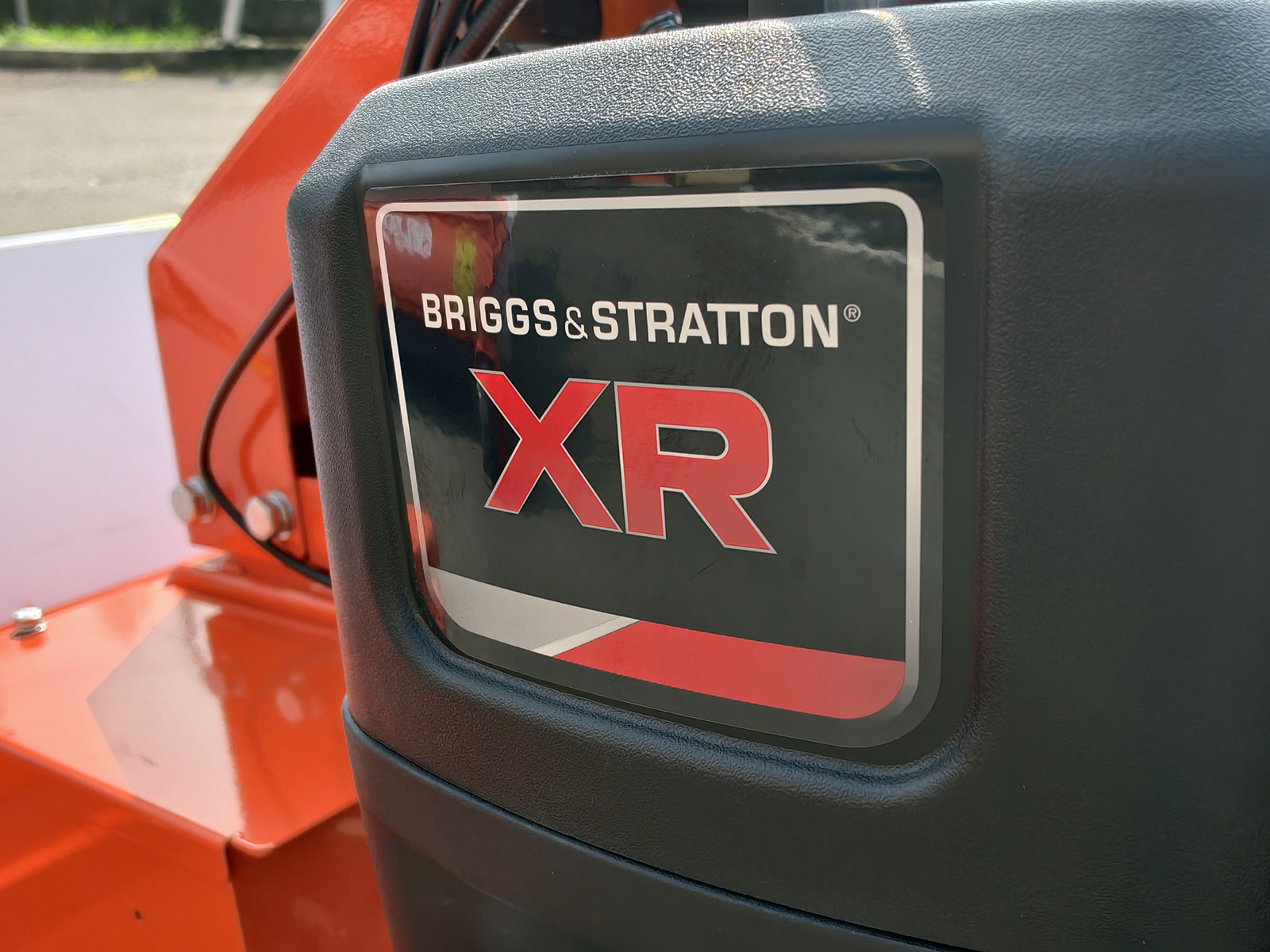

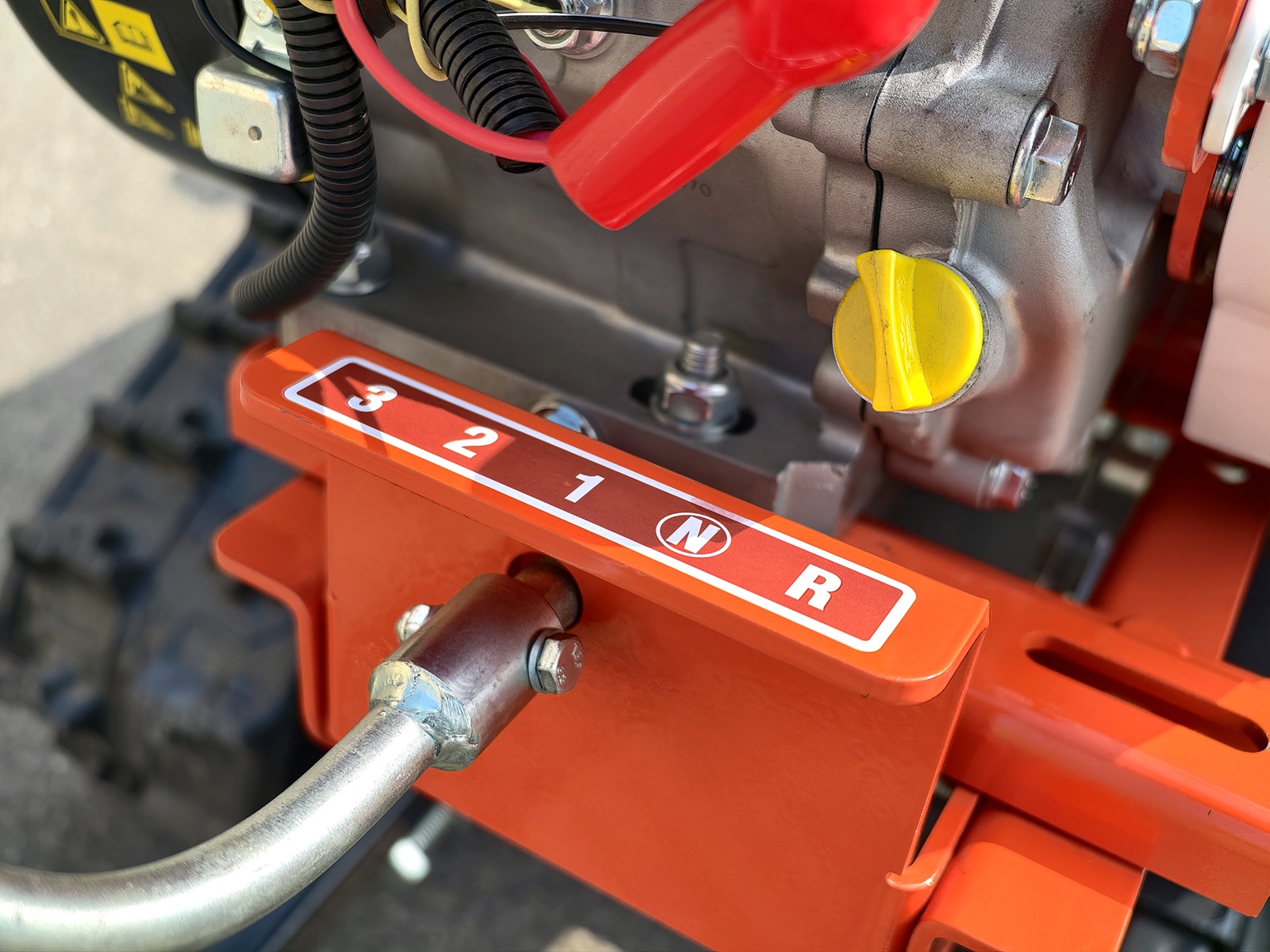

The four-stroke Briggs & Stratton XR2100 petrol engine, 420 cc and 13.5 hp, has electric key start with a recoil (pull) cord as back-up; the built-in battery isolator switch makes the machine safe for storage, transport and servicing. Mechanical gearbox with 3 forward gears and one reverse, so you can match your pace to the gradient and the growth. The professional twin-belt drive transmits power more evenly and lasts longer than a single belt; there are 4 V-belts in all (SB38.5, SB1610 and SB44), available as a spare set.

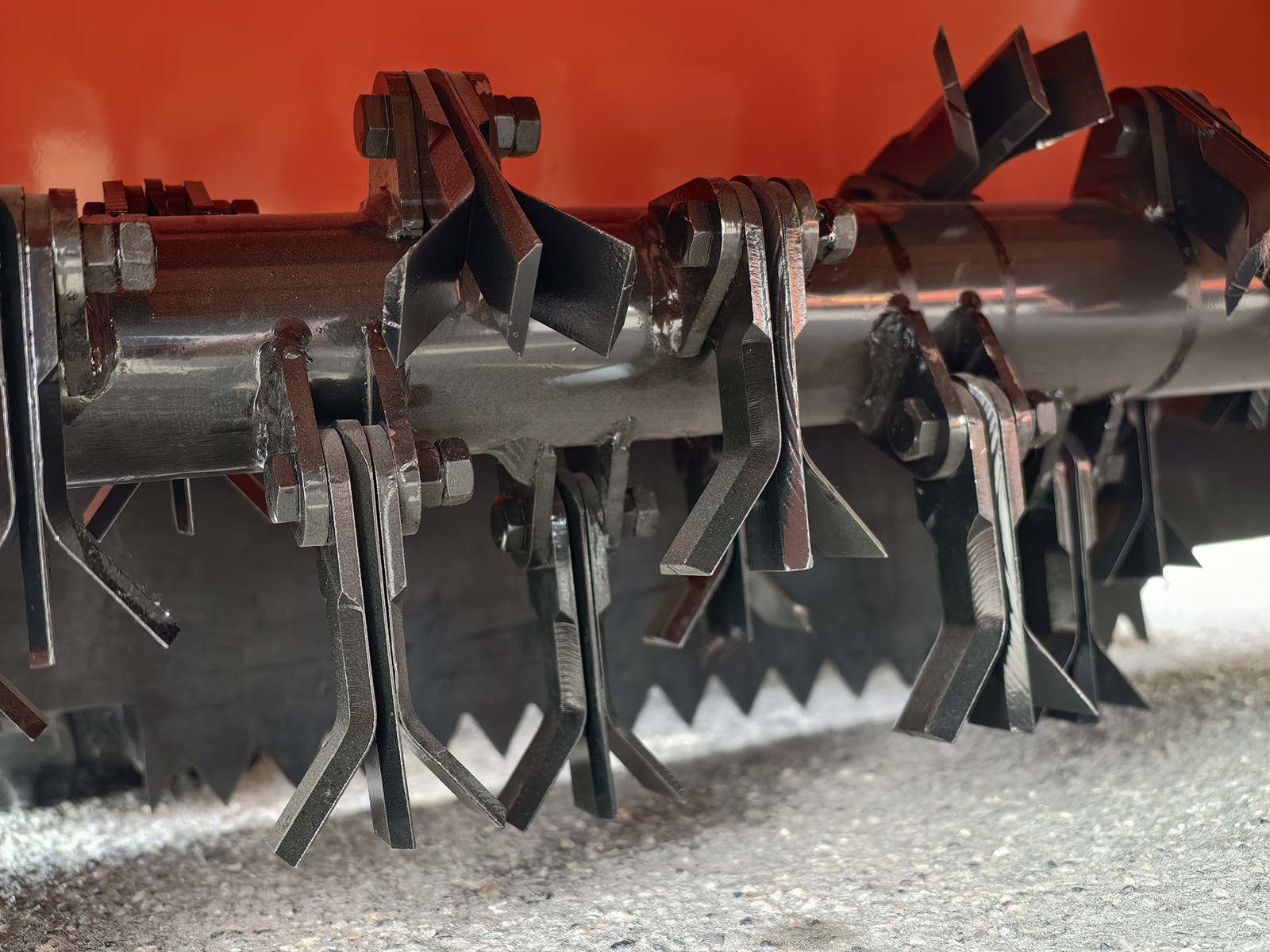

Rotor with 66 swinging blades and an 88 cm cut

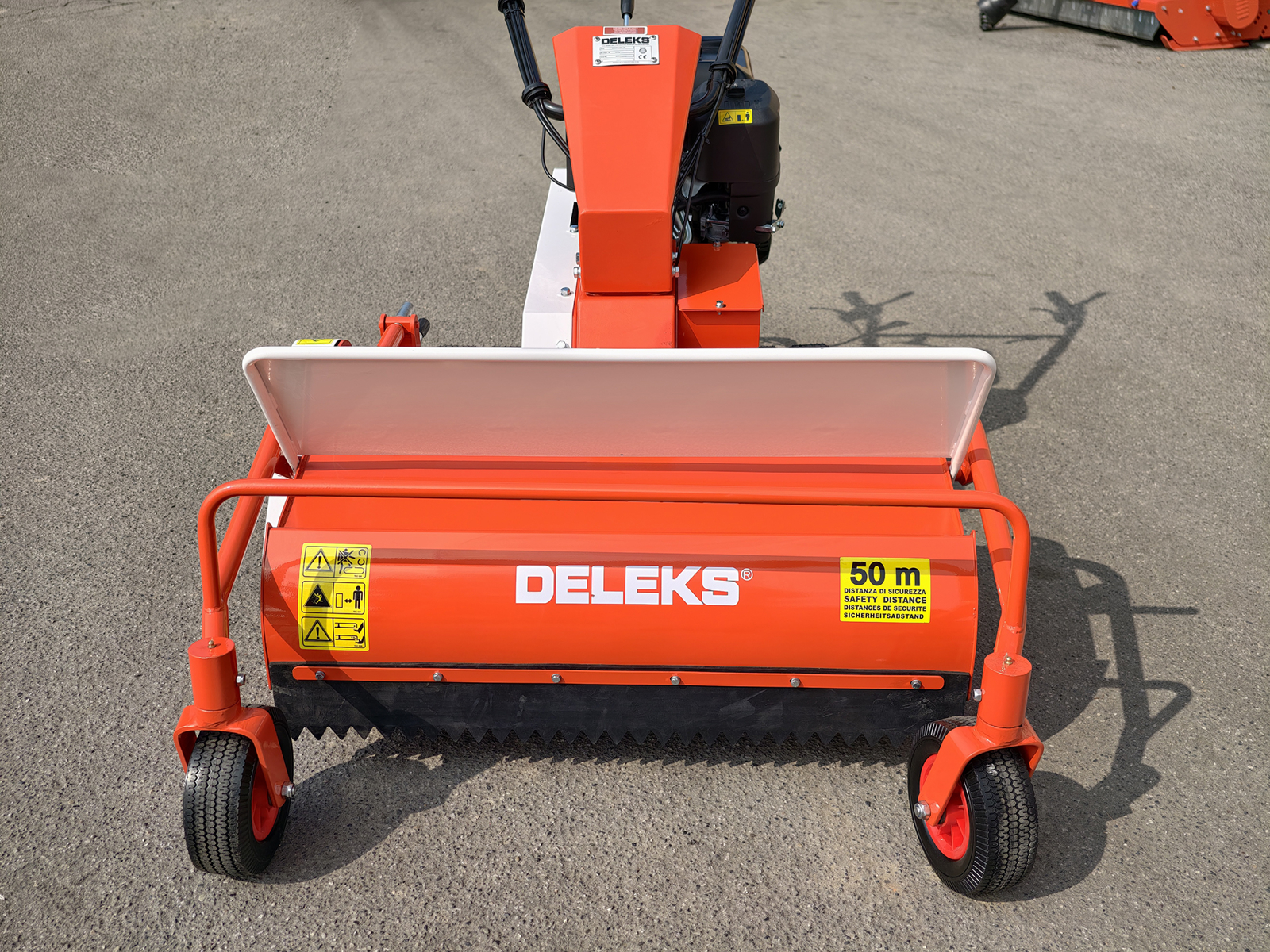

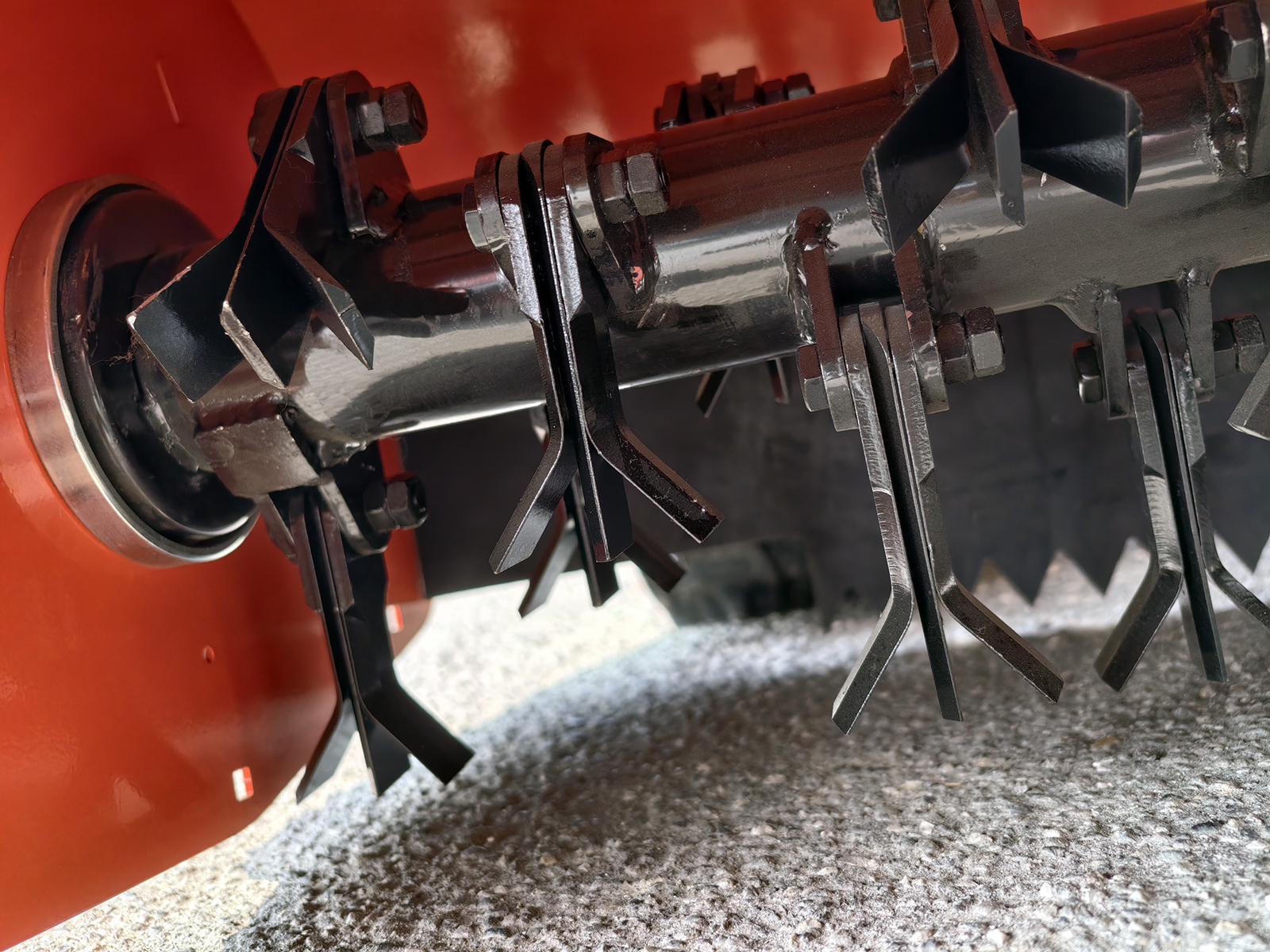

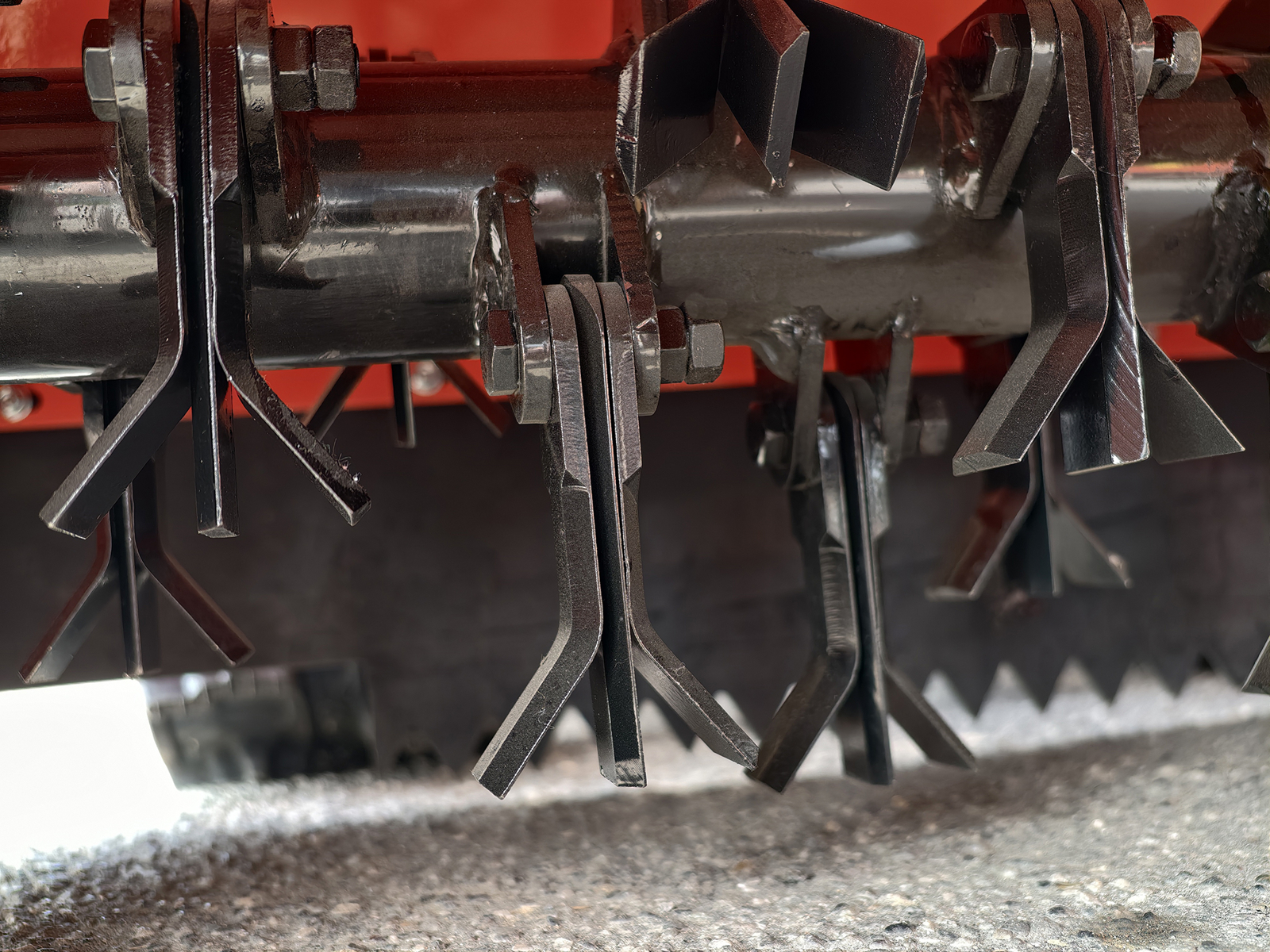

The high-inertia, electronically balanced rotor is fitted with 66 swinging blades in 22 sets of 3, each with two curved blades and a straight centre blade: it cuts more on every turn and spreads the mulched material evenly. It mulches long grass, brambles, reeds, vine prunings and light brash up to 3 cm (1.2 in) thick; when a blade hits a stone or an obstacle it folds back, so the rotor and the drive stay protected. Cutting height is set from 20 to 80 mm (0.8 to 3.1 in) with a crank handle; the handlebars adjust for height and sideways, so you can work along rows, fences and edges without walking in the cut.

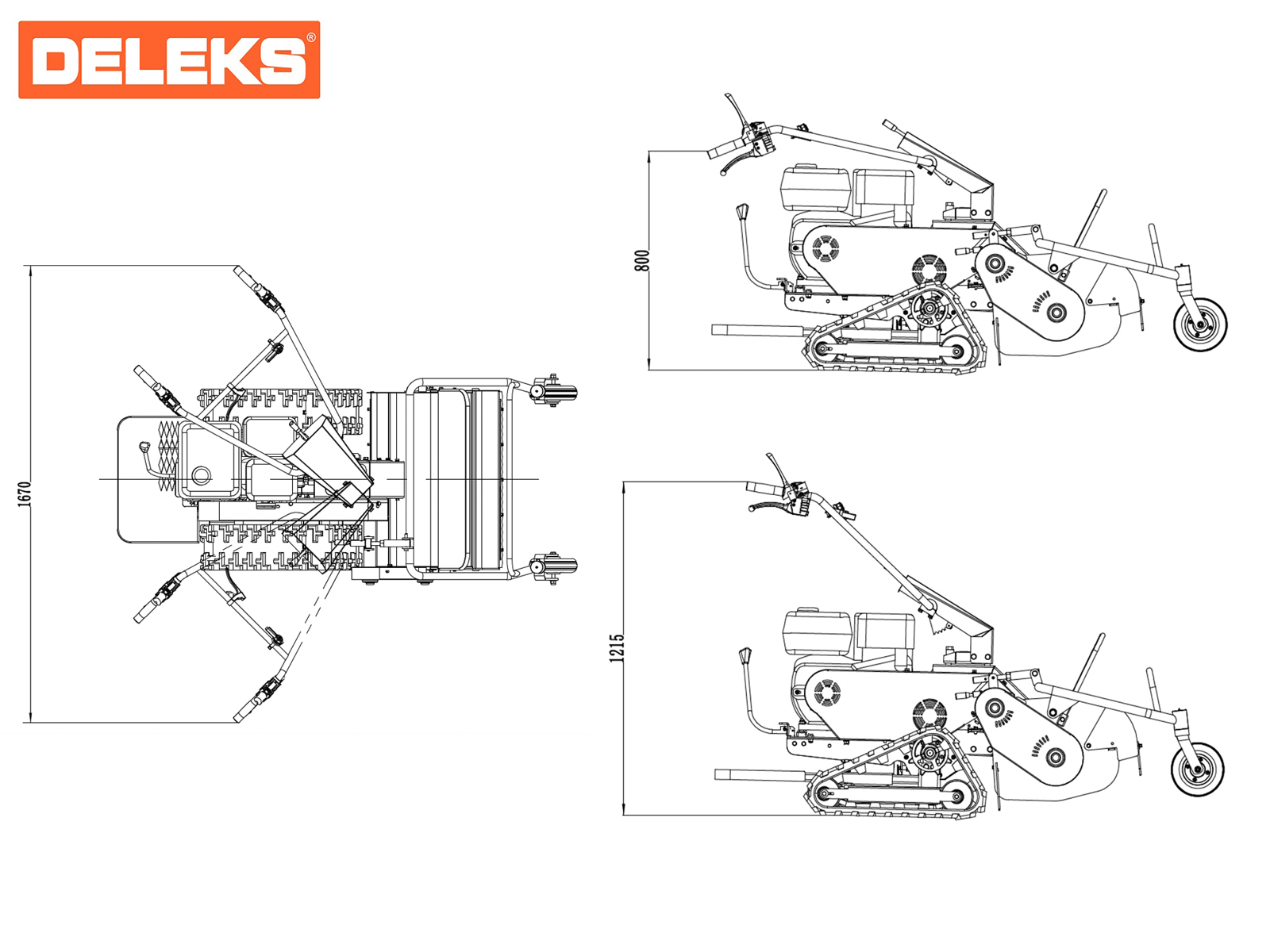

Dimensions, weight and delivery

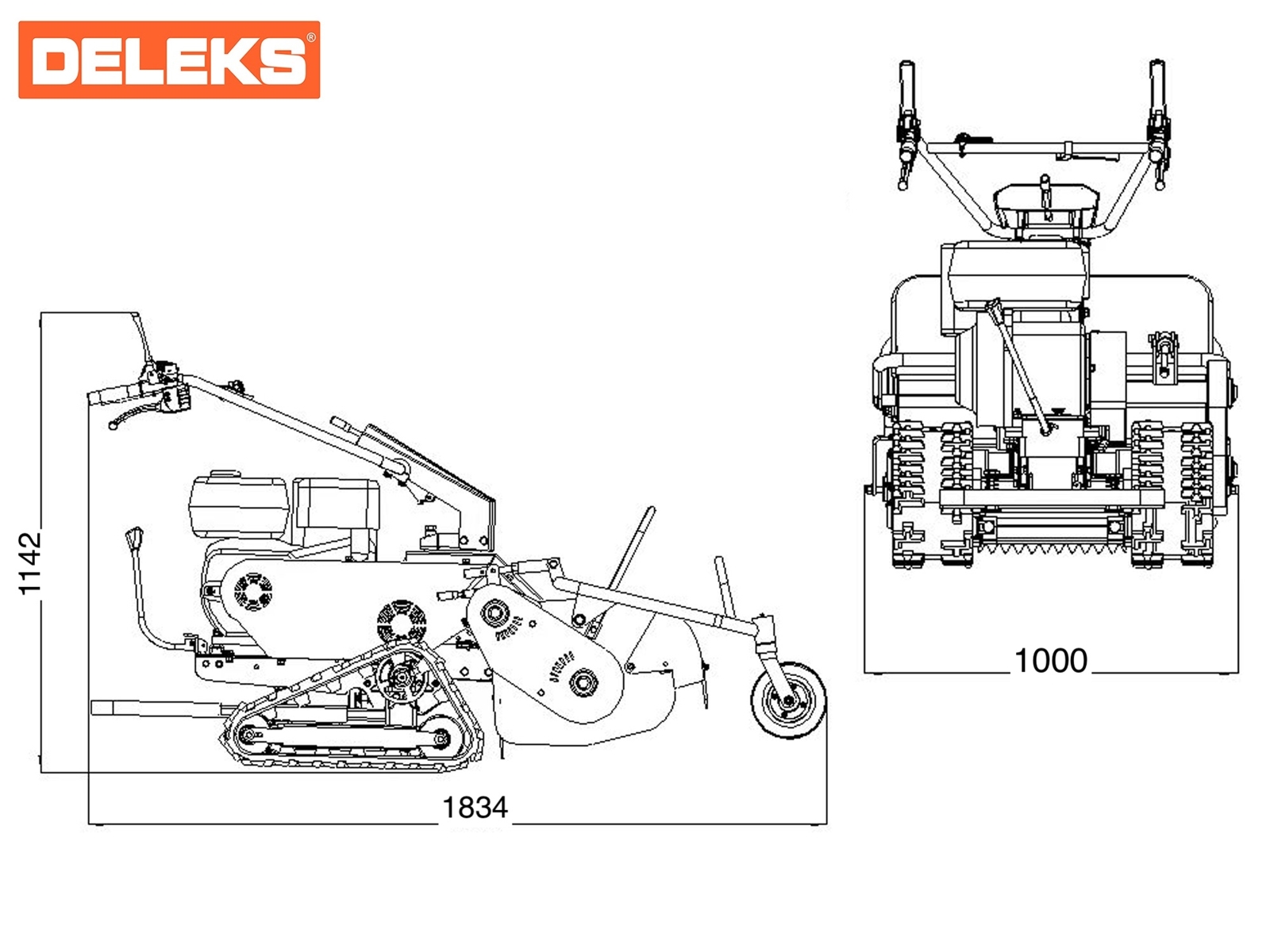

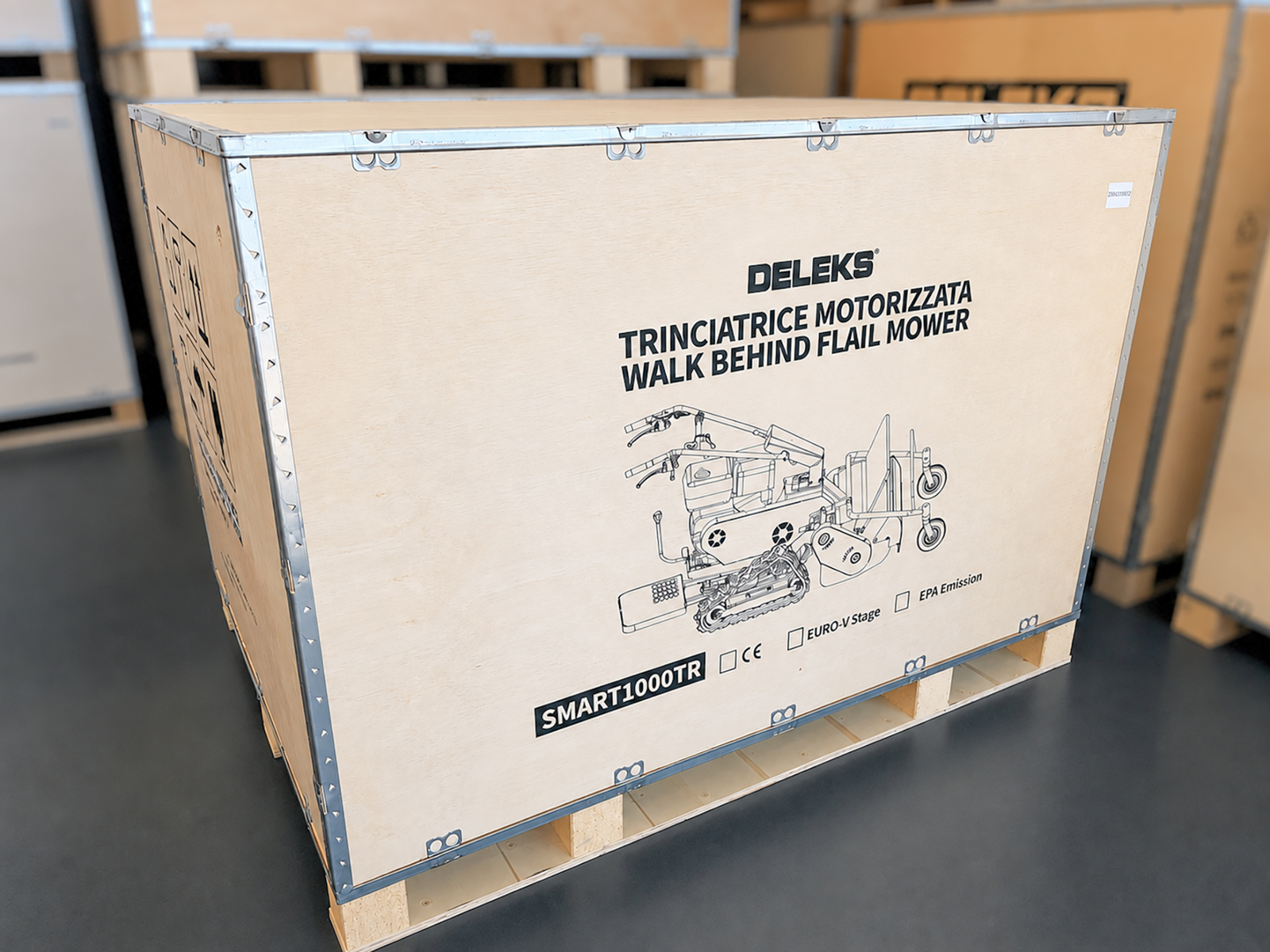

Working width 880 mm (34.6 in), overall width 1,000 mm (39.4 in), length 1,834 mm (72.2 in), height 1,142 mm (45 in), weight 245 kg (540 lb). It ships by express carrier in a closed, sealed wooden crate measuring 145 × 110 × 110 cm (57 × 43 × 43 in) (270 kg / 595 lb gross, 1.75 m³), with free delivery within the EU; there is a photo of the crate in the gallery. Before dispatch the DELEKS® workshop preps and tests every machine: fasteners, fluid levels and a running test, so it arrives assembled and ready to work. It is TÜV-certified and carries a 2-year warranty.

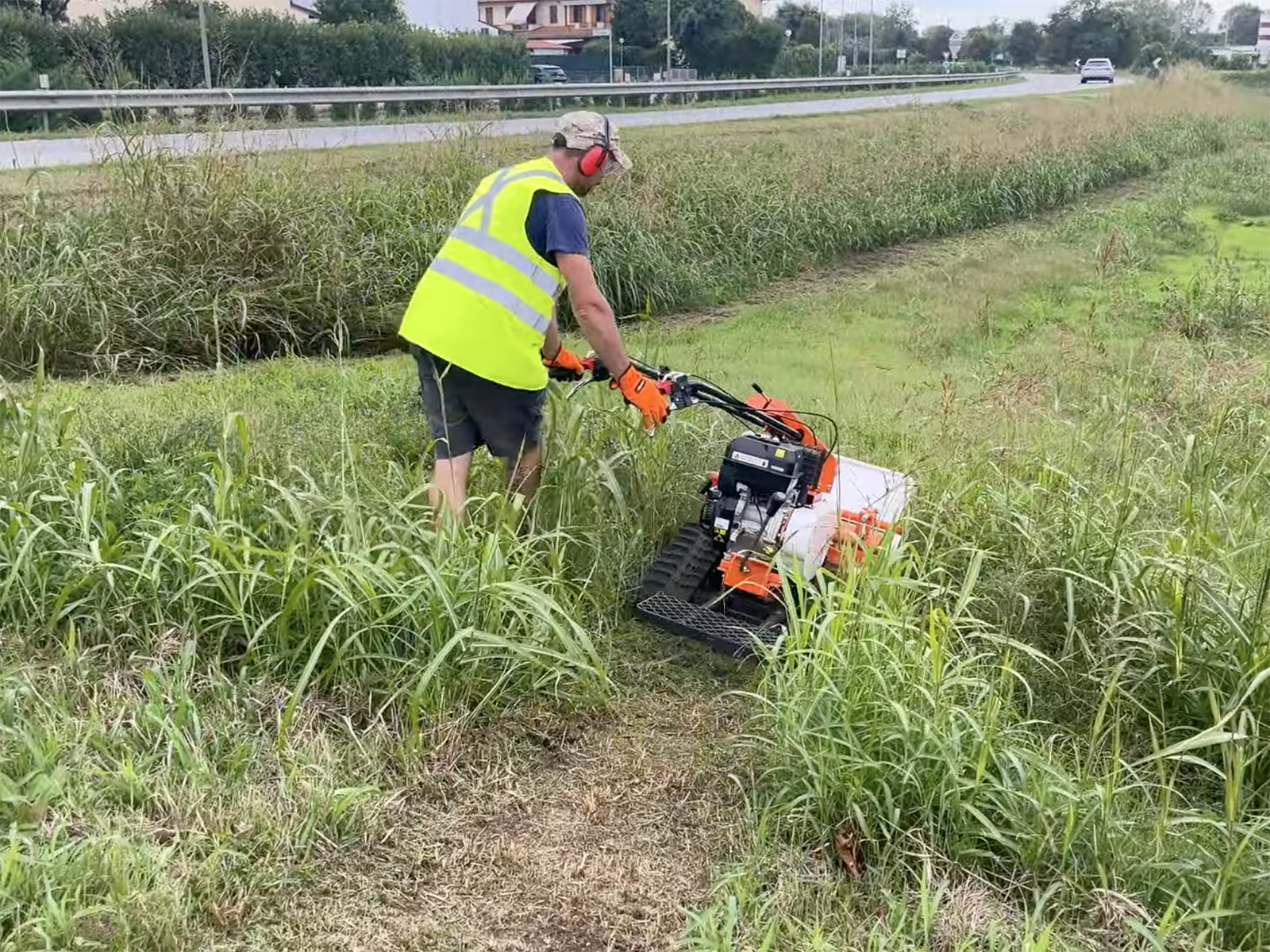

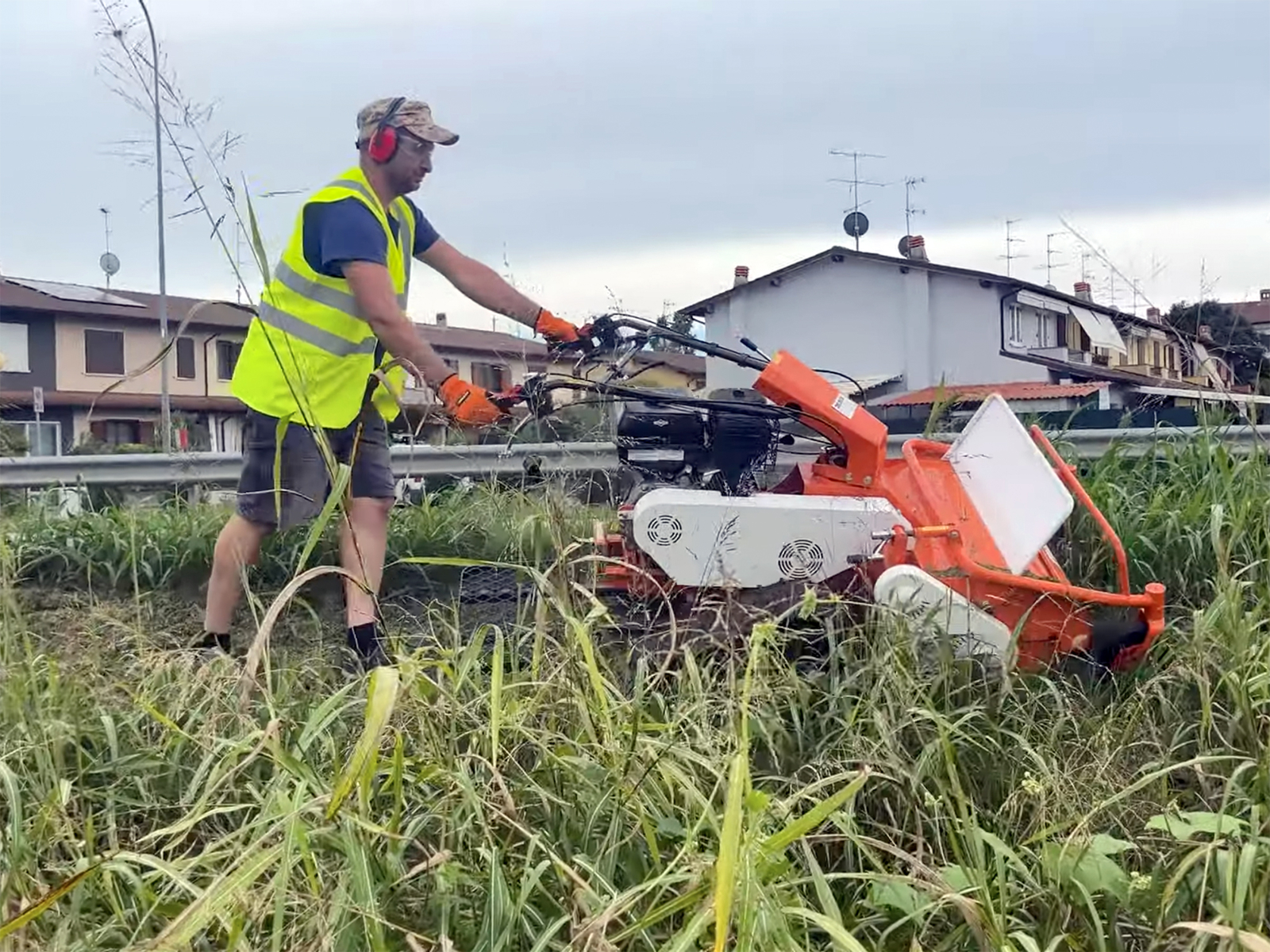

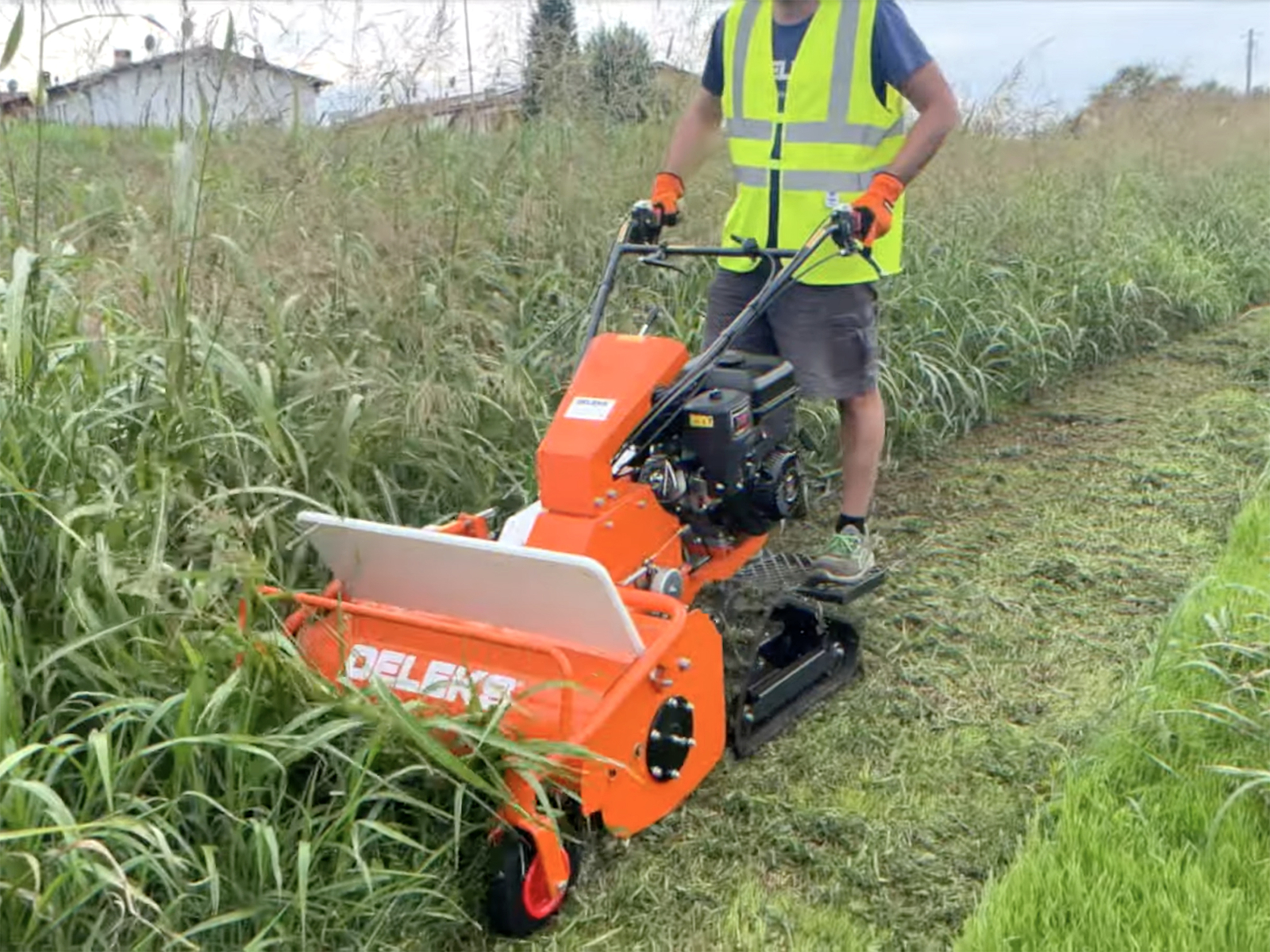

Where it works

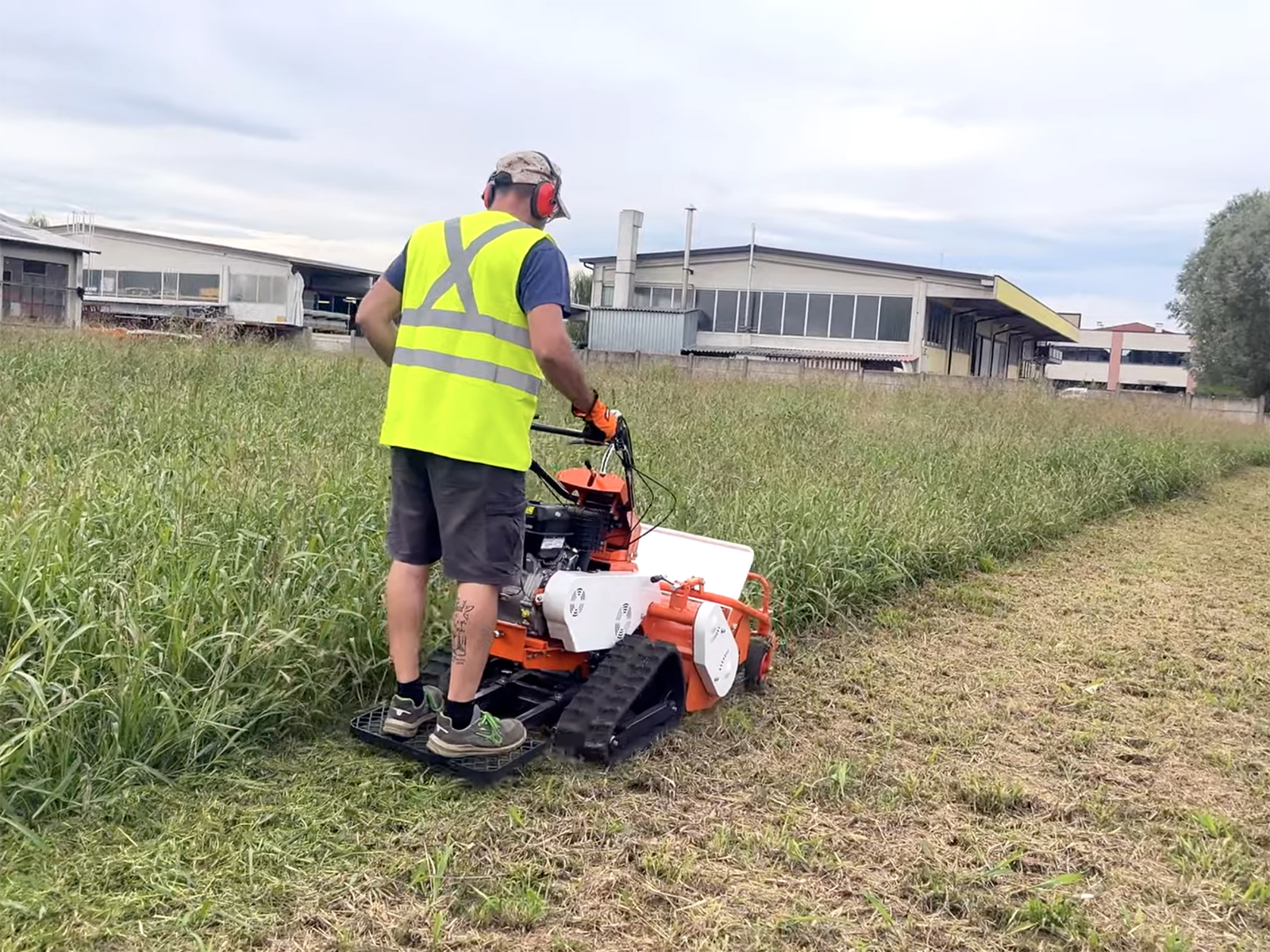

- Slopes, terraces and banks up to 30° head-on and 20° across
- Hillside olive groves and vineyards: grass, vine prunings and brash up to 3 cm (1.2 in)
- Banks, ditch edges and verges
- Rough ground, scrub, brambles and undergrowth
- Wet and soft ground where wheels spin
Options and spares

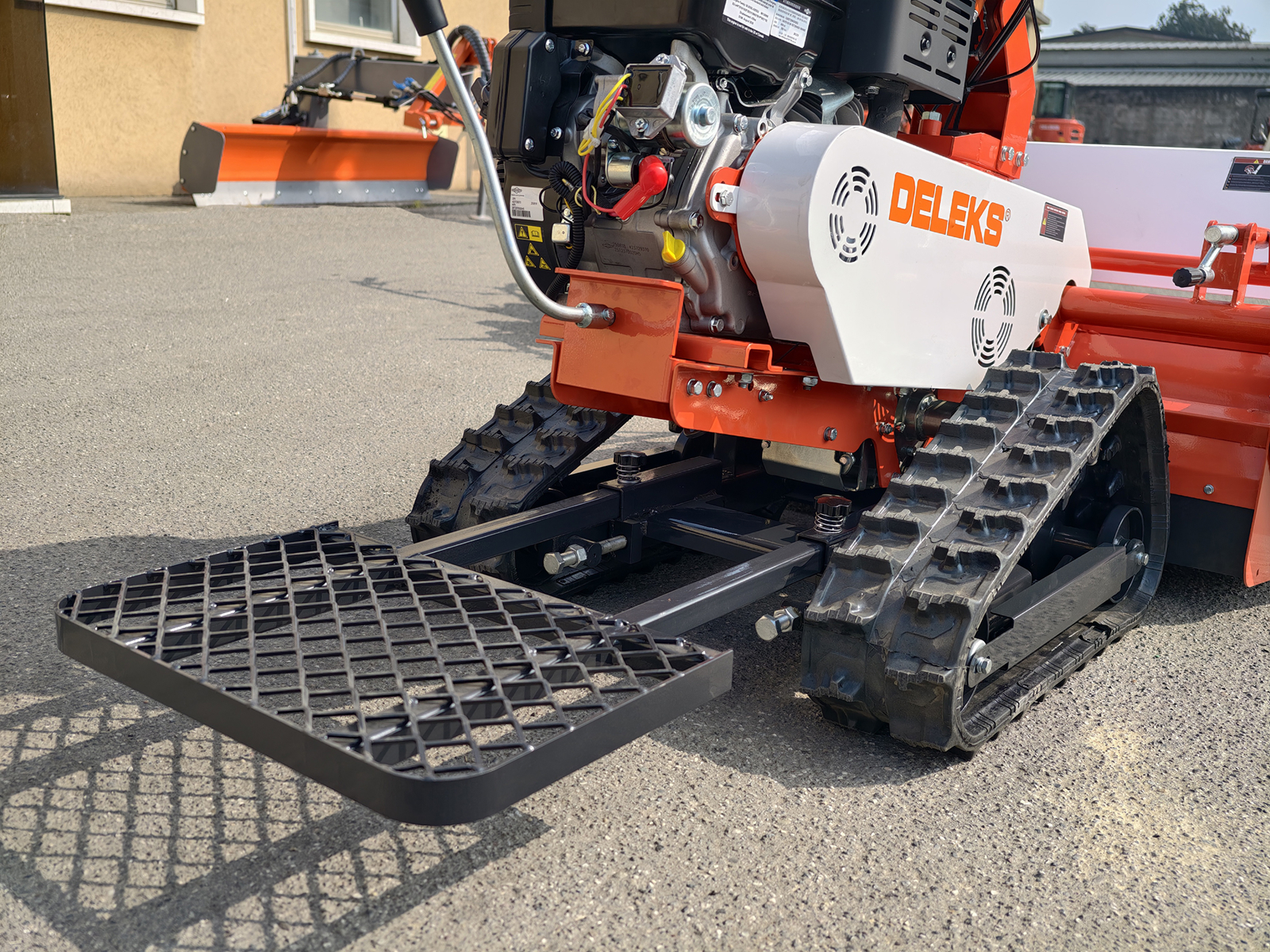

The mower arrives complete, with operator platform, electric start and battery isolator switch as standard. Available as spares are the set of 66 blades (SETCOLTELLISMART1000, the same as on the SMART-1000) and the set of 4 drive belts (CINGHIE4SMART1000TR), both of which can be added to your order from this page; other spares are identified on the exploded diagrams with our technical team.
FAQ
How steep a slope can it work on?
Up to 30° straight up and down and 20° across: the tracks spread the 245 kg (540 lb) over the ground and the centre of gravity is low.
How does it differ from the SMART-800-TR?
An extra 18 cm (7 in) of cut (88 against 70), a 13.5 hp engine instead of 10, 66 blades instead of 38, twin-belt drive and a battery isolator switch: more ground covered per hour on the same slopes. It weighs 35 kg (77 lb) more.
Tracked or wheeled flail mower: which is better?
Tracks for slopes, terraces, wet ground and rough going; the wheeled SMART-1000 for level ground, with 49 kg (108 lb) less to move around.

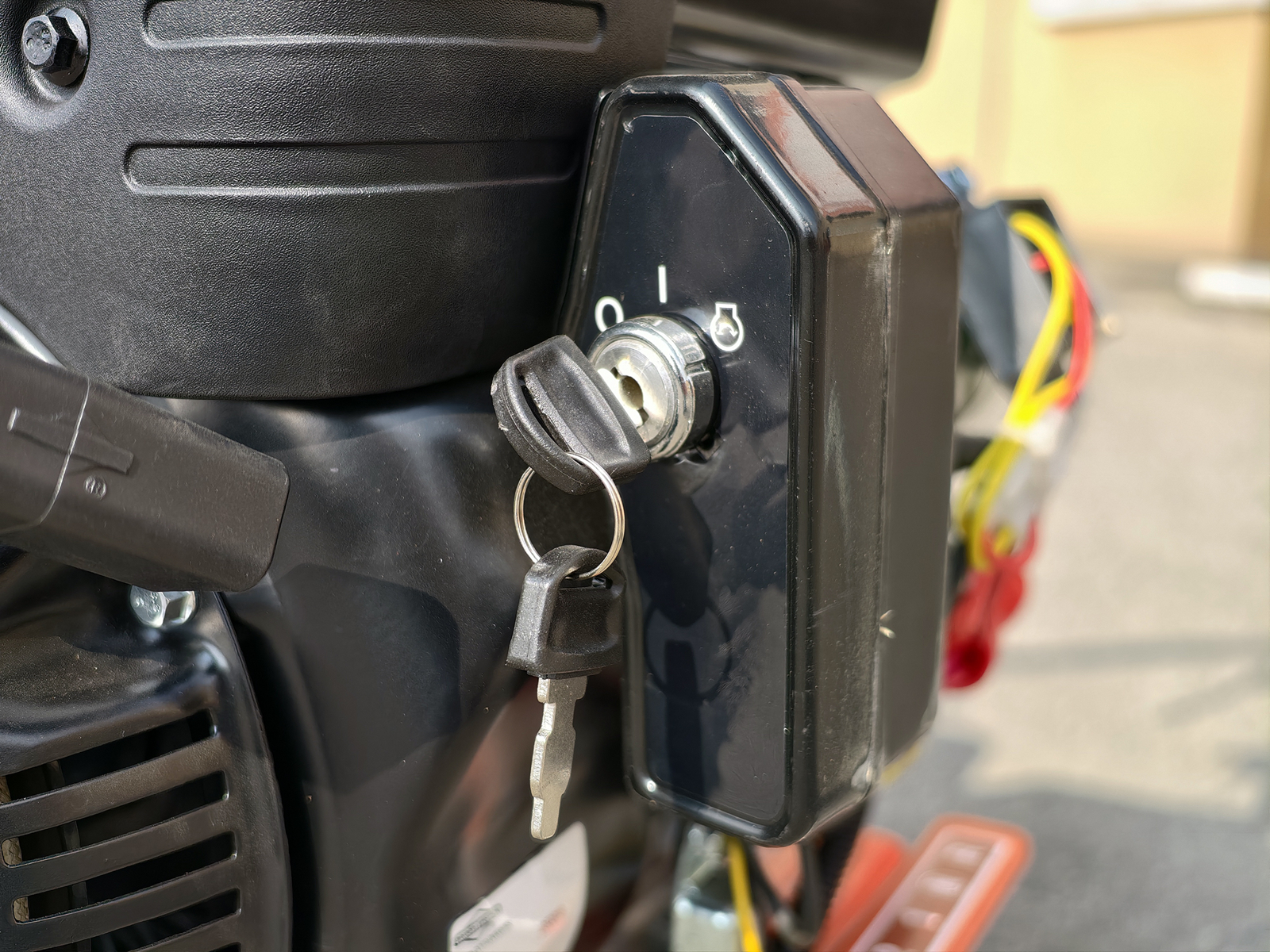

How does it start?
On the key; there is also a recoil cord as back-up and a battery isolator switch for storage and transport.
Is it remote-controlled?

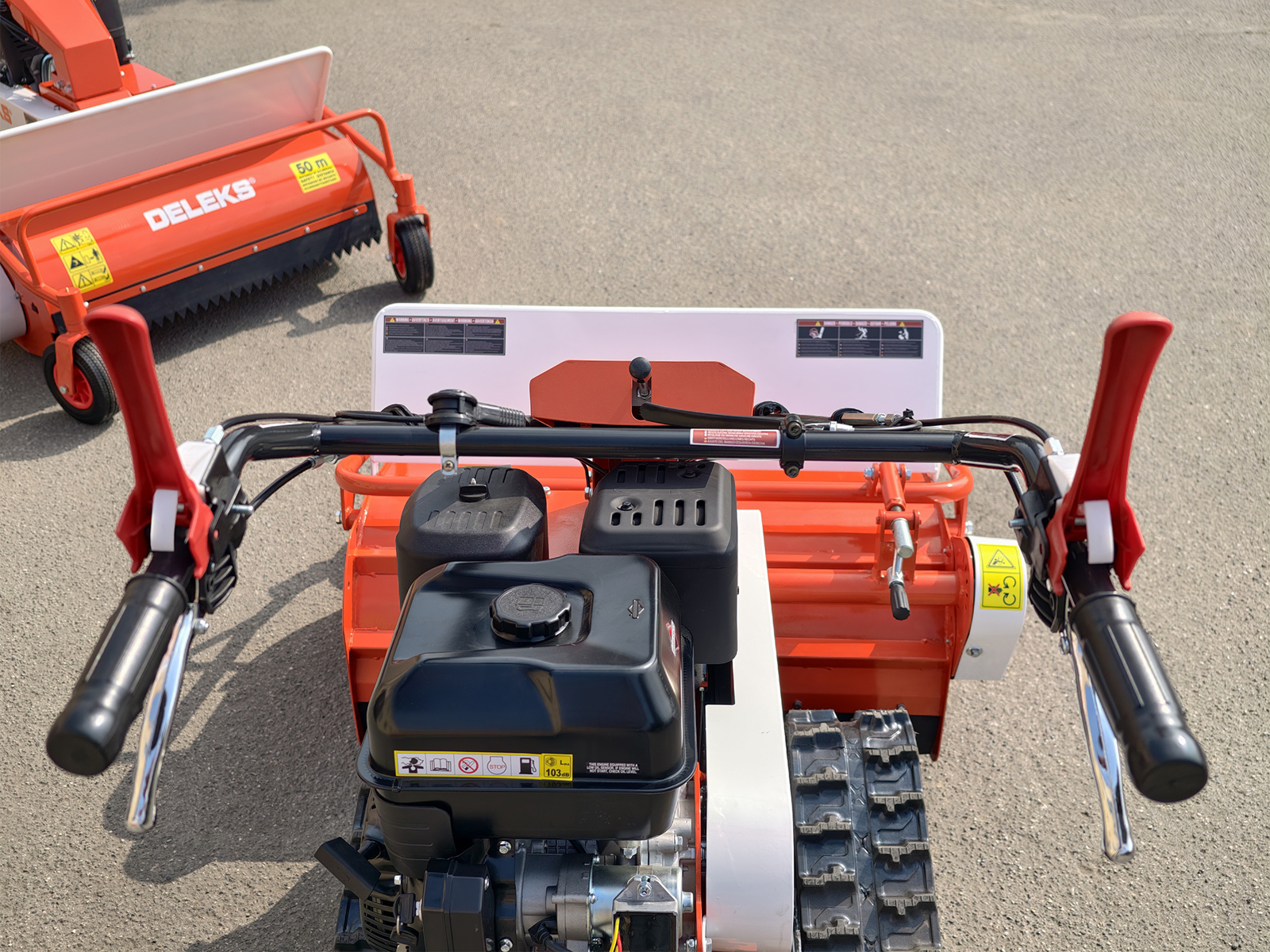

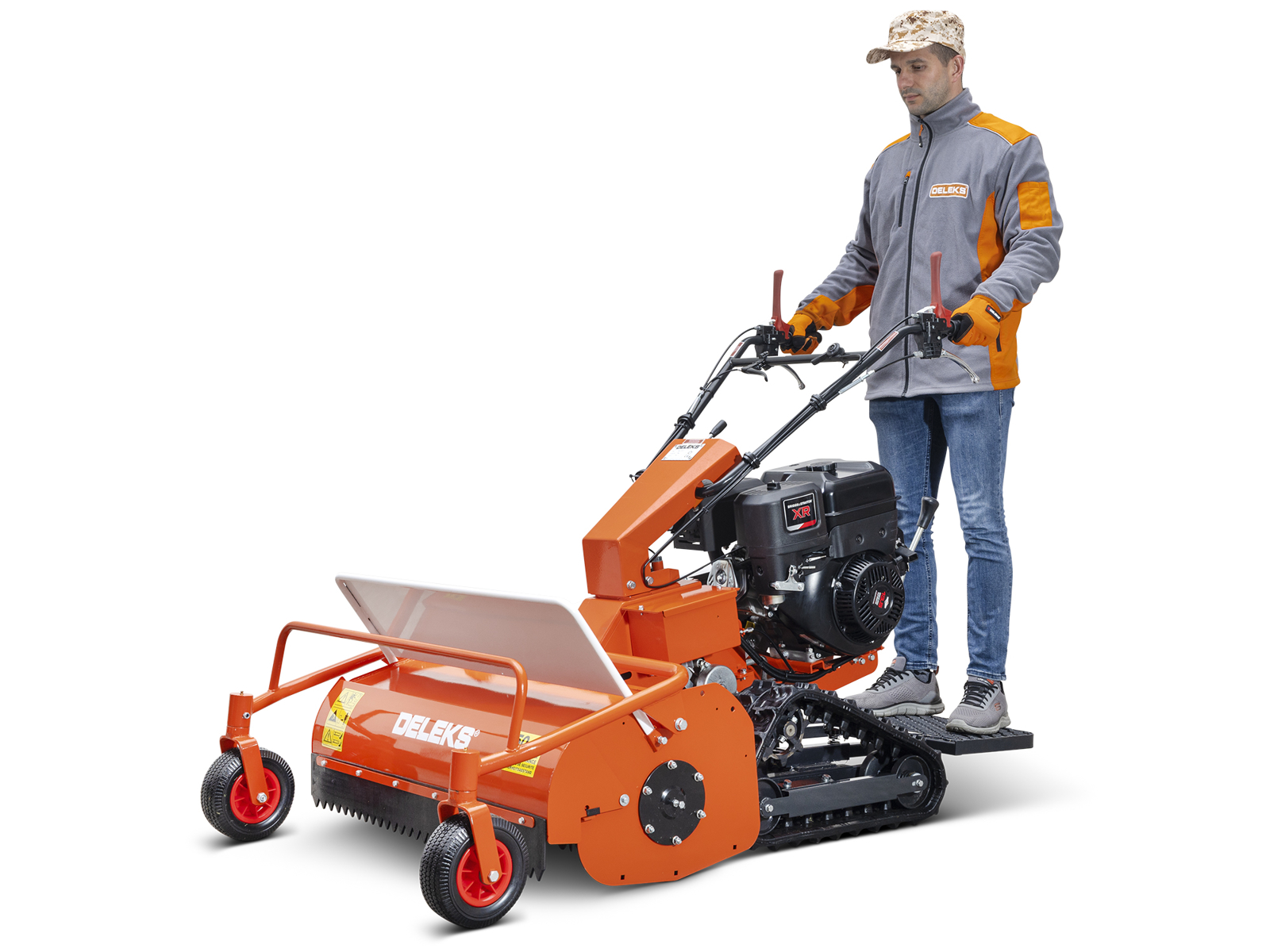

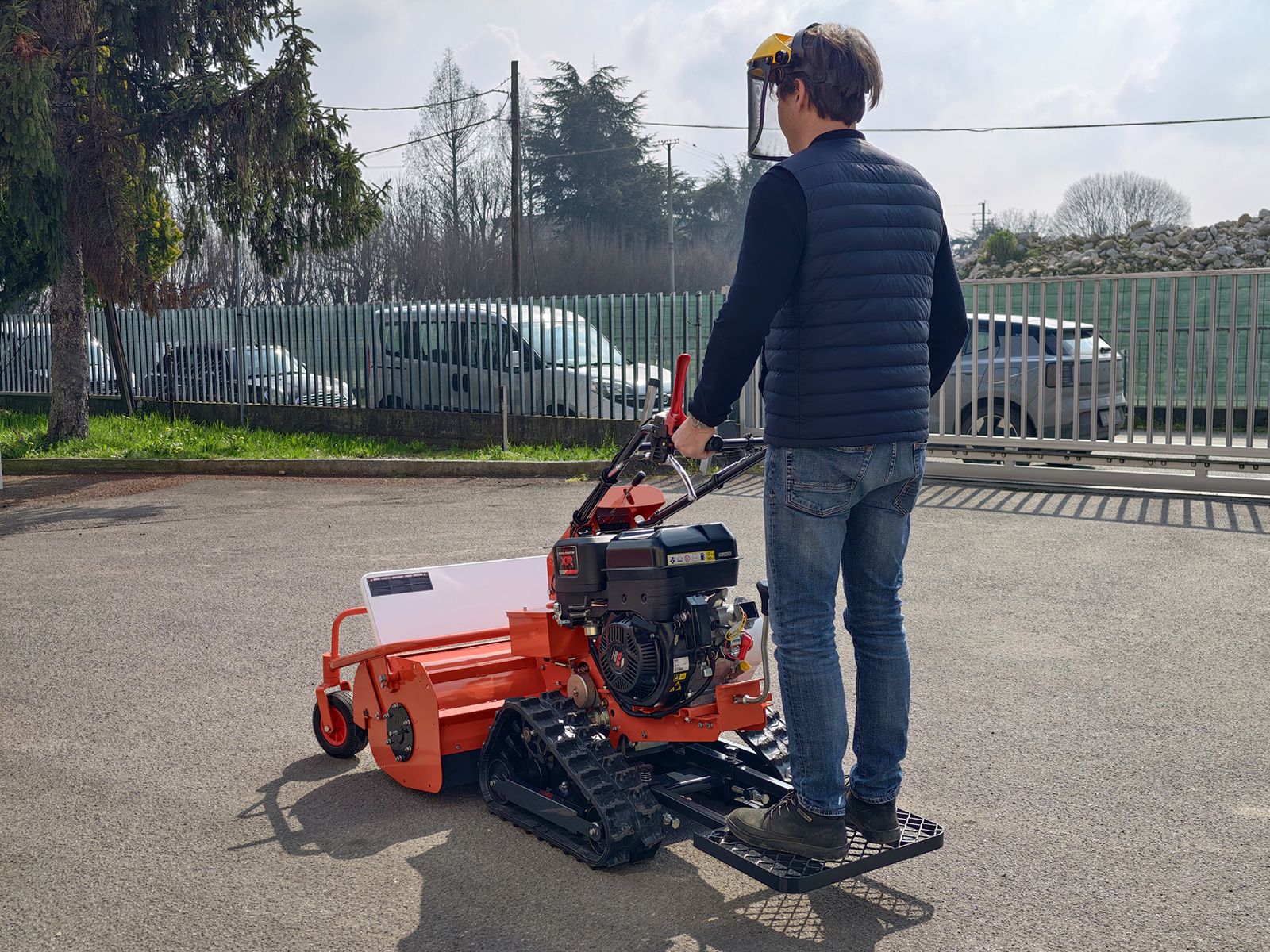

No: the SMART-1000-TR is driven from the handlebars, on foot or from the platform; it has no remote control.
Will it mulch vine prunings?
Yes: vine prunings and light brash up to 3 cm (1.2 in) thick, as well as long grass, brambles and reeds. For heavier prunings, look at a tractor-mounted flail mower.
What are swinging blades?
Free-swinging blades fitted in sets of 3 (two curved, one straight) that fold back when they hit stones and obstacles; they are wearing parts and the full set is available as a spare.
How is it delivered?
In a closed wooden crate by express carrier, fully assembled and tested by the DELEKS® workshop; the CE declaration of conformity, invoice and operator's manual come with the machine.
DELEKS® spares and support
Genuine spares ship from DELEKS® warehouses in Europe: blade sets, drive belts, rotor bearings and the other parts of the machine are available for routine servicing and repairs alike. DELEKS® after-sales looks after every customer directly: technical advice, warranty handling, genuine spares identified on the exploded diagrams and help arranging any service work. The machine comes with its CE declaration of conformity, invoice and operator's manual. 2-year warranty and free delivery within the EU.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Working width | 880.0 mm |
| Overall width | 1000.0 mm |
| Min / Max cutting height | 20.0 - 80.0 mm |
| Weight | 245.0 kg |
| Overall height | 1142.0 mm |
| Maximum cutting diameter | 30.0 mm |
| Overall length | 1834.0 mm |
| Transmission: Drive method | V-Belts |
| Transmission: V-Belts quantity | 4 |
| Transmission: V-Belts size | SB38.5 + SB1610 + SB44 |
| Rotor: balancing | Electronic |
| Engine | Briggs&Stratton 13.5Hp, 420cc |
| Number of Blades | 66 |
| Gross shipping weight | 270 kg |
| Package volume | 1.75 m3 |
| Packing sizes | 1450*1100*1100 mm |
