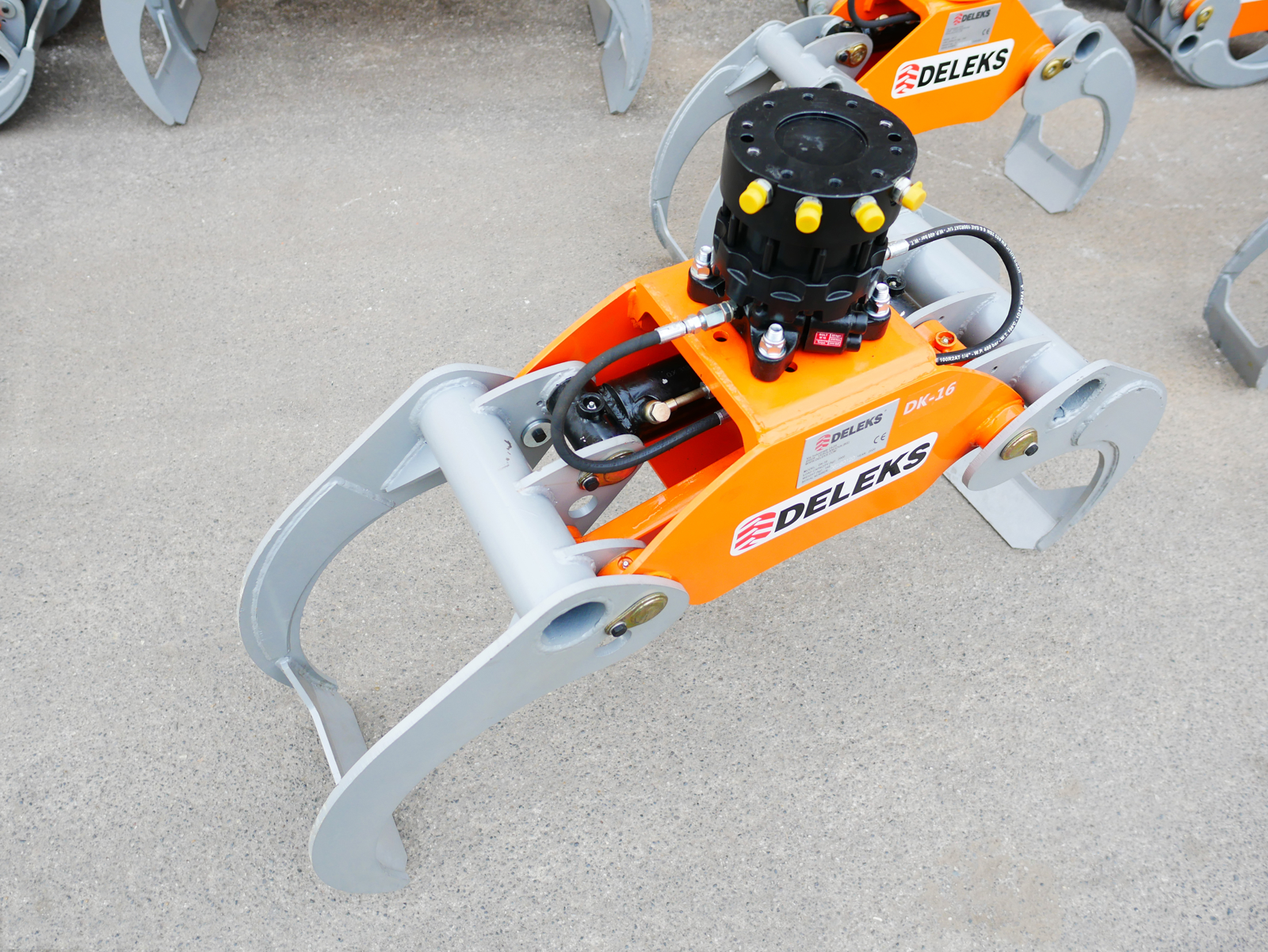

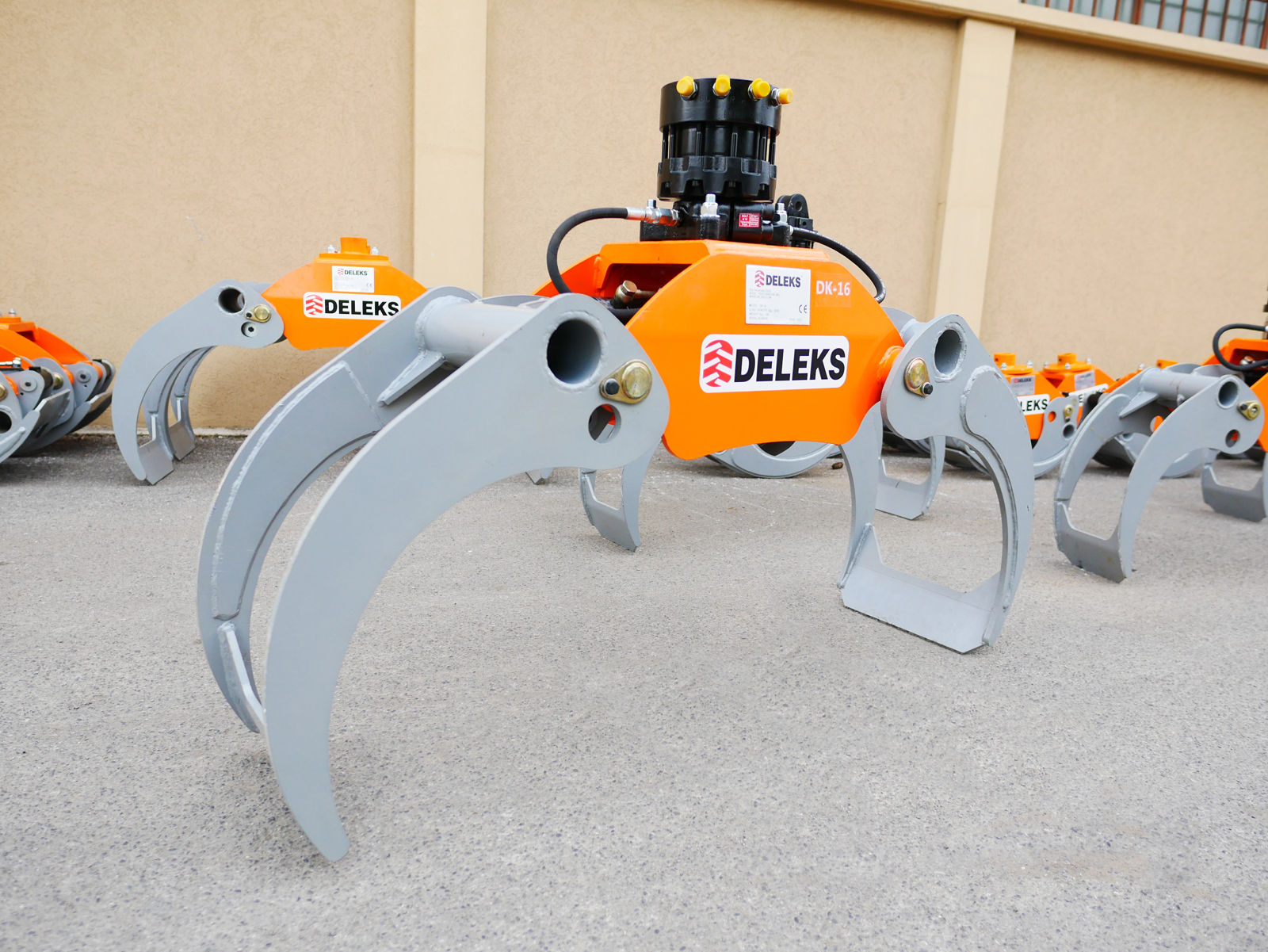

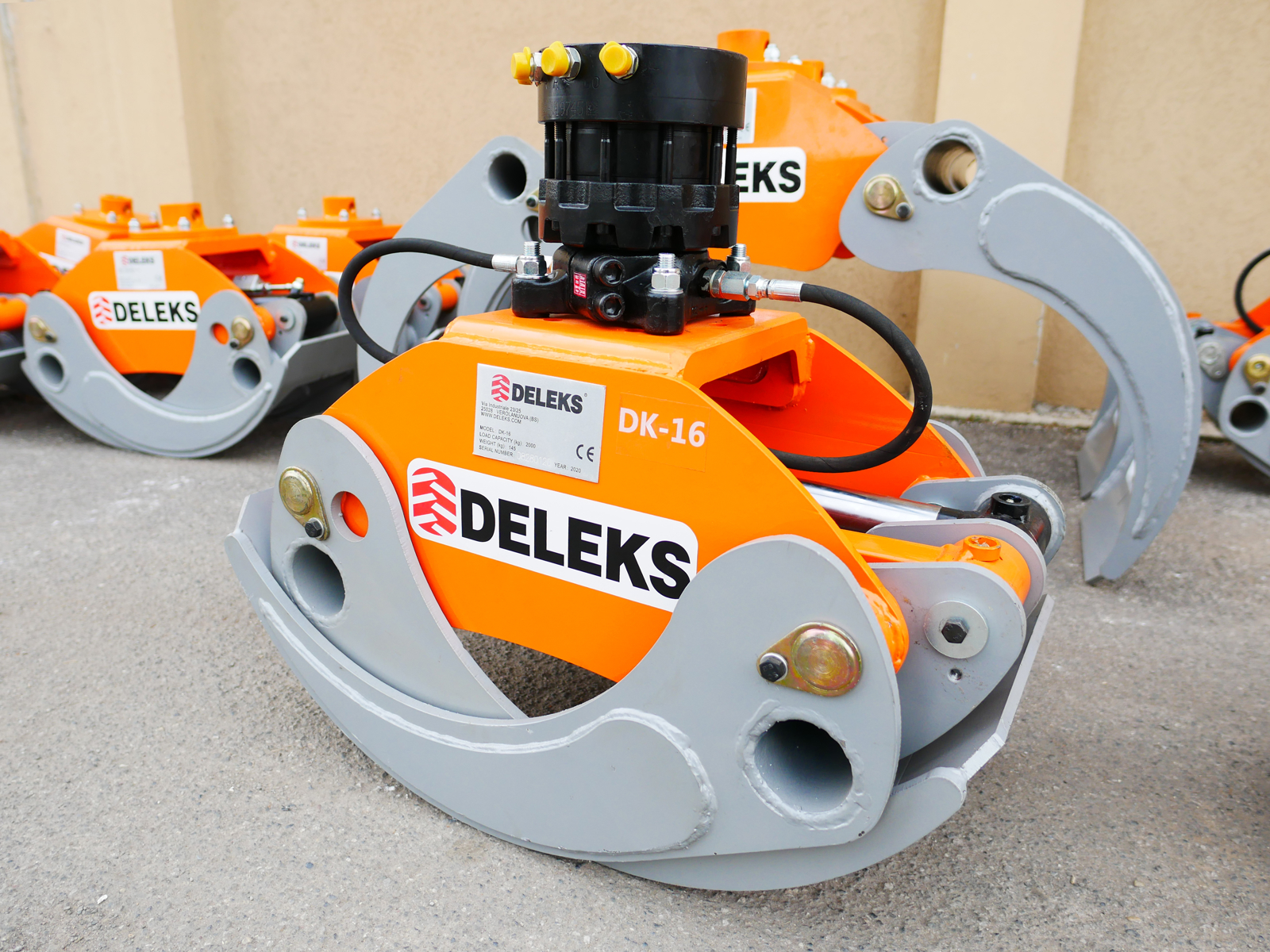

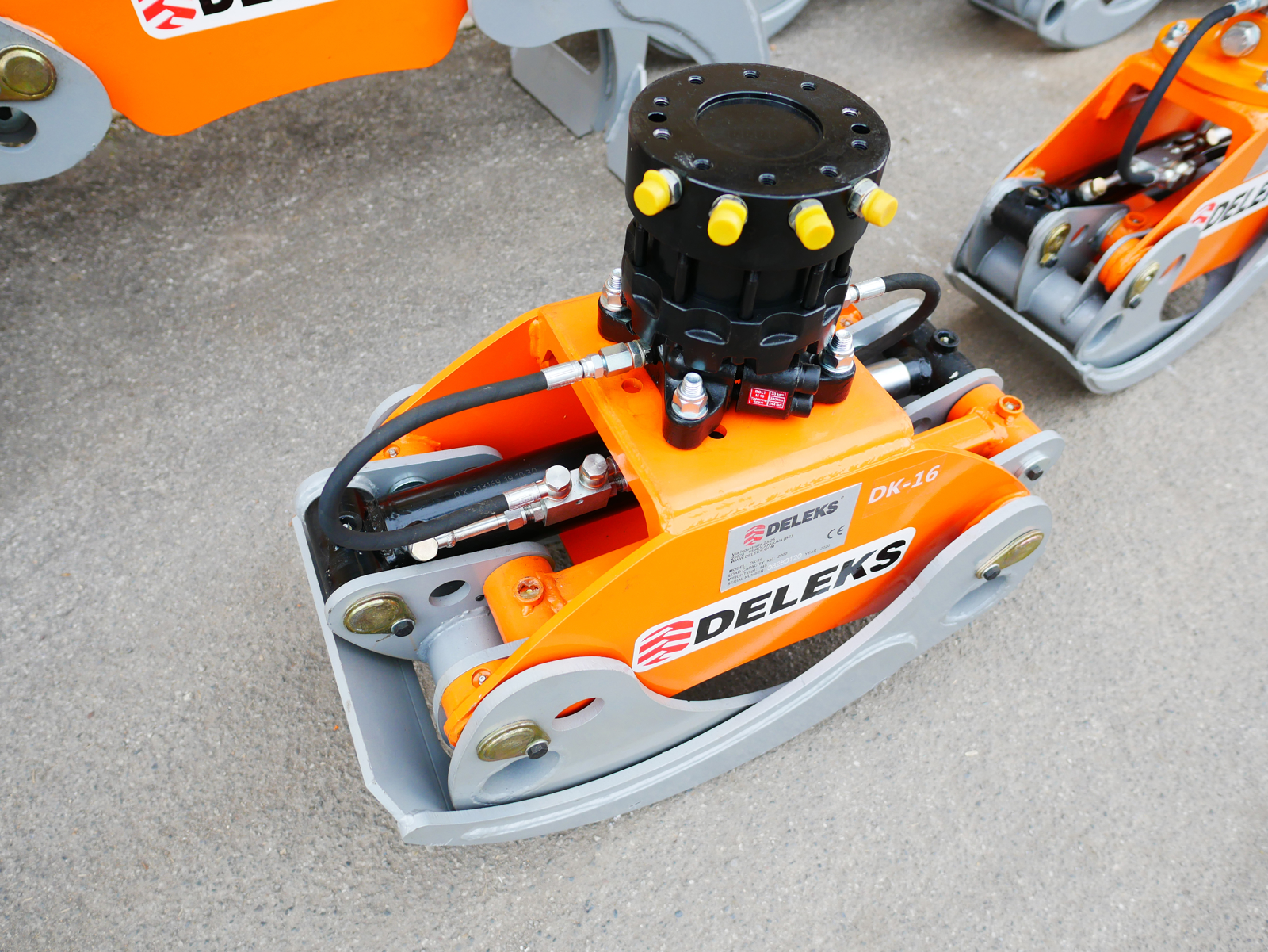

Log grapple for mini excavators with fixed rotator for quick linkage DK-16 + GR-55FF
DETAILS

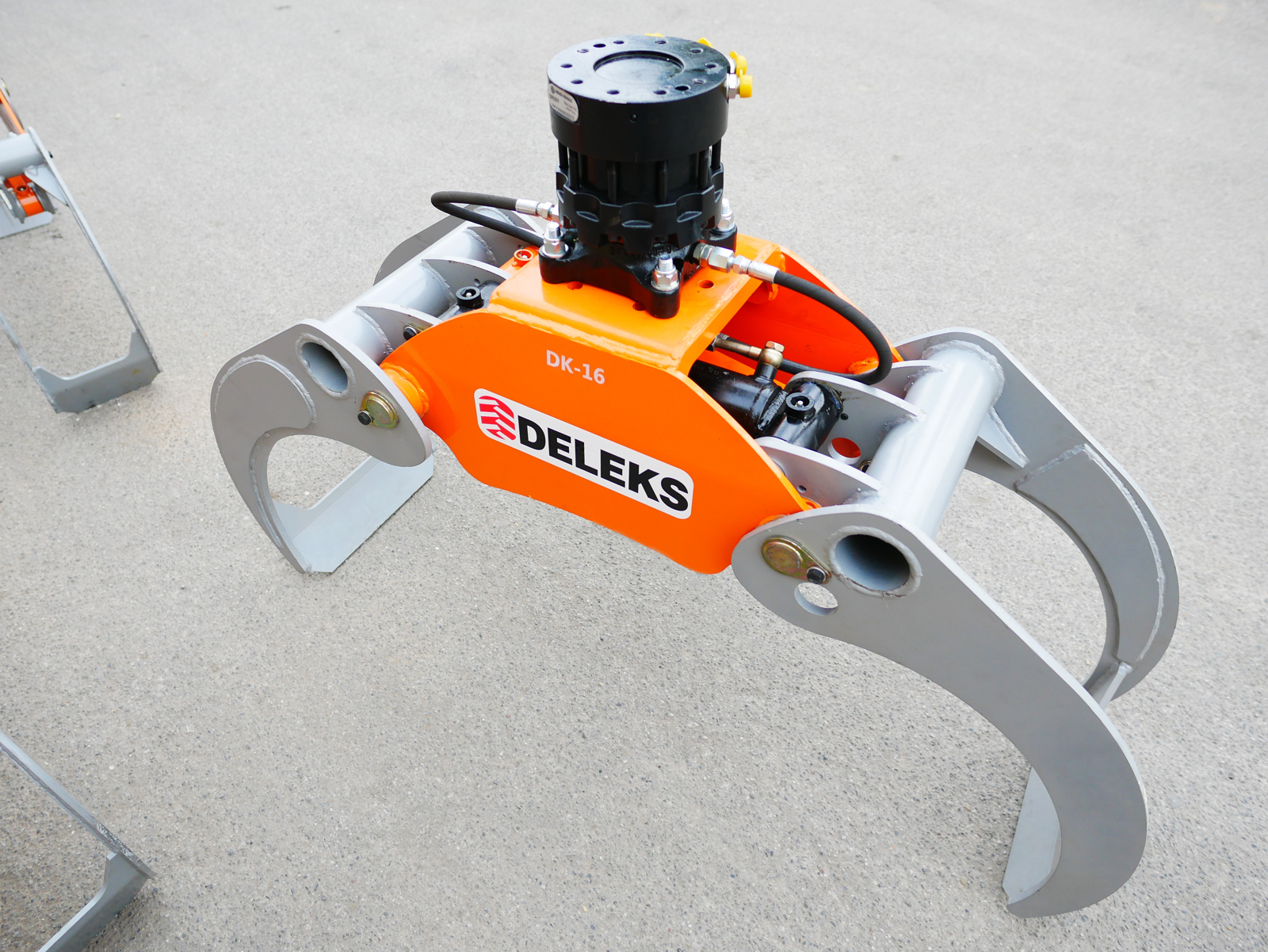

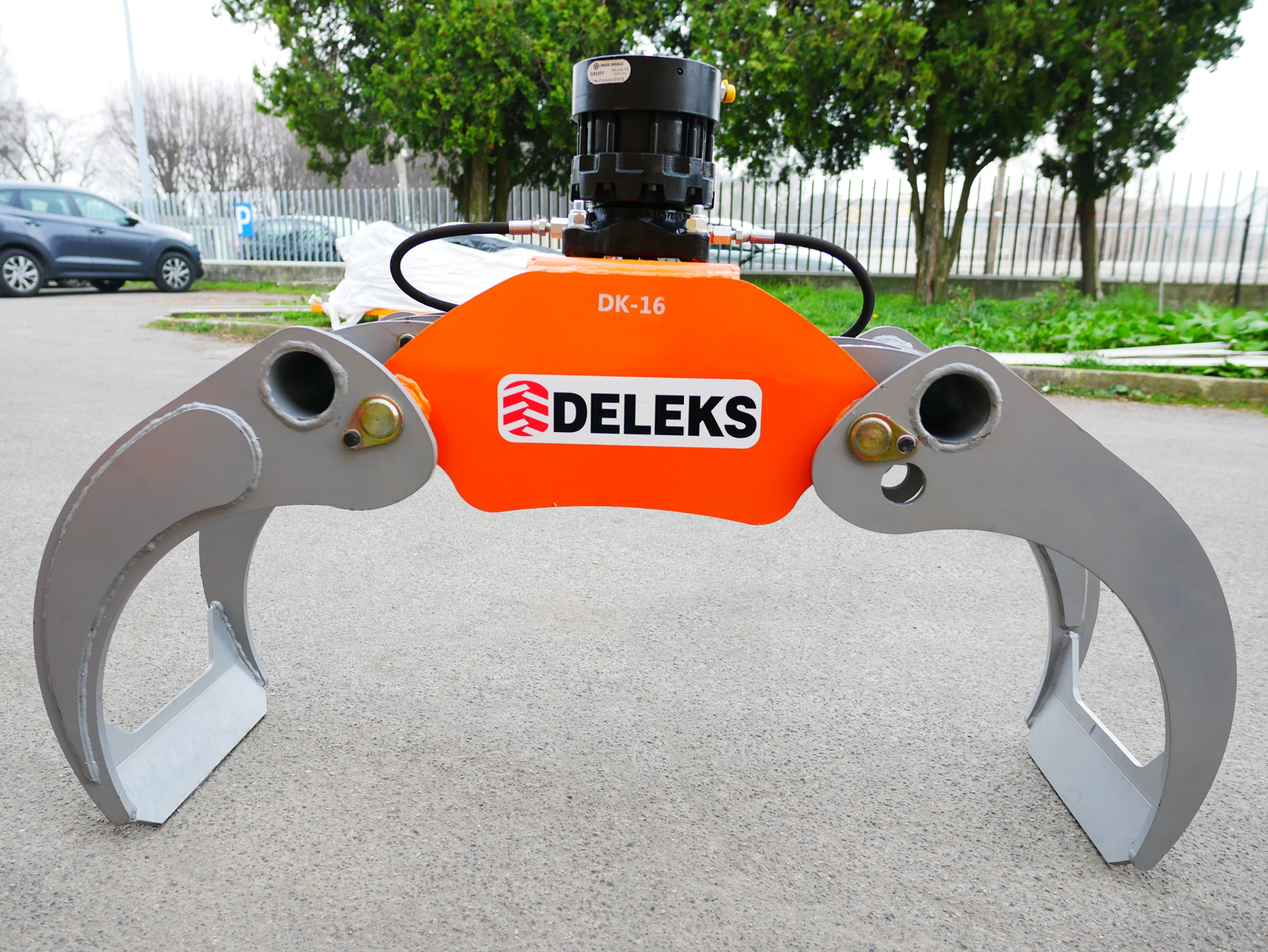

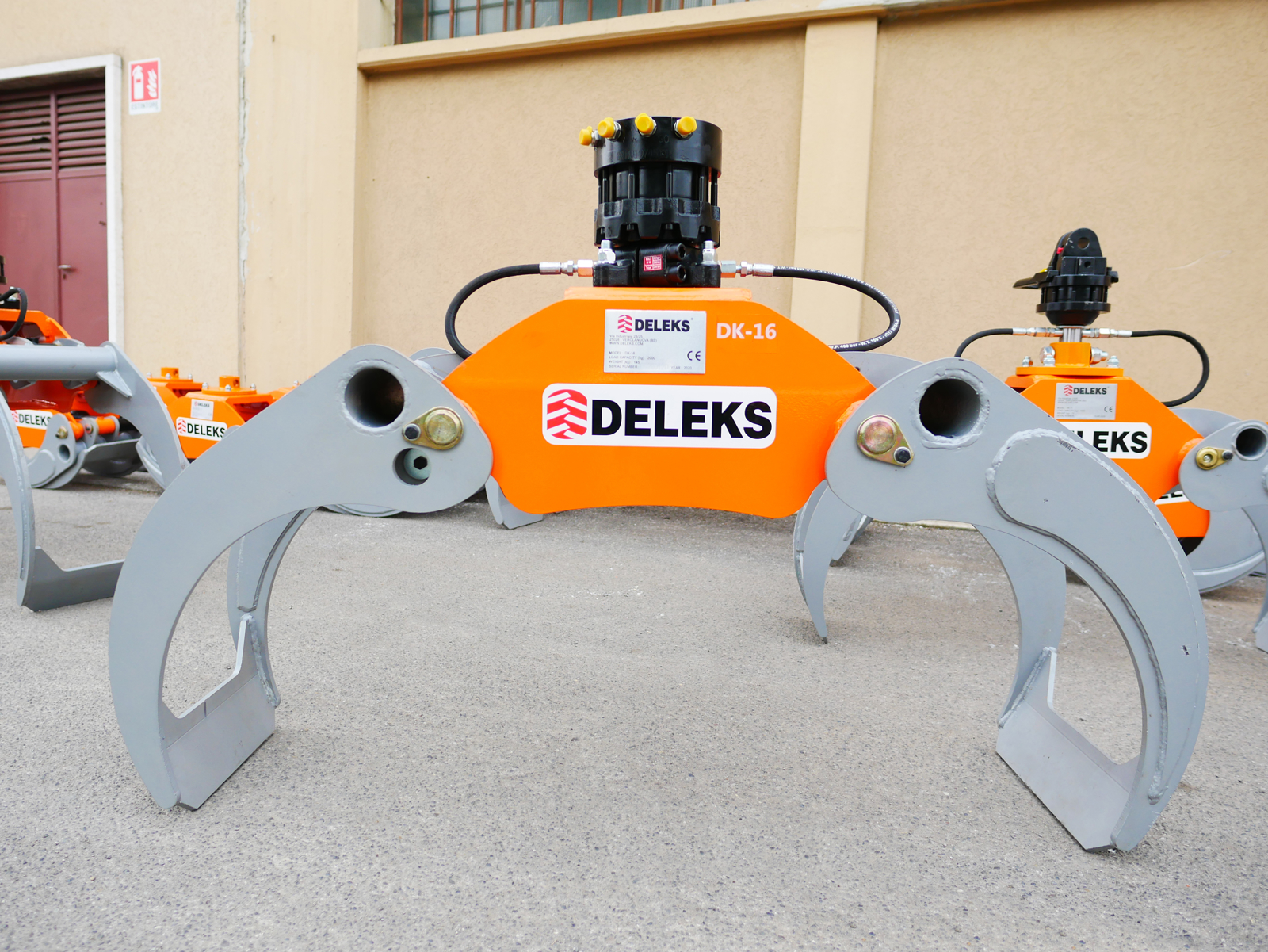

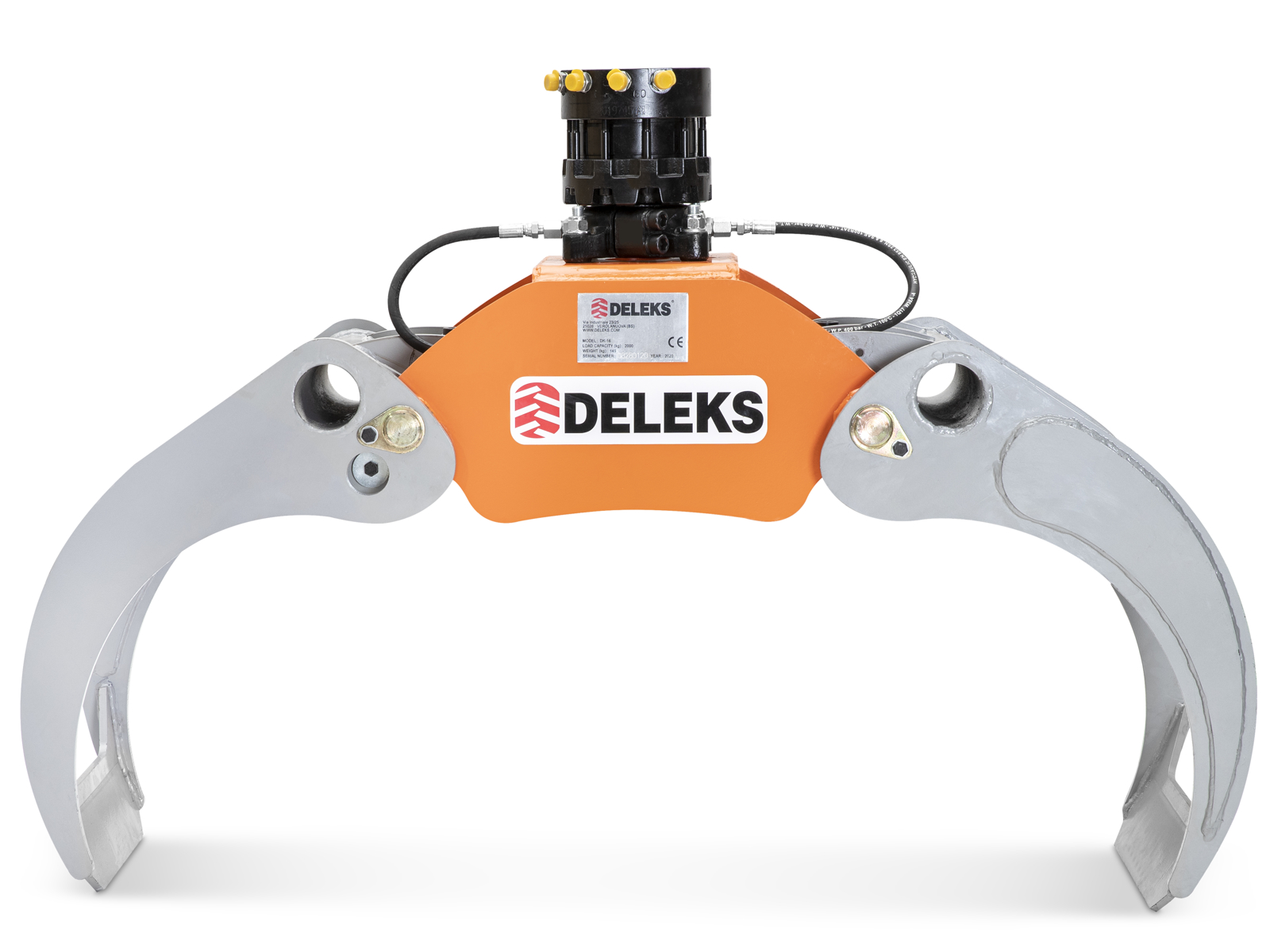

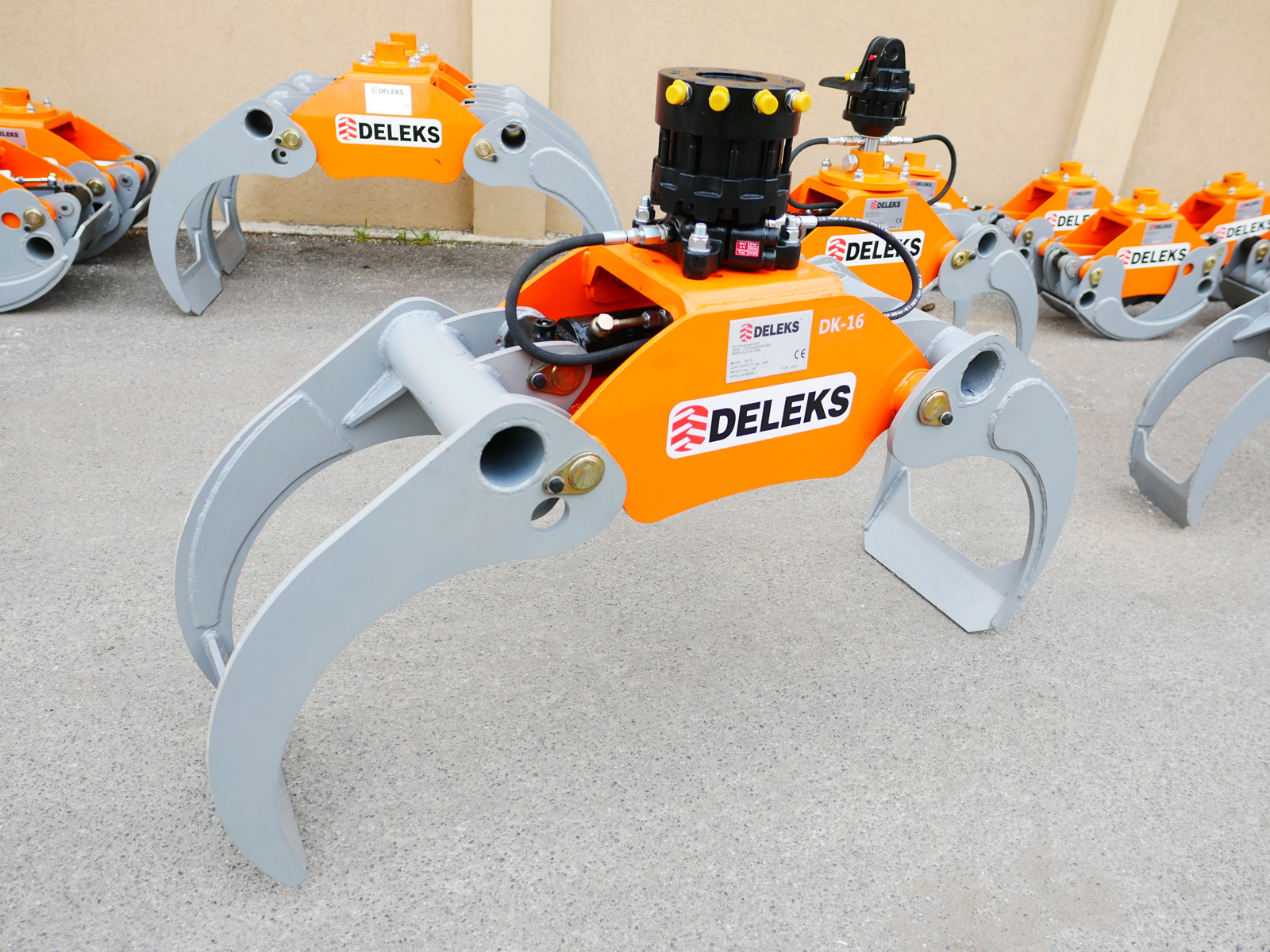

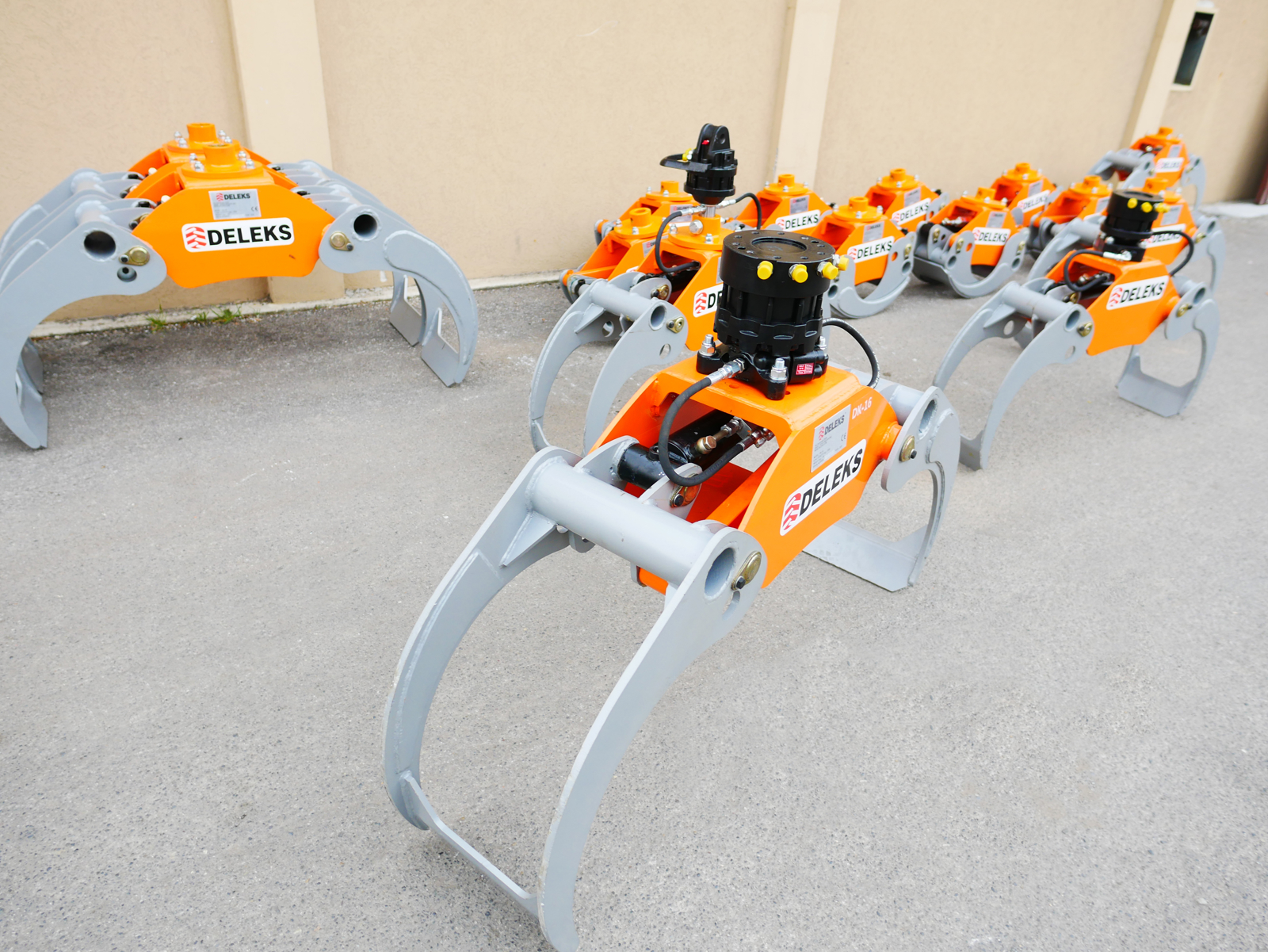

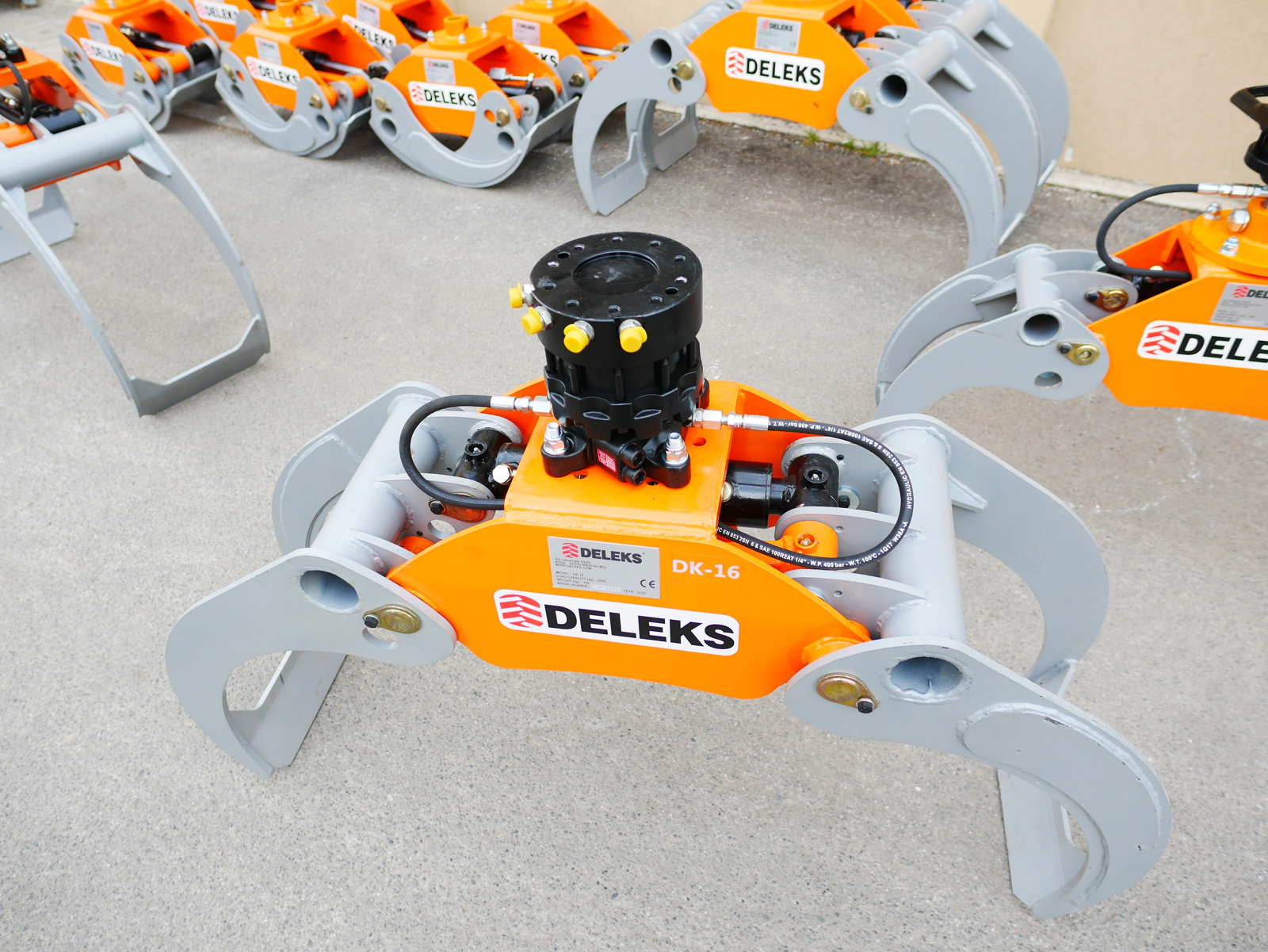

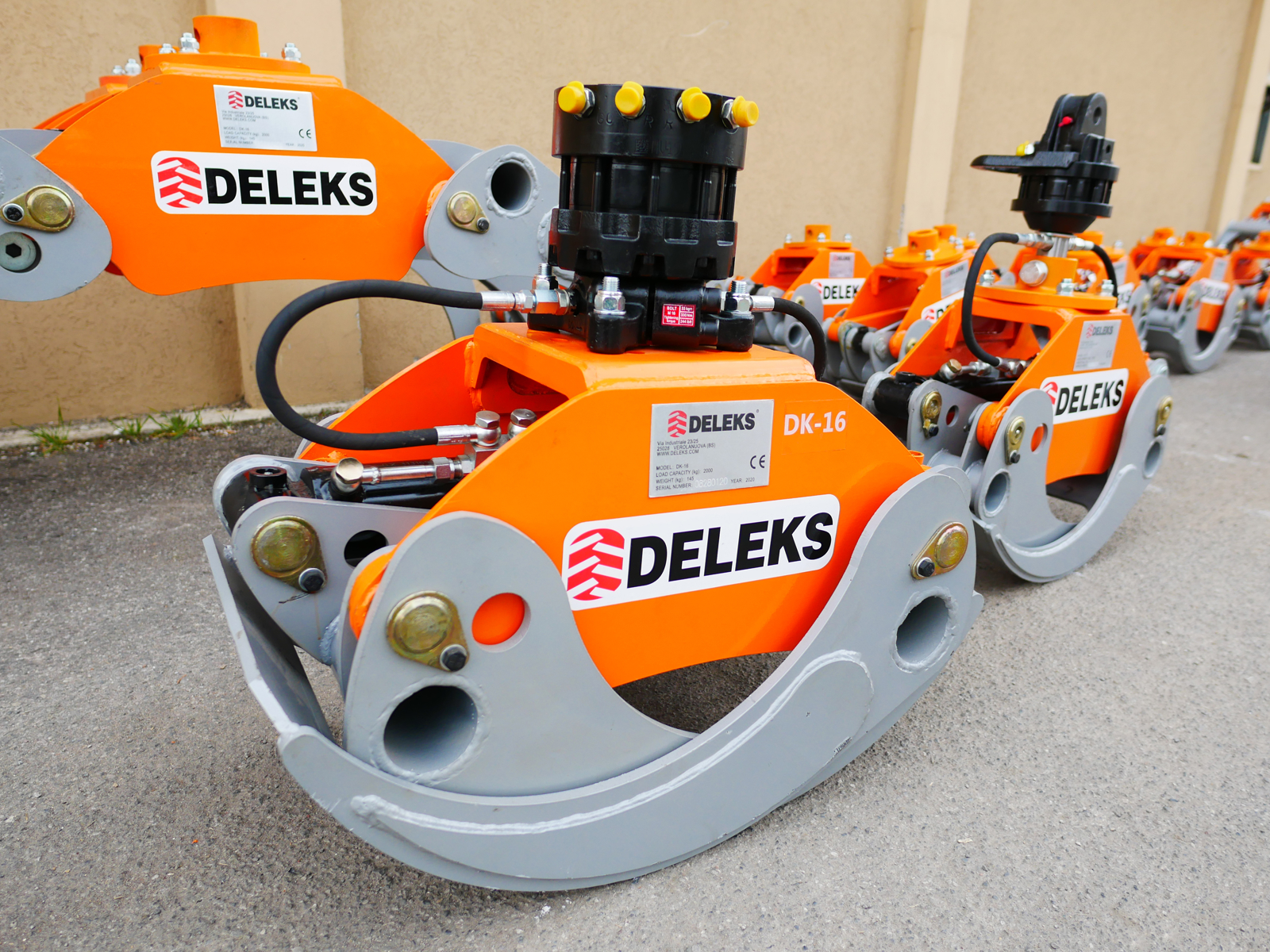

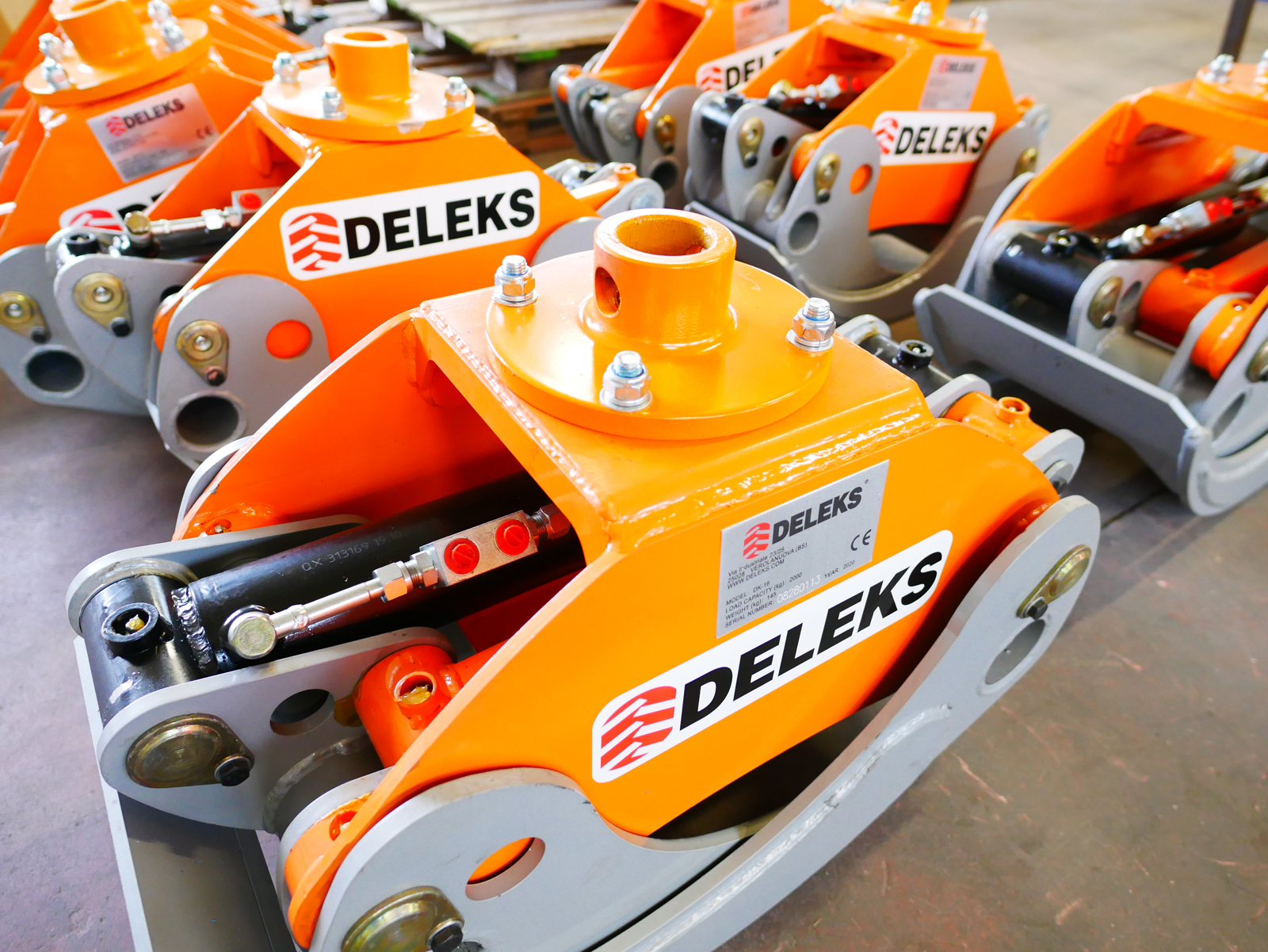

Log Grapple for Mini Diggers and Forest Cranes 4.0 – 8.0 Ton DELEKS® DK-16 + Lombarda Ingranaggi® Rotator
OVERVIEW
Perfect for carrying logs and timber around your farm or park.
Maximum load 2000.0 kg.
Gripping force: 11.1KN
Fits all mini diggers/excavators e.g Bobcat, Case, Caterpillar, Ihimer, JCB, Komatzu, Yanmar, Hitachi.

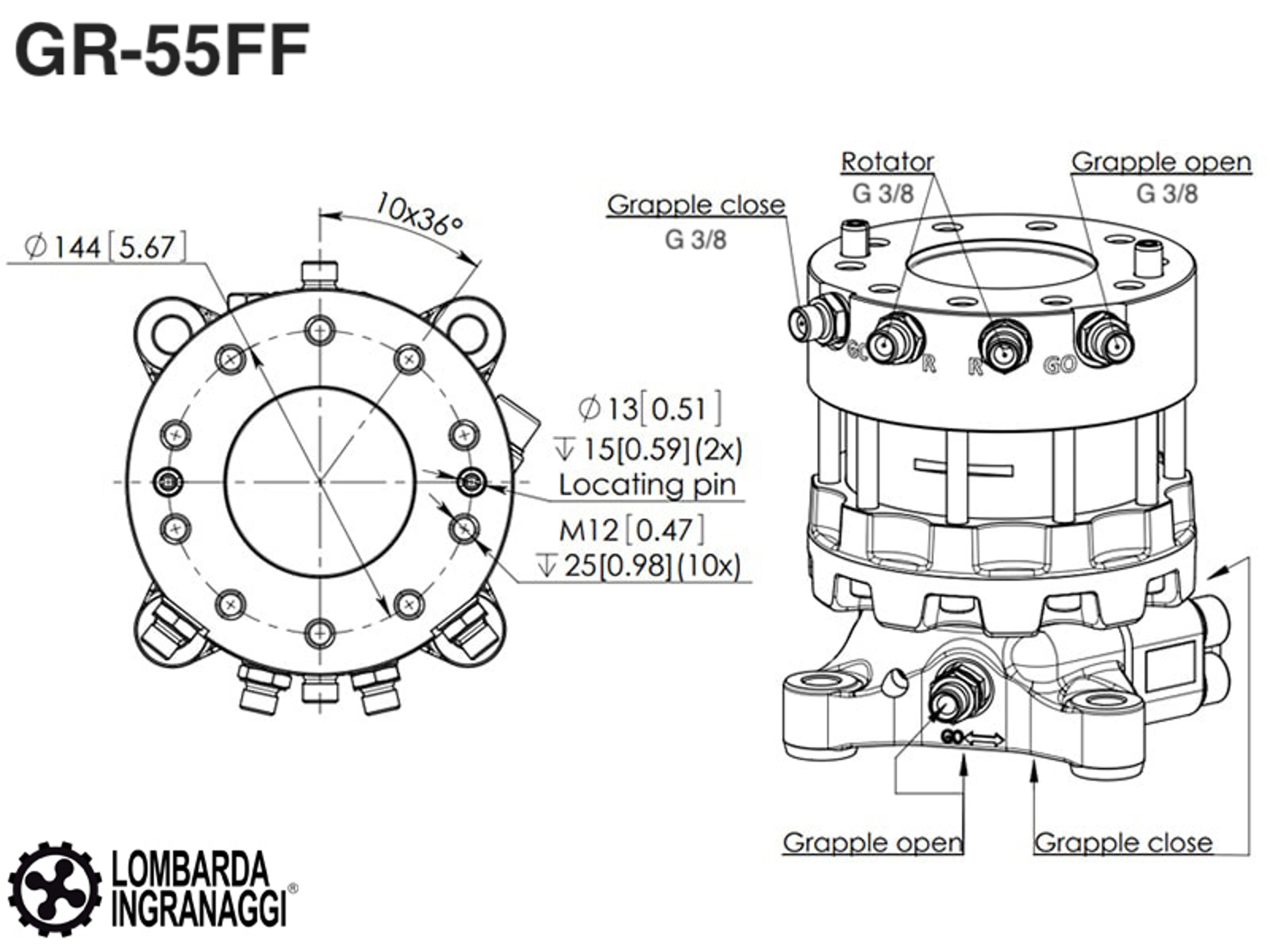

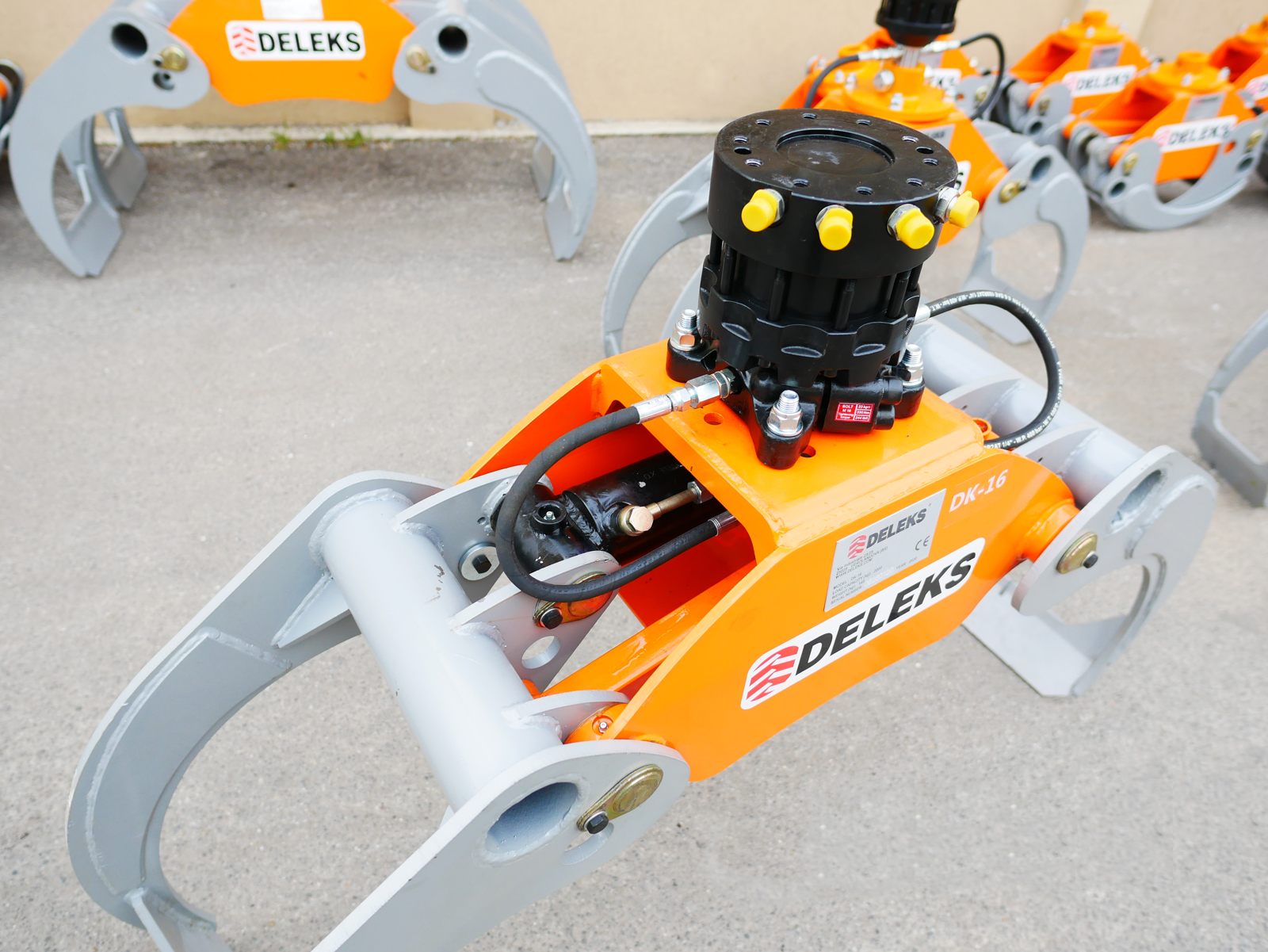

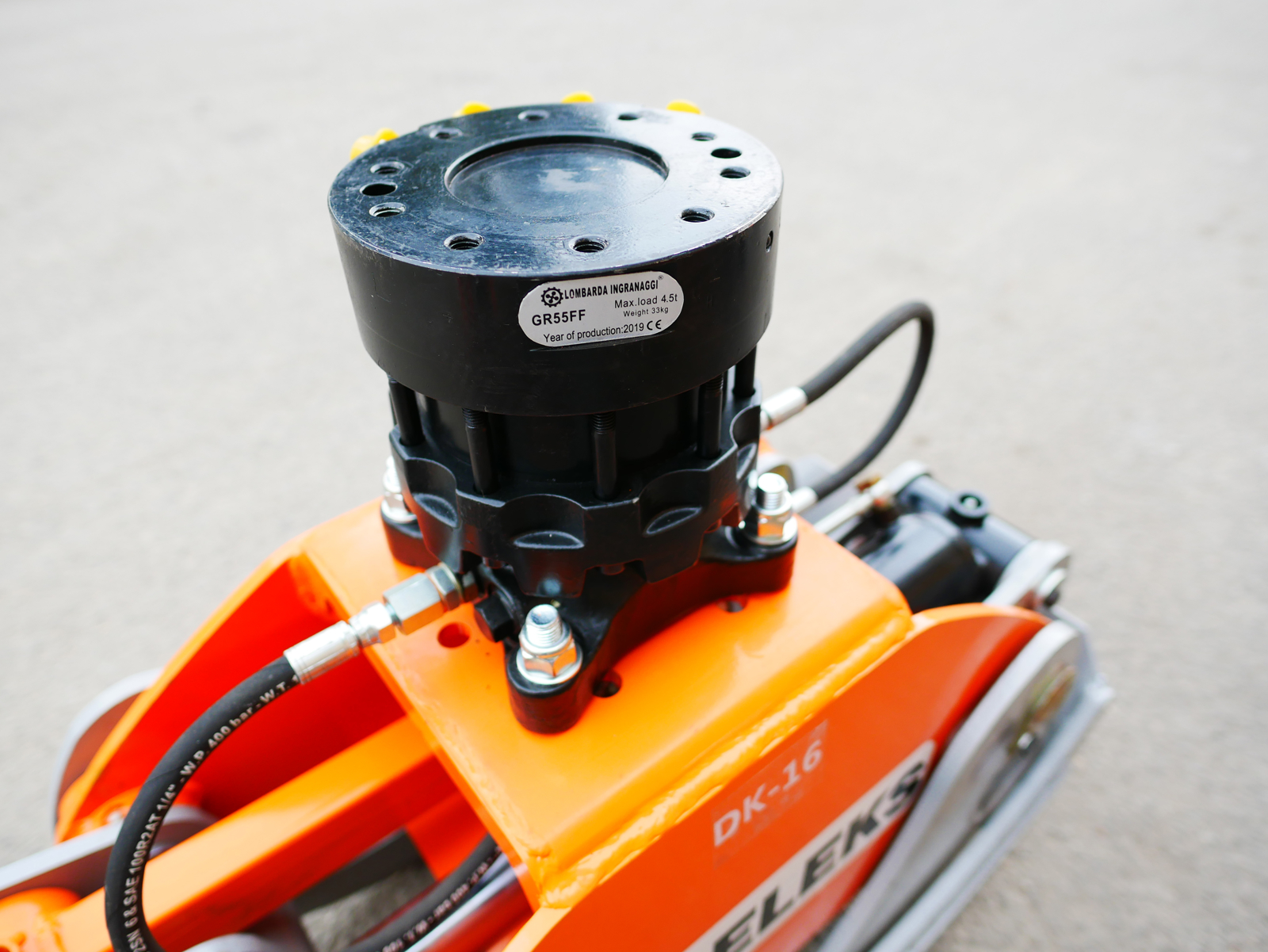

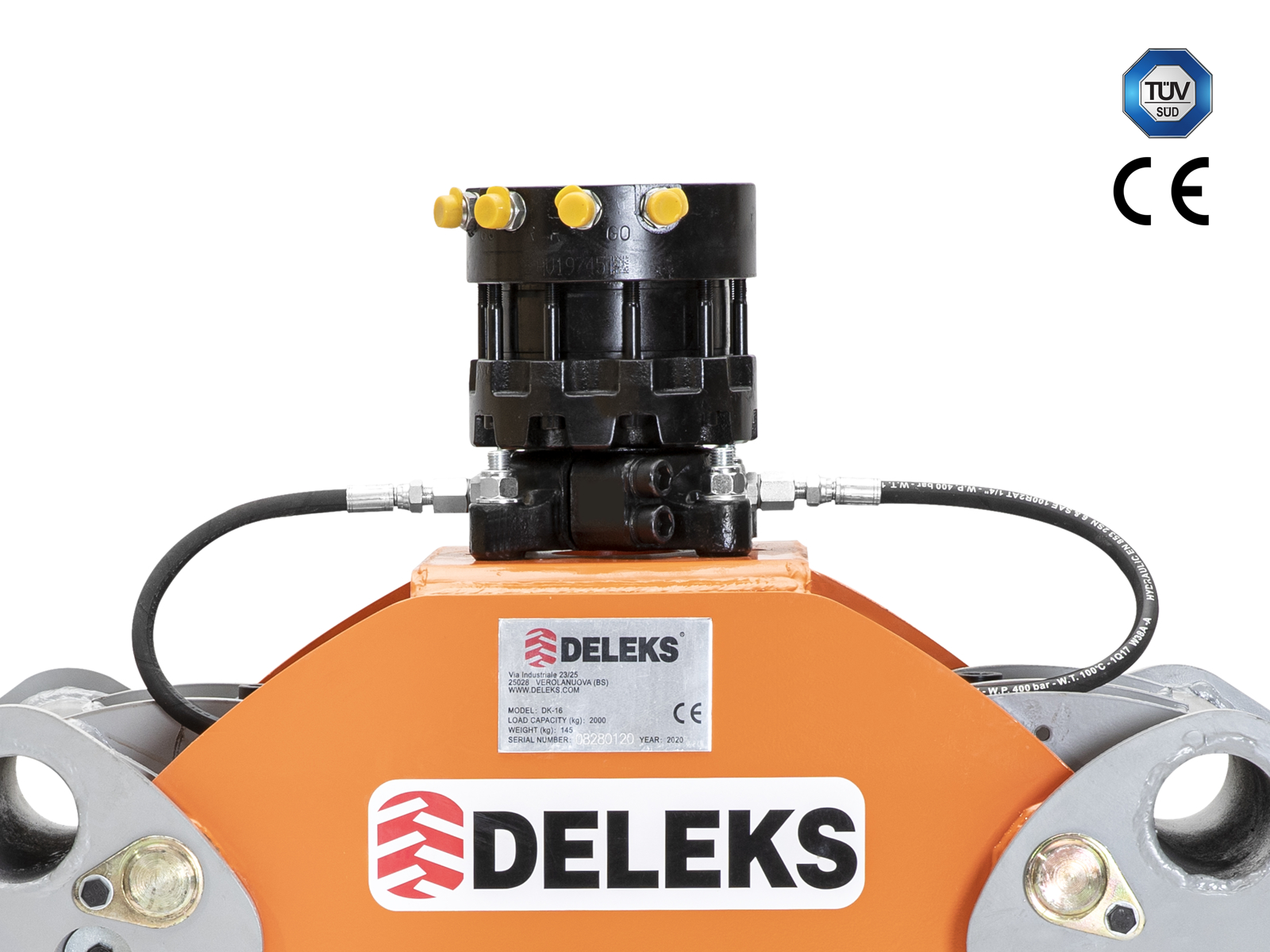

Rotator: Lombarda Ingranaggi® GR55FF rotators are powerful, reliable and robust. They are engineered to perform in heavy duty work environments with maximal efficiency and minimal unscheduled downtime as they have a loading capacity 4500kg. Grapple needs 4 hydraulic outlets to function or additionally, Rexroth Bosh electro-valve 6 ways (made in Germany), can be supplied to reduce the amount of outlets needed to two. EC Conformity, 2 Year Warranty.
BENEFITS & FEATURES
360º continuous rotation.

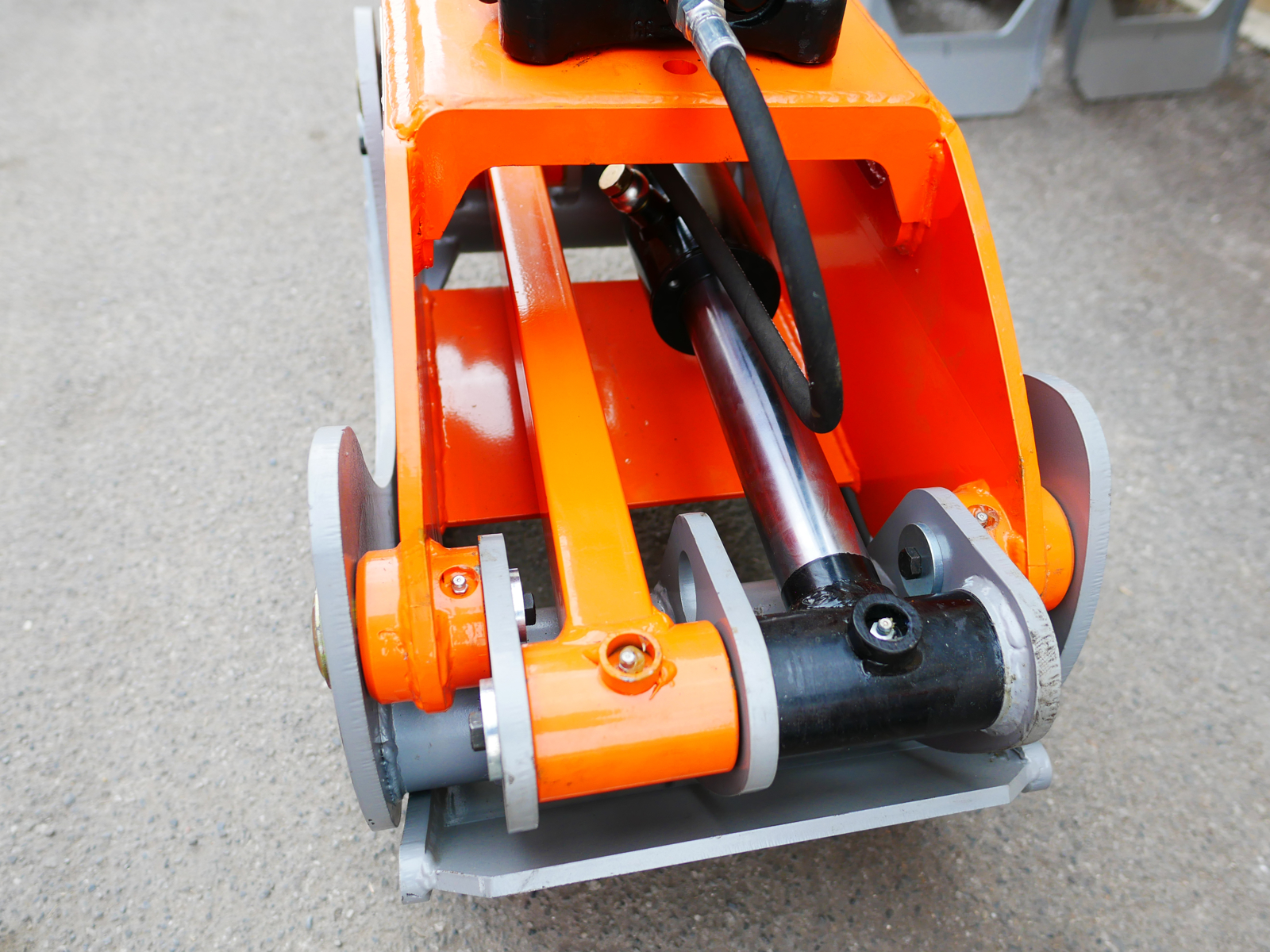

Shut-off valve on the hydraulic cylinder.
Solid steel bolts with bronze bushings.
Thanks to the DK16's unique design it grips timber, boulders or debris tightly.
High quality steel: code S355 (Claws: S700).
High tensile strength, reinforced grapple tines.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Weight | 185.0 kg |
| Load capacity | 2000.0 kg |

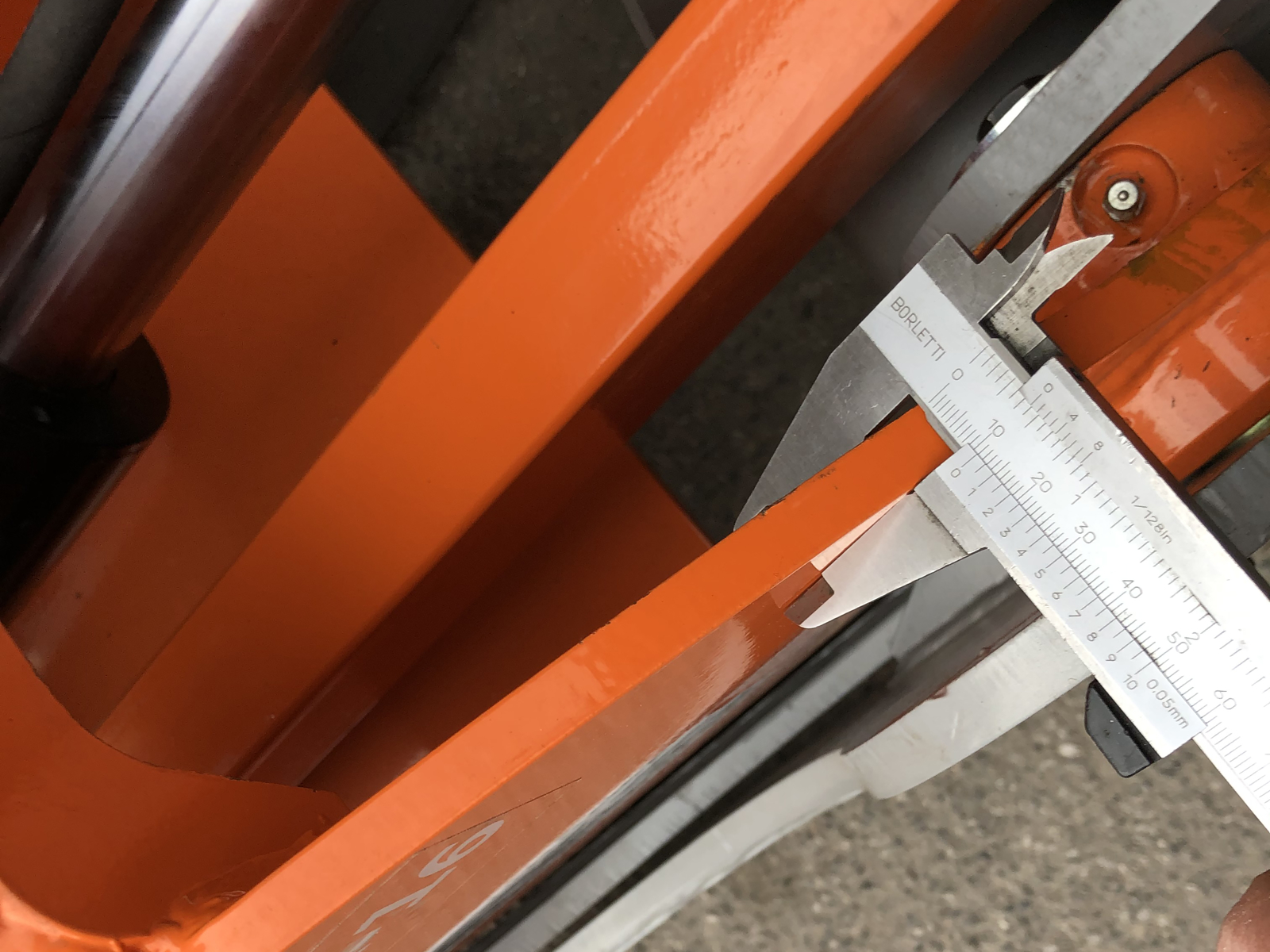

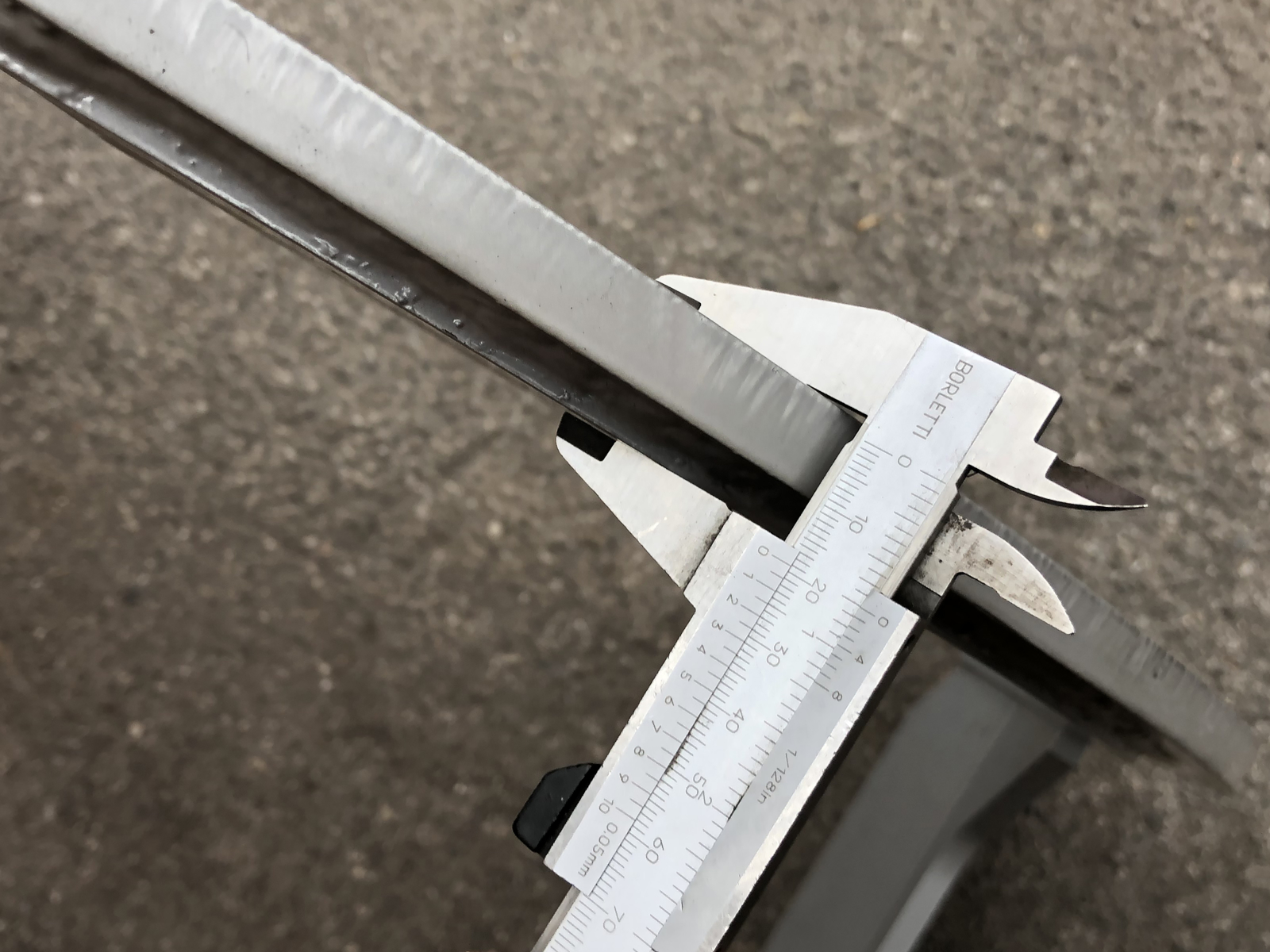

| Main hood thickness | 10.0 mm |
| Min./Max. Relief Pressure | 120 - 150 bar |
| Min./Max. Flow | 18 - 22 l/min |

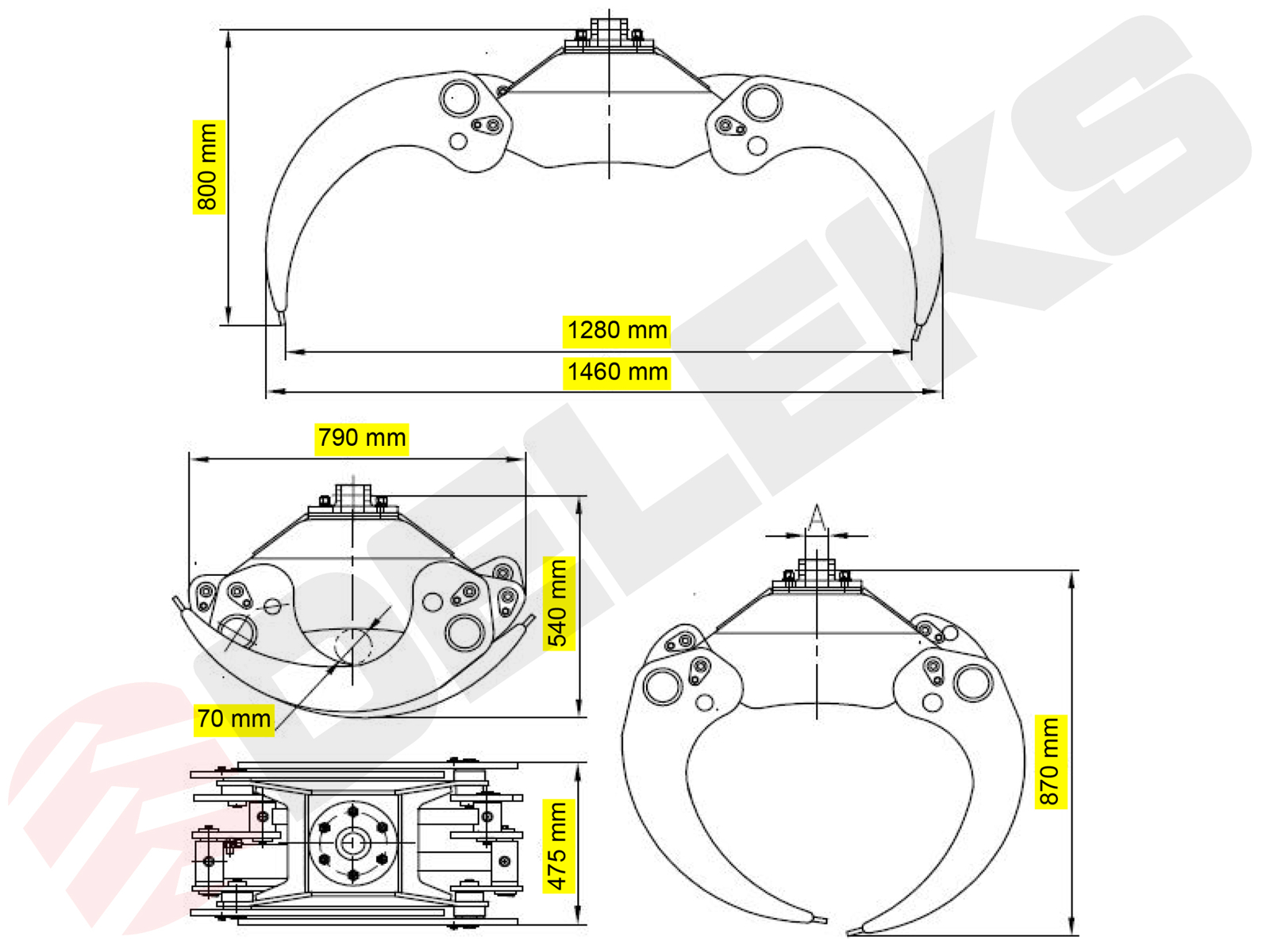

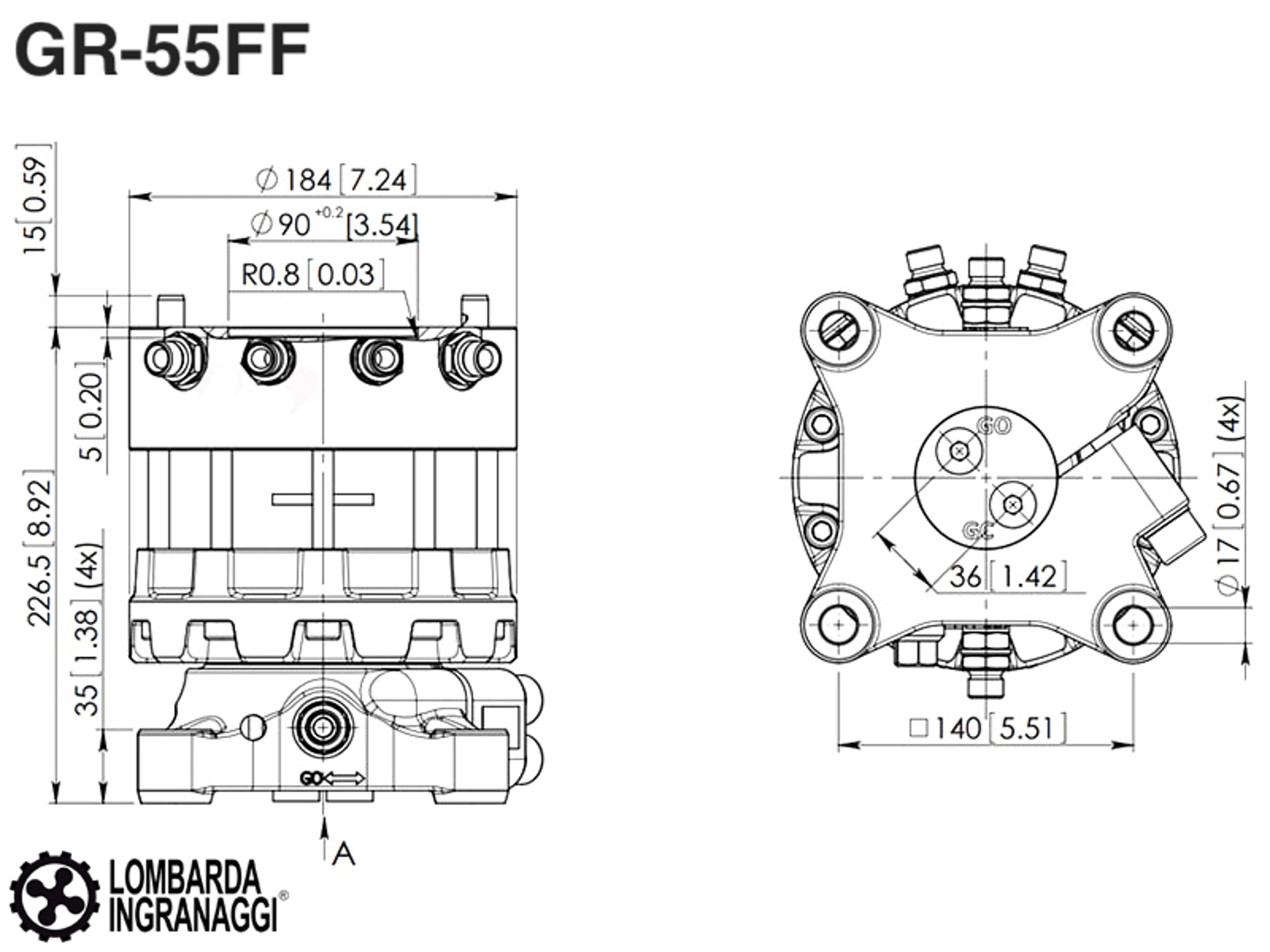

| Other sizes | See pictures |
| Hydraulic Hoses | 400 bar pressure |
| Max Opening | 1280.0 mm |
| Height, grapple open | 990.0 mm |
| Minimum diameter of the log | 40.0 mm |

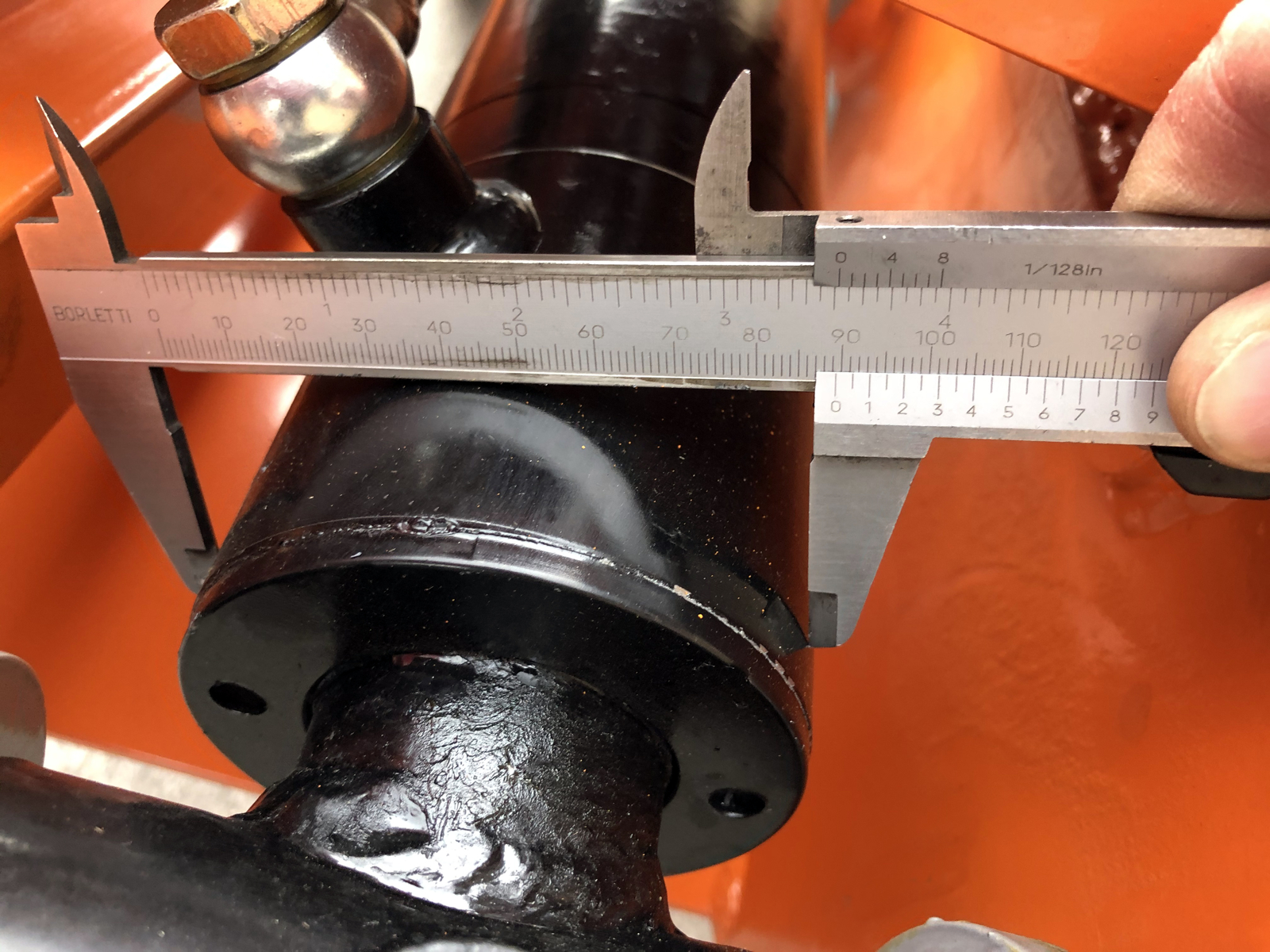

| Hydraulic cilinder diameter | 90.0 - 50.0 mm |
| Max Pressure | 200 Bar |
| Rotator | Lombarda Ingranaggi® GR-55FF (4,5 ton) |
| Compact Excavators Range | 4.0 - 8.0 ton |
| Packing sizes | 1200.0*800.0*500.0 mm |
DETAILS
CLOSELog Grapple for Mini Diggers and Forest Cranes 4.0 – 8.0 Ton DELEKS® DK-16 + Lombarda Ingranaggi® Rotator
OVERVIEW
Perfect for carrying logs and timber around your farm or park.
Maximum load 2000.0 kg.
Gripping force: 11.1KN
Fits all mini diggers/excavators e.g Bobcat, Case, Caterpillar, Ihimer, JCB, Komatzu, Yanmar, Hitachi.
Rotator: Lombarda Ingranaggi® GR55FF rotators are powerful, reliable and robust. They are engineered to perform in heavy duty work environments with maximal efficiency and minimal unscheduled downtime as they have a loading capacity 4500kg. Grapple needs 4 hydraulic outlets to function or additionally, Rexroth Bosh electro-valve 6 ways (made in Germany), can be supplied to reduce the amount of outlets needed to two. EC Conformity, 2 Year Warranty.
BENEFITS & FEATURES
360º continuous rotation.
Shut-off valve on the hydraulic cylinder.
Solid steel bolts with bronze bushings.
Thanks to the DK16's unique design it grips timber, boulders or debris tightly.
High quality steel: code S355 (Claws: S700).
High tensile strength, reinforced grapple tines.
CHARACTERISTICS
CLOSE| Characteristic | Units metric |
|---|---|
| Weight | 185.0 kg |
| Load capacity | 2000.0 kg |
| Main hood thickness | 10.0 mm |
| Min./Max. Relief Pressure | 120 - 150 bar |
| Min./Max. Flow | 18 - 22 l/min |
| Other sizes | See pictures |
| Hydraulic Hoses | 400 bar pressure |
| Max Opening | 1280.0 mm |
| Height, grapple open | 990.0 mm |
| Minimum diameter of the log | 40.0 mm |
| Hydraulic cilinder diameter | 90.0 - 50.0 mm |
| Max Pressure | 200 Bar |
| Rotator | Lombarda Ingranaggi® GR-55FF (4,5 ton) |
| Compact Excavators Range | 4.0 - 8.0 ton |
| Packing sizes | 1200.0*800.0*500.0 mm |
