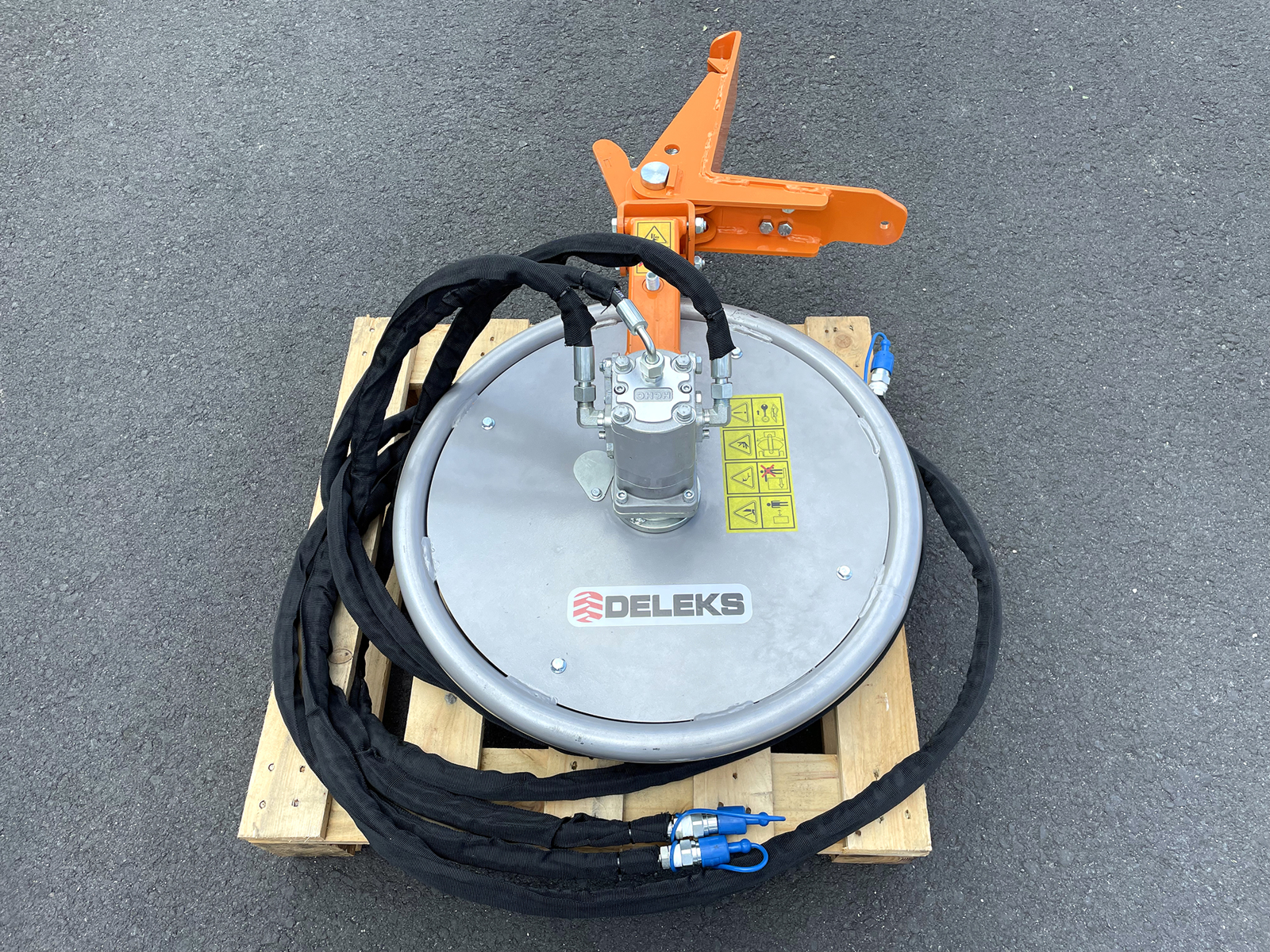

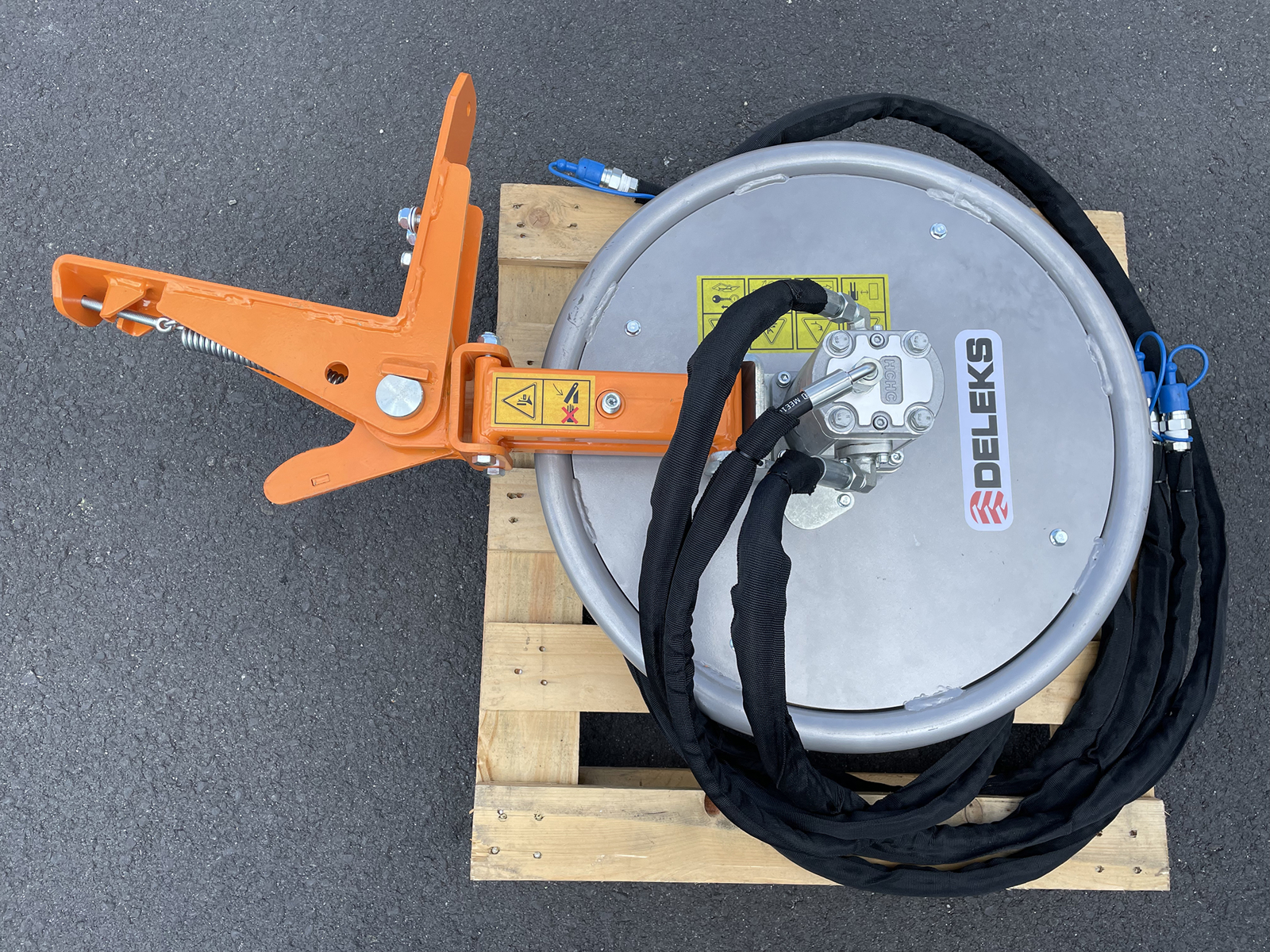

Universal Inter-row disc for mowers - 3 hydraulic pipes

DELEKS^® Inter-row head, cleans around the stems of crop plants and in gaps among them, without damaging the crop plants themselves.

The DISC-603 can be mounted on any mowers brand. It has also proven itself in the maintenance of photovoltaic systems and when mulching under fences.

It is built particularly low and has a smooth surface so that it can slide under fruit-covered branches or under solar panels.

Cutter disc with a mechanical swing device.

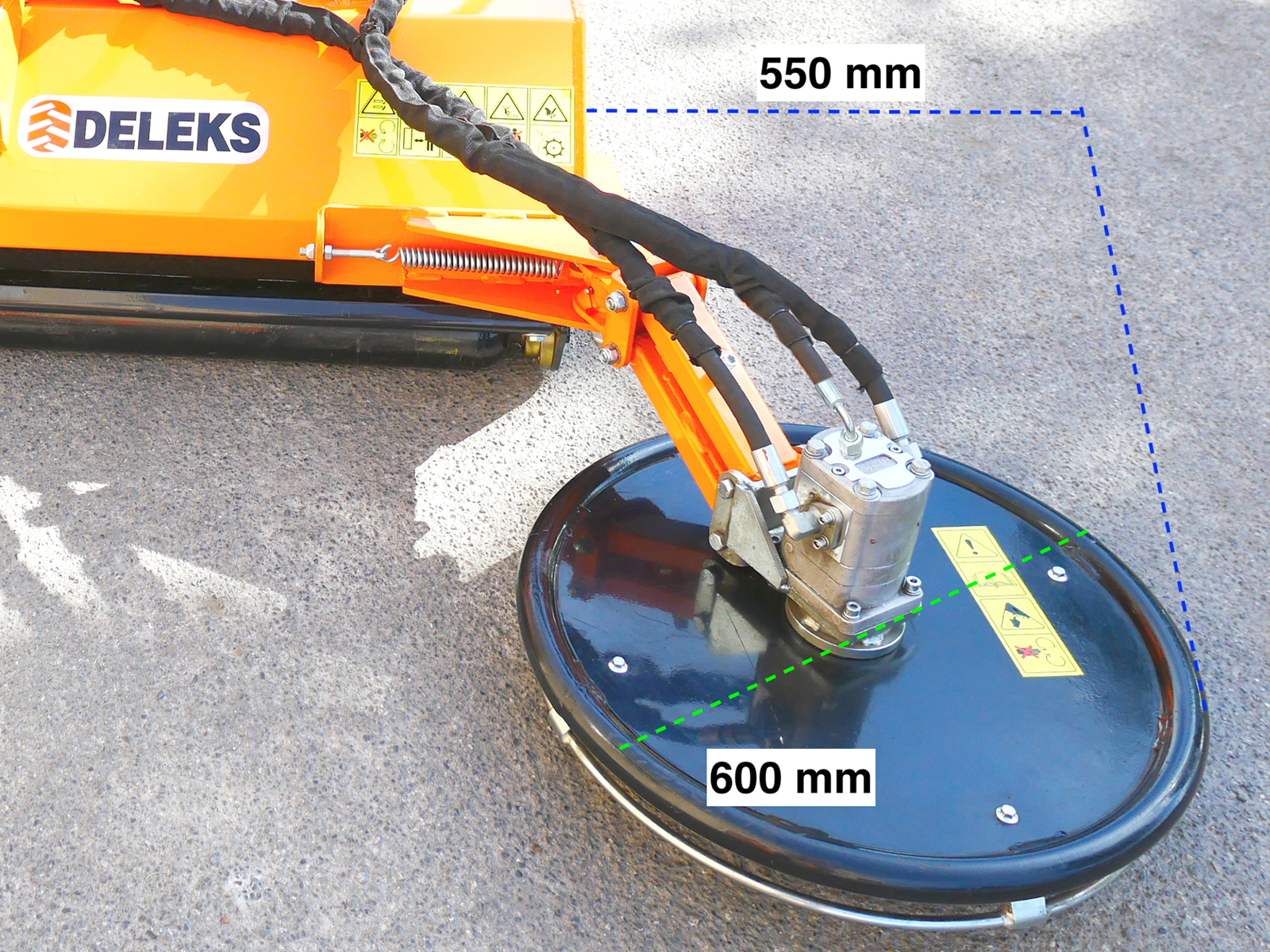

Disc diameter of Ø 600 mm.

Weight: 45kg

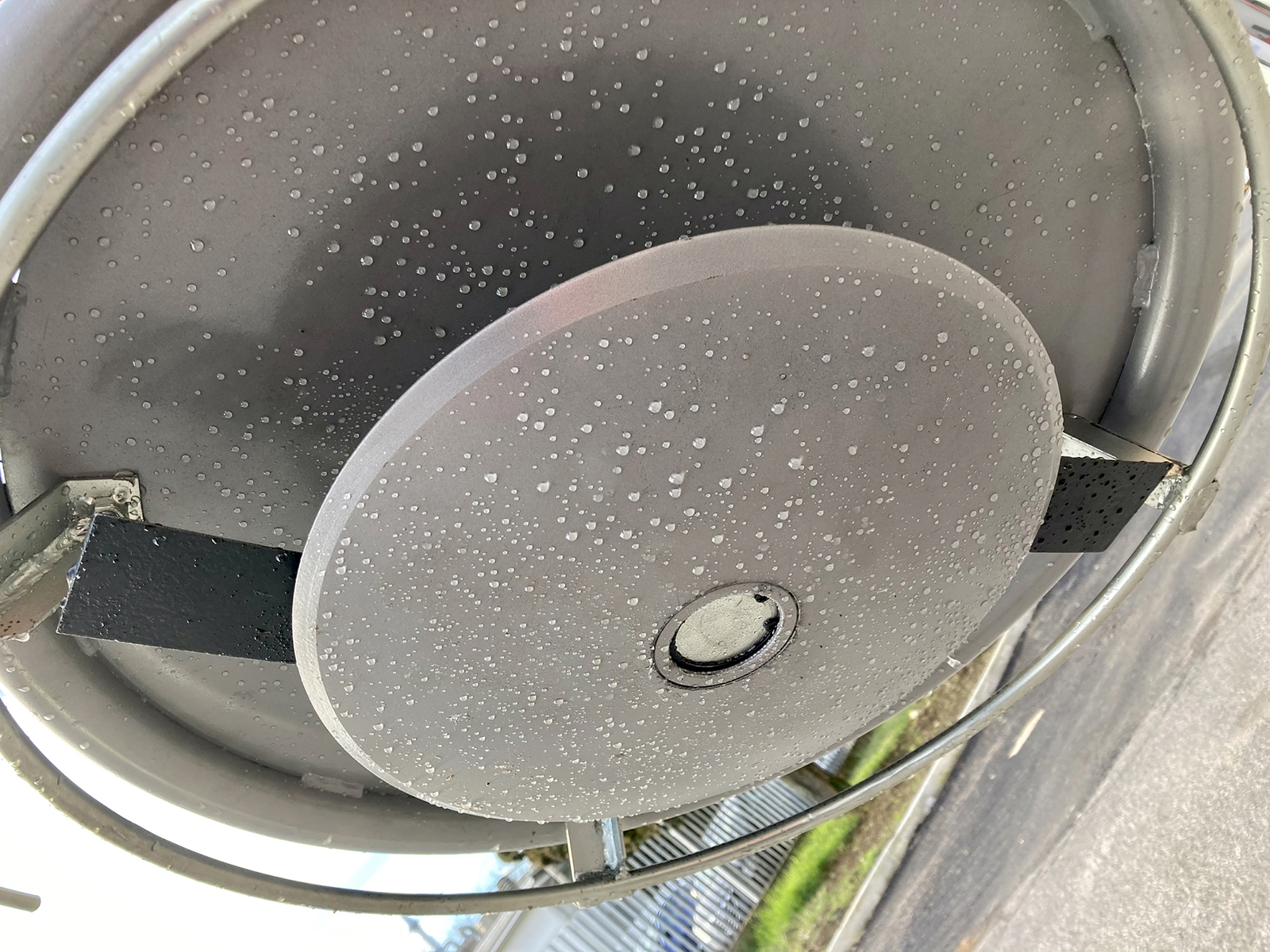

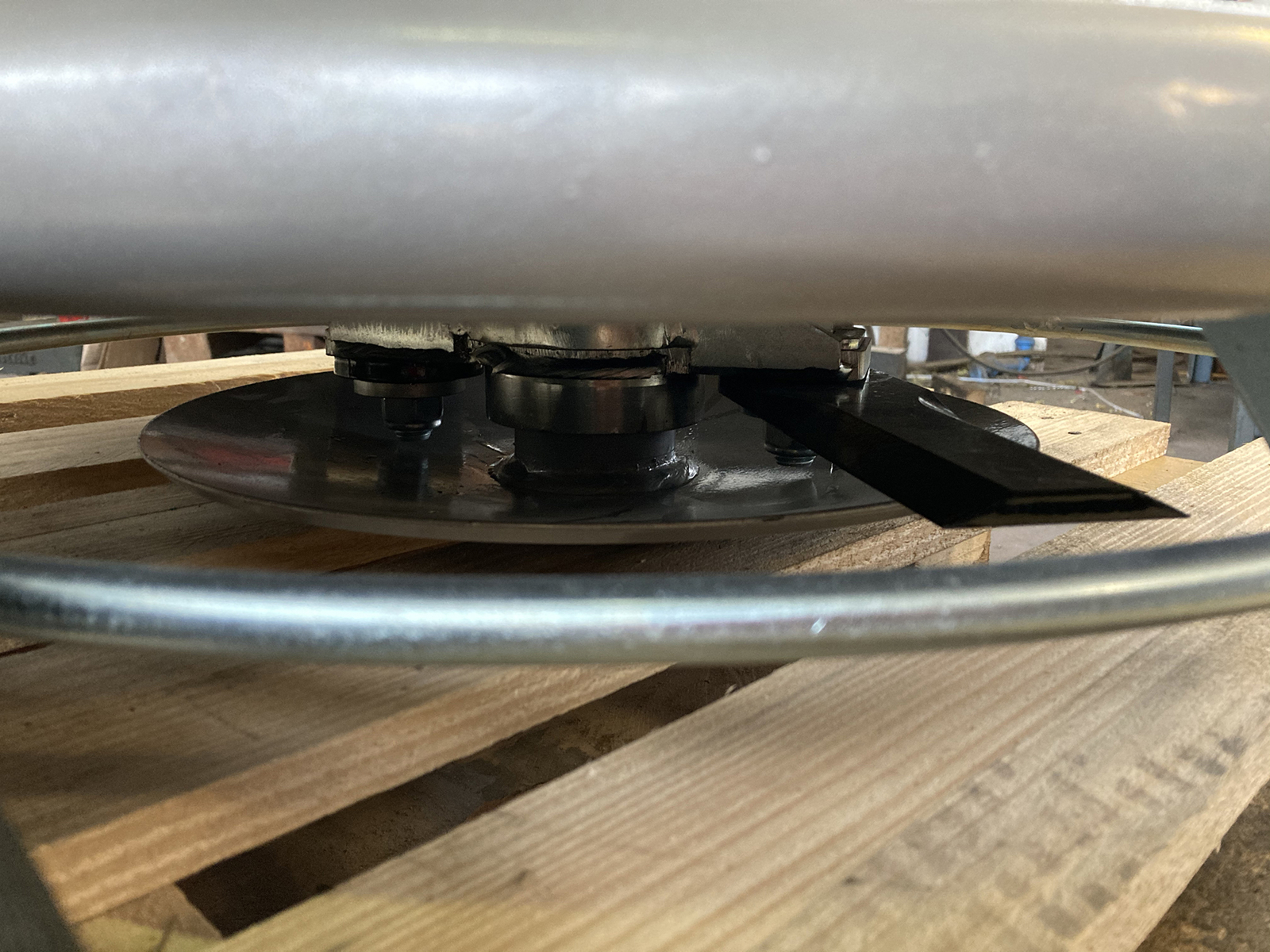

2 horizontal blades and levelling disc.

MAX OIL FLOW: 30 l/min

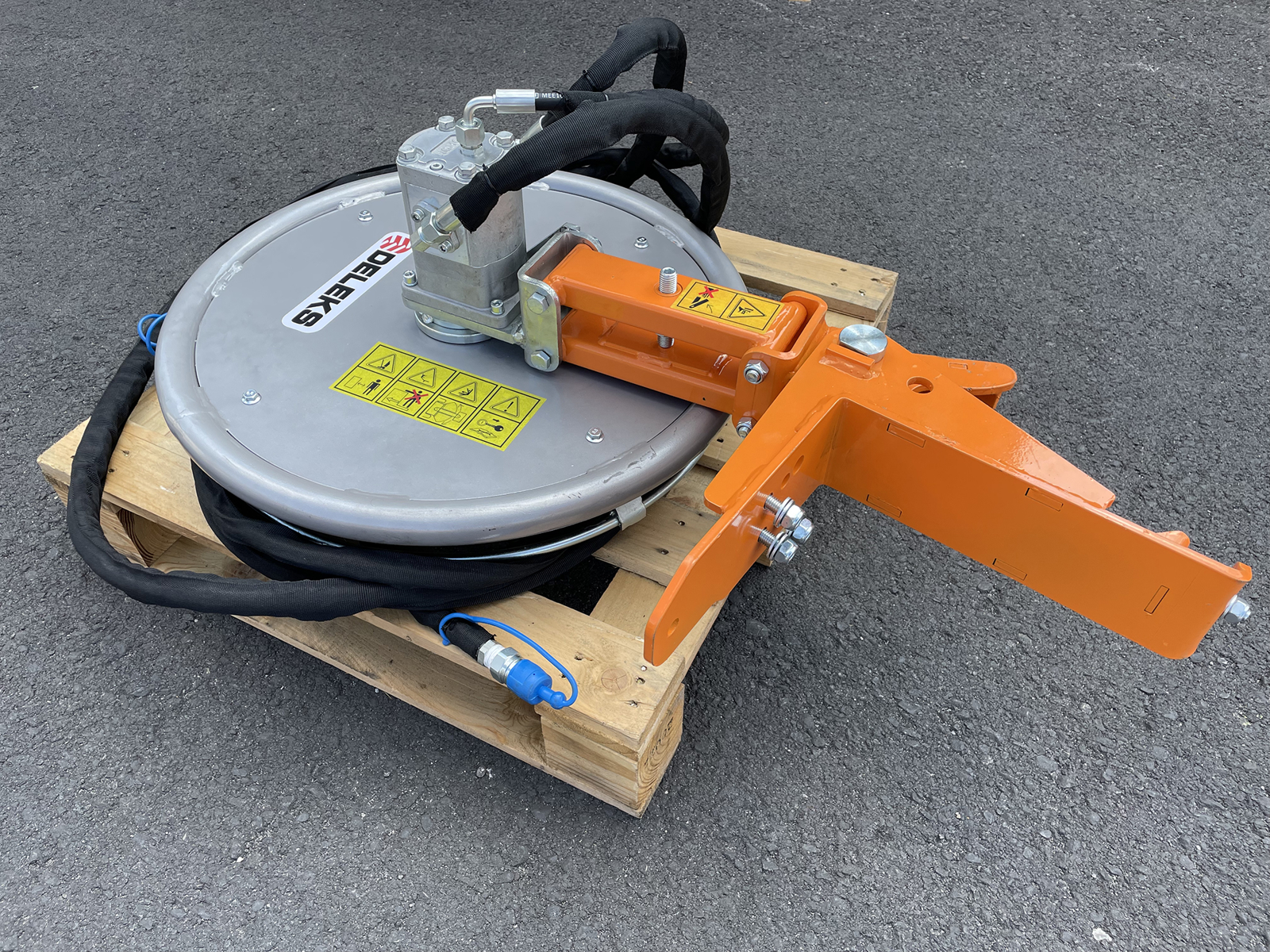

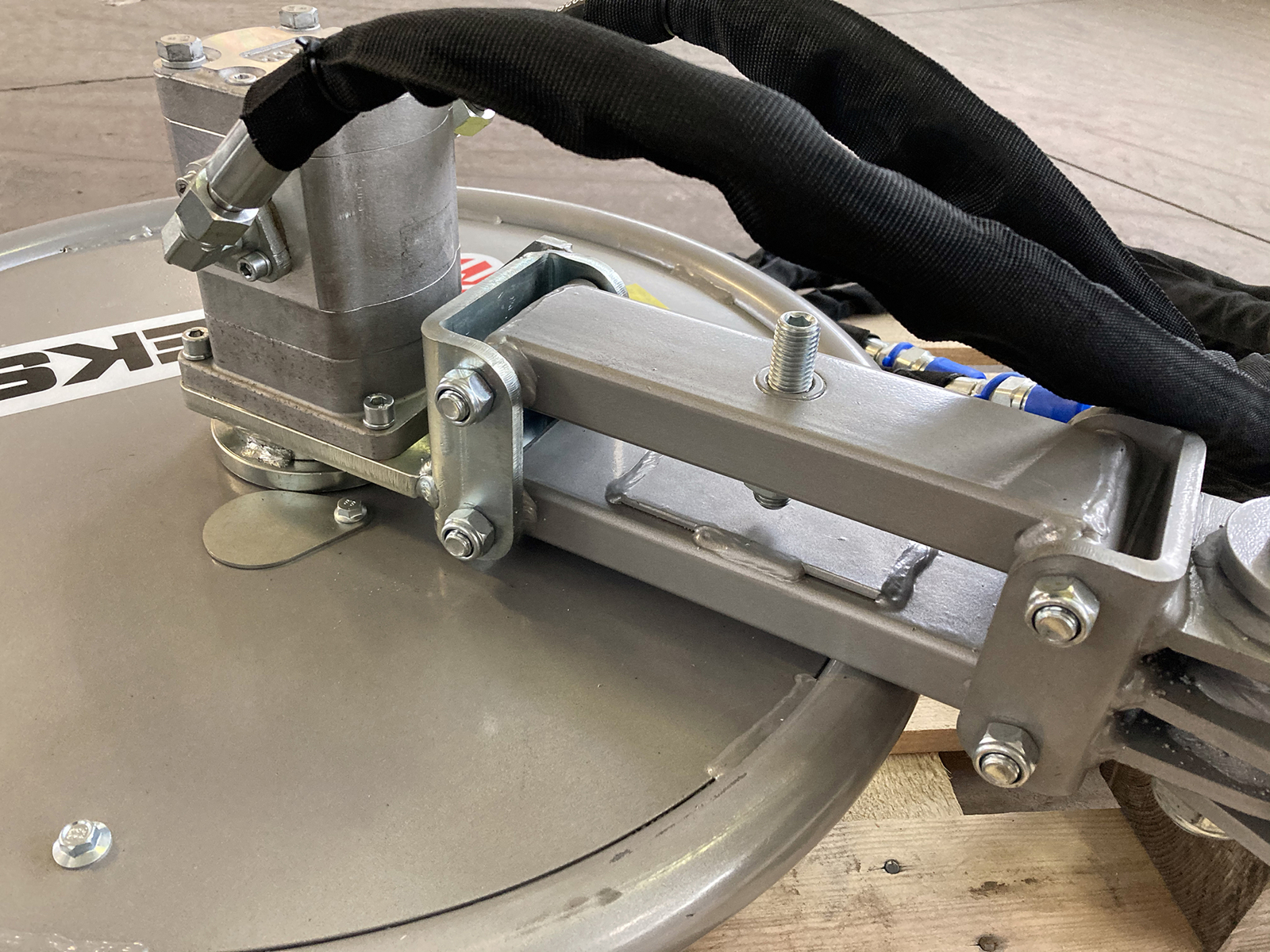

The attachment to the flail mower is composed by a parallel guide system, the base of the disc is leveling; these elements allow the disk to float and follow the uneven ground surface.

The angle of the inter-row cutter disk can be adjusted in order to cut the edges of embankments and drainage channels.

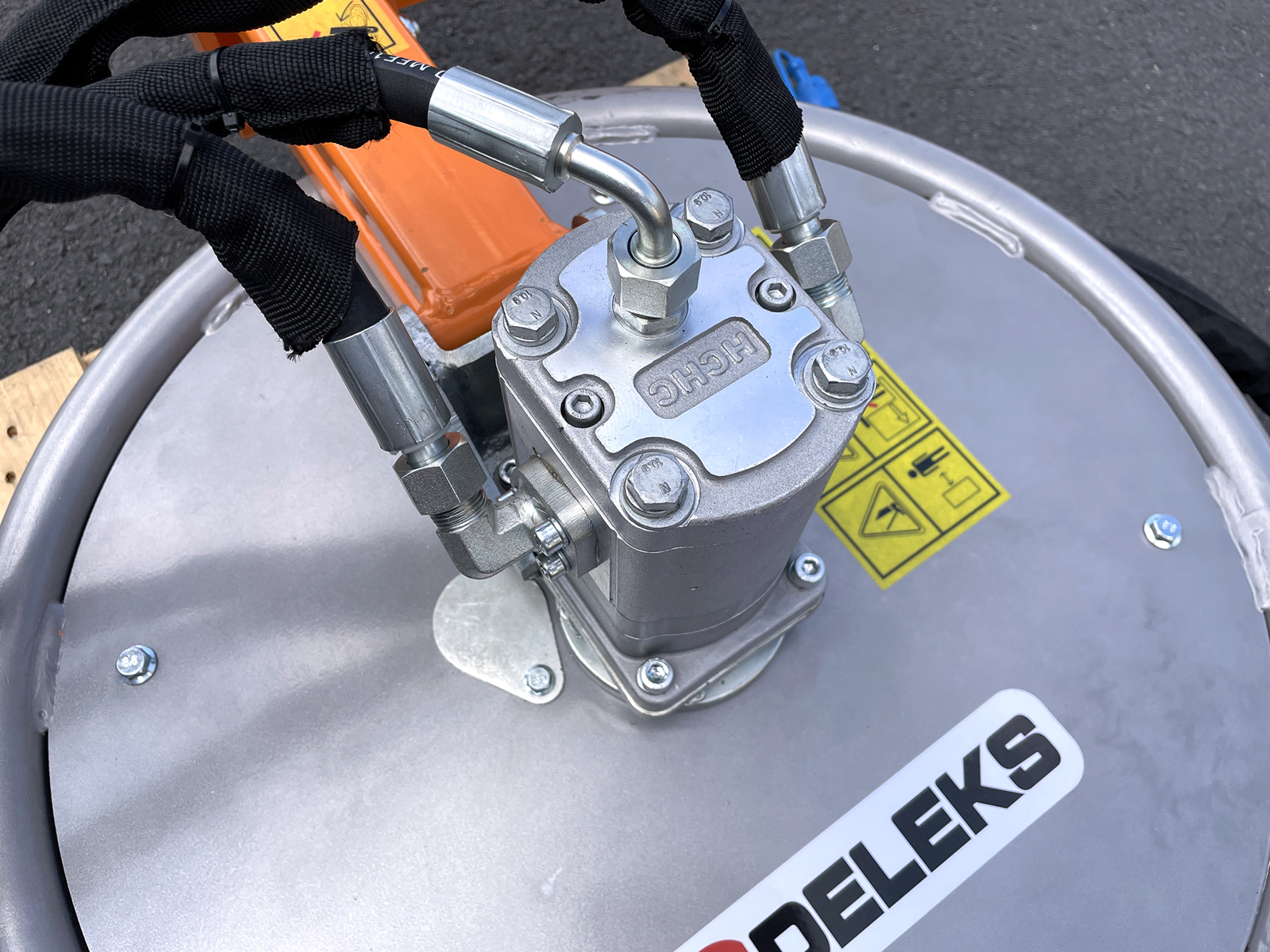

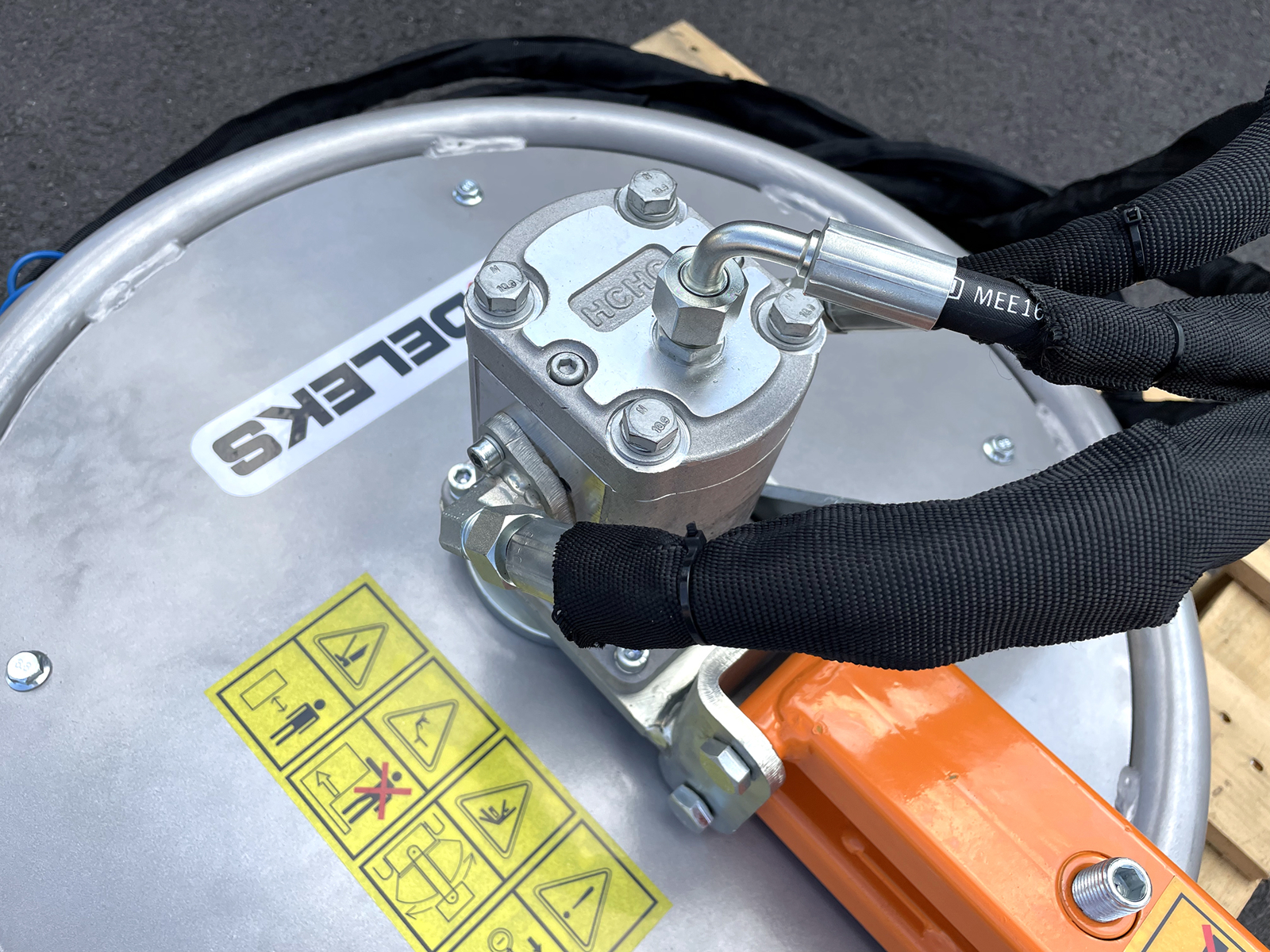

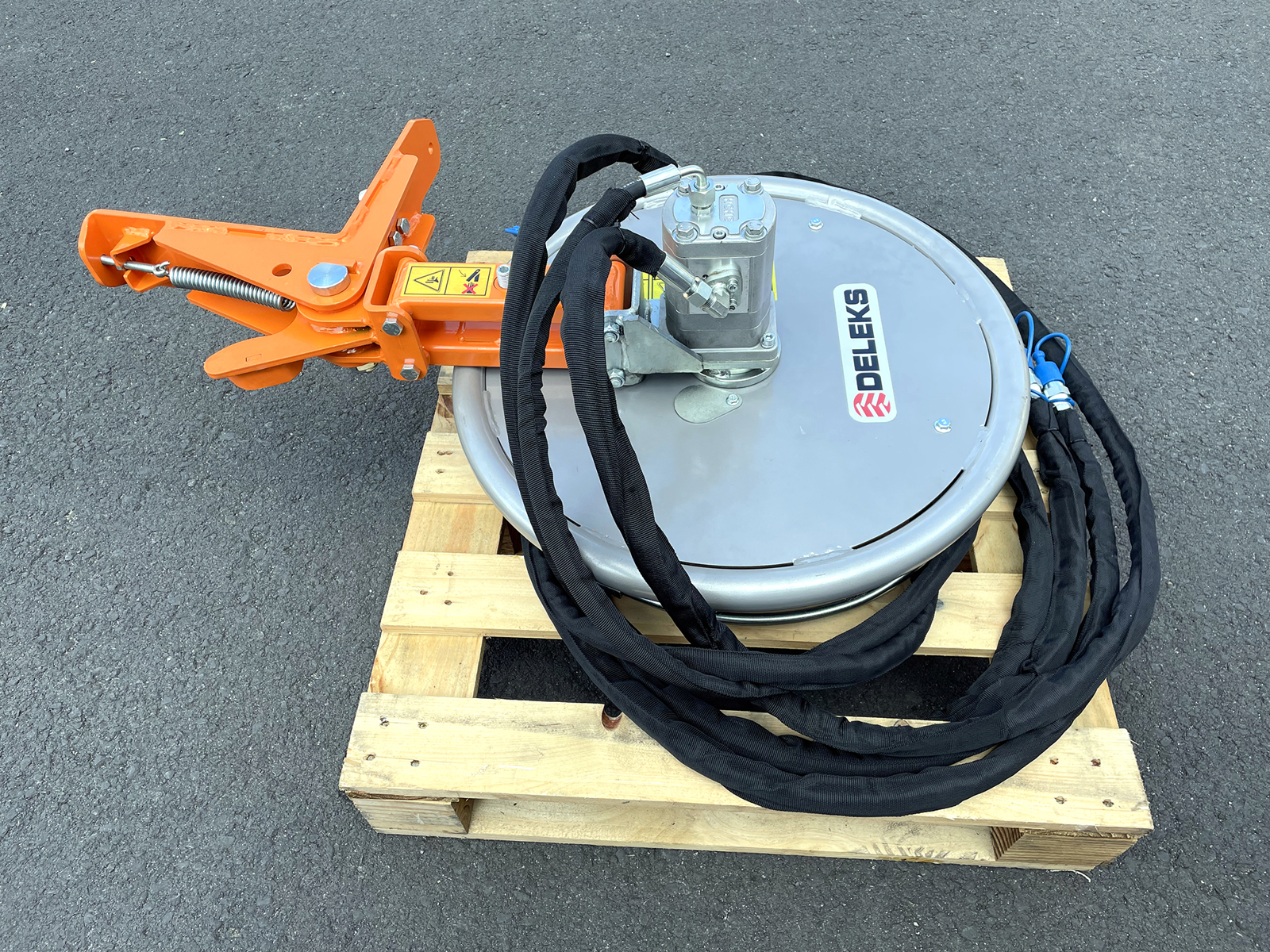

Hydraulic motor (30 l/min) with 3 hoses 4,0 m and quick couplings ½” AGRI standard (the third tube is for drainage).

Full guard along the perimeter.

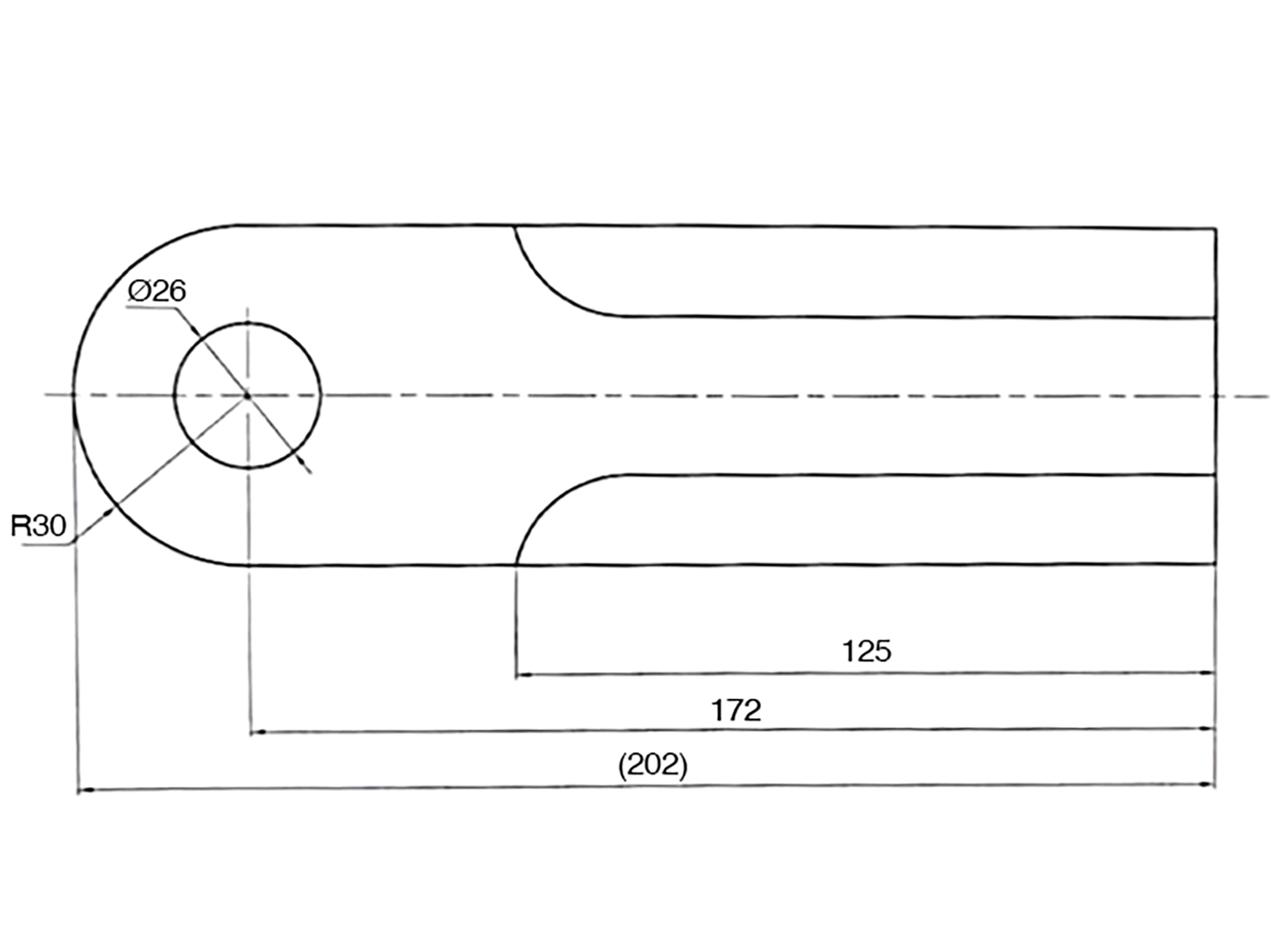

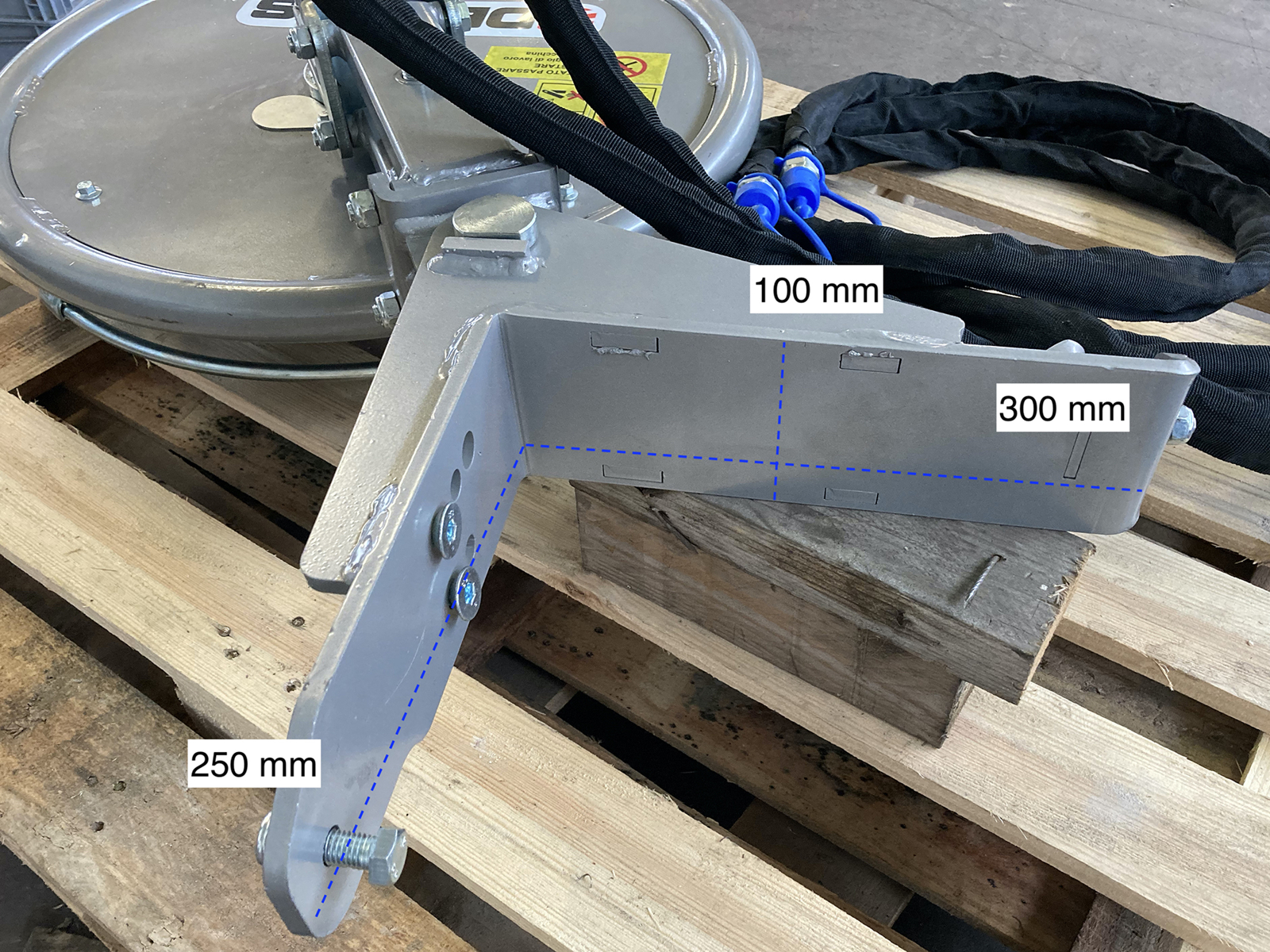

Ideal for any kind of mulcher: the images show the measurements and distances between the holes for attaching it to the right side of the shredder.

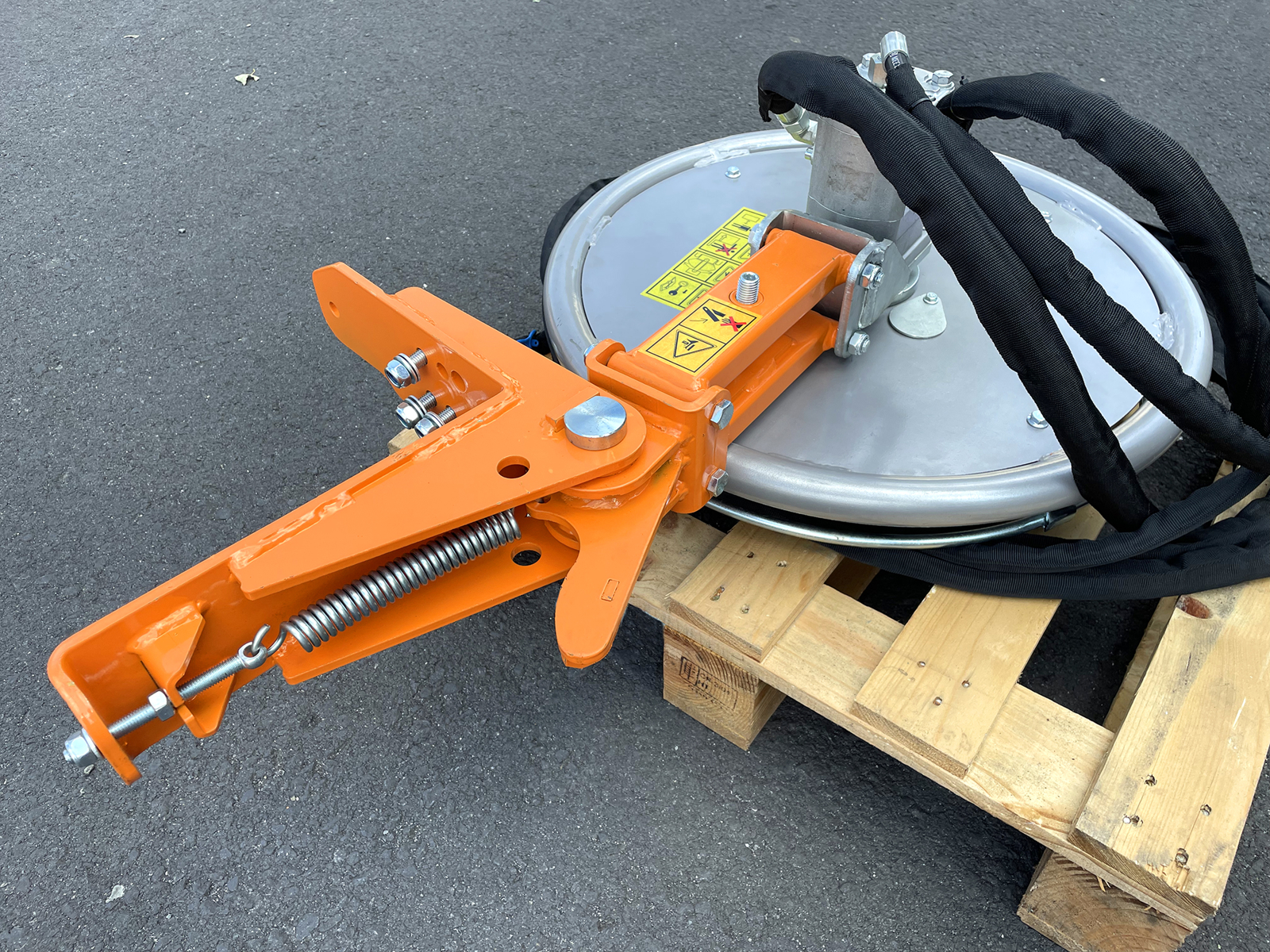

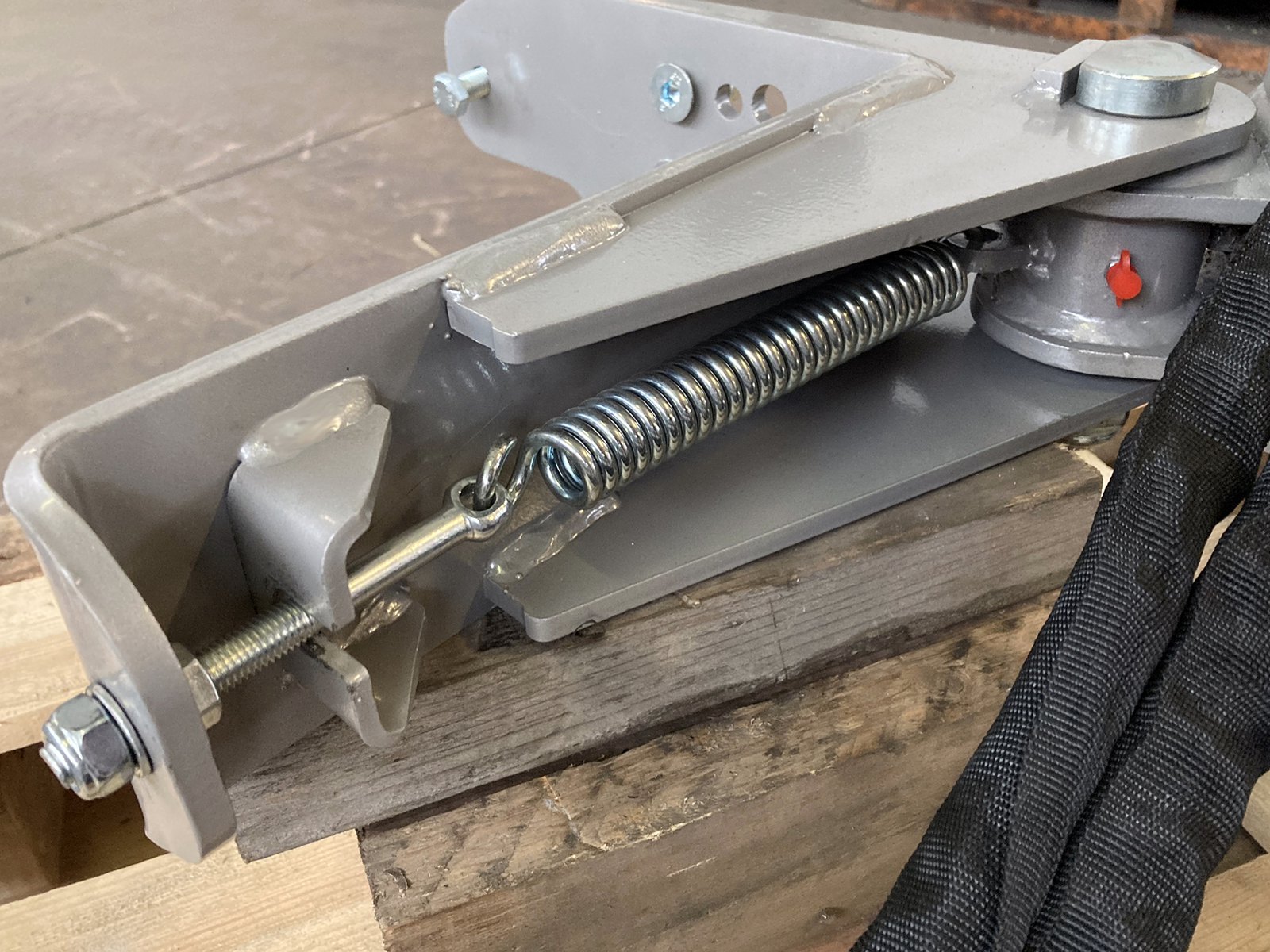

Swing device through adjustable coil-spring: the left and right movement of the disc can be set: rigid or softer, accordingly to the type of plants by which you need to work.

By inverting the attachment can also be mounted on the left side. Consequently, by purchasing 2 DISC-603s it is possible to obtain a Double inter-row system on your shredder: on the right and left of the machine.

Documentation supplied with this article:

Invoice or Receipt

CE Conformity

Maintenance Manual
