Hydrostatic Crawler Mini Dumper, side discharge, Briggs&Stratton engine, E-start
DETAILS

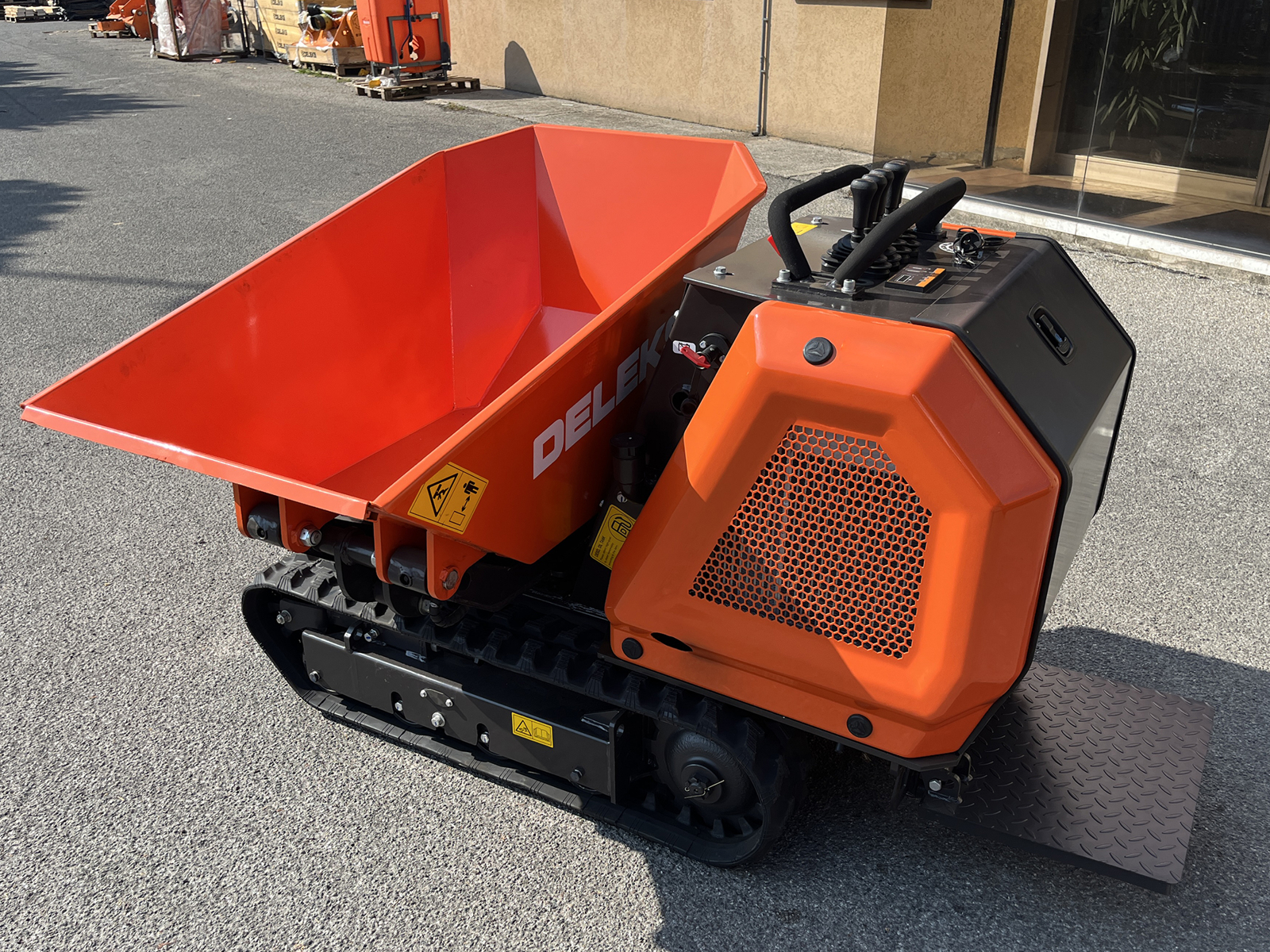

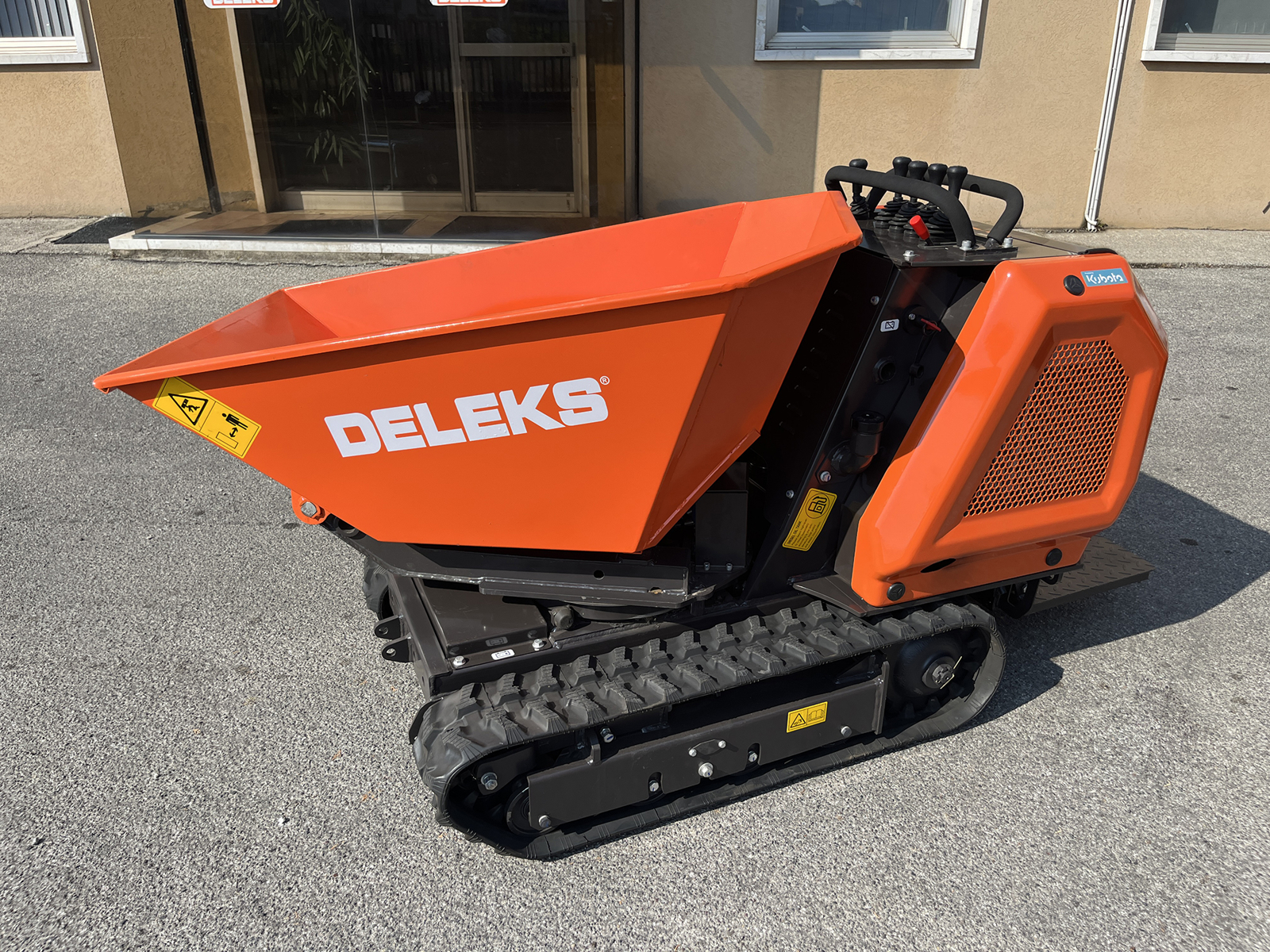

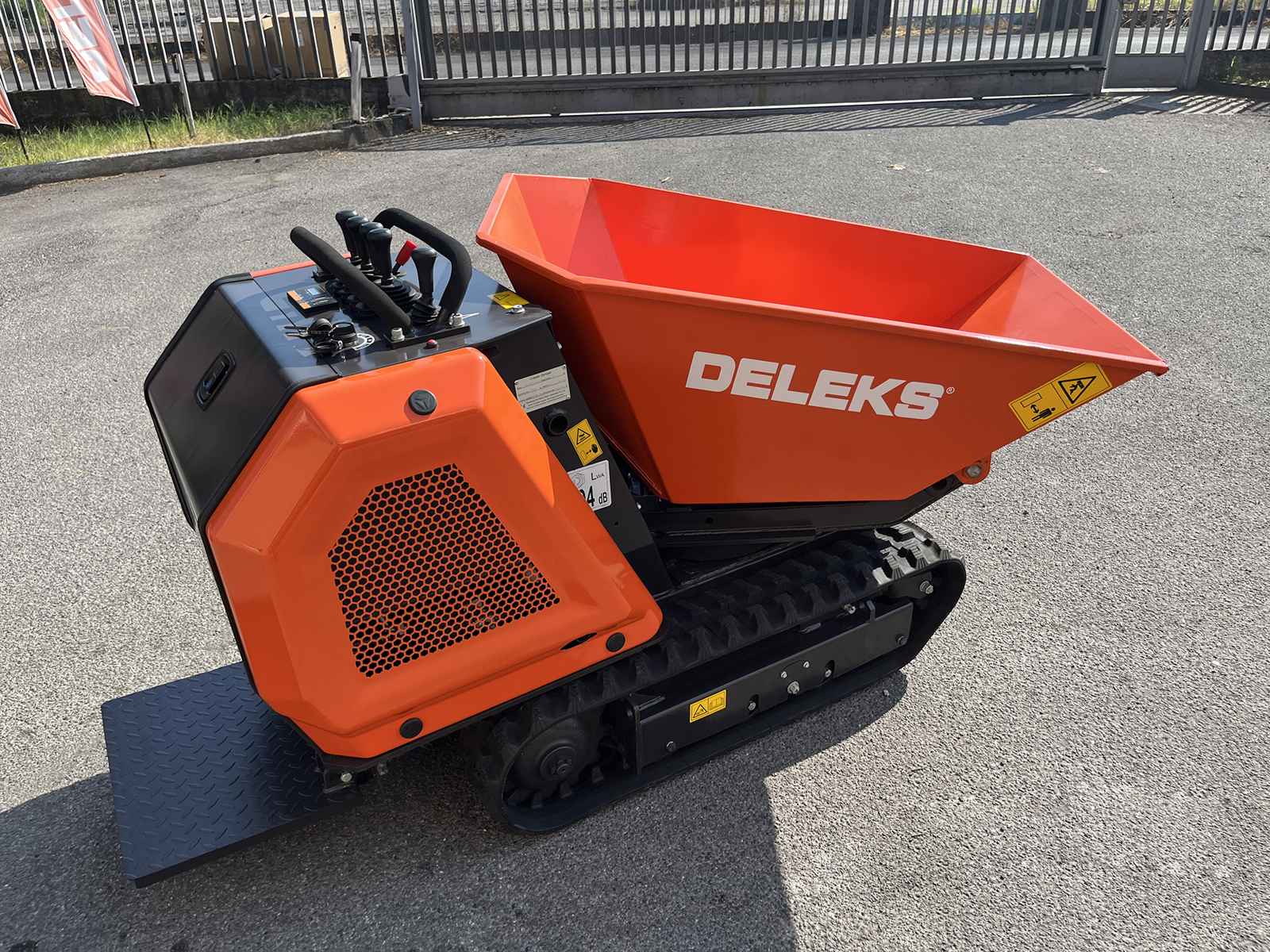

DELEKS® M8000R-BS professional tracked mini dumper with 180° three-way discharge, hydraulic lift and rotation, hydrostatic transmission, operator platform and Briggs & Stratton engine with electric start.
Compact high-performance mini dumper designed for material handling in tight areas, with controlled side discharge to the left or right.
PRODUCT DESCRIPTION
The DELEKS® M8000R-BS is a specialised version of the M8000 range, developed for professional jobs where controlled side discharge is a real advantage compared to front-only tipping.

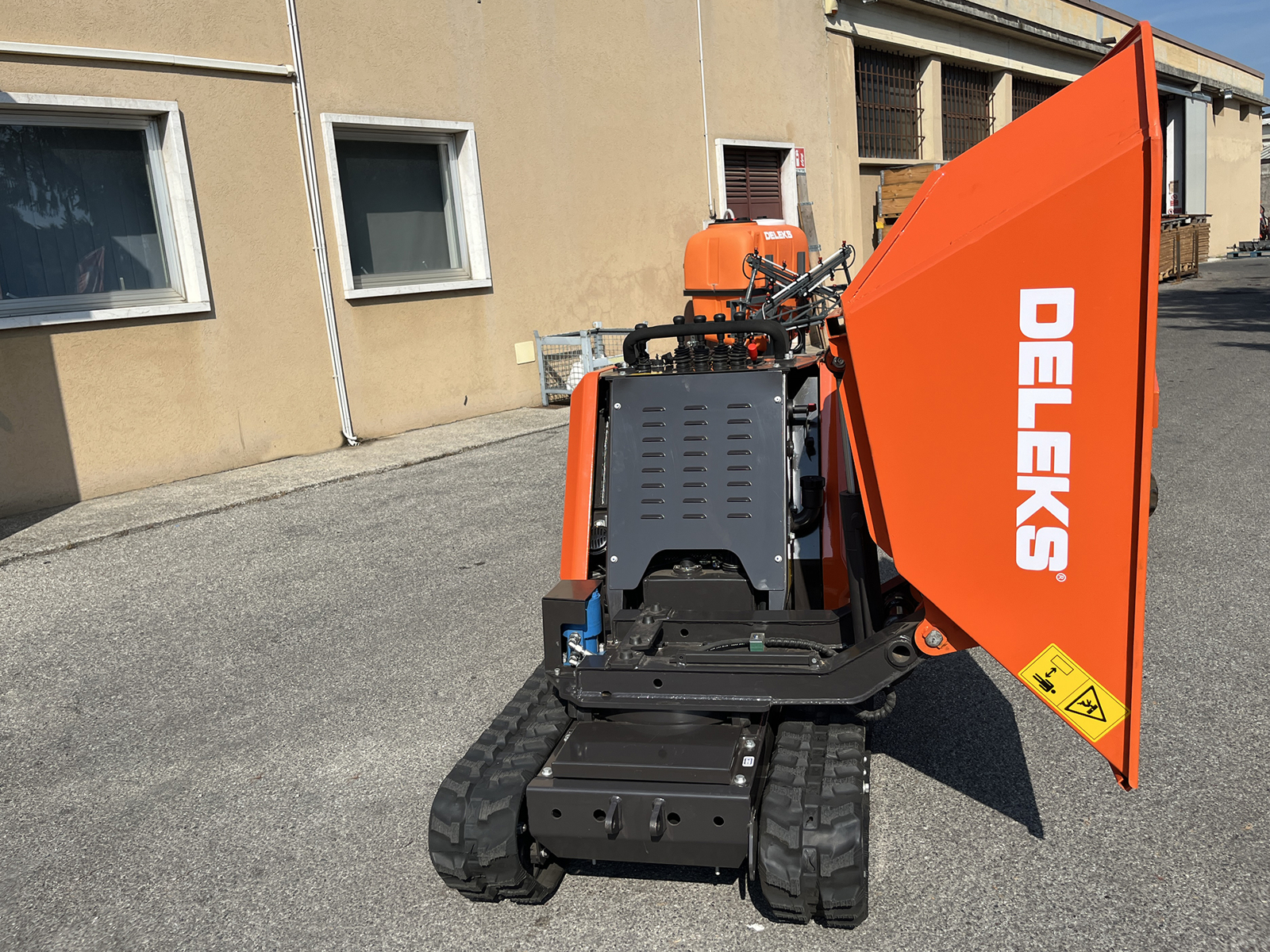

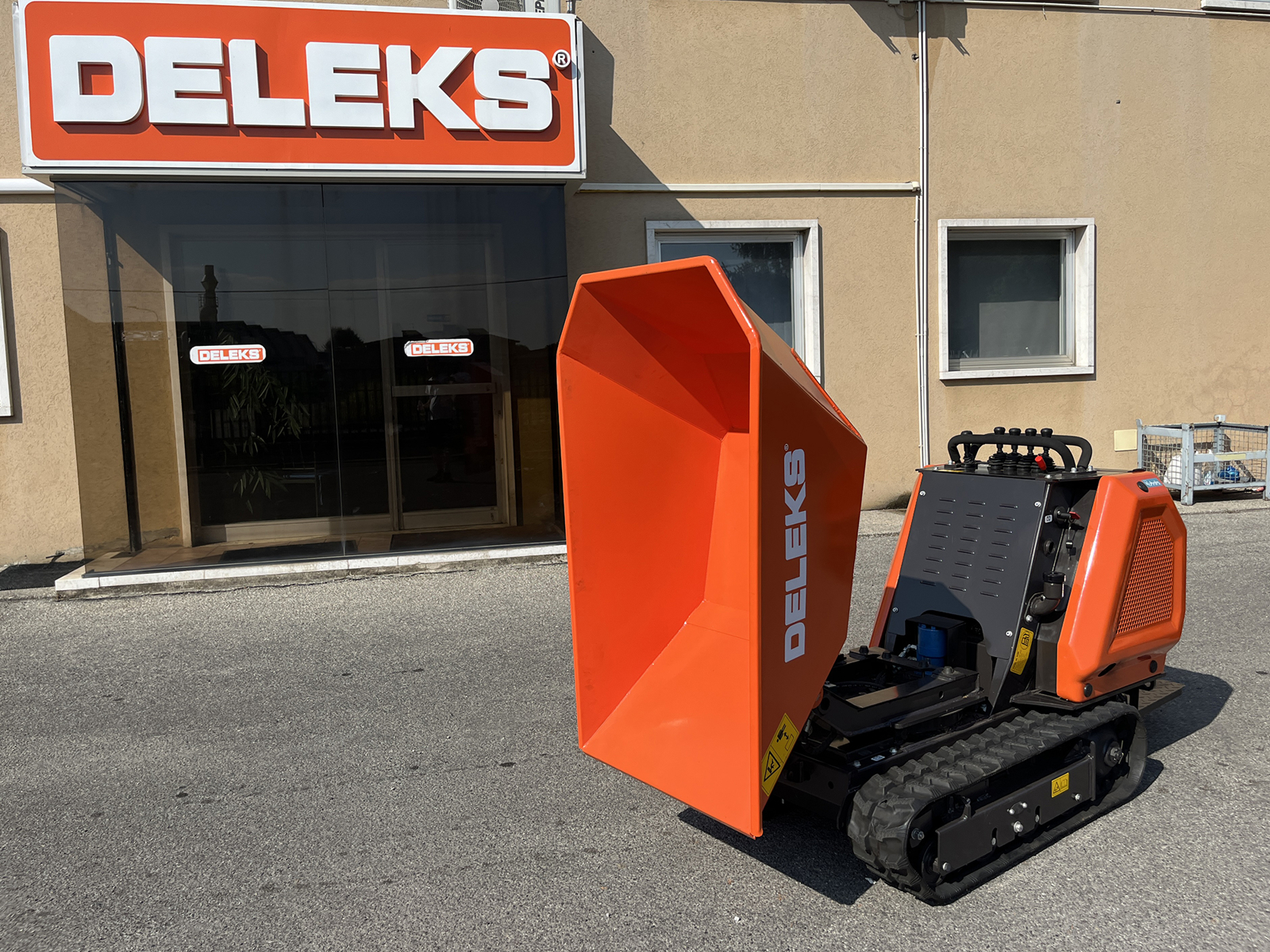

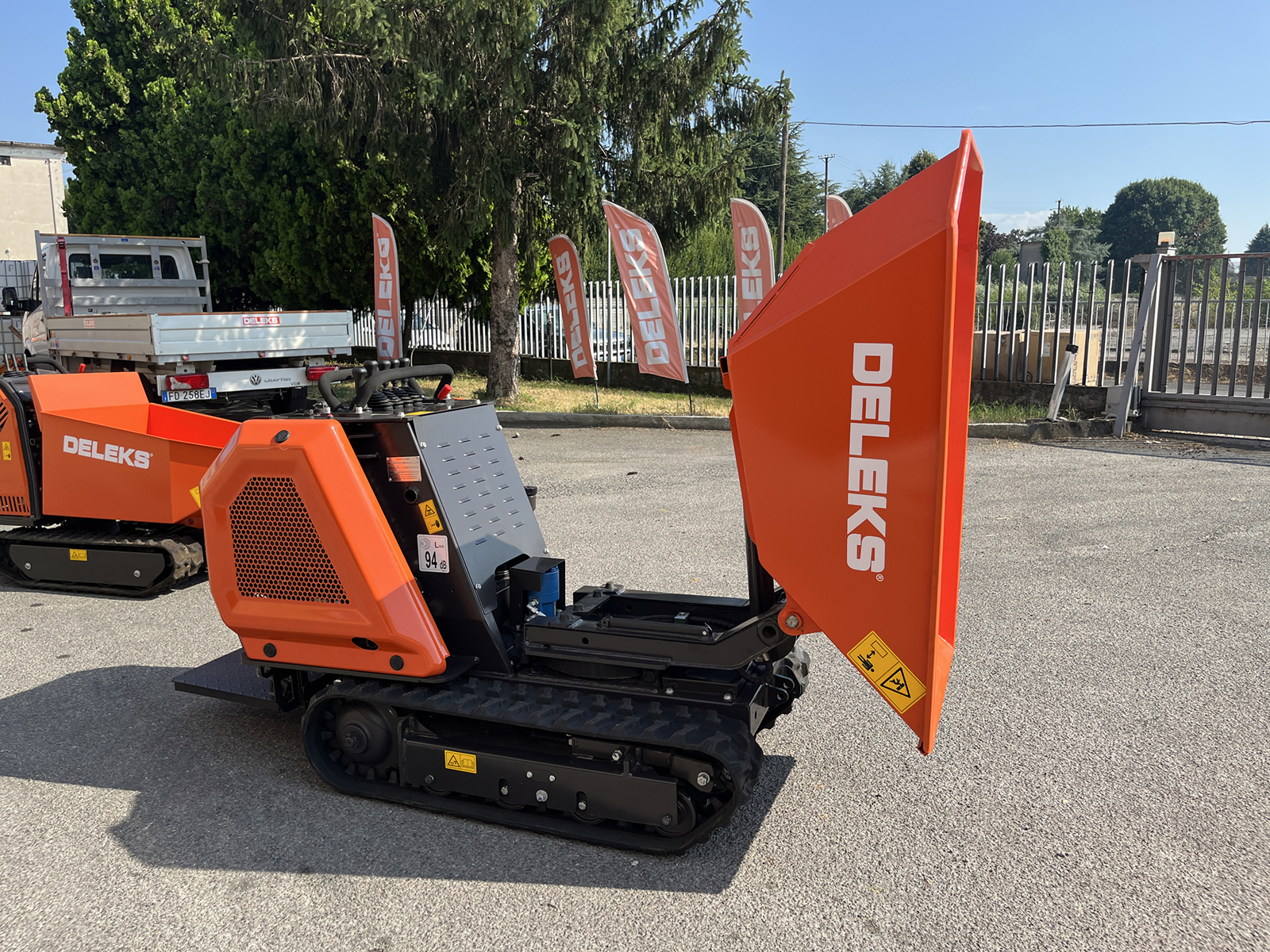

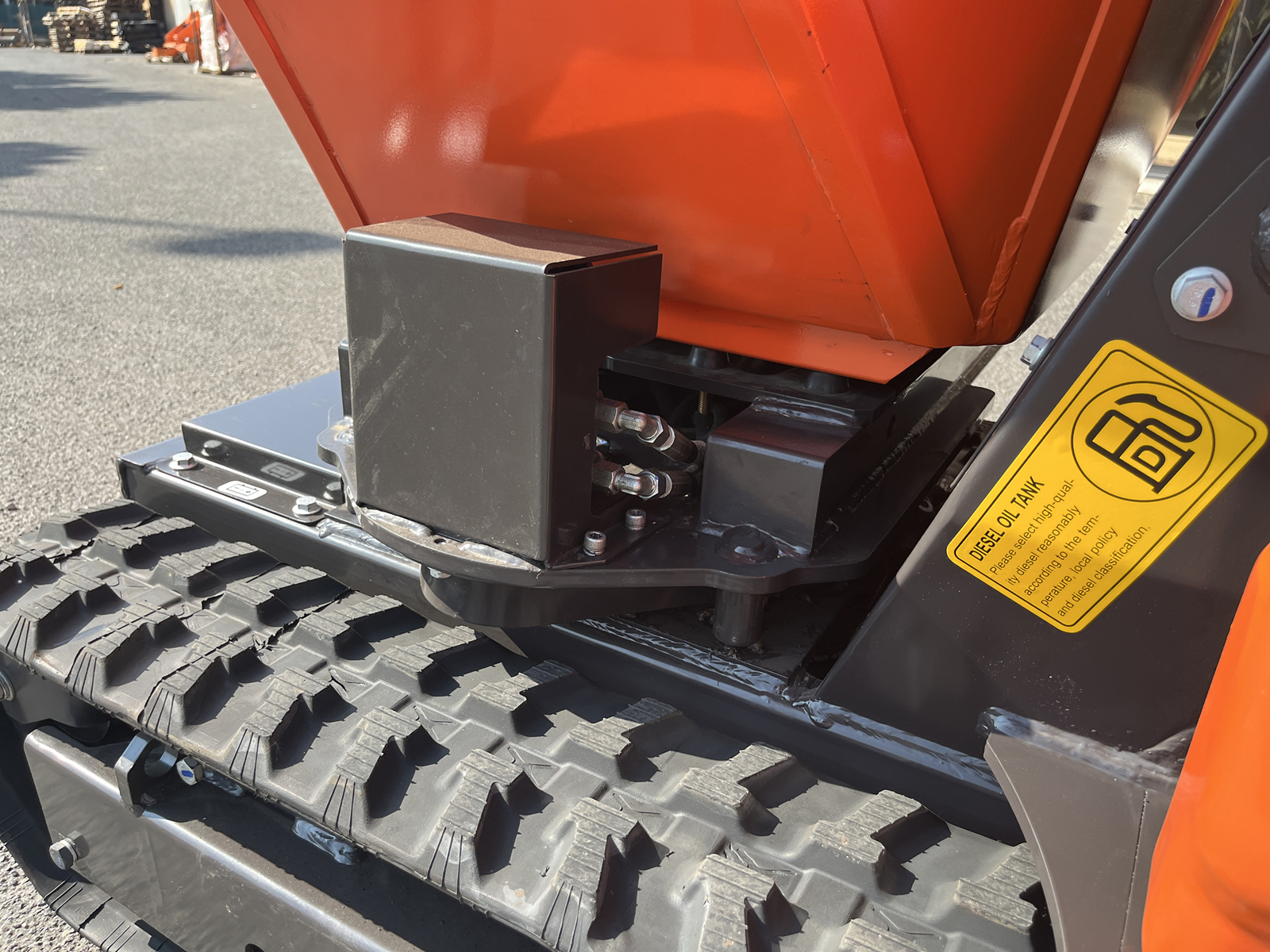

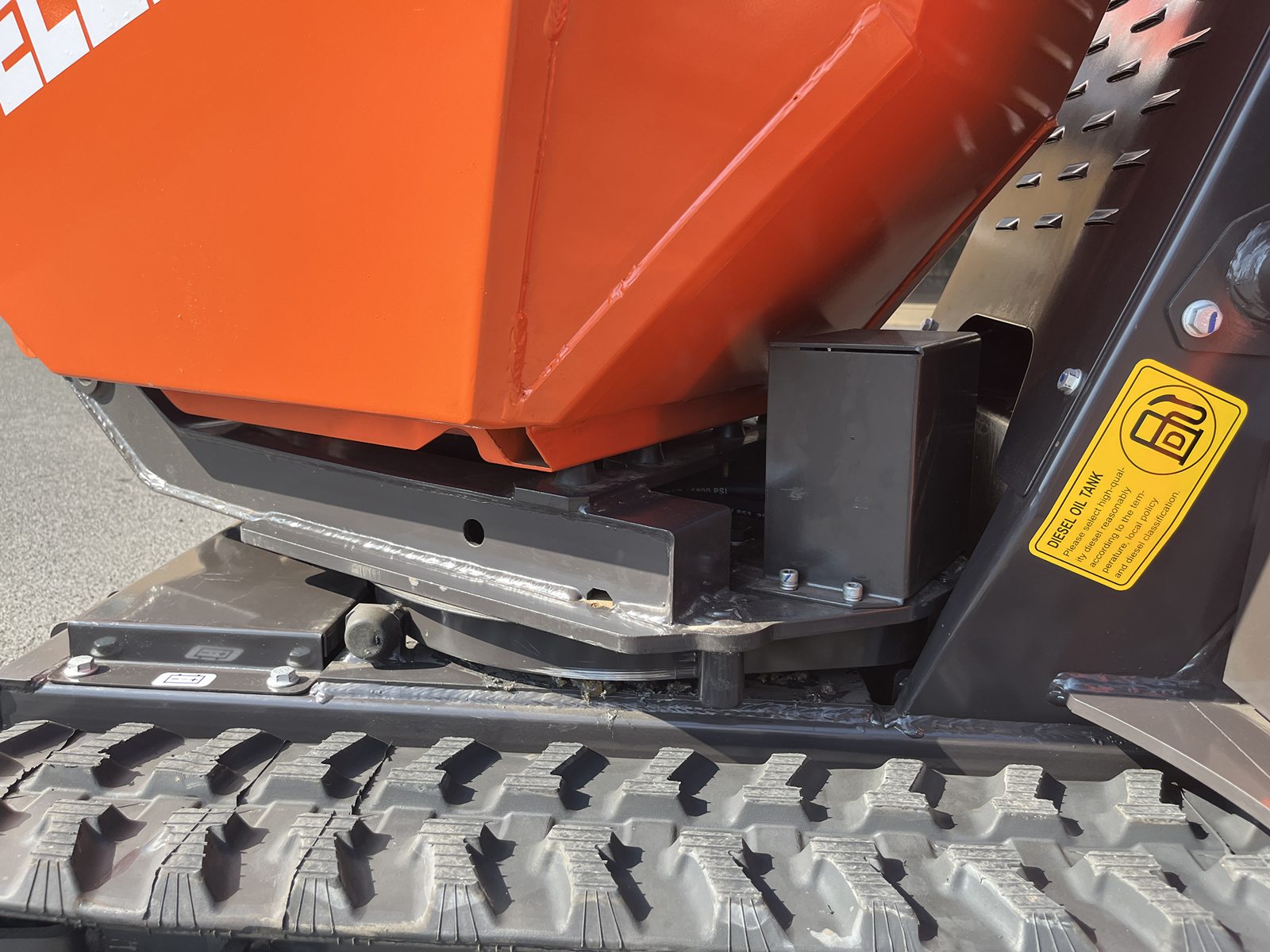

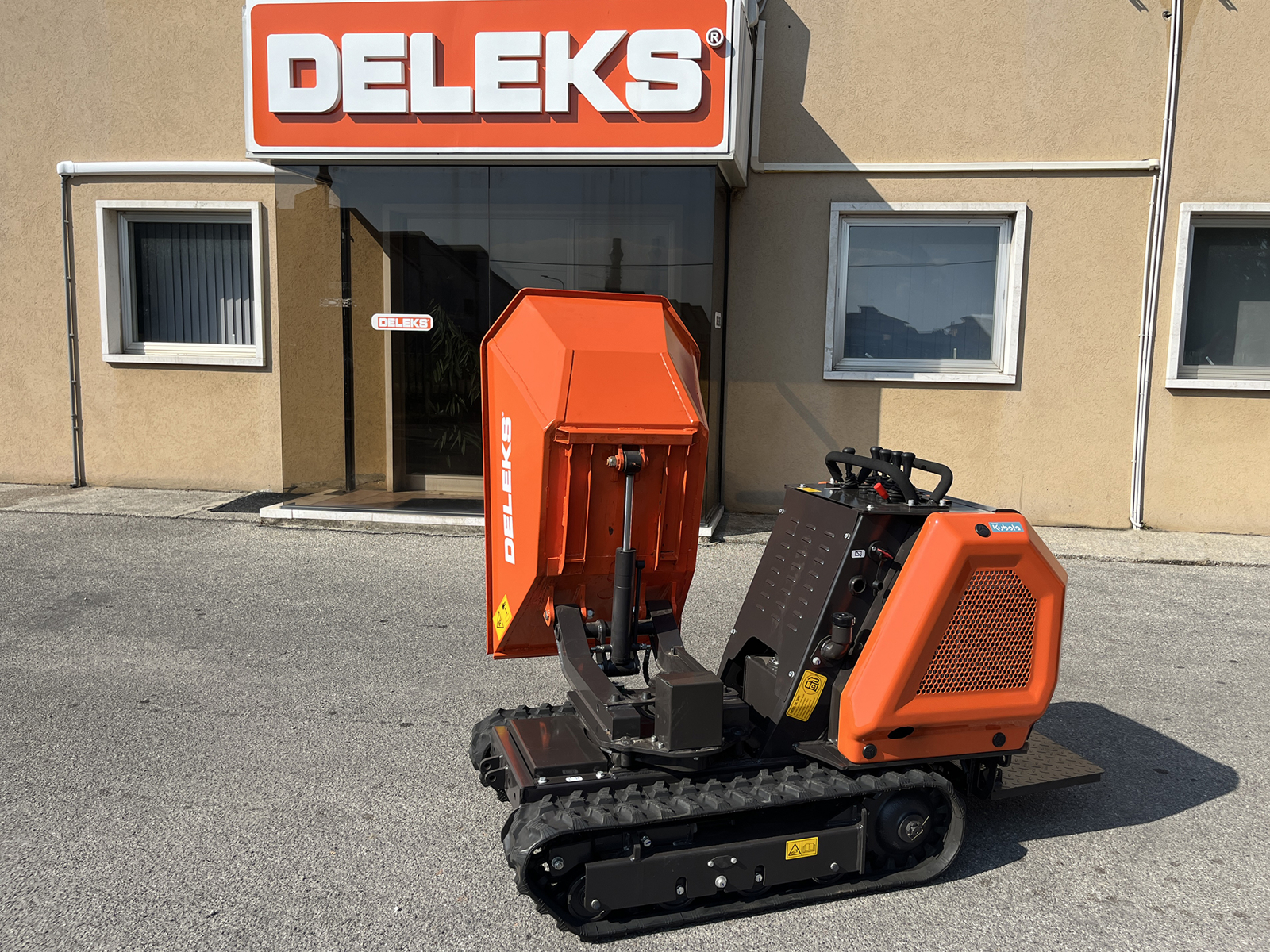

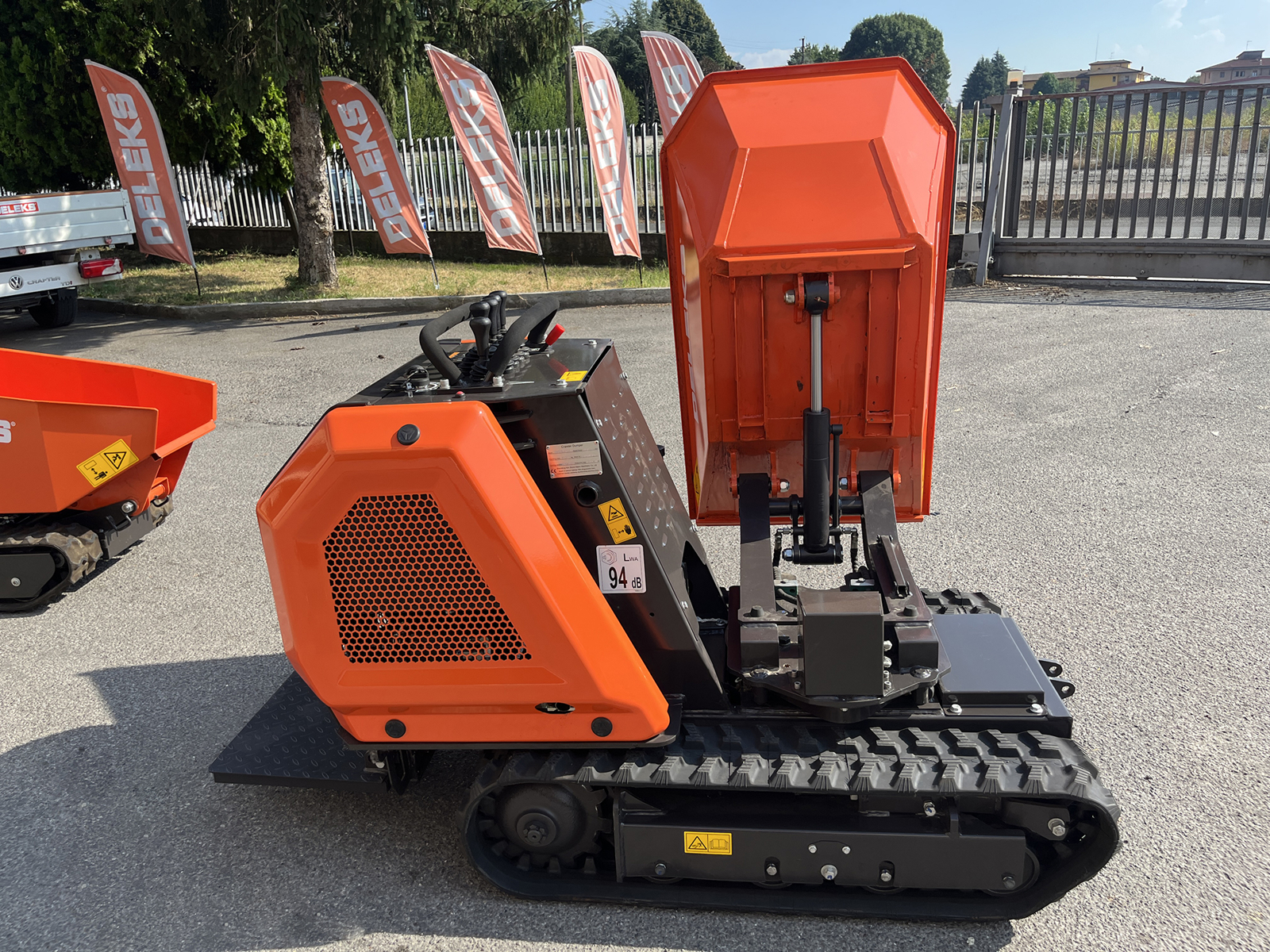

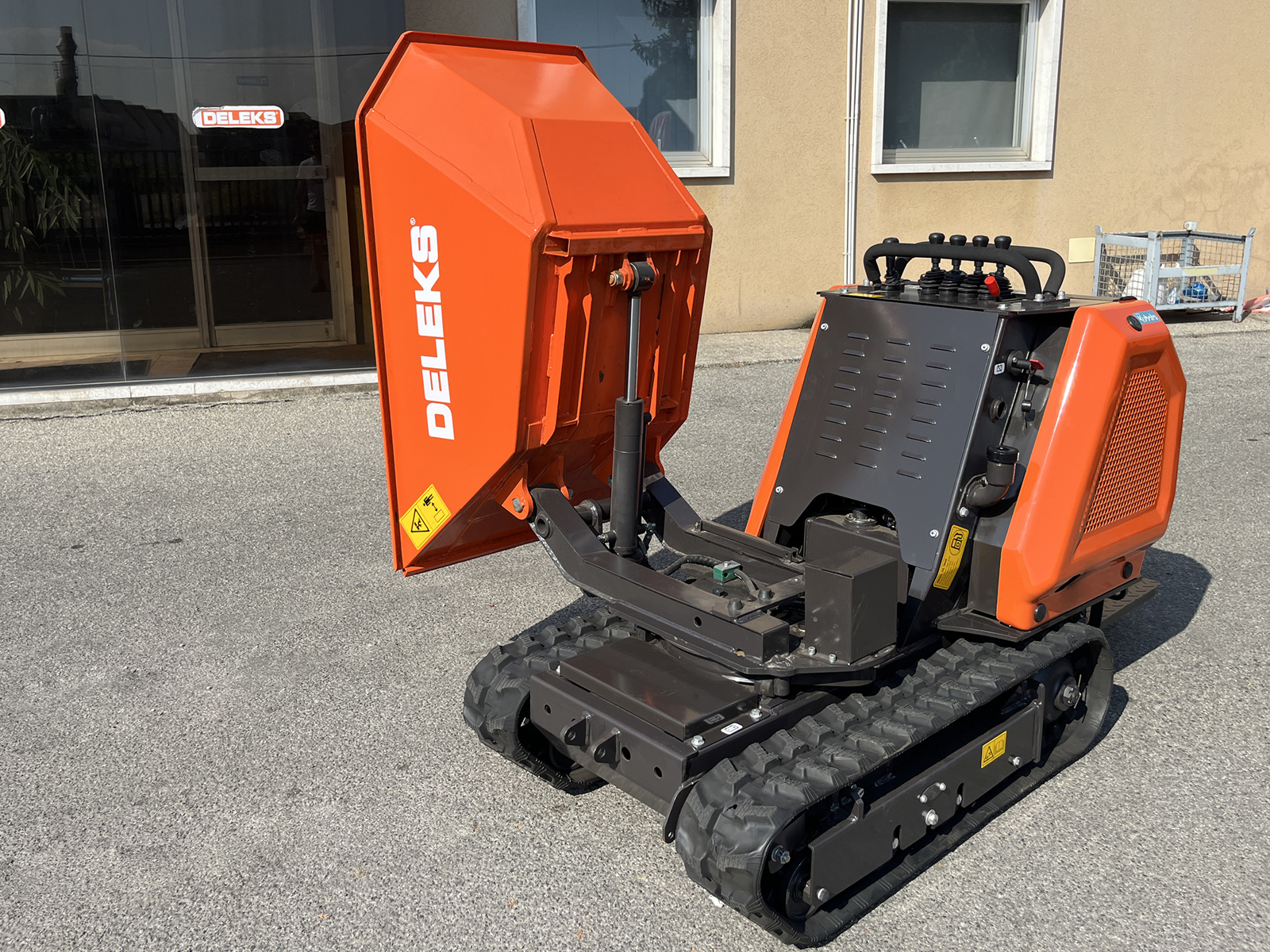

The machine is fitted with a dumper body installed on a hydraulic slewing ring, capable of rotating across a total arc of 180°, allowing side discharge at any angle from 90° left to 90° right relative to the machine axis.

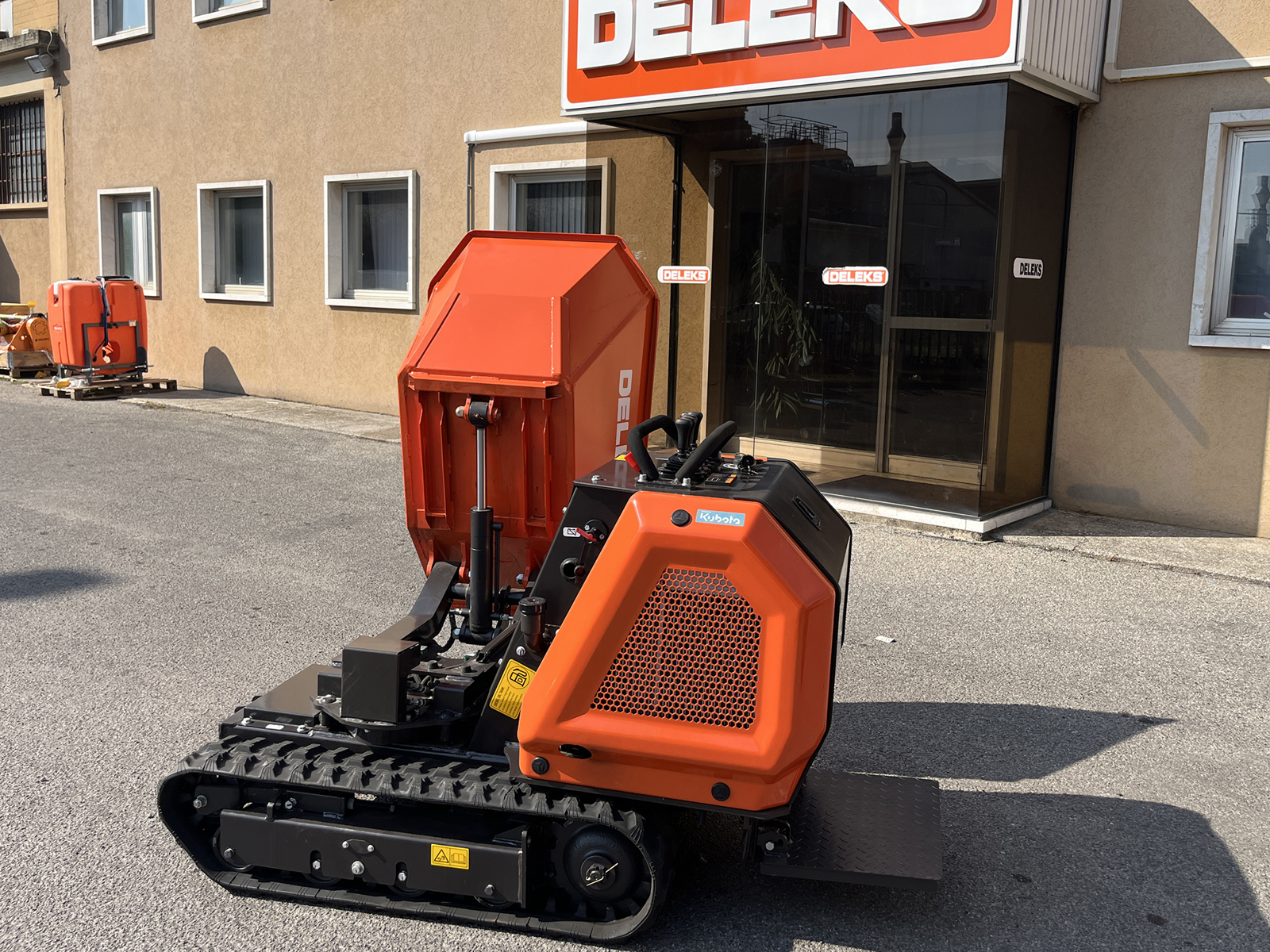

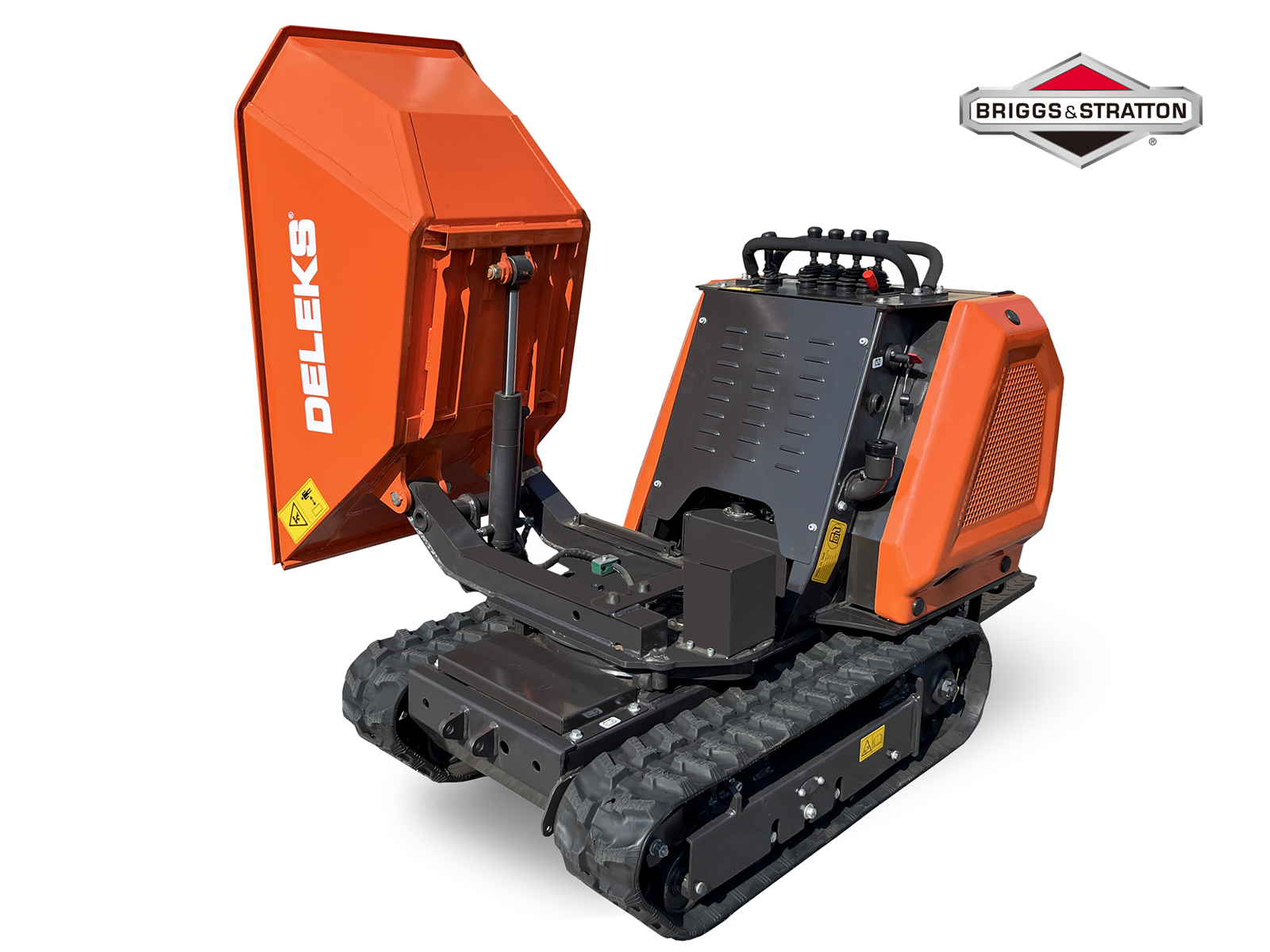

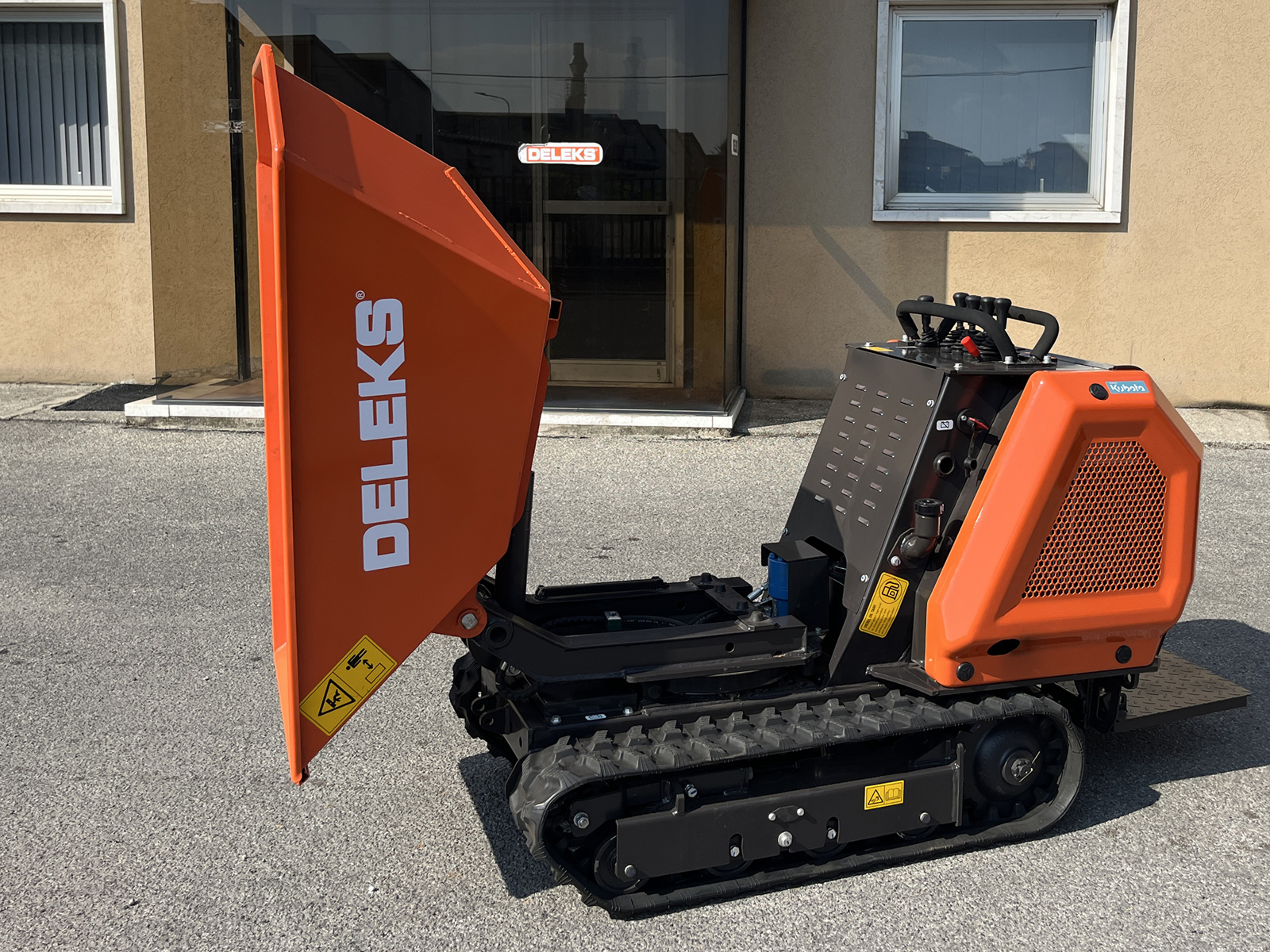

The rotation system includes a hydraulic slewing ring lock, ensuring stability and safety during transport and operation. The body tipping is hydraulic and enables accurate unloading even where manoeuvring space is limited.

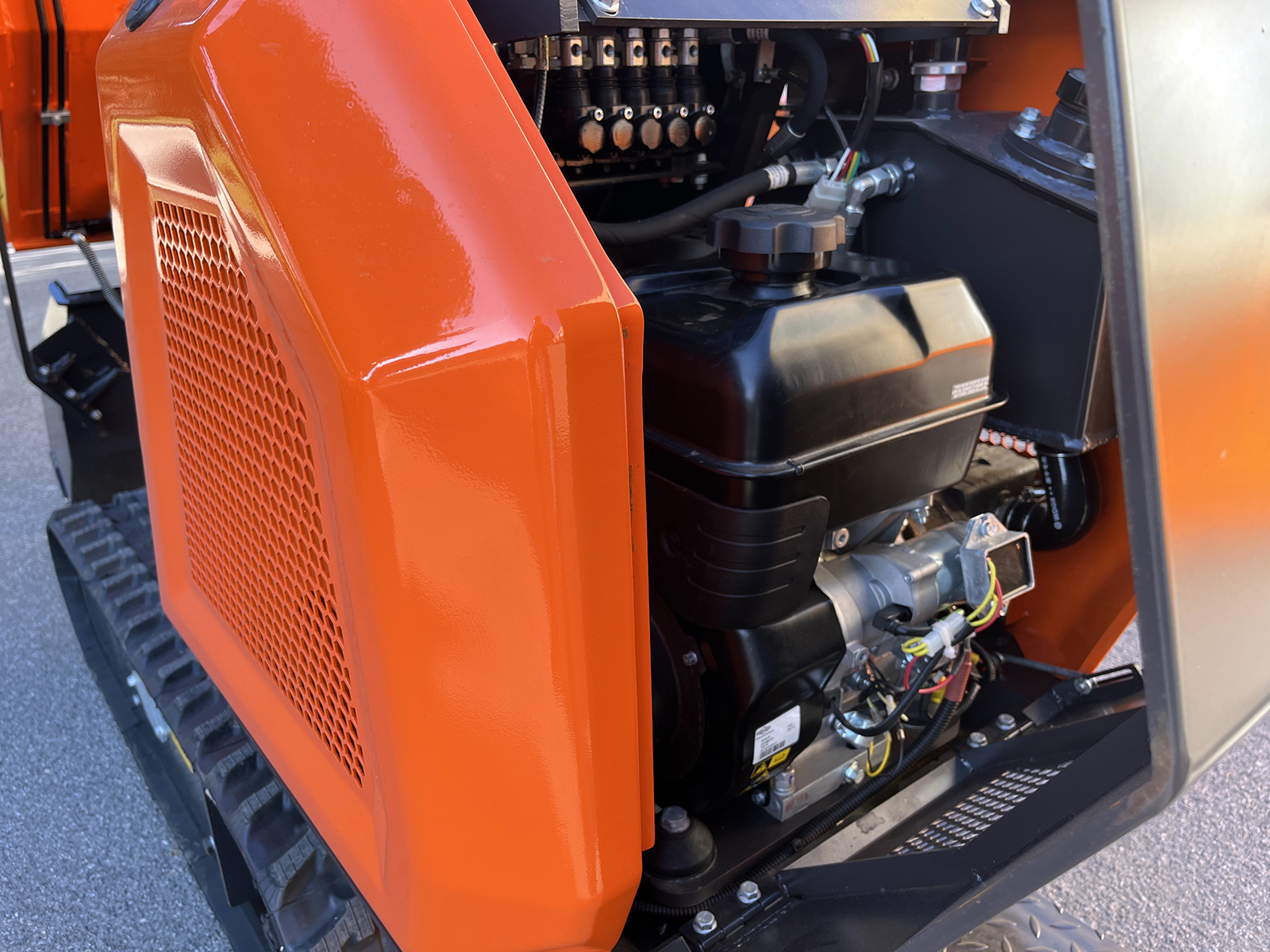

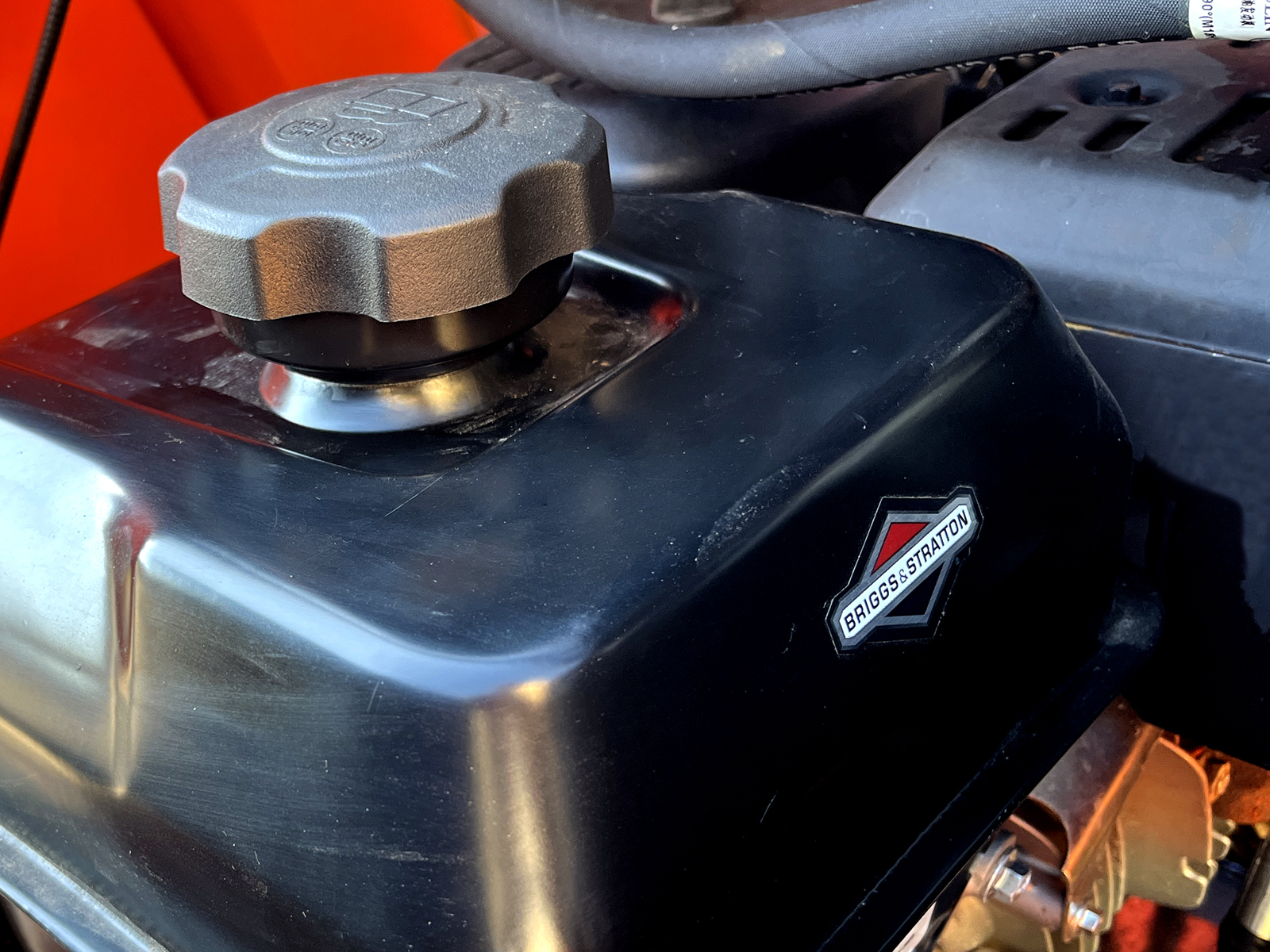

The M8000R-BS is powered by a reliable Briggs & Stratton XR2100 engine (13.5 HP), suitable for intensive use in construction, professional landscaping and material handling on urban job sites.
The hydrostatic transmission provides smooth, progressive and precise travel control, improving handling on uneven ground and in demanding working conditions.

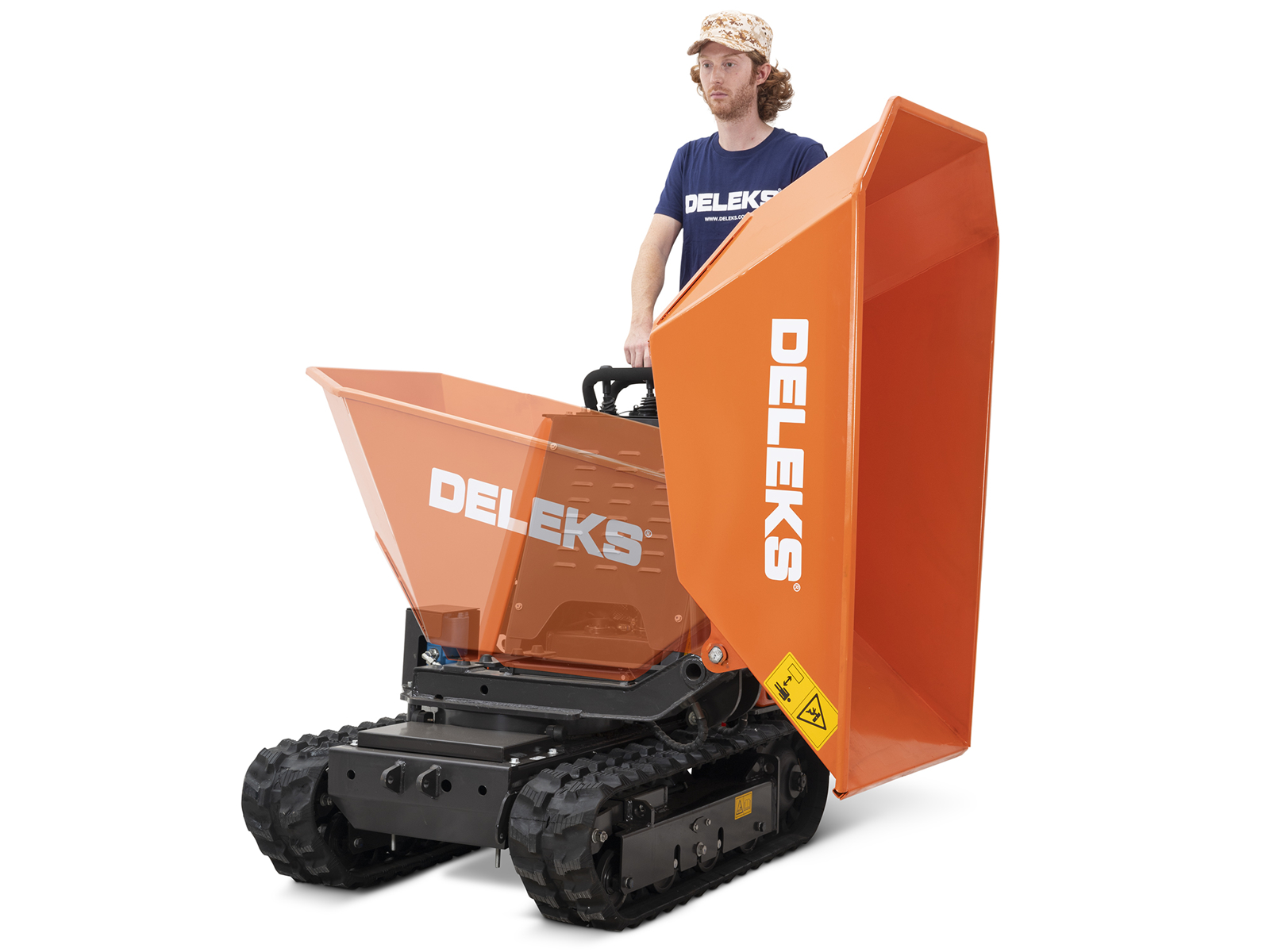

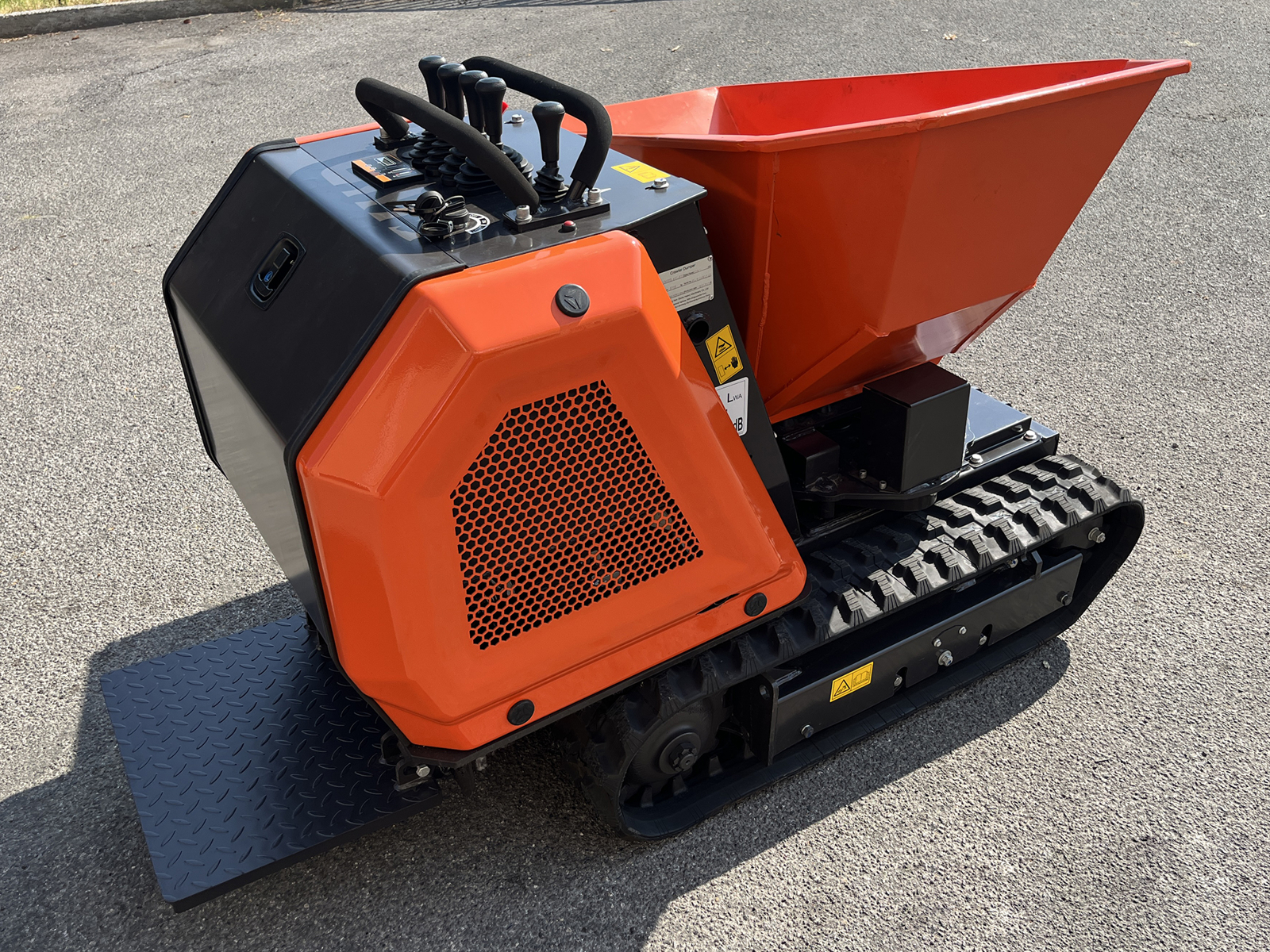

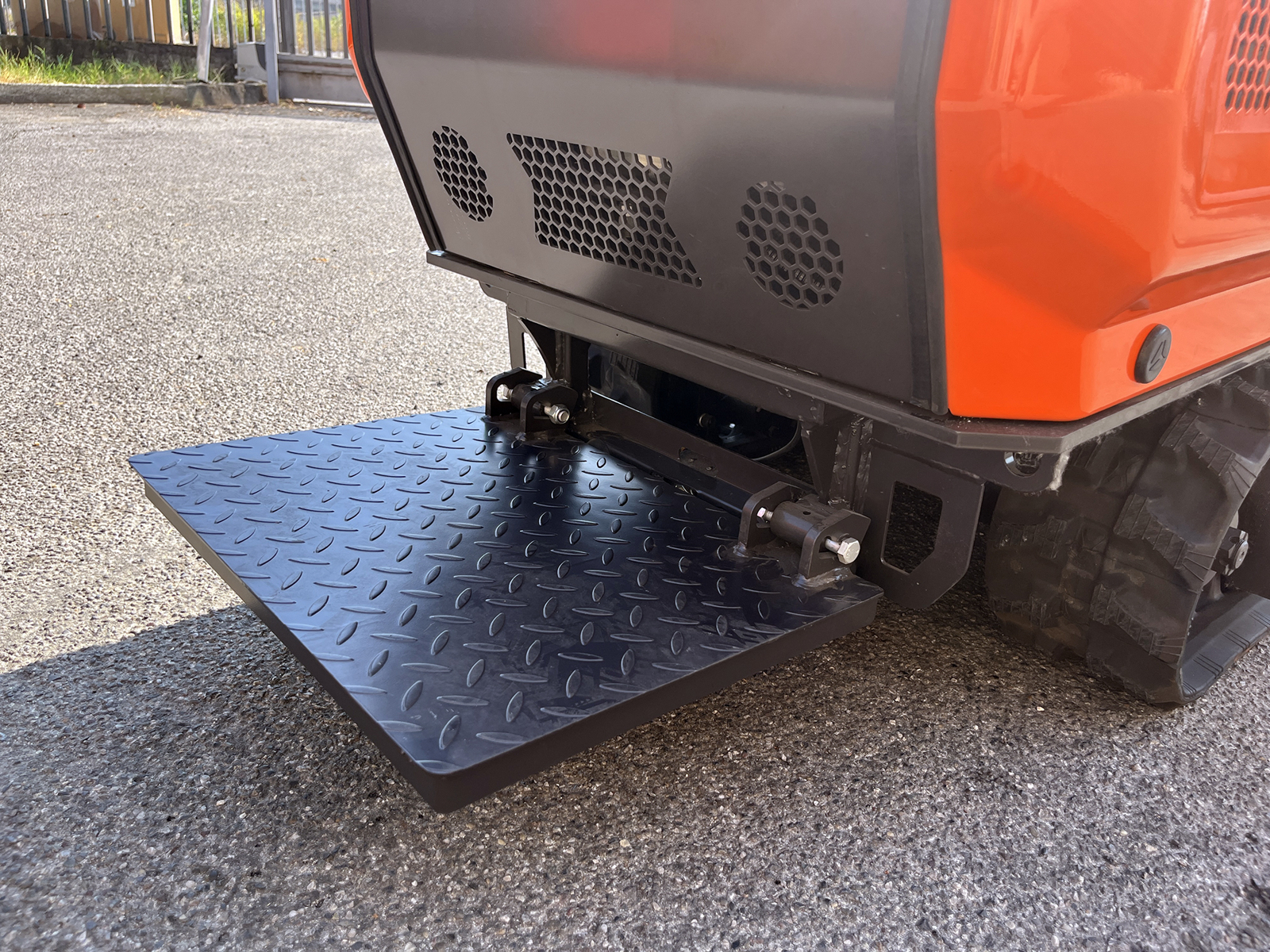

The integrated operator platform allows comfortable on-board operation, making the M8000R-BS suitable for continuous professional use.
Tracked drive ensures high stability, excellent traction and low ground pressure, enabling safe work on uneven, muddy or sloped terrain.
DOUBLE IN-LINE COUNTERBALANCE VALVE
The DELEKS® M8000R-BS is equipped with a double in-line counterbalance valve (Counterbalance Valve Double In Line) integrated into the hydrostatic traction circuit.
This system provides pilot-operated, progressive control of the tracks, allowing the operator to precisely modulate movement uphill, downhill, forward and reverse, preventing sudden or uncontrolled motion.
The valve maintains constant hydraulic pressure and prevents unwanted acceleration caused by load weight or terrain slope, significantly improving stability, control and operational safety.
APPLICATION

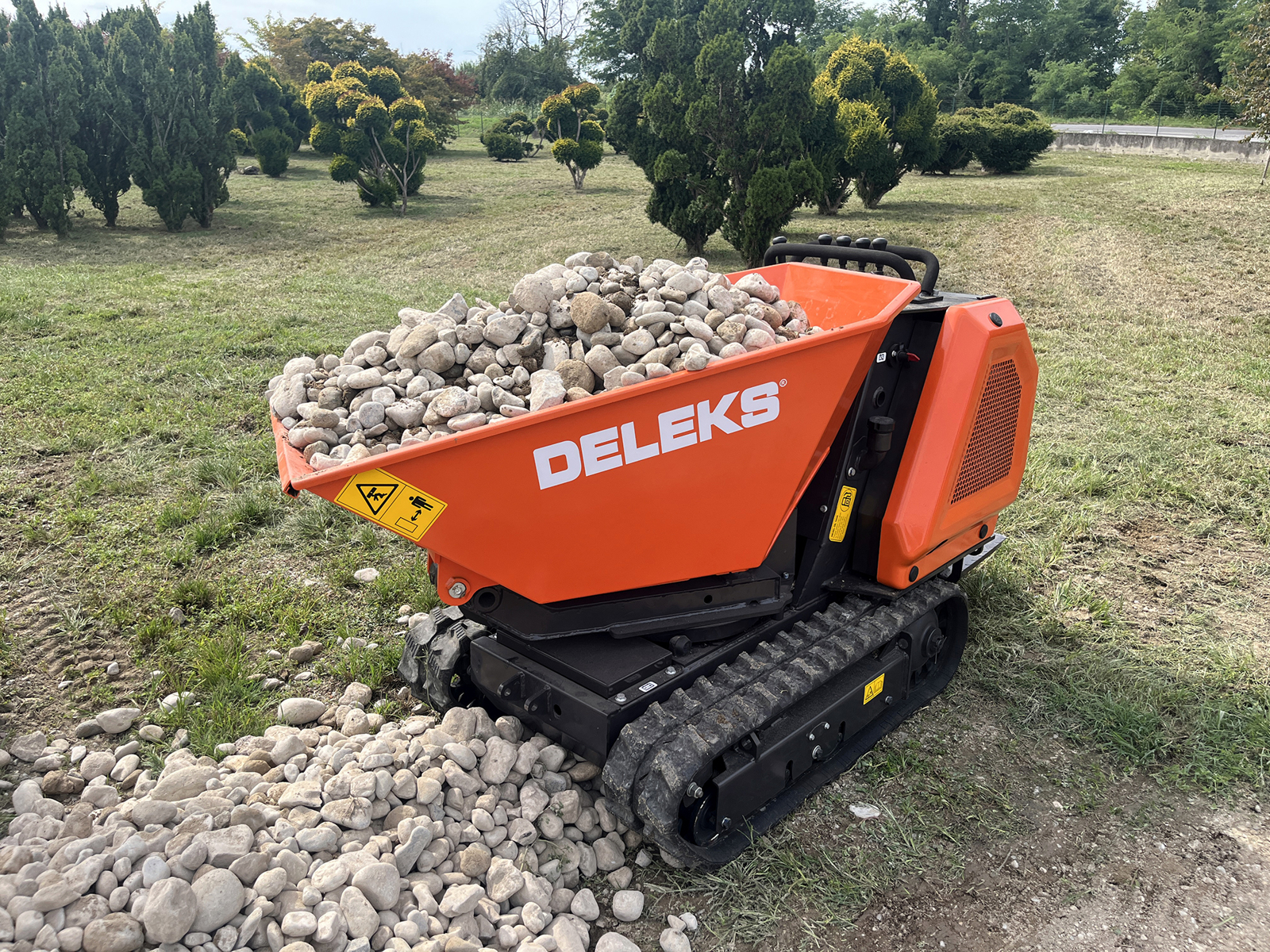

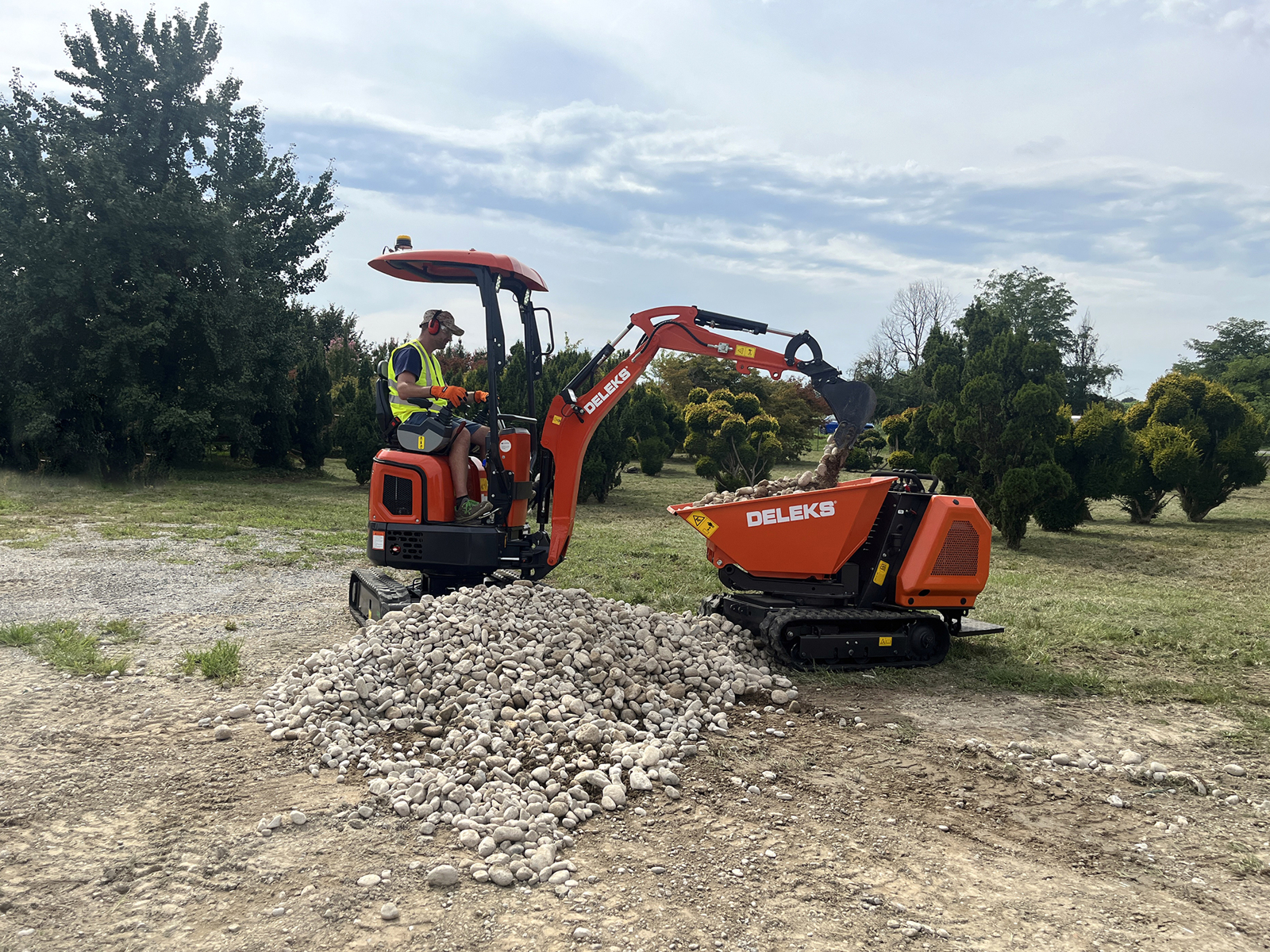

Tracked mini dumper suitable for:
-
loading and handling soil and sand
-
transporting construction materials and aggregates
-
moving waste and debris
-
use on construction sites, road works and professional landscaping
-
operations in confined areas where side discharge is required
TECHNICAL FEATURES
-
Briggs & Stratton XR2100 petrol engine
-
Power: 13.5 HP / 10 kW at 3600 rpm (7.5 kW applied at 3000 rpm)
-
Displacement: 420 cc
-
Electric start with key
-
Fuel: petrol
-
Hydrostatic transmission
-

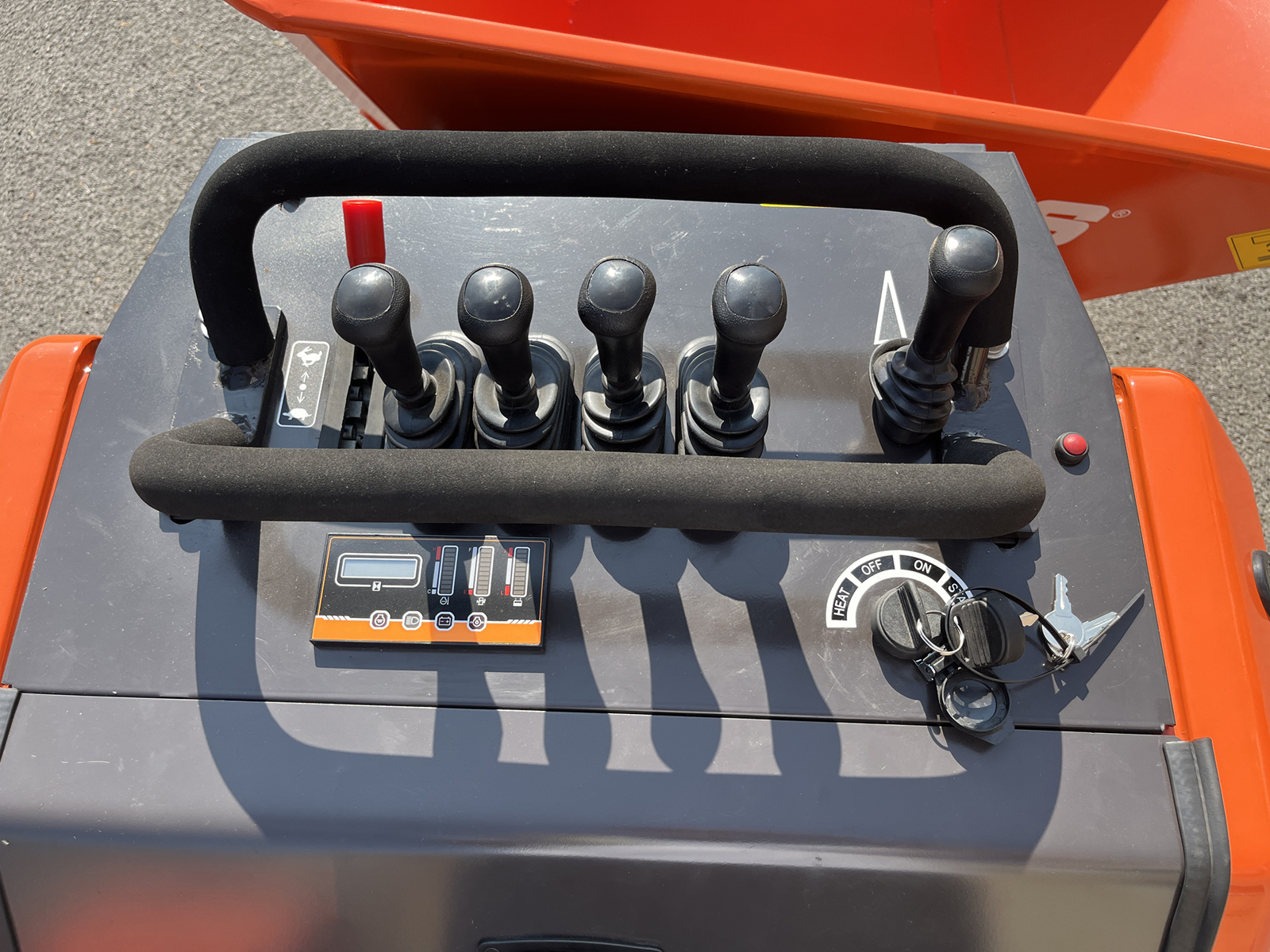

Lever-controlled drive system
-
Two travel speeds: 2 – 4 km/h
-
Professional tracked drive
-
Track width / length: 180 mm x 1200 mm
-
Dumper body with rotation on slewing ring
-
Body rotation range: 180° total
-
Hydraulic tipping
-
Maximum load capacity: 800 kg
-

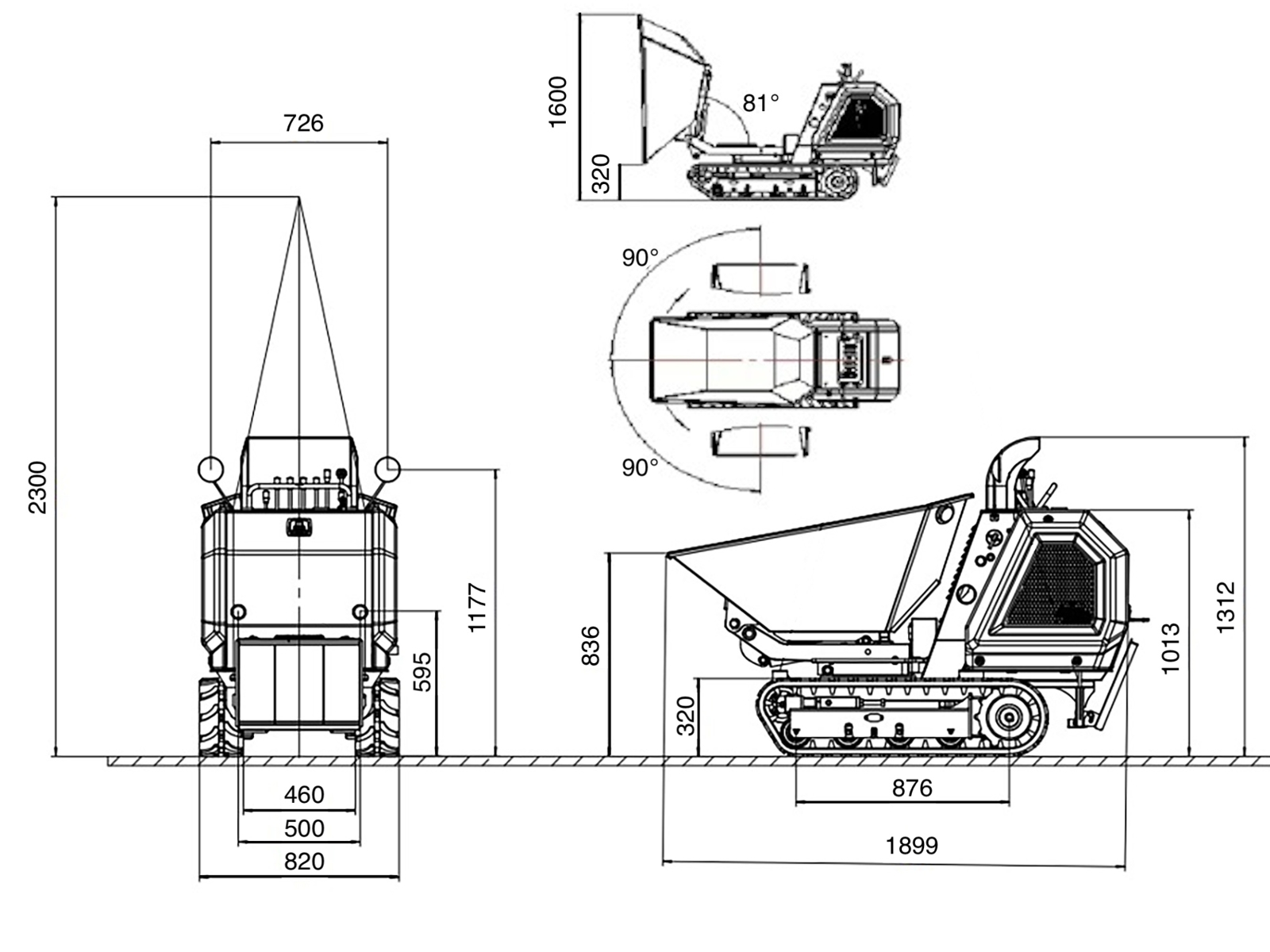

Dimensions: see product images
OPERATIONAL ADVANTAGES
-
Graduated side discharge: can tip at any angle from 90° left to 90° right, ideal where manoeuvring space is limited
-
Operator platform for continuous professional use
-
Hydrostatic transmission for full control
-
Two travel speeds (2 – 4 km/h)
-
Electric start with key
-
Reinforced body for heavy-duty work
-
Double in-line counterbalance valve for controlled traction on slopes and under load
CERTIFICATIONS – WARRANTY – SUPPORT
-
Machine compliant with CE directives
-
2-year warranty
-
Equipped with safety devices
-
Technical support and spare parts available
DOCUMENTATION SUPPLIED
-
CE declaration of conformity
-
Operation and maintenance manual
-
Invoice or fiscal receipt
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Overall width | 820.0 mm |
| Weight | 750.0 kg |
| Load capacity | 800.0 kg |
| Overall length | 1795.0 mm |
| Tipping Mechanism | Hydraulic |
| Engine | 13.5Hp Briggs&Stratton XR2100 420cc |
| Starter | E-start |
| Fuel consumption | 1 l/h |
| Bucket capacity (m3) | 0.26 |
| Packing sizes | 1800.0*900.0*1200.0 mm |
