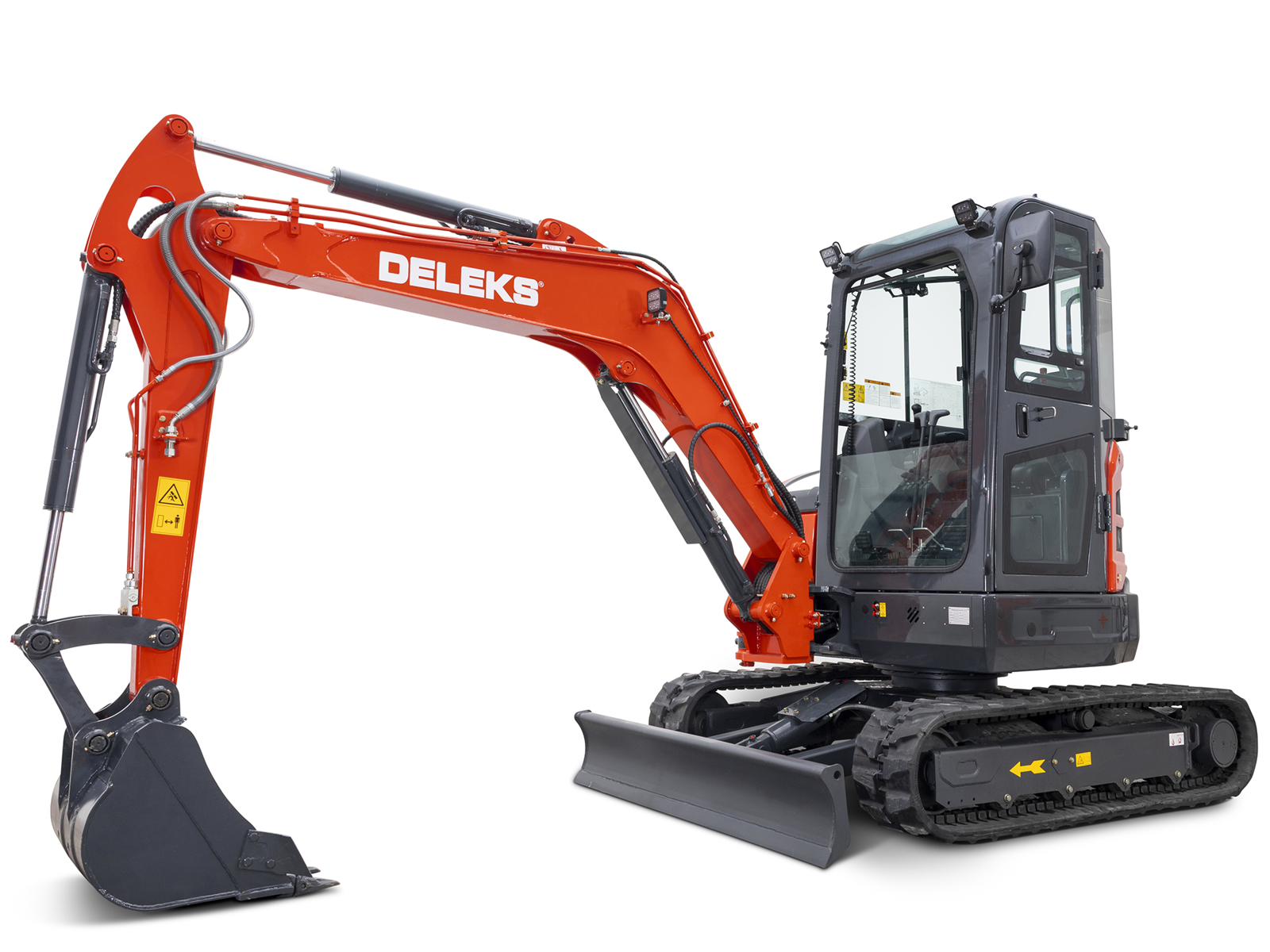

S380C KUBOTA Zero-Tail Swing Mini Excavator 3.8 t – Kubota D1703 Engine
DETAILS

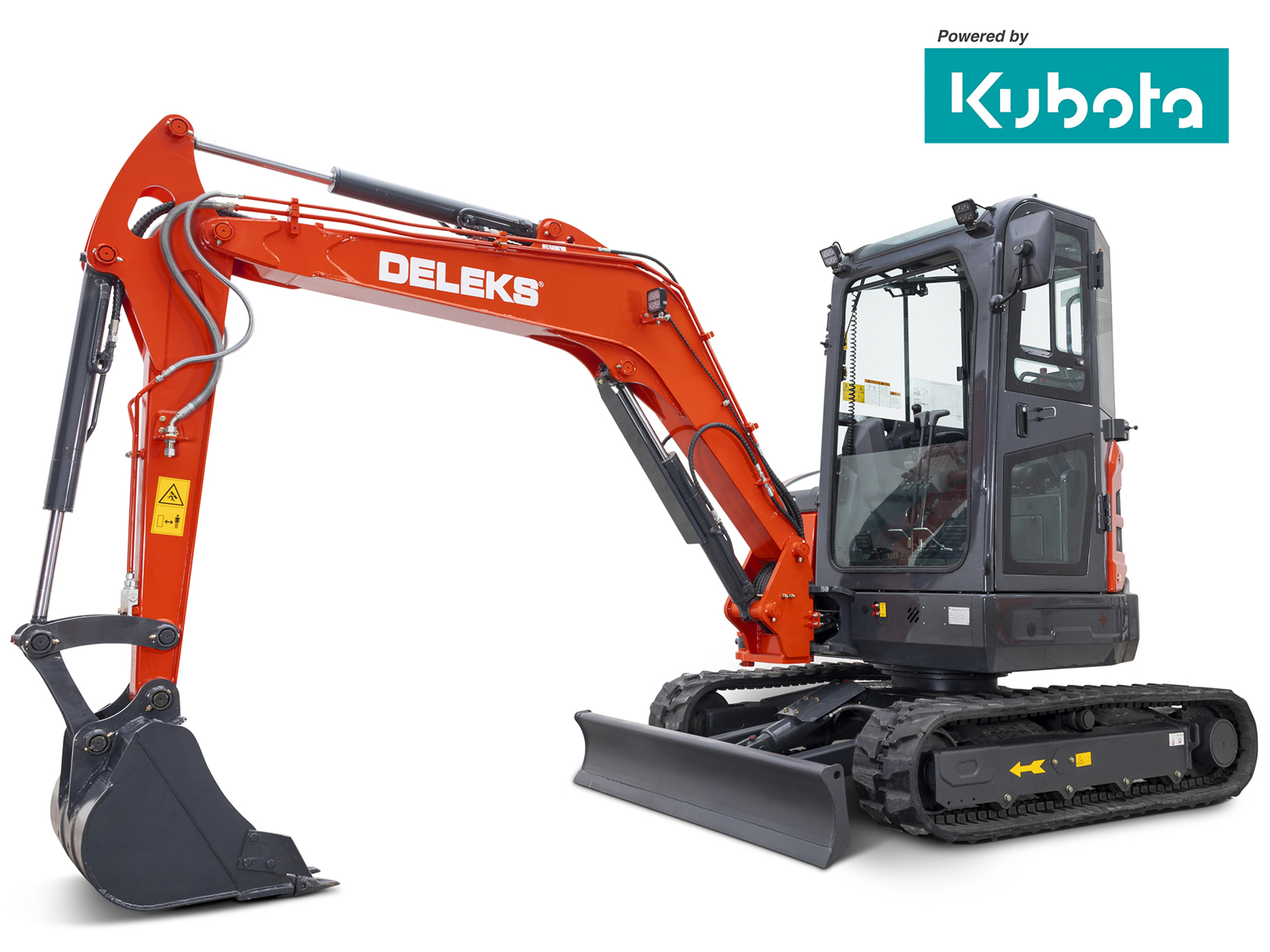

DELEKS® S380CK Zero-Tail Swing Mini Excavator – Kubota D1703 Engine – Air-Conditioned Cab – Stage V

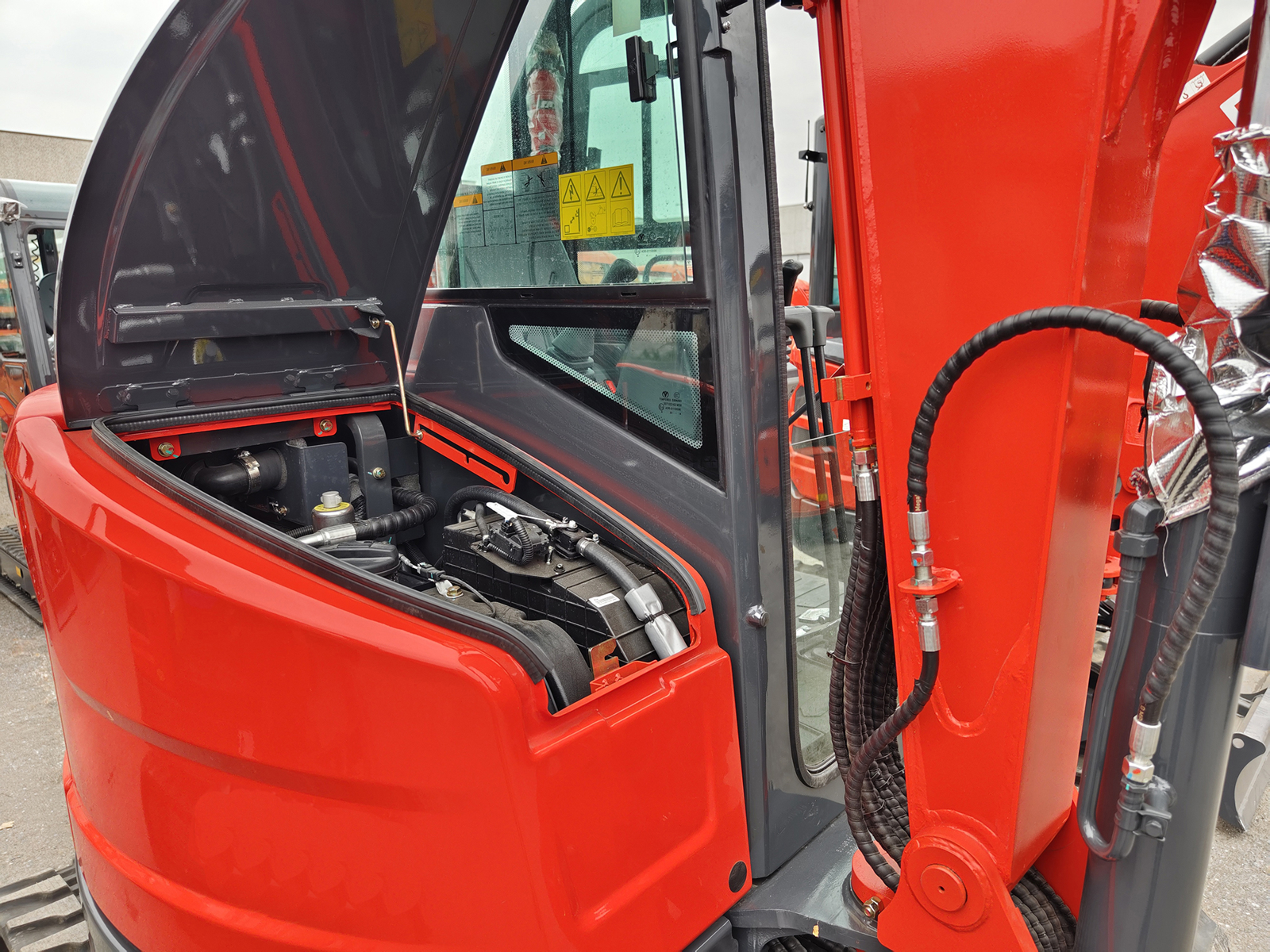

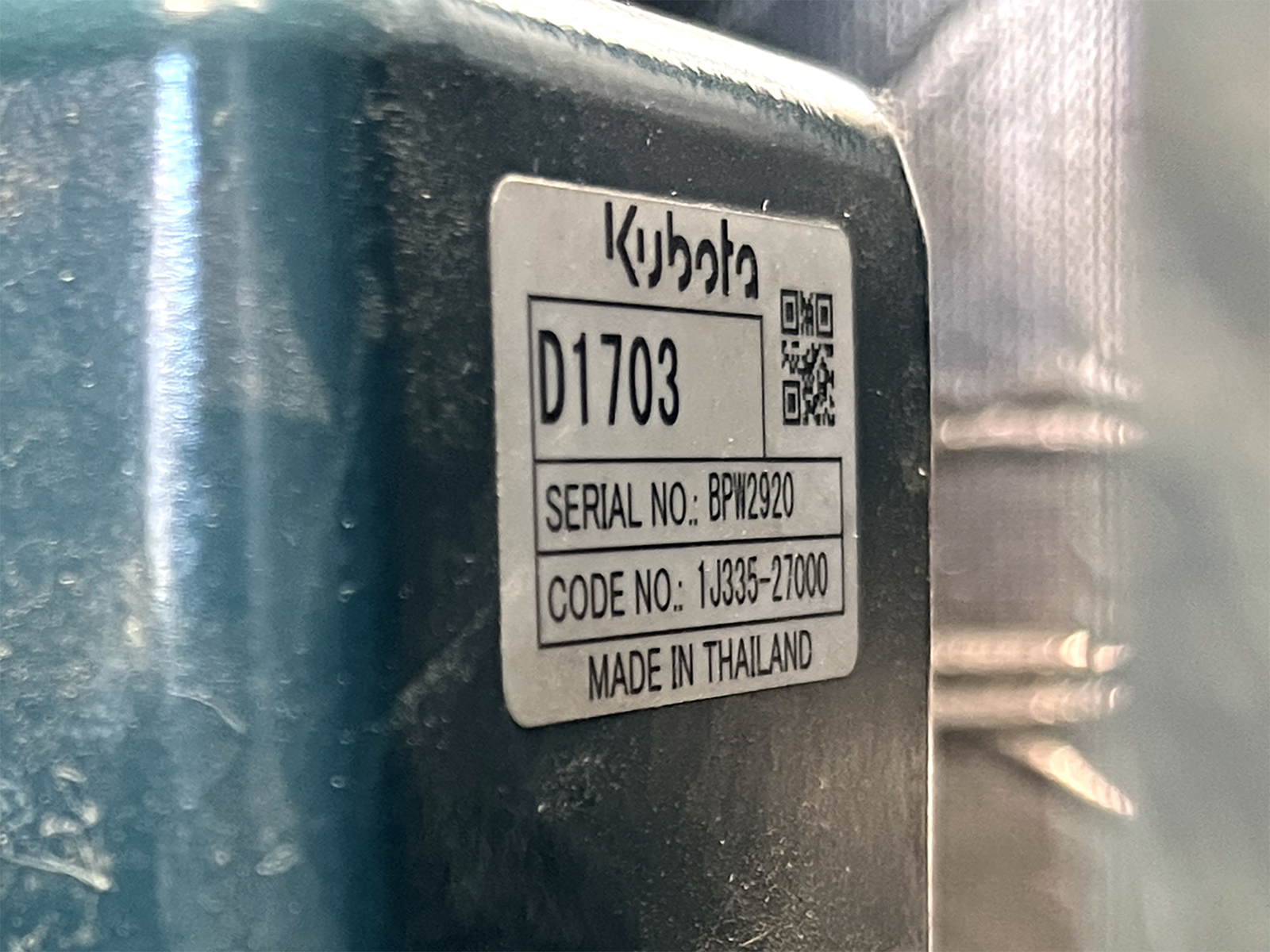

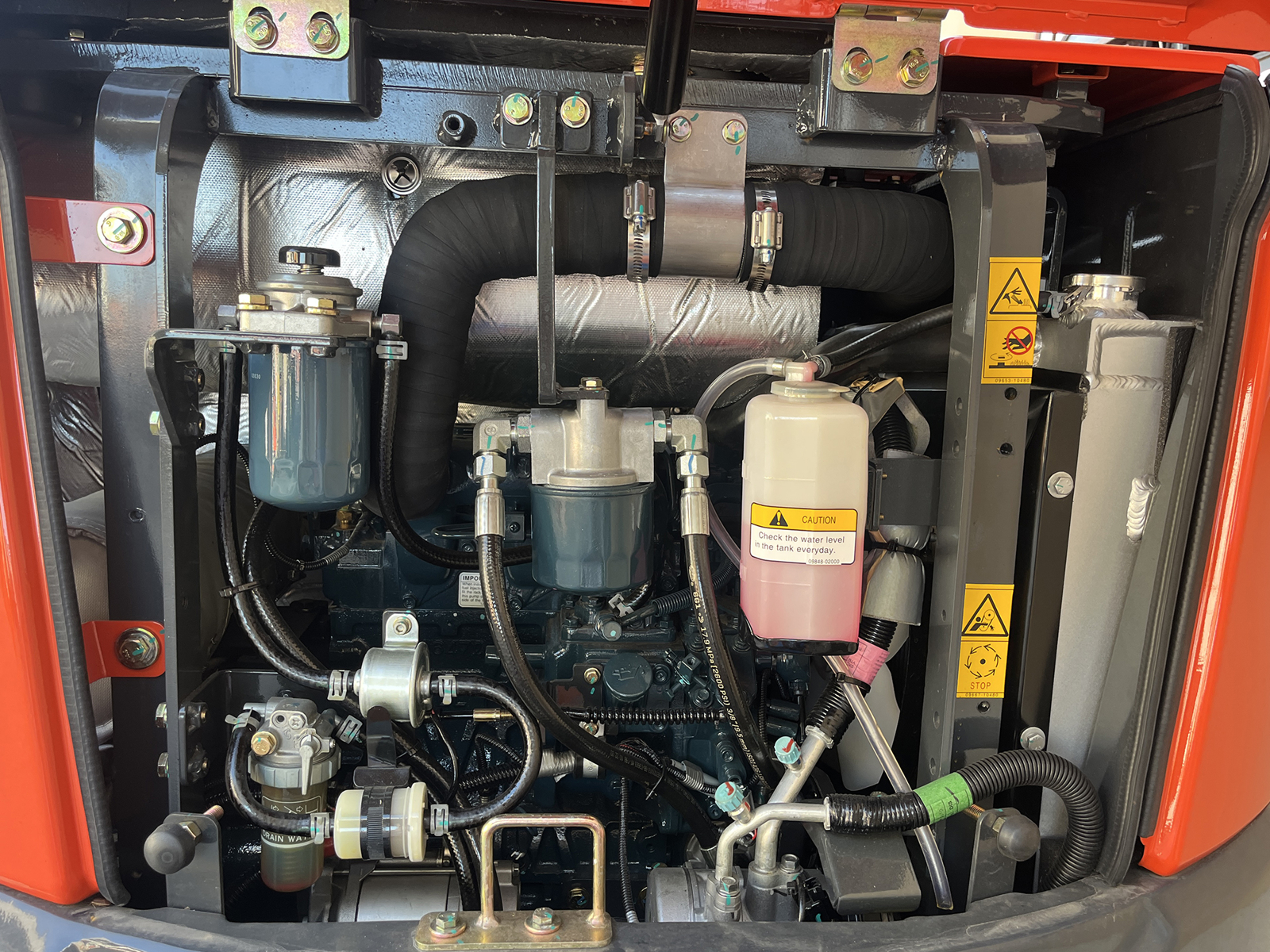

The DELEKS® S380CK mini excavator is powered by a Kubota D1703 3-cylinder diesel engine, liquid-cooled and compliant with Euro 5 / Stage V emission standards.
With an output of 25 HP (18.2 kW) at 2200 rpm and a displacement of 1,647 cm³, the engine provides reliable and consistent performance for demanding applications.
Overview

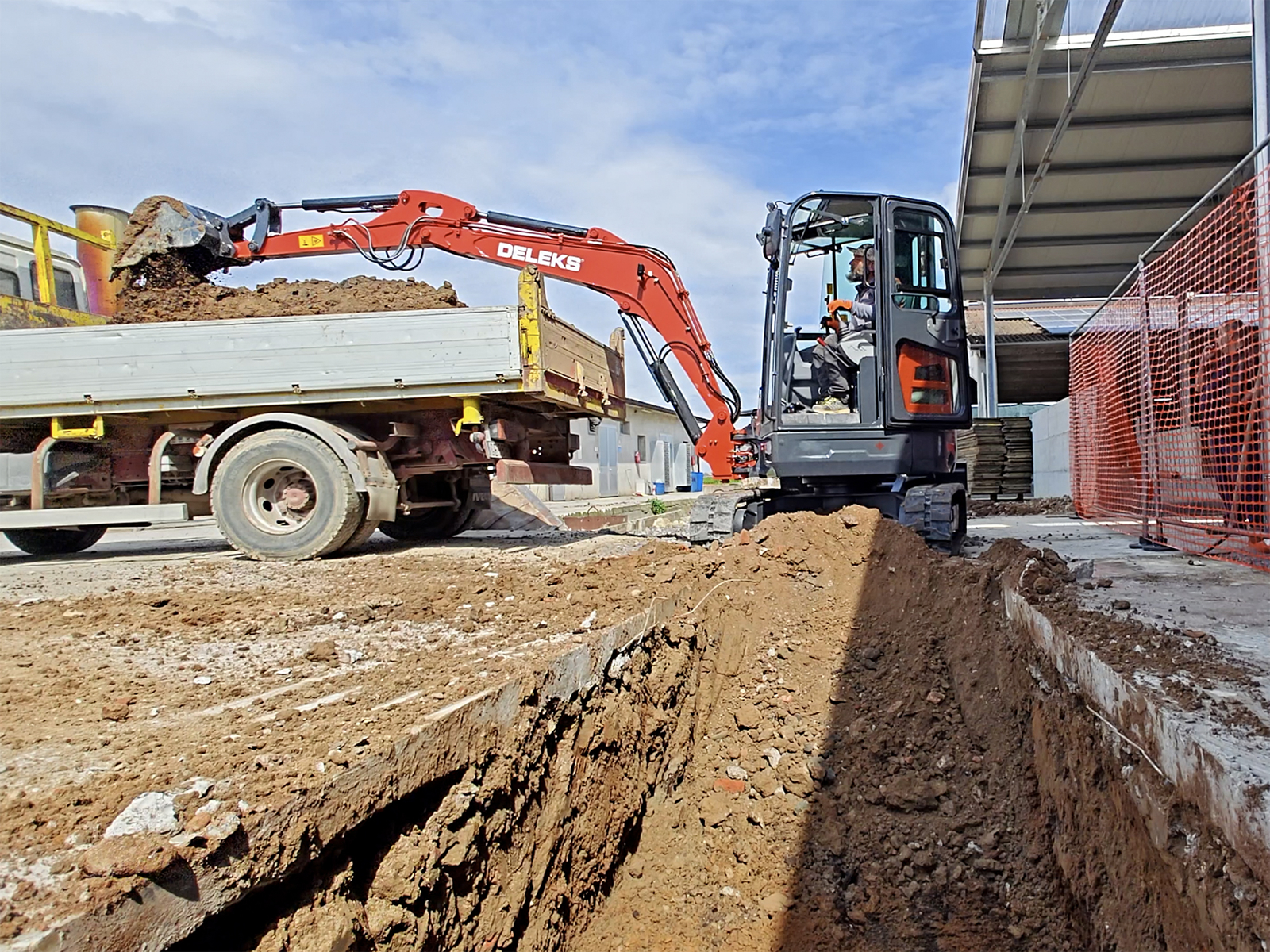

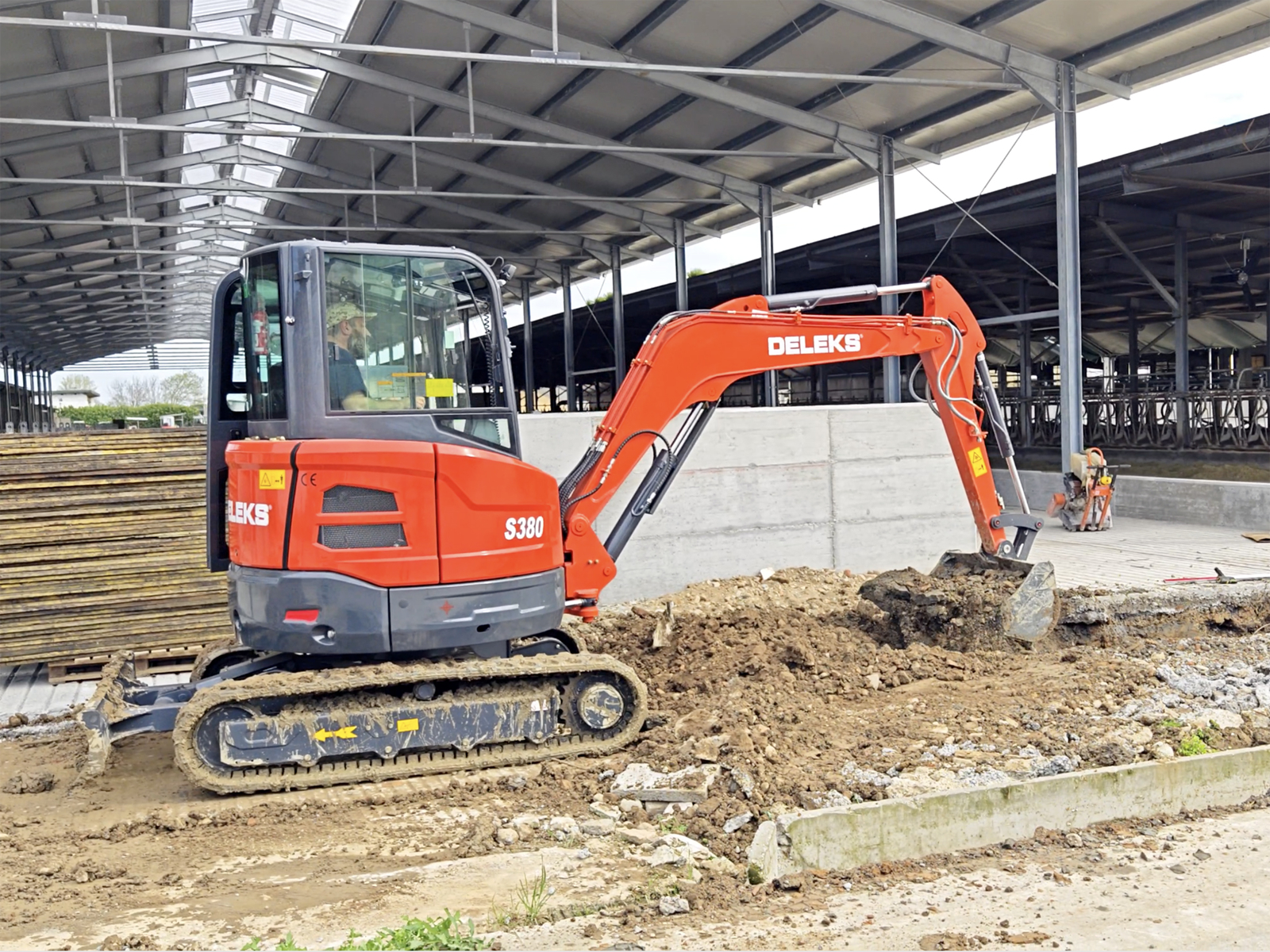

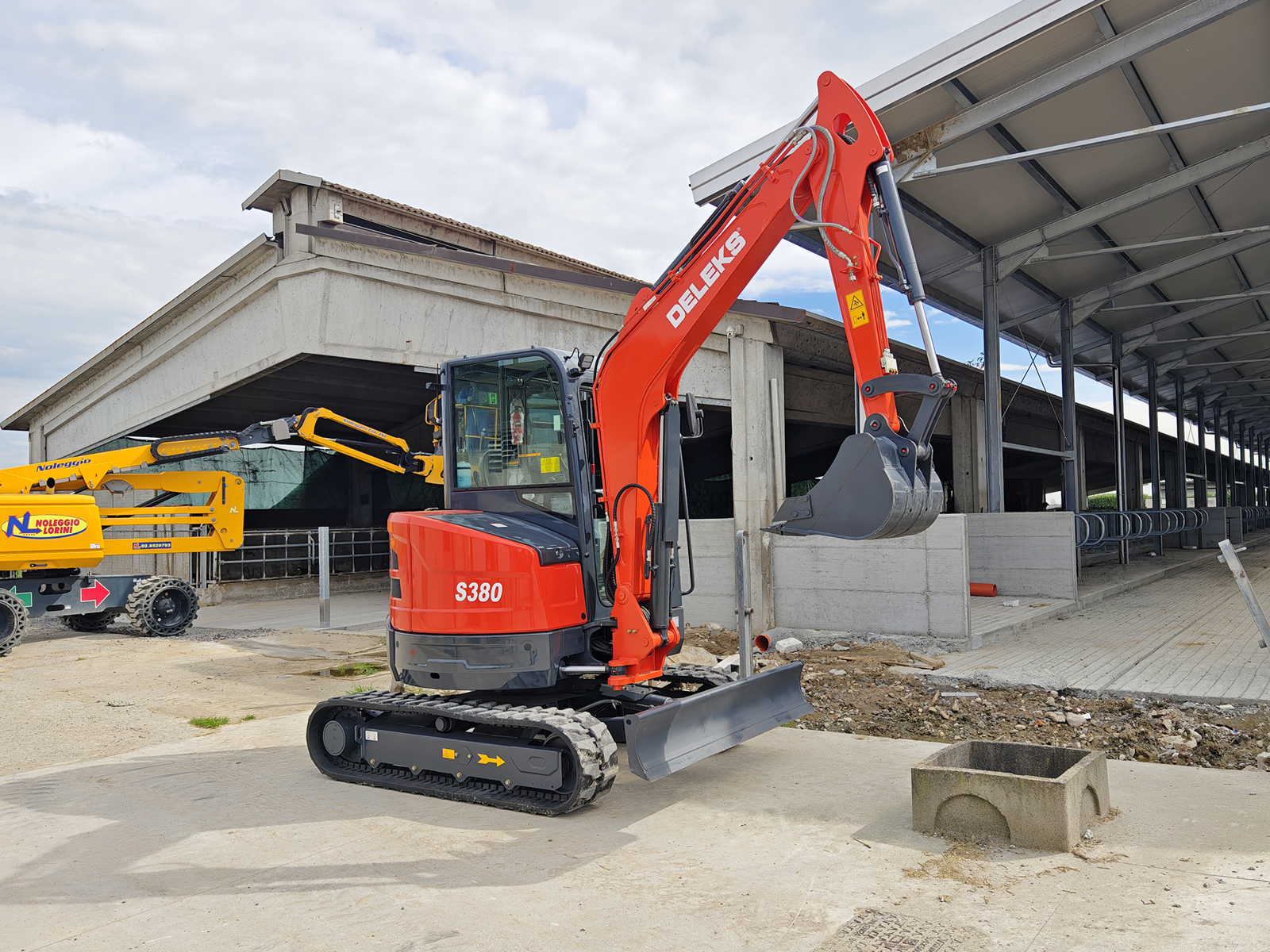

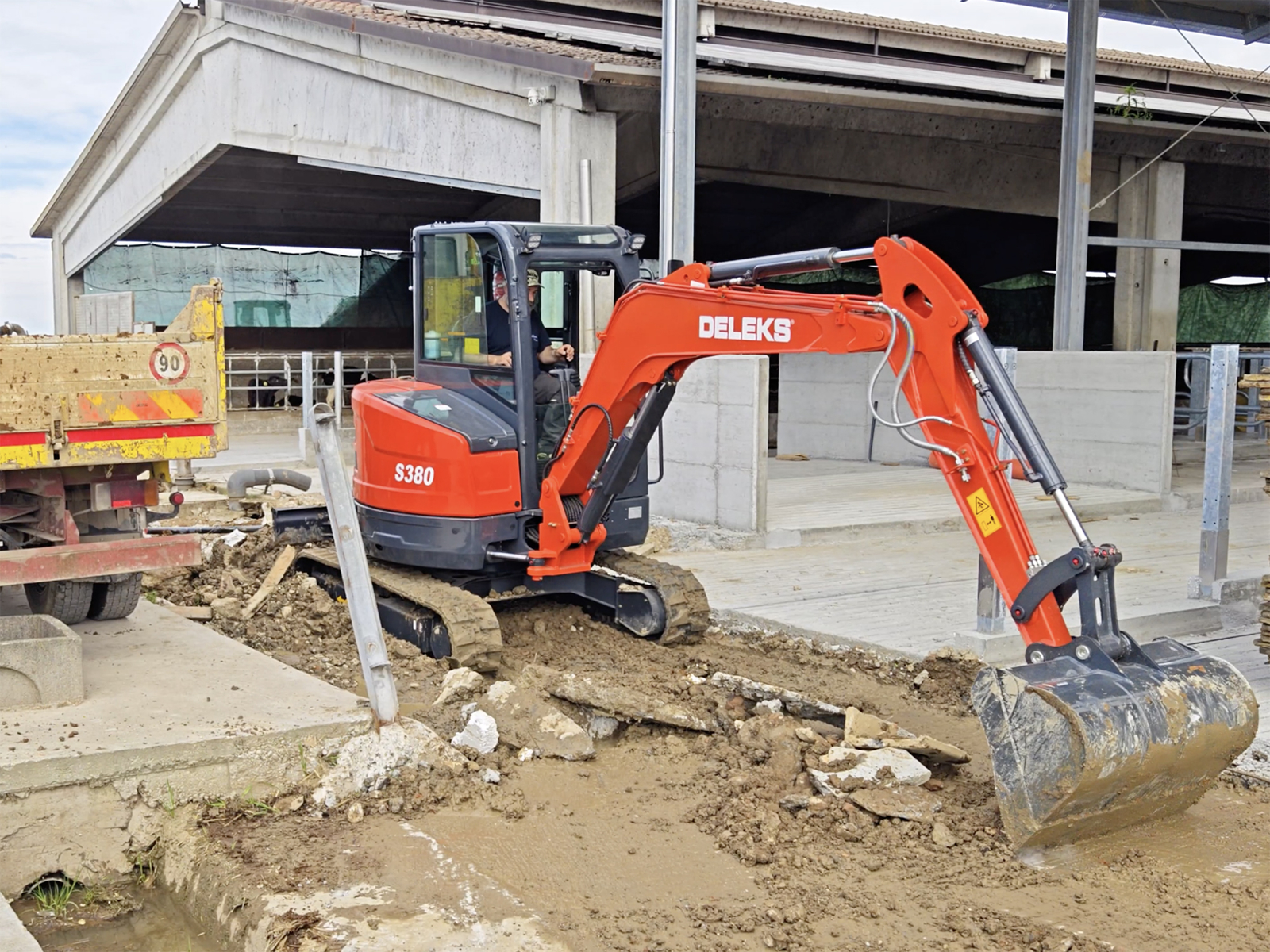

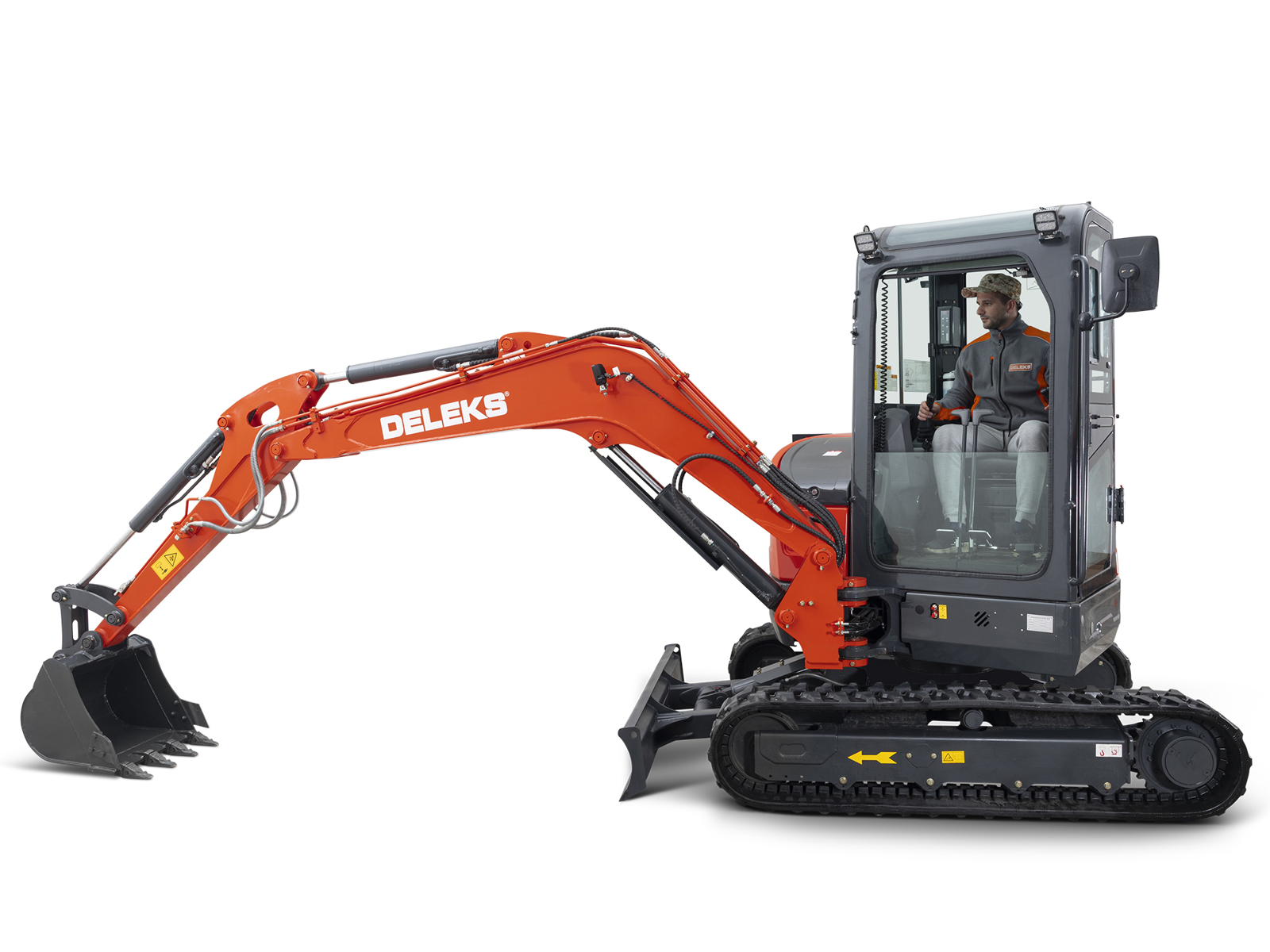

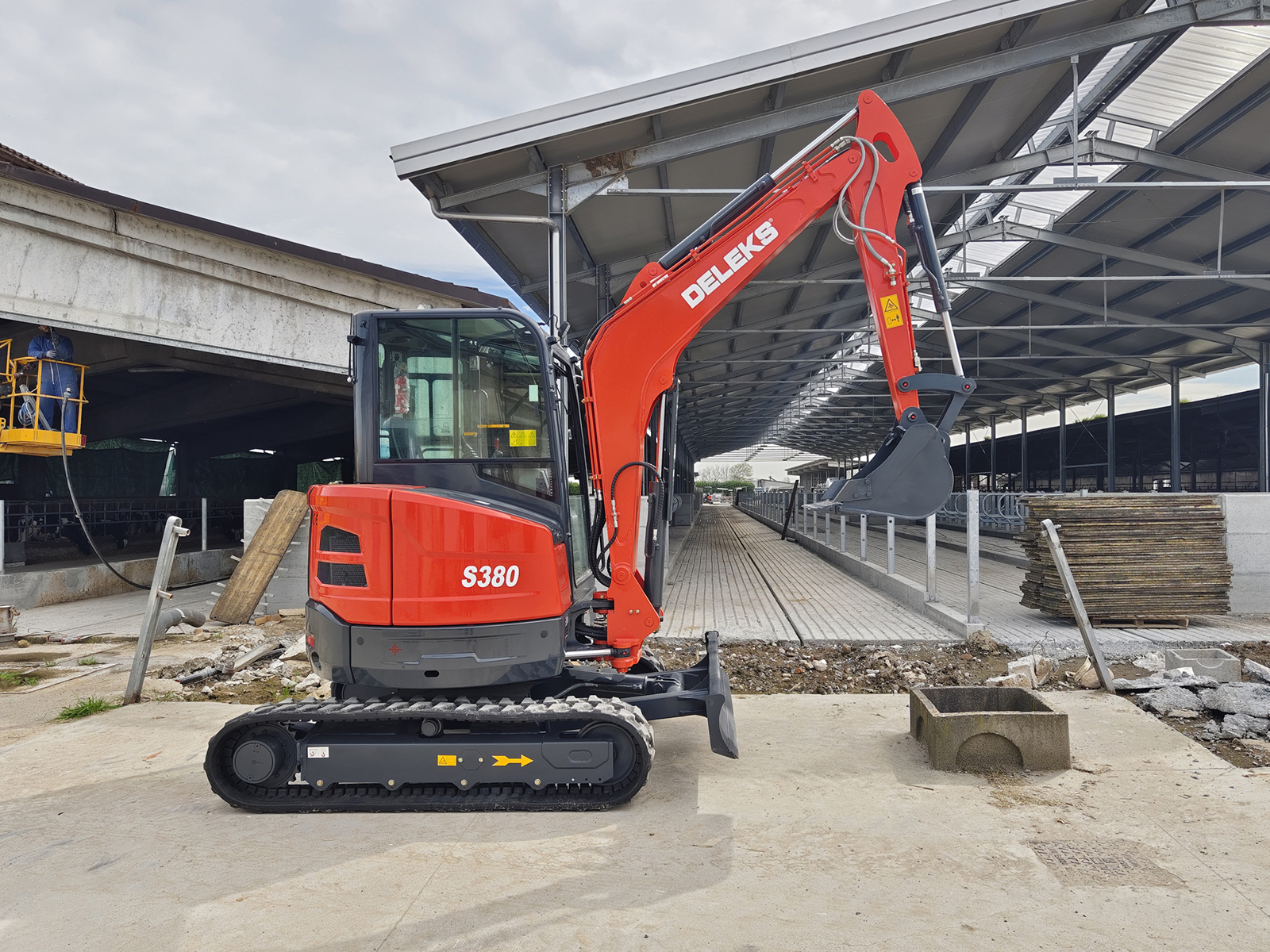

The DELEKS® S380 is a mid-range zero-tail swing mini excavator, designed to deliver efficiency, precision and productivity in construction sites, landscaping, public utilities and agricultural operations.
With an operating weight of 3,880 kg, it combines compact dimensions with solid digging capacity, making it suitable for confined areas and restricted access sites.
Working range
- Maximum digging height: 4910 mm
- Maximum dumping height: 3545 mm
- Maximum digging depth: 3075 mm
- Maximum vertical digging depth: 2640 mm
- Maximum digging radius: 5500 mm
- Ground-level digging radius: 5345 mm
Advantages
- High digging performance
- Bucket breakout force: 30.4 kN
- Arm digging force: 18.2 kN
- Kubota engine – low emissions
The Kubota D1703 diesel engine delivers 18.2 kW at 2200 rpm, combining low emissions, fuel efficiency and long service life in compliance with Stage V regulations.

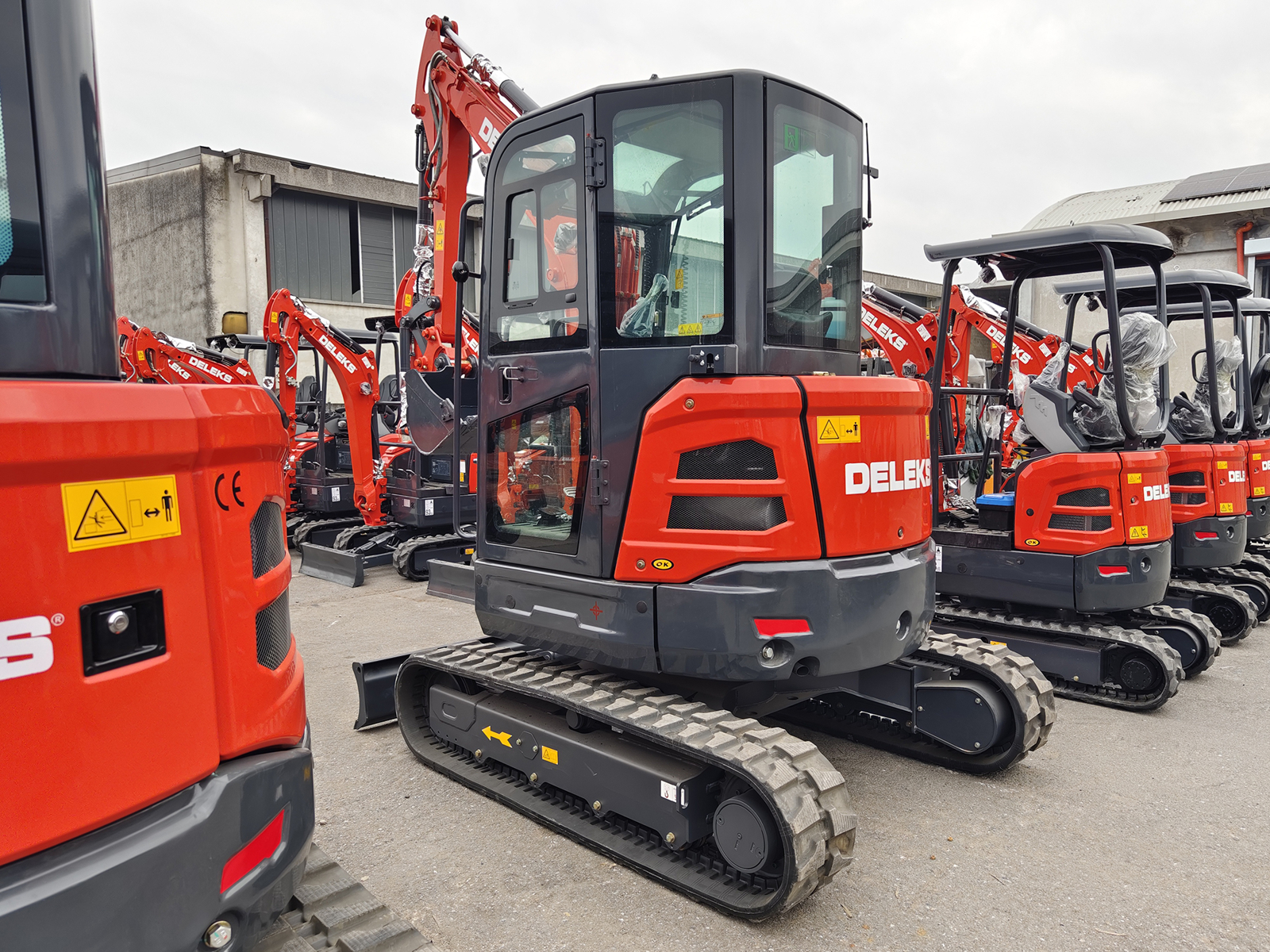

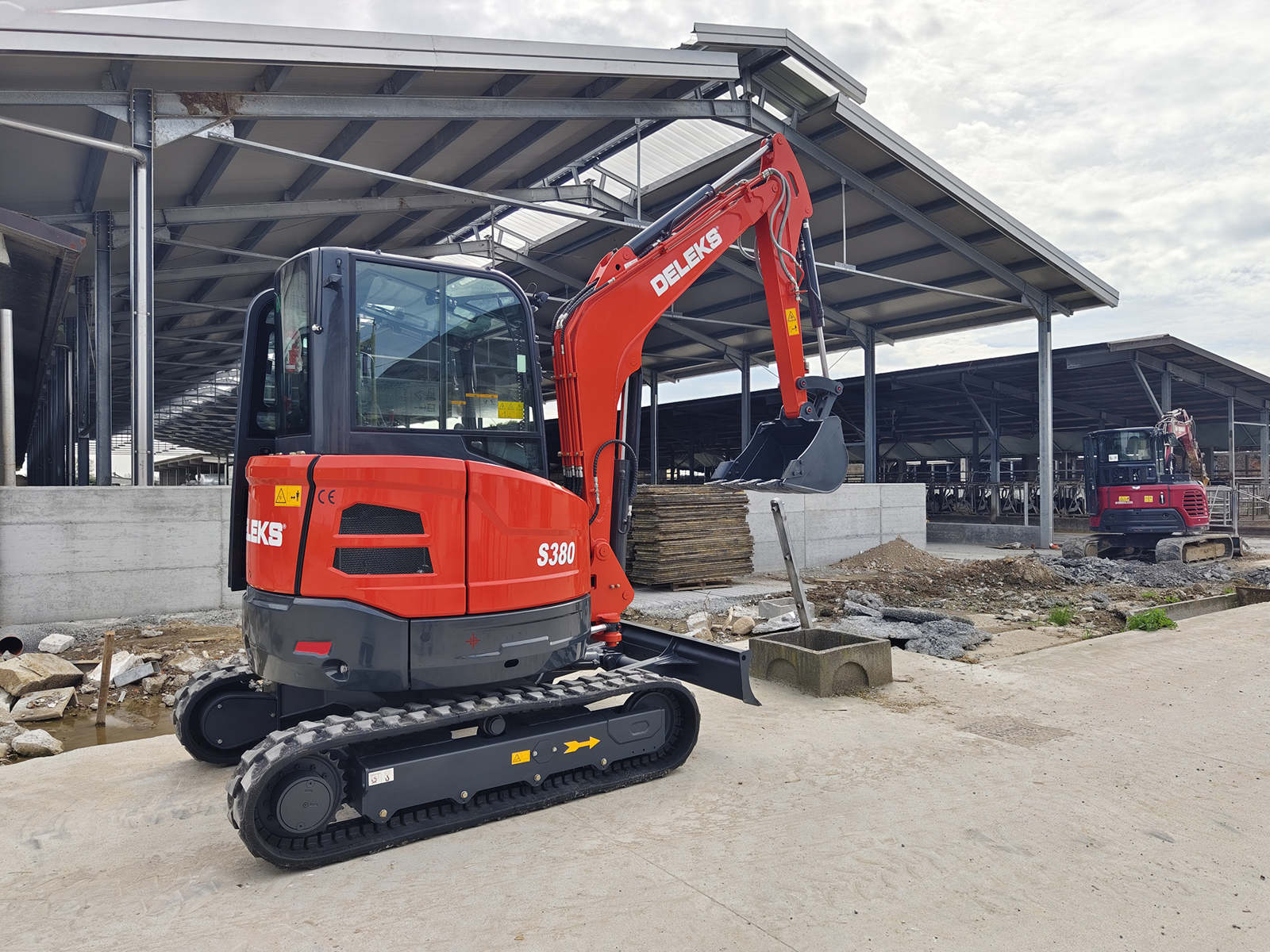

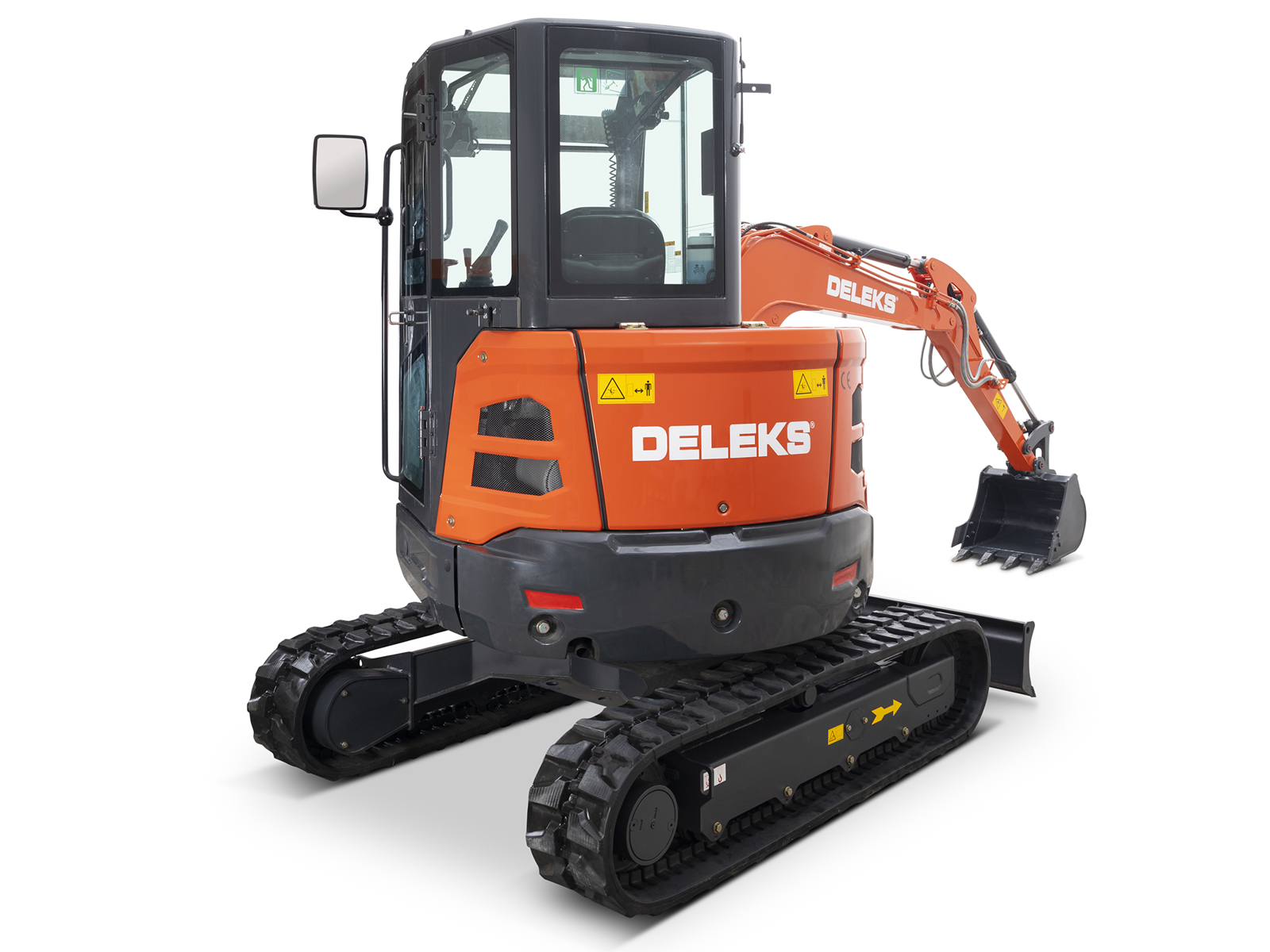

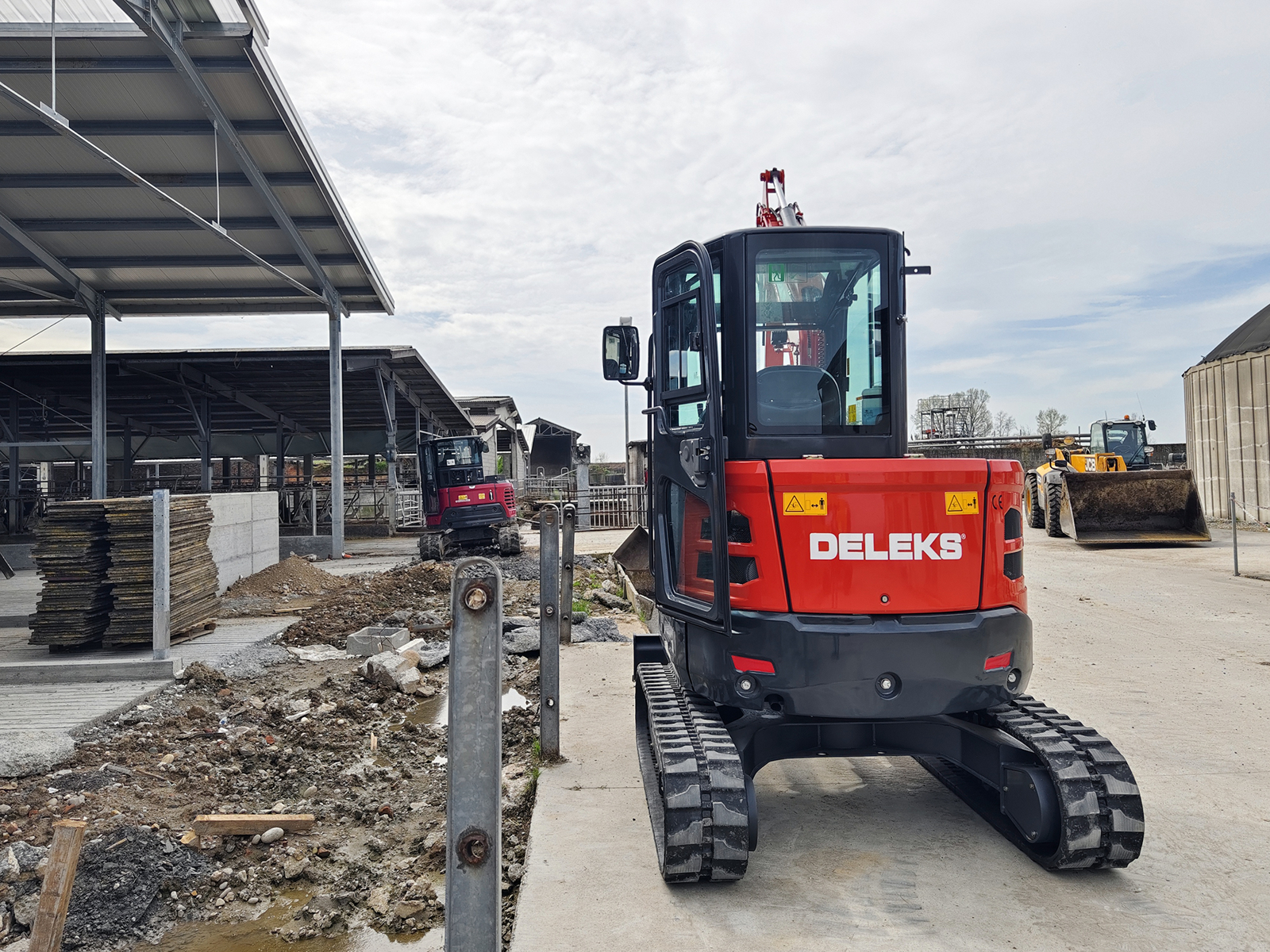

Zero-tail swing design
The S380CK features a zero rear overhang, allowing safe operation close to walls and obstacles. The machine is well balanced thanks to optimized weight distribution.
- Hydraulic system
- Equipped with a variable-displacement piston pump, the hydraulic system provides:
- Maximum flow rate: 96.8 L/min
- Load-sensing pilot control
- High system pressure
This ensures smooth, synchronized and precise movements. ISO 6015 breakout forces are 30.4 kN (bucket) and 18.2 kN (arm).
- Travel drive
- Axial piston travel motors
- 2×4 track rollers
- Travel speed: 2.4 / 4.4 km/h
- Maximum traction force: 32 kN
- Gradeability: 30°
Two-speed travel
Allows adaptation between working speed and transfer speed up to 4.4 km/h.
Operating weight and dimensions
- Operating weight: 3800 kg
- Transport length: 4880 mm
- Ground contact length: 3360 mm
- Undercarriage width: 1740 mm
- Upper structure width: 1400 mm

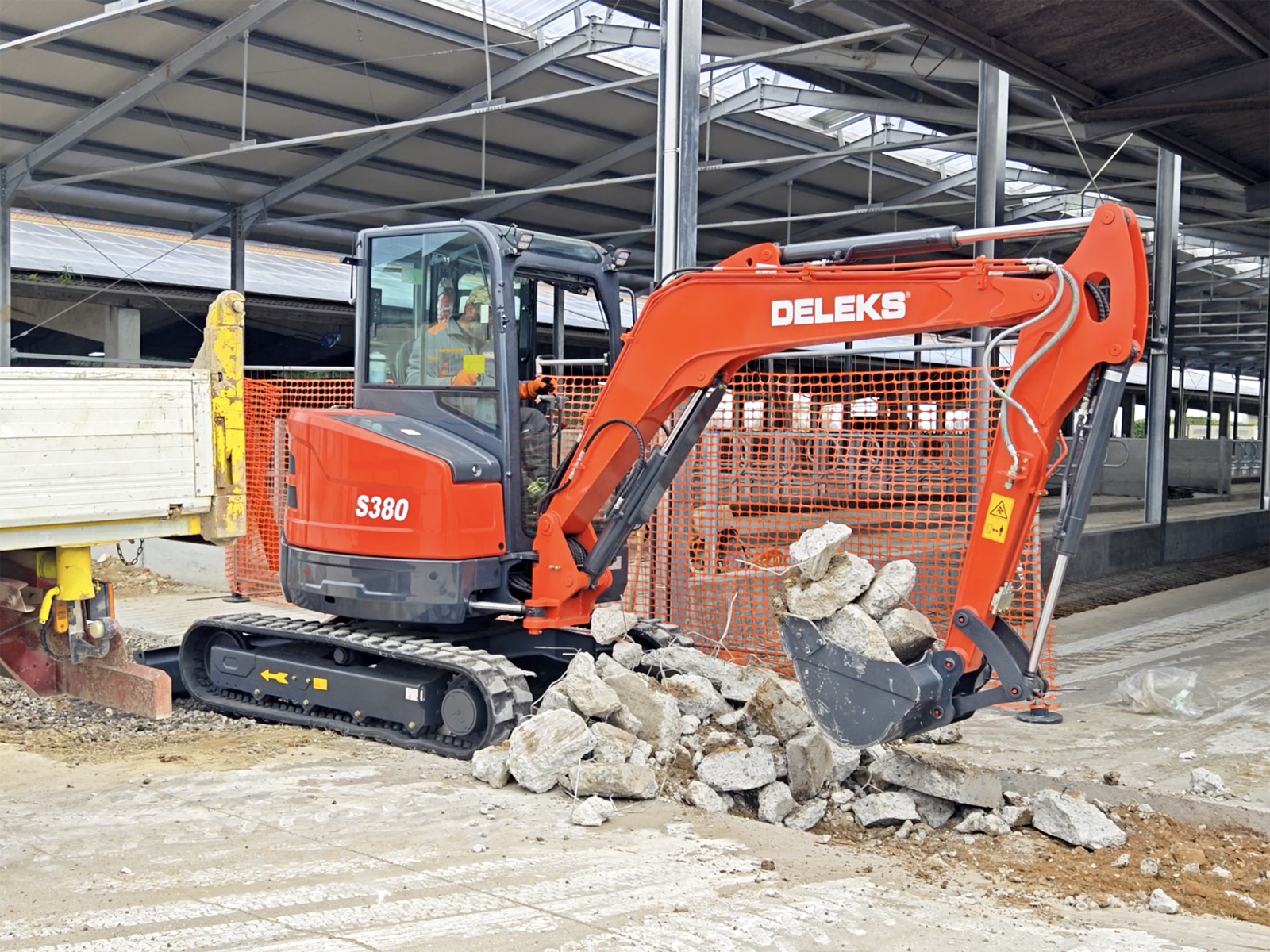

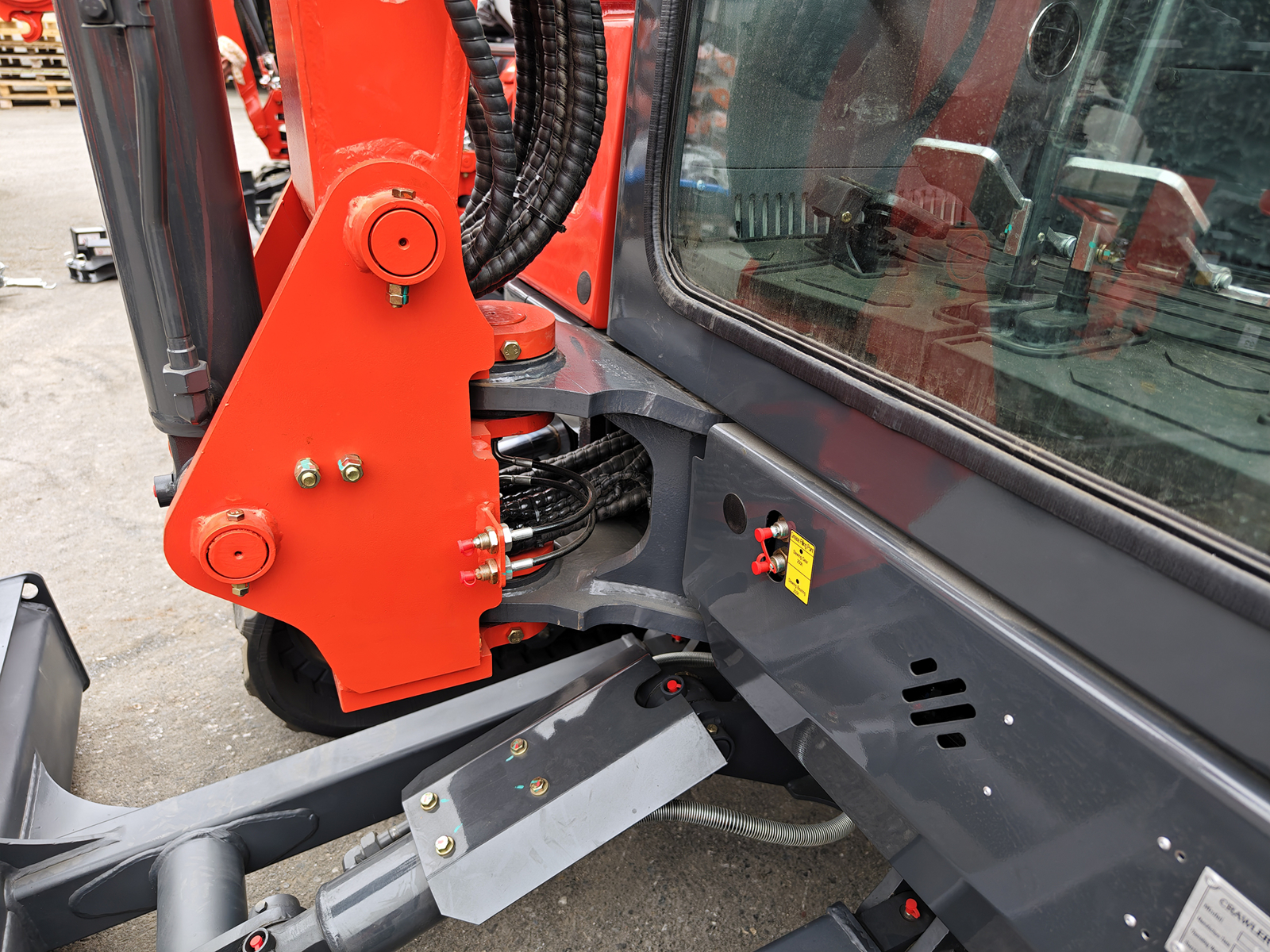

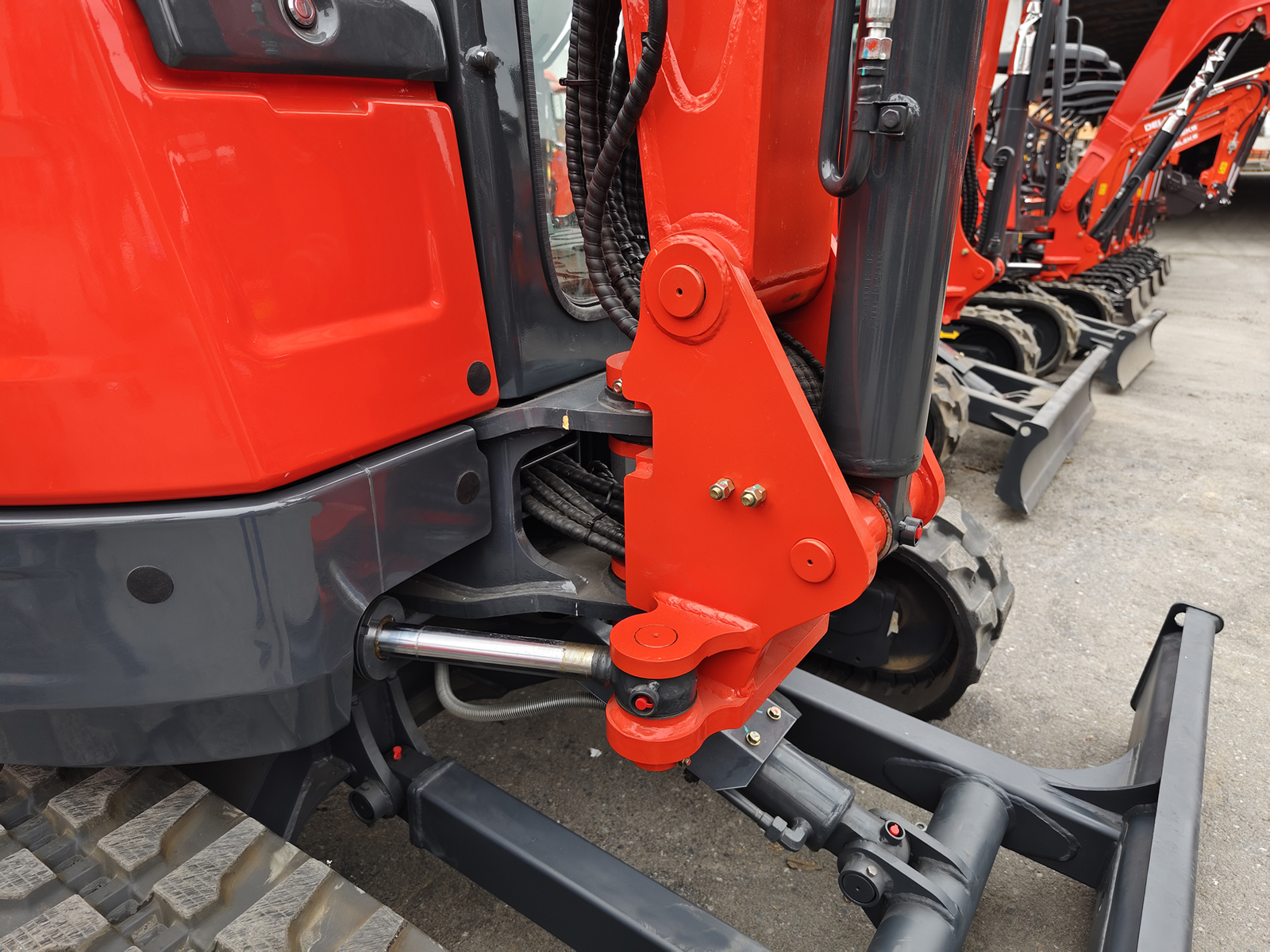

Swing boom
The offset boom enables excavation close to walls without repositioning the machine.
Swing system
Equipped with a Danfoss swing motor, rotation speed 0–9 rpm for controlled and precise movements.
Ground pressure
With 300 mm tracks, ground pressure is 32 kPa, suitable for sensitive surfaces.

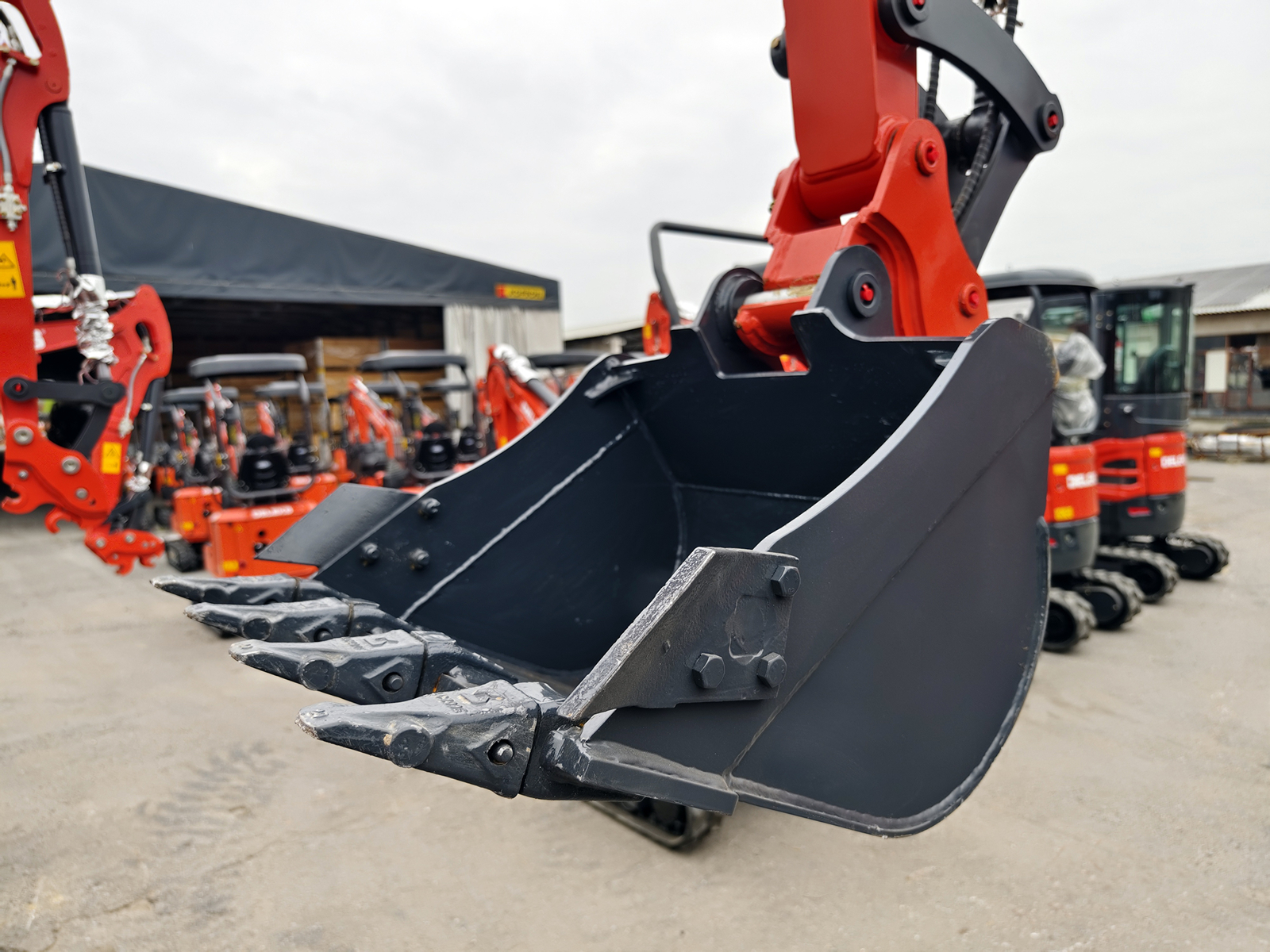

Attachments
Compatible with a wide range of attachments for:
- digging
- lifting
- loading
- mulching

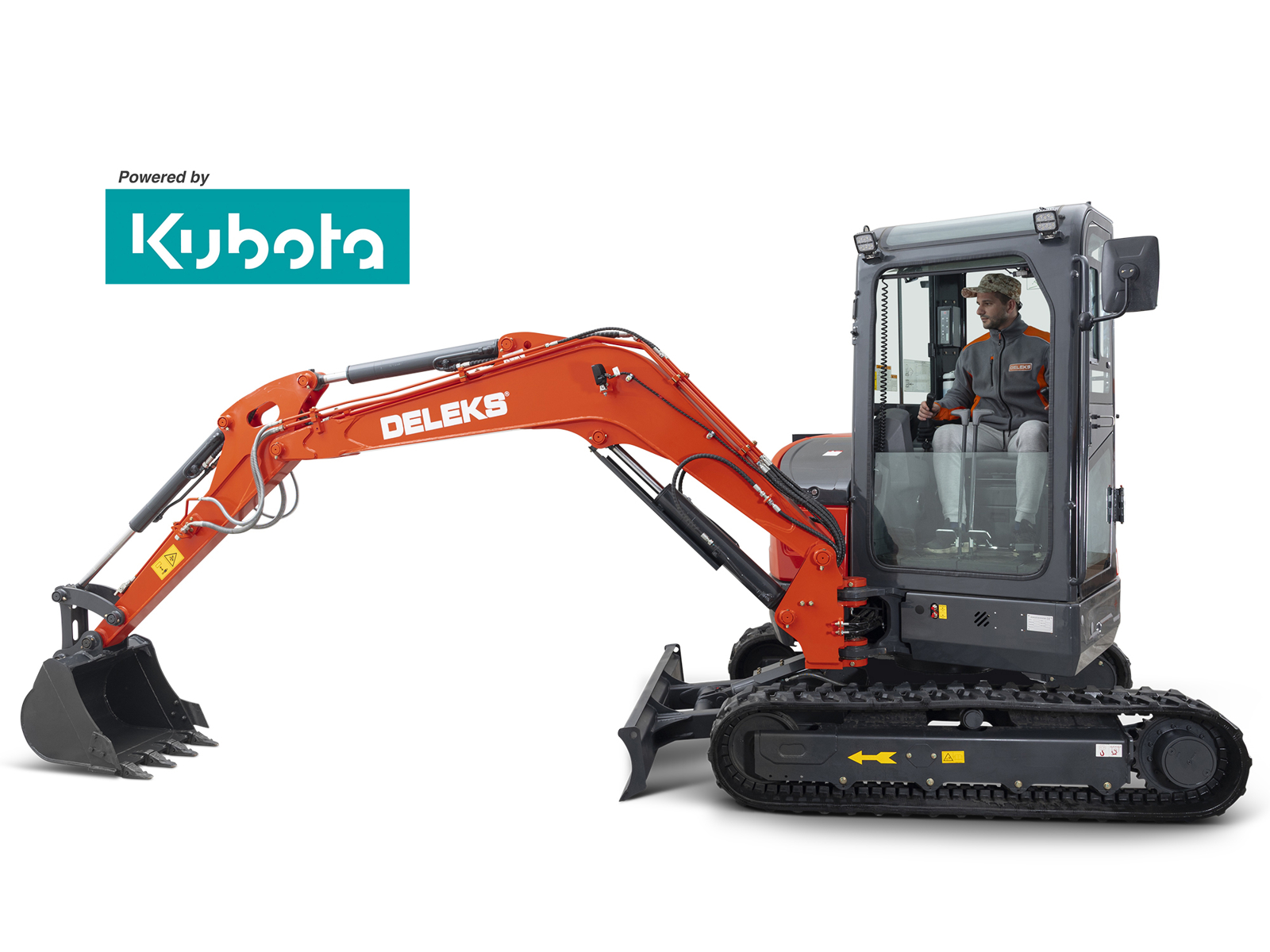

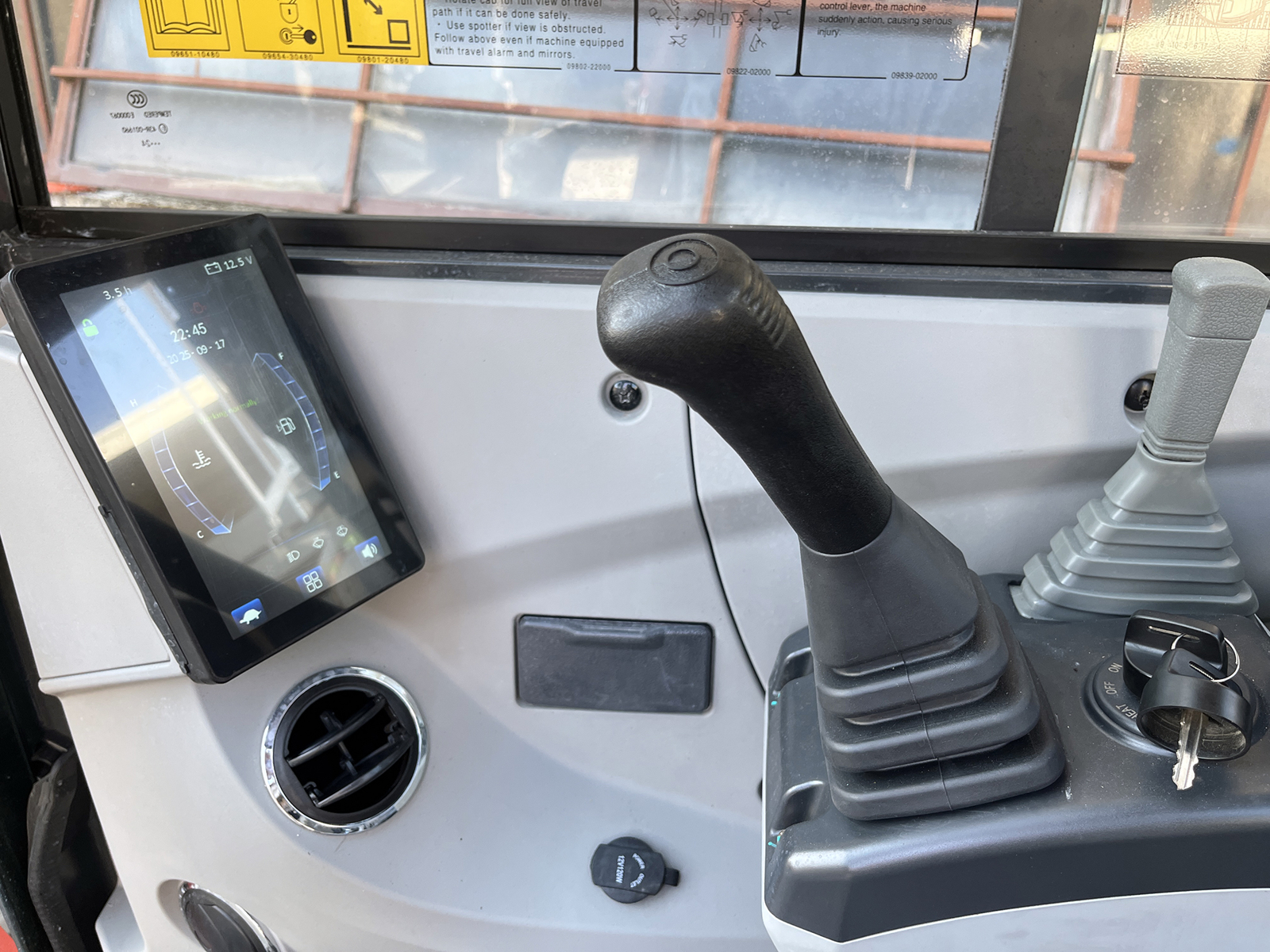

Cab

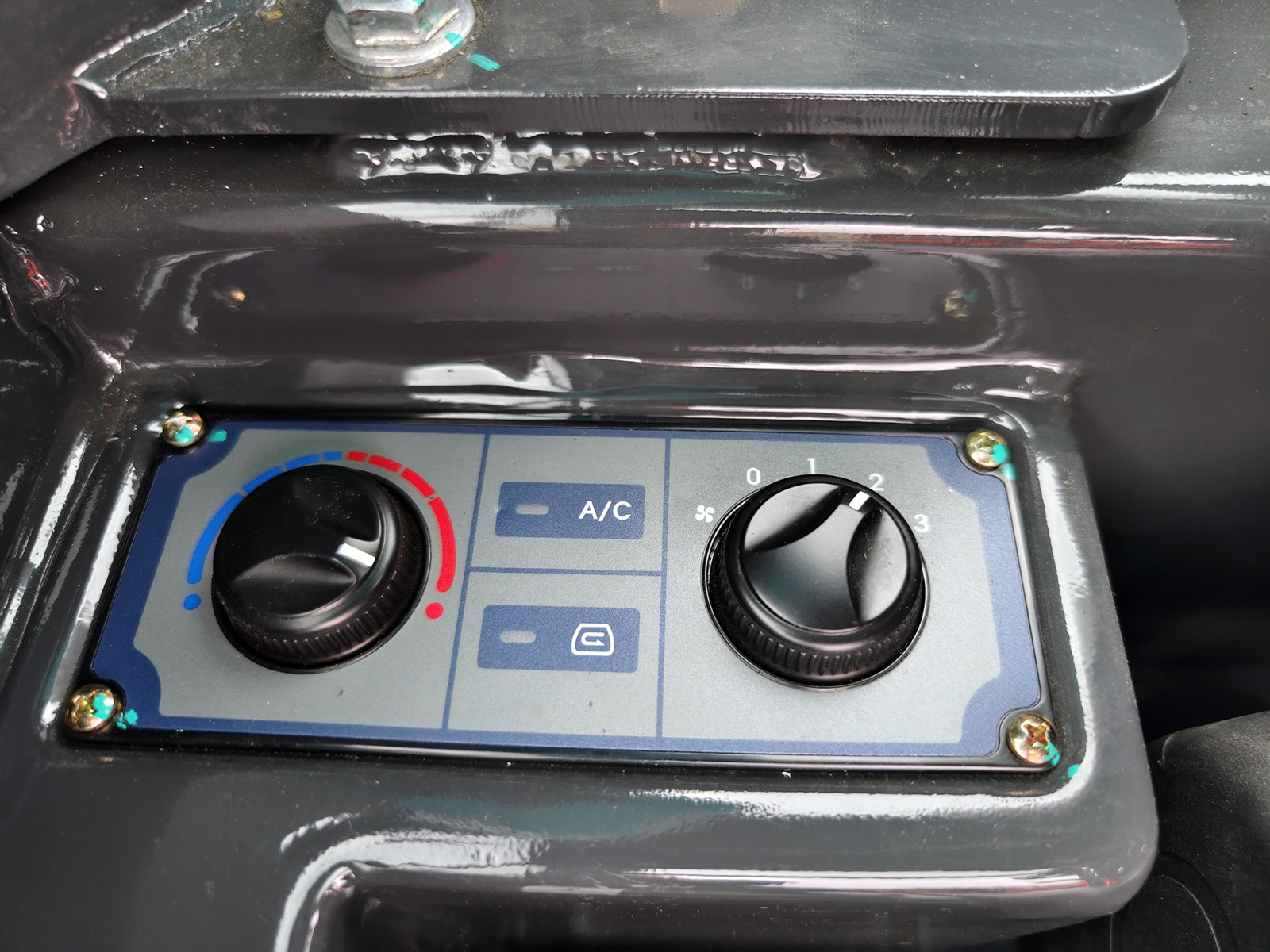

- Pressurized, fully air-conditioned cab (cooling/heating) equipped with:

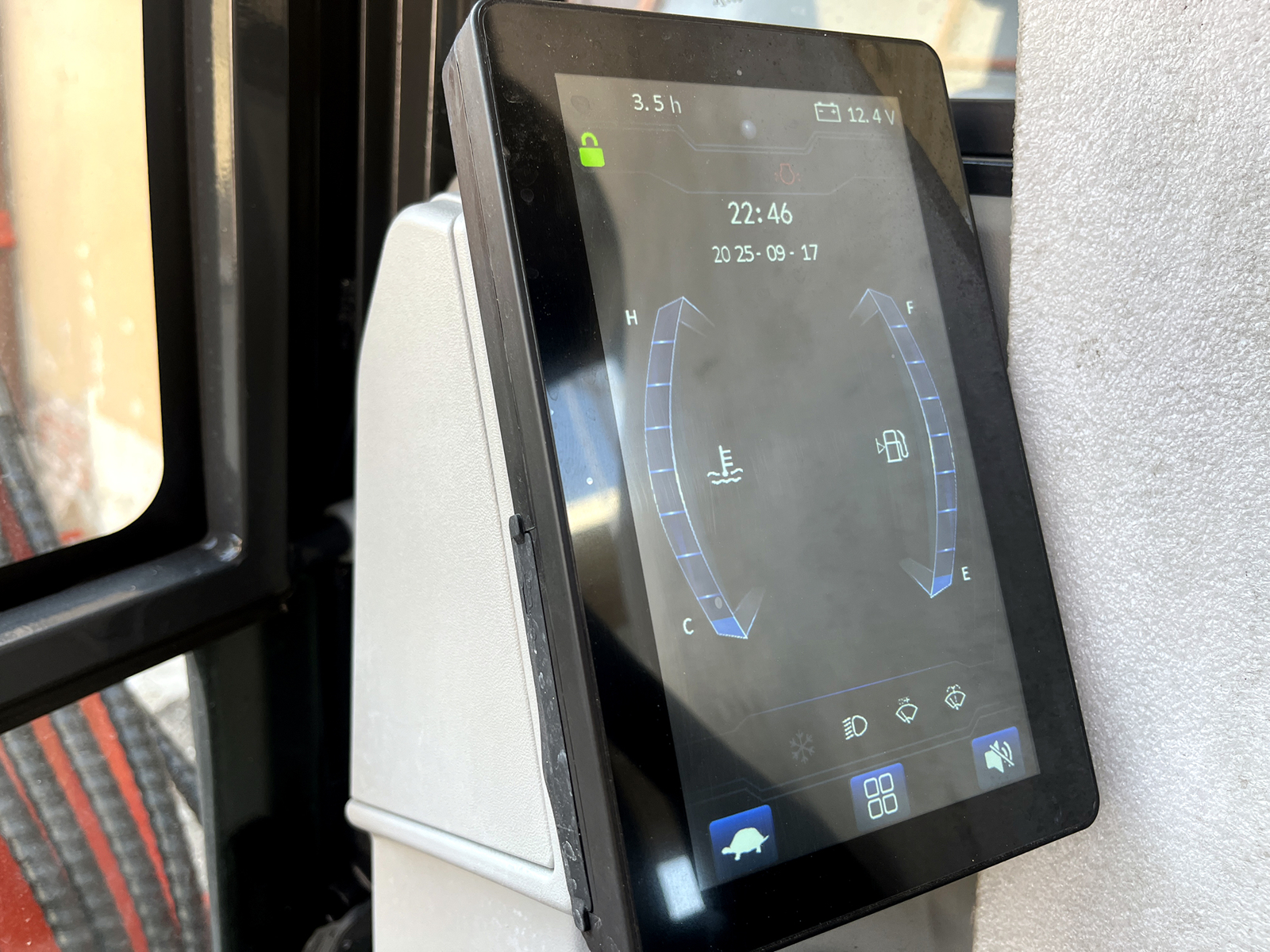

- 7” LCD touchscreen display (English language)
- Fully hydraulic pilot control
- Bluetooth radio
- Cab certified according to ROPS and FOPS Level 1 standards.
Spare parts support
Original DELEKS® spare parts ensure full compatibility and long-term machine reliability.
Technical data
See PDF catalogue.
Supplied documentation
- CE Declaration of Conformity
- Invoice
- Operator’s and maintenance manual
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Weight | 3880.0 kg |
| Engine | KUBOTA D1703 |
| Digg capacity | 4910.0 mm |
