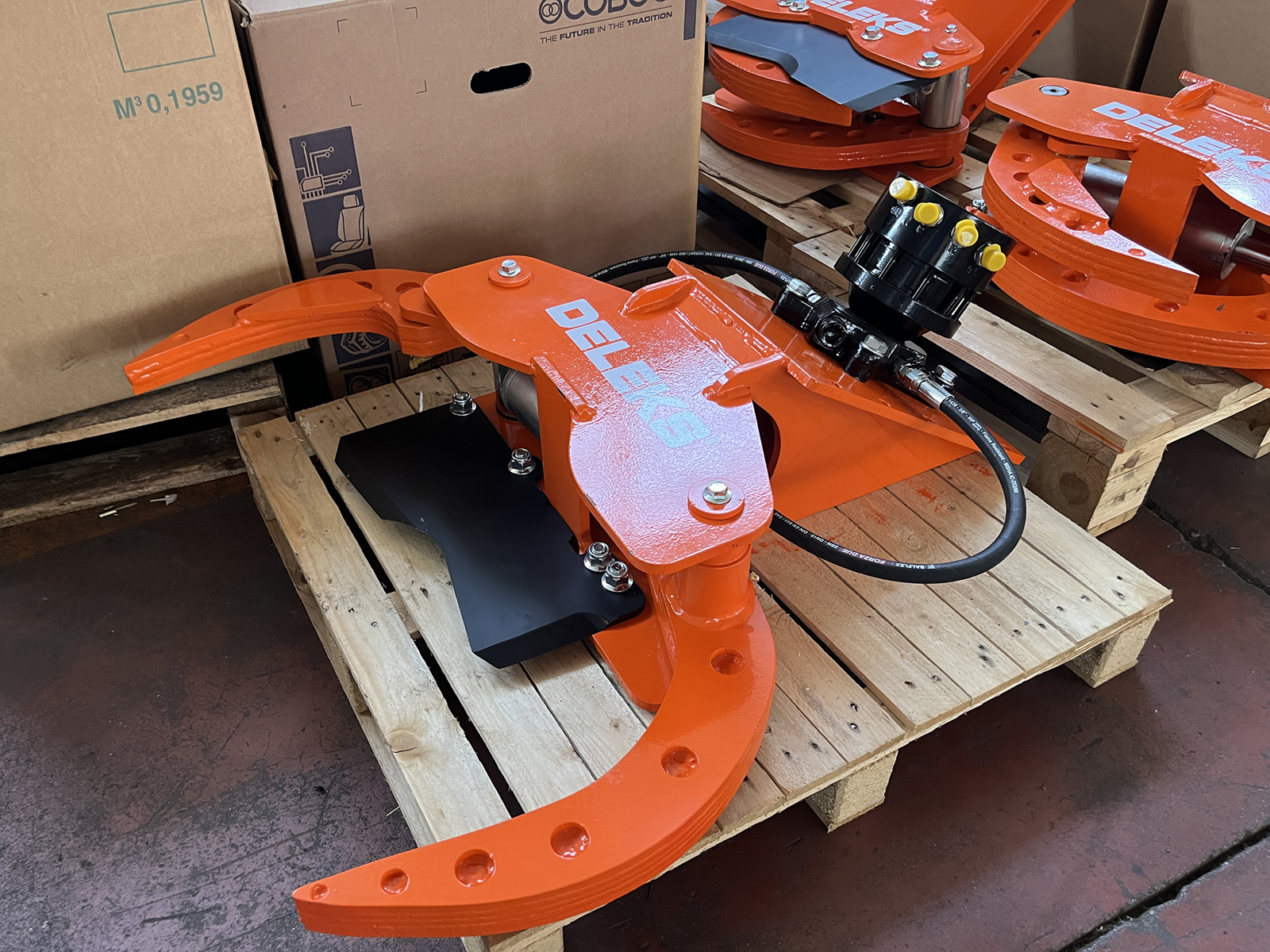

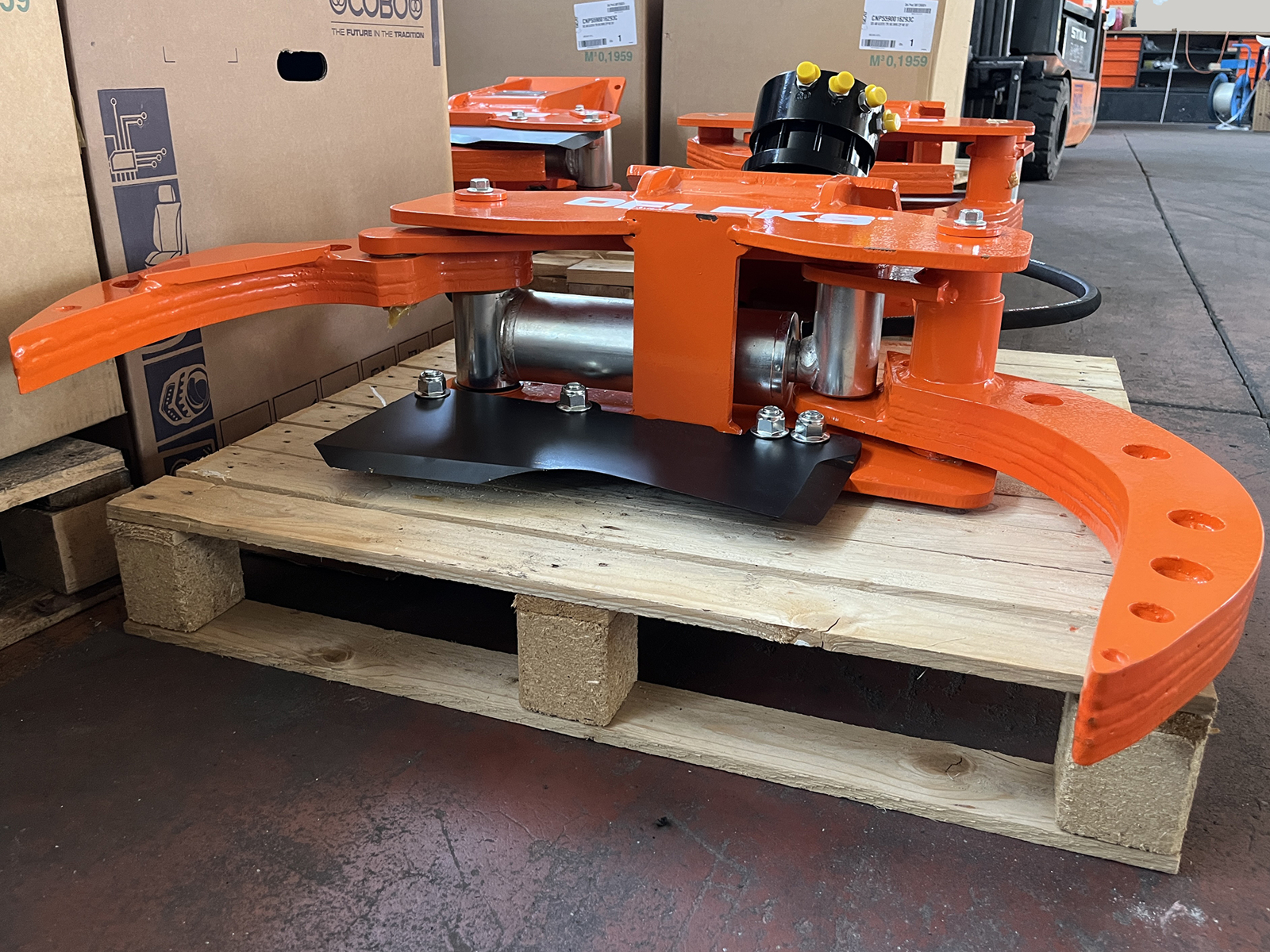

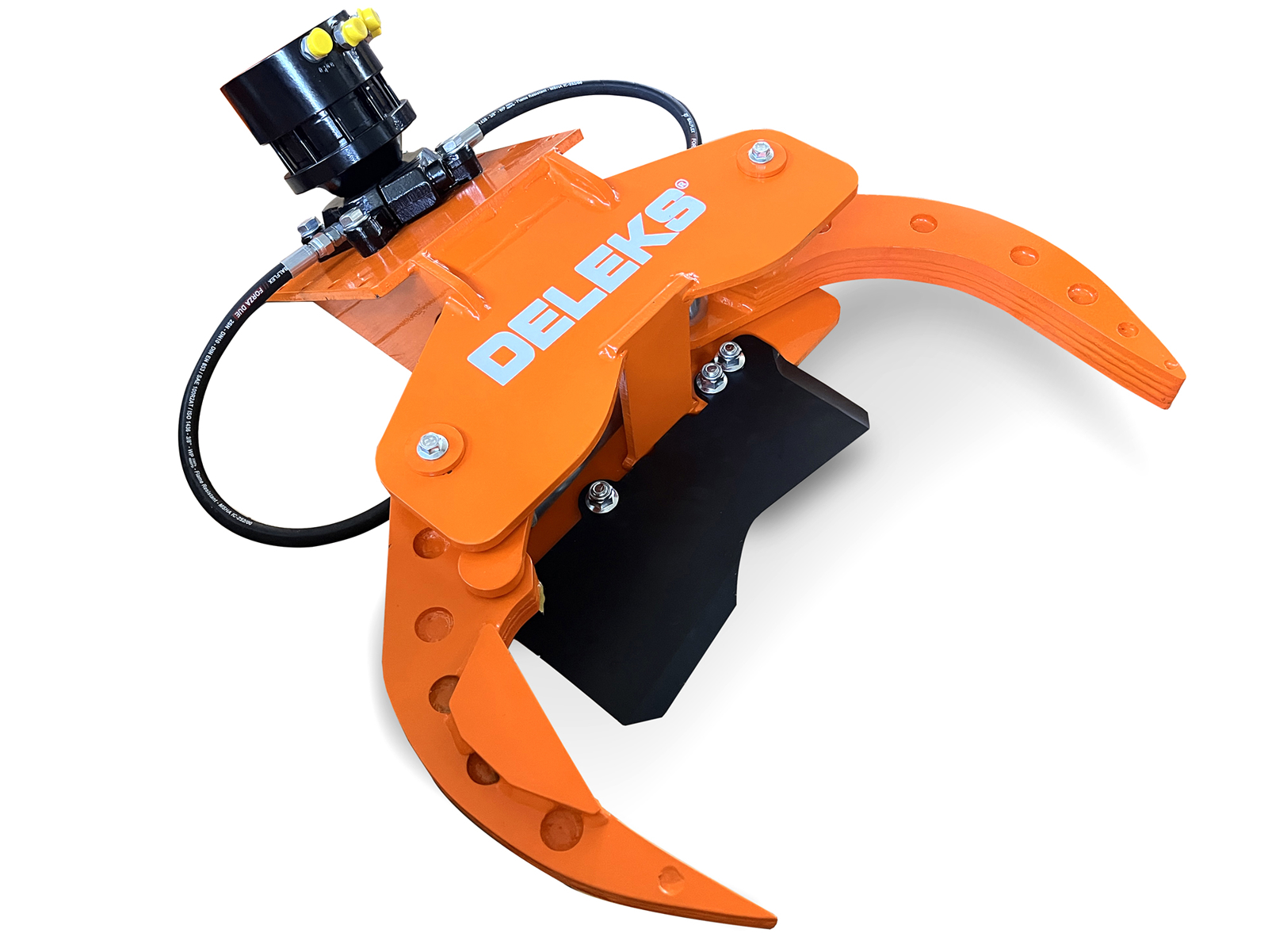

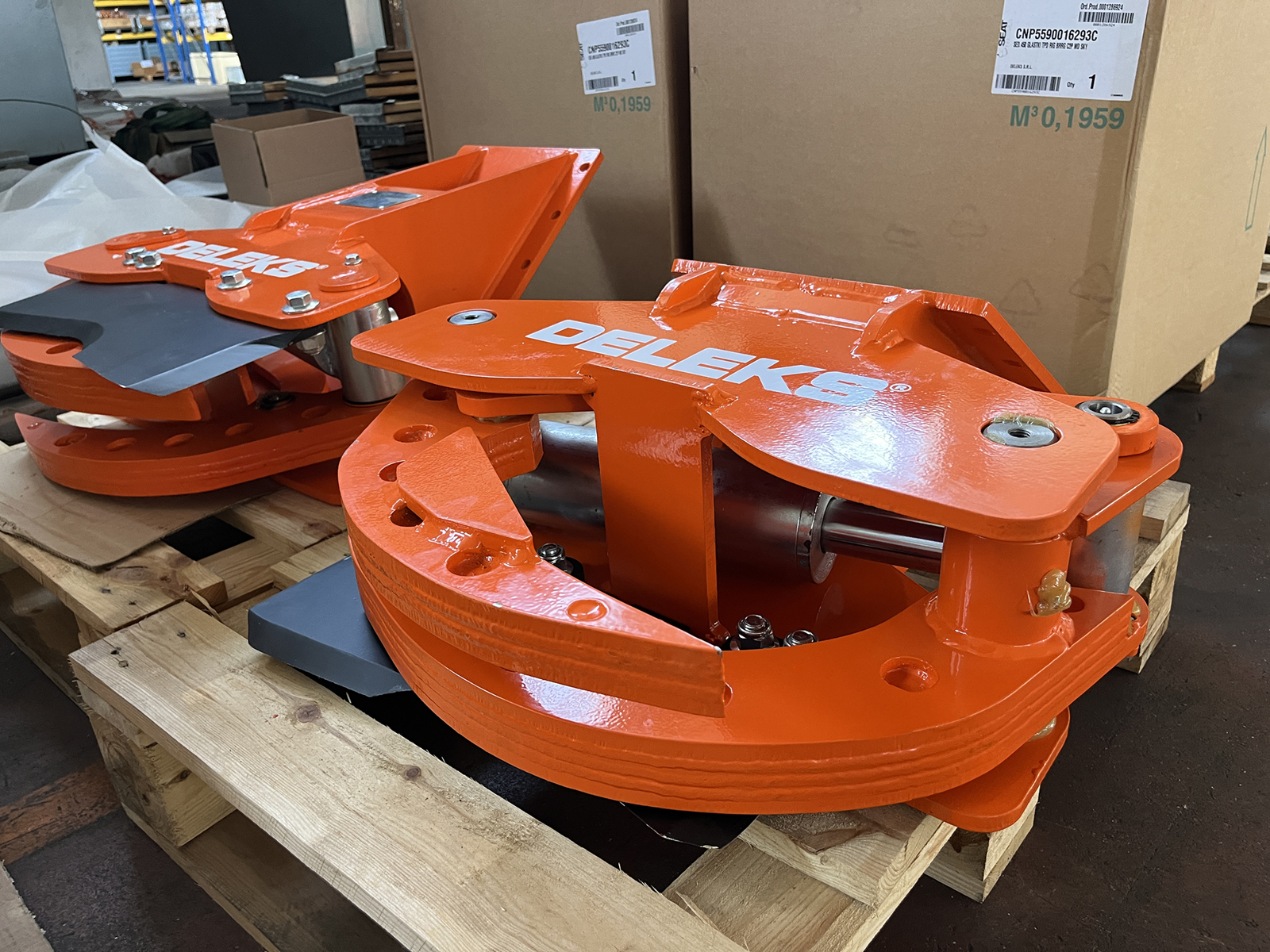

Mini Excavator hydraulic Tree Shear / Grab with fixed rotator for quick linkage - 100% HARDOX

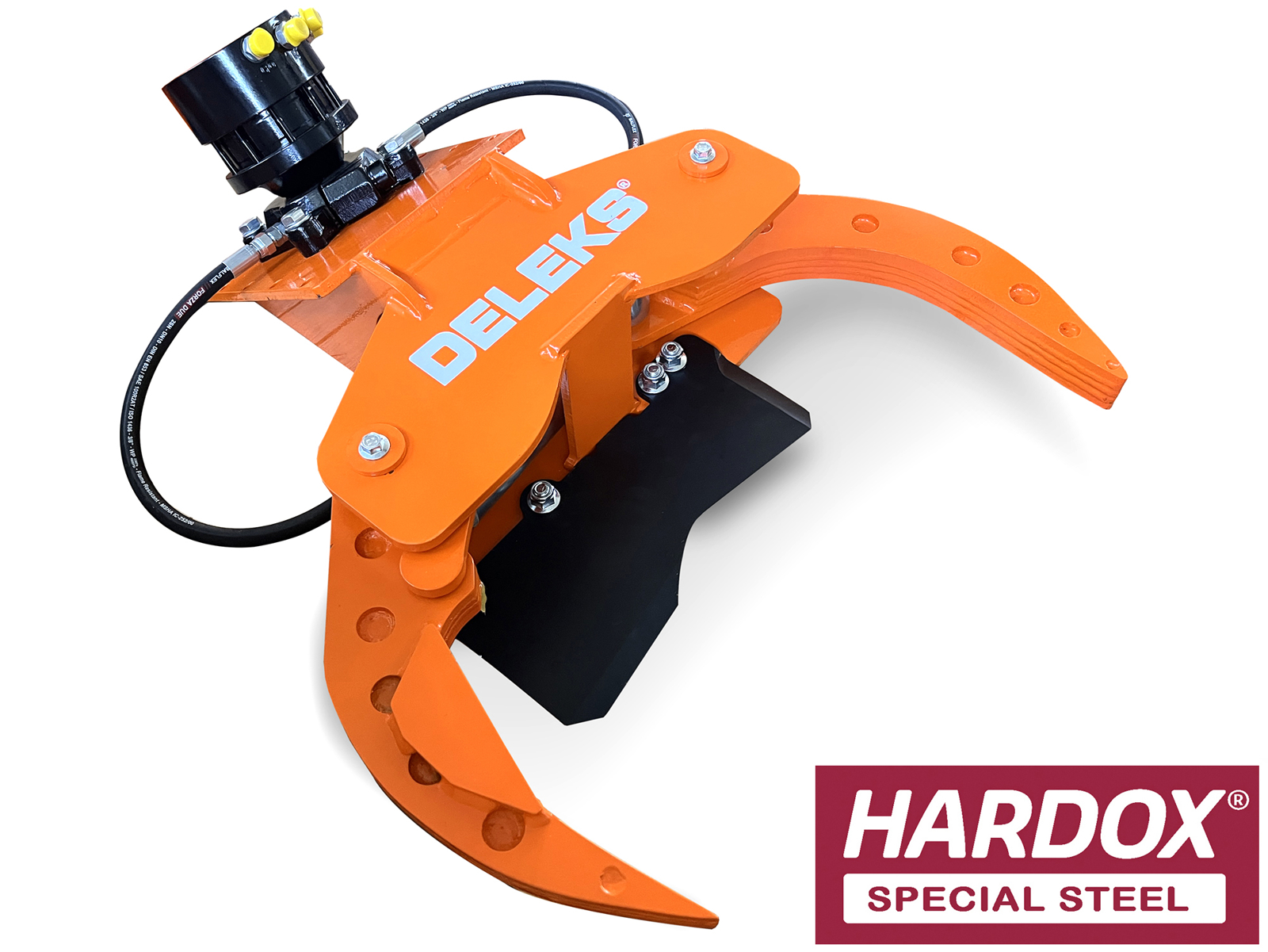

DELEKS^® hydraulic felling shear + grapple - Italian production - 100% Hardox, steel blade hardened, with rotator, for cutting and handling logs and trees up to ø 13 cm.

OVERVIEW

CF-11R is ideal for harvesting low-grade timber and energy wood, for clearing fields and roadsides.

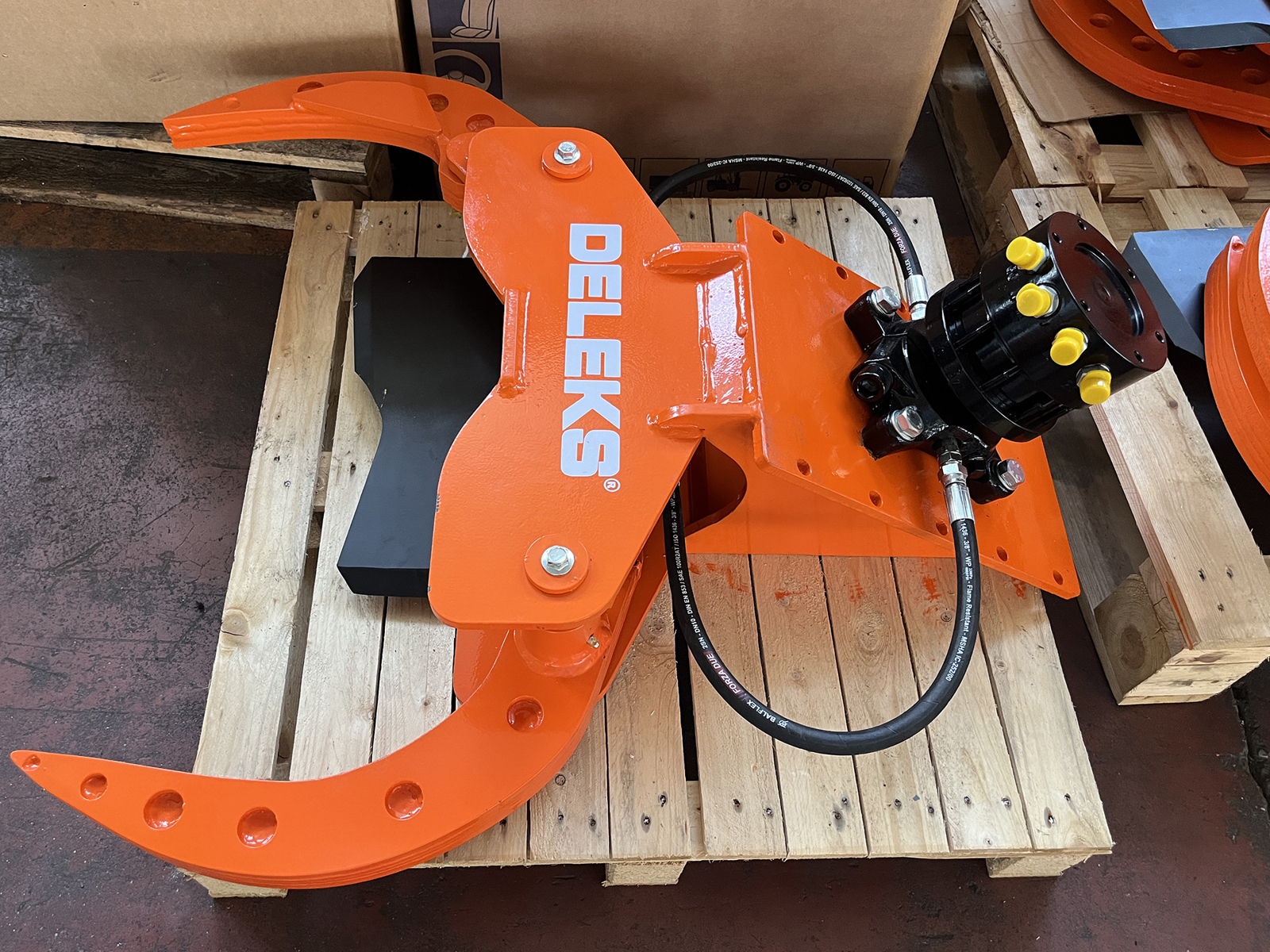

The DELEKS^® mini-excavator hydraulic shear is capable of cutting trees or bunching thinner woods together with the grab for cutting.  The shear has a powerful hardened blade that will cleanly and safely cut through timber.

Available with excavator couplings (on request).

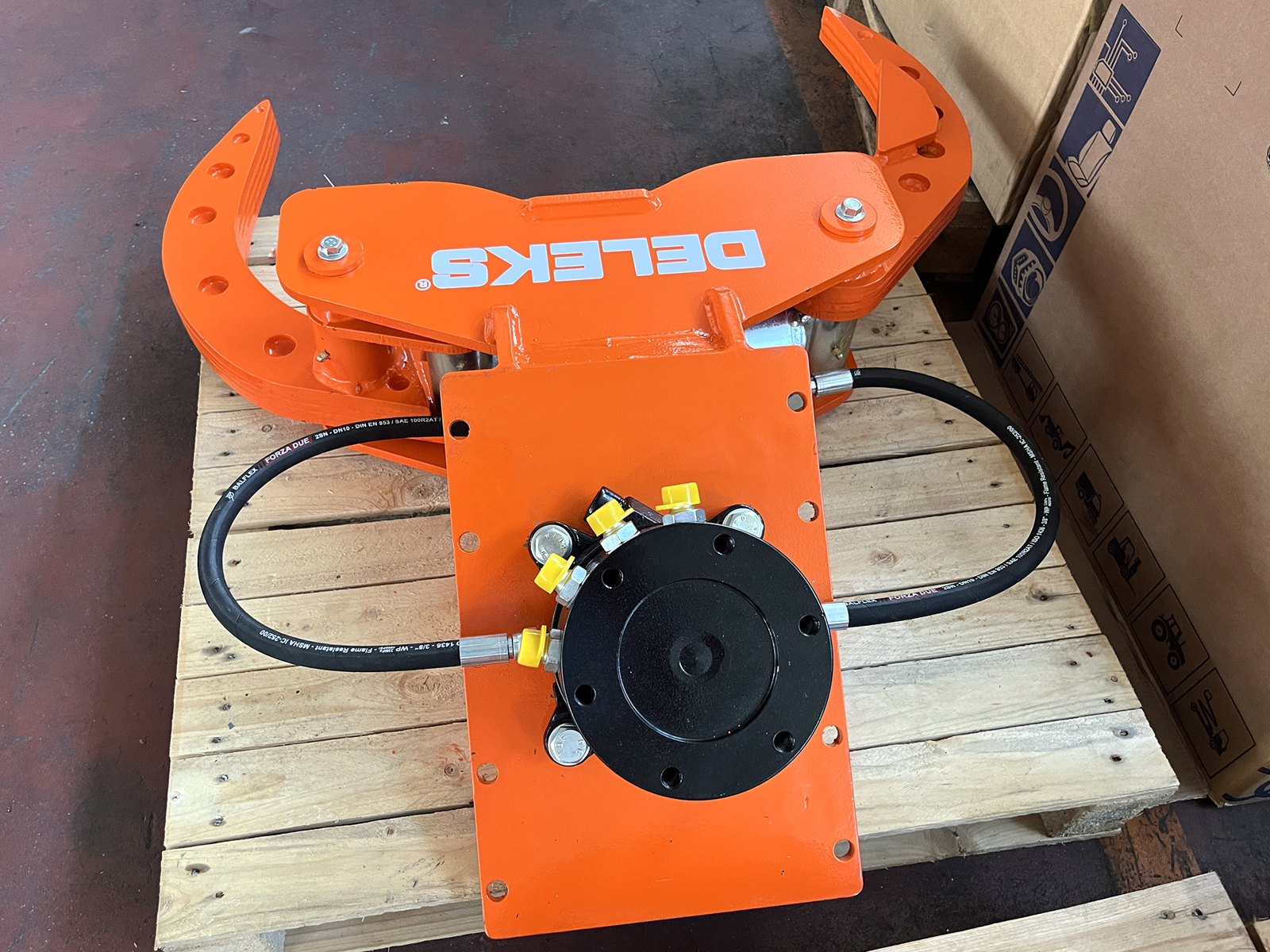

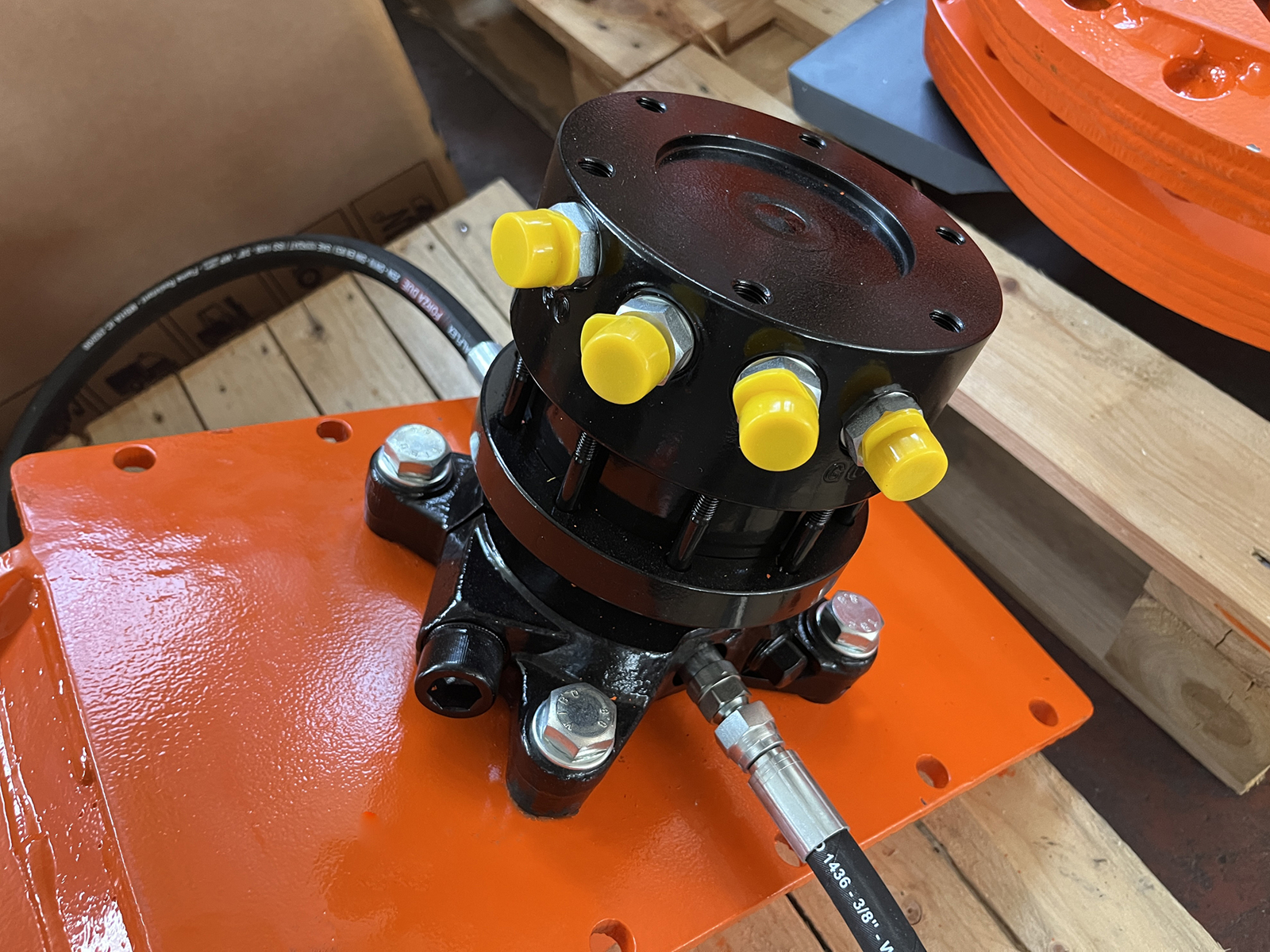

Rotator: Lombarda Ingranaggi^® GR55FF rotators are powerful, reliable and robust. They are engineered to perform in heavy duty work environments with maximal efficiency and minimal unscheduled downtime as they have a loading capacity 4500kg.

BENEFITS & FEATURES

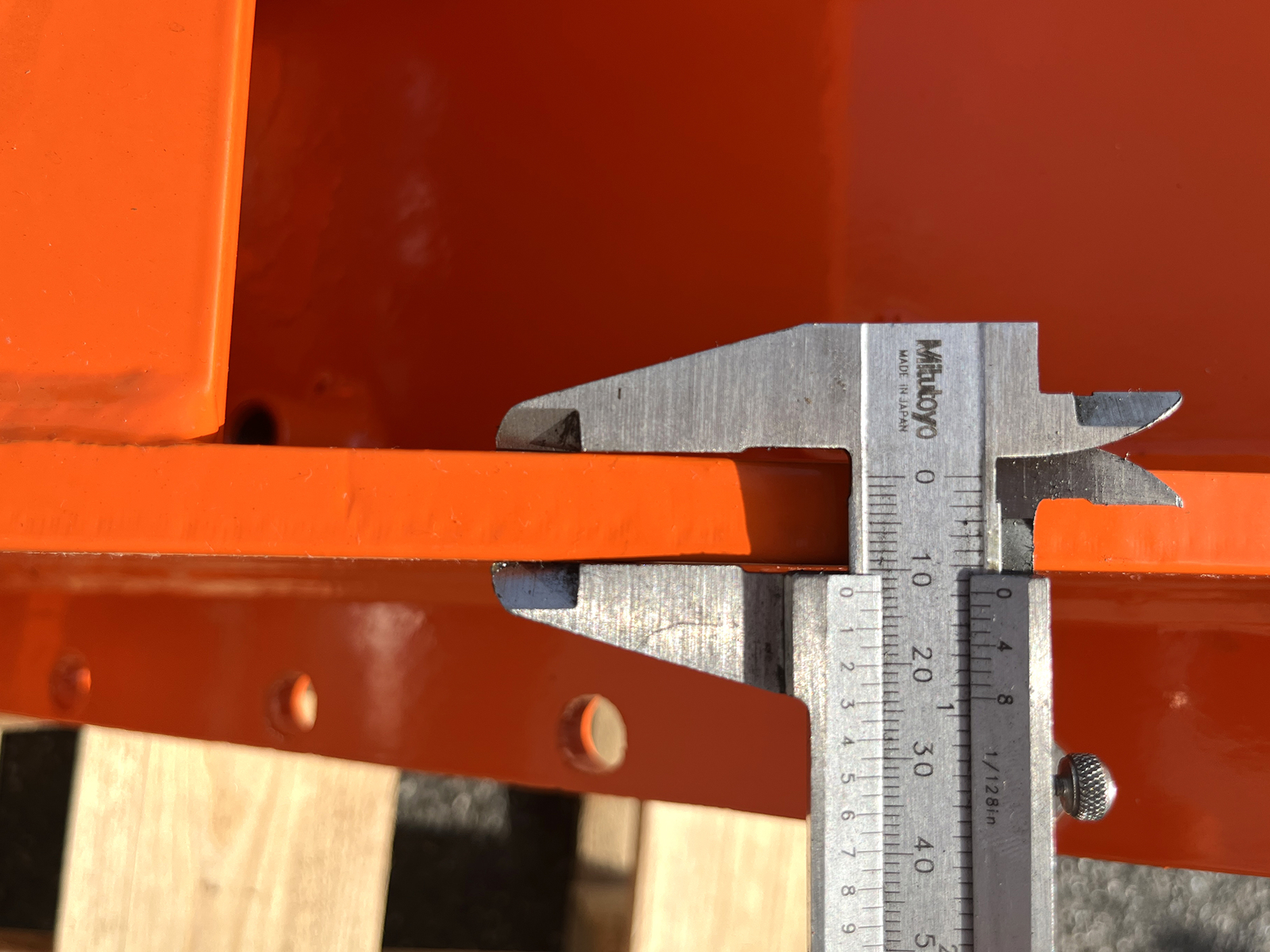

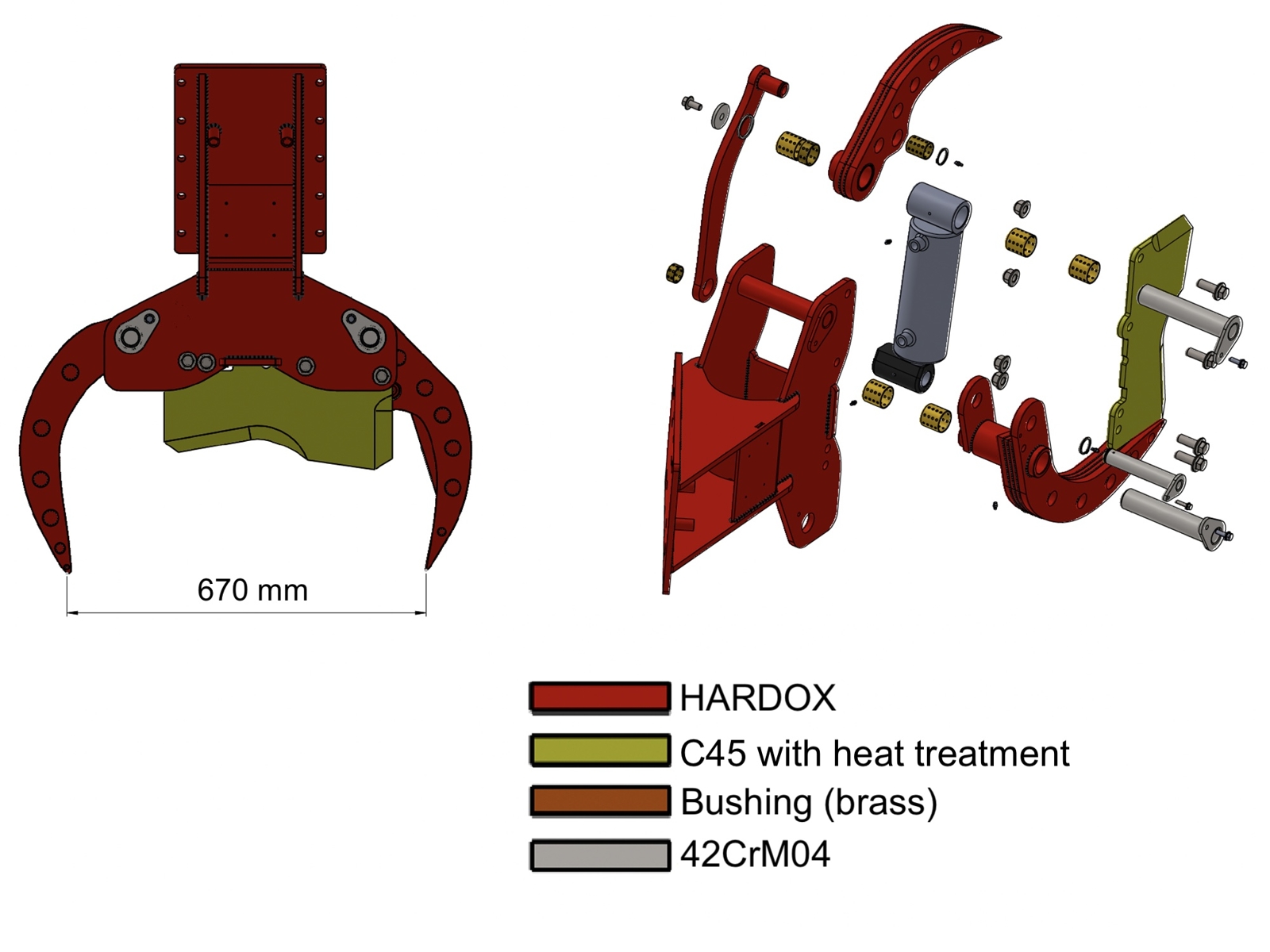

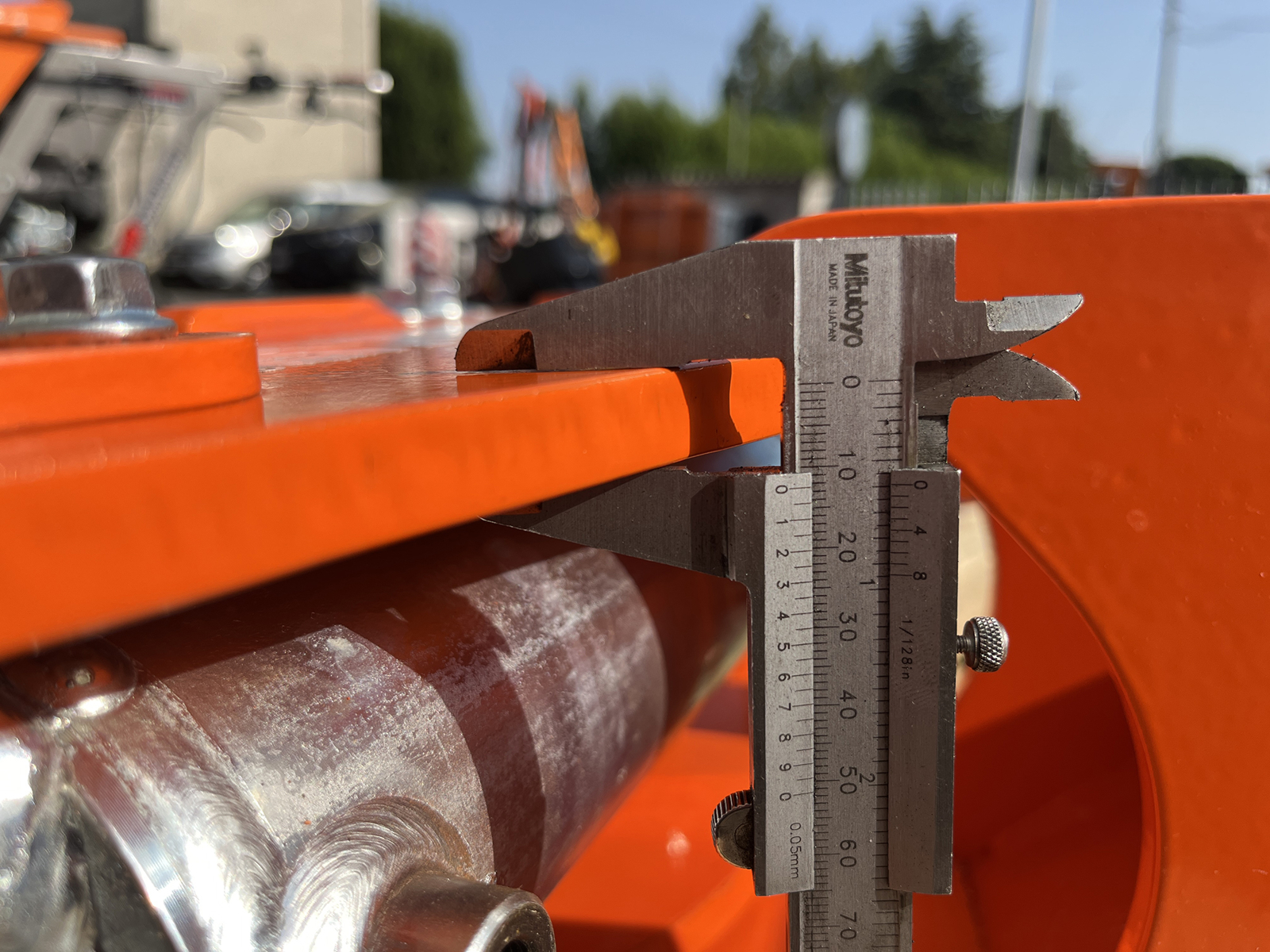

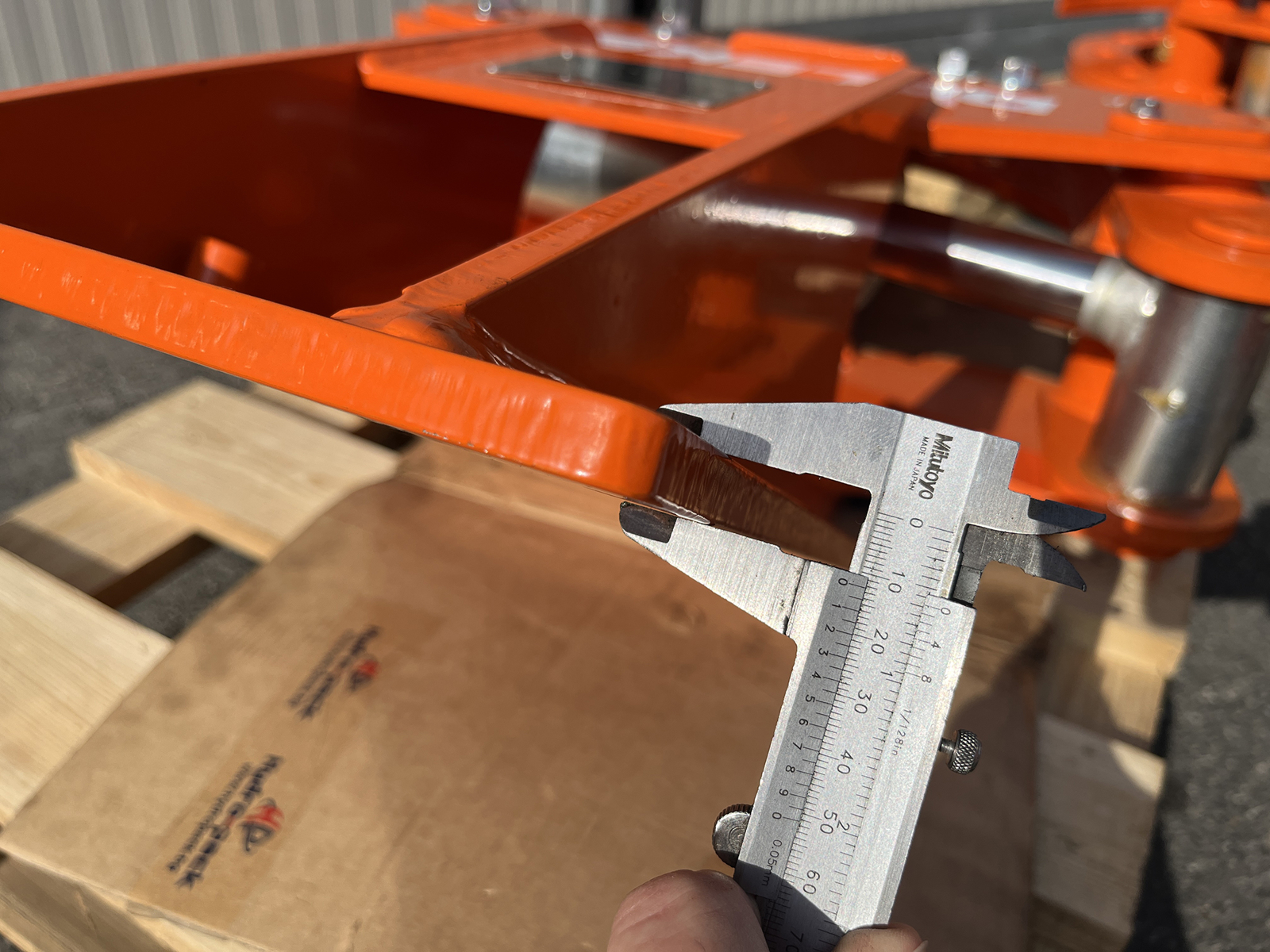

Made from 100% HARDOX for maximum torsion resistance.

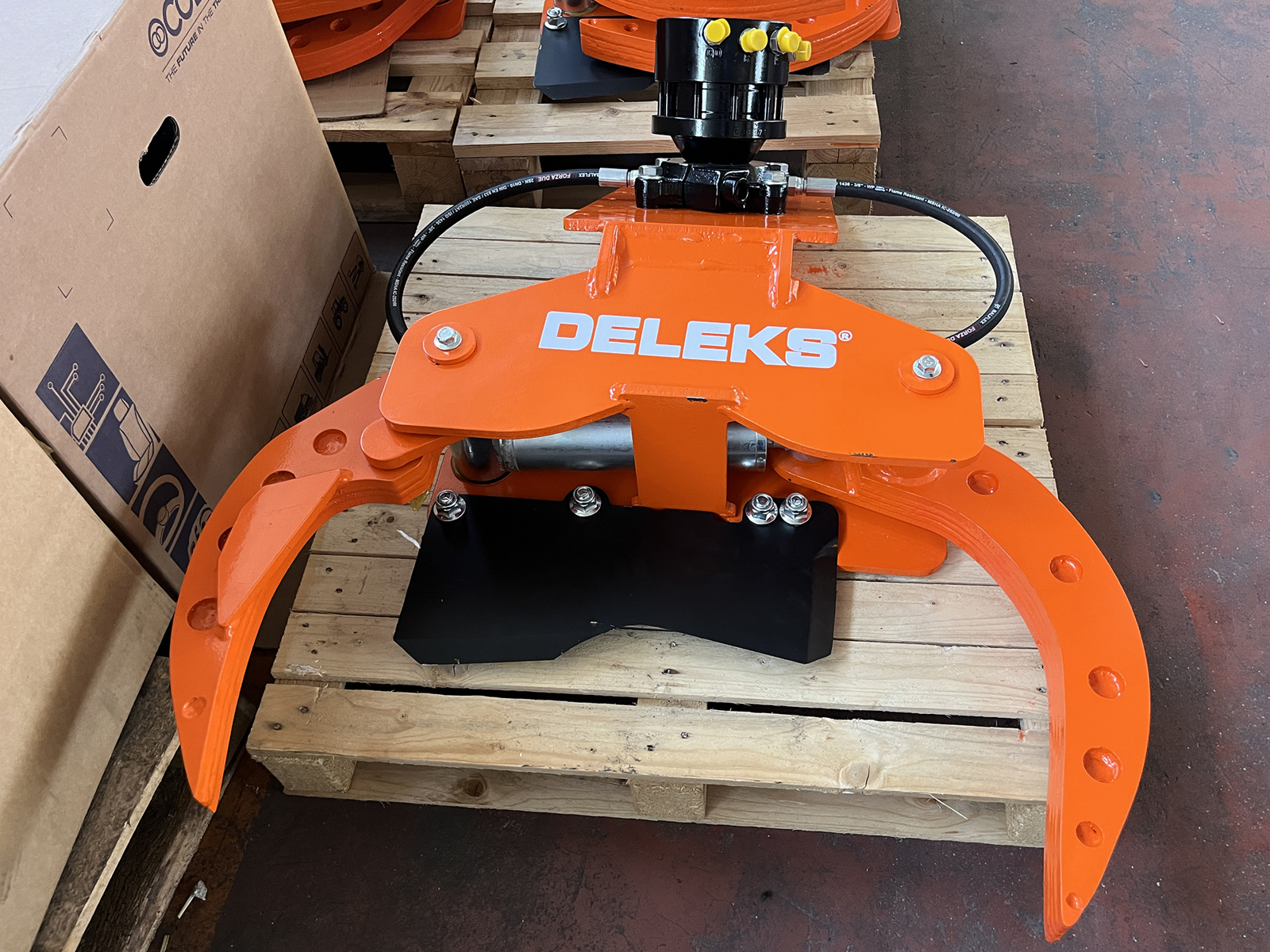

With the CF-11R's wide 650 mm opening, it is also easy to cut several small trees at once.

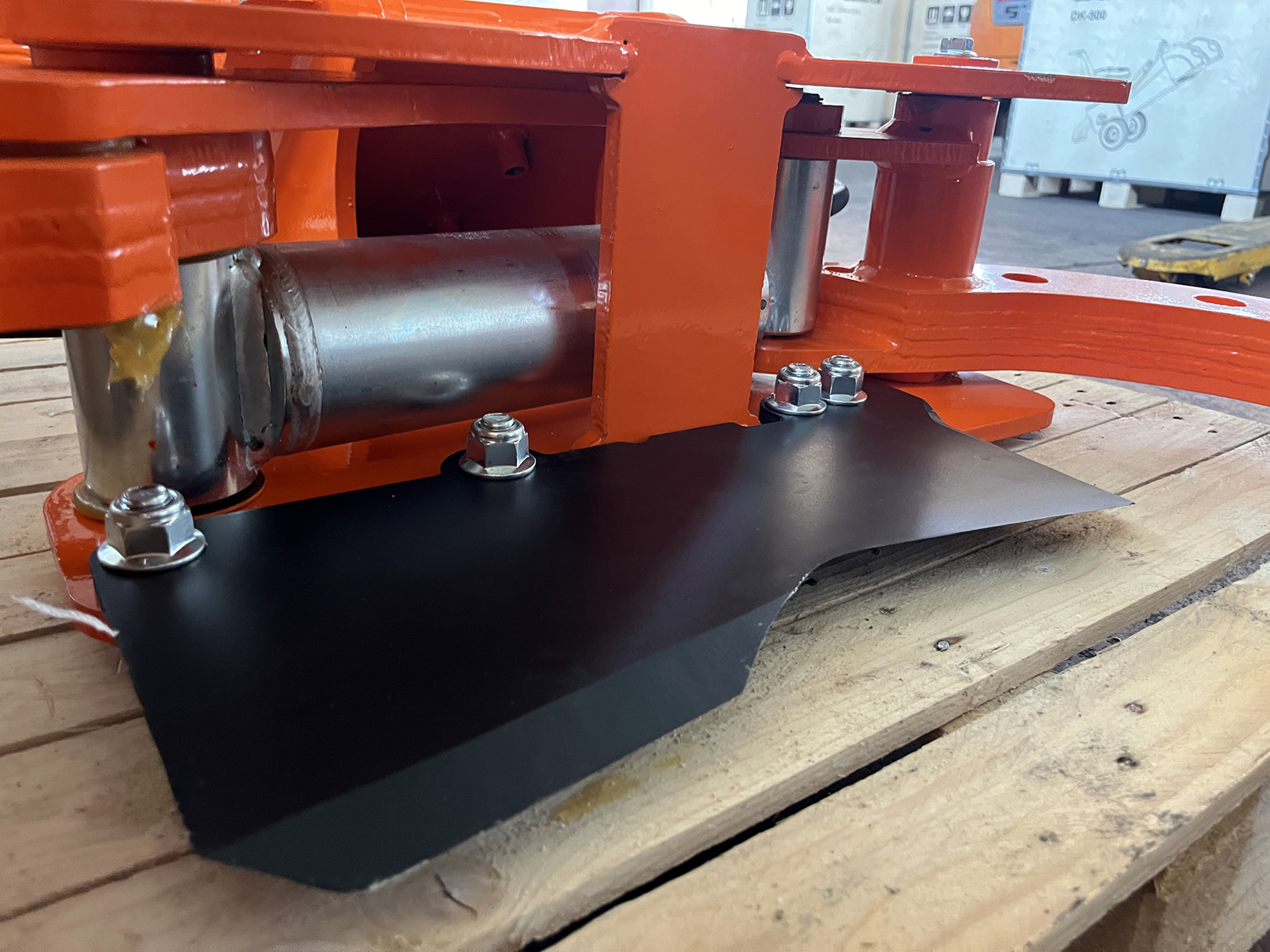

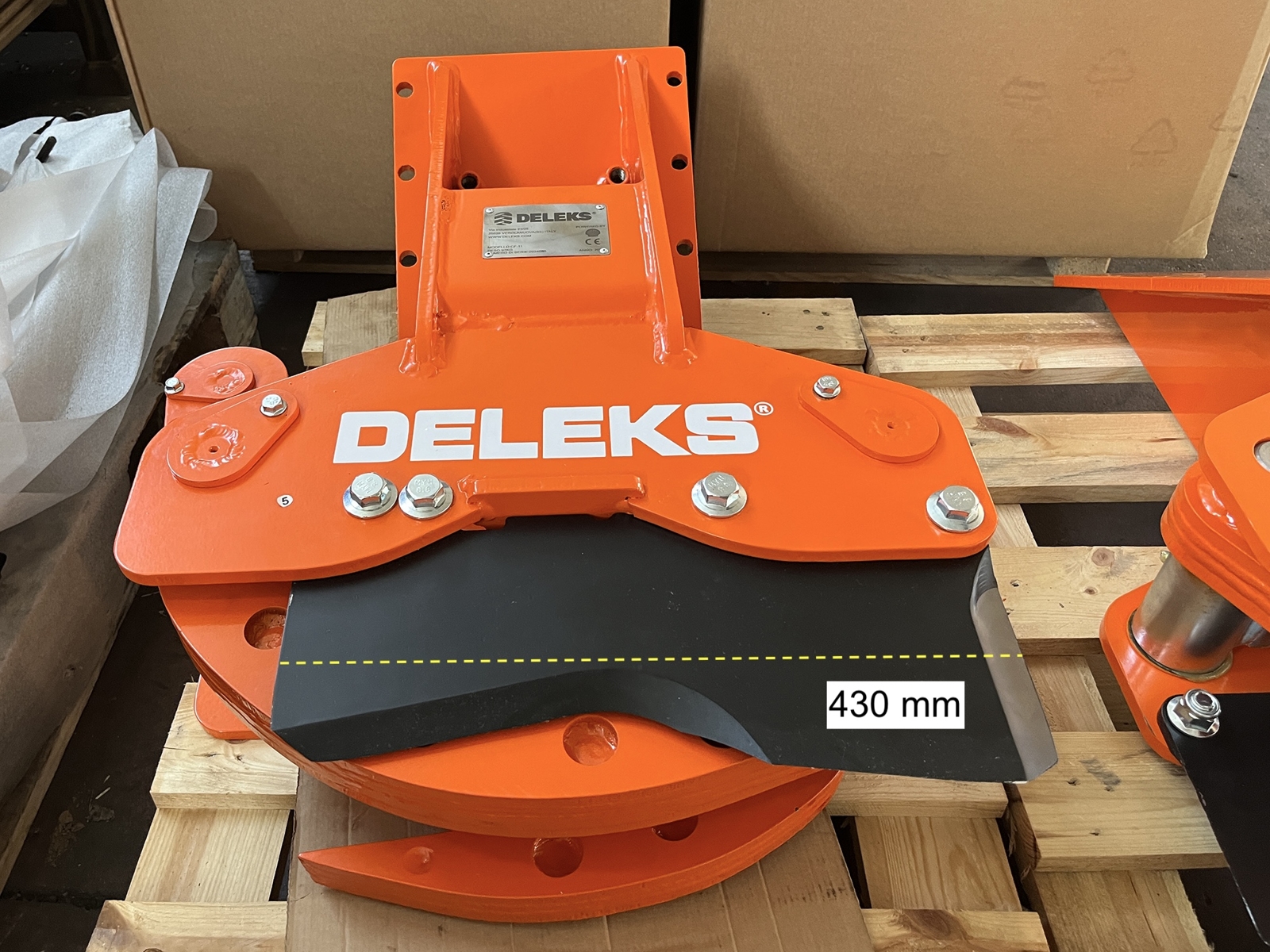

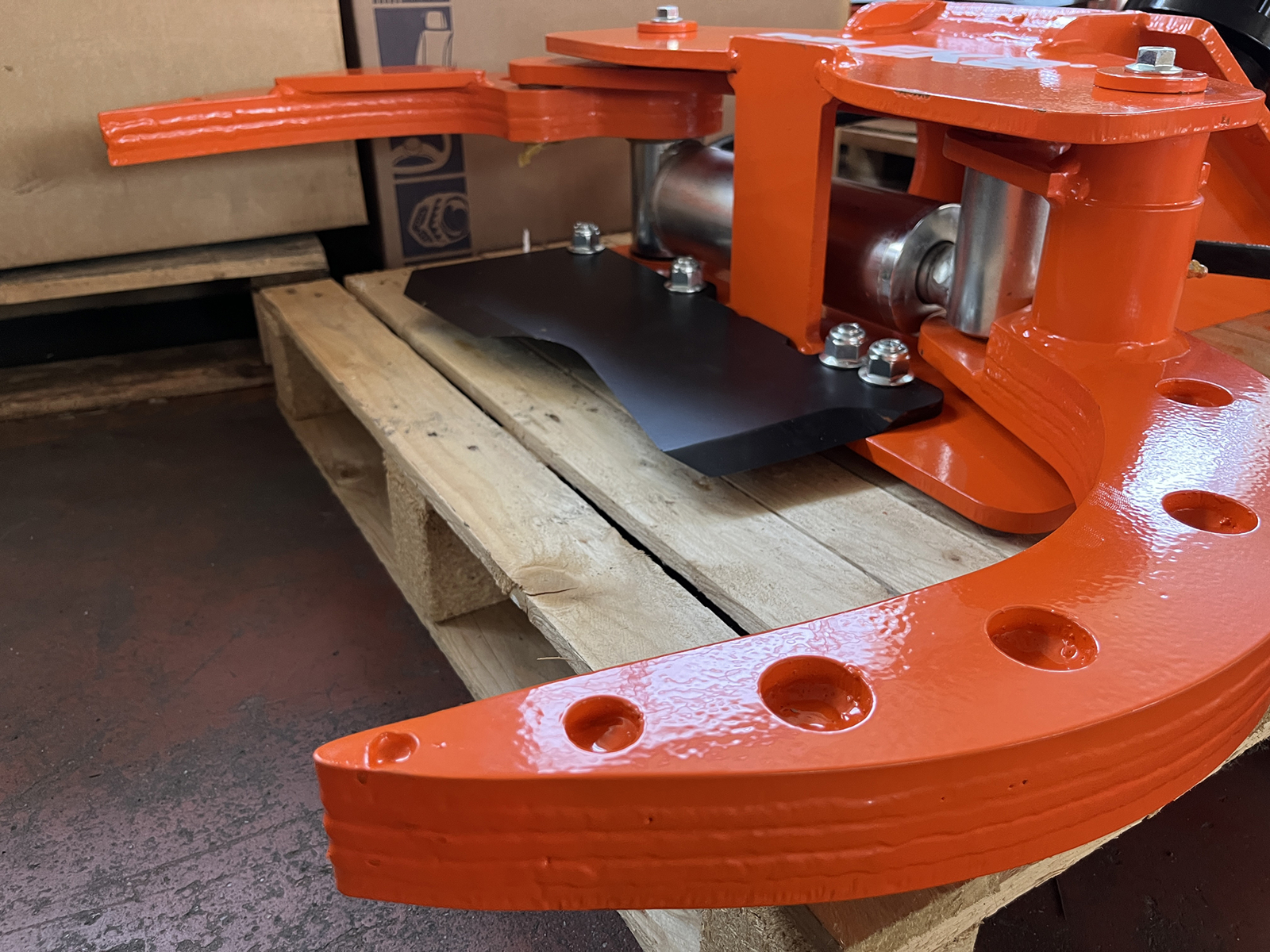

Knife – Made in Italy, hardened 43 HRC.

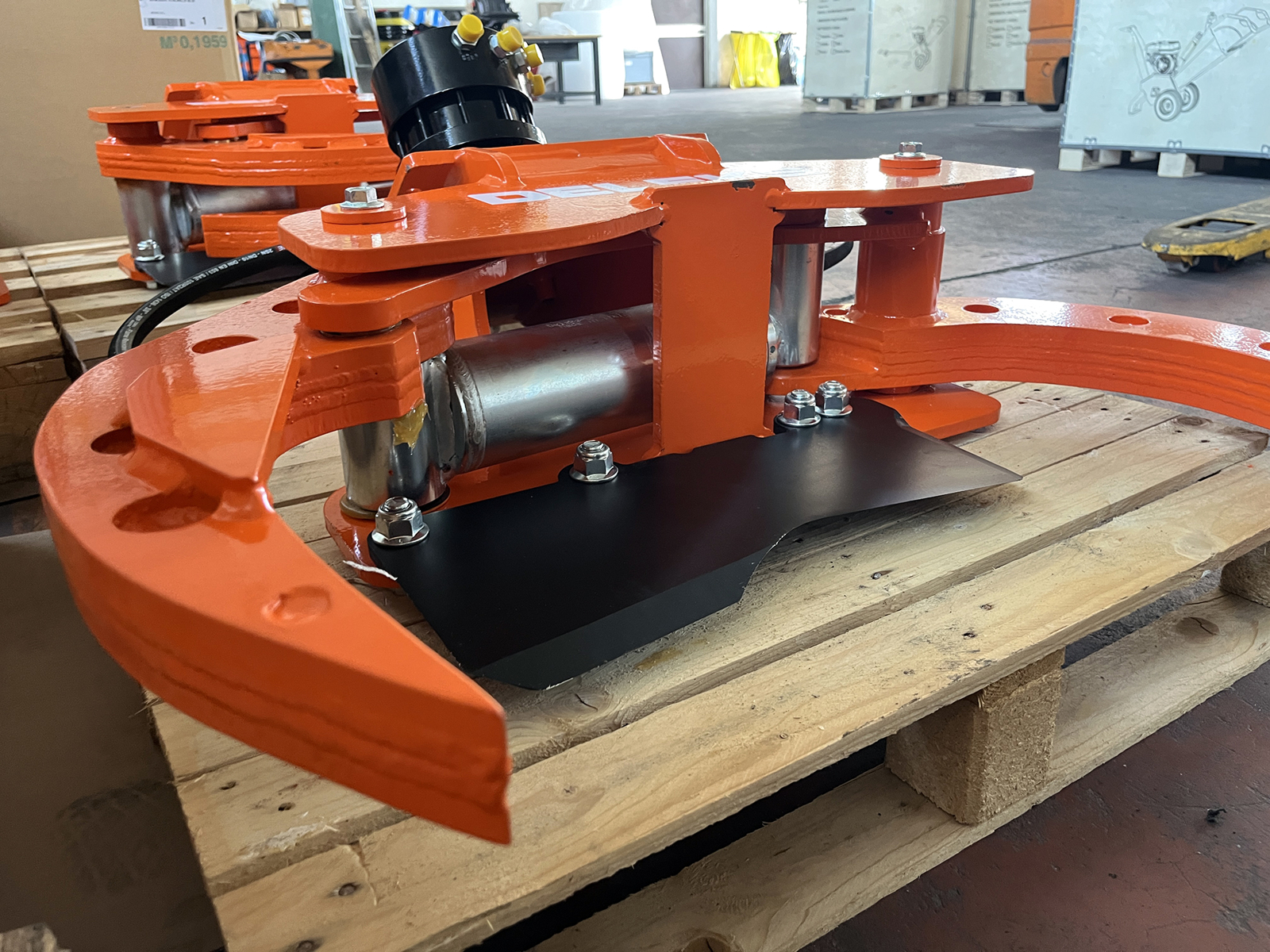

Hydraulic cylinder especially designed for this use with reinforced bottom to bear hight

loads (see drawing A).

Pins in special material 42CrMo4 of ø30 and ø35 mm (see drawing B).

It is simple to attach and use.

Cutting at the ground level > low stump: DELEKS^® CF-11R cuts the wood to be harvested neatly and precisely at the desired point from ground level, and its technical features ensure that stumps are cut low, at ground level.

2-in-1: cutting and loading: if necessary, the cutting blade can be removed, in which case the tree shear acts as a wood grapple.

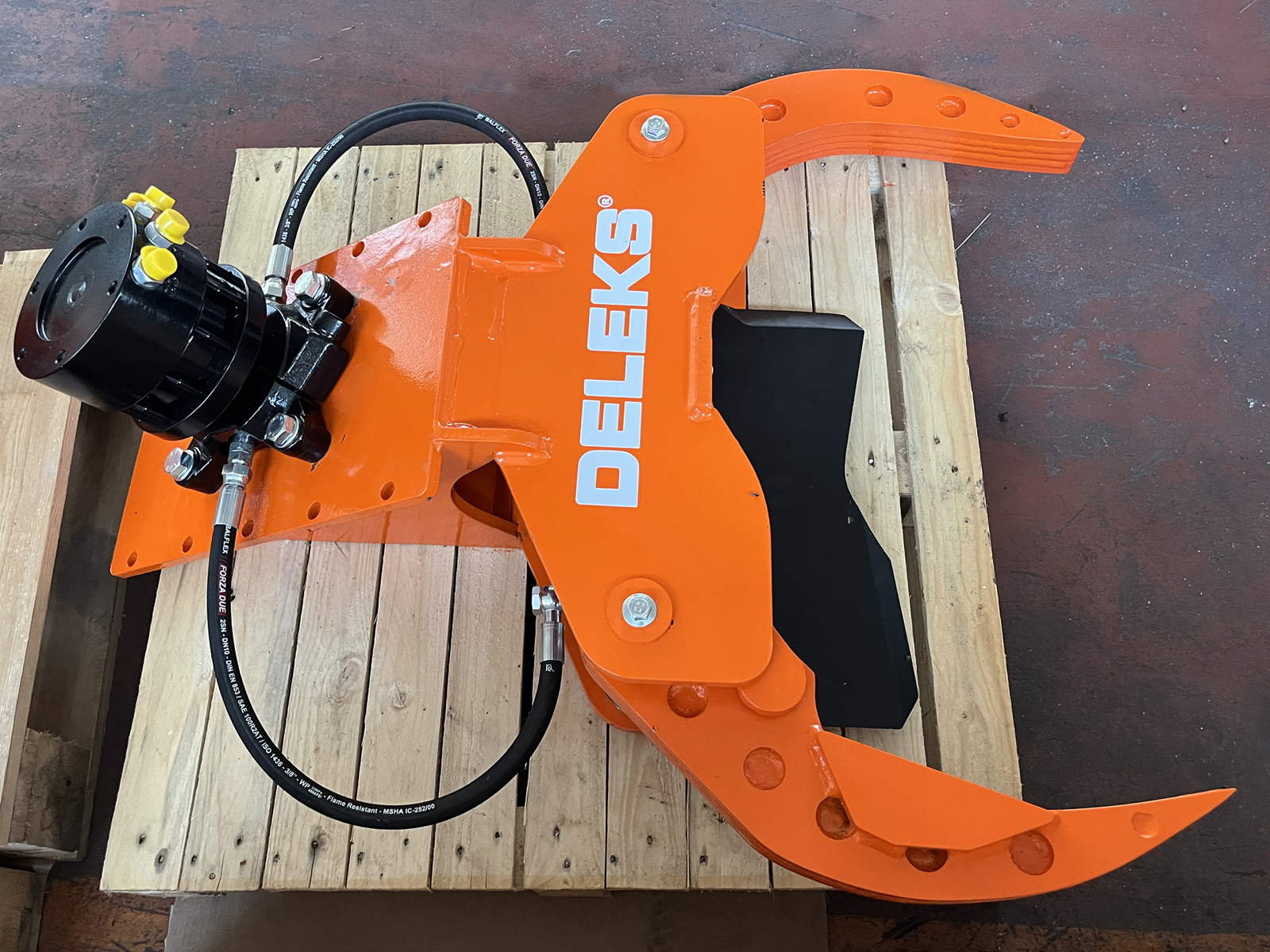

Flanged rotator.
