Reversible plough for tractors like Yanmar, Kubota DRP-25

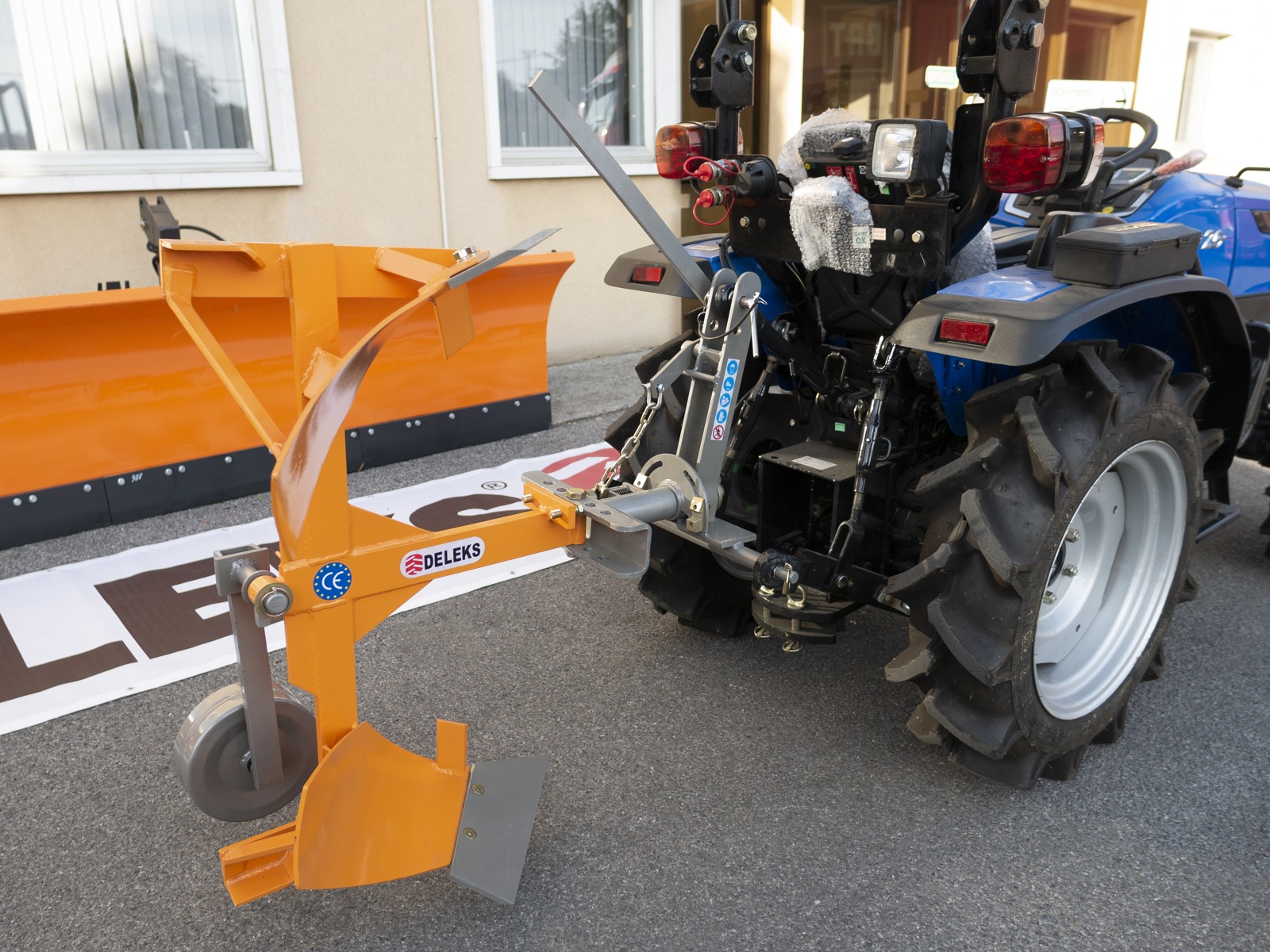

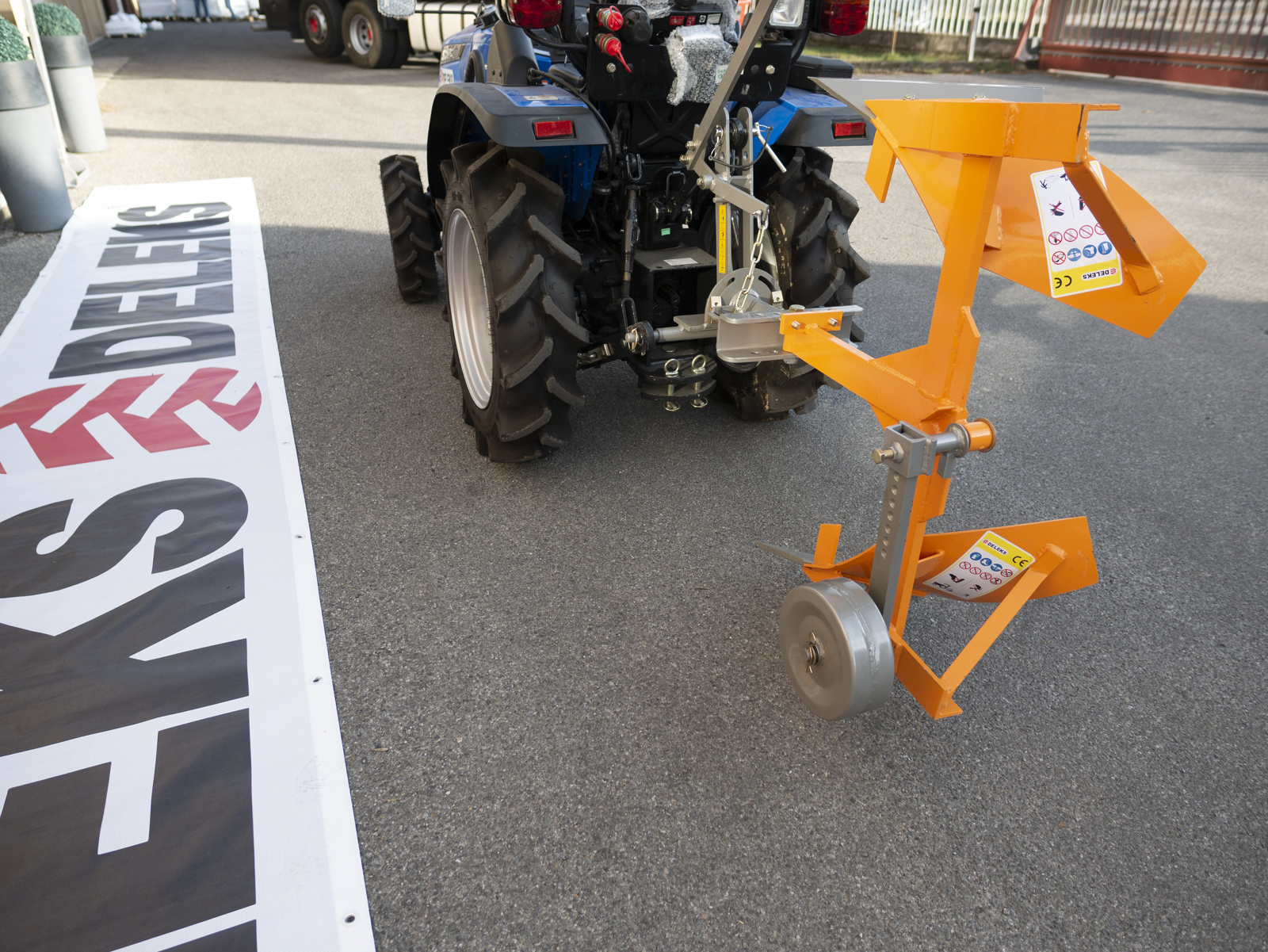

Field test
DETAILS

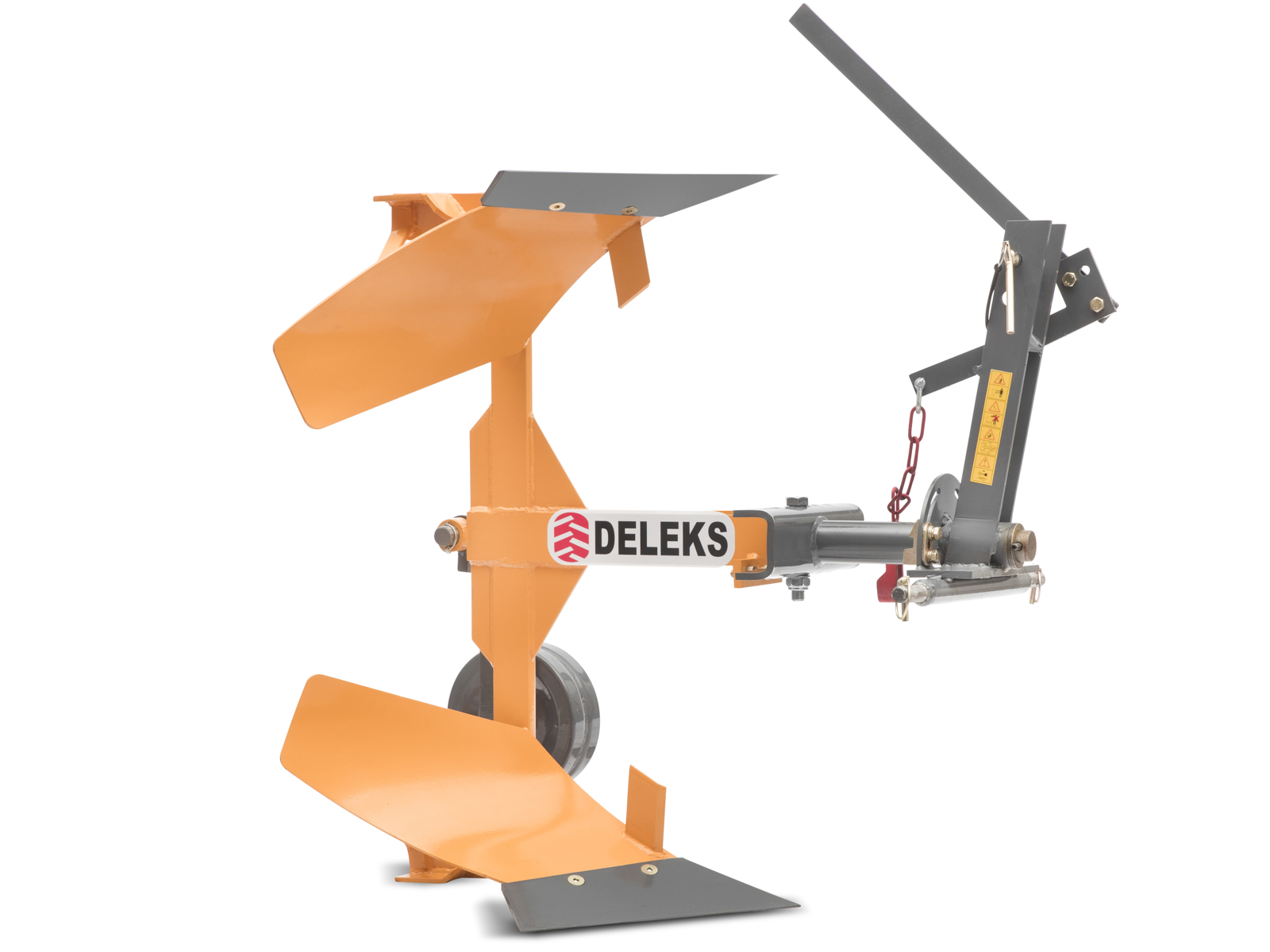

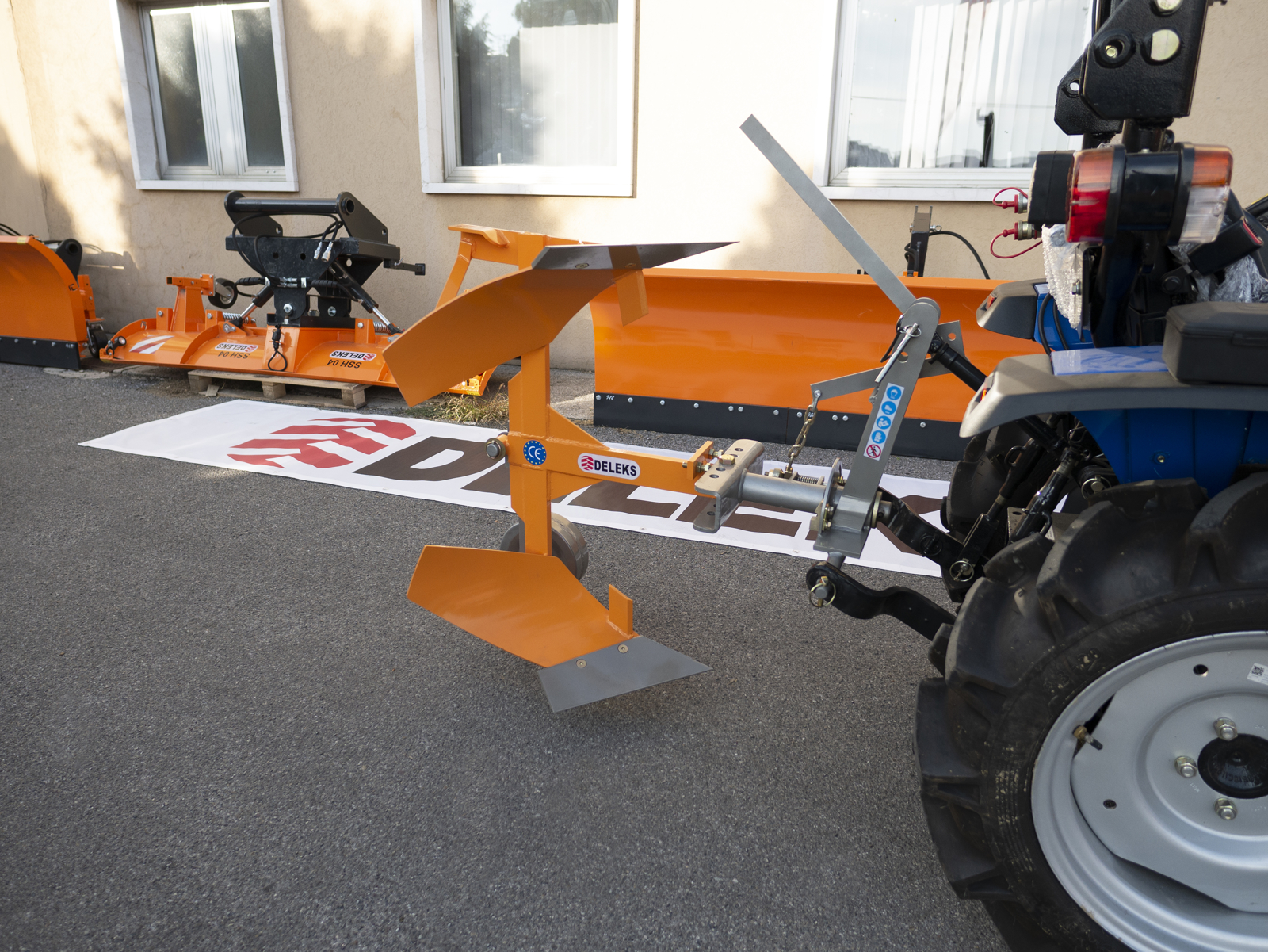

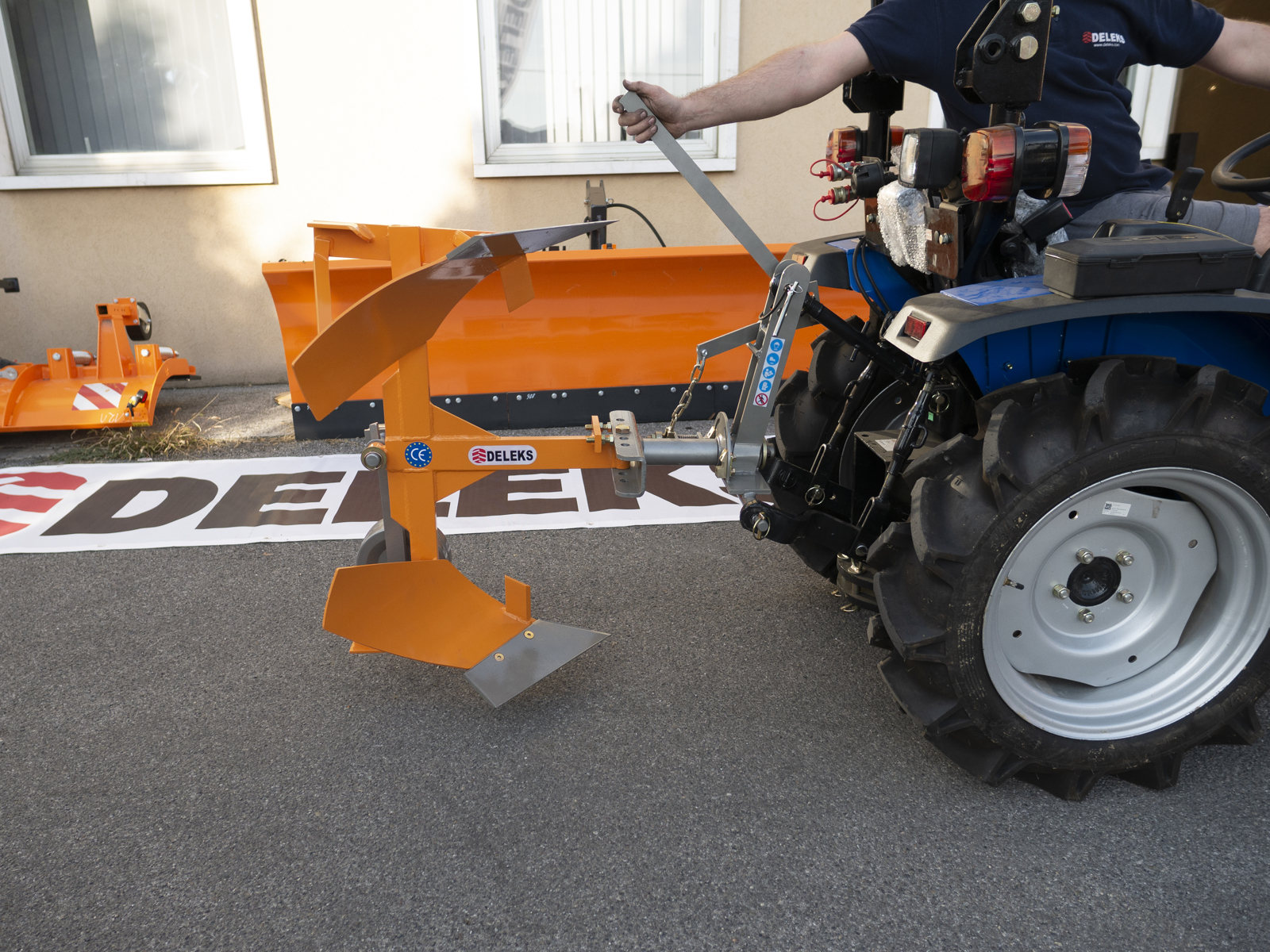

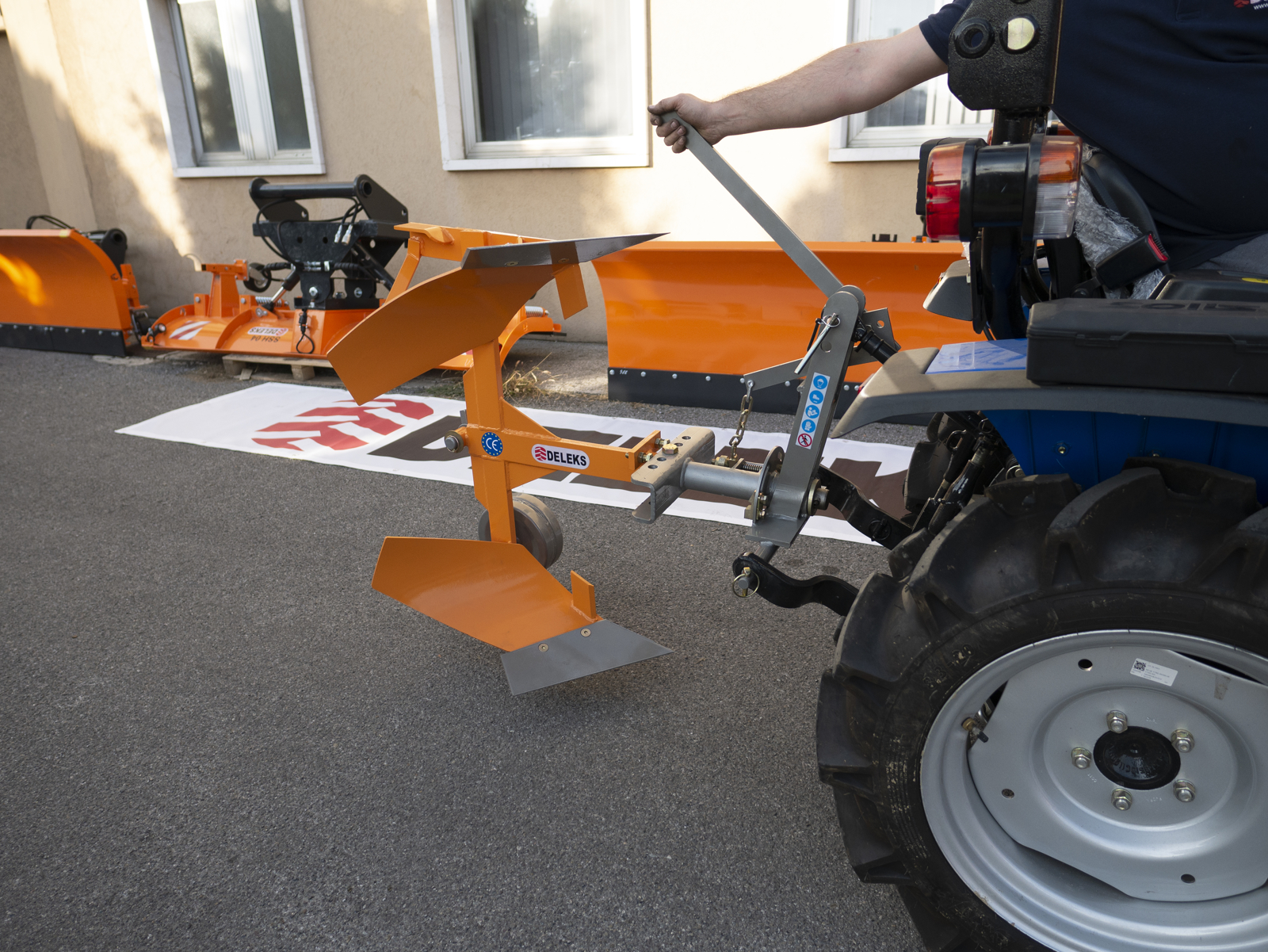

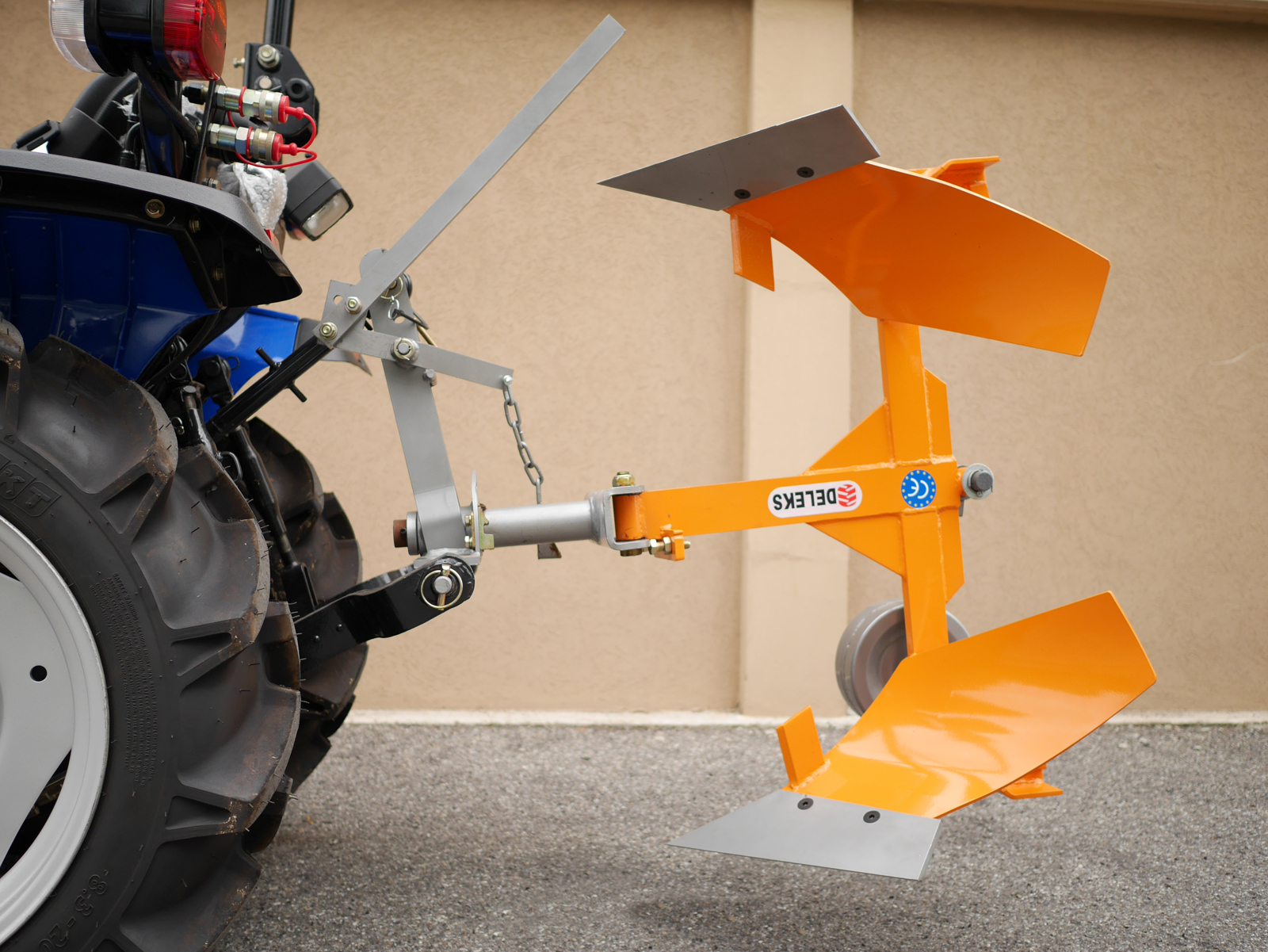

Reversible Plough For 14-35HP Tractors, for Japanese tractors and John Deere | DELEKS® DRP-25
APPLICATION
This time saving, reliable plough has been designed for the most common compact tractor brands (no larger than 1200.0 mm): Japanese tractors like Kubota, Iseki, Kioti, Yanmar, Solis, and compact tractors John Deere, New Holland, McCormick, etc. Designed for cultivating clay or sandy soils. Manual (lever operated) overturning. Universal 3 point linkage Cat. 1. EC Declaration of Conformity. Not suitable for crawler tractors.
BENEFITS & FEATURES
Doubles the ploughing capacity to save time and fuel.
Additional welded frame strengthening parts on the arm to reinforce stress points.
The plough's tilt and depth can be adjusted easily.
Detachable and replaceable coulter.

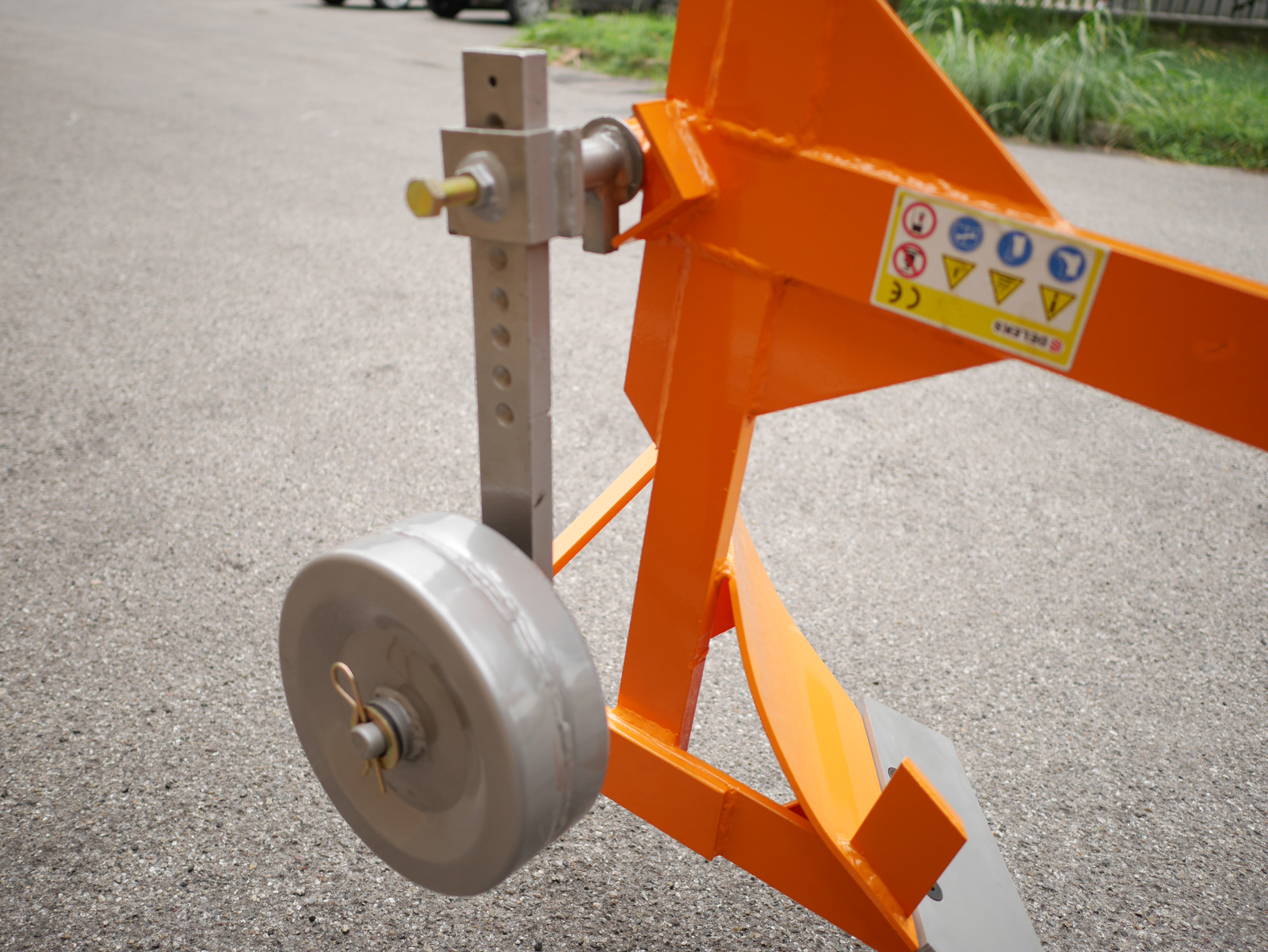

Gauge wheel that allows you to adjust depth and maximize usage.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Overall width | 570.0 mm |
| Weight | 80.0 kg |
| Overall height | 1000.0 mm |
| Tractor Power Range | 14 - 35 HP |

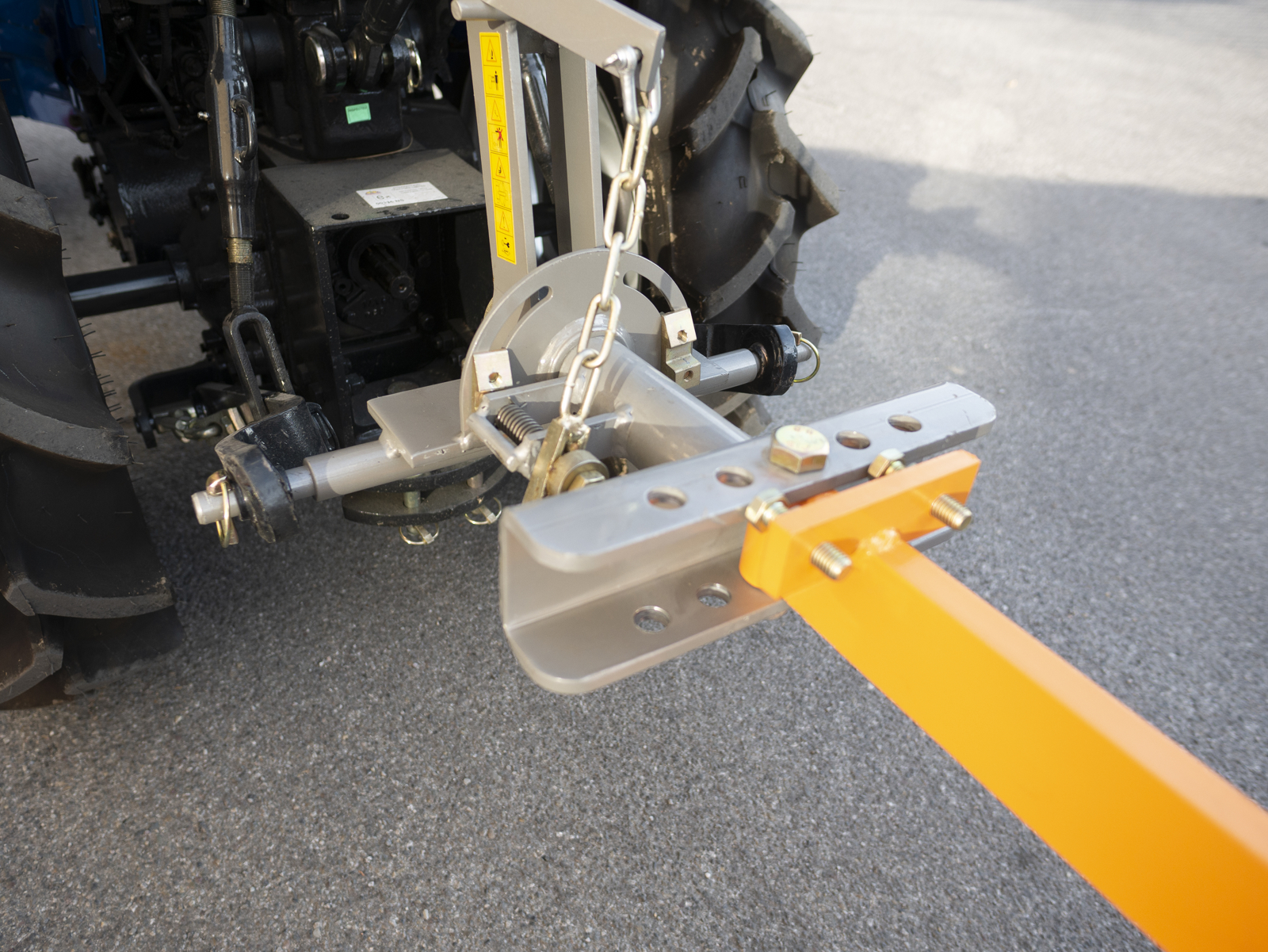

| 3 point linkage | Cat. 1 (ø 19.0-22.0mm) |
| Spacing between the 2 lower points | 400.0 - 500.0 mm |
| Overall length | 1000.0 mm |
| Number of Furrow | 1 |
| Furrow diagonal | 750.0 mm |
| Width of cut | 295.0 mm |

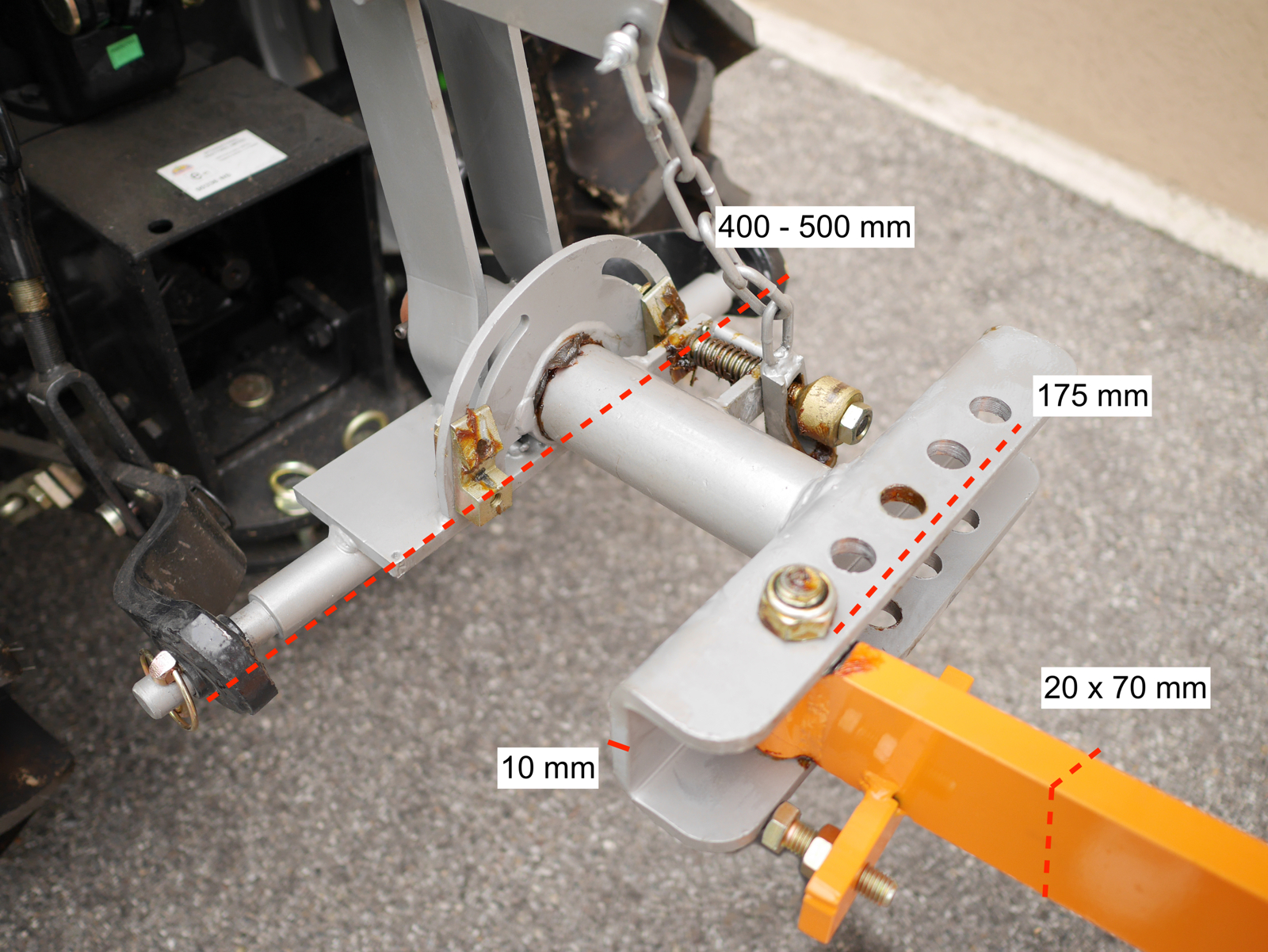

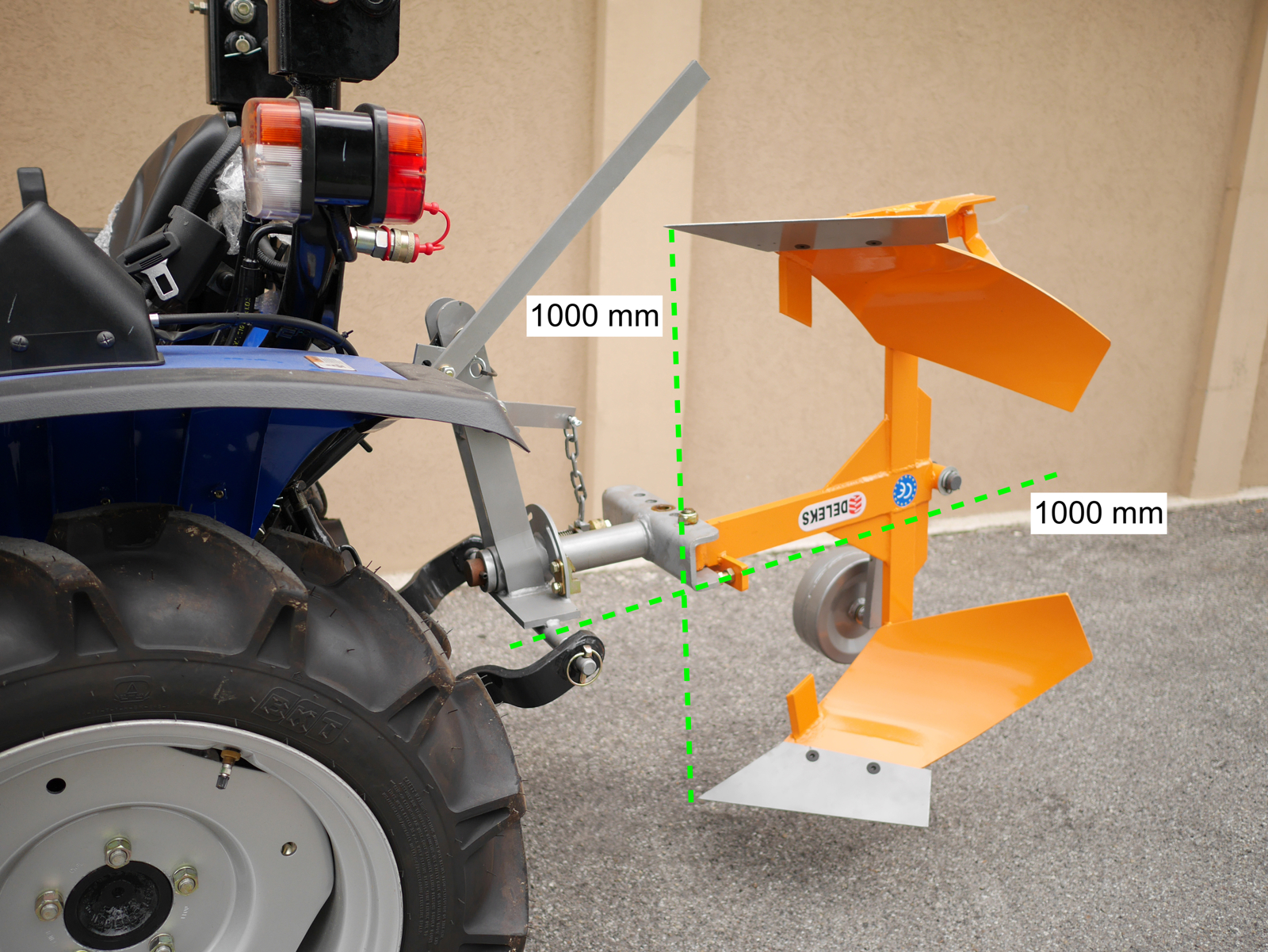

| Other sizes | See pictures |
| Effective Displacement | 175.0 mm |
| Thickness of the arm | 20.0*70.0 mm |

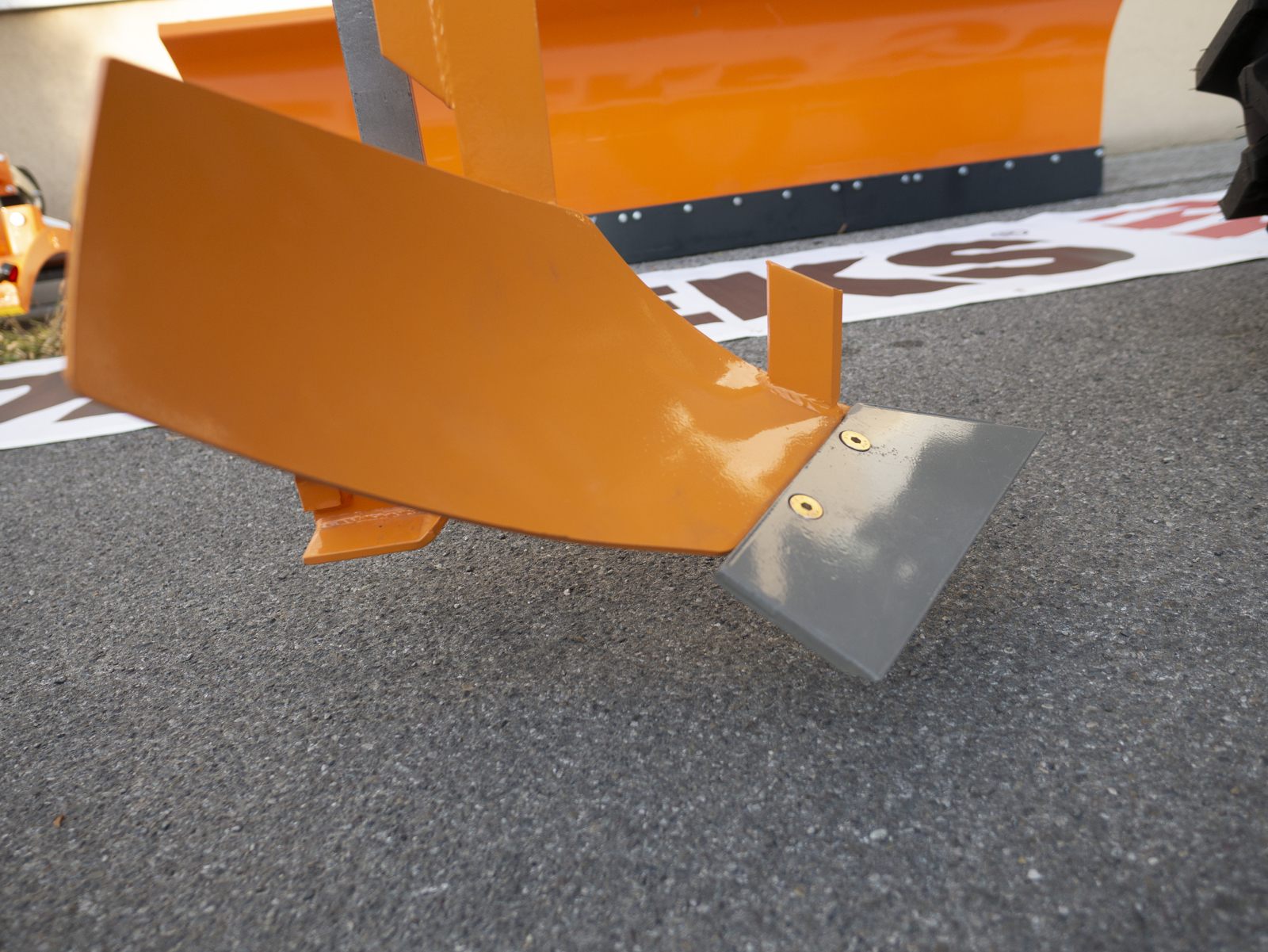

| Cutting Edge Lenght | 395.0 mm |
| Cutting Edge Thickness | 12.0 mm |
| 3 point Linkage tube sizes | 90.0*35.0 mm |
| Depth adjustment Wheel sizes | ø 25.0 * 10.0 mm |
| Tipping Mechanism | Mechanical |
| Working Depth | 160.0 - 220.0 mm |
| Packing sizes | 600.0*1020.0*500.0 mm |
